What is LOCTITE glue, history of the LOCTITE brand

LOCTITE is an American brand of adhesives, sealants and surface treatments, including acrylic, anaerobic, cyanoacrylate, epoxy, hot melt, silicone, urethane and UV/light cure technologies. Loctite products are sold globally and used in a variety of industrial applications.

In 1953, American professor Vernon K. Krieble developed an anaerobic thread sealant in his basement laboratory at Trinity College in Hartford, Connecticut. Krieble's company, American Sealants, created the Loctite brand, which was promoted as ushering in a new era of mechanical reliability by eliminating vibrational loosening of mechanical fasteners, a frequent cause of machine failure. In 1956, the name Loctite was chosen by Krieble's daughter-in-law, Nancy Brayton Krieble. The LOCTITE brand was officially launched to the public at a press conference at the University Club of New York on July 26 of that year.

After 44 years of development with many great achievements, in 1997, Loctite was acquired by Henkel, a German Fortune 500 company as a leading brand. Since then, Loctite has remained a key brand of Henkel and is a supplier of household adhesives, epoxies, spray adhesives, construction and home repair adhesives, sealants and fillers. In recent years, the company has increased its focus on green and sustainable technologies.

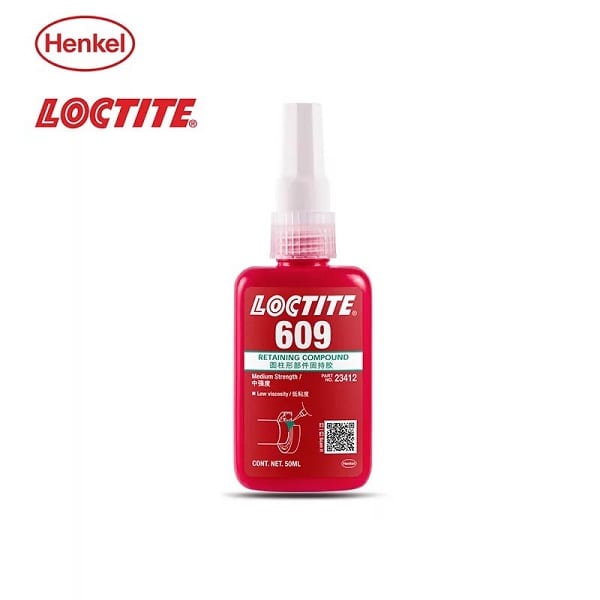

Loctite 609 Adhesive – Product introduction and instructions for use

Loctite 609 glue is the latest thread locking glue product of Loctite up to now. Therefore, the product has different improvements, bringing the most usefulness to users.

For general use Recommended for preventing rotation of parts that may need to be removed later, e.g. holding bearings on shafts, or bearings in bearing housings. Meets US military standard (R–46082B) Type I

When a shear force (N/mm²) < 2.30 psi(15.8) is applied to the surface , loctite 609 adhesive will not separate.

Loctite 609 glue has the ability to overflow and fill gaps up to 0.005” (0.1mm) in diameter. When the glue is in solid form, it can withstand temperatures up to 300ºF (150C)º.

The special feature of loctite 609 glue is to prevent rotation of needle roller bearings or bushings installed in oil-contaminated bearings; and absolutely prevent metal corrosion. Suitable for use with all types of machinery and equipment.

The glue sets within 10 minutes and is completely set, achieving maximum effectiveness after 24 hours.

Loctite 609 adhesive specifications

– Force transmission capacity: Medium
– Shearing force (N/mm²): 2.30 psi(15.8)
– Diameter clearance: Up to 0.005”(0.1mm)
– Heat resistance: 300ºF(150C)º
– Setting time (can be assembled into machine/completely): 10 minutes/24 hours
– Product specifications: 50ml bottle or 250ml bottle

Link technical document Loctite 609 Adhesive:

https://tdsna.henkel.com/NA/UT/HNAUTTDS.nsf/web/3E906D6B842166B0882571870000D855/$File/609-EN.pdf

Loctite 609 Adhesive Application

Recommended for parts that need to be removed later. Especially suitable for military applications.
For example: Strong adhesion and holding of bearings on shafts, or bearings in bearing housings. Meets US military standard (R – 46082B) type I

When should loctite 609 glue be used ?

You can use loctite 609 glue to prevent thread stripping or to seal gaps.

With the main function of anti-rotation as above, loctite 609 glue is often used mainly for prevention. This will create more safety for machinery and equipment than when you let the machine break down before reinforcing it.

Loctite 609 has high load-transfer and strength properties, and can withstand shear forces up to 2.30 psi (15.8). It can also fill gaps up to 0.005” (0.1mm) in diameter.

Loctite 609 glue has a heat resistance of up to 300ºF(150C)º. Suitable for use in the internal engine of the machine.

Loctite 609 glue can also fix joints on steel in 4 minutes. With normal machines, the glue will dry in about 10 minutes and completely dry in 24 hours.

Instructions for using Loctite 609 glue

For best results, clean surfaces (inside and outside) with cleaning solvent and allow to dry. To speed up the bonding process or have large gaps, use primer and allow to dry.

For assembly, apply adhesive around the leading edge of the pin and inside the pin neck and use a rotating motion during installation to ensure best fit.

For press-fit assembly, thoroughly glue the reverse side and assemble at high compression to level.

For compact assembly products, the adhesive must be applied to the part to create a smooth film of material. If the center is heated for assembly, attach the battery. If the battery is cooled for assembly, apply the main host. If both heating and cooling are performed, apply the material to cool the part. Avoid condensation on the cooling parts.

Notes on how to use and preserve Loctite 609 Adhesive product

Loctite 609 glue can dry within 10 minutes and can shrink the glue surface within 4 minutes. Therefore, when not using the product, you need to close the lid tightly. Make sure that oxygen does not directly contact the product for a long time. Because this can reduce the main quality of the product.

When using loctite 609 glue to lock welds, screws, and threaded parts. You should use a moderate amount. Avoid using too much, which is both wasteful and increases the bonding time of the product.

Store product in a cool, dry place.
