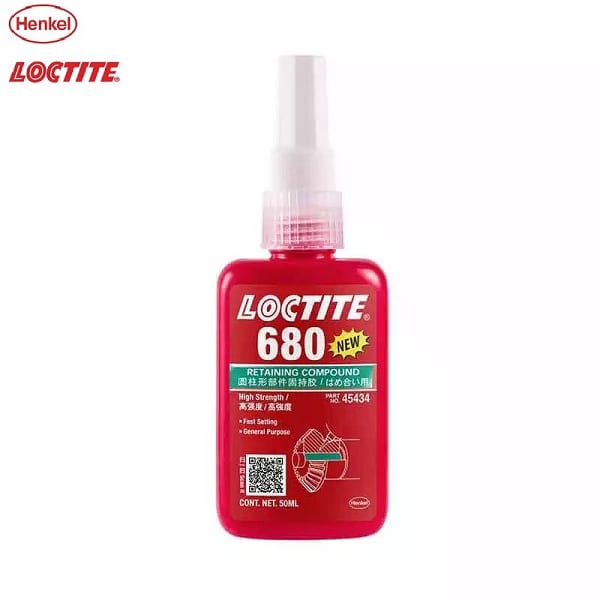

Loctite 680 Adhesive – Product Introduction

Loctite 680 glue is the latest thread locking glue product of Loctite up to now. Therefore, the product has different improvements, bringing the most usefulness to users.

For general use Recommended for preventing rotation of parts that may need to be removed later, e.g. holding bearings on shafts, or bearings in bearing housings. Meets US military standard (R–46082B) Type I

When a shear force (N/mm²) < 2.30 psi(15.8) is applied to the surface , loctite 680 adhesive will not separate.

Loctite 680 glue has the ability to overflow and fill gaps up to 0.005” (0.1mm) in diameter. When the glue is in solid form, it can withstand temperatures up to 300ºF (150C)º.

The special feature of loctite 680 glue is to prevent rotation of needle roller bearings or bushings installed in oil-contaminated bearings; and absolutely prevent metal corrosion. Suitable for use with all types of machinery and equipment.

The glue sets within 10 minutes and is completely set, achieving maximum effectiveness after 24 hours.

Loctite 680 adhesive specifications

+ Force transmission capacity: High
+ Shearing force (N/mm²): Minimum 2,800 psi(19.3)
+ Diameter clearance: Up to 0.015”(0.4 mm)
+ Heat resistance: 300ºF(150C)º
+ Setting time (can be assembled into machine/completely): 10 minutes/24 hours
+ Product specifications: 50ml bottle or 250ml bottle

Applications of Loctite 680 Adhesive

Loctite 680 high strength anti-rotation: very good application in environments with dynamic loads, axial forces and radial forces.

You can use loctite 680 glue to prevent thread stripping or to seal gaps.

With the main function of anti-rotation as above, loctite 609 glue is often used mainly for prevention. This will create more safety for machinery and equipment than when you let the machine break down before reinforcing it.

Loctite 680 has high load-transfer and tensile strength, and can withstand shear forces up to 2.30 psi(15.8). It can also fill gaps up to 0.015”(0.4 mm) in diameter.

Loctite 680 glue has a heat resistance of up to 300ºF(150C)º. Suitable for use in the internal engine of the machine.

Loctite 609 glue can also fix joints on steel in 4 minutes. With normal machines, the glue will dry in about 10 minutes and completely dry in 24 hours.

Instructions for using Loctite 680 glue

For best results, clean surfaces (inside and outside) with cleaning solvent and allow to dry. To speed up the bonding process or have large gaps, use primer and allow to dry.

For assembly, apply adhesive around the leading edge of the pin and inside the pin neck and use a rotating motion during installation to ensure best fit.

For press-fit assembly, thoroughly glue the reverse side and assemble at high compression to level.

For compact assembly products, the adhesive must be applied to the part to create a smooth film of material. If the center is heated for assembly, attach the battery. If the battery is cooled for assembly, apply the main host. If both heating and cooling are performed, apply the material to cool the part. Avoid condensation on the cooling parts.

Notes on how to use and preserve Loctite 680 Adhesive

Loctite 680 glue can dry within 10 minutes and can shrink the glue surface within 4 minutes. Therefore, when not using the product, you need to close the lid tightly. Make sure that oxygen does not come into direct contact with the product for a long time. Because this can reduce the main quality of the product.

When using loctite 680 glue to lock welds, screws, and threaded parts. You should use a moderate amount. Avoid using too much, which is both wasteful and increases the bonding time of the product.

Store product in a cool, dry place.

Where to buy high quality Loctite 680

In the current market, there are many establishments selling Loctite 680 glue. However, not all establishments bring a quality product to customers. Therefore, customers need to carefully consult the information before making a decision.

Loctite VN – the only authorized distributor of the Loctite brand in Vietnam is a perfect choice. Products with clear origin, transparent prices and good service quality will make customers extremely satisfied. When purchasing at Loctite VN, customers also receive dedicated advice from the staff.

When you want to buy Locite 680 glue, visit the website tongkhokeodan to receive special preferential prices. Or you can go directly to the Locite distribution system in Vietnam at branches in 3 regions to own the best quality products. Contact:
