Product Description

High quality double glazing tempered insulated glass for commercial windows

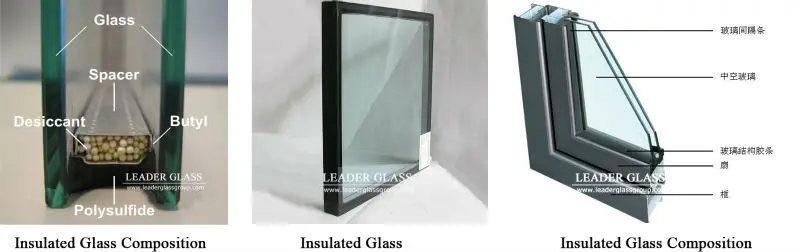

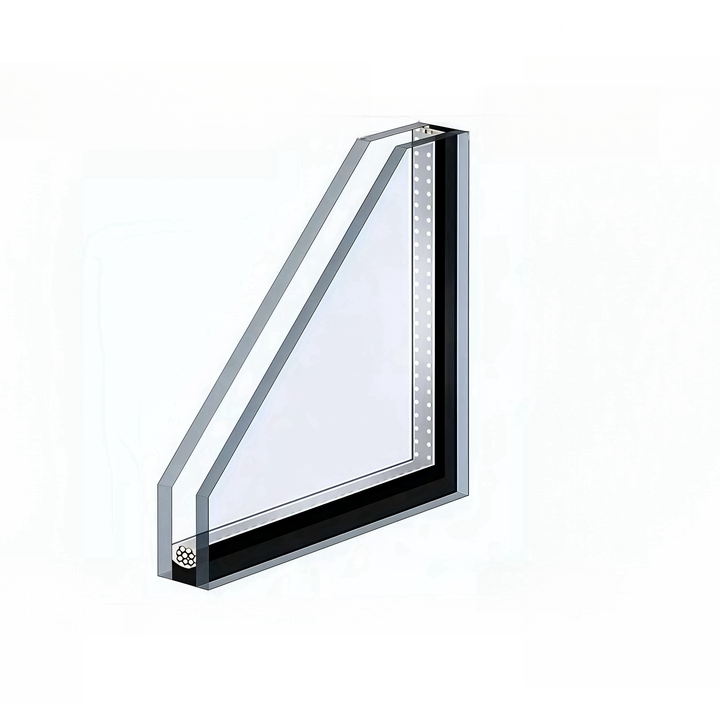

Insulated glass also known as double glazing is a double or triple glazed window separated by an air or other gas space to reduce heat transfer through a part of the building envelope.

Glass in windows is used to provide light and to allow side-to-side visibility. Although the composition and manufacturing process of glass have been discussed elsewhere, for the purposes of this article, the importance of glass to a building’s structure lies in its dimensional stability over a wide temperature range.

Product Name	Double glazing
Material	Float glass, Low_E glass
Color	Transparent, super transparent
Standard	ISO standards
Air	Argon, Nitrogen
Thickness	According to customer requirements
Size	All sizes are customizable
Used	Windows, Doors and Walls

Glass specifications

Insulated glass specifications

Insulating glass is manufactured with glass thicknesses ranging from 3mm to 10mm or more in special applications. Laminated or toughened glass may also be used as part of the structure. Most units are manufactured with the same glass thickness used on both panes but special applications such as sound reduction or security may require a combination of different thicknesses within the same unit. To reduce shearing effects on the sealed unit (a major cause of premature failure), manufacturers use a general rule of thumb that allows a 1mm difference between the panes of glass used in the unit and still maintain the warranty on the unit. For example, a unit may be ordered with 4mm glass on the outside and 3mm glass on the inside. These variations are permitted for architectural and cost reasons. Other combinations may be specified and manufactured but the manufacturer may reserve the right to limit the warranty period or refuse to cover the entire unit.

Insulated glass specifications
Thickness (mm)	3+4A+3	3+6A+3	3+9A+3	3+12A+3	3+16A+3
	4+4A+4	4+6A+4	4+9A+4	4+12A+4	4+16A+4
	5+4A+5	5+6A+5	5+9A+5	5+12A+5	5+16A+5
	6+4A+6	6+6A+6	6+9A+6	6+12A+6	6+16A+6
	8+4A+8	8+6A+8	8+9A+8	8+12A+8	8+16A+8
	10+4A+10	10+6A+10	10+9A+10	10+12A+10	10+16A+10

Size	Maximum size: 2440x3300mm
Size	All sizes are customizable
Color	Transparent, green, blue, gray...etc
Product types	Regular glass is double glazing, Silk Screen double glazing, Low-e double glazing

Insulating glass applications

1. Glass curtain wall
2. Glass windows
3. Greenhouse porch
4. Glass table...etc.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?

A: We are factory.

Q: What is your delivery time?

A: Normally 5-10 days if the item is in stock. Or 15-20 days if the item is not in stock, depending on the quantity.

Q: Do you provide samples? Are samples free or extra charge?

A: Yes, we can provide free samples, customized will be charged. However, all samples do not include shipping cost.

Q: What are your payment terms?

A: Payment <=1000USD, 100% in advance. Payment >=1000USD, 30% in advance by T/T, balance before delivery.
If you have other questions, please contact us using the information below:
