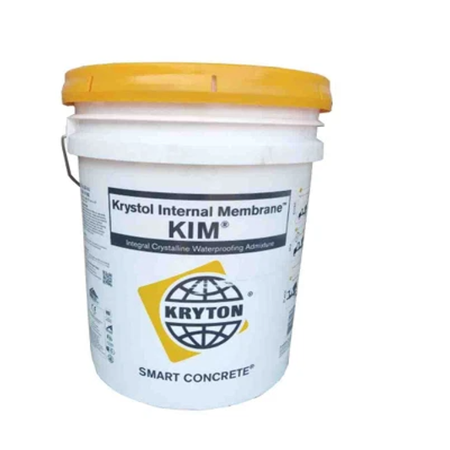

Krystol Internal Membrane (KIM) is a hydrophilic crystalline admixture used to make concrete permanently waterproof.

KIM reduces the permeability of concrete and is used in place of a surface applied waterproofing membrane. By blocking the passage of water through the concrete, KIM adds durability and longevity to the concrete by protecting it against chemical attack and corrosion of steel reinforcement.

KIM contains Krystol technology. When added to concrete, Krystol reacts chemically with water and unhydrated cement particles to form insoluble needle-shaped crystals that fill pores and micro-cracks in the concrete and block the passage of water and contaminants. Whenever moisture is present throughout the life of the concrete, the material will begin to crystallize, ensuring permanent waterproof protection.

FEATURES & BENEFITS

• Admixture that reduces initial permeability and excels under hydrostatic conditions (PRAH)

– Effective against 140 m (460 ft) hydrostatic head pressure

– Self-seals hairline cracks up to 0.5 mm (0.02 in) reliably

– Reduces shrinkage and cracking of concrete

• Better than other crystallizing admixtures on an equivalent weight basis (kg for kg / lb for lb)

– Unique chemical reaction

– Maximum water absorption reduction

– Most reliable self-sealing performance

– Best shrinkage reduction and shrinkage cracking prevention

– Proven to extend life and protect against corrosion

• Easy to add directly to ready mix trucks or to central mixers

• Safe for contact with drinking water

– Certified by NSF to NSF/ANSI Standard 61

• Replaces the need for unreliable membranes, liners and coatings

– Not damaged or decomposed

– Significantly reduce your construction progress

– Reduce maintenance and repair costs

– Increase revenue with larger building area

– Reduce overall waterproofing costs

• Required for closed wall and shotcrete applications

• Extends the life of concrete

– Protect concrete against corrosion of steel reinforcement

– Improved freeze-thaw resistance

– Improved resistance to water chemicals such as sulfates, chlorides and acids

APPLICATION FIELDS

KIM is used to provide waterproof protection for any type of cast-in-place, shotcrete or precast concrete subject to water, such as:

• Underground parking structures, basements, elevator shafts and foundations of high-rise towers

• Recreational areas such as aquatic centers, aquariums, zoos, water parks and marinas

• Water features such as fountains and waterfalls

• Traffic tunnels, underground pipelines and subway tunnels

• Water reservoirs, water treatment tanks, wastewater and manholes

• Bridges, dams and highway infrastructure

• Concrete house including basement, foundation, swimming pool, floor, bathroom, garage and exterior

• Rooftops and plaza floors are designed appropriately

• Any type of concrete requiring the highest level of protection and durability.
