Product Description

Transparent textured tempered glass solar panel with AR coating on both sides Representation

Solar glass is a kind of glass specially developed for solar cells. The product is made of unique formula and high-quality materials, with iron content below 100ppm. Adopting the world's leading production technology and equipment, the solar glass has a special suede pattern design. This product has the characteristics of high brightness, high stability, waterproof ability and high safety factor, etc. The solar glass produced by our company has passed the U1 certification of the Swiss SPF International Testing Center and has become the first choice for solar cell assembly and solar water heater. Our products are not only consumed domestically but also exported to Europe, America, Japan and Southeast Asia, etc.

Product Specifications

Specifications of solar panel glass.

Thickness: 3.2mm 4mm,5mm,5.5mm,6mm...etc
Color: Transparent
Size: 1524*2134mm, 1650*2140mm, 1650*2440mm, 1830*2440mm, 3300*1900mm, 3210*2140mm, 3300*2134mm, 3210*2250mm, 3300*2250mm, 3660*2134mm, 3660*2250mm, etc. Any size can be produced according to customers' requirements.
Solar glass surface: Mistlite patterned or unpatterned.

TECHNICAL SPECIFICATIONS FOR SOLAR GLASS
THICKNESS	REGULAR SIZE
3.2	1500x2000mm	1524x2134mm	1830*1220mm	1830*2440mm
4	1500x2000mm	1524x2134mm	1830*1220mm	1830*2440mm
5	1500x2000mm	1524x2134mm	1830*1220mm	1830*2440mm
6	1500x2000mm	1524x2134mm	1830*1220mm	1830*2440mm
OTHER SIZES CAN BE CUSTOMIZED, MAX WIDTH OF PRODUCTION LINE SHOULD BE 1800MM.
GLASS TYPE	SUPER CLEAR FLOAT GLASS, LOW IRON
		ULTRA CLEAR LOW IRON GLASS (PAINTED)
		ULTRA CLEAR LOW IRON GLASS WITH AR COATING
GLASS COLOR	SUPER WHITE
GLASS PAINTING FLOWERS	Mistlite Pattern			No design

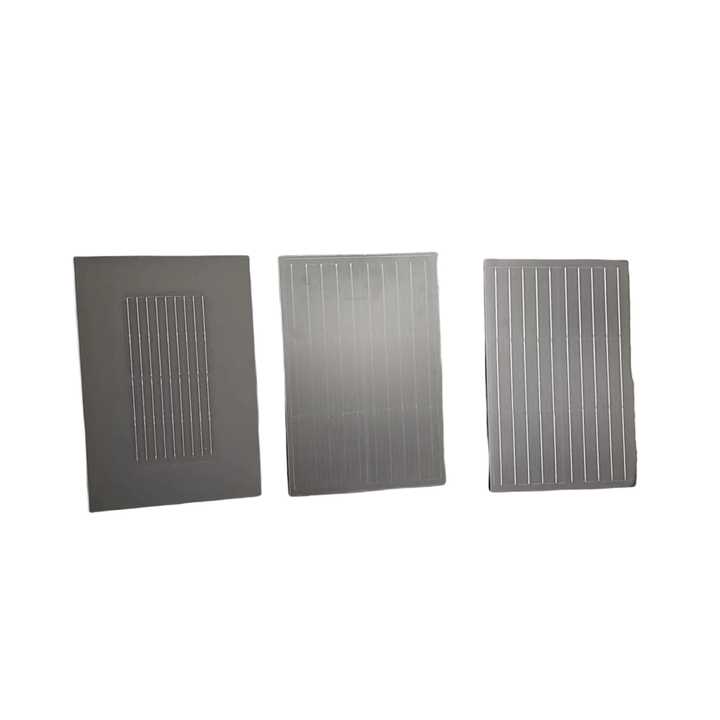

Detailed image

Solar glass

Name: Ultra clear low iron glass (Pattern)

Thickness: 3.2mm, 4mm

Original: China

Super clear glass (sample) main thickness is 3.2mm and 4mm. Main size is 1200*600 and 1000*550mm. Other sizes can be customized.

Solar glass

Name: ULTRA CLEAR LOW IRON FLOAT GLASS
Thickness: 3.2mm, 4mm, 5mm and 6mm
Original: China
Super clear, low iron float glass, main thickness is 3.2mm, 4mm, 5mm and 6mm. Main size is 1830*2140mm and 3300*2140mm. Other sizes can be customized.

Solar glass

Name: Ultra clear, low iron, AR coated glass
Thickness: 3.2mm and 4mm
Original: China
Super clear, low iron, AR coated glass, main thickness is 3.2mm and 4mm. Main size is 1200*600mm and 1000*550mm. Other sizes can be customized. AR coating can help increase reflectivity by 2%-3%.

Product Features

Key features of solar panel glass

1) High light transmittance, more than 91.6%.

2) Low optical defect, comply with EN572-5/94 standard.

3) Easy to cut, coat and temper.

Thick	Visible light transmittance	Visible light Reflectivity	Ultraviolet rays Transmittance	Sun Transmittance	U value	Soundproofing (dB)
Thick	Visible light transmittance	Visible light Reflectivity	Ultraviolet rays Transmittance	Sun Transmittance				(W/m2K)	Room	Rw
3mm	91.7	8	89.5	91	5.8	26	30
3.2mm	91.6	8	89.5	91	5.8	26	30
4mm	91.5	8	89.2	90.8	5.8	27	30
5mm	91.3	8	88.7	90.6	5.8	29	32
6mm	91.1	8	88.2	90.3	5.8	30	34

Our Services

After sales service

* Training on product installation, training on product usage.

* Engineers can service products overseas.

Product Applications

Leader Glass-----Solar panel glass application

1. Solar panels
2. Solar water heater
3. Solar street lights
4. Solar energy

Packaging & Delivery

Inner packaging
Size	All package sizes depend on the product.
Packaging	No fumigated wooden box
Packaging Details	Inside the wooden box, each side is rubber. Each piece of glass is separated by paper. Sometimes, customers request to separate each piece of glass with plastic spacer.

Packaging
Size	All package sizes depend on the product.
Packaging	No fumigated wooden box
Packaging Details	The normal packing is wooden box. All our wooden crates exported to European countries will not use fumigated wooden crates. If the crate is too tight, we will use PE film to pack or pack according to customers' special requirements.

Ultra Clear, Low Iron Solar Glass (Mesh)

Processing: Annealing, Screen Printing, Holes
