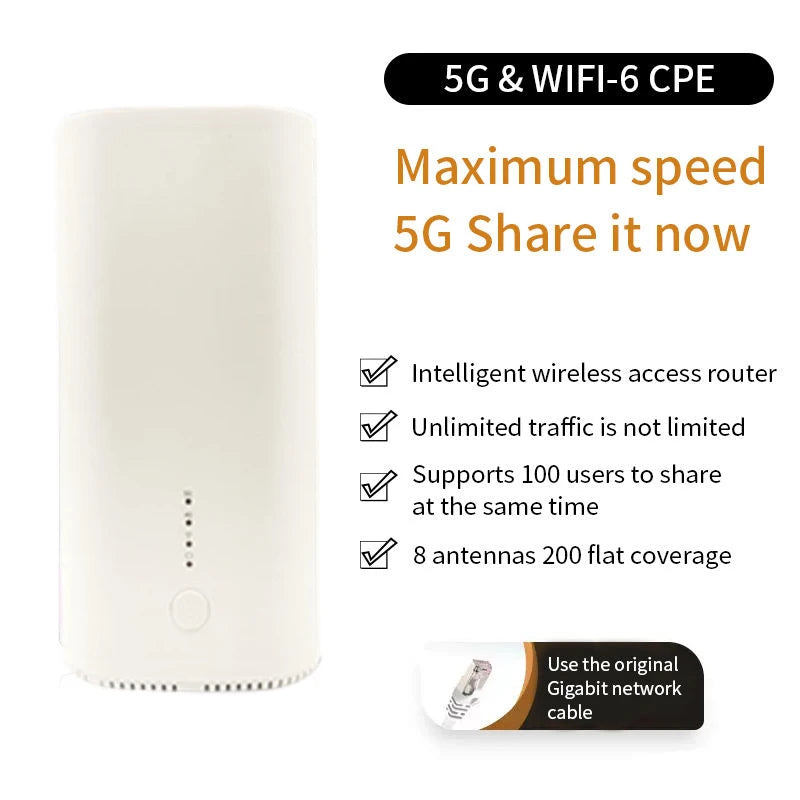

5G Cellular

Built-in MT7981B MT T700 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.

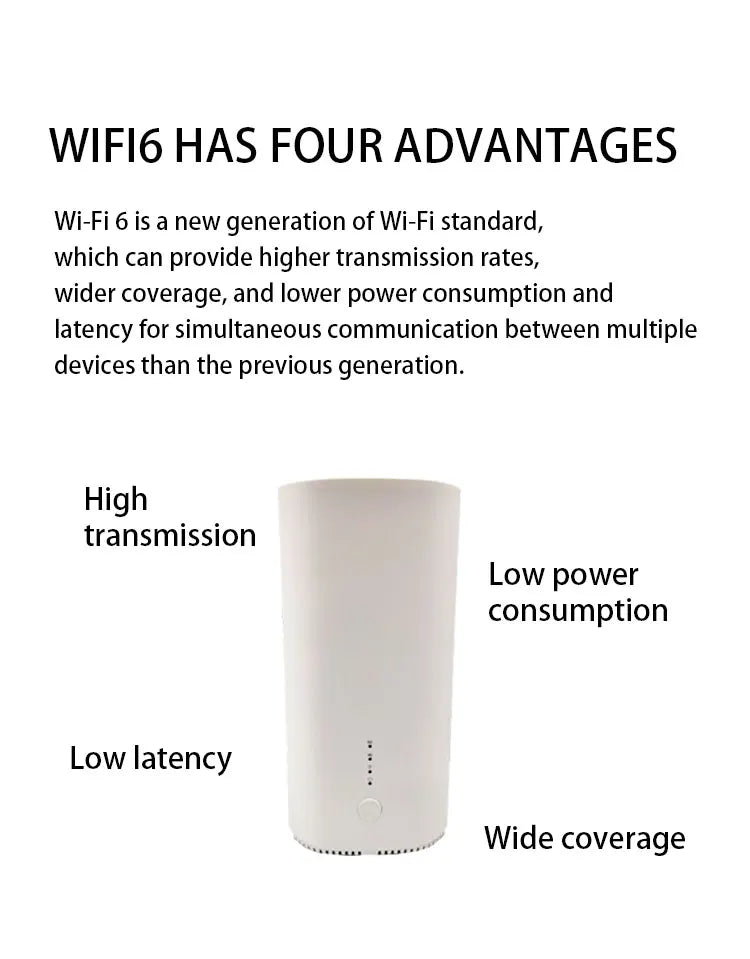

Wi-Fi 6 (802.11ax)

The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line, more client connection, lower latency, best network efficiency.

Higher Wireless Capacity

Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of mine while enjoying UHD videos, online games at the home rush hours. It's the future-proof investment absolutely.

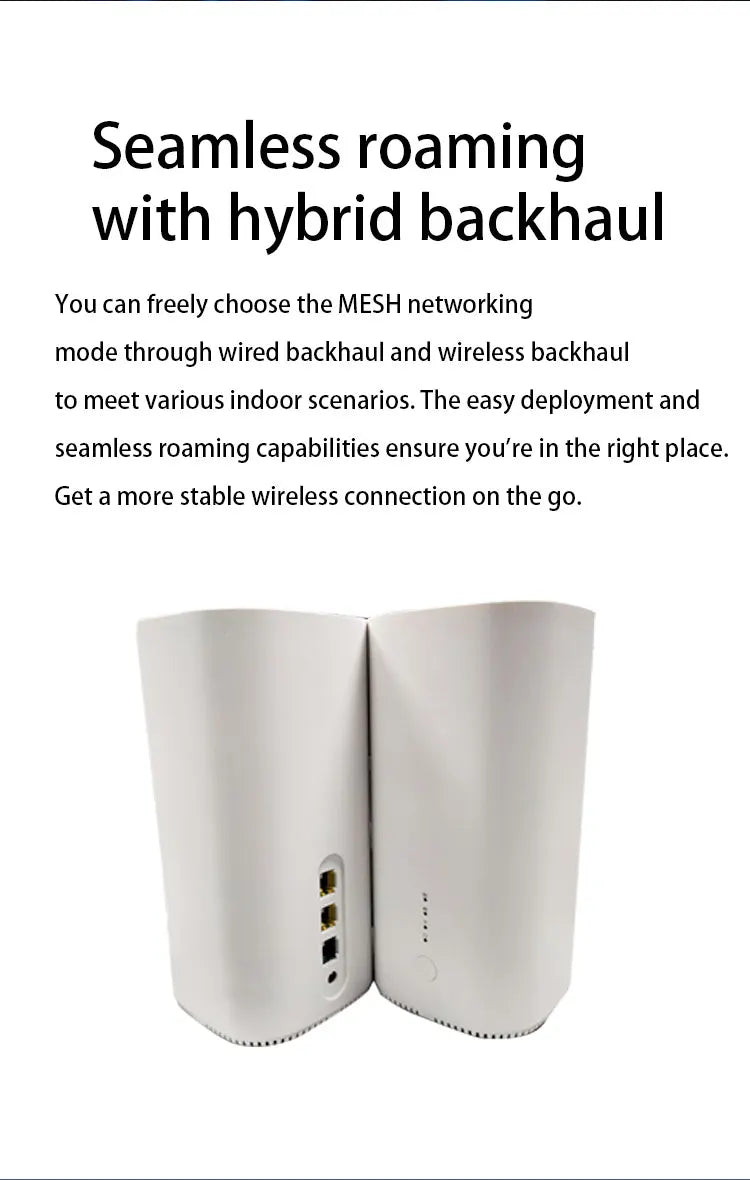

Hybrid MESH+ Networking The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It's so convenient to cover all corners and dead-zones by adding one more MESH+ node(another series of router). it improves the deployments of wireless network and optimizes the seamless feature.

5G Cellular

1) 5G Baseband: MT7981B MT T700 System

2) 5G Network Modes: SA/NSA Support NR CA

3)

• 5G Sub-6: n1/2/3/5/7/8/20/25/28a/28b/30/38/40/41/48/66/71/77/78/79

n80*/81*/82*/83*/84*

• LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28a/28b/29/30/32/ 66/71

• LTE TDD: B34/38/39/40/41/42/43/48

• WCDMA: B1/2/4/5/8

•MIMO:

5G NR: DL 4×4 MIMO: n1/2/3/7/25/30/38/40/41/48/66/77/78/79

UL 2×2 MIMO: n41/77/78/79

LTE : DL 4×4 MIMO: B1/2/3/4/7/25/30/34/38/39/40/41/42/43/48

WiFi 6 (802.11ax)

1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz

2) Coding Technology:1024-QAM / OFDMA

3) Peak Connections:>100+ Clients

4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward

5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components.

1) Mobile 4G/5G Connection (Support APN)

2) Gigabit Ethernet Connection

3) MESH: MESH + hybrid

4) 2.4G/5Ghz WiFi

5) Advanced Firewall

6) MAC Filter

7) WiFi Security

8) VPN Passthrough and VPN Client (L2TP PPTP)

9) IPV4/IPV6

10) WEB / APP Management

11) Firmware upgrade

1) CPU: MT7981B MT T700

2) Memory:512MB DDR3 + 128MB SPI NAND FLASH

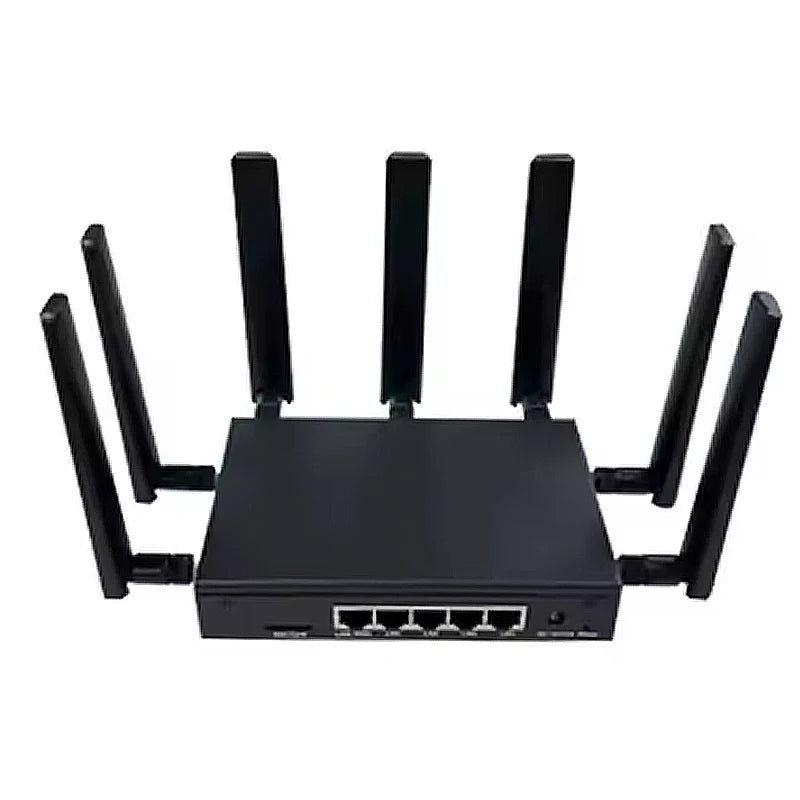

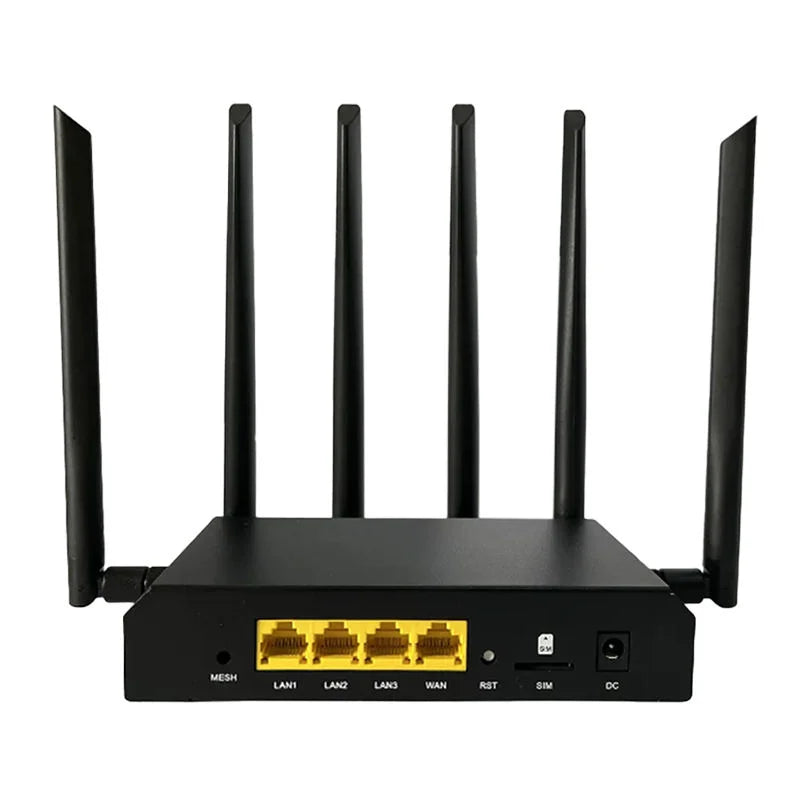

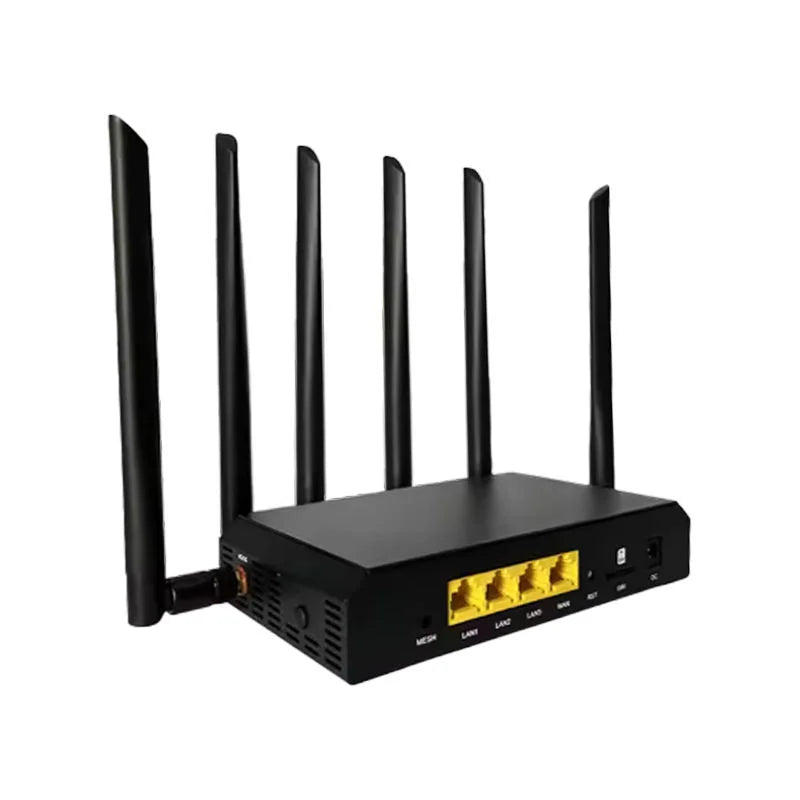

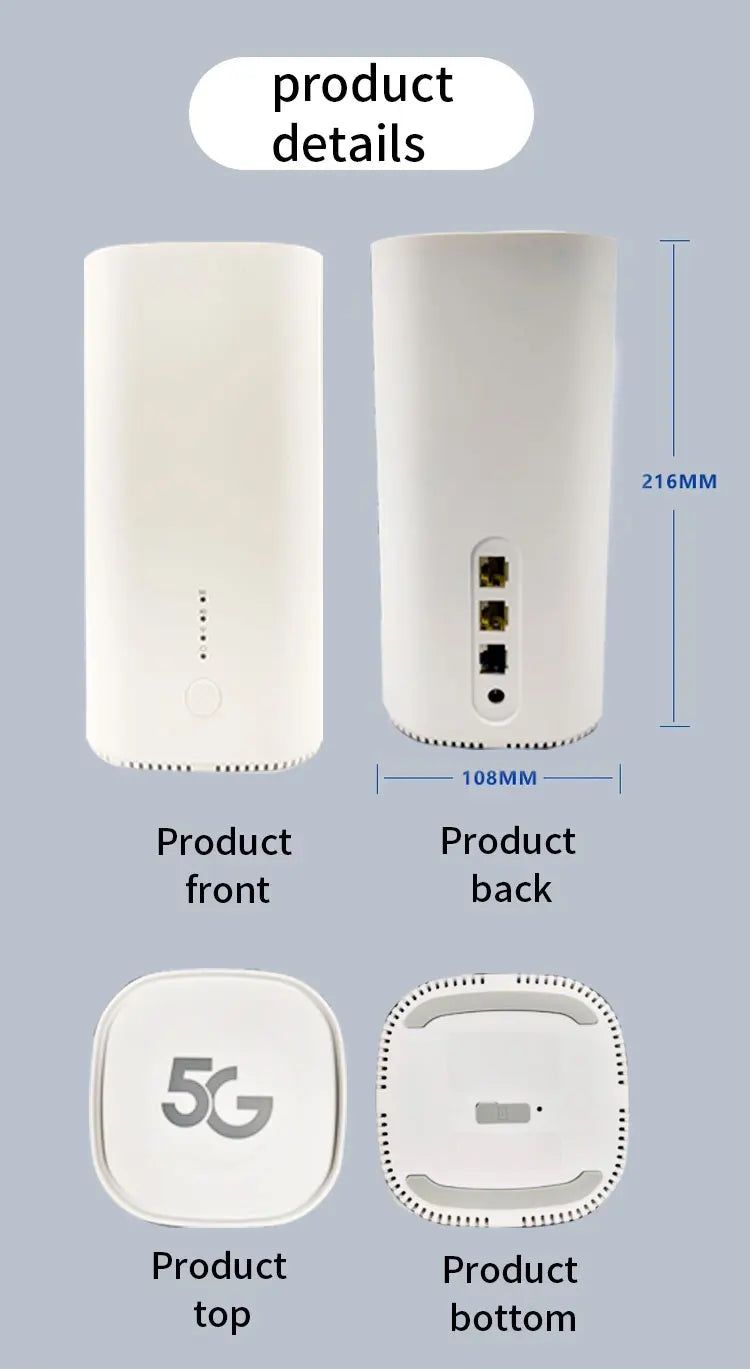

3) Ethernet:1*1Gbps WAN,2*LAN 1Gbps

4) 1* SIM Slot (Nano-SIM)

5) Reset button

6) MESH+ Button

7) MESH+ LED Switch

8) LED Indicator

– MESH+ Working Status (breathing light)

– 4G Status

– 5G Status

– WiFi Status

– Power Status

9) General

– Power Consumption: <20W

– DC Power Supply: 12V/2A

– Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃

– Humidity: 5%~95%

– Weight: TBD

WEB Mangement/Band Lock/OpenWRT/Sysupgrade/Change imei/

AT command/USSD/Mesh/Firewall/VPN

5G to Wi-Fi, 5G to LAN

Insert 5G SIM card, then you can transmit the 5G/4G/3G signal to LAN and Wi-Fi signal.

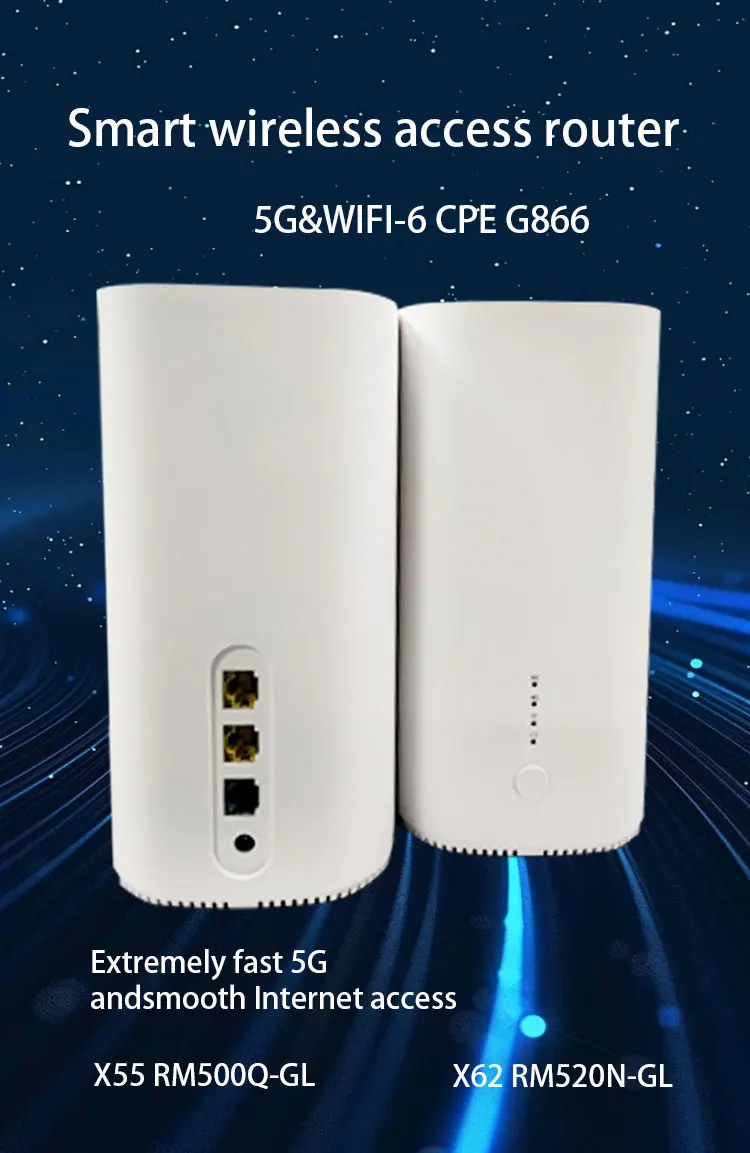

RM500Q-GL/RM502Q-GL/RM520N-GL/RM530N-GL/FM350-GL/FM650/

FM160/FM180/FM190/FG360/MT5700/RM551E/RM500U/RG500U/RG200U
