SPECIFICATIONS

Average Life (hrs) : 50,000 hours

Brand Name : YSRSAI

Certification : CCC, ce, GS, CE, RoHs

Choice : yes

Color : RGBCCT

Color Temp(K) : RGB+W+WW,RGBCCT+CRI 90

Connector : 6PIN

Controller Size : 195*48*29mm

Feature 1 : RGB+W+WW

Feature 2 : High brightness

Feature 3 : Night Light

Feature 4 : DIY Room Decor

Feature 5 : High Density Flexible Cob

High-concerned chemical : None

Batteries Included : No

Smart Device : Yes

Item Type : Strip

LED Chip Brand : Sharp

LED Chip Model : SMD5050

LED Width : 12mm

LED Number/M : 60LEDS/M

Luminous Flux : 2000-82000

Model Number : YSR-CGD-RGB

Occasion : LIVING ROOM, living room

Origin : Mainland China

Power Consumption (W/m) : 11.52W/m,14W/m

Power Generation : light

Power Source : DC

Smart : Zigbee 3.0+tuya zigbee

Specifications (light beads / m) : 60led/m

Strip type : SMD

Voltage : 24V

Waterproof : No

semi_Choice : yes

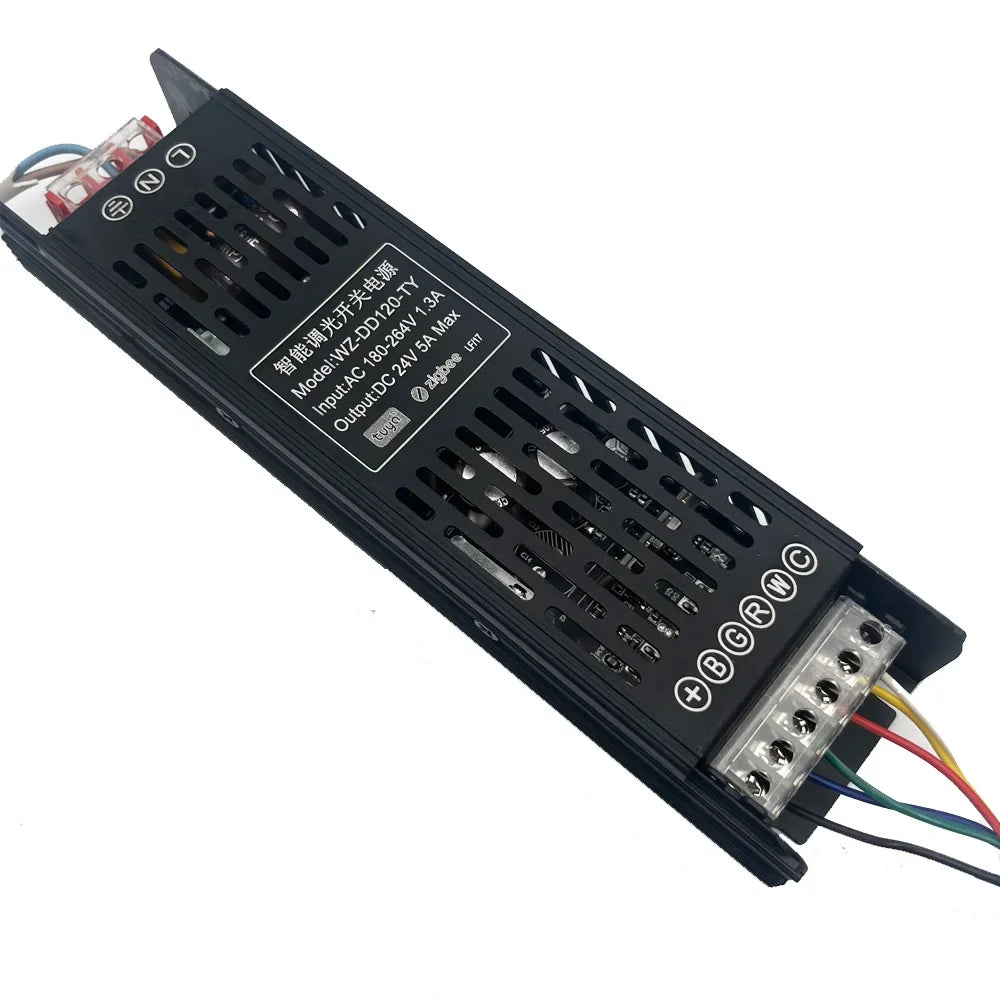

Zigbee Power Supply Parameters

Product name: Tuya Zigbee LED Power Supply(need work with zigbee gateway)

Input Voltage: AC 180-265V

Output Voltage: DC 24V

Power: 120W 240W
Size: 195*48*29mm 259*48*29mm

Support light: 6pin RGBCCT LED strips

Shell Material: Aluminum case

Working Temperature: 0~60C

Storage Temperature: -20~60C

Ambient Humidity: 0~95% Non-Condensation

How to set Pairing Mode?

1. Make sure there's a Zigbee Gateway and it has been connected to the same wifi with your phone.

2. Connect the power supply to 220V power source.

3. Turn on the power to the power supply, then turn off the power, wait for 5-6 seconds, then turn on again. Repeat this step for 4 times.

4. After turn on/off/on/off/on/off/on step, the led strip will flash slightly, this means it's in pairing mode right now, you can search it in Tuya or SmartLife app.

Main Features

1. Zigbee 3.0 Power supply, work with Tuya, Alexa, Google assistant, Smartthings...

2. Support RGBCCT

3. Silent, no noise.

4. With high conductivity aluminum case, very high efficiency of heat-dissipation.

5. High quality, 100% full watt, warranty 3 years.

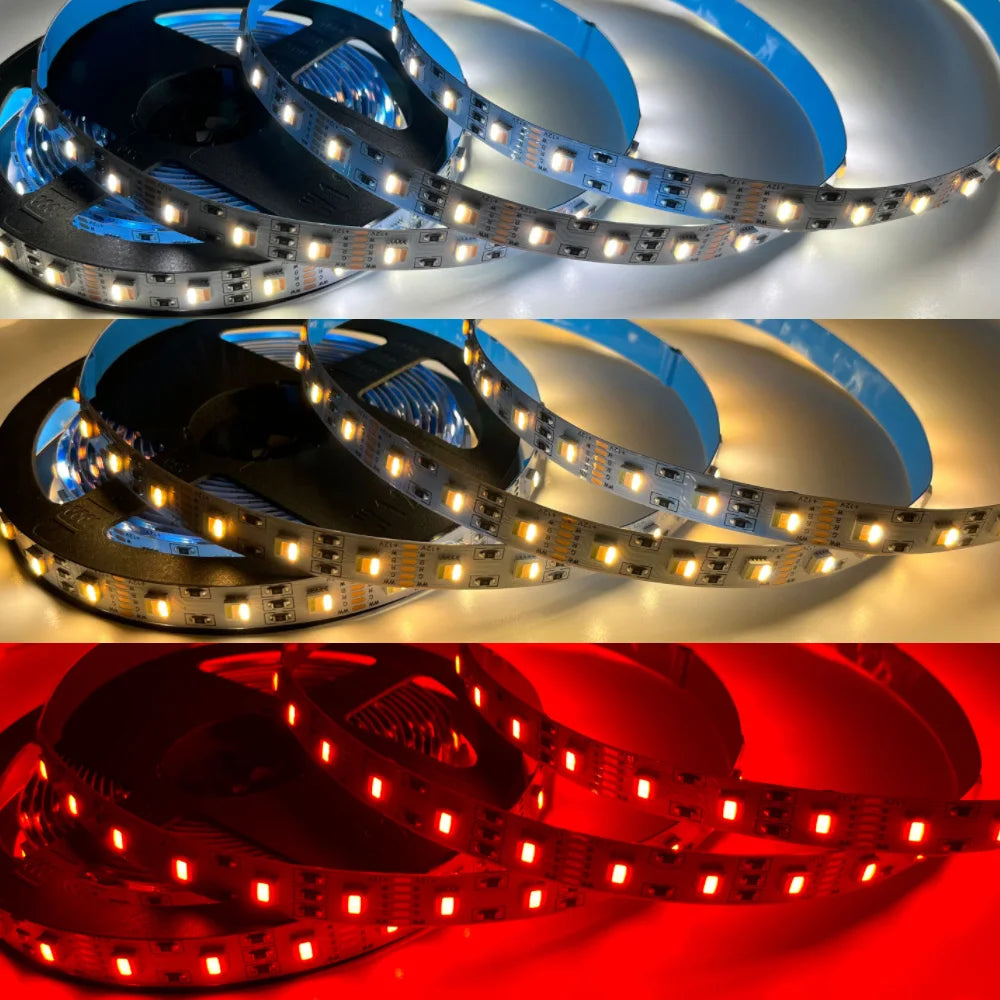

Lamp bead: 5in1 led strip

Brightness: 8-10lm

Color temperature: RGBCCT

Power: 14.4w/m

Number of LEDs: 60led/M

Voltage: low voltage 24V

Width: 12mm

PCB board color: white

Installation method: adhesive type, 3M high adhesive backing

Applicable occasions: home decoration, shopping malls, municipal administration, hotels, KTV, interior decoration, Internet cafes, etc


5M Kit Pack: 1x 5M led strip 1x 24V 5A zigbee power

10M Kit Pack: 1x 10M led strip 1x 24V 5A zigbee power

15M Kit Pack: 1x 10M led strip 1x 5M led strip 1x 24V 10A zigbee power

20M Kit Pack: 2x 10M led strip 1x 24V 10A zigbee power
