SPECIFICATIONS

Brand Name : NoEnName_Null

Certification : CE

Choice : yes

Degree of Protection : IP20

Install Style : Wall Mounted Type

Origin : Mainland China

Power consumption : 300W Max

Power gear : High / Medium / Low

Power supply : 220V±10%

Size : 64.8mm*24mm*30mm

Surface Finishing : Electroplated

Timing function : 2H/4H/6H

Type : Wall Mounted

semi_Choice : yes

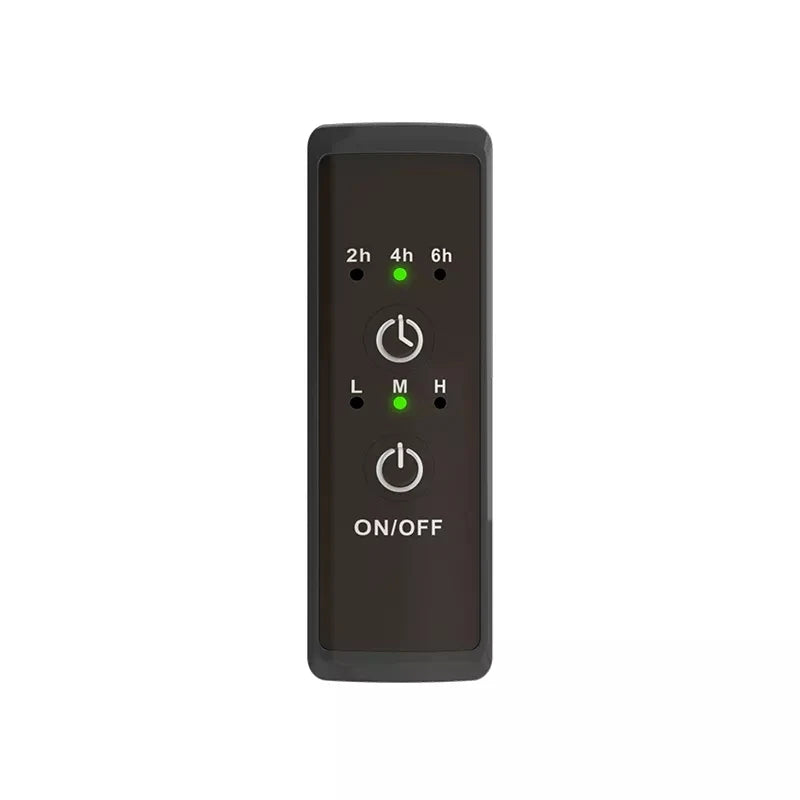

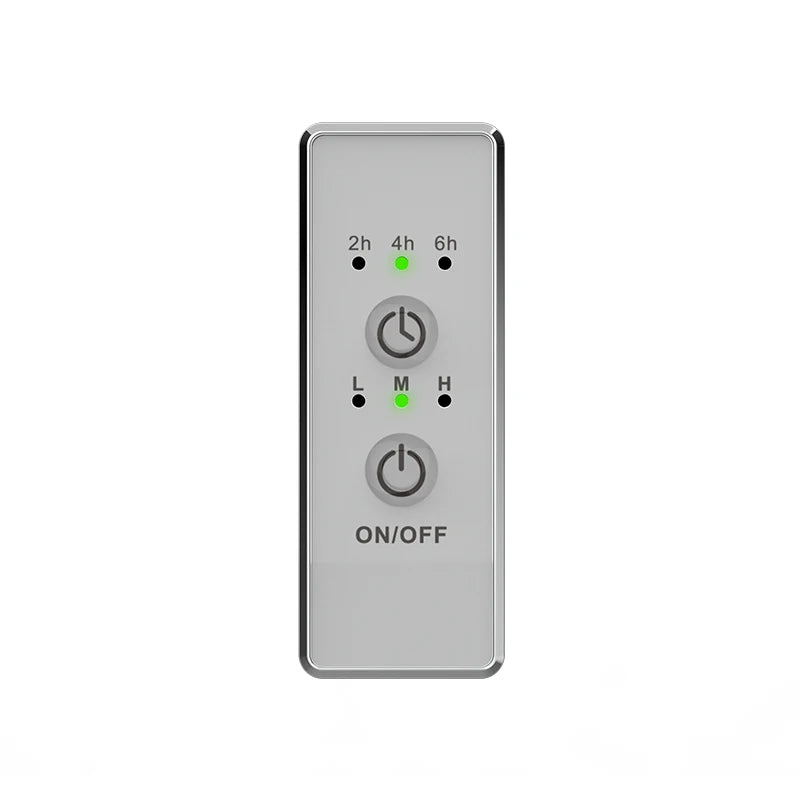

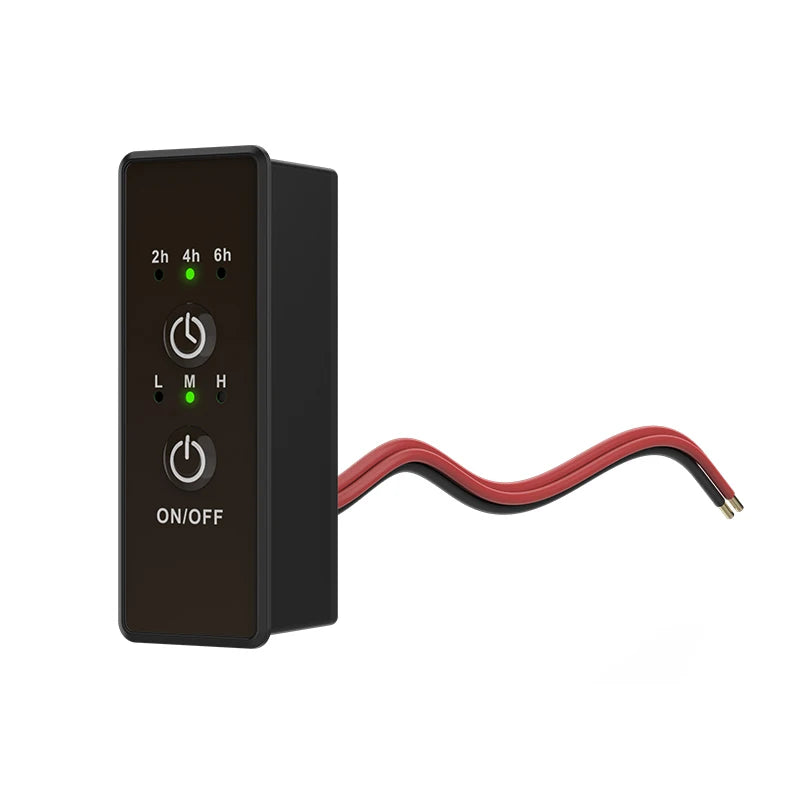

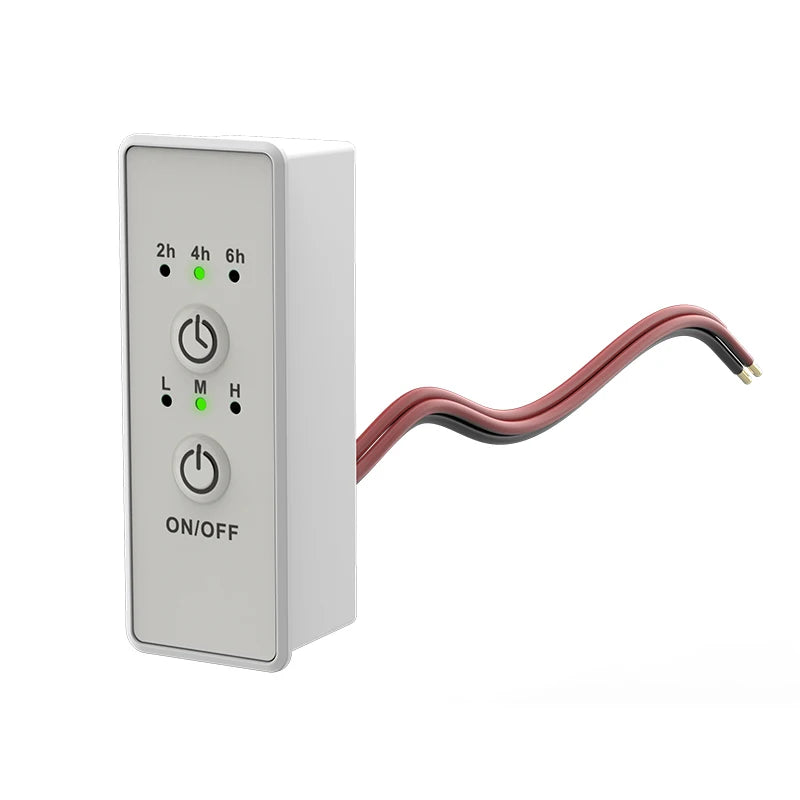

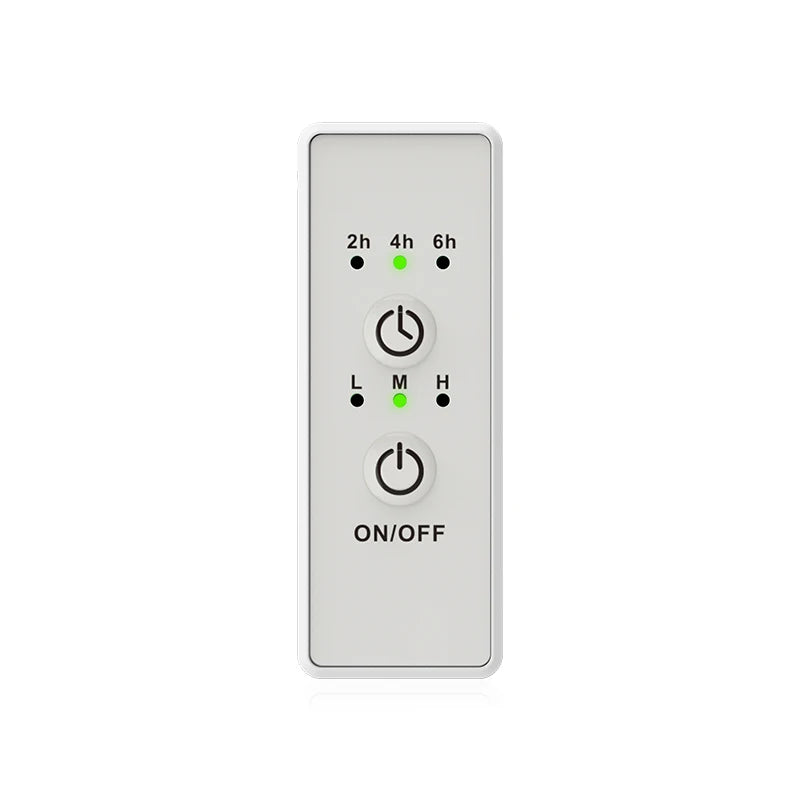

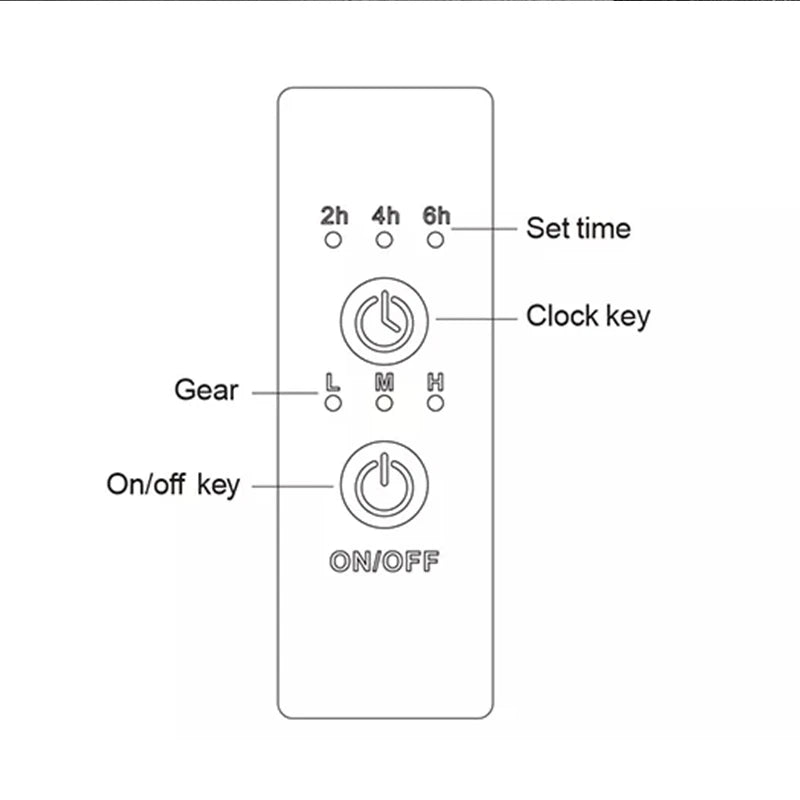

Working principle:

When you turn the product on the power network, the LEDs do not burn (standby mode).

The product is included in the power network, without choosing the mode of operation ("off"-the product does not heat up, power 0%)

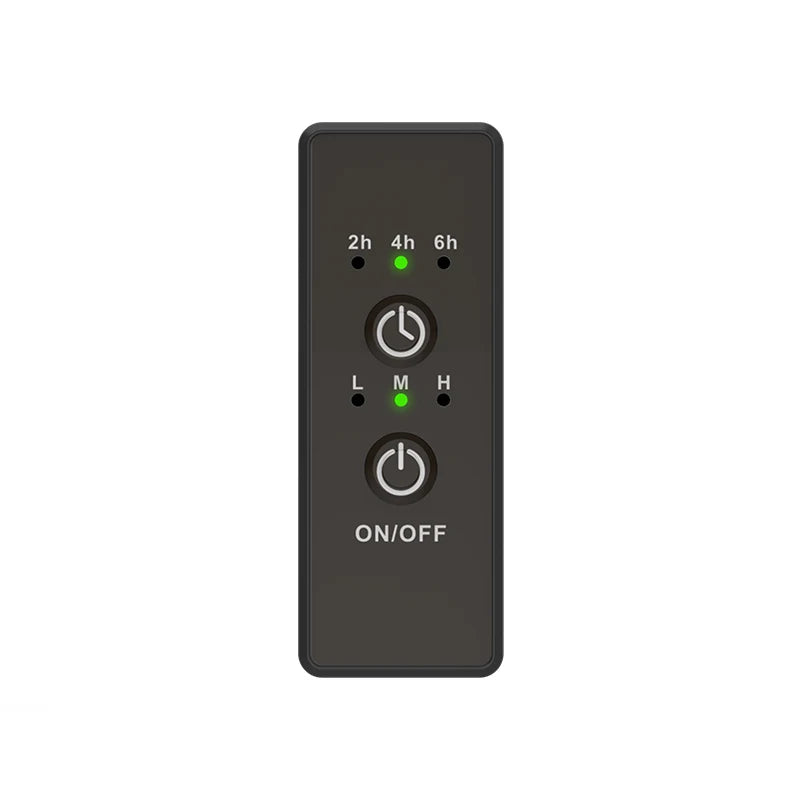

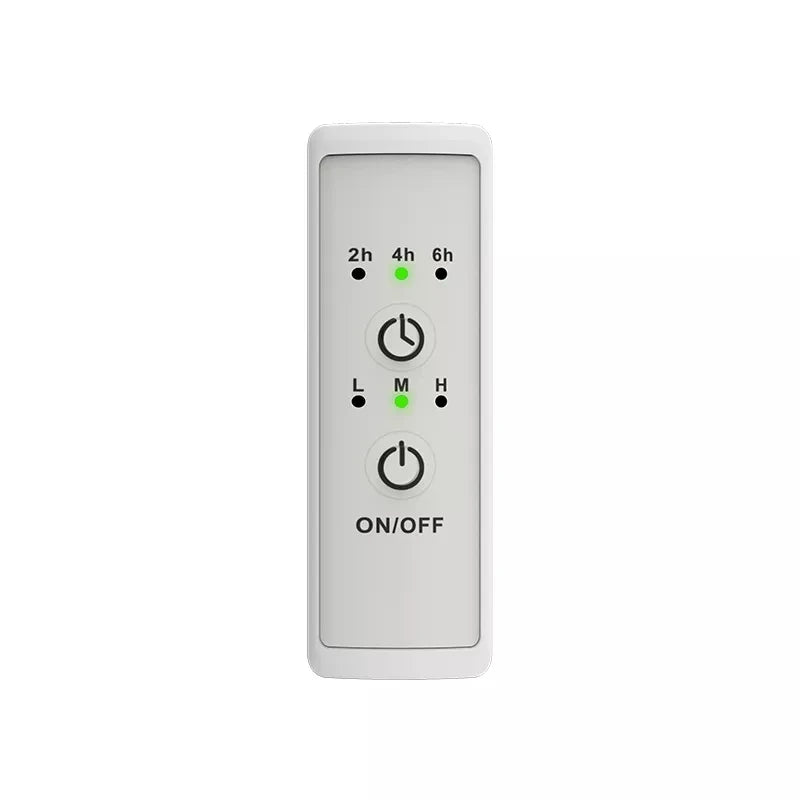

On/off the product is done by pressing and holding the button for 3 seconds. After that, the 1st led (mode I) will light-the product is heated at 60% power.

To change the operating mode (power), you need to press the button without holding.

Each subsequent Press changes the heating mode: I-II-III-OFF.

Mode II (burn 1st and 2nd LEDs)-the product is heated at 80% power

Mode III (three LEDs are burning)-the product is heated at 100% power

To select the necessary working time of the product, you need to press the button.

Each press of the button will set the disable timer on the desired time line.

According to the selected time, the corresponding led will light up:

Shutting off after 2 hours-LED lights,

Power off after 4 hours-LED lights,

Turning off after 6 hours-the LED lights up.

If there is no Burns diode, the product works in constant mode.

The product is turned off by pressing and holding the button for 3 seconds.

When the current is cut off and re-turned on, the work of the product passes

In "standby" mode (the product does not heat up, power 0%., the timer is not set, LEDs do not burn).

Backlight diodes (green)

Voltage - 230V ± 10%

Adjustable power-up to 150 W

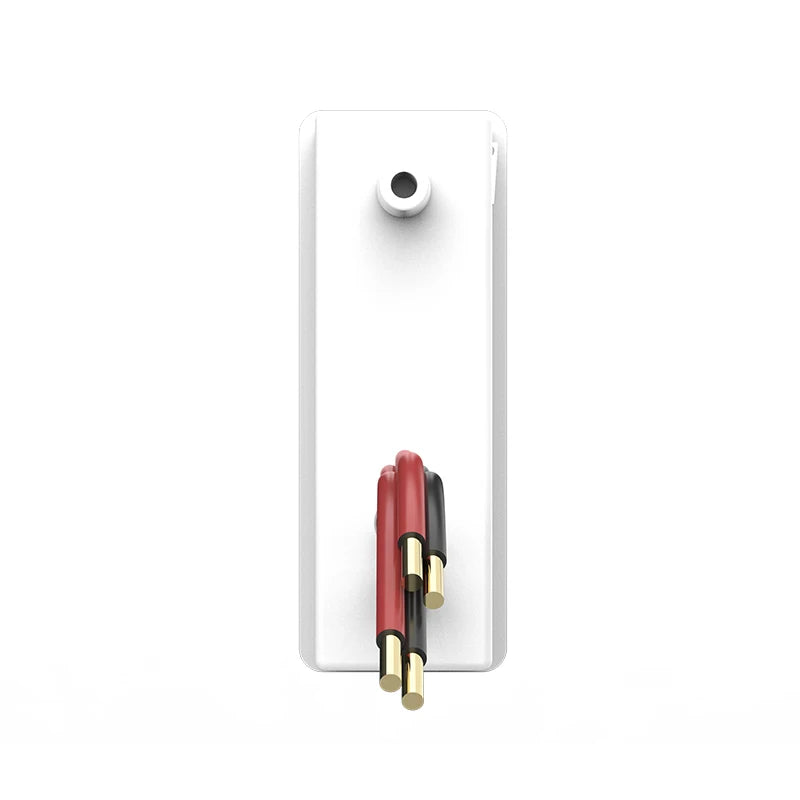

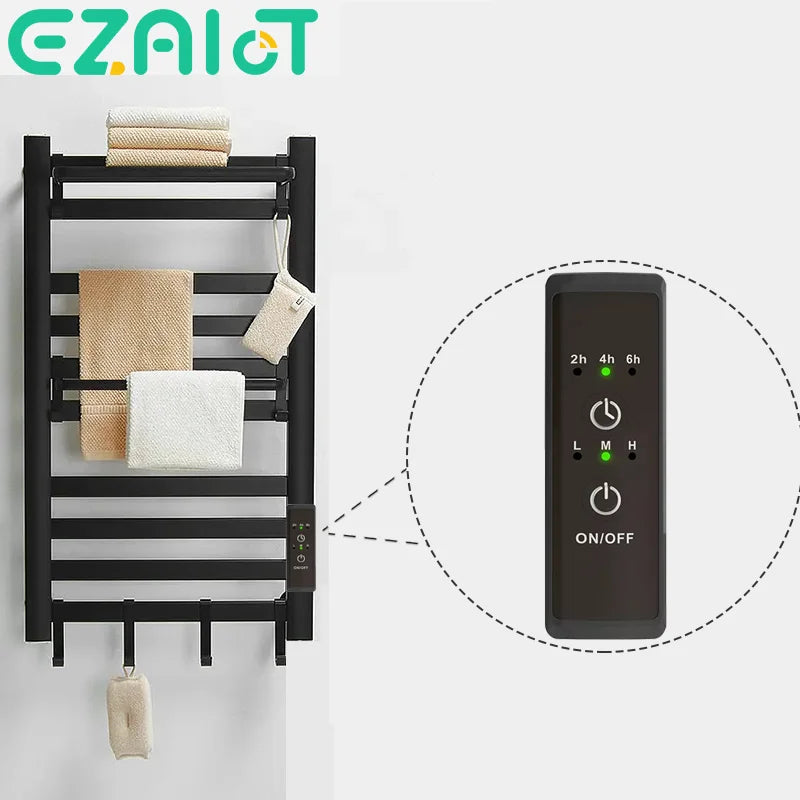

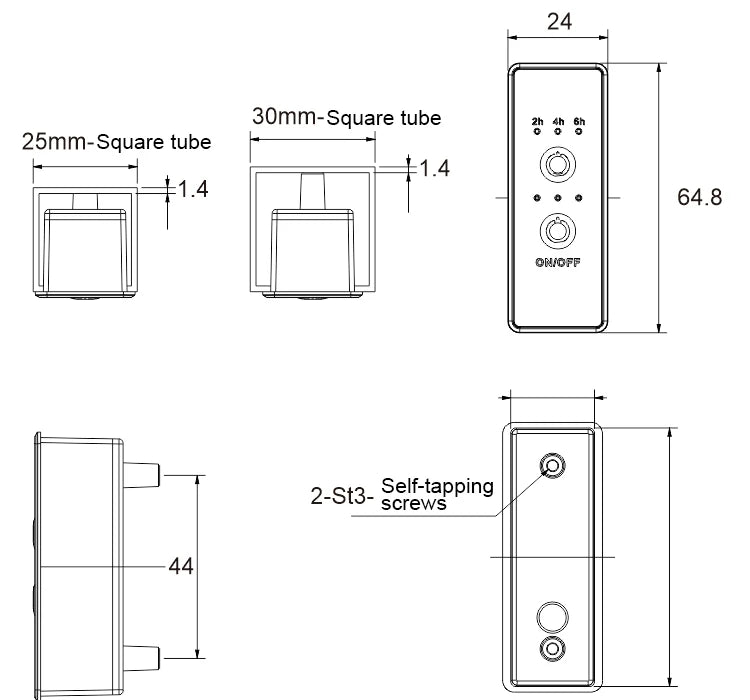

Mounting the regulator body to the towel-rail pipe-6 latches along the perimeter. Mounting the board to the housing-2 self-nuts.

The regulator meets the requirements of the EMC regulations (electromagnetic compatibility)

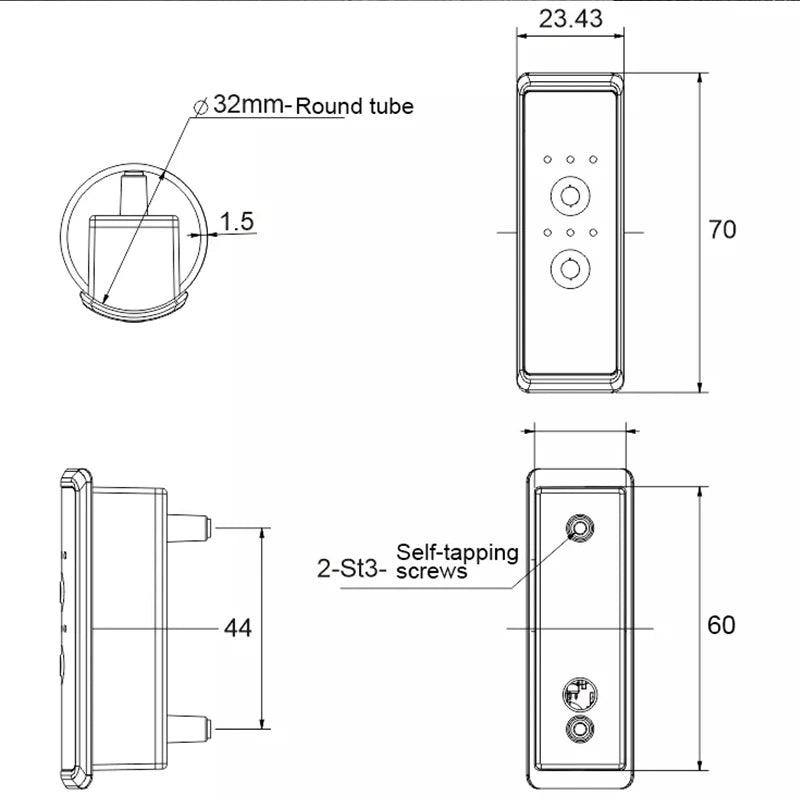

Overall dimensions of the regulator body: height (H) not more than 23mm x width (W) not more than 20mm x length (D) not more than 61mm
