Thông số sản phẩm

Chi tiết sản phẩm

Detailed image

Brick leveling system components
Name: wedge
Brand: TLSDY
Original: China
Slide a reusable wedge into each .tighten until the tile is snugly positioned a bit below the edge. Move the tile so that the slide is aligned and the tile is pushed tightly into the clip

Brick leveling system components
Name: Clip
Brand: Dinh YI
Original: China
Clip sizes are 0.5mm, 1.0mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 4.5,mm and 5mm to meet different tile space, lay tiles on base

Brick leveling system components
Name: Floor and Wall Plie r
Brand: TLSDY

Original: China.

Use the wing screw on top and clamp the pointer to the exact position according to the thickness of the tile. For fine adjustment to place the screw on top.
Precise adjustment is one that allows maximum push into the wedge without breaking the base support/clip

Key Features

Key Features

* This type of balancing system is the most classic and most popular on the market to date.

* For porcelain, ceramics and all natural stone tiles

* Specially designed breakout points on clips for swift removal

* Supply all range of tile grout from 0.5mm to 5mm.

* Use with Wall & Floor Leveling Wedge and SMIER to bring better level effect.

Product Description

D Series Tile Leveling System

Clip sizes are 0.5mm, 1.0mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 4.5, mm and 5mm to meet different tile space, lay tile on base Clip sizes are 0.5mm, 1.0mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 4.5, mm and 5mm to meet different tile space, lay tile on base

How to choose

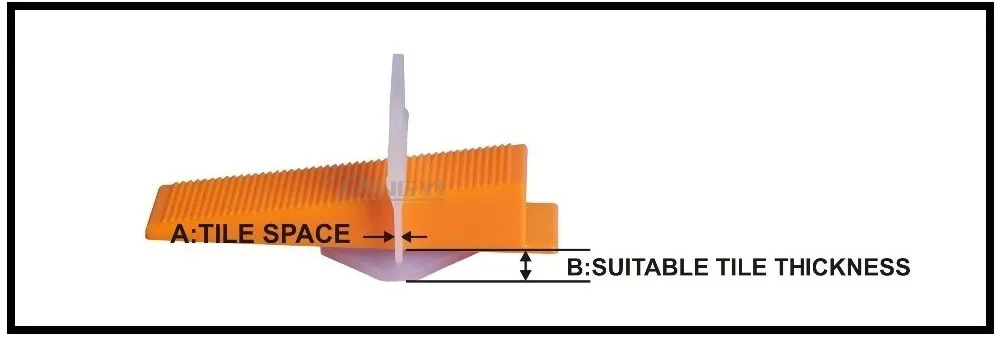

Type	A: Brick space	B: Suitable tile thickness	Number of items		Product Links
Clip	0.5mm	3mm ~ 12mm	D050312		Click here to view
		1.0mm	3mm ~ 12mm	D100312		Click here to view
			6mm ~ 15mm	D100615		Click here to view
			13mm ~ 22mm	D101322		Click here to view
			23mm ~ 32mm	D 102332		Click here to view
		1.2mm	3mm ~ 12mm	D120312		Click here to view
		1.5mm	3mm ~ 12mm	D150312		Click here to view
			3mm ~ 12mm			D150312S		Click here to view
				11mm ~ 20mm	D 151120		Click here to view
				5mm ~ 15mm (+ base)	D150515+		Click here to view
		1.8mm	3mm ~ 12mm	D180312		Click here to view
		2.0mm	3mm ~ 12mm	D200312		Click here to view
		2.0mm		11mm ~ 20mm	D201120		Click here to view
		2.5mm	3mm ~ 12mm	D250312		Click here to view
		3.0mm	3mm ~ 12mm	D300312		Click here to view
		3.0mm		6mm ~ 15mm	D300615		Click here to view
		4.0mm	6mm ~ 15mm	D400615		Click here to view
		4.5mm	3mm ~ 12mm	D450312		Click here to view
		5.0mm	6mm ~ 15mm	D500615		Click here to view

Type	Representation	Number of items		Product Links
wedge	Matches all clips above	D00		Click here to view

Type	Representation	Number of items	Product Links

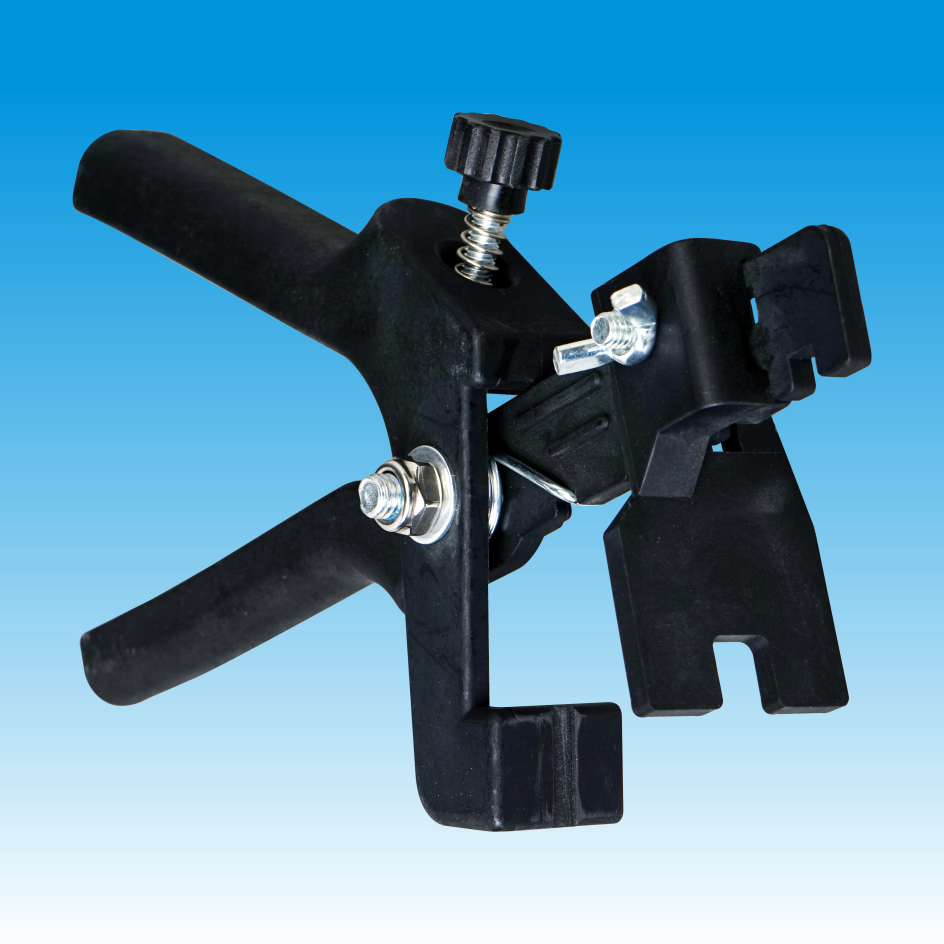

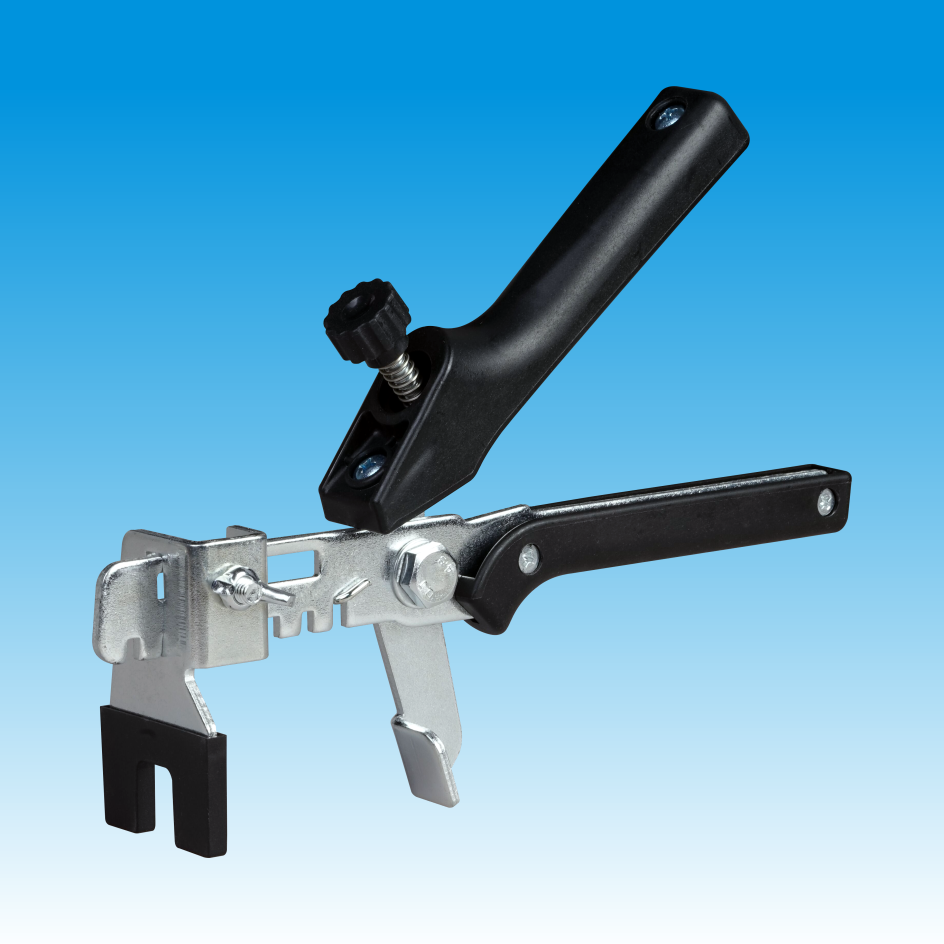

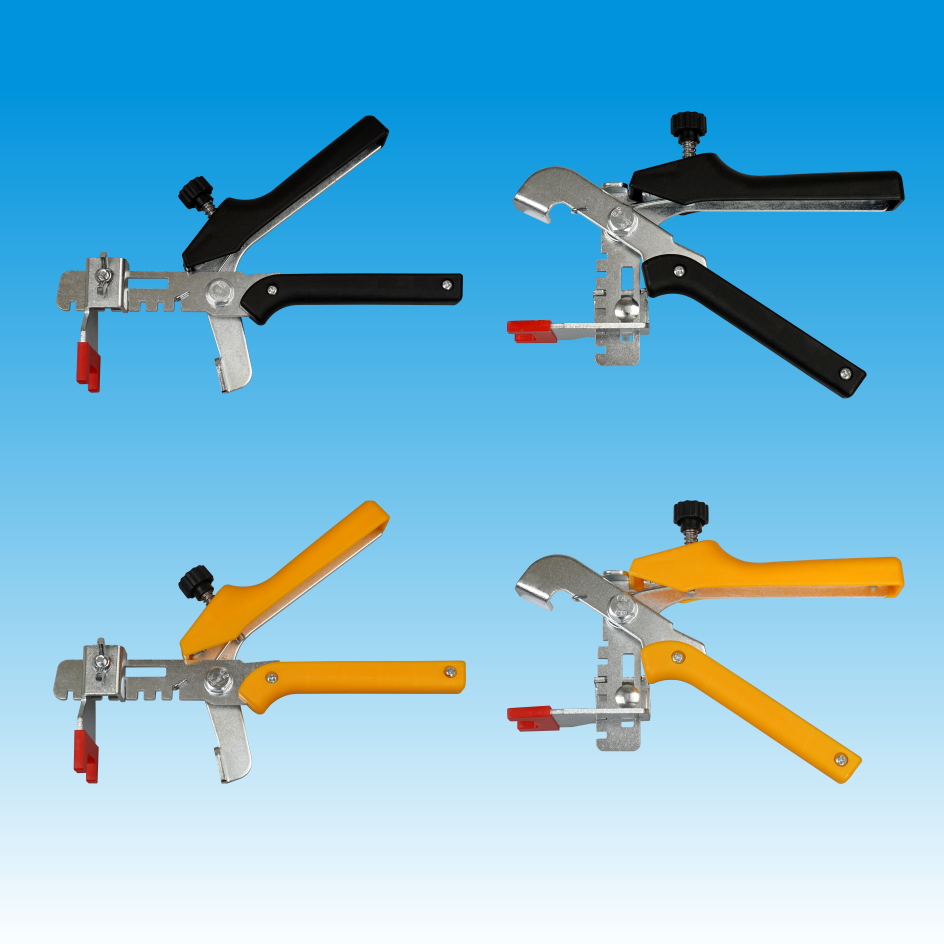

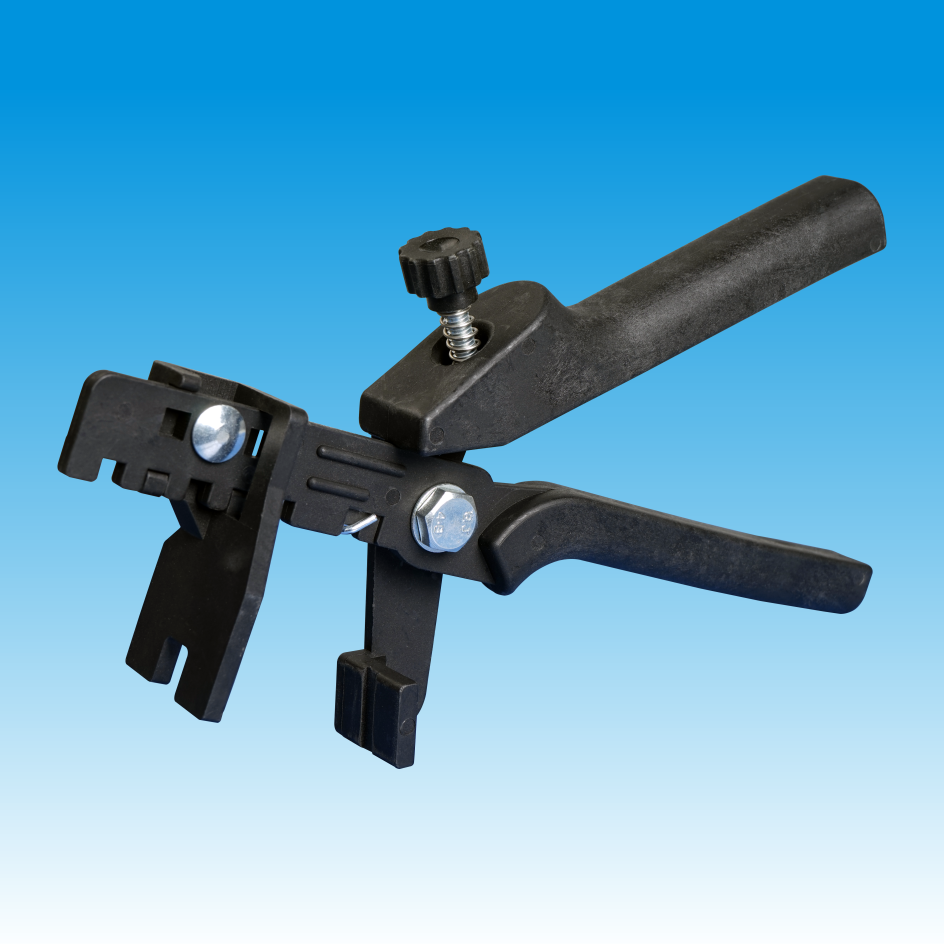

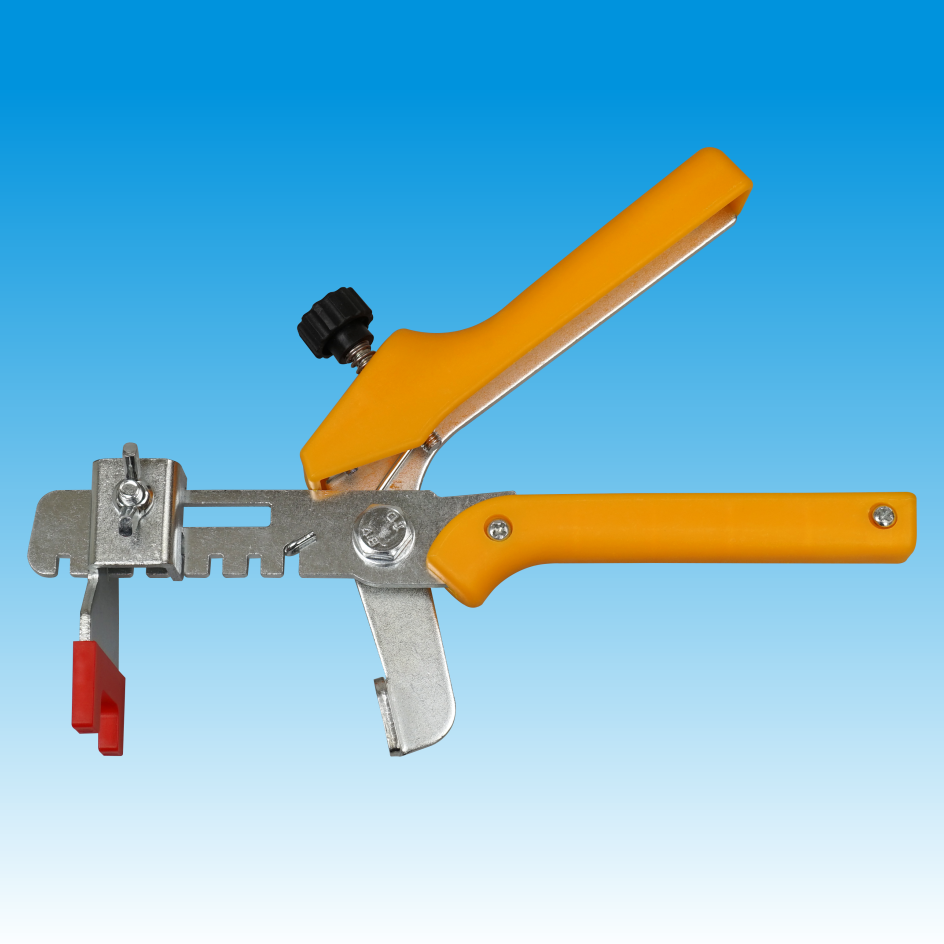

Floor pliers	Push the wedge into the clip on the floor	DL-D03F metal material	Click here to view
			DL-D03FS plastic material	Click here to view
			DL-D03FSN plastic material	Click here to view

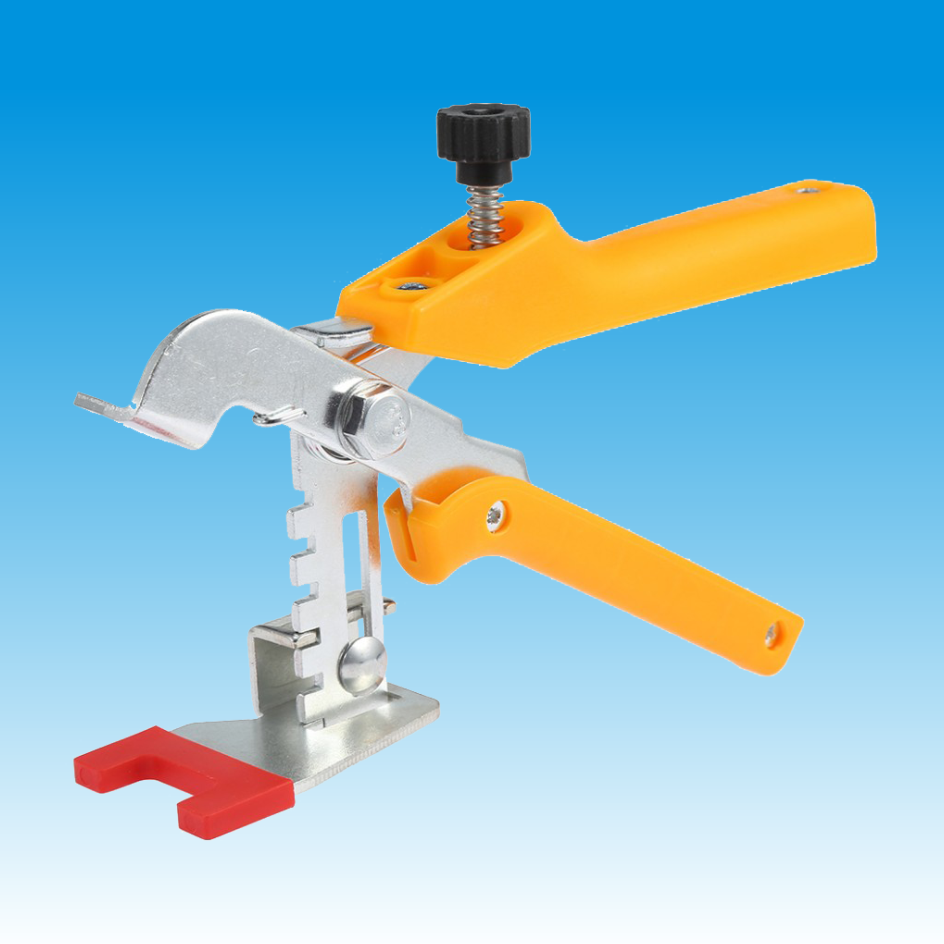

Wall clamps	Push the wedge into the clip on the wall	DIL-D03W metal material	Click here to view

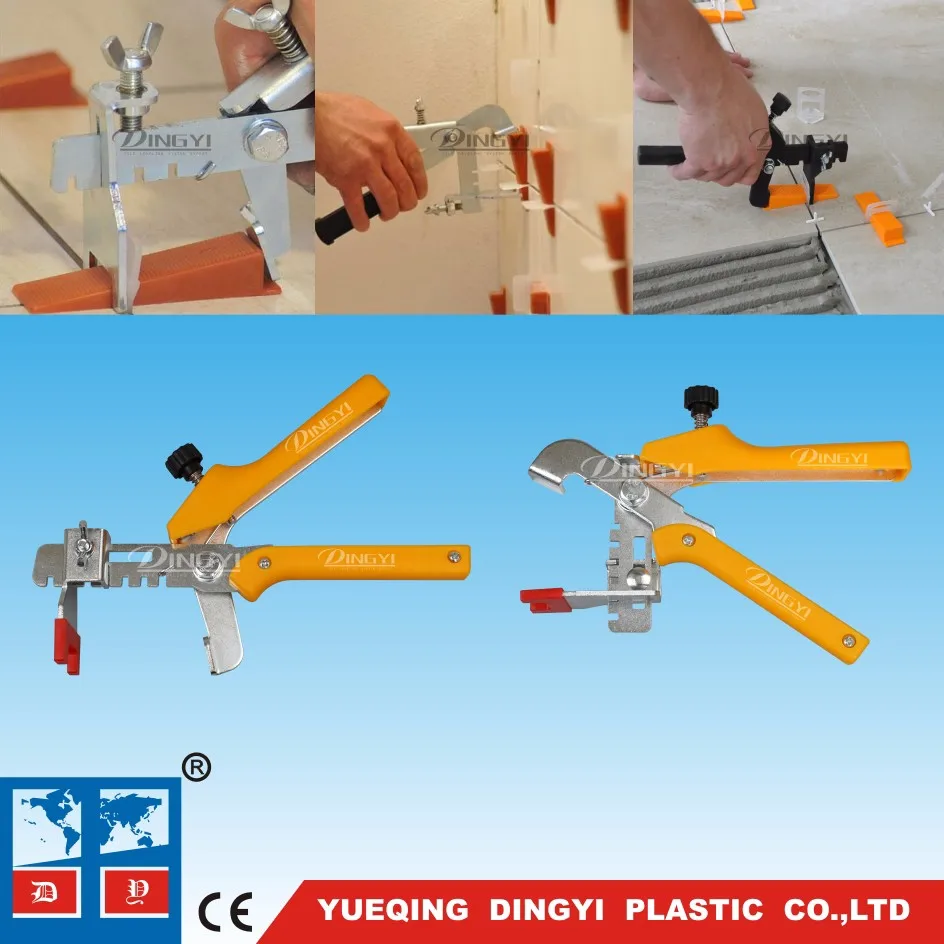

How to use

Packaging and delivery

Inside the packaging			Quantity
Normal packing	Polybag without any logo	100pcs/bag
Custom packaging	Labeled bag	As per your request
			Printed bag
			Polybag with header
			Plastic bucket
			herpes
			Other packaging

Outer packing

Normal carton box

Pallets if you need

Custom packaging

Container for bulk (20GP / 40GP / 40HC)

Certification
