SPECIFICATIONS

Active Viewing Area : 100*80

Dark Shade : DIN5~DIN9/ DIN9~DIN13

Delay Time : 0.1S/0.4S/0.8S

Light Shade : DIN4

Operating Temperature : -5℃~+55℃

Power supply : Replaceable Lithium battery & Solar supply

Rated Capacity of Battery : 420mAh

Sensitivity Adjustment : Stepless Control

Switching Time : ≤1/10000S

Way to shift Dark State : Outer , stepless shift

brand name : HITBOX

model number : LY800F welding helmet

place of origin : Shenzhen China

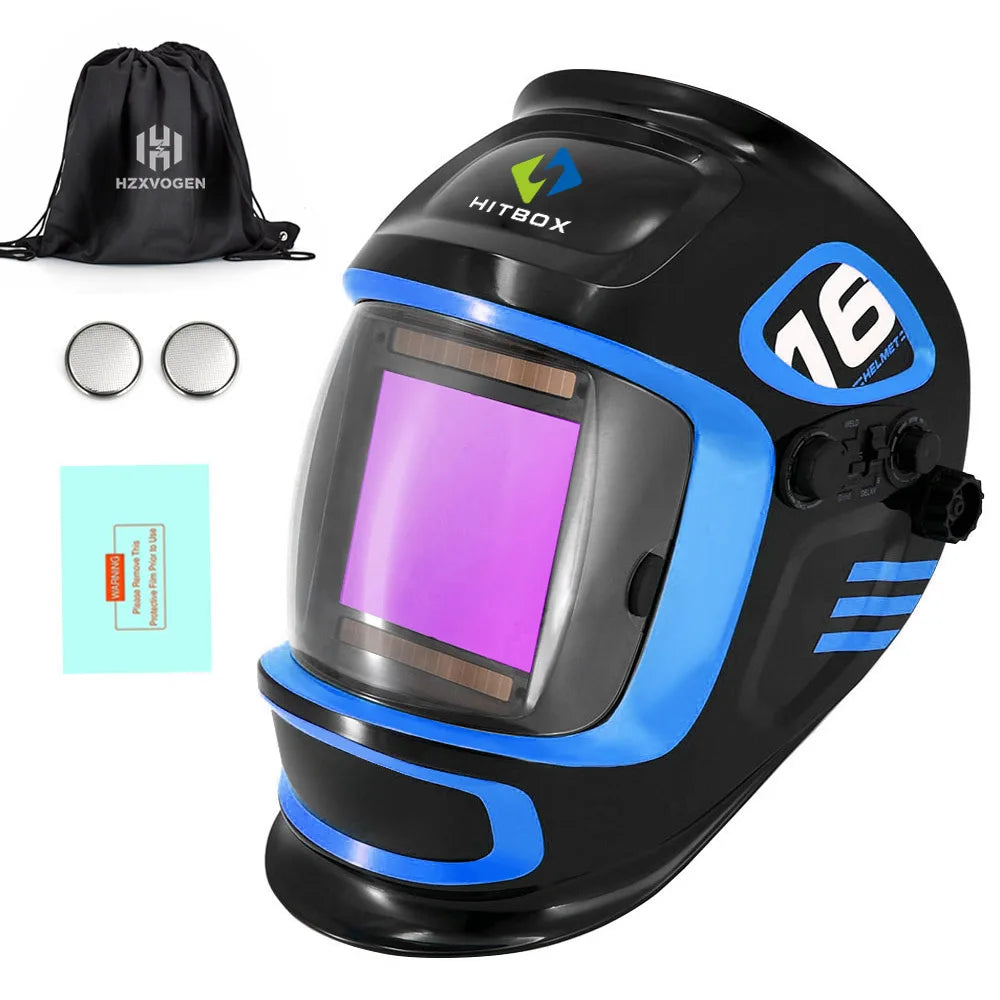

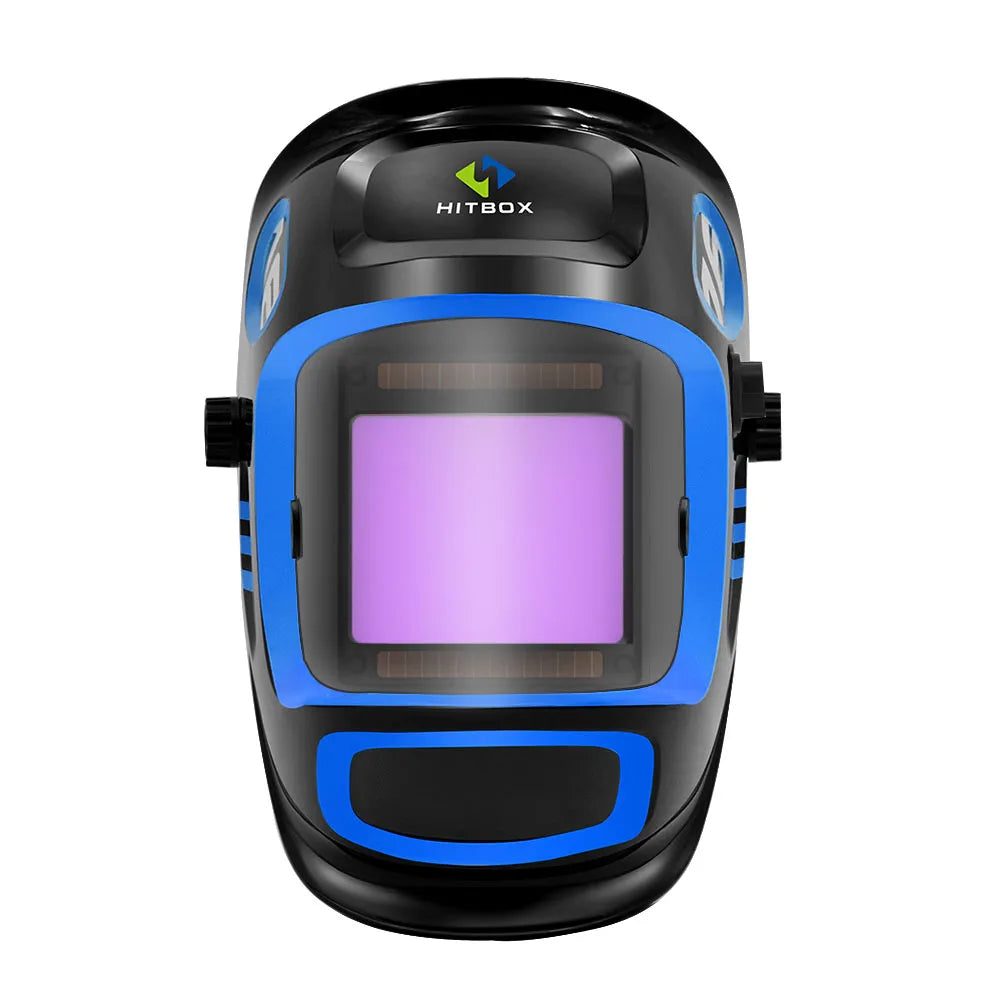

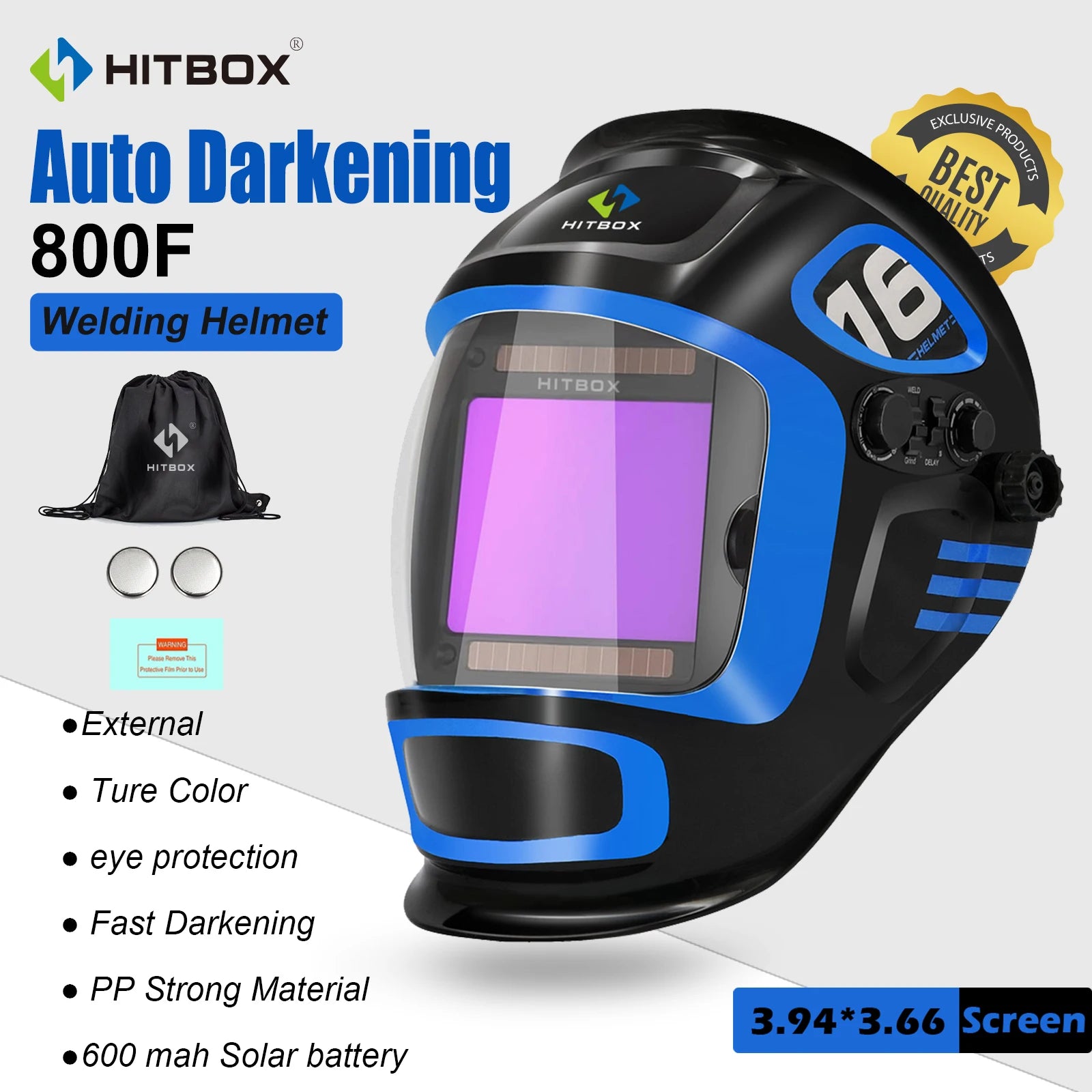

Product Overview

True Color technology enables you to not only see better, but also see more.
HITBOX welding helmet has super large viewing size (3.93"x3.18'').

* Not like other helmets with a narrow window, the large viewing area with gives you a full range of vision in relation to the
welding area, which enhances operator control.
* True Color widen lens, completely customizable and adjustable headgear.

PRODUCT SPECIFICATIONS

TRUE COLOR

* Now you can make a good view even better. Upgrading the welding helmet with True Color technology preserves the existing
1-1-1-2 optical clarity rating, ,improves visibility and reduces eye strain by minimizing the traditional lime green coloring in the helmet view screen.

LARGER VIEWING AREA

* The 3.93"X3.18" large viewing area gives you a full range of vision in relation to the welding area, which enhances operator
control

ULTRA COMFORTABLE

* Headgear with oversized comfort cushion provides extensive adjustability, settings, and improved support for better fit and
comfort
* Whole hood is designed with light weight, has luxury and unique headgear, so you will wear it more comfortably

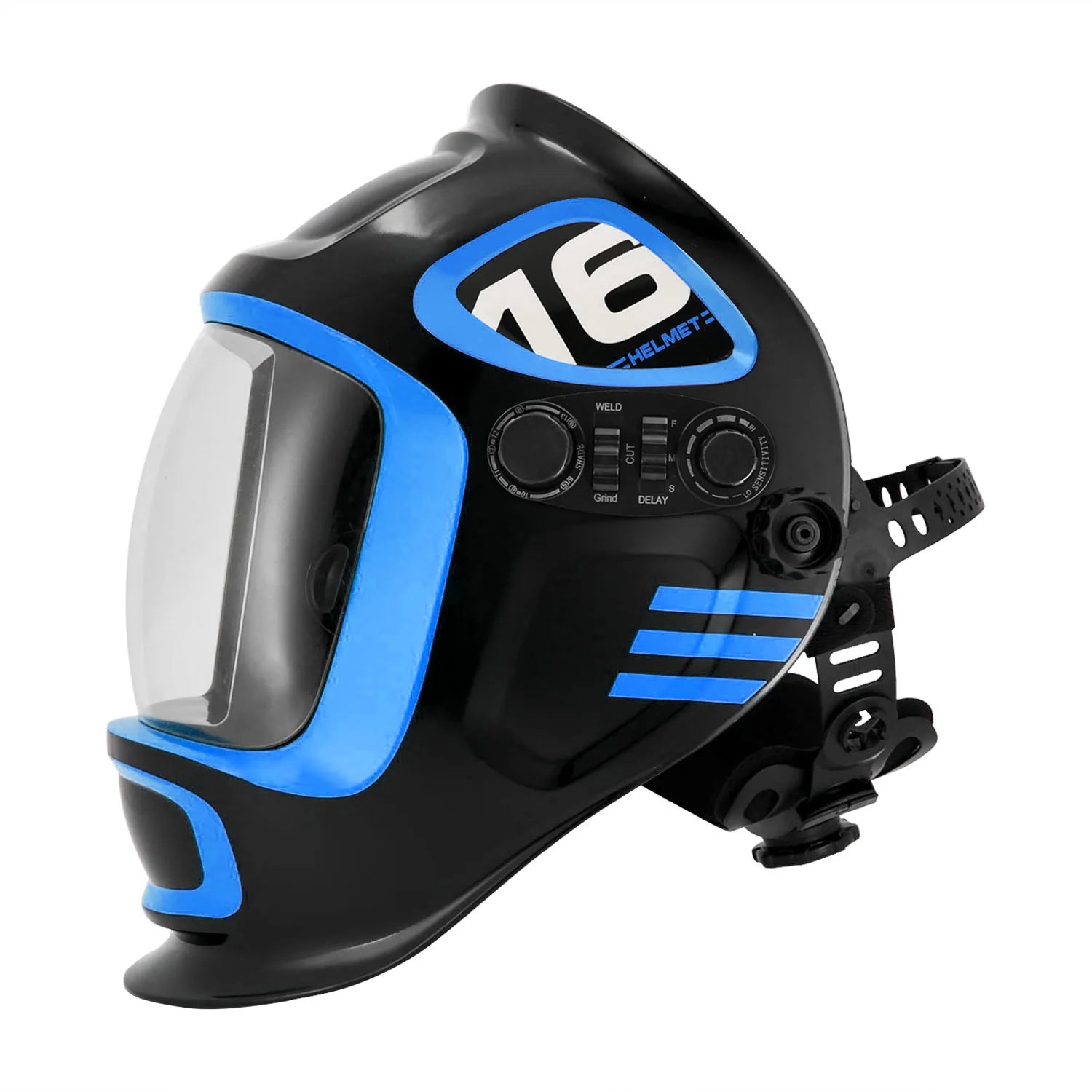

Auto darkening filter's operation instruction

* Dark shade: DIN5～DIN9/ DIN9～DIN13
* Sensitivity:

1. When welding current is small, put the "sensitivity" knob to high place.
2. When welding current is large, put the “sensitivity” knob to low place.
3. Sensitivity is stepless control, set by hand according to actual situation.

* Delay:

Delay time is the time from dark to light, Stepless control.

1. When welding current is large and the light of molten pool is very strong, put the “delay” knob to high place. I
2. If you want to do spot welding, you need to put the “delay” knot to low place.
3. Adjust “delay” knob to middle place is suitable for most of welding mode.

Why Choose Us

Shenzhen Unitweld Welding and Motor Co., Ltd has registered a US company named HITBOX ELECTRIC LLC. This is a strategic move by the company to expand its business operations in the United States and provide better customer service to its clients in the region.

HITBOX ELECTRIC LLC specializes in the distribution and sales of welding equipment and accessories in the United States. We offer a wide range of products, including MIG welding machines, TIG welding machines, plasma cutters, welding helmets, and welding accessories. The company is committed to providing high-quality products and excellent customer service to its clients.

Certifications

FAQ

1, Are you a factory or trading company? we are a manufacture 2, where is your factory located?
302, Building 13, Hejing Industrial Park, No.87, Hexiu West Road, Zhancheng Community, Fuhai Subdist rict, Bao'an District,
Shenzhen City, Guangdong Province, China
3,how about quality control in your factory?
pay attentions to quality control from the beginning to the end, We have strict quality system and dedicated QC personnel to check
quality
4, how about guarantee?
It is within 1 year after the goods are discharged during the destionation.
5,can i get some samples?
Yes, we are glad to offer you samples. After large order confirmed, the samples fee will be regressed.
6, Is OEM and ODM service available?
Yes, product can print your logo, or customized by your design.
7,Payment?
30% advance payment 70% payment to delivery
