SPECIFICATIONS

Battery Included : No

Brand Name : OPEN-SMART

Certification : None

Choice : yes

Color : RED

High-concerned chemical : None

Model Number : C Board

Origin : Mainland China

Package : Yes

Product Status : Stock

Type : Industrial Computer Accessories

semi_Choice : yes

Description

If you want to place the bulk order but the stock is not enough, please contact us.

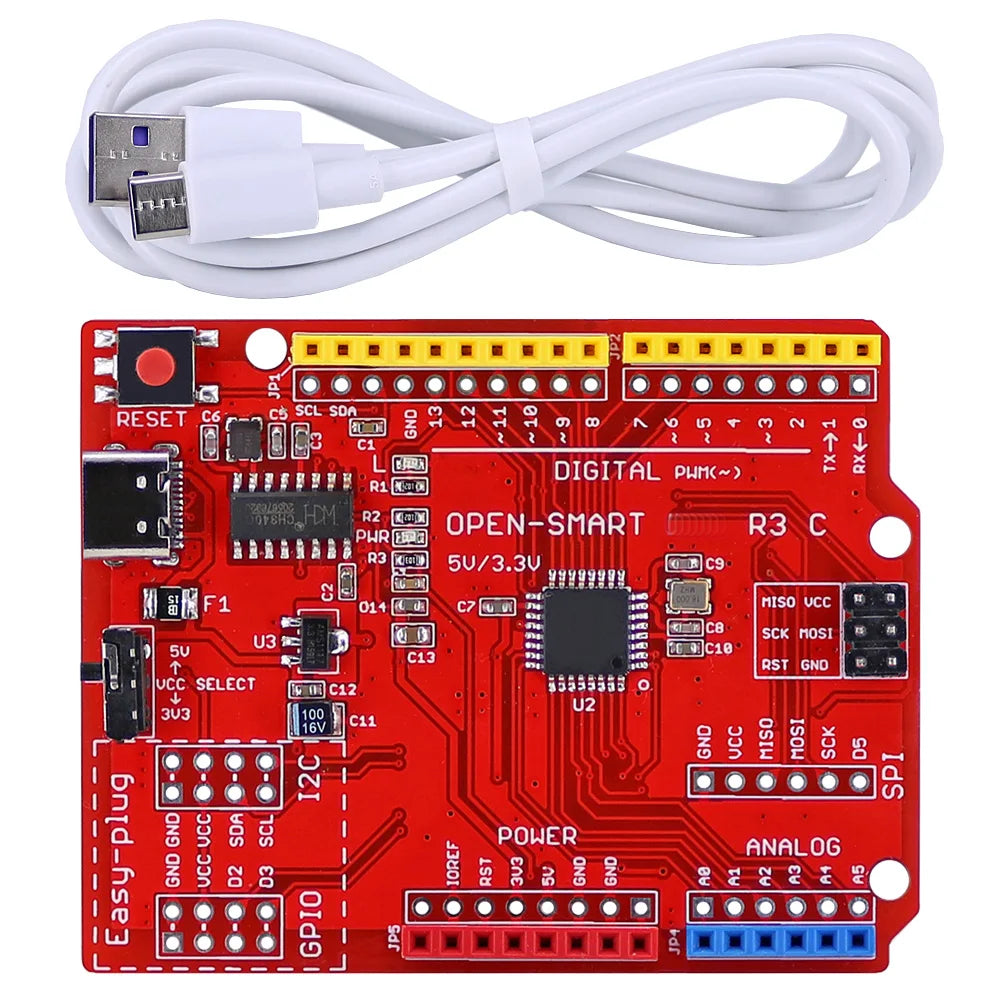

This is high quality OPEN-SMARTC board with type-C USB interface and it is based on ATMEGA328P which is compatible for 328P Board.

Red board and the colorful female pin headers make your project more impressive and unique. It is very popular for project production.

There's a switch to choose the system supply voltage, 3.3V or 5V, which is very useful if you want to set the system to 3.3V to save power.

For example, you can set the board to be 3.3V level, then and you can connect 3.3V TFT LCD / ESP8266 wifi-compatible module / BME280 barometric sensor module without level conversion module for 3.3V Board.

Features:

- Use for compatible bootloader

- Board type is compatible for R3 Board.

- The program, expansion shields, IDE is compatible for 328P Board.

- Use multi-color female header so that the interface is easy to identify and particularly noticeable.

- Use Type C USB connector, support positive and negative connection.

- Onboard 2000mA resettable fuse to protect power supply from the USB port.

- Leads out more GND, 5V pins, and I2C interface, so it is more convenient to connect it to peripheral modules without additional IO expansion shield.

- You can burn the program with the type A male to type C male cable.

- Onboard 5V and 3.3V voltage regulator circuit。

- This board is ideal for learners who want to learn and make creative projects for 328P Board.

- On-board test indicator LED, and you can program to control it.

- USB interface driver chip: CH340G, compatible with win7, win8, win10 linux, MAC OS.

- Microcontroller: Atmel ATMEGA328P;

- Working voltage: 5V or 3.3V;

- IO logic voltage: 5V or 3.3V;

- Working current: 2000mA (Max);

- Digital I/O Pins: 14 (of which 6 provide PWM output);

- Flash Memory: 32 KB of which 512 Bytes used by bootloader;

- SRAM: 2KB;

- EEPROM: 1KB;

- Clock Speed: 16 MHz;

Photos

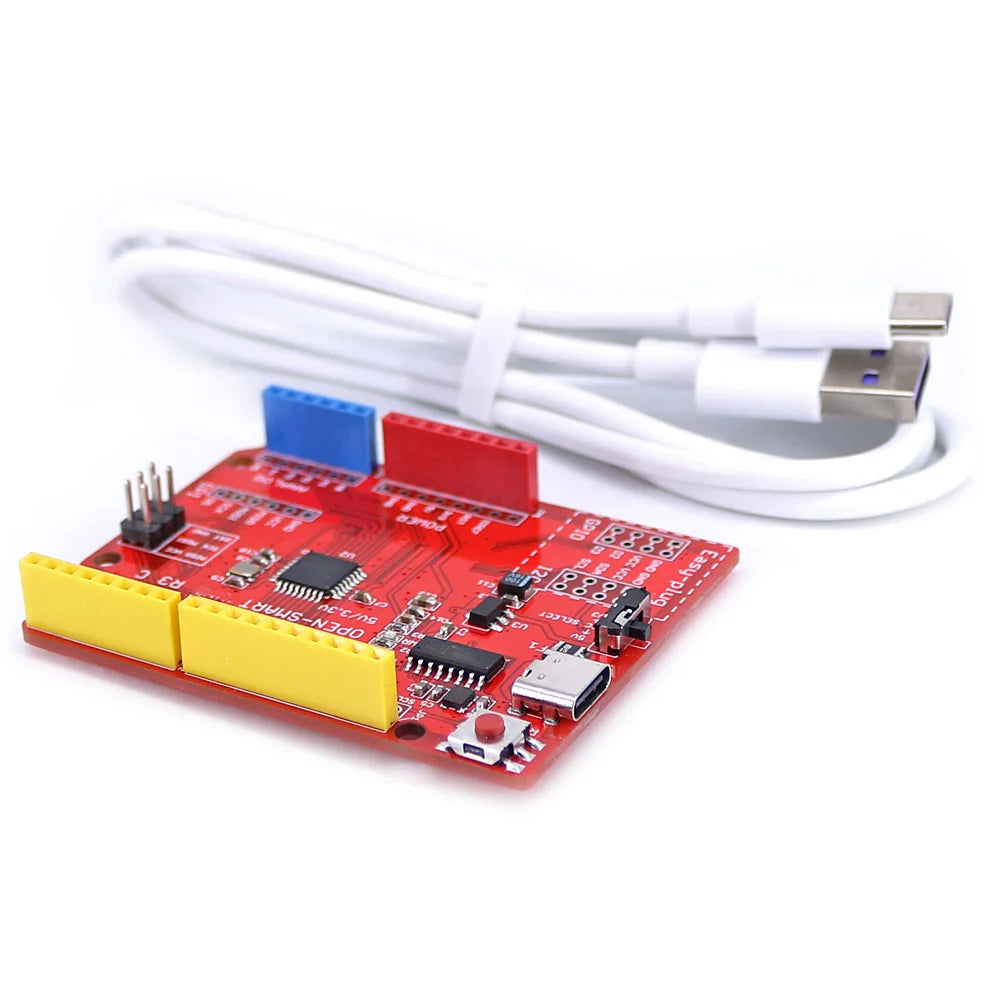

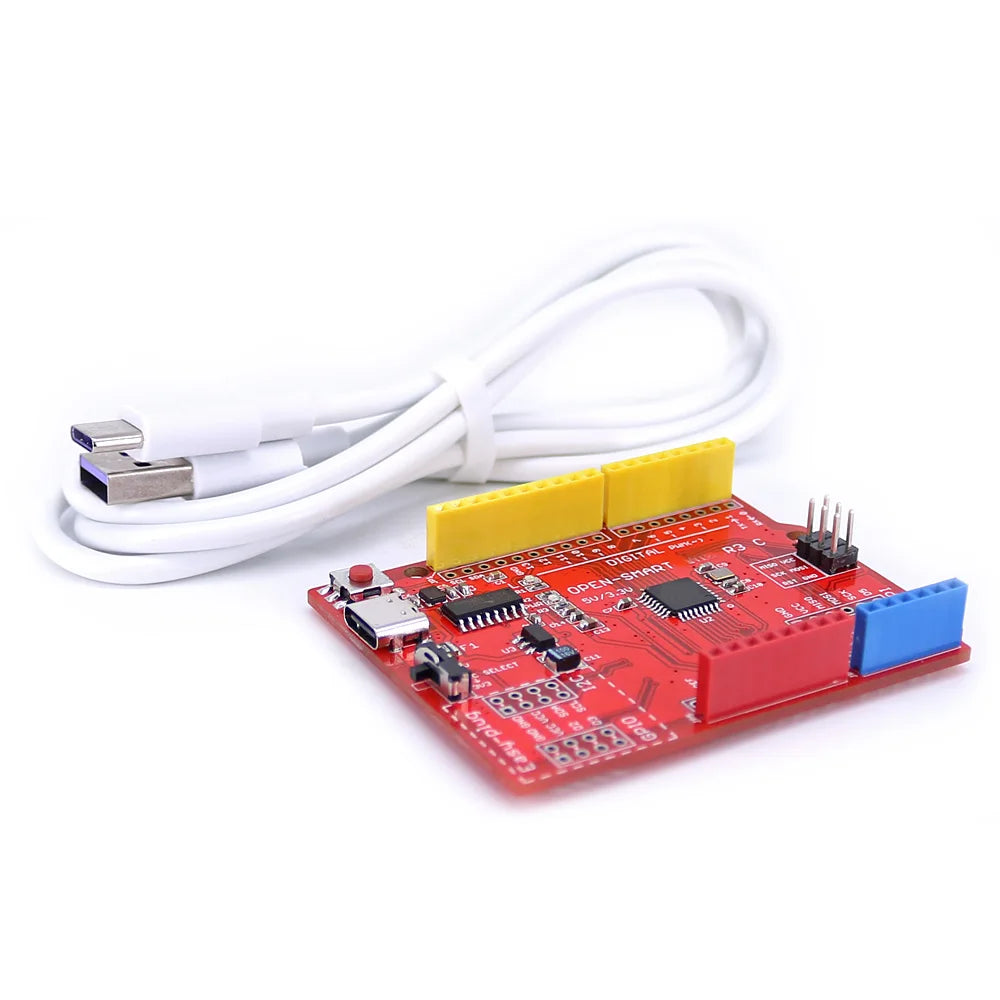

1 x Board

1 x USB cable (100cm)
