SPECIFICATIONS

After-sale Service : Erection & operation train...

Application : mining,Rock & Mineral Operations

Brand Name : Huaye

Capacity(t/h) : 1-3

Colour : As your required

Core Components : PLC,Gear,Other,motor,Engine,Bearing

Dimension(L*W*H) : 720*660*850mm

Guarantee : For one year

Key Selling Points : Competitive Price

Machinery Test Report : Provided

Motor : Chinese famous brand

Motor Type : AC Motor

Place of Origin : Henan, China

Product name : PE 150*250 Jaw Crusher Machine Jaw Rock Crusher

Specification : Stone cutting machine

Type : Jaw Crusher

Uniform granularities : Simple structure

Video outgoing-inspection : Provided

Warranty : 1 Year

Weight : 800 KG

high sieving efficiency : low noise

reliable operation : strong exciting force

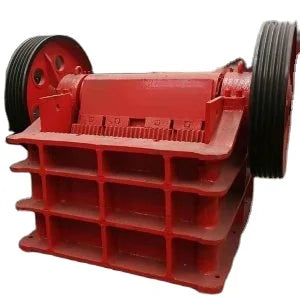

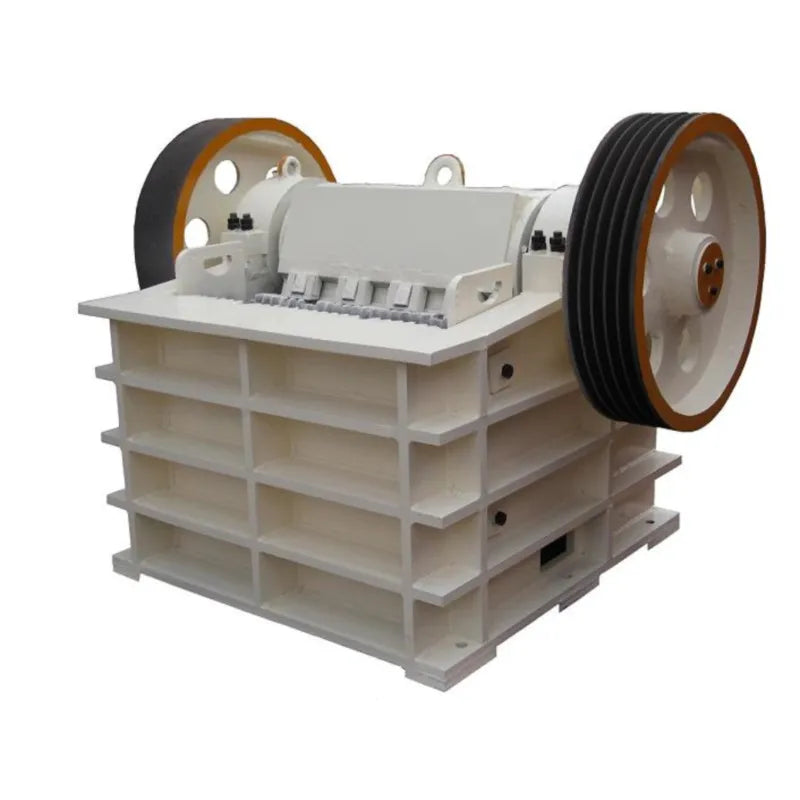

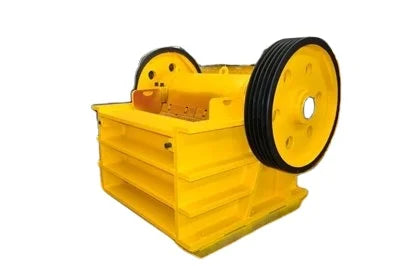

Cheap portable small diesel engine jaw crusher manufacturer small mini stone crusher

A jaw crusher is a robust and versatile crushing device commonly used in mining and quarrying industries. It consists of a fixed jaw plate and a movable jaw plate that create a V-shaped cavity through which materials are fed and crushed. The crushing action is achieved by the movement of the two jaws, which together squeeze the material to the desired size. Jaw crushers are essential for primary crushing operations, offering high efficiency and reliability in processing various types of materials.

Process Raw Materials

Output Size

W

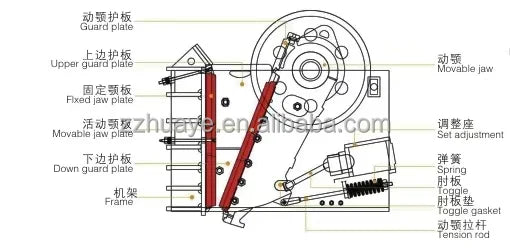

Working Principle

The working mode of jaw crusher is grinding and extrusion. Its working principle is: through the eccentric wheel to move the jaw up and down, when the jaw rises to the fixed jaw plate close, and at the same time the material is crushed or split; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring.

Specification

Model Feed in opening size(mm) Max feed size(mm) Discharge size(mm) Capacity (t/h) Rotary speed eccentric shaft(r/min) Power (kw) Weight (t) 0verall dimension (L×W×H)(mm) PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850 PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990 PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990 PE-250×400 250×400 210 20-60 5-20 300 18.5 2.8 1300×1090×1270 PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630 PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870 PE-600×900 600×900 500 65-160 50-180 250 75 17 2190×2206×2300 PE-750×1060 750×1060 630 80-140 110-320 250 90 29 2660×2430×2800 PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330 PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330 PE-1200×1300 1200×1300 1000 180-330 400-650 220 200 62 4538×2984×3959 PE-1200×1500 1200×1500 1020 150-350 400-800 180 250 80 4200×3300×3500 PE-1500×1800 1500×1800 1200 220-350 450-1000 180. 280 122 5160×3660×4248 PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060 PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540 PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390 PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500 PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600 PEX-300×1500 300×1500 250 25-120 60-140 300 75 16.5 2920×1950×1600 PEX-500×1500 500×1500 350 25-120 50-160 300 90 20 2360×2660×2105

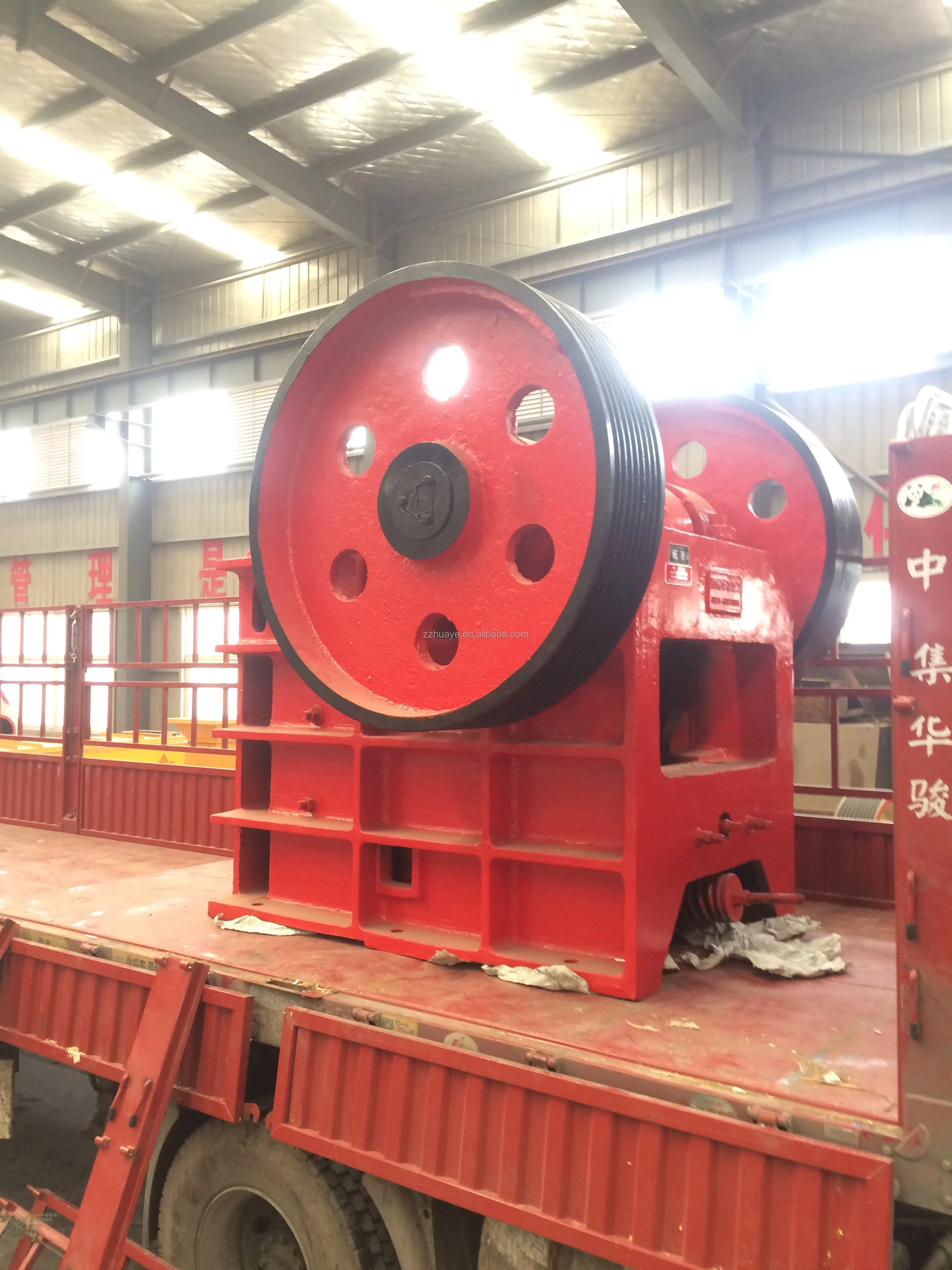

Customer Site

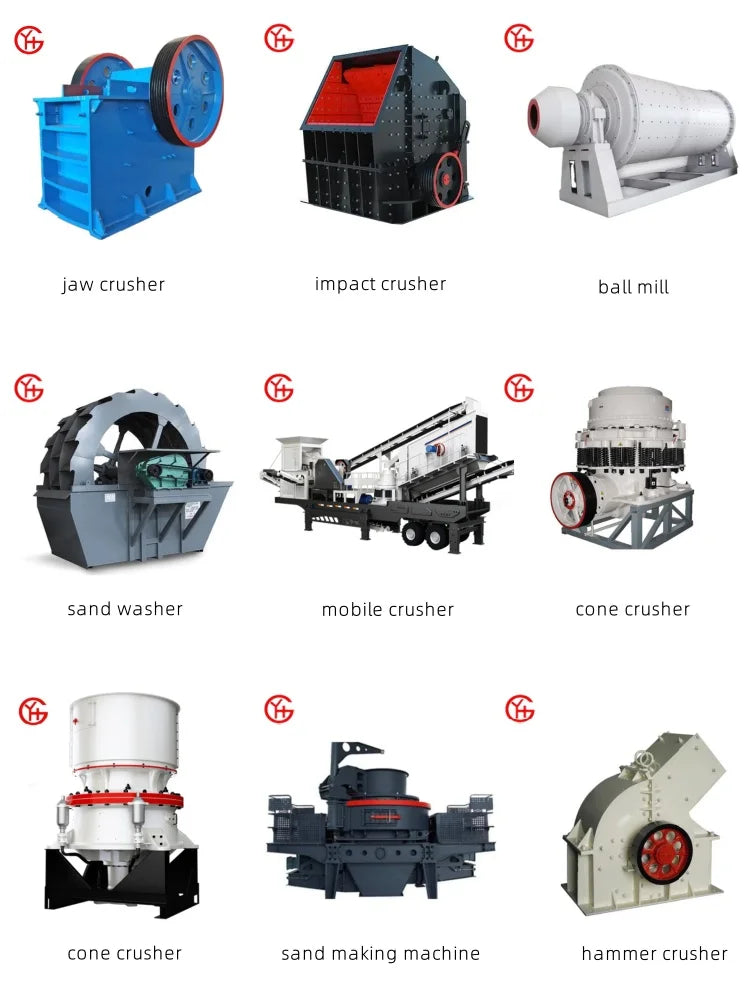

Related Products

(click on the product you are interested in to check the details)

1. Are you manufacture or trading company?
We are factory, with 20 years history.

2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.

3. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.

4. If I need the complete crushing plant can you help us to build it?
Yes, we can help you configure production line and give you related professional advice.

5. Can you send me a quotation?
Yes. for providing you the suitable quotation we need to know the following information:
1.What are you going to crush? I mean, the stone name
2.What capacity do you expect? I mean, how many tons per hour
