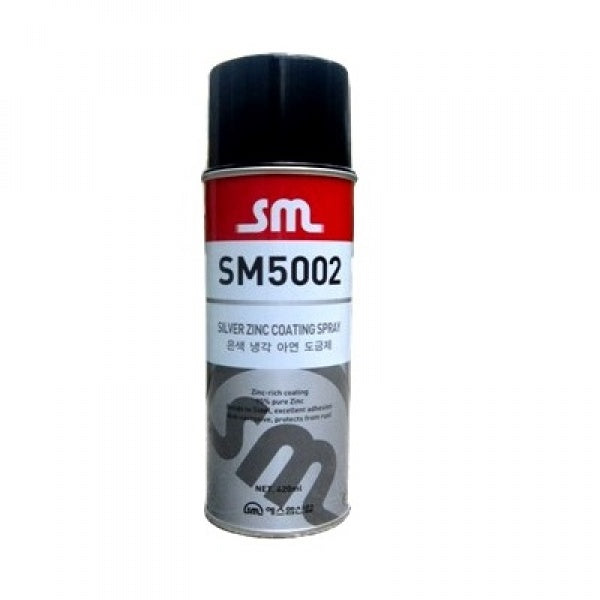

SM5002 Zinc Coating Spray is a 1-component zinc-rich compound derived from epoxy resin, pure zinc powder (95% pure zinc) and toluene, DME solvents. The paint is packaged in a 420ml spray can and imported directly from Korea. The paint dries very quickly, 5-10 minutes, and can be touched by hand. After drying, the metal is protected by a cold zinc coating with a zinc content of up to 75% zinc, providing high anti-rust and anti-corrosion functions. It is widely used in metal welding and cutting, zinc compensation and hot-dip galvanizing repair.

DESCRIBE:

– One-component epoxy compound.

– Zinc raw material has high purity of 95%.

– Zinc content in the coating reaches 75%.

– Quick dry 5 minutes (to = 25 ^o C).

– High scratch and abrasion resistance. Withstands impact in strong chemical environments.

– High temperature resistance up to 200 ^o C.

– Origin: Korea

– Manufacturer: Nurichem

– Silver color is similar to the color of cold rolled steel purlins and galvanized steel.

SPECIFICATIONS:

Nature	Characteristic	Note
Zinc purity	95% zinc	After drying
Zinc content	75% zinc	After drying
Specific gravity	1.15 kg/liter
Theoretical coverage	2-3m2 /bottle	Thickness 30-40 micrometers
Color	Silver
Gloss	Blur
Dry time is touchable	5-10 minutes	Humidity 70% (T o =25 o C)
T is completely dry.	4-10 hours	Humidity 70% (T o =25 o C)
Coating 2	After 4-10 hours
Specification	420ml x 20 Bottles
Expiry	24 Months	(T o = 25 o C)

APPLICATION:

Hot Dip Galvanizing Replacement

– Repair hot-dip galvanized coating damaged by welding, cutting, drilling holes.

– Paint to restore hot-dip galvanized surfaces due to environmental corrosion.

– Galvanizing at the construction site or production site without having to bring it to a hot-dip galvanizing workshop.

– The color is similar to hot-dip galvanizing, so it can be used as a primer (1 coat) or topcoat (2 coats). The paint can be combined with other traditional paints (alkyd or epoxy) to create the desired color.

Typical Applications:

– Electric poles, lighting poles, parabolic towers, radar stations, telecommunication poles.

– Construction structure: wharf, factory, fence, offshore equipment, tanks, pipelines, bridge railings, galvanized steel sheet.

– Machinery and equipment, power transformer stations, power transmission, high voltage grid.

– Electricity, oil and gas, transportation, aquaculture, industrial plants or public works.

“The product is highly effective in highly corrosive environments such as: seawater, chemicals, fertilizers and places with high temperatures”

INSTRUCTIONS FOR USE:

a/ Surface Treatment

– Grease, dirt and humid air can affect the adhesion of the spray film, so clean grease and dirt with alcohol or industrial gasoline to completely dry the surface.

– Clean all rust on the surface with sandblasting gun, grinder or specialized acidic cleaning solutions.

b/ How to Use

– Shake well for at least 1 minute to evenly distribute the solution in the spray bottle.

– Spray evenly on the surface of the material or the area to be sprayed. Keep the spray distance at 30cm.

– Spray a thin layer with a drying time of 15 minutes and a completely hard paint time of 24-36 hours.

– After 12-24 hours, you can apply a second coat.

– After spraying, turn the spray bottle upside down, gently squeeze the spray cap for 2-3 seconds to clear the air tube and avoid clogging when left in the air for a long time.
