SPECIFICATIONS

Battery Included : No

Brand Name : MSTBODEN

Certification : CE

Hign-concerned Chemical : None

Measuring distance : 30mm-360mm

Model : KA200

Model Number : KA200-70-360-5u

Moving speed : 60 m / min

Operating temperature : 0-45

Origin : Mainland China

Output signal : TTL

Pitch : 0.02mm

Product Name : grating ruler linear encod

Resolution : 5um

Signal wire length : 2M metal hose

Voltage : DC5V

Product Brief：

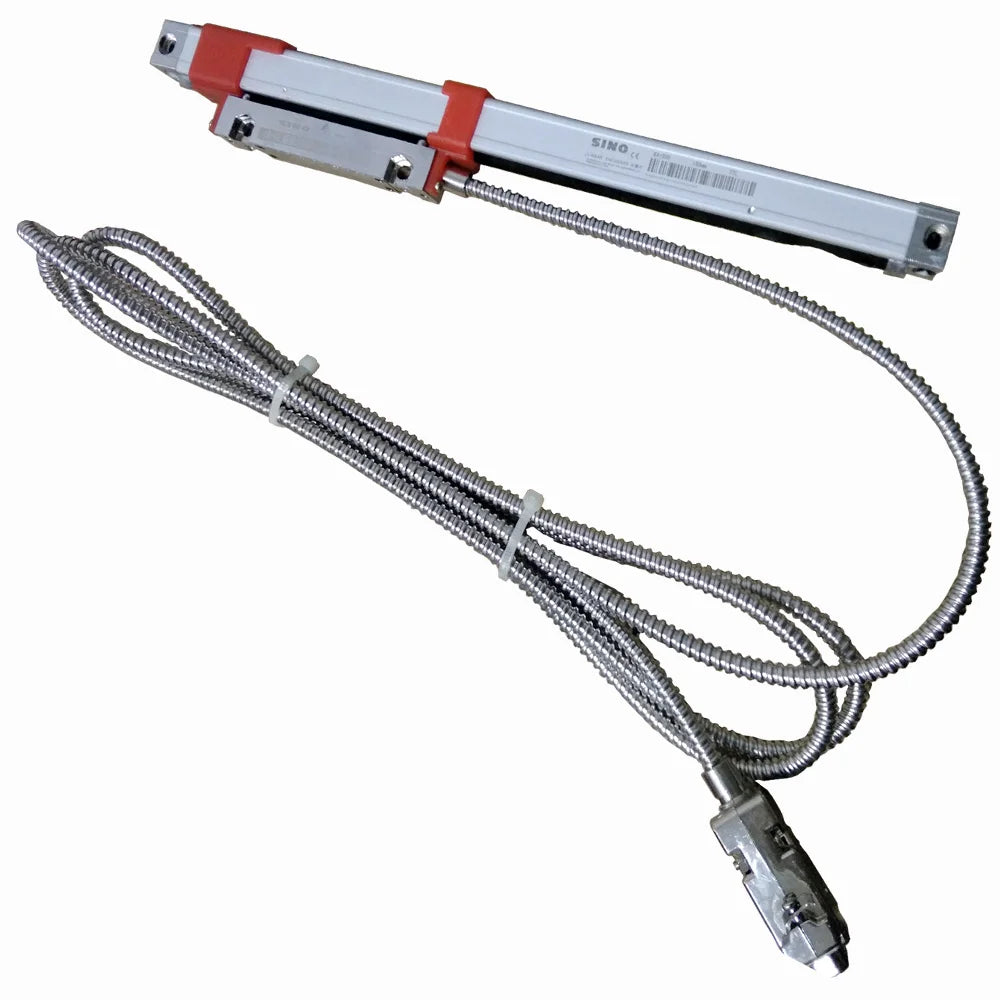

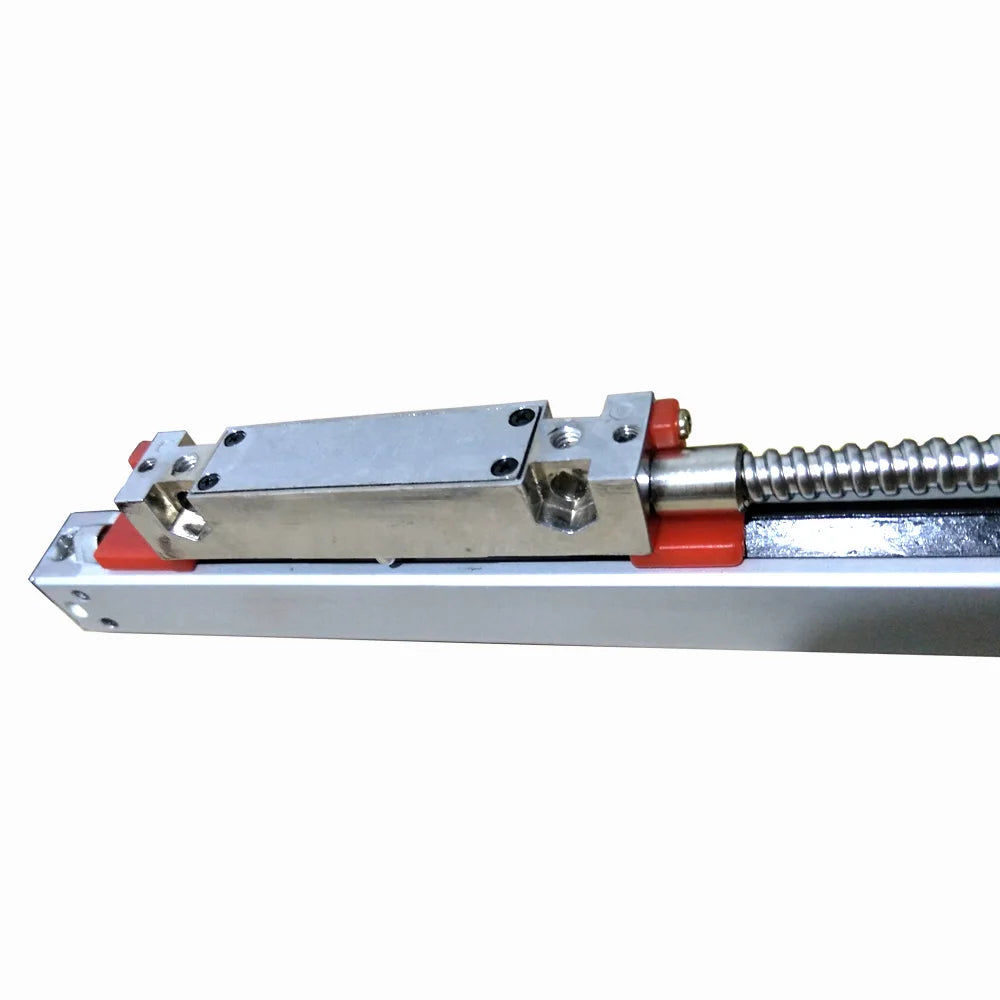

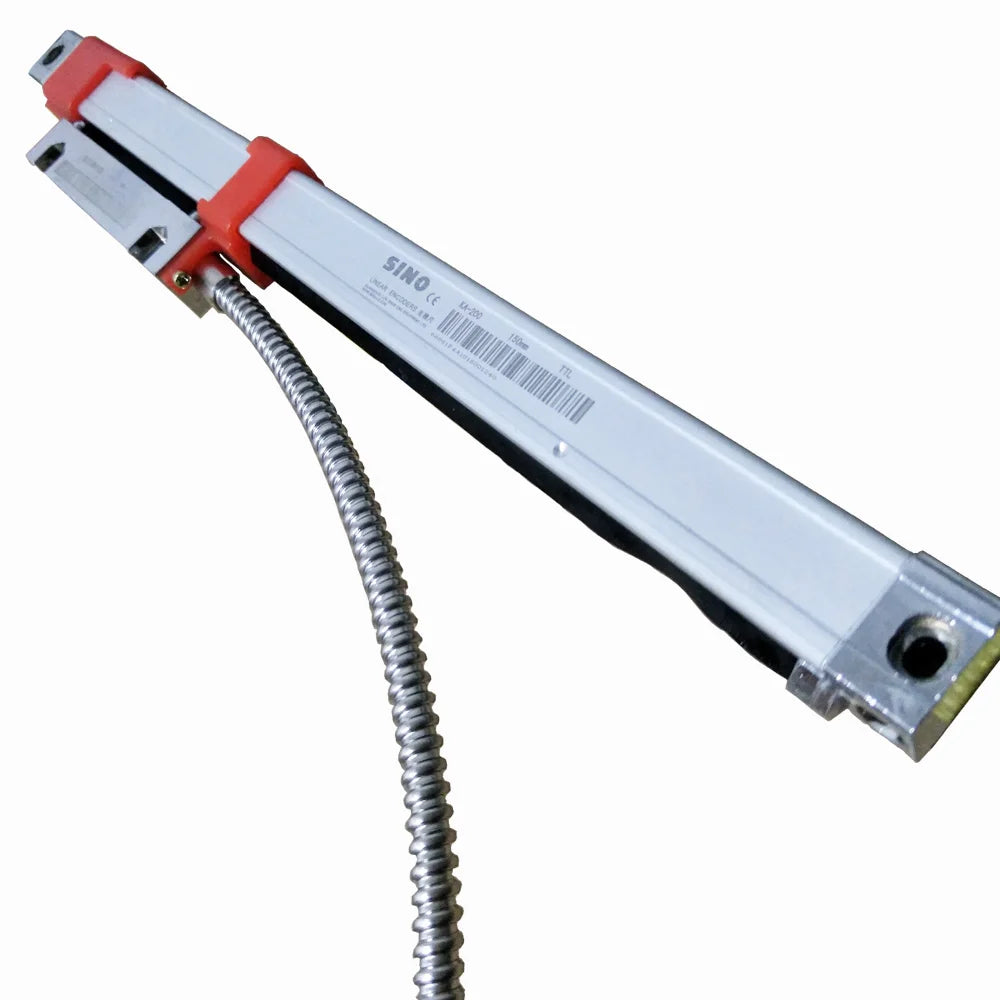

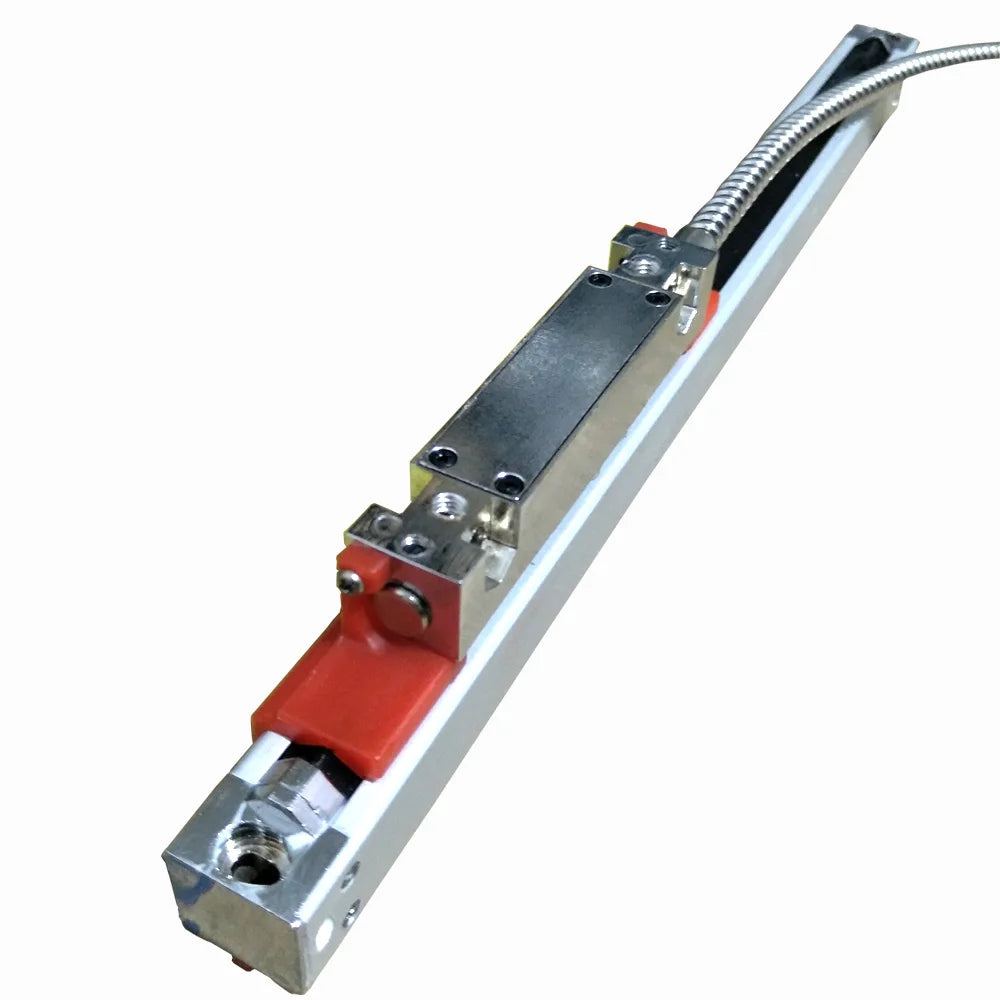

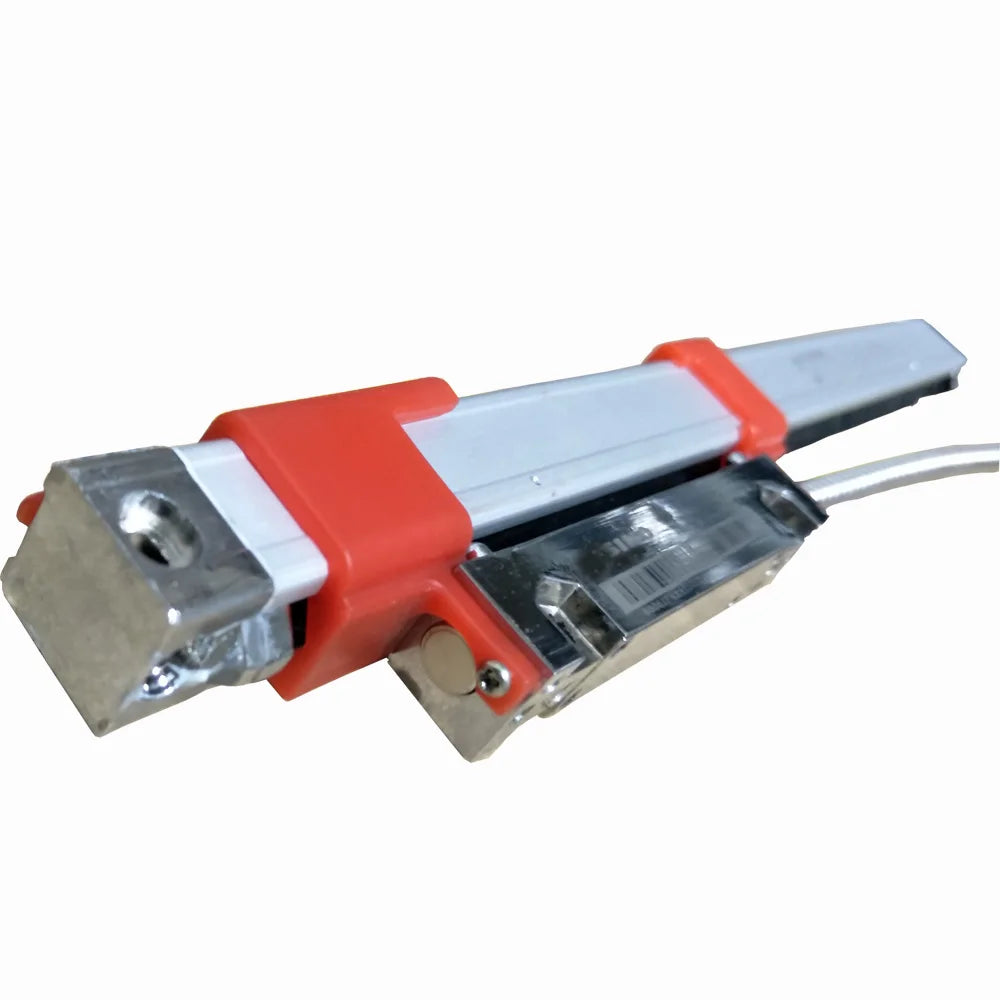

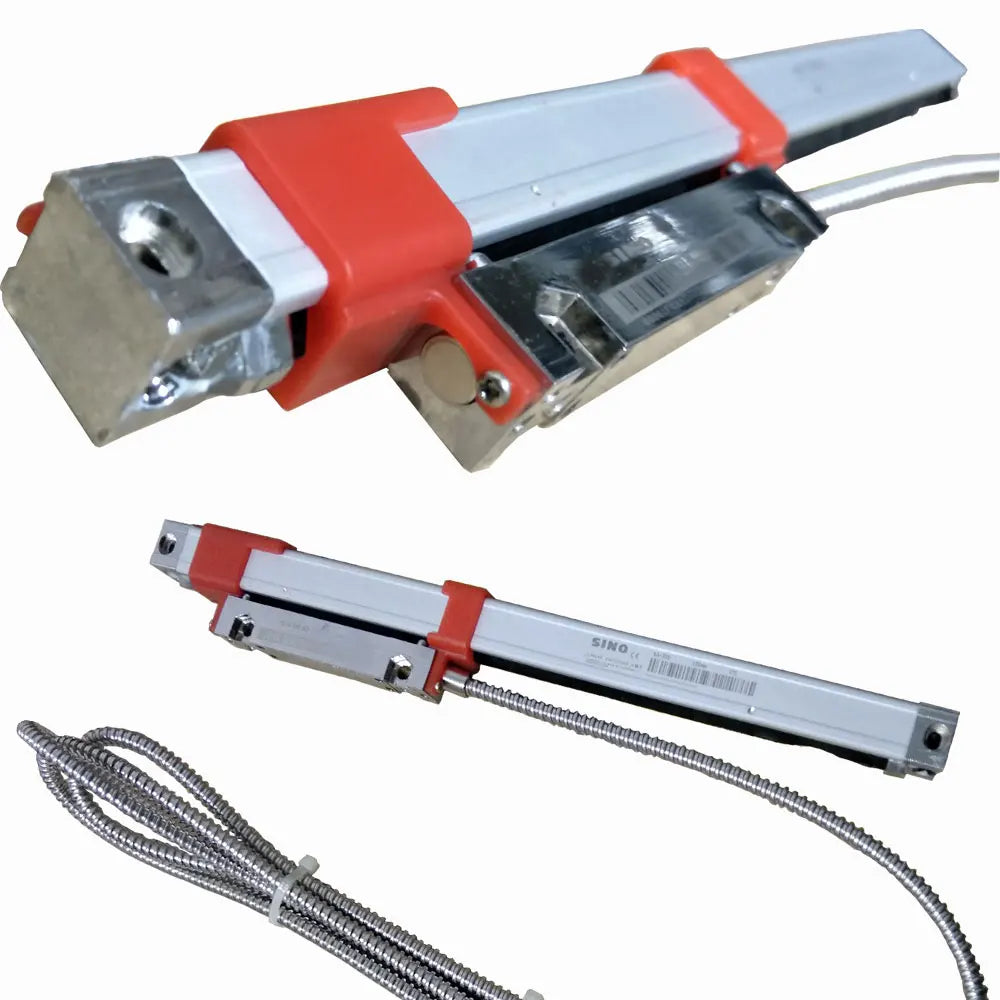

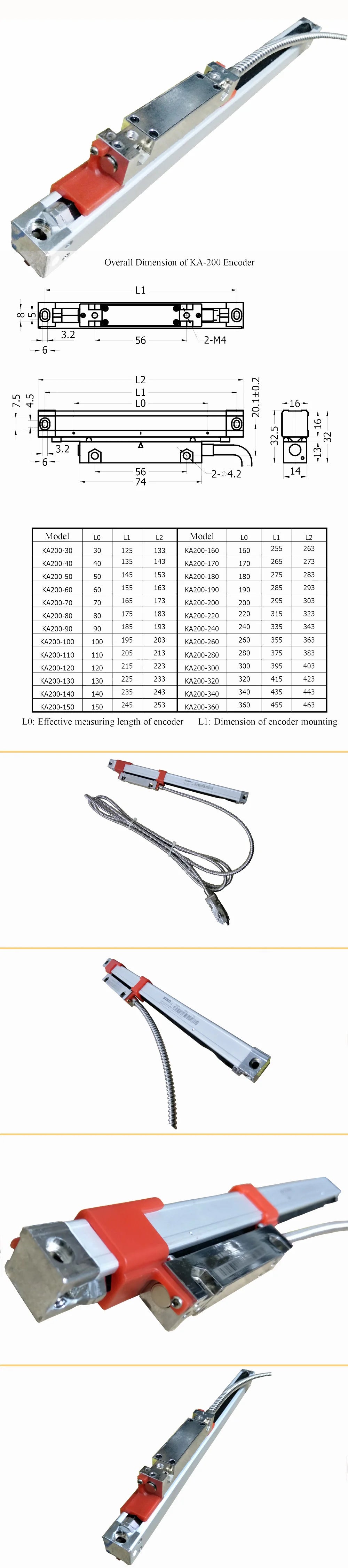

KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by
optimizing the internal and external structure. It is suitable to the equipment on which
the installation is limited and the space is even small. The length is 30-360mm.

1. technical parameters

1.1, pitch:

1.2, resolution:

1.3, accuracy:

1.4, range:

0.02mm (50 lines/mm)

5m, 1m, 0.5m

+ 3 + 5, M + 15, mm/m (20 + 0.1 C)

30~3000mm

1.5, moving speed: high speed ruler 120 m/min (need to be customized)

Ordinary ruler 60m/min

1.6, power supply:

+5V + 5%, 80mA

1.7, the length of the cable: Standard 2M (special length can provide according to the needs of the user)

1.8, working temperature: 0~45

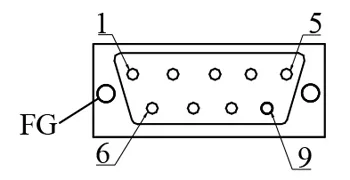

1.9, plug foot instructions:

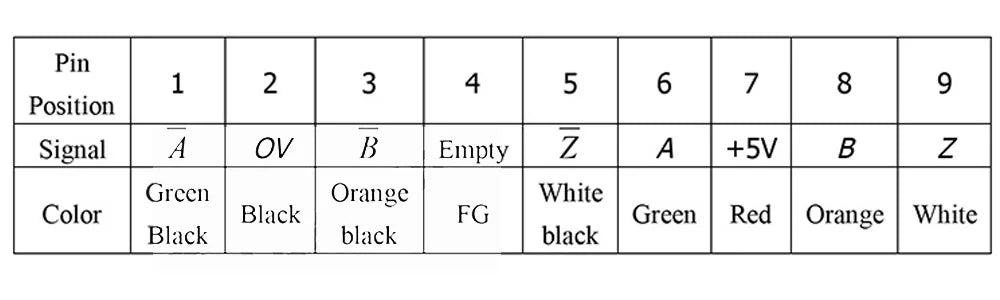

1) suitable for: 9 core socket RS-422 signal output.

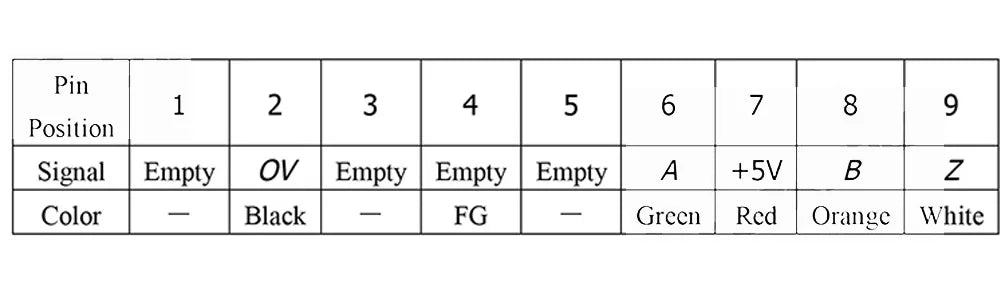

2) suitable for: 9 core socket TTL signal output.

FG: shielded metal case
