SPECIFICATIONS

Advantage : Long Lifetime

Application : Power plant,Crushing plant,Stone plant,Stone plant

Application : Jaw Rock Crusher

Brand Name : KQ

Capacity(t/h) : Max.40t/h

Color : Customized

Core Components : motor, Bearing

Dimension(L*W*H) : 1600*1400*1600

Function : Rock Stone Crusher

Installation : Guide

Key Selling Points : Long Service Life

Keyword : Fine Stone Crusher

Machinery Test Report : Provided

Model : PE150*250

Motor Type : DC MOTOR

Place of Origin : Henan, China

Product name : mobile diesel jaw crusher

Raw material : Stones Rocks Ores

The Machines classification : Stone Crushing Line

Type : Jaw Crusher

Video outgoing-inspection : Provided

Warranty : 2 years

Weight : 3500 KG

Small Jaw Crusher Product Advantages:

1. It is suitable for small crushing site and can be moved at any time for easy operation.

2. Good particle size, the crushing cavity and jaw plate tooth have been specially designed.
3. It is well suited for running in very poor working environment.
4 . crushing ratio, even particle size, low noise.
5. Reliable quality can be guaranteed for many years without repair.

6 .Strong adaptability to materials, wide market.
7. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.

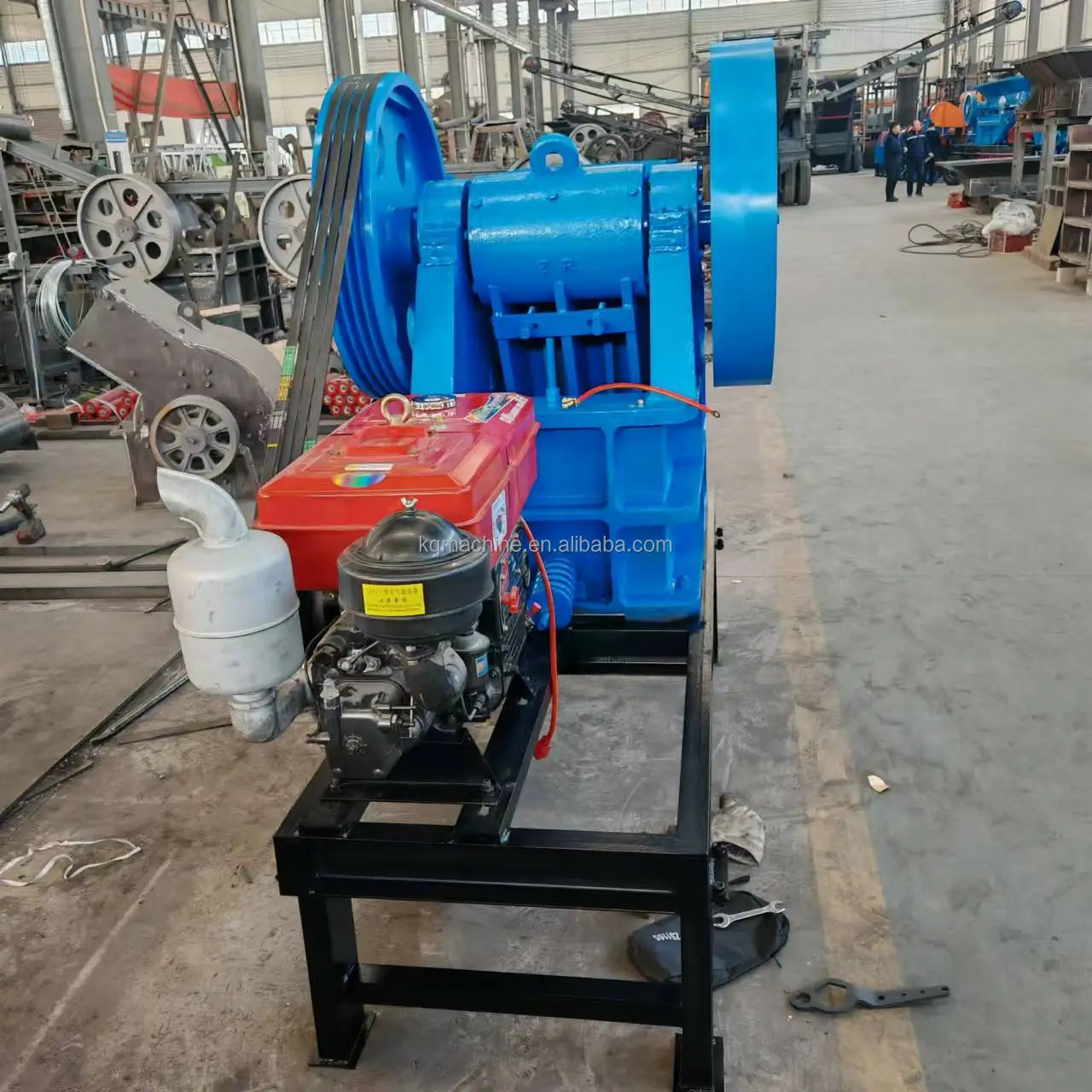

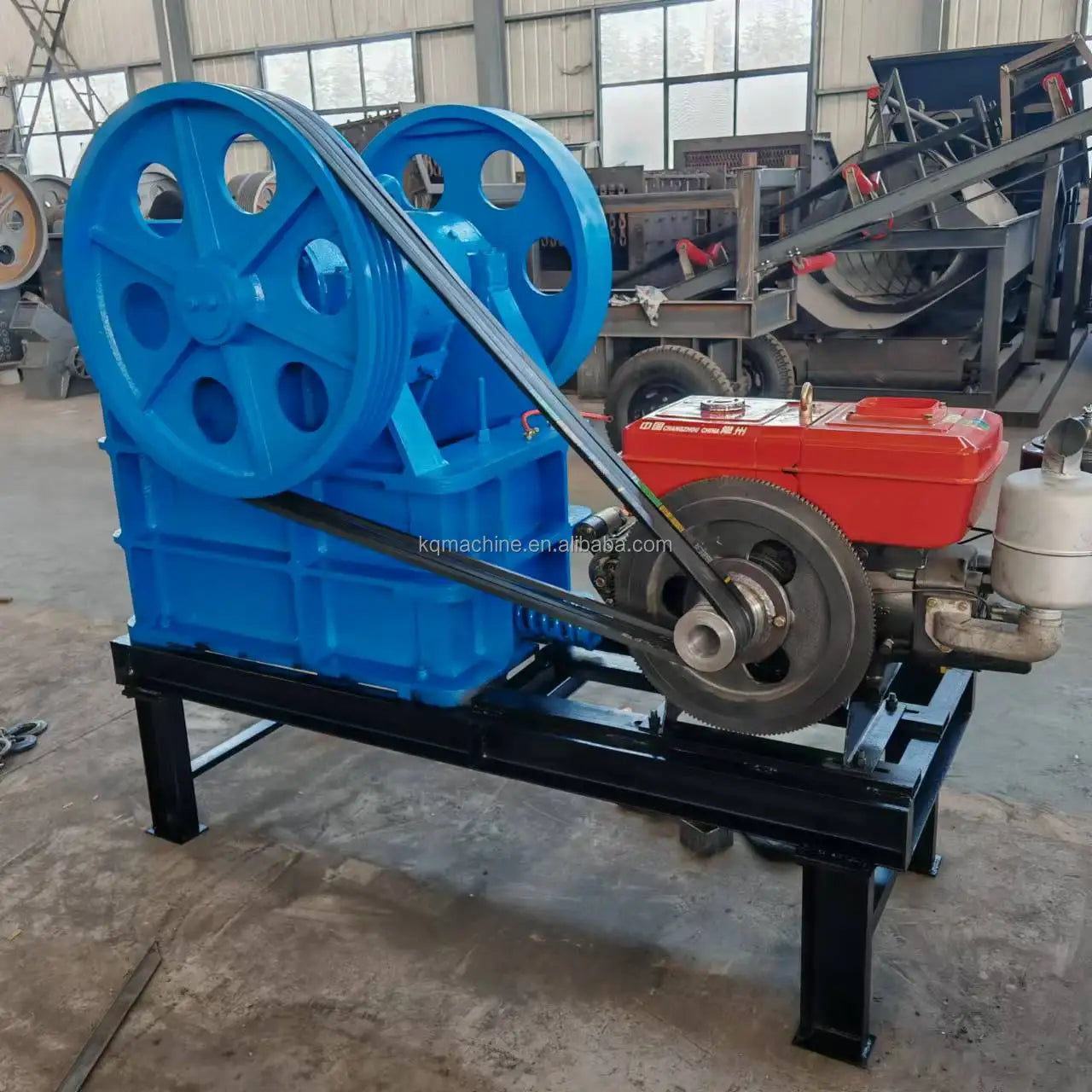

Jaw crusher with diesel engine

Mobile Jaw Crusher with Diesel Engine

Mobile diesel jaw crusher with conveyor belt

Mobile diesel jaw crusher with screening plant

Large Mobile Jaw Crusher with Feeder and Conveyor Belt

Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality management-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment. Service: continuous and effective after-service for the customer support. 24 hours service with.

Model	Max Feeding Size(mm)	Discharging Size(mm)	Capacity(t/h)	Motor Power(kw)	Weight(t)
PE150*250	125	0-40	1-3	5.5	0.7
PE200*300	180	10-40	5-7	7.5	1
PE250*400	210	20-60	5-20	15	2.8
PE400*600	340	40-80	16-60	30	7
PE500*750	425	50-100	40-110	55	12
PE600*900	500	65-160	50-180	75	17
PE750*1060	630	80-140	110-320	90	31
PE900*1200	750	95-165	220-450	160	52
PE1000*1200	850	195-265	315-500	160	55
PEX150*750	120	18-48	8-25	15	3.8
PEX250*750	210	15-60	13-35	30	6.5
PEX250*1000	210	15-60	16-52	37	7
PEX250*1200	210	15-60	20-61	45	9.7
PEX300*1300	250	20-90	16-105	55	15.6

This small PE series jaw crusher has a maximum feed size of 130-210 mm, an output size of 10-60 mm, and a capacity of 1-20 tph. Mining crusher crushing materials include granite, basalt, limestone, river rock, sandstone, shale, iron ore, copper ore, building construction, construction waste, and so on.

Henan Keqiang Machinery Equipment Co., Ltd. is a national high-tech enterprise specializing in mining machinery and equipment, the main products are: mobile crushing plant, sand making machine, various crushers and related accessories. The company always puts the quality of the products in the first place, each product has gone through strict quality inspection procedures, the company has a professional technical team to provide customers with 24-hour pre-sale, sale and after-sale technical support.

Q:Are you manufacture or trading company? A: We are factory.

Q: How long is your delivery time? A:7-10 days for the stock.15-30 days for the mass production.

Q:What is your payment method? A:30% deposit in TT advance, 70% balance before shipment.

Q: How long is the warranty? Does your company supply the spare parts? A: One year. Spare parts for you at lowest cost.

Q: lf l need the complete crushing plant can you help us to build it?

A:Yes, we can help you set up a complete production line and give you related professional advice. Wehad already built many mining projects in China & Overseas.
