SPECIFICATIONS

2xUSB-A 2.0 : 480Mbps

Brand Name : UGREEN

Certification : CE, FCC

Compatible Game Console : Nintendo Switch,Steam Deck,ROG Alloy,ROG X,Legion Go,MSI CLAW

Compatible PC Devices : Laptops

Compatible Systems : Windows, MacOS, Linux, Chrome OS, iOS, iPad OS, Android

Feature1 : 10-in-1 USB C Docking Station

Feature2 : 10 Ports Full-Function Splitter

Feature3 : USB-C HUB / USB HUB / USB-C Splitter / USB Expander

Funtion : Card Reader,RJ45,USB-A,USB-C,Charging,HDMI-Compatible

HDMI1 Port : HDMI2.0, 4K@60Hz, 4K30Hz, 1080P120/60Hz, 720P60Hz

HDMI2 Port : HDMI2.1, 8K@30Hz, 4K120/60/30Hz, 1080P120/60Hz, 720P@60Hz, 480P@60Hz

HDR : HDMI port support

High-concerned chemical : None

Interface Type : USB Type-C

Model Number : CM498/CM639/CM512/CM478

Origin : Mainland China

PD : 100W Power Delivery

Package : Yes

Plug Type : None

Ports : 10, 10, 10/9/8/7/6/5

Product Name : Dual HDMI USB C HUB

Protective Measures : Prevent voltage shock, Reduce radiation interference, Overcurrent protection, Voltage isolation, Prevent voltage backflow

RJ45 Ethernet port : 1000/100/10Mbps, Support IEEE802.3/ IEEE802.3u/ IEEE802.3ab/ IEEE802.3z/ IEEE802.3x

SD&TF Card Slots : SD3.0, 104MB/s. Support 2 cards read and write simultaneously.

Standard : USB 3.0

System Compatibility : Windows 11/10/8/7, macOS, Linux, iOS, Android, iPad OS

USB-A 3.0 : 5Gbps, BC1.2

USB-C 3.0 : 5Gbps

Important Note:

This page features model: 2HDMI 10-in-1 8K(15534).

For functions of other models, please refer to the SKU chart or contact customer service.

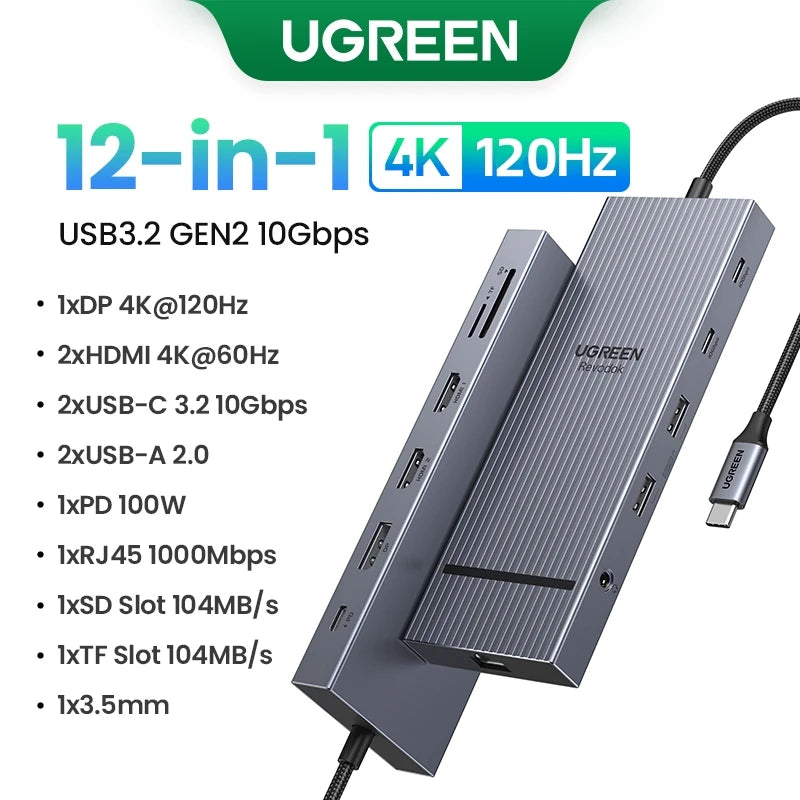

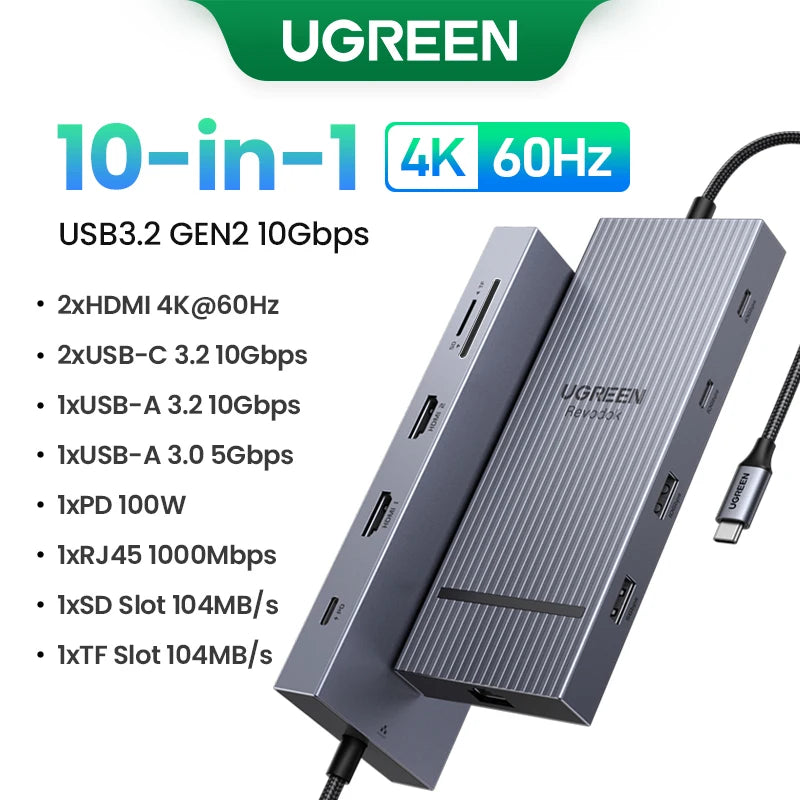

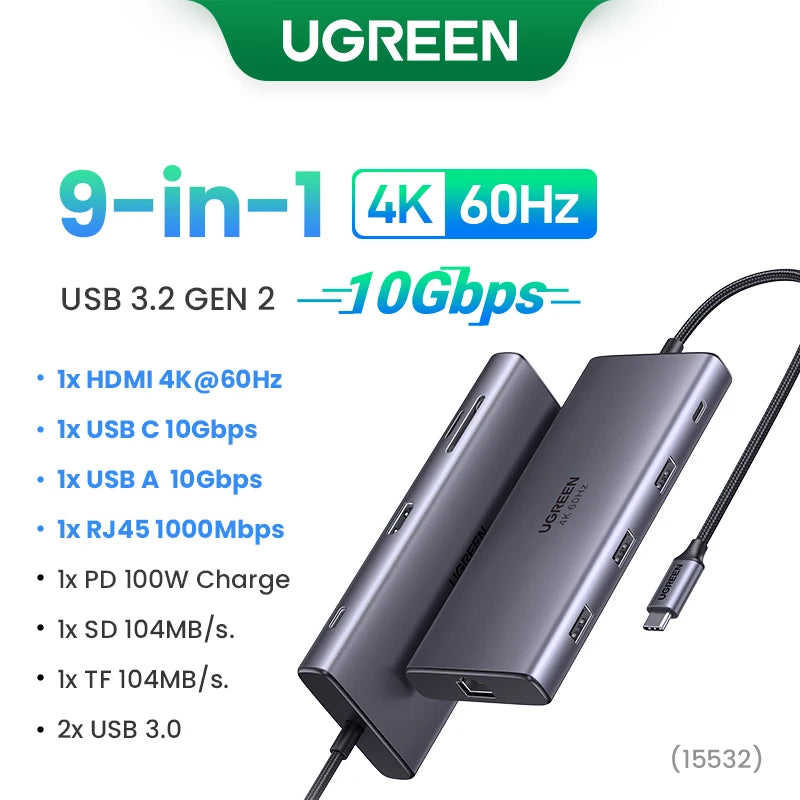

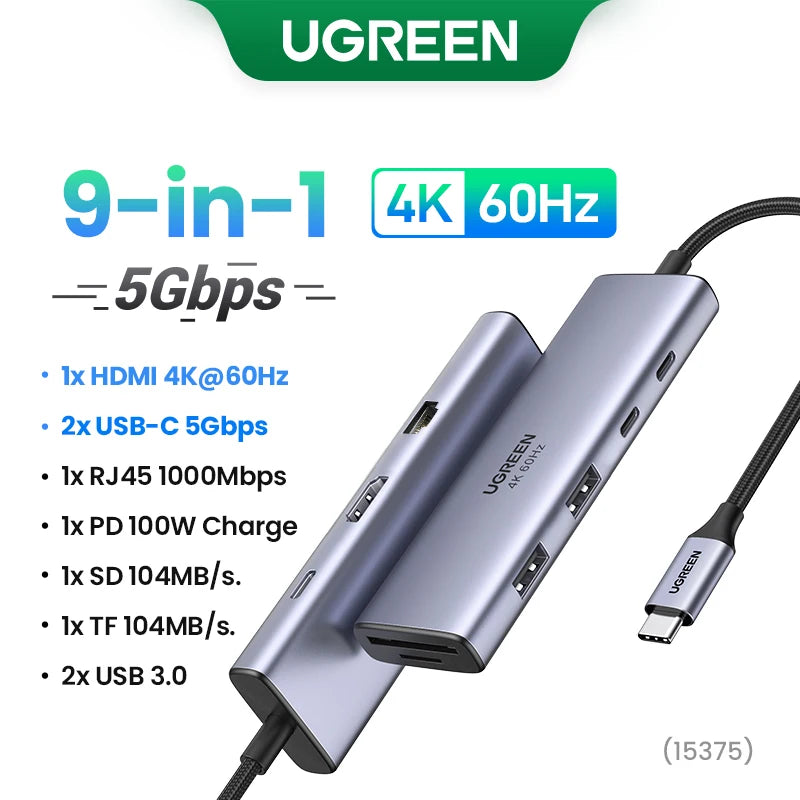

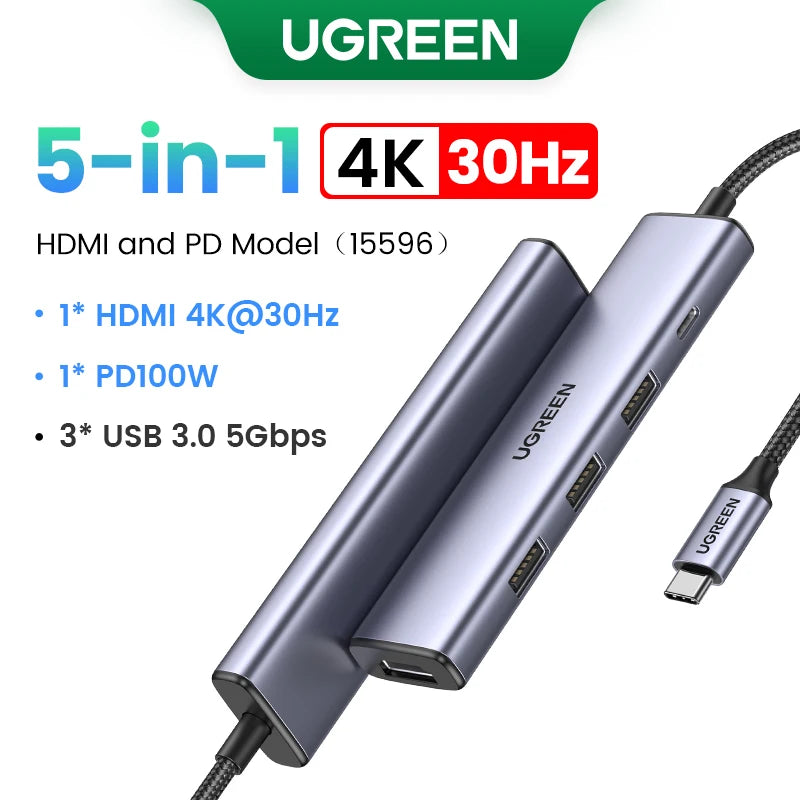

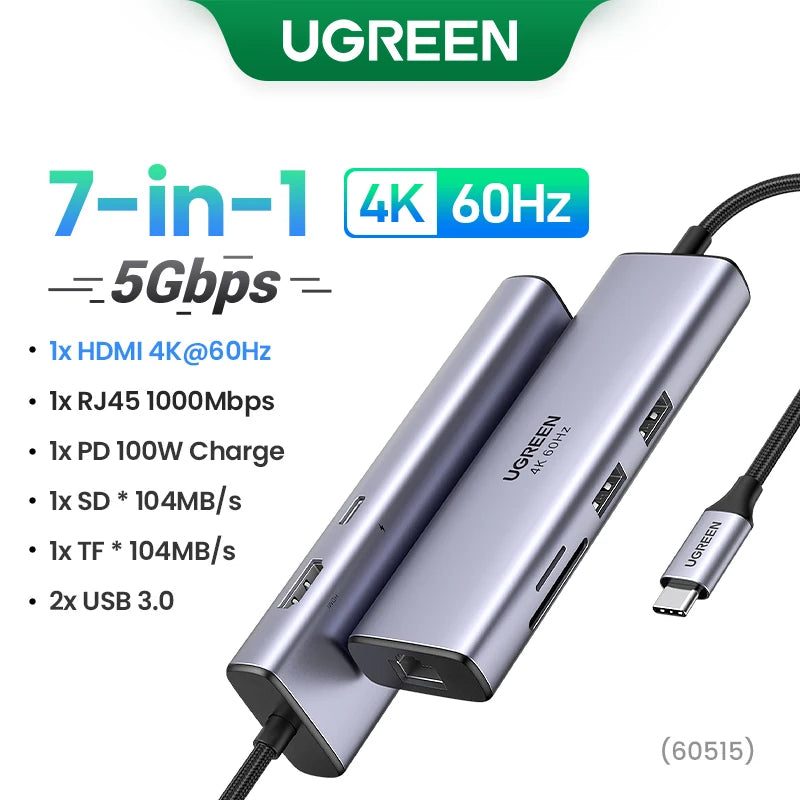

There are 13 hubs with different interface combinations available for purchase under this link. Please carefully confirm which product you need before purchasing to avoid purchasing errors.

UGREEN

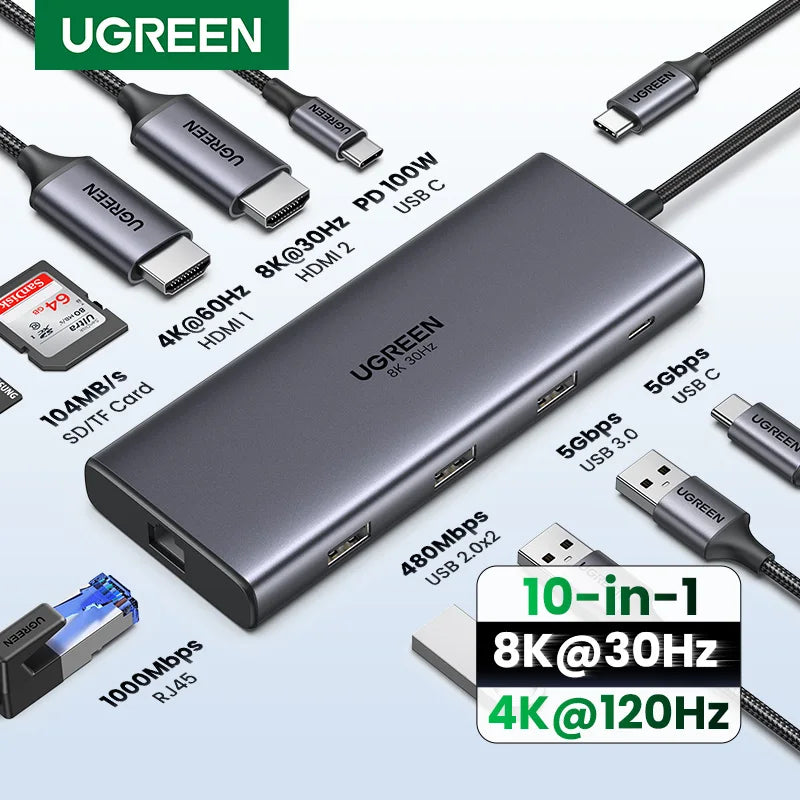

8K+4K 2xHDMI

10-in-1 Full-function Docking Station

10 Port Expansion

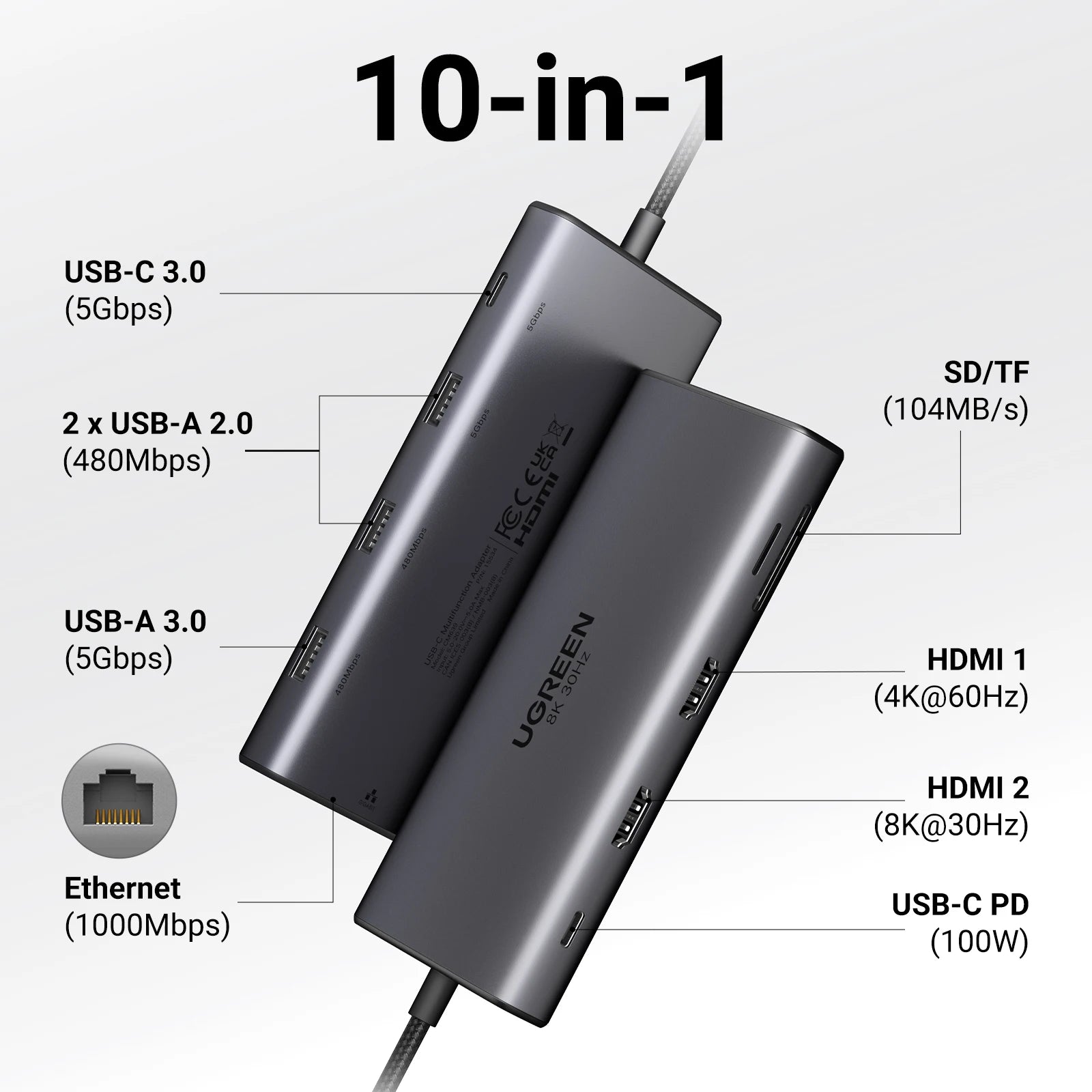

1*8K@30Hz HDMI2 + 1*4K@60Hz HDMI1 + 1*1000Mbps RJ45 + 1*100W PD + SD&TF + 1*USB-A 3.0 + 1*USB-C 3.0 + 2*USB-A 2.0 Dual 4K@60Hz Display

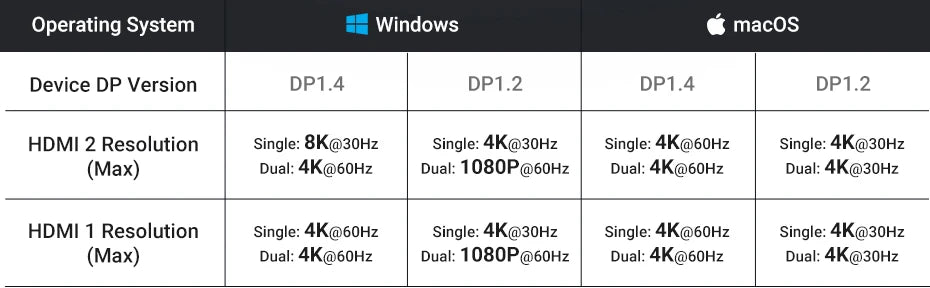

Windows users can connect a single monitor up to 8K@30Hz resolution via HDMl2 port. For anyone looking to add dual displays, this HUB allows dual displays at 4K@60Hz max via dual HDMl ports. Multiple Display Modes

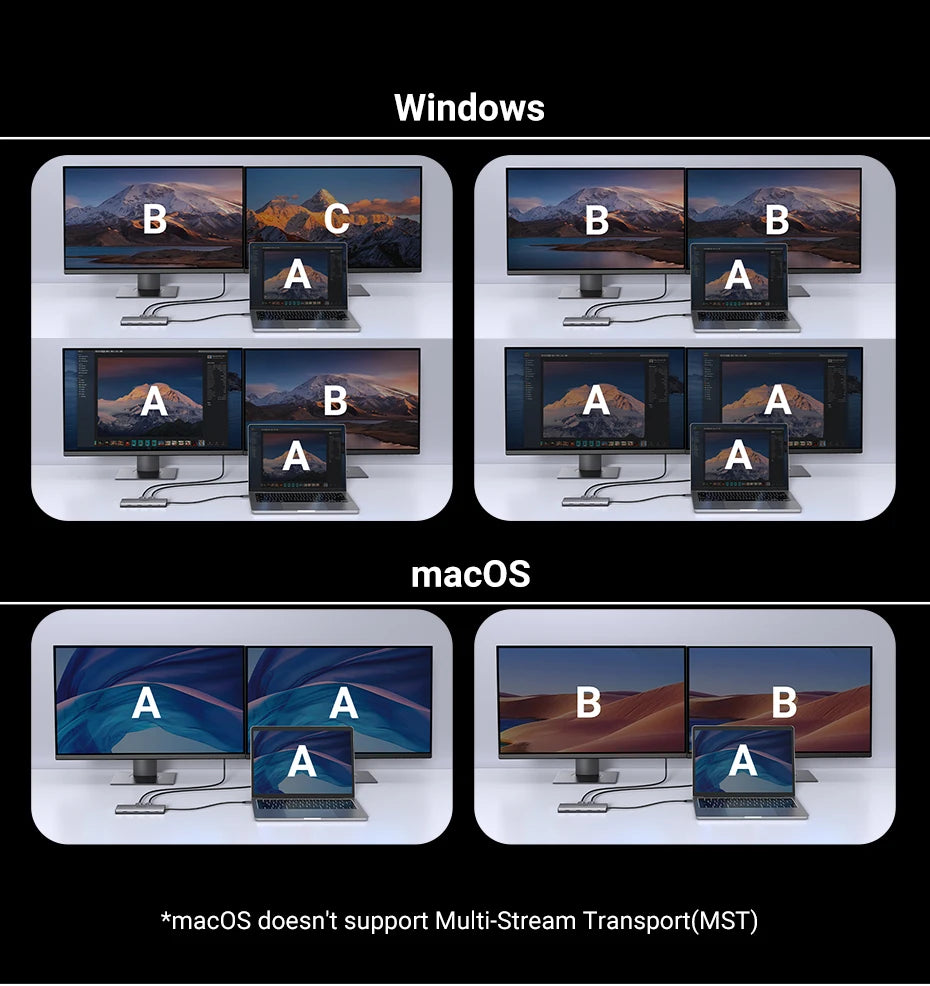

*Notice: macOS doesn't support Multi-Stream Transport(MST).

Due to the limitations of macOS, all extended monitors will display the same content.

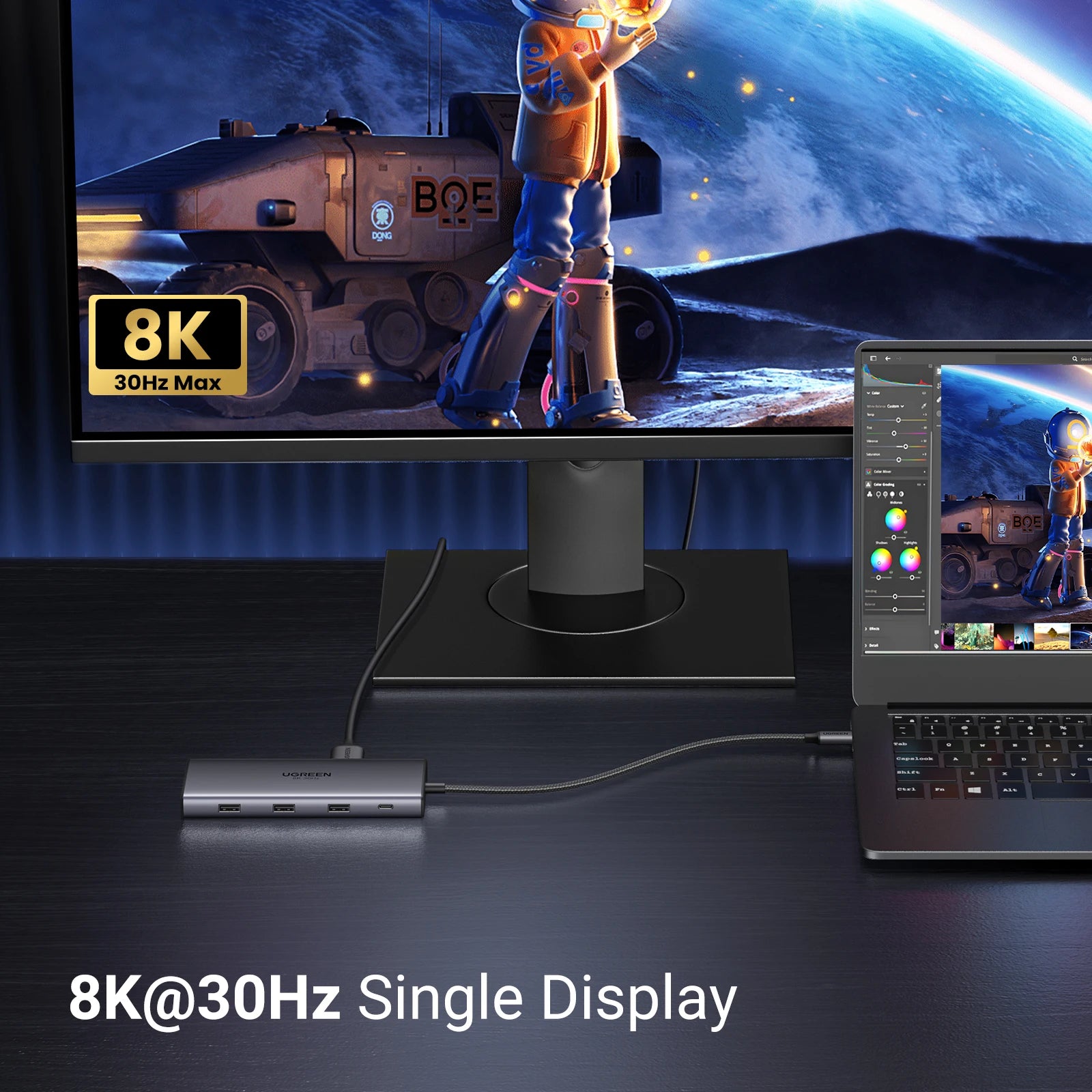

8K@30Hz Single Display

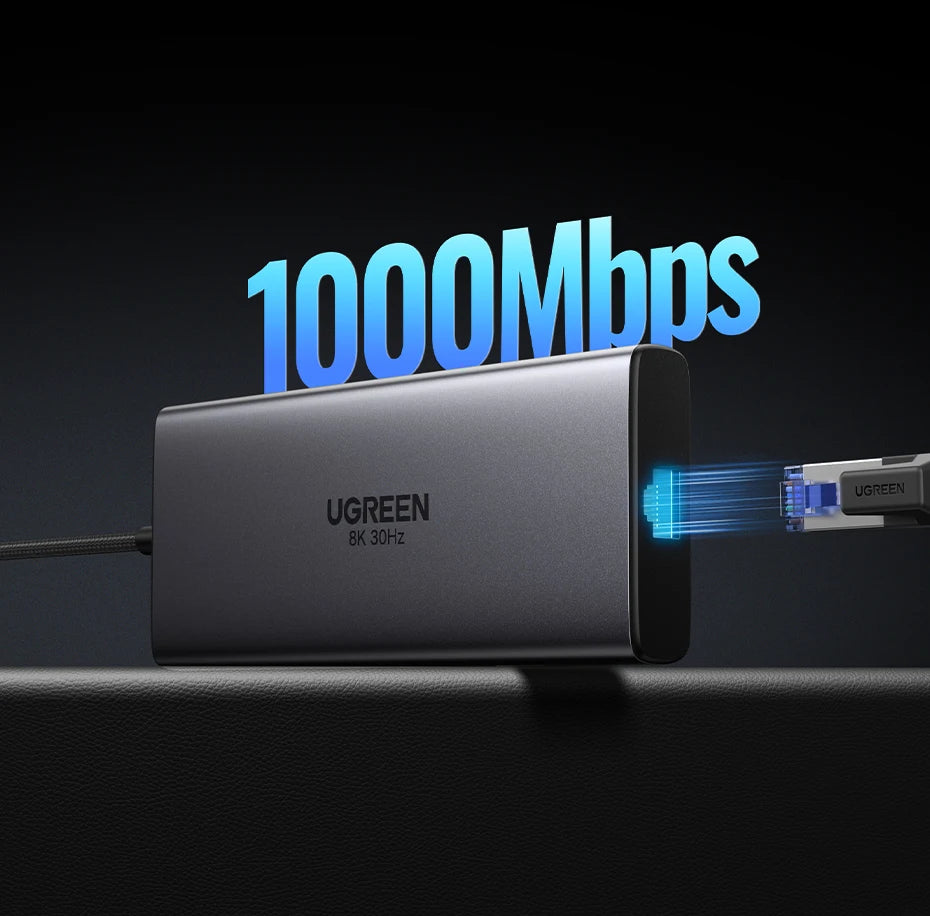

HDMI2 Port, support HDMI2.1, 8K@30Hz Max, backward compatible with 4K@120/60/30Hz. Gigabit Ethernet Speed

1000Mbps faster and more efficient

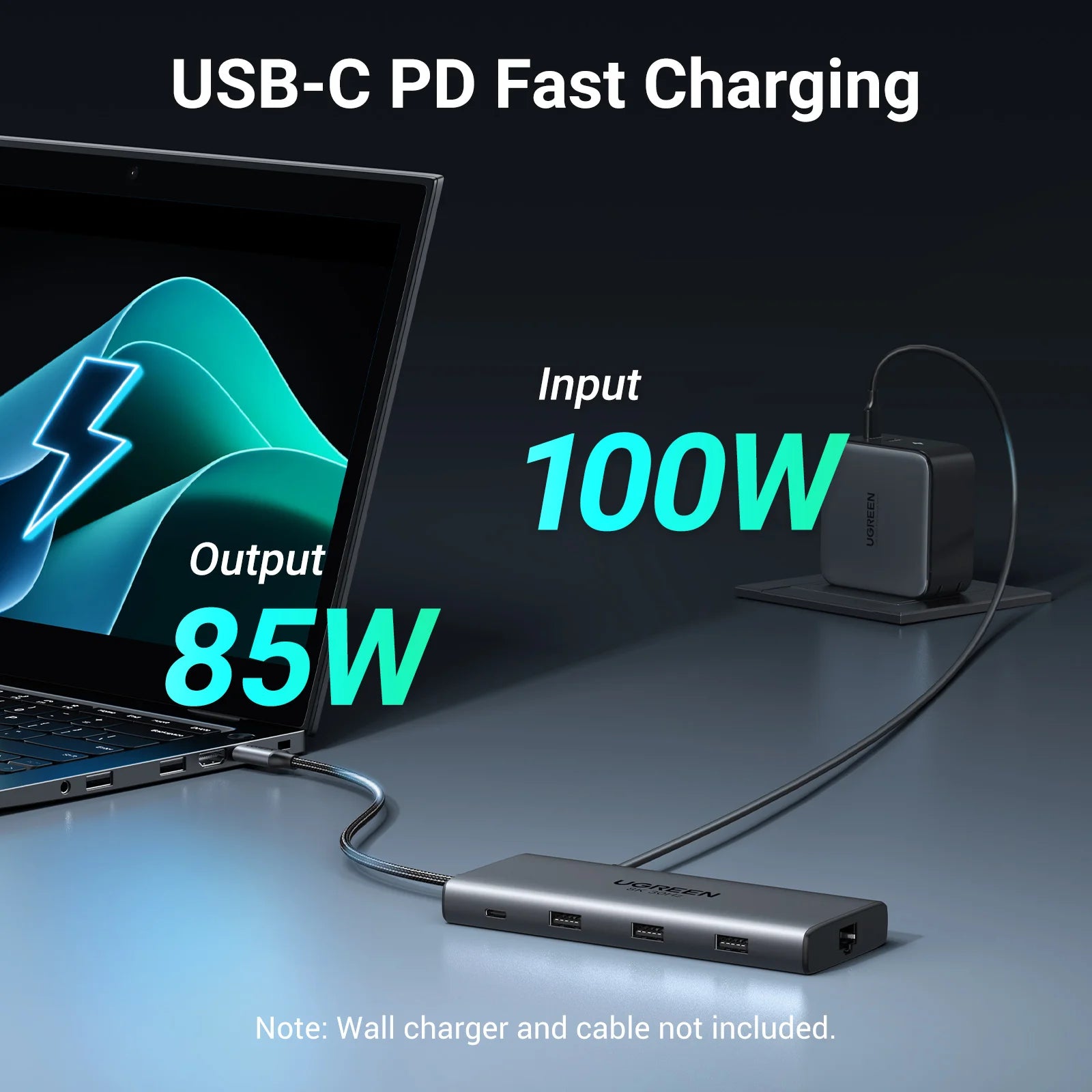

PD 100W Fast Charge

Support for 85W pass-through charging over the 100W USB-C PD port allows for quick laptop charging.

USB3.0 5Gbps Transfer

1*USB-A 3.0 + 1*USB-C 3.0 + 2*USB-A 2.0.

Connect to Mouse, Keyboard, U Disk, Printer, Hard disk, etc.

Transfer 1G files in 3 seconds. 104MB/s SD/TF Card Reader

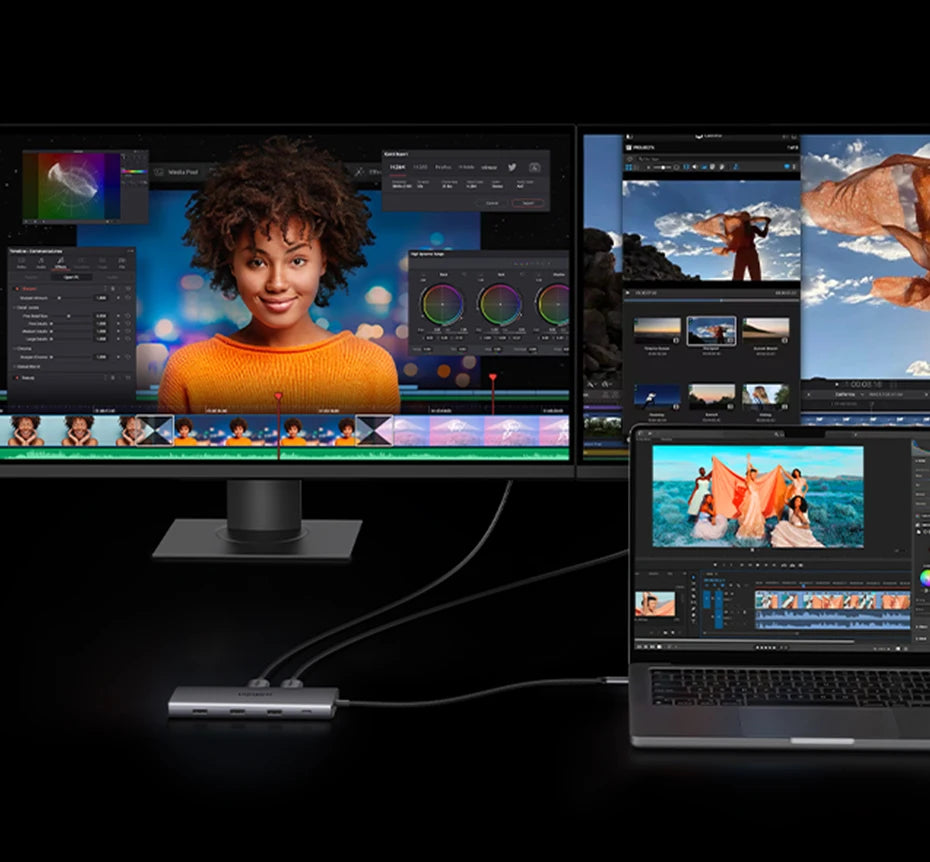

Read 2 cards at the same time Video Editor

Supports powerful content reactions. Dual 4K@60Hz display extended makes editing multiple video streams easier.

Programmer

Turns a usb c device into a powerful workspace. You're ready to create, code, and collaborate.

Office Staff

Allows staff to extend two screens, meeting and working simultaneously to increase productivity.

Widely Compatible with Windows, macOS, iOS, Android, Linux... Small Size, Easy to Carry

Aluminum Alloy Metal Shell

The HUB has strong heat dissipation due to its aluminum alloy case, which is better than plastic for conducting heat away from electronic components and circuitry. Internationally Certified Quality Exceeds Industry Standards
Tested to the strictest standards and fully certified for quality and safety you can trust.

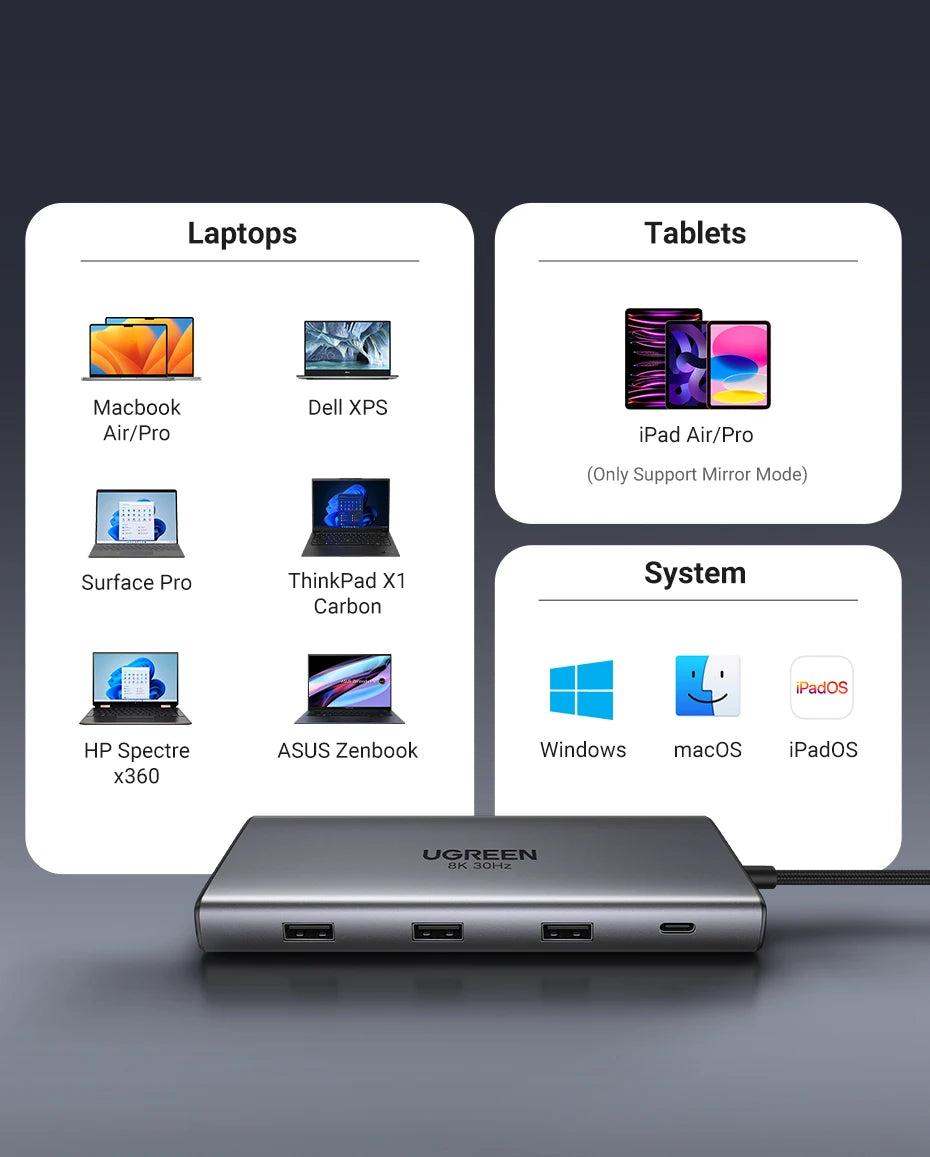

Compatible List (Partial)

This product can be applied to all the following devices. For other specific models or systems, please check whether the USB C port of your laptop supports video output, PD power supply, and data synchronization, also you can confirm it with us.

Laptops/Computers/Tablets/Game Consoles

For Apple:

For MacBook Pro M4 / M3 / M2 2022/ M1 2021/ M1 2020/ 2019/ 2018/2017/2016

For MacBook Air M3 / M2 2022/ M1 2020 / 2020 TB 3/ 2019/ 2018 / 2017

For Mac Mini M4 / M2 / M1
For iMac M4 2024 / M3 2023 / M1 2021, 2020 / 2019 / 2017(TBT3 Ports)

For iPad:

For iPad Pro 2024 M4, 2022 M2 (12.9 inch, 6th), 2021 M1/ 2018, 2019, 2020 (12.9 inch, 5th)

For iPad Pro 2021 M1 / ​​2018, 2019, 2020 (11 inch, 3rd)

For iPad air 2024 M2 / 2022 M1 / ​​2020 (10.9 inch) For Lenovo Yoga5 Pro/Yoga 900 13'/Yoga 6 Pro/for ThinkPad X1 Carbon/Yoga/Air 12/Lenovo E490
For Dell G3/G5/G7 series/Inspirion 5000/Inspirion 7000/XPS13/XPS15

For Huawei MateBook X/Matebook

For HTC 10

For Xiaomi Air 12.5/13.3-inch/Pro 15 (Enhanced Edition).

For ASUS Lingyao X Series/U4100UN/U5100UQ/ROG series/Zenbook 3/U306/U4100

For Razer Blade, Blade Stealth

For Microsoft Surface Pro 11/10/X/9/8, Surface Laptop 3, Surface Book 3/2, Surface Go 4/3

For Nintendo Switch, Steam Deck, ROG Ally/X, LEGION Go.

For Google Chrome Book Pixels/Pixels book pen

For Google Chromecast 4: When connecting to Google Chromecast 4, you can use the product's USB port, network port and SD/TF card reader port, but does not support HDMI port. And when the product is connected to Google Chromecast 4, it must be powered through the PD port .

Smartphones

For iPhone: iPhone16/15 series

For Samsung:

The Models which works DEX Mode: S8/S8+, S9/S9+, S10/S10+, S20/S20+, S20 Ultra 5G, S21, S22, S23, S24, S25

Note 9, Note10/Note10+/Note10+ 5G, Note 20/Note 20 5G/Note 20 Ultra/Note 20 Ultra 5G)

For HUAWEI Mate 70/60/50/40/30/20/10 series, Pura 70 series, P60 Series, P40/40Pro, P30/30Pro, P20/20Pro

For HONOR 30/30 Pro/30 Pro+/V30/V30 Pro/20S/Note 10

For Oneplus 8/8 Pro/8T Pro

Product Specification

Brand: UGREEN

Model: CM639

Product name: 10-in-1 Multifunction USB C HUB

HDMI 2 port: 8K30Hz Max.

HDMI 1 port: 4K60Hz Max.

RJ45 port: 1000/100/10 Mbps

SD & TF port: 104MB/s

PD port : PD 100W (PD3.0 20V5A)

Data Transfer ports : 1xUSB-A 3.0+ 1xUSB-C 3.0+ 2xUSB-A 2.0

USB 3.0 ports : 5Gbps, backward compatible with USB 2.0

Supported system: Windows 11/10; Linux; macOS; iOS; Android; Chrome OS; iPad OS

Material: Aluminum alloy metal shell

Color: Silver

Packaging: UGREEN retail box

Packaging

Questions & Answers

★ Q1: How can I troubleshoot if my dual monitors cannot achieve 4K@60Hz simultaneously?

A1: This might be due to the bandwidth limitation of the laptop. You can take the following steps:

1). Ensure that your laptop supports DP 1.4 first.

2). Lower your monitor's resolution or refresh rate.

3). Replace another high-standard HDMI cable.

★ Q2: What can I do if my monitor cannot reach 8K@30Hz?

A2: 1). Ensure that the monitor is connected to the HDMI2 port alone.

2). Check if your laptop supports both DP1.4 and DSC compression. If only DP1.4 is supported while DSC compression is not, it can only reach 4K@60Hz at max.

★ Q3: When HDMI2 is connected, why does the laptop freeze when the resolution is adjusted to 8K@30Hz and HDR is turned on?

A3: This is related to the memory of the graphics card. Generally, it is not recommended to enable HDR at 8K@30Hz. In addition, if there is a freeze at 4K@60Hz, please also turn off HDR.

★ Q4: When I connect to 2 monitors with Mac, why do both monitors show the same image?

A4: When Mac is connected to dual monitor devices, the docking station can only support extending one display, and another display can only copy the display you extended, which means it only supports AAA or ABB.
