SPECIFICATIONS

After-sales Service Provided : Online Technical Support

Certification : CE

Engraving Speed ​​: 1000mm/s

Function : Cutting Engraving Non-metal Materials

Keywords : Laser Engarving Machine

Laser power : 80W/100W

Laser tube : Sealed CO2 Glass Tube

Overseas warehouse : Germany/Poland/Czech/US Warehouse

Product name : C02 Laser Engraving Cutting Machine

Sample : Yes

Weight : 265

applicable material : Acrylic,Crytal,Glass,Leather,MDF,Plastic,Plexiglax,Plywood,Rubber,Stone,Wood

brand name : SIHAO

cnc or not : Yes

condition : New

configuration : stand alone

cooling mode : Water Cooling

dimension(l*w*h) : 1460*850*950 (mm)

feature : Water cooled

graphic format supported : AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP

key selling points : Ruida

laser type : CO2

mode of operation : continuous wave

place of origin : Shanghai, China

warranty : 1 Year,1 year (excluding laser tube)

Products Description

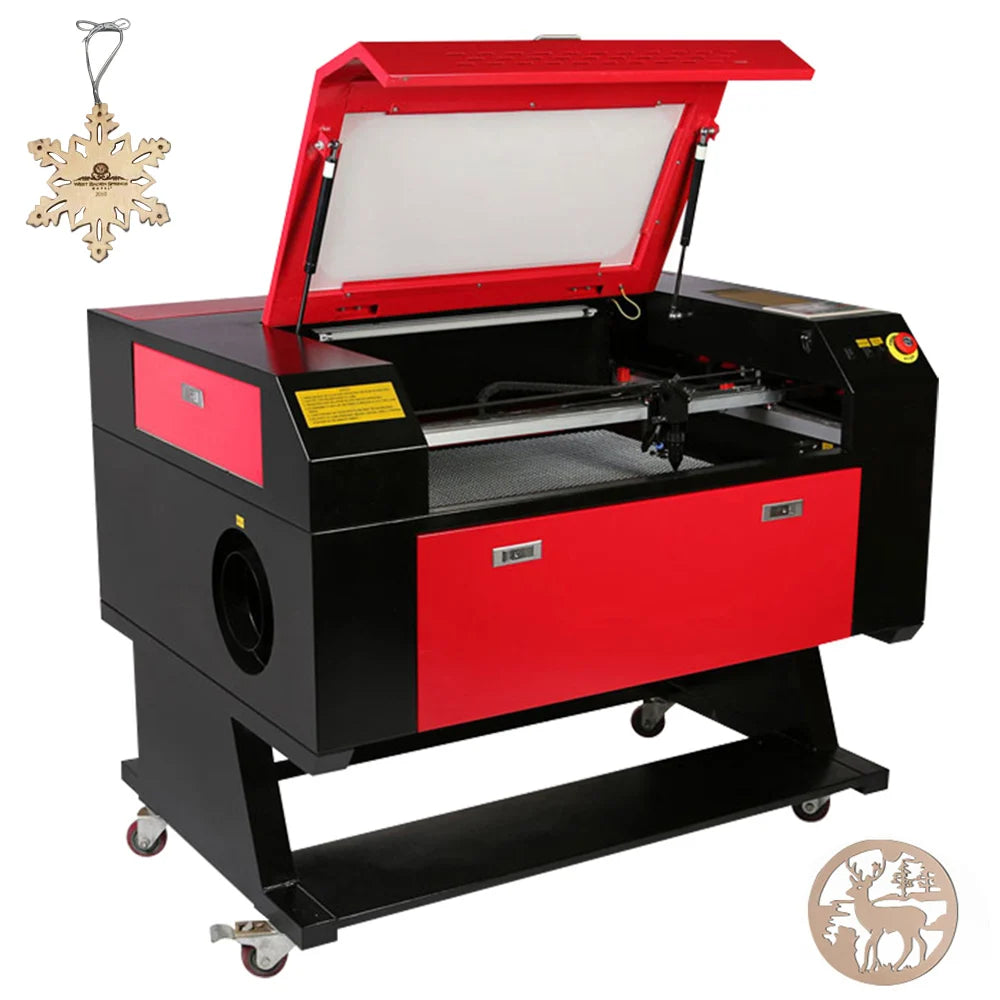

Sihao 80W CO2 Laser Engraver Engraving Cutting Machine

KINDLY NOTE: RUIDA BOARD is available and EU/US/AU shipping is acceptable if your address is not remote! Please contact us to know more details.

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.

This machine is equipped with DSP Control System for RDdraw directly, also supports CoreDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of machine for the design files, you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different color in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.

Specifications

Control system:TopWisdom Working size: 28"x20"(700mm x 500mm) with unlimited length design Laser tube type: Co2 Glass sealed laser tube Laser power: 80W Driver type: Micro Stepping Motor Max speed: 500mm/s Resolution: 1000 DPI Location precision: 0.01mm PC Interface: USB2.0 and USB Disk Software: Auto Laser Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI Machine Dimension(L/W/H):1460*850*950 (mm) / 57.5*33.5*37inch Package Dimension(L/W/H):1560*950*1100 (mm) / 61*37*43 inches Package: Standard Wooden case for export NW: 396.8 lbs (180kg) GW: 265 KG

Package Content

1 x Laser Engraving software Package (English Version)

1 x User Manual (CD)

1 x Water Pump

1 x Air exhaust fan

1 x Air Pump

1 x Communication cable

3 x Reflect optics (installed in the machine) 1 x Focus optics (installed in the machine)

1 x Laser tube

Features & Details

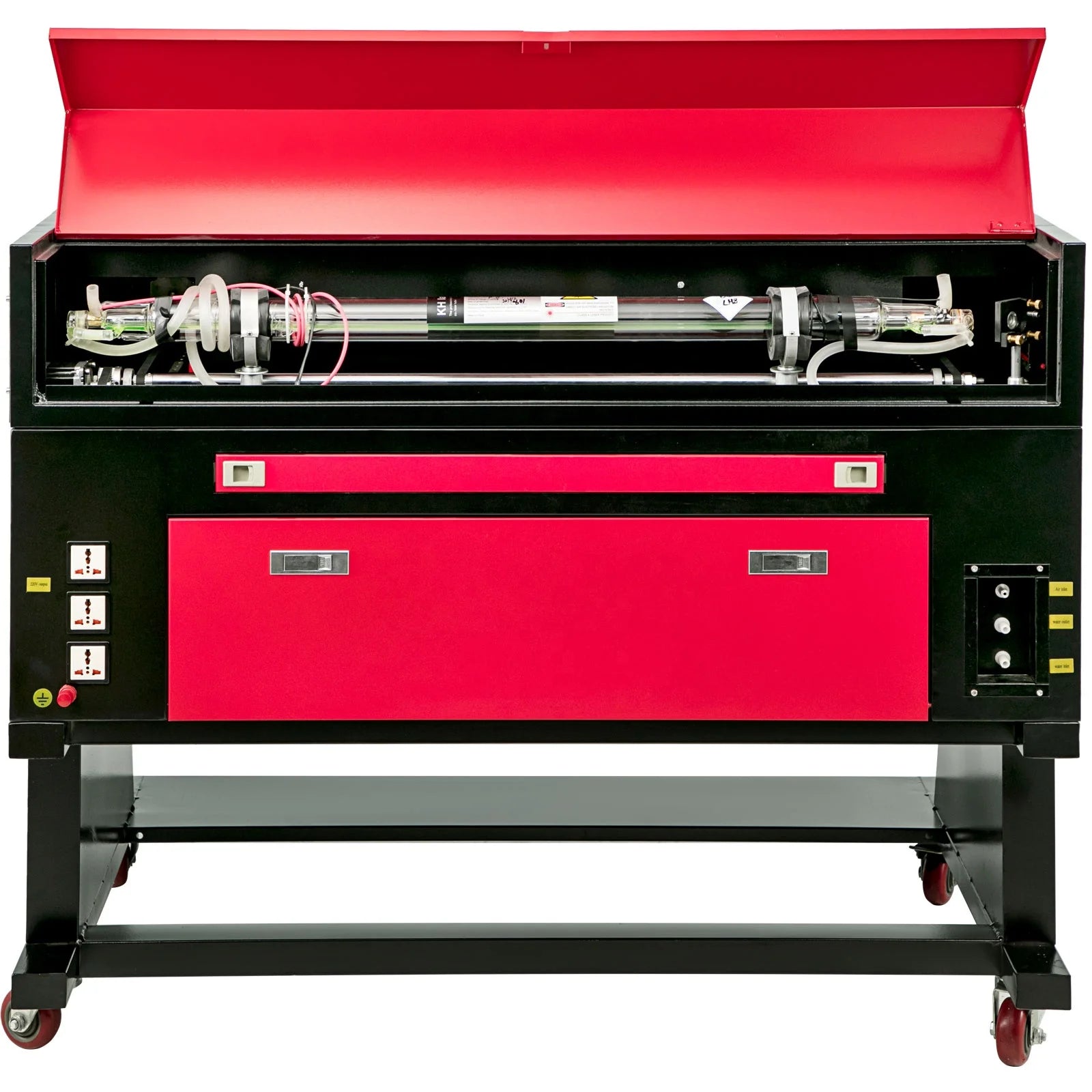

CO2 Laser Tube

Adopts premium CO2 glass sealed laser tube with high power and fast speed. The lifetime of CO2 laser tube is up to 2000-4000 hours.

Digital Operation Panel

Adopts advanced TopWisdom digital control system, with multi-language (English, French, German, Italian, Spanish, and more languages ​​updated) available, which is more intuitive, simple and more convenient.

Large Working Area

With large working area of ​​28"x20" (70x50cm), featuring bending table, which adopts honeycomb structure, with high strength, anti-deformation, sound absorption and heat insulation.

USB & U-Disk Connectivity

Equipped with a USB port for convenient connection to desktop or laptop. U-disk is also available for direct insertion of the U disk to read and write.

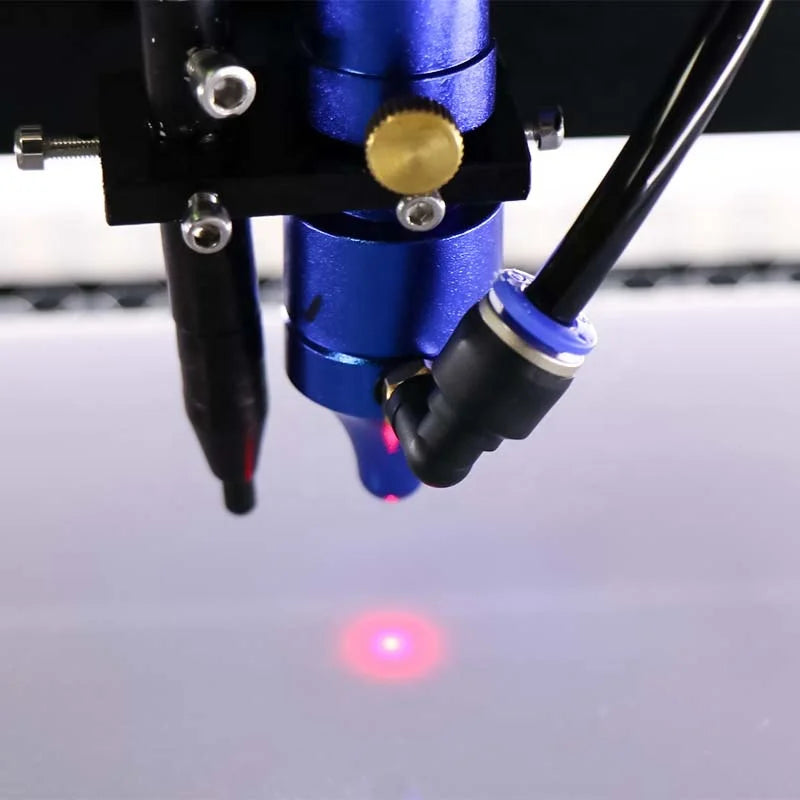

Premium Laser Head

Industrial grade 80W laser head, with high quality, reliable performance and durability, improves the engraving precision and performance.

Well-Designed Details

Features high precision micro stepping motor and high-quality reflector for strong performance. Switches and emergency buttons for better control. The built-in cooling fan reduces temperature of all components. With 4 caster wheels for convenient movement.
