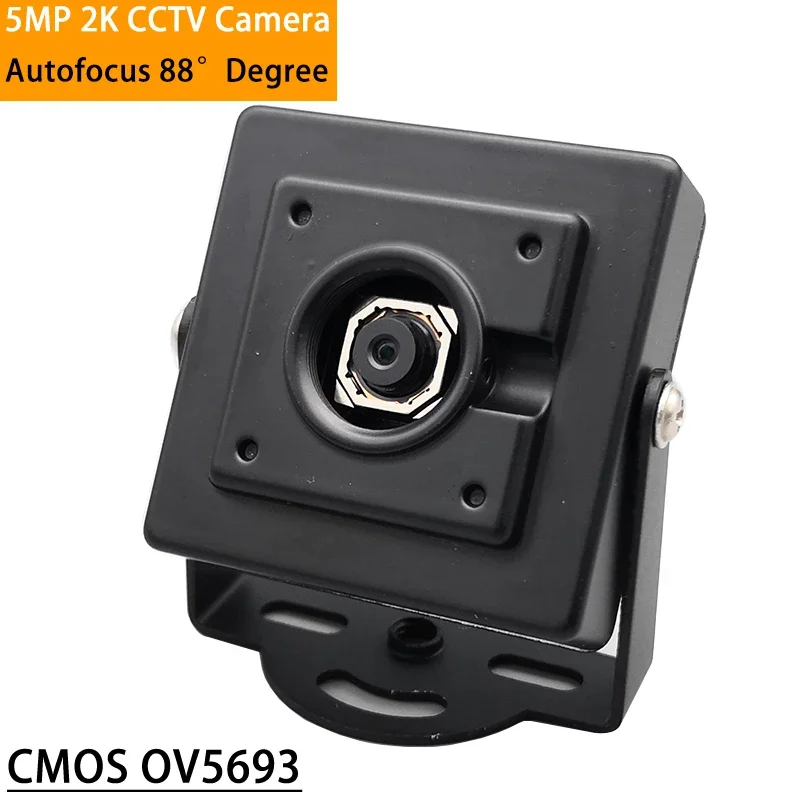

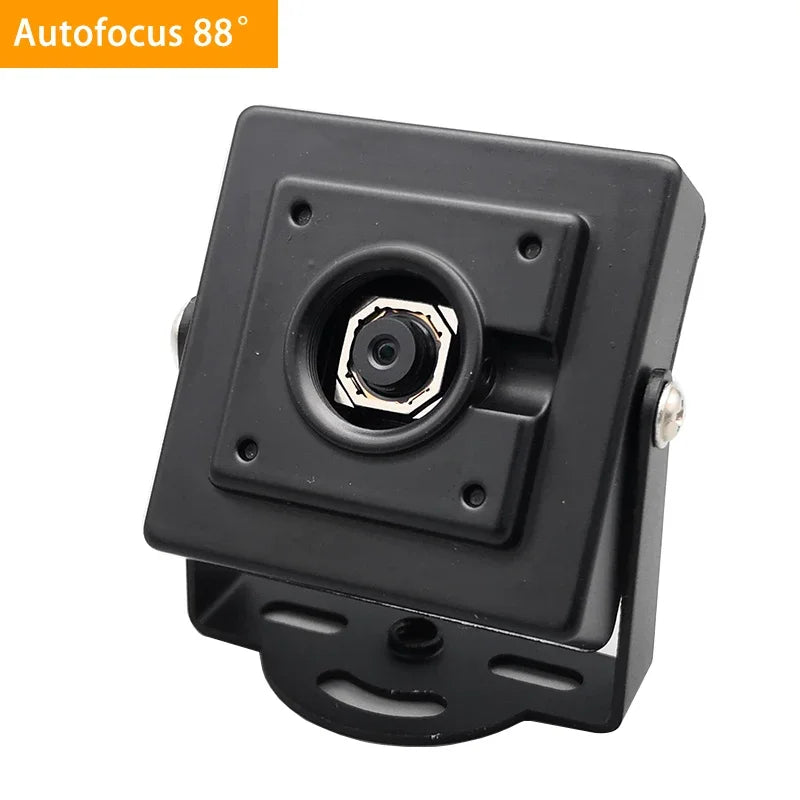

5MP 2K Autofocus CCTV Camera CMOS OV5693 Fov 88 Degree USB UVC Plug Play PC Mini Webcam for Creality Falcon 2, Xtool,Lightburn

1.Customizable USB Camera Module,DVP Camara Module and MIPI Camara Module;

2.Pixel Optional: 0.3MP,1MP,2MP,5MP,8MP and 13MP;

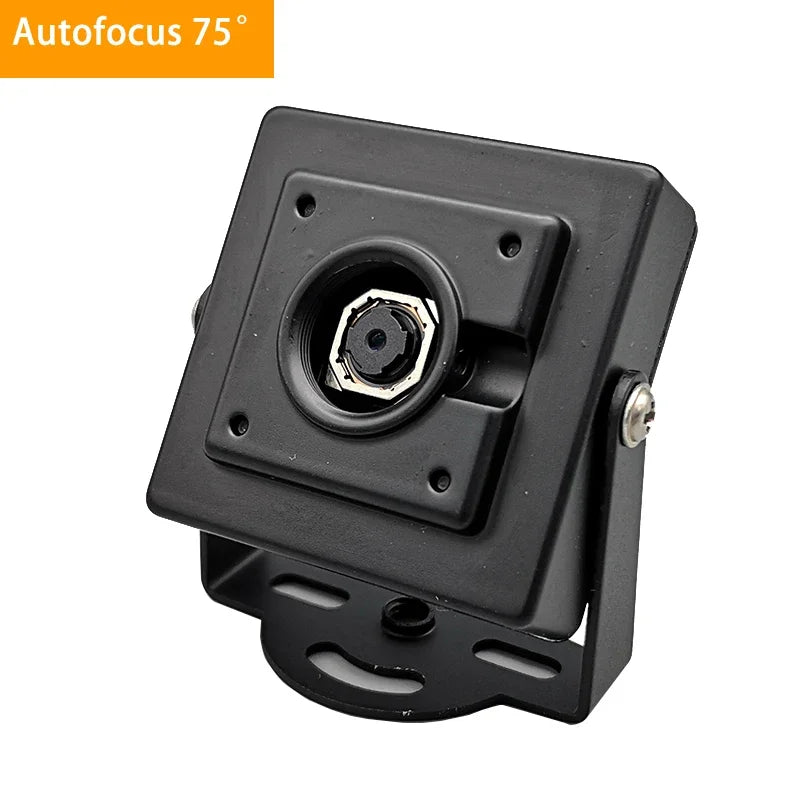

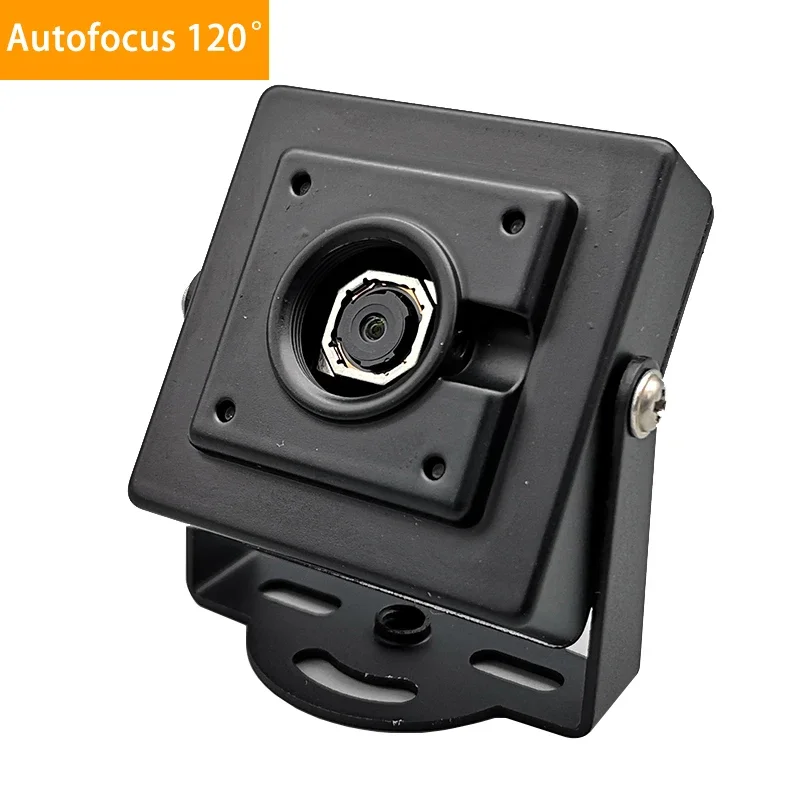

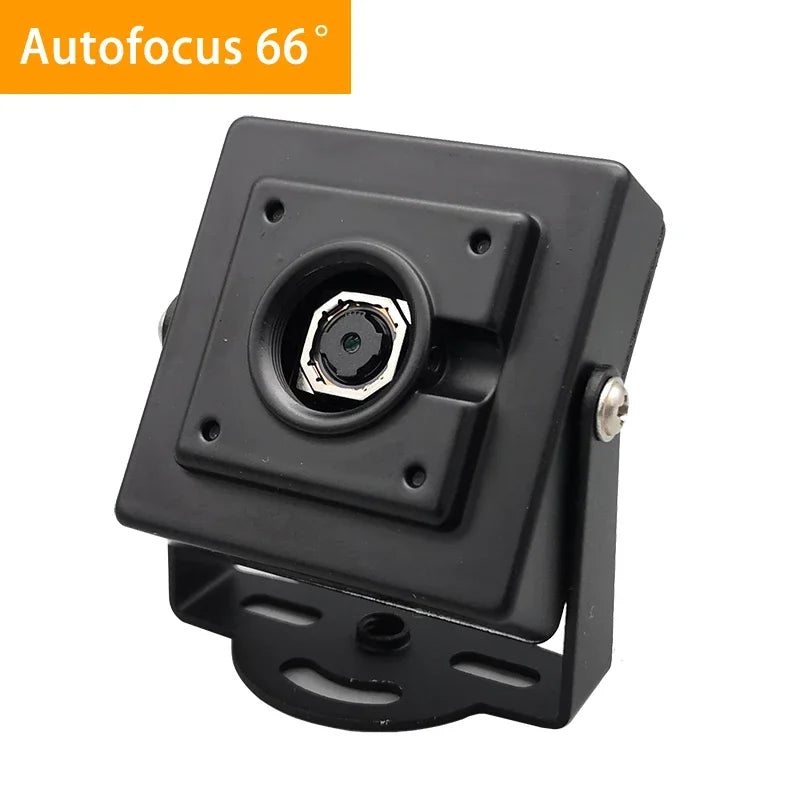

3.Viewing angle Optional: 68°,80°,90°,100°, 120°, 150°, 170° or as per your request;

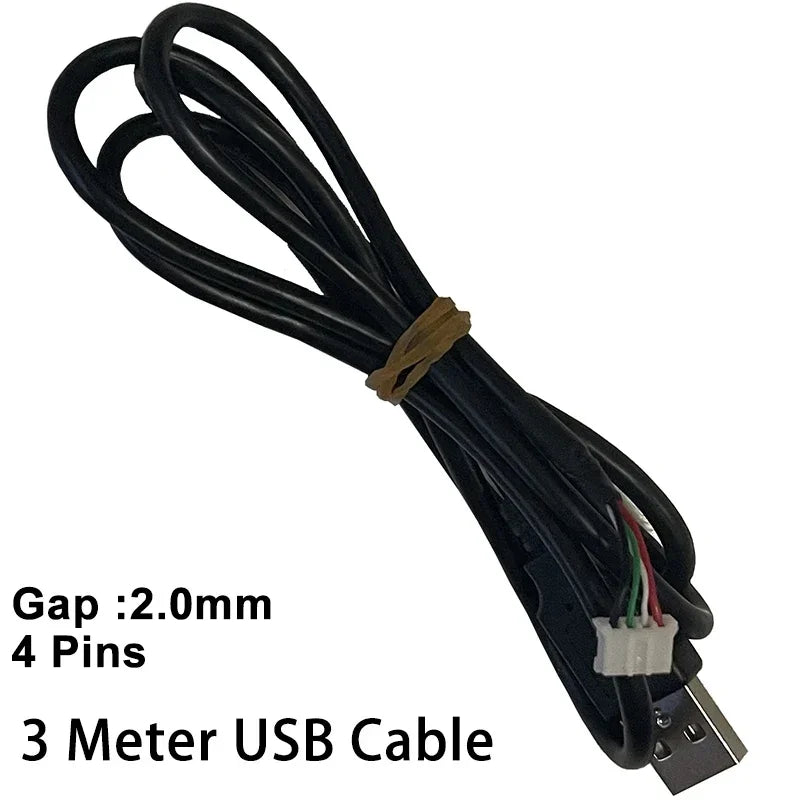

4.With 1m(2/3m optional) USB Cable;

5.Customized logo ≥100PCS

6.Customized packaging ≥100PCS;

7.Graphic customizationb≥100PCS.

Product parameters:

CMOS/photosensitive model: OV5693

Photosensitive size: 1/4 inch

Single pixel size: 1.4um*1.4um

Photosensitive signal-to-noise ratio: TBD

USB interface type: USB2.0

Common Resolutions & Frame Rates:

2592*1944/30fps.MJPG

2048*1536/30fps; MJPG

1920*1080/30fps; MJPG

1280*960/30fps; MJPG

1280*720/30fps; MJPG

800*600/30fps; MJPG

640*480/30fps; MJPG

320*240/30fps; MJPG

Working voltage and current: 5V*110mA-290mA

Adapt to the working environment temperature: 0 to 60 degrees

Storage temperature, humidity: minus 30 to plus 80 degrees

Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.

Mac-OSx10.4.8 or above (Compliant with UVC protocol)

Linux, Android, etc. (Compliant with UVC protocol)

Application fields: Express station face camera. Scanning cameras. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Video conferences. Industrial vision. Visual inspection. USB microscope. Express cabinet cameras. Smart vending machine camera. Electronic weighing item identification. Dishes identification. USB Raspberry Pi camera. Etc...

Support driver-free protocol: USB Video Class (UVC)

Support OTG protocol: USB 2.0 OTG

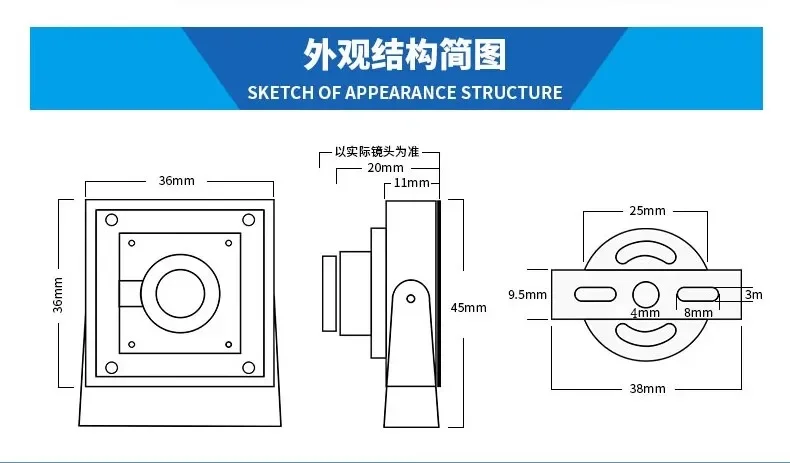

PCB (board frame) size: 38 *38mm(or 32 *32mm )

Power supply mode: USB BUS POWER (DC 5V)
