Features:
1: Perfect panel structure

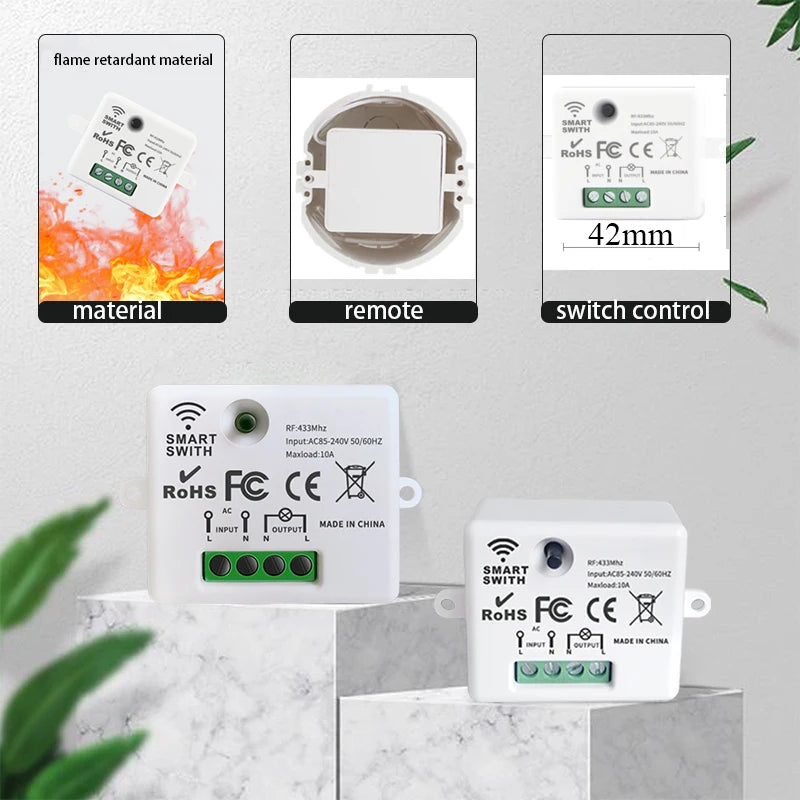

Fireproof materials protect your home safety
Tempered glass protects the safety of the panel
Touch control allows your hand to control the switch at any time (even when the hand is wet)

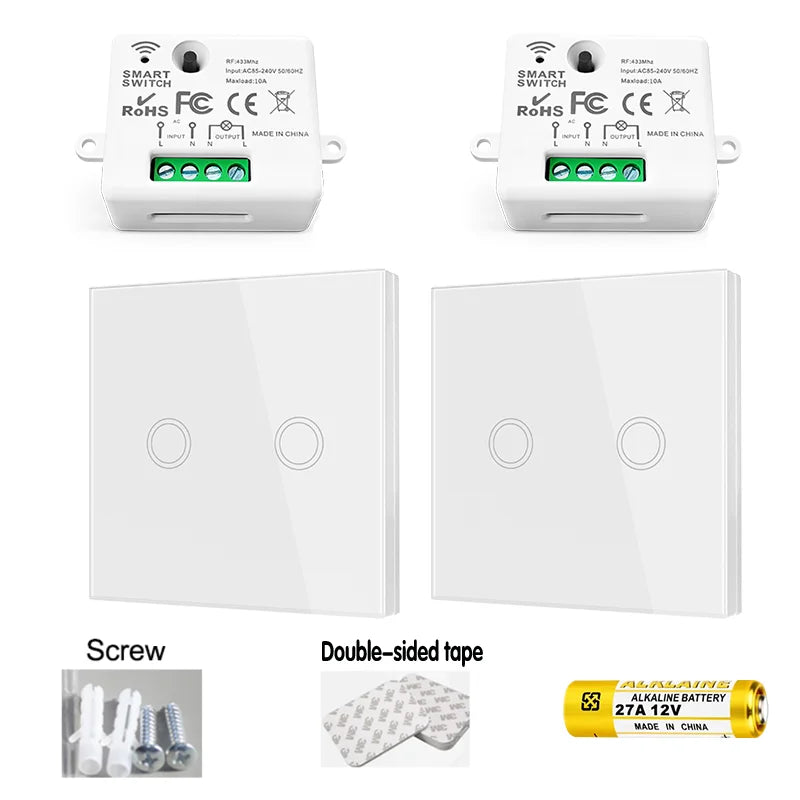

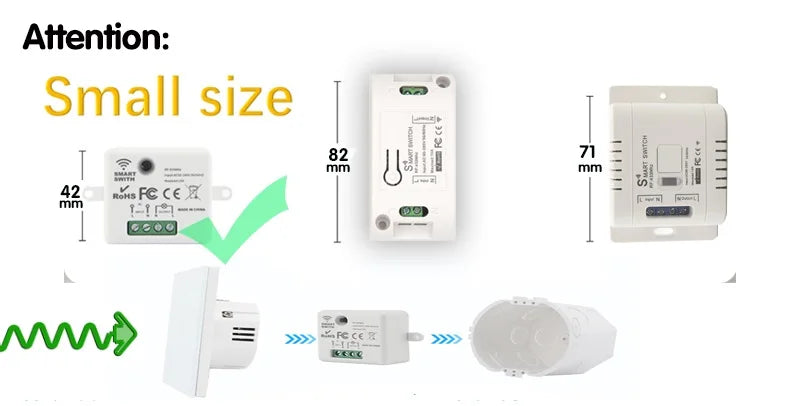

2:Perfect small size ( Note:Package included Screw and double-sided tape.)

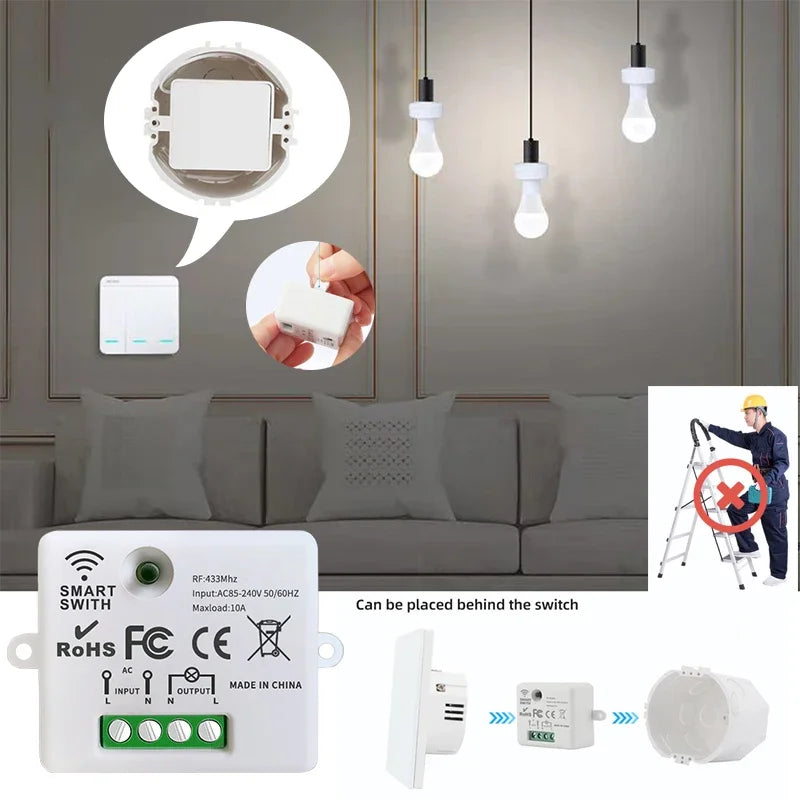

Four different installation scenarios:
--Use double-sided tape to directly install and fix the receiver on the surface of the object;
--Use screws to fix the receiver on the surface of the object;
--Put the receiver installed behind a power outlet;

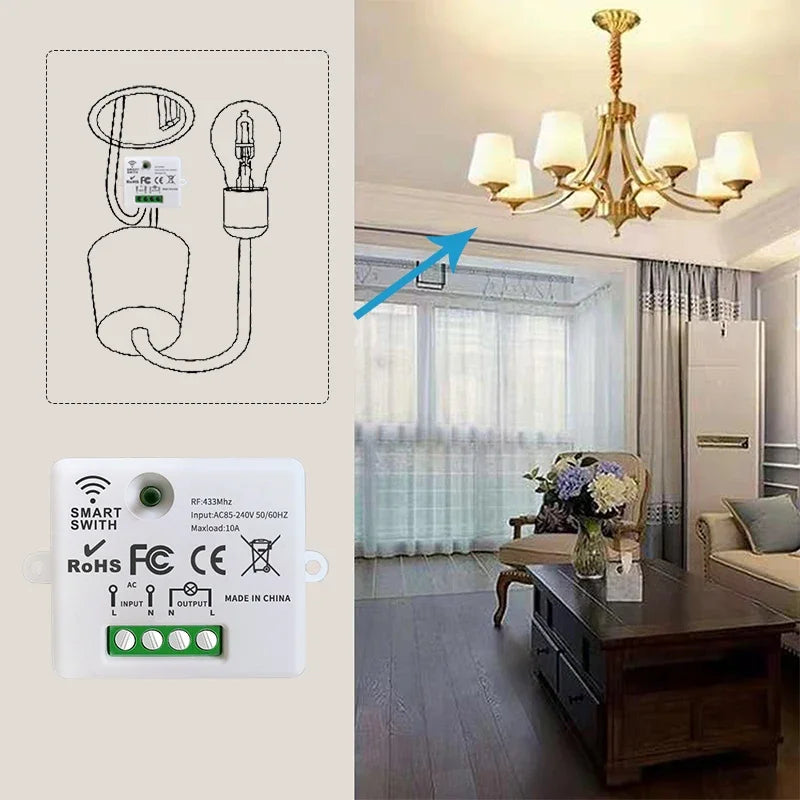

--Install behind the suspended ceiling.

3:Multiple control modes to Save electricity
--At any time, you can either use the front panel or remote control.
--Set the remote control at different locations to quickly turn on or off the lights.
--Turn the lights on in advance to avoid darkness,
--Turn off the lights after leaving, save energy.

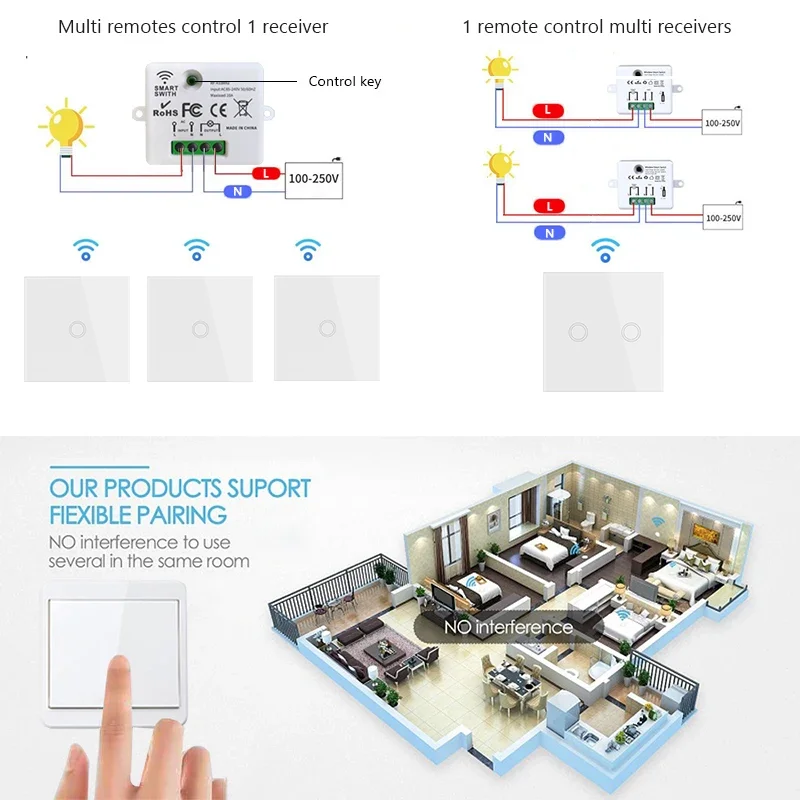

4:Flexible DIY control method

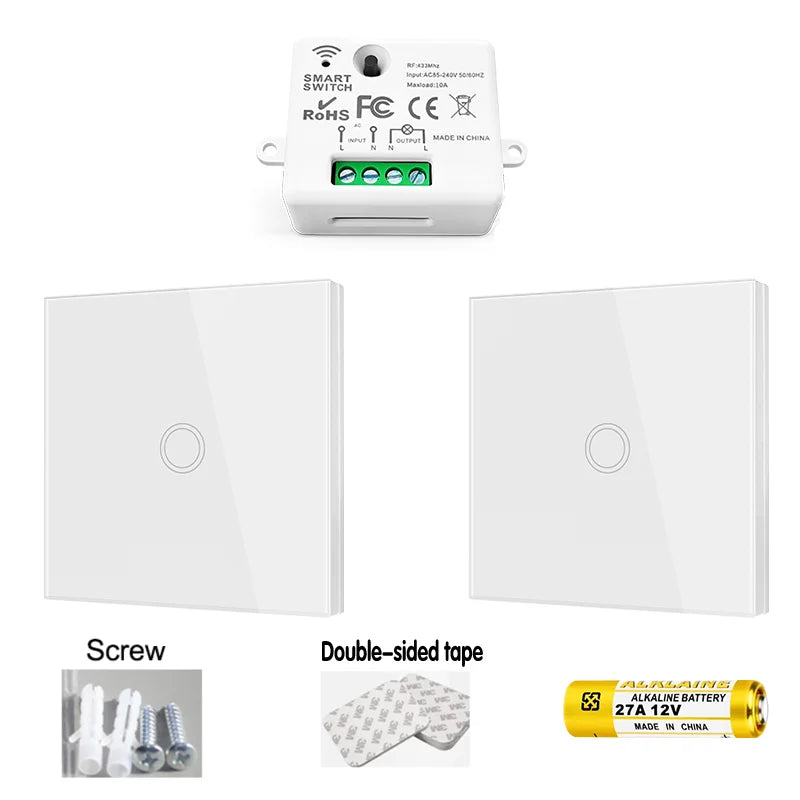

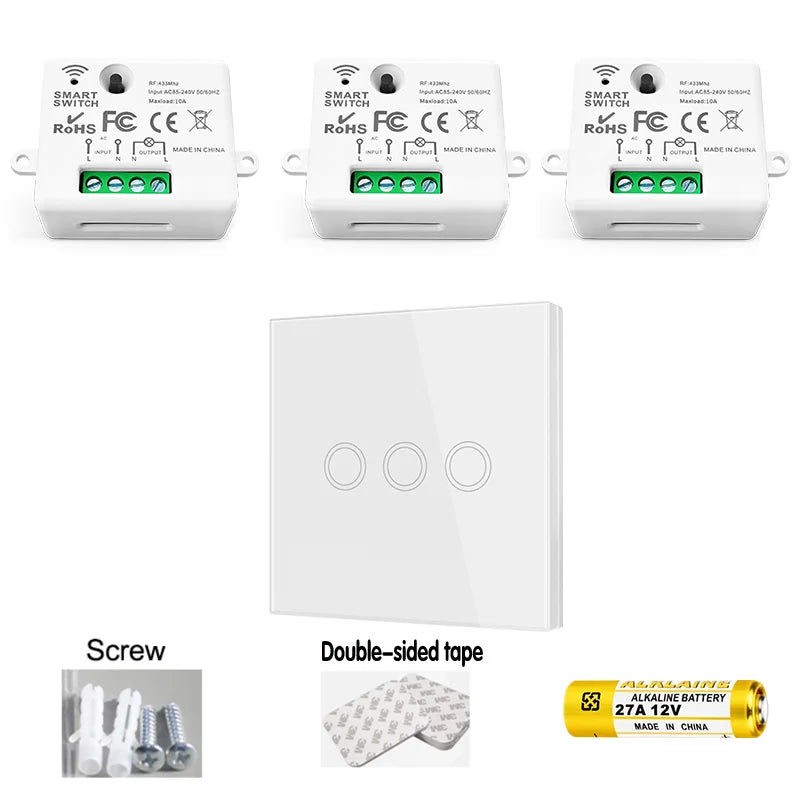

--Multi switches Control One/Multi Lights Receiver in the meantime

Product Application Area Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote controlTaking Care for the elderly, children

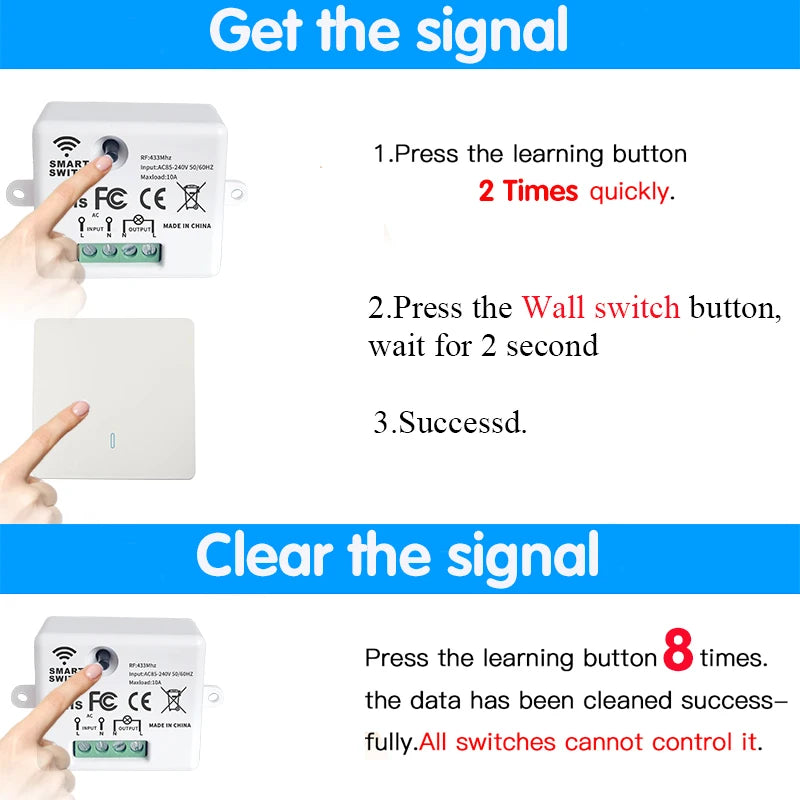

How to get the signal
Step 1: Press the learning button(on the Receiver) 2 times . Wait for 3 seconds;
Step 2: Touch one button on the remote control. Wait for 3 seconds. Succeed.
How to delete the signal
Only one step: Press the learning button(on the Receiver) 8 times . Wait for 3 seconds;

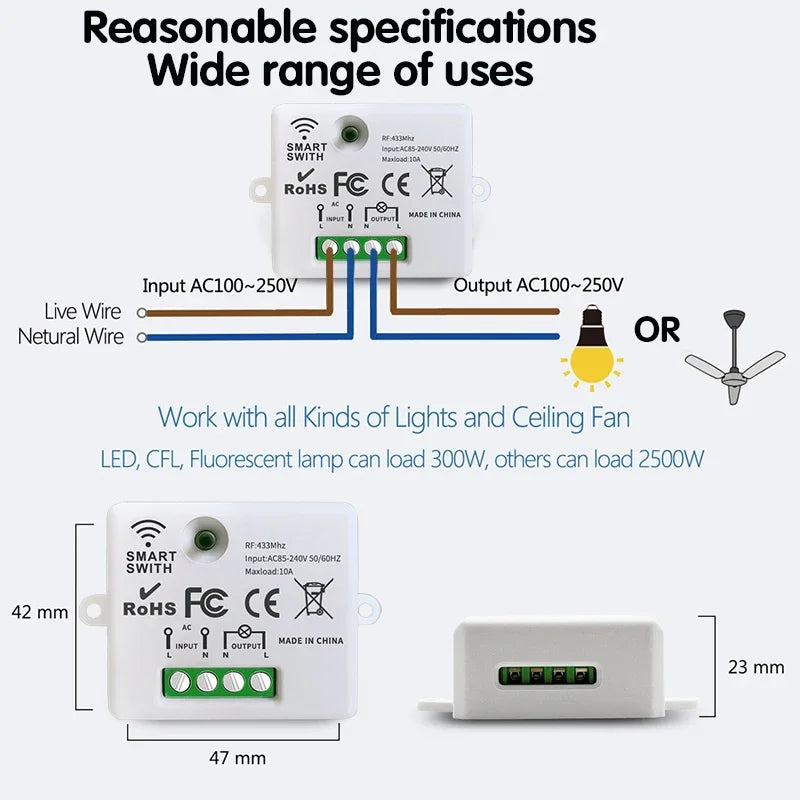

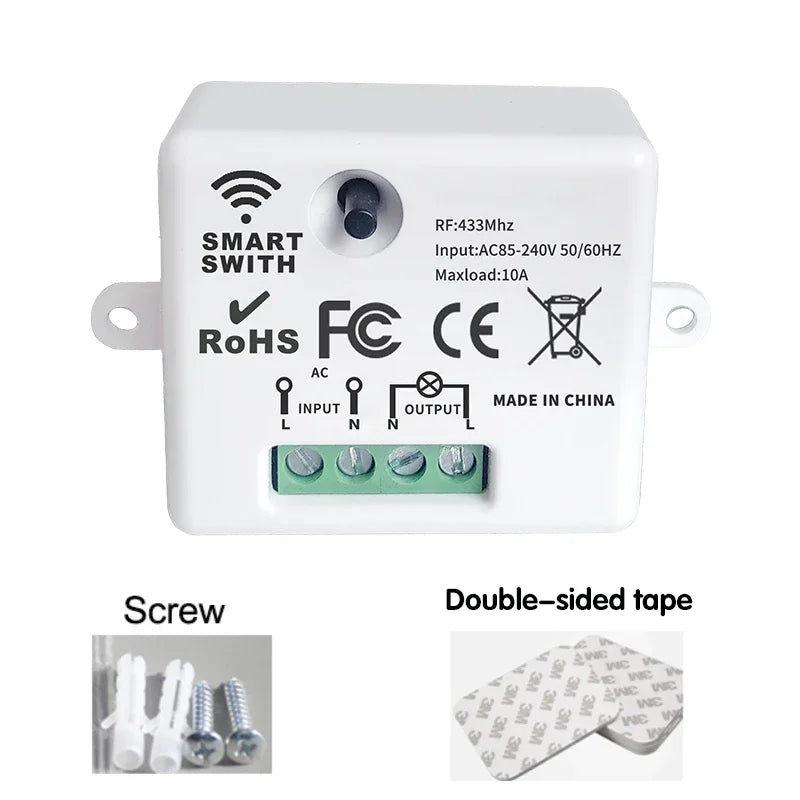

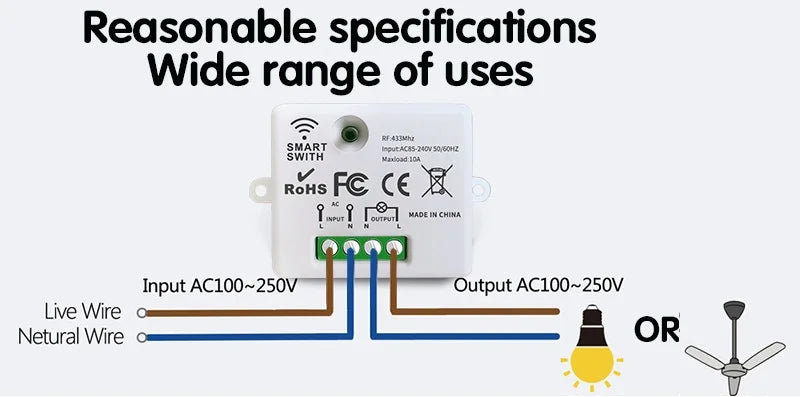

Relay Receiver Board Parameters

Encoding Type: Intelligent Learning Code 1527

Modulation Mode:ASK

RF Frequency: 433MHz

Input Voltage: AC 85V~240V
Max current: 10 Amp

Remote distance : up to 50m (theoretical distance)

Wired Connection Way: Fixed Wiring Pillar

Output Terminal: L/N

L : Living line

N : Neutral line
Size:42*48*23mm

Color: White (Outside Shell)

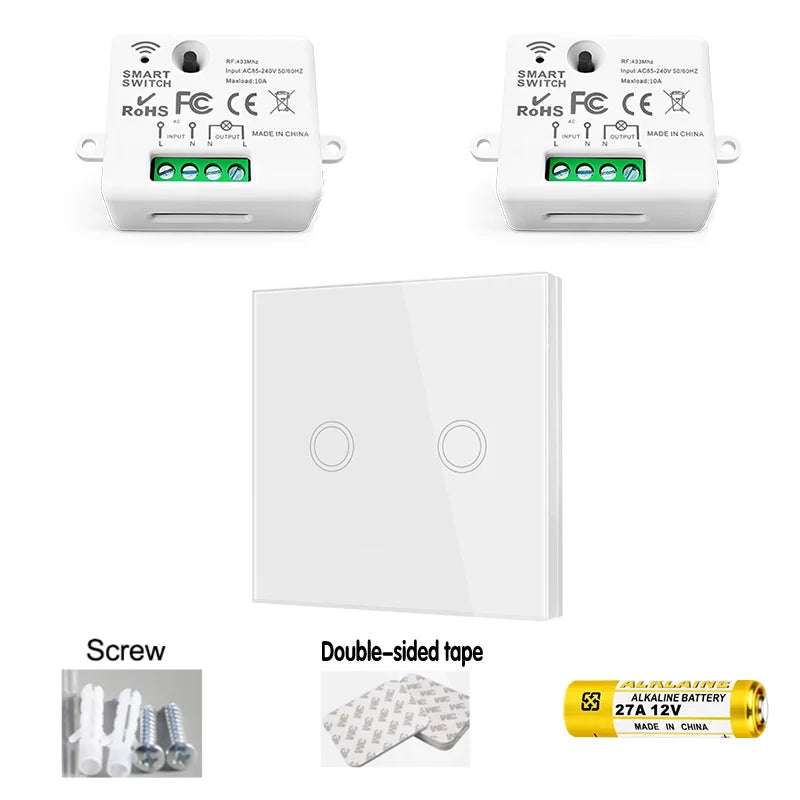

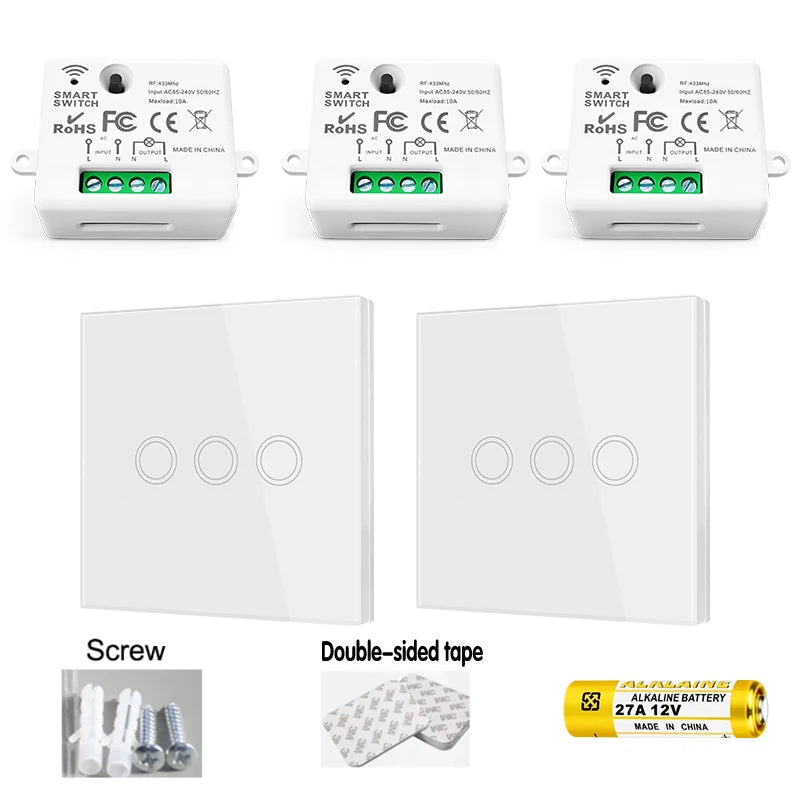

--Screw: Include
--double-sided tape : Include

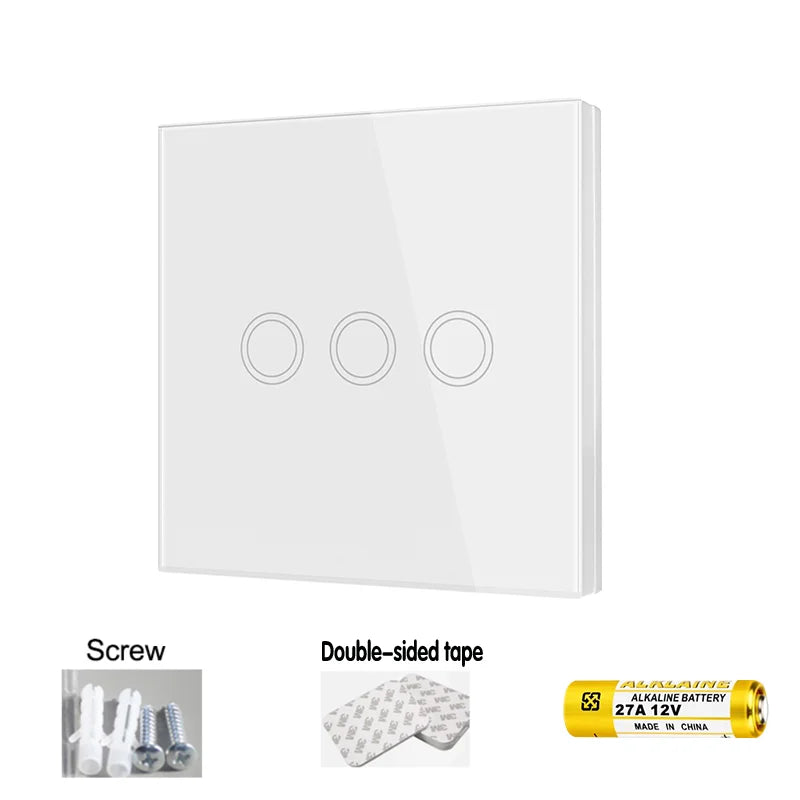

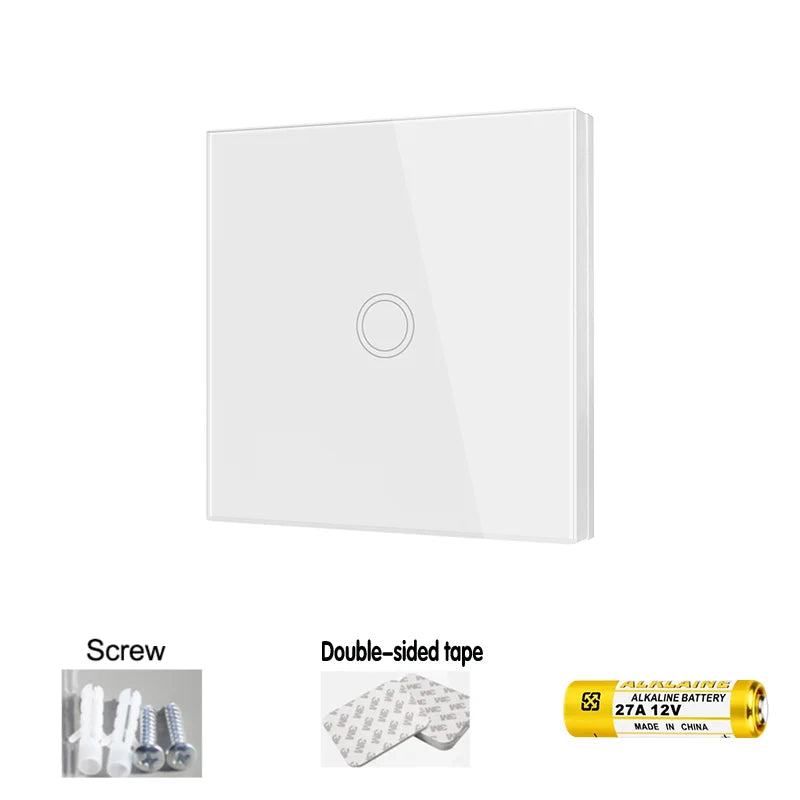

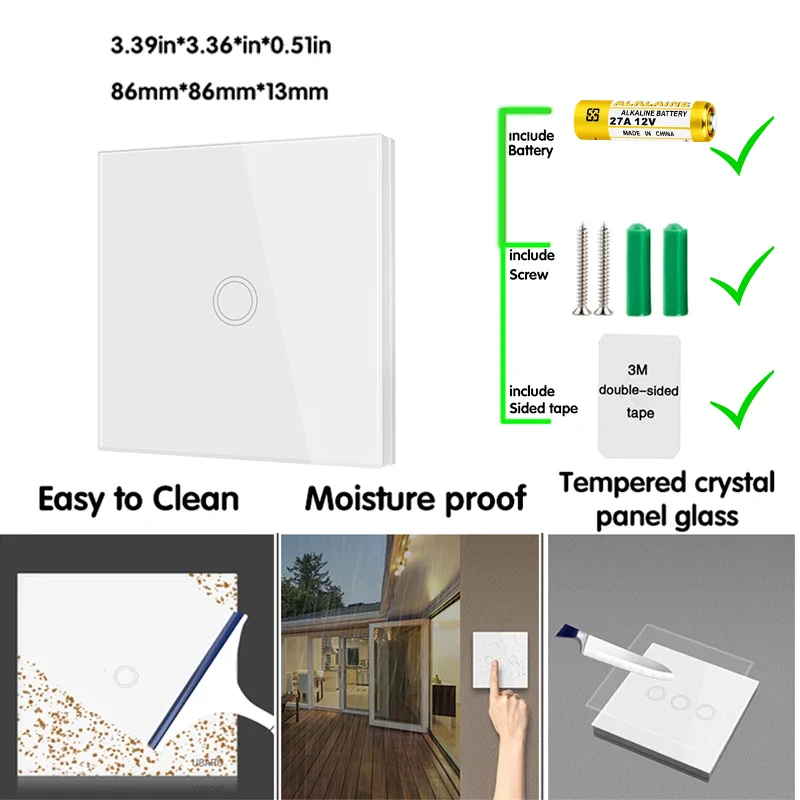

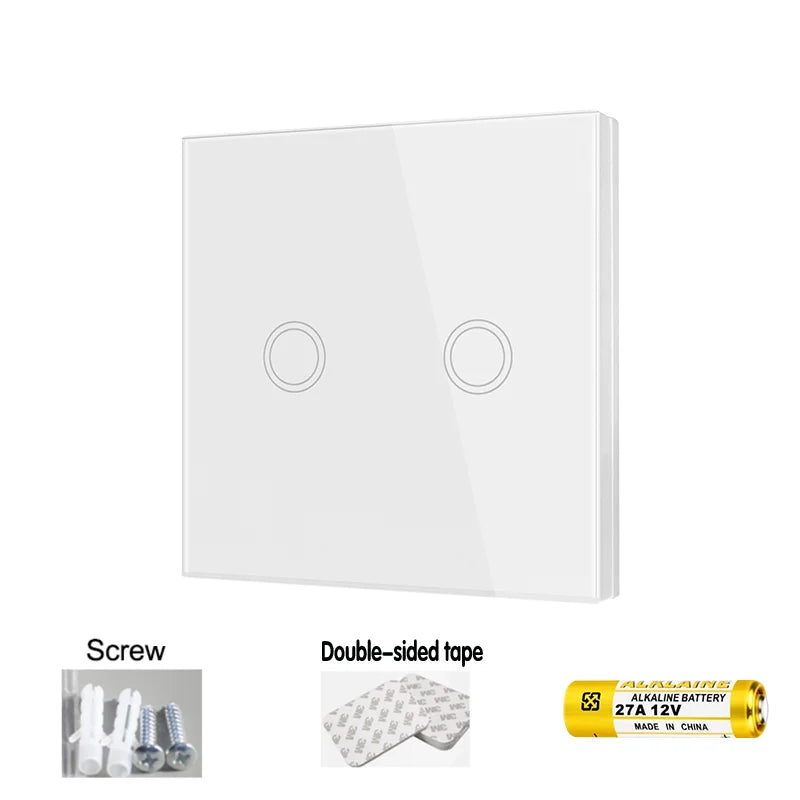

Wall panelTransmitter Parameter

--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Remote distance : up to 50m (theoretical distance)
--Battery : 27A 12V( included Battery included )
--Screw: Include
--double-sided tape : Include

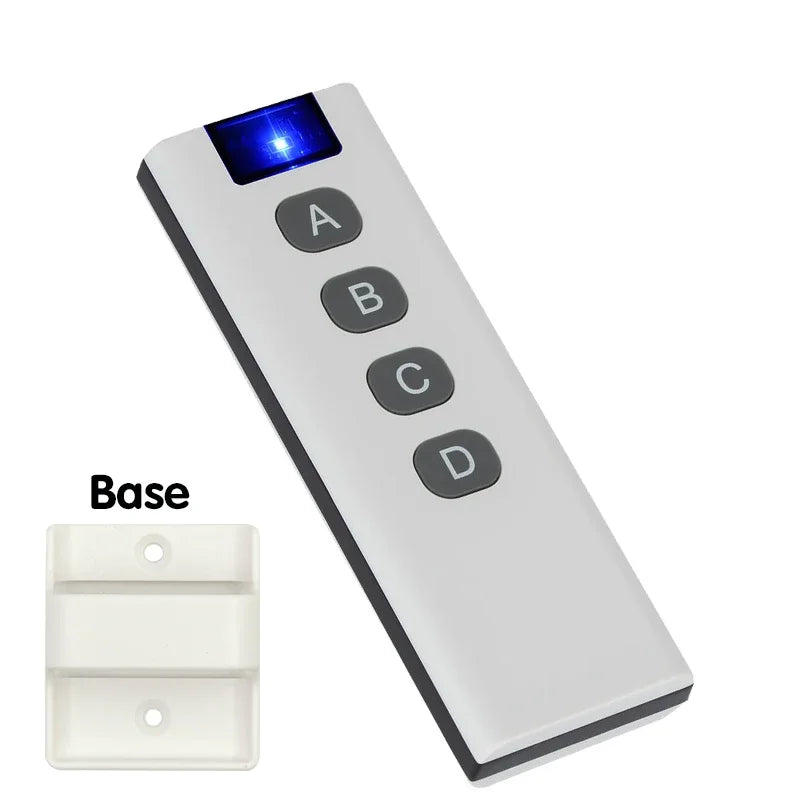

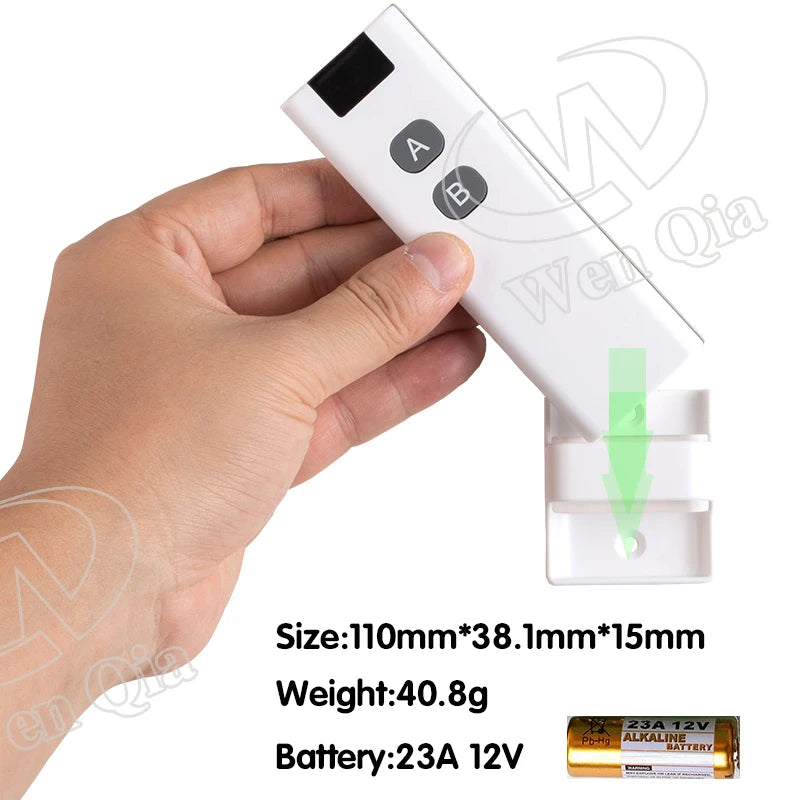

Remote controller Transmitter Parameter

--RF frequency : 433MHz --Support encoding : 1527 Leaning code
--Remote distance : up to 50m (theoretical distance)
--Battery : 27A 12V( NO Battery included )
--Screw: Include

--double-sided tape : Include
