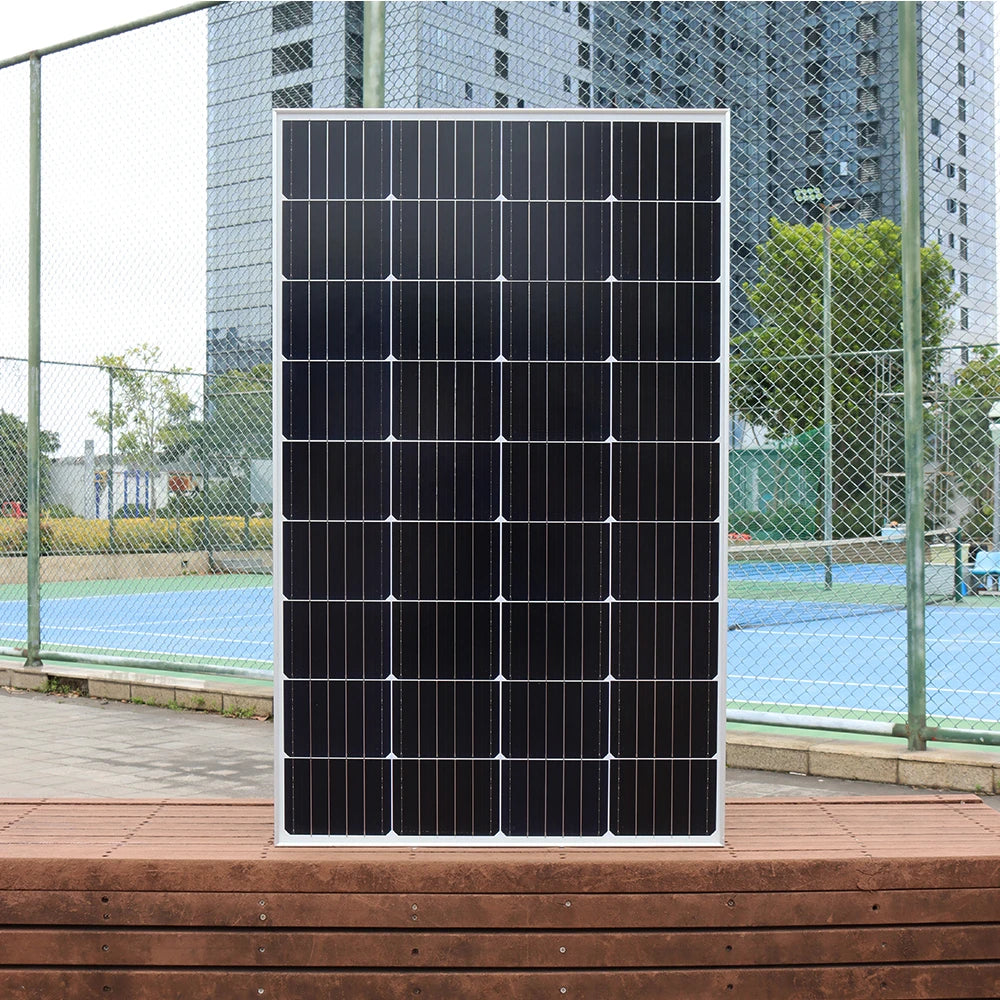

XINPUGUANG Rigid Glass Solar Panel Monocrystalline 10W 25W 50W 100W 200w Power Generation PV Panel charge paneles solares

Glass solar panels have a 25-year lifespan

This link has:

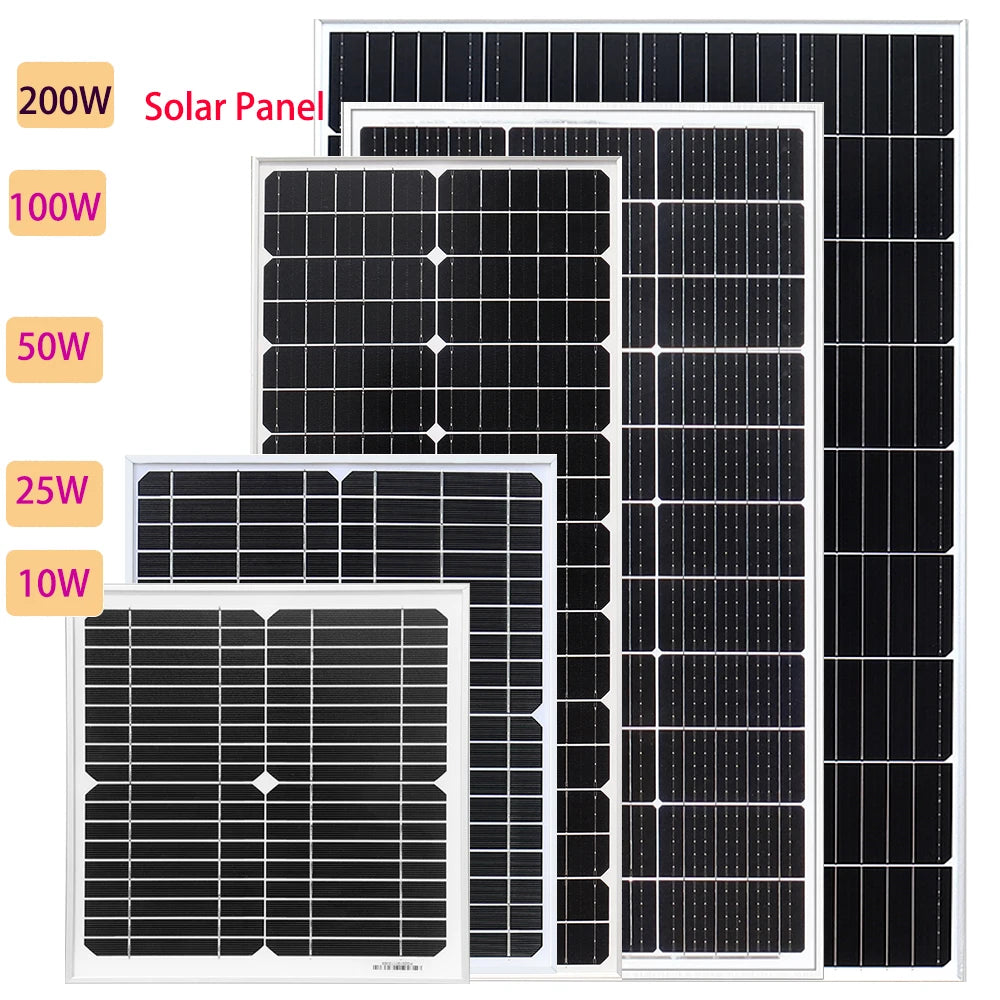

10W / 25W / 50W / 100W / 200W five glass solar panels to choose from, you are careful to choose the solar panel you need power when you place your order

Features:

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.

【Durable】 positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).

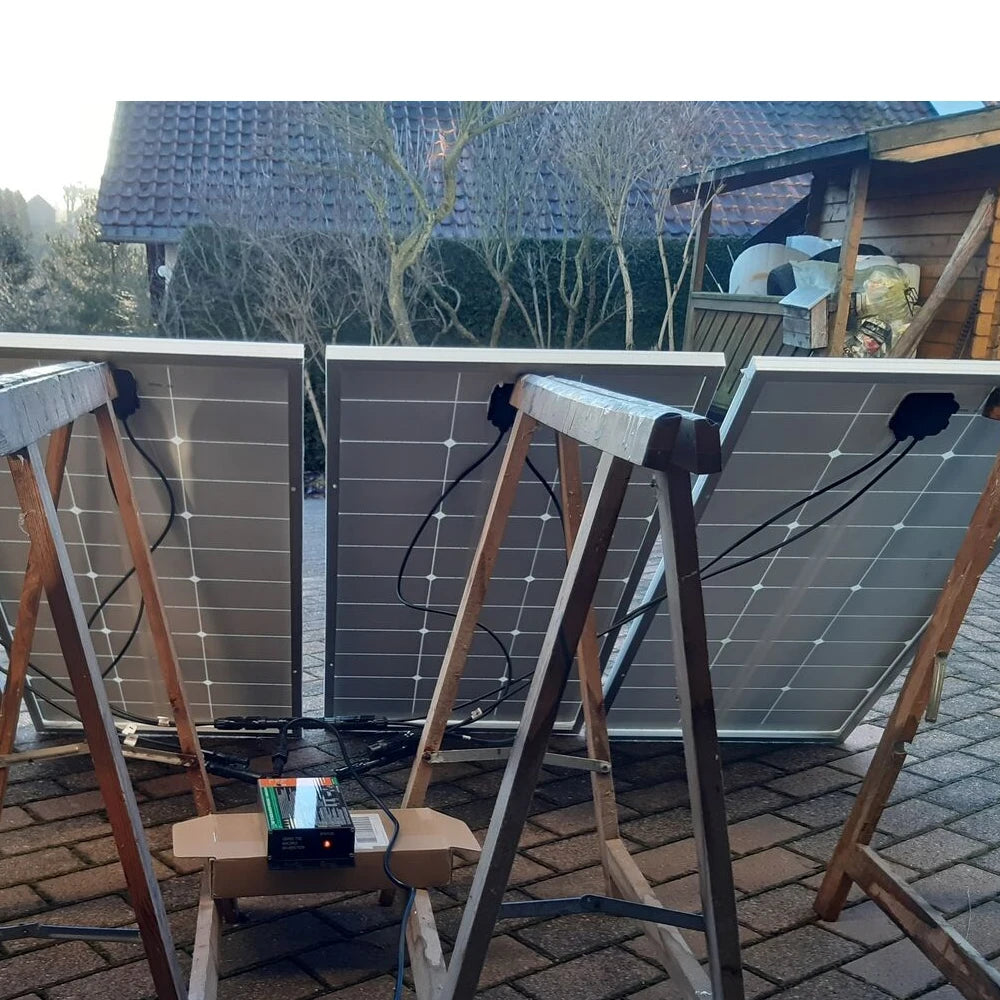

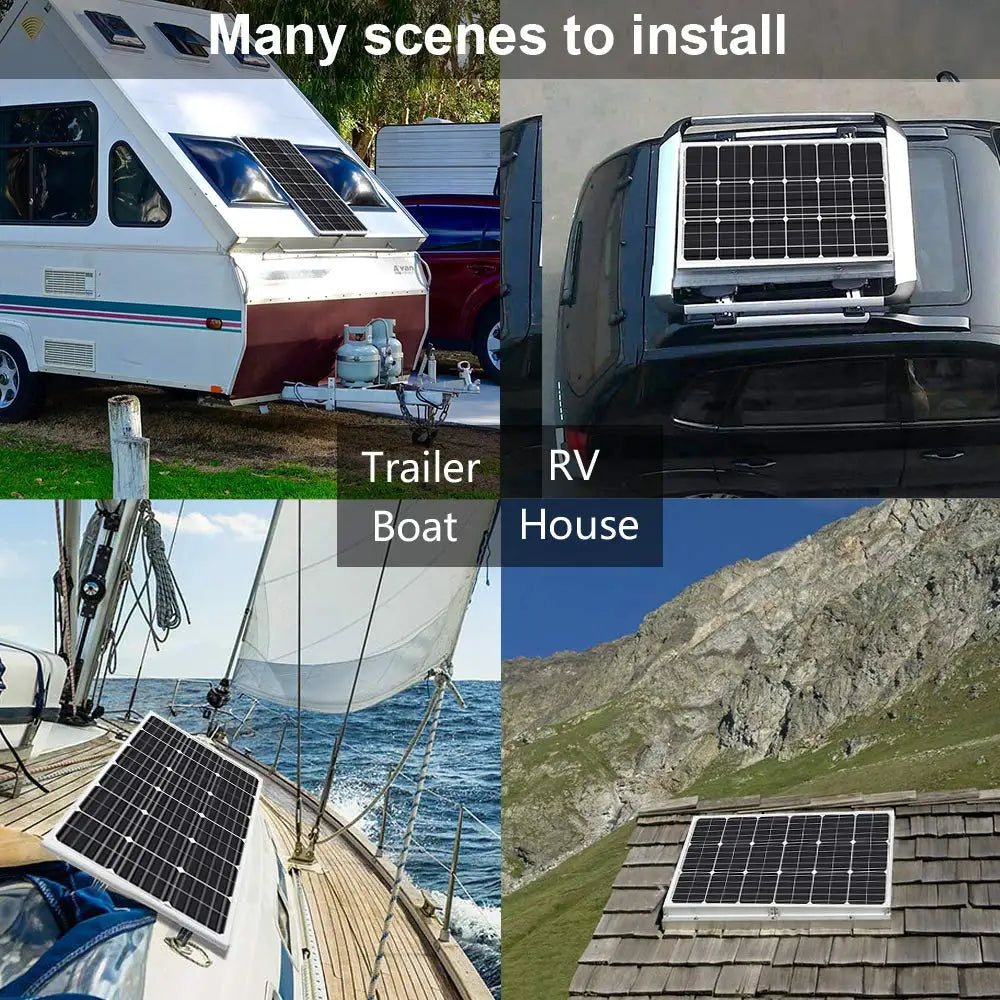

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.

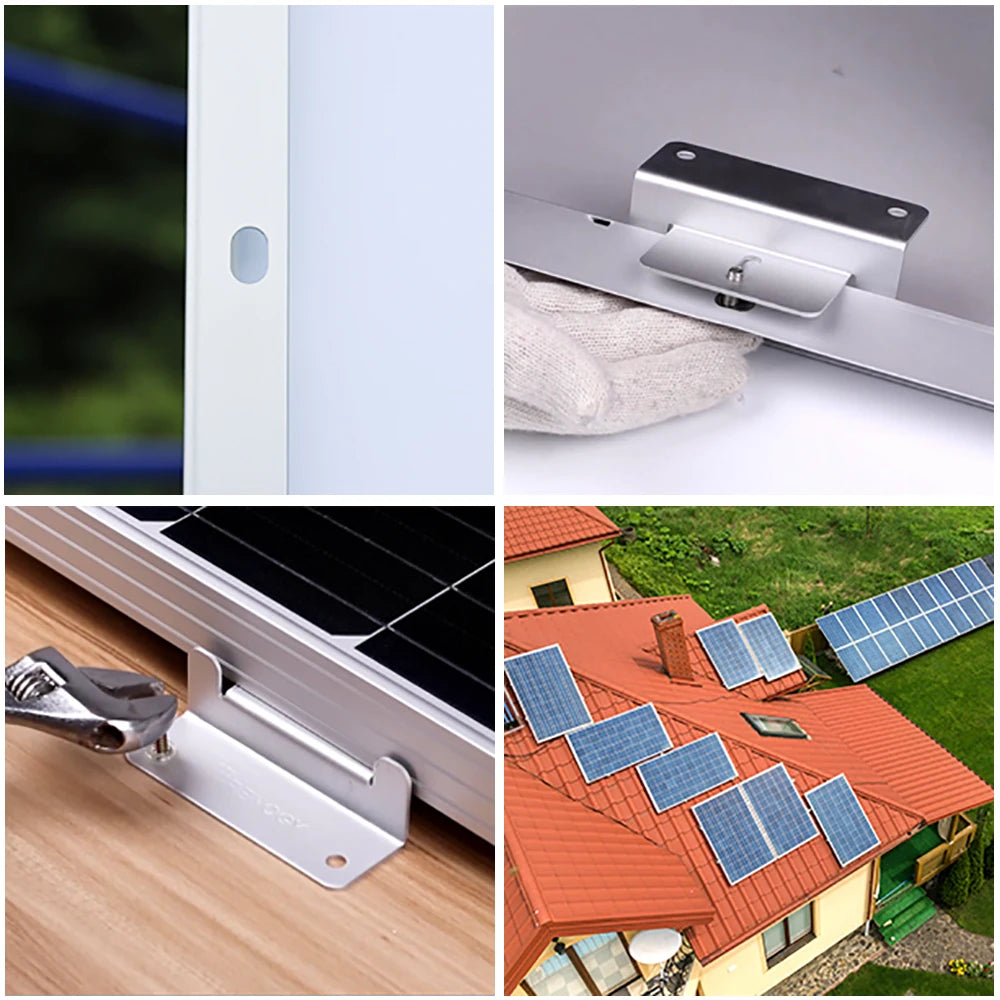

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.

Reliable

Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life

EL tested solar modules; no hot-spot heating guaranteed

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

TPT back sheet ensures smooth performance over a long period of time

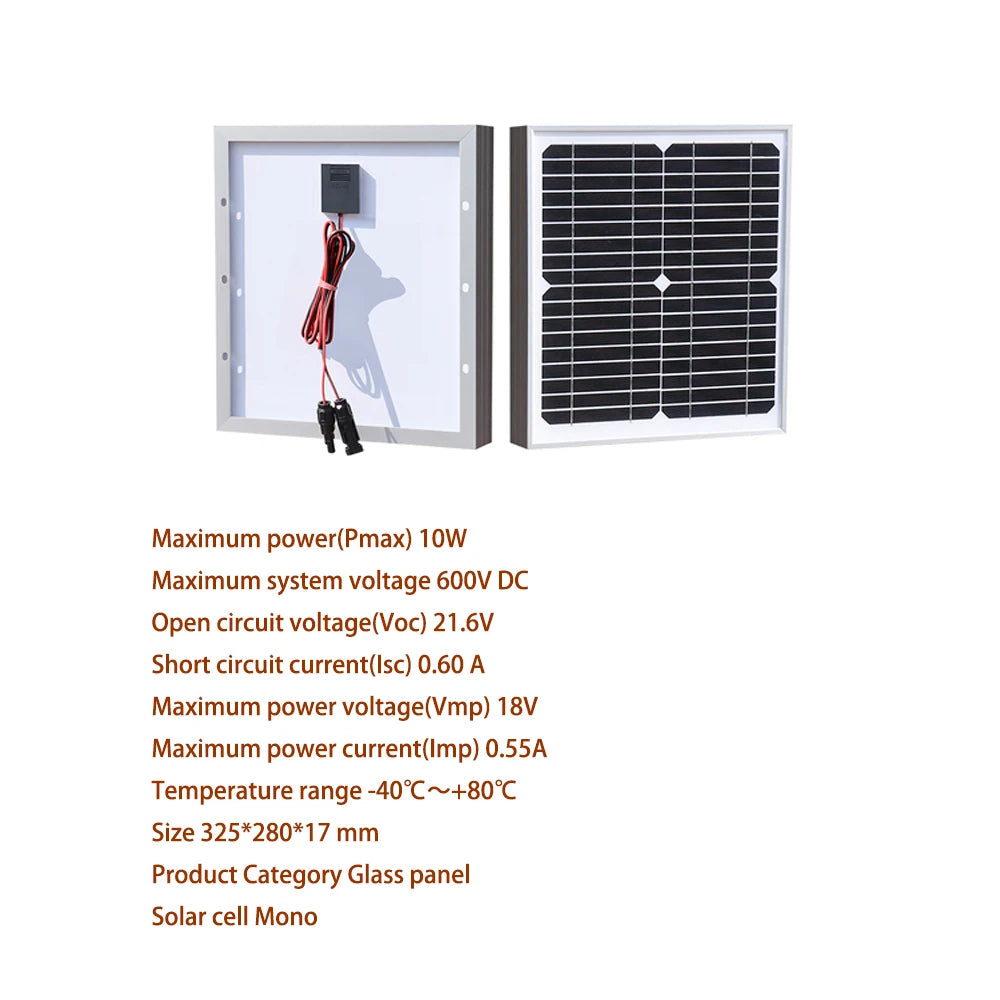

10W Glass Solar panel Specification:

Output tolerance ± 3%

Maximum system voltage 1000V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 0.61A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 0.55A

Cell efficiency 21%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃～+80℃

Cell Monocrystalline silicon

Number of cells 36pcs

Weight 1100g

Size 325*280*17mm

Surface material Toughened glass

Back film Color White

Output port 2 m long PV connector wire

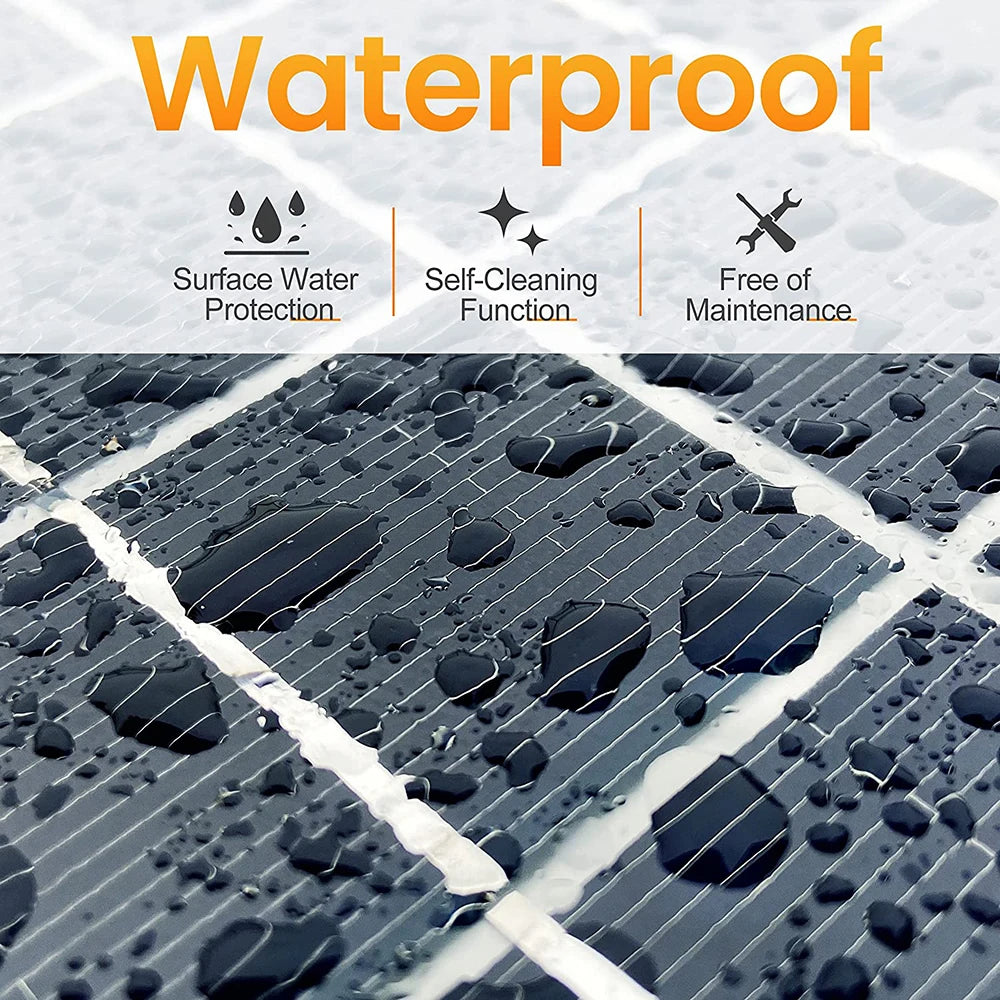

Waterproof Yes

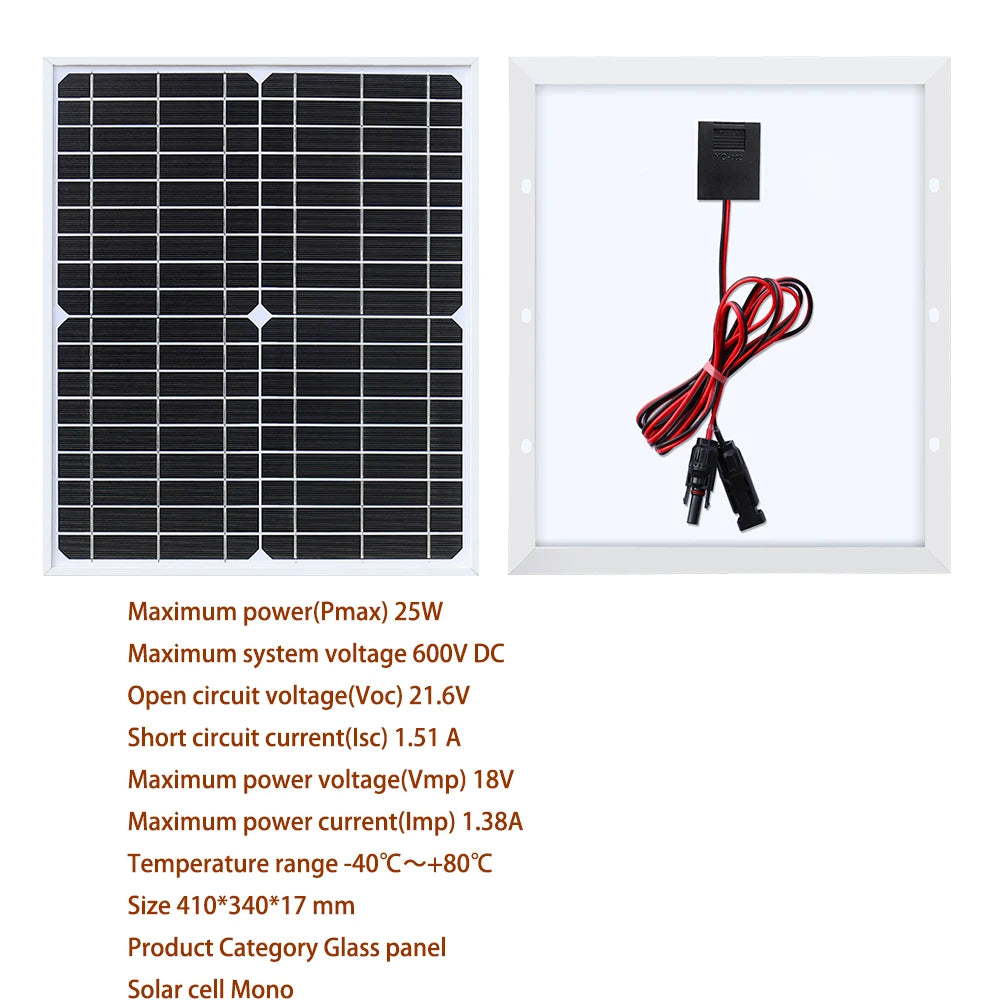

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5 Maximum power(Pmax) 25W

Output tolerance ± 3%

Maximum system voltage 600V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 1.51 A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 1.38A

Cell efficiency 23%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Size 410*340*17 mm

Product Category Glass panel
Mono Solar Cell

Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

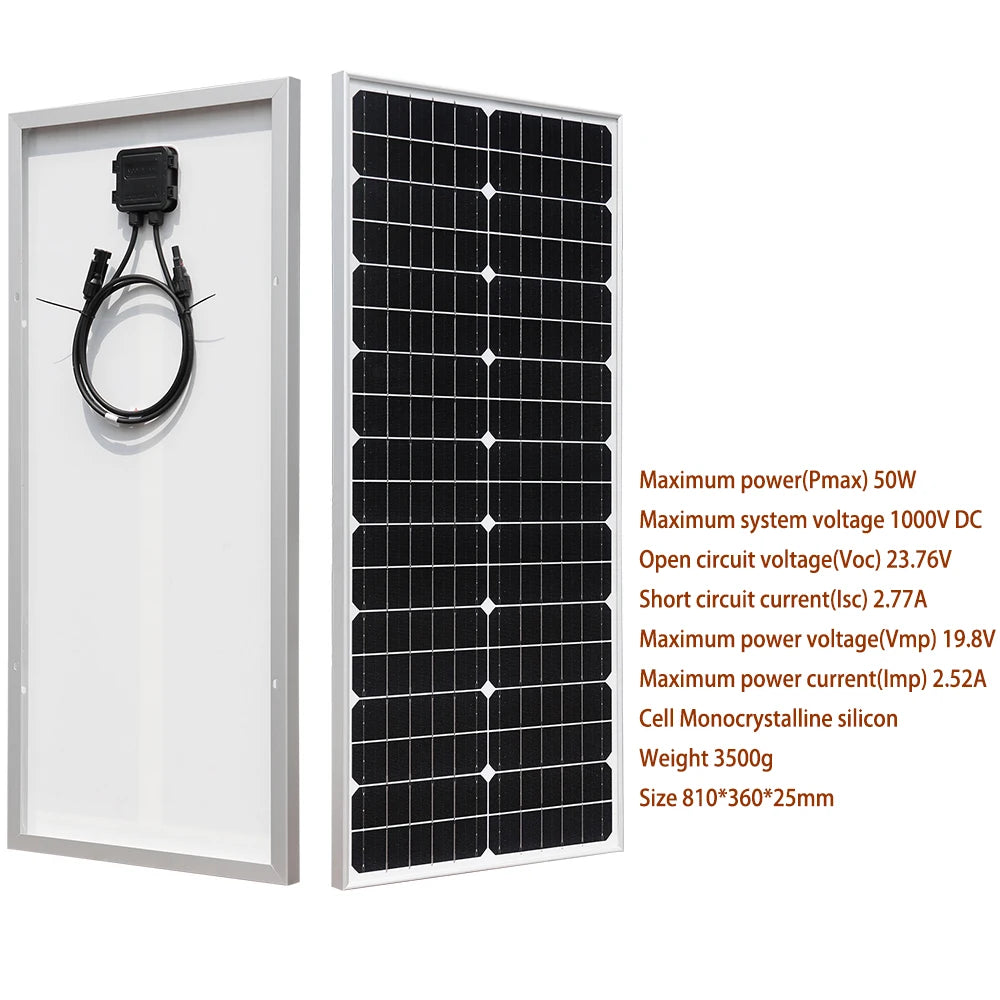

Maximum power(Pmax) 50W

Output tolerance ± 3%

Maximum system voltage 1000V DC

Open circuit voltage(Voc) 23.76V

Short circuit current(Isc) 2.77A

Maximum power voltage(Vmp) 19.8V

Maximum power current(Imp) 2.52A

Cell efficiency 24%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃～+80℃

Monocrystalline silicon cell

Number of cells 36pcs

Weight 3500g

Size 810*360*25mm

Surface material Toughened glass

Back film Color White

Output port 0.5 m long MC 4 connector wire

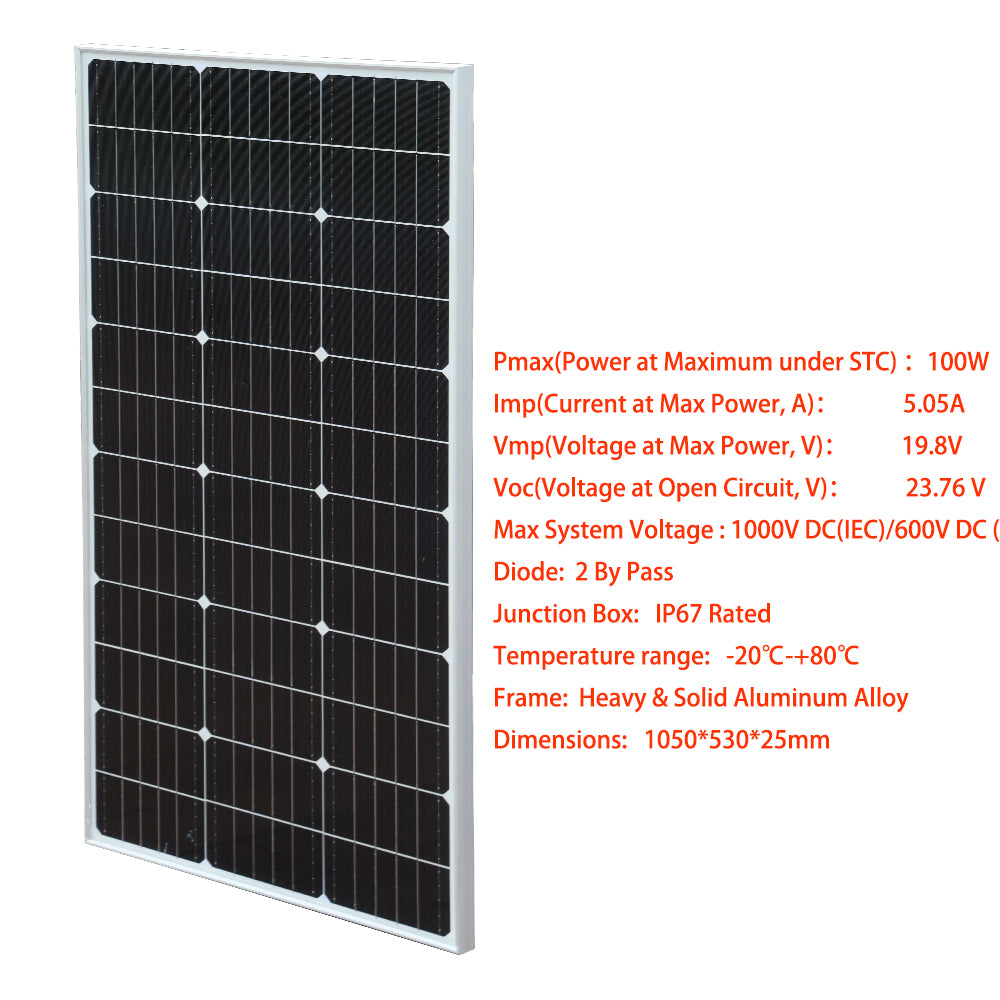

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5 Specification:

Pmax(Power at Maximum under STC): 100W

Imp(Current at Max Power, A): 5.05A

Vmp(Voltage at Max Power, V): 19.8V

Voc(Voltage at Open Circuit, V): 23.76 V

Output Tolerance: ±5%

Max System Voltage : 1000V DC(IEC)/600V DC (UL)

Diode: 2 By Pass

Junction Box: IP67 Rated

Temperature range: -20℃-+80℃

Frame: Heavy & Solid Aluminum Alloy

Kind of Glass: 3.2mm Tempered glass

Output Cable: 2.5mm?/14AWG 90mm/3.54＂

Dimensions: 1050*530*25mm /970*530*25mm

STC:Irradiance 1000w/m? Temperature 25℃ AM=1.5

Max power should be tested in sunny weather 12:00-14:00am, no Shelter and Sun vertical angle.

Durable

Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)

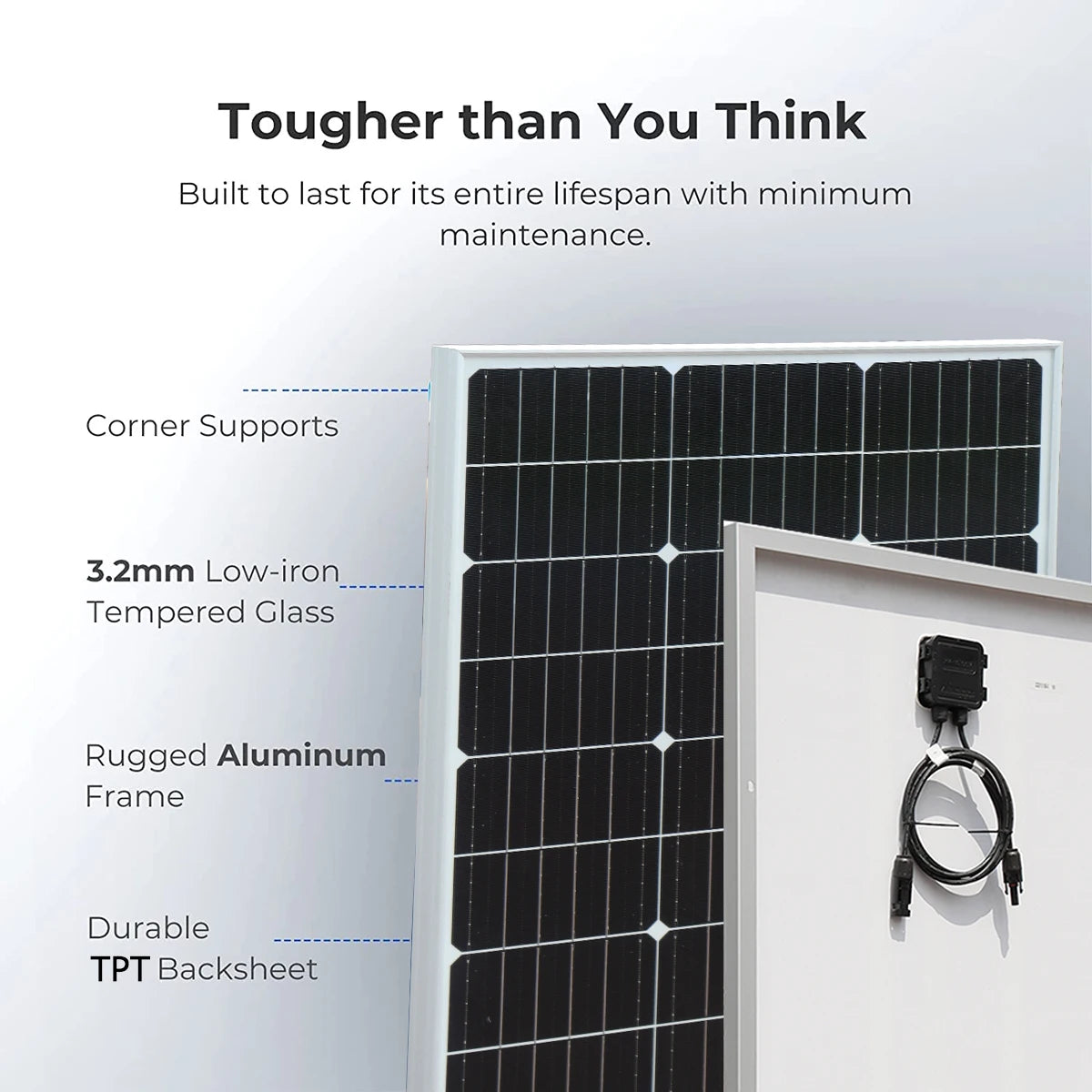

Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance

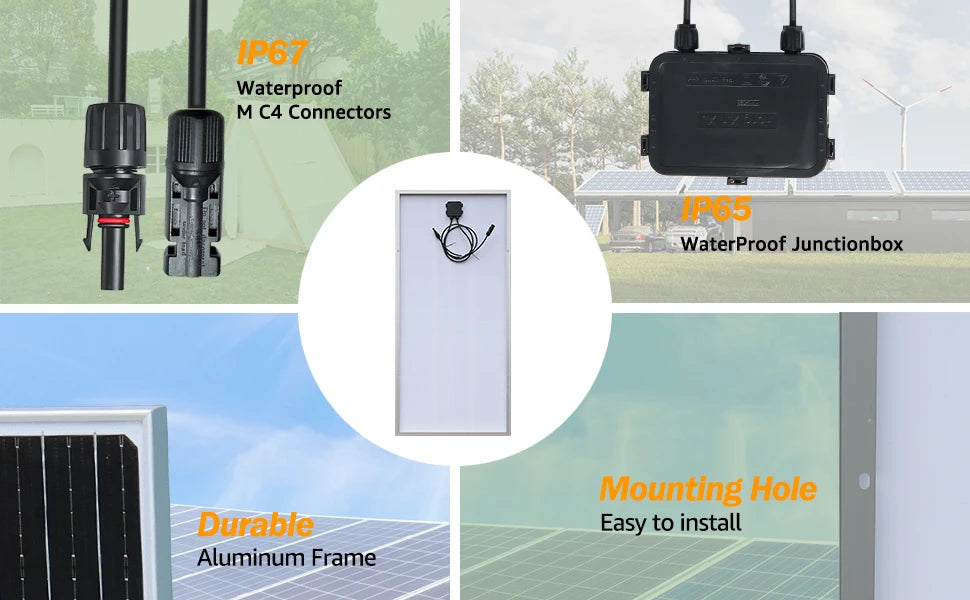

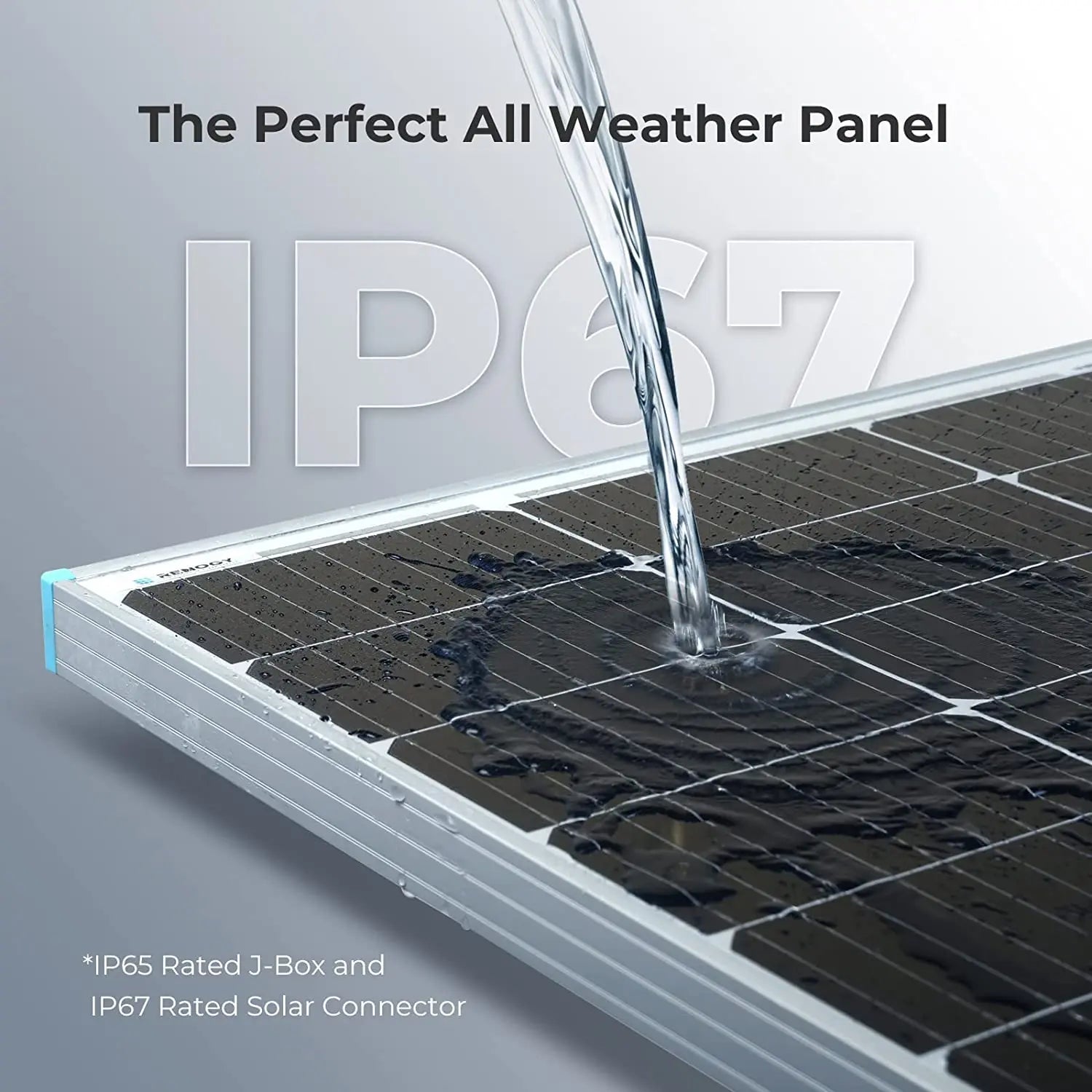

IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

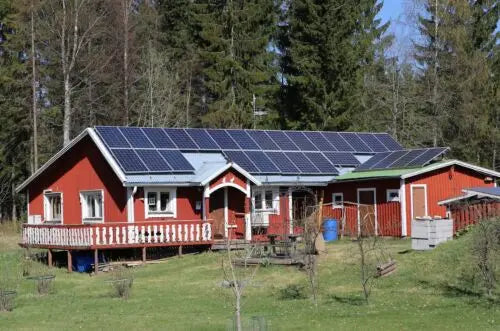

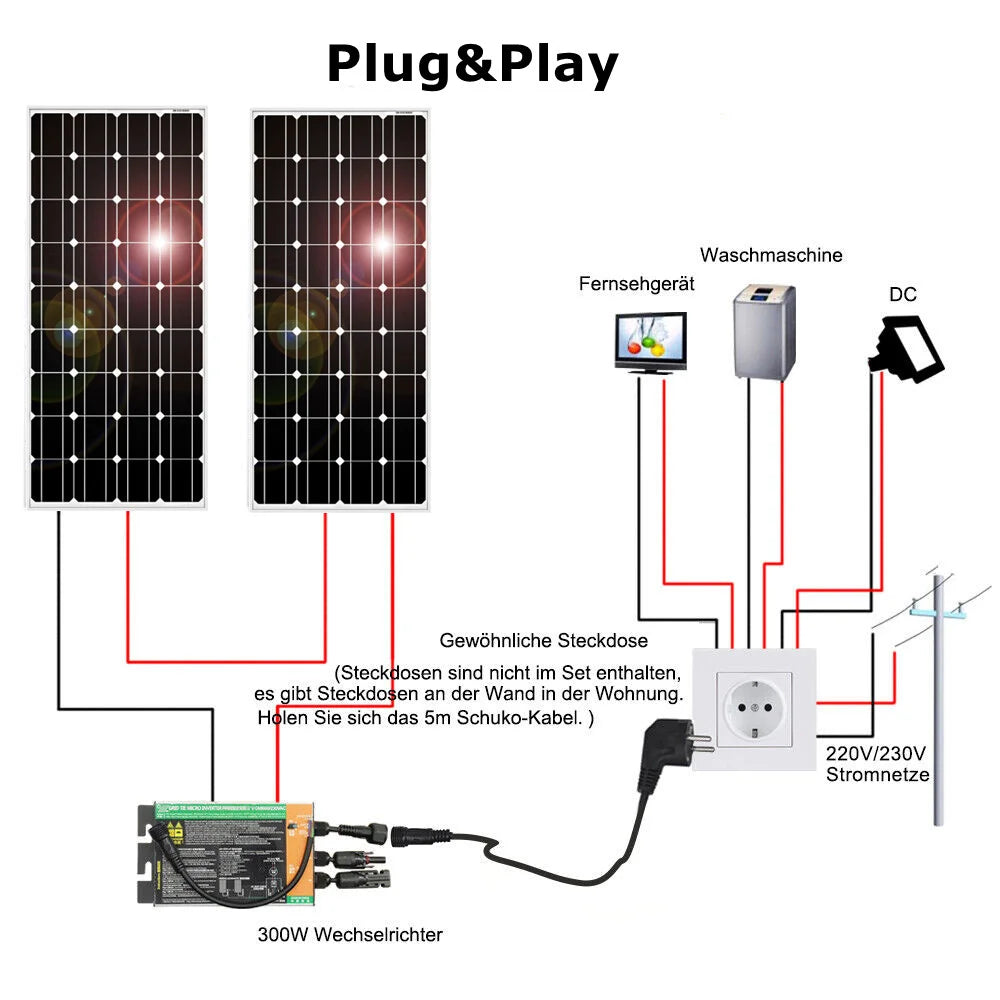

Use of solar panels for off-grid systems: need to be used together with batteries Solar panels for grid-connected systems: need to be connected to a domestic grid system, need to be configured for grid-connected inverters
