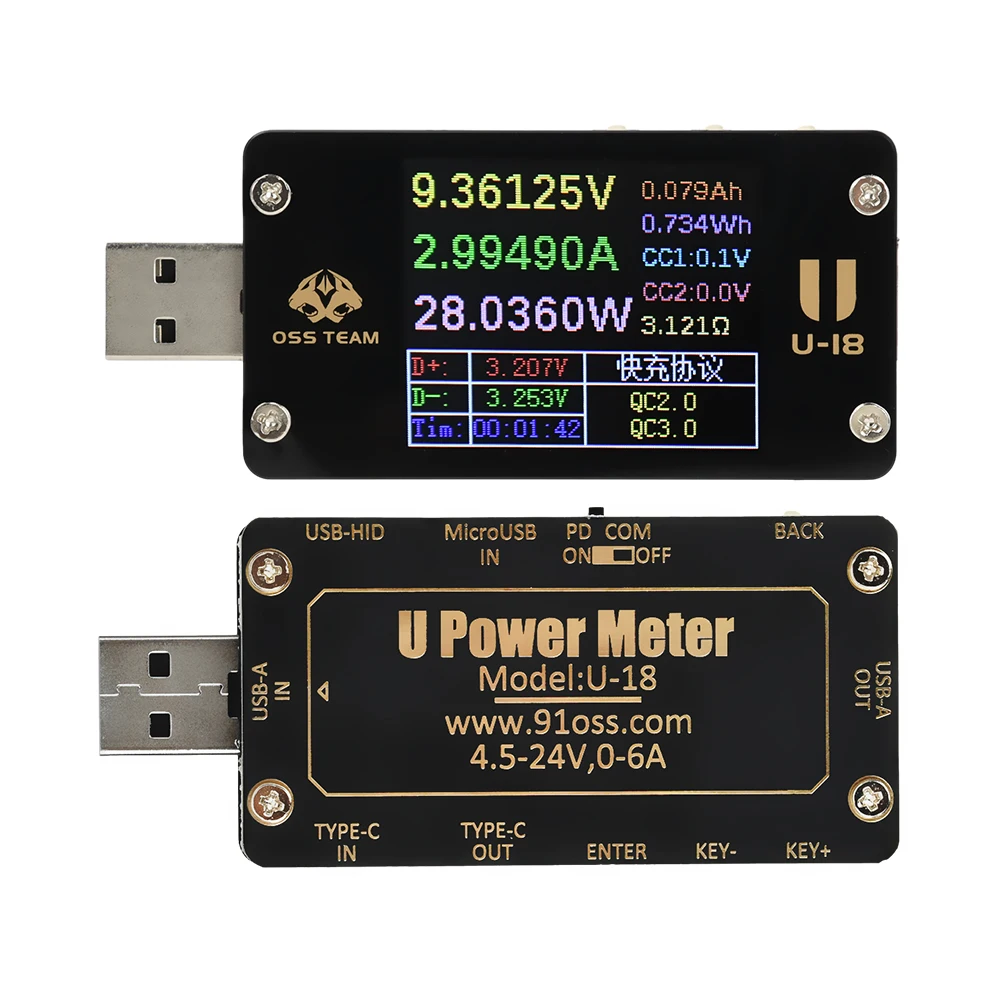

Multi-function USB Voltage Meter - 1.77 inch Screen
Multi-function USB Voltage Meter - 1.77 inch Screen
House for sale
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Product specifications
Product specifications
Product details
Product details
SPECIFICATIONS
Accuracy Class : 0.1
Battery Included : No
Brand Name : Aideepen
Certification : CE
DIY Supplies : Electrical
Dimensions : 6.5 x 3.5 x 1.25 cm
Display Type : Digital Only
High-concerned chemical : None
Model Number : Voltmeter Ammeter
Operating Temperature : 0-50C
Origin : Mainland China
Power Source : DC
Power Supply : DC
Voltage range : Other
Features:

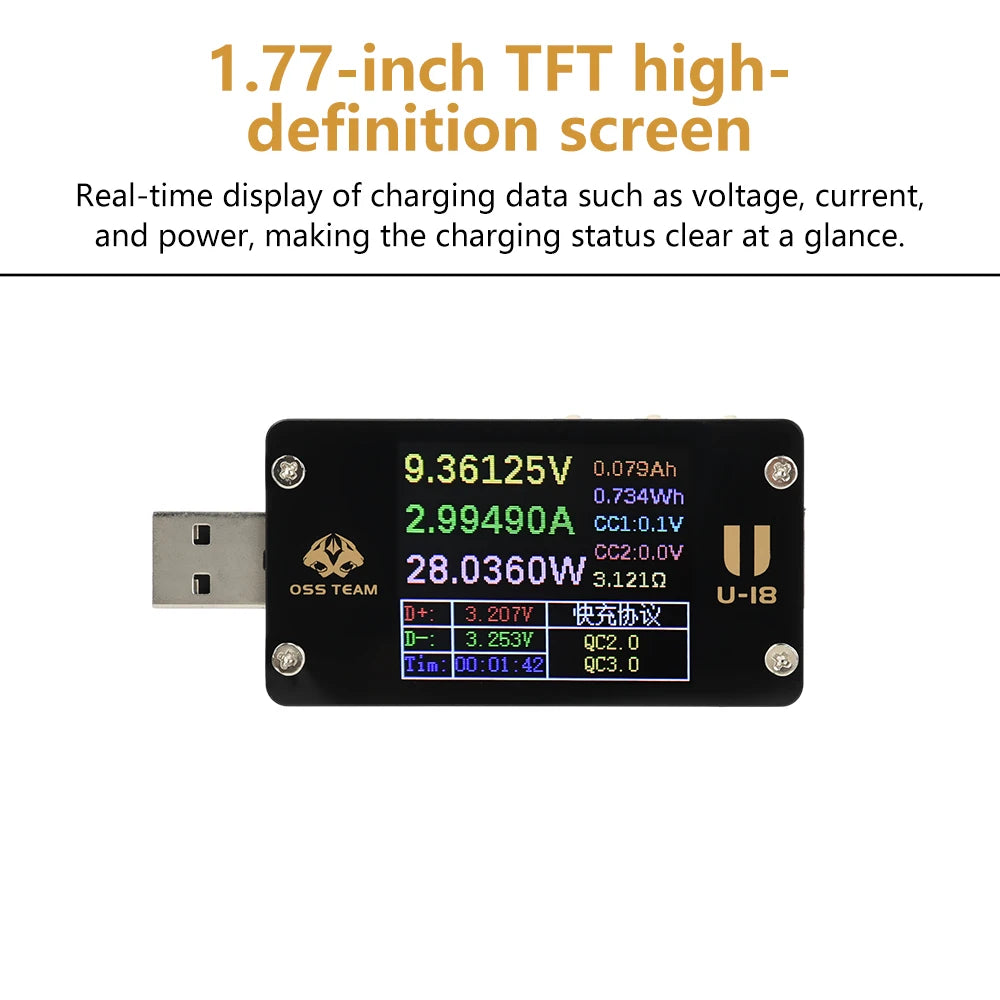

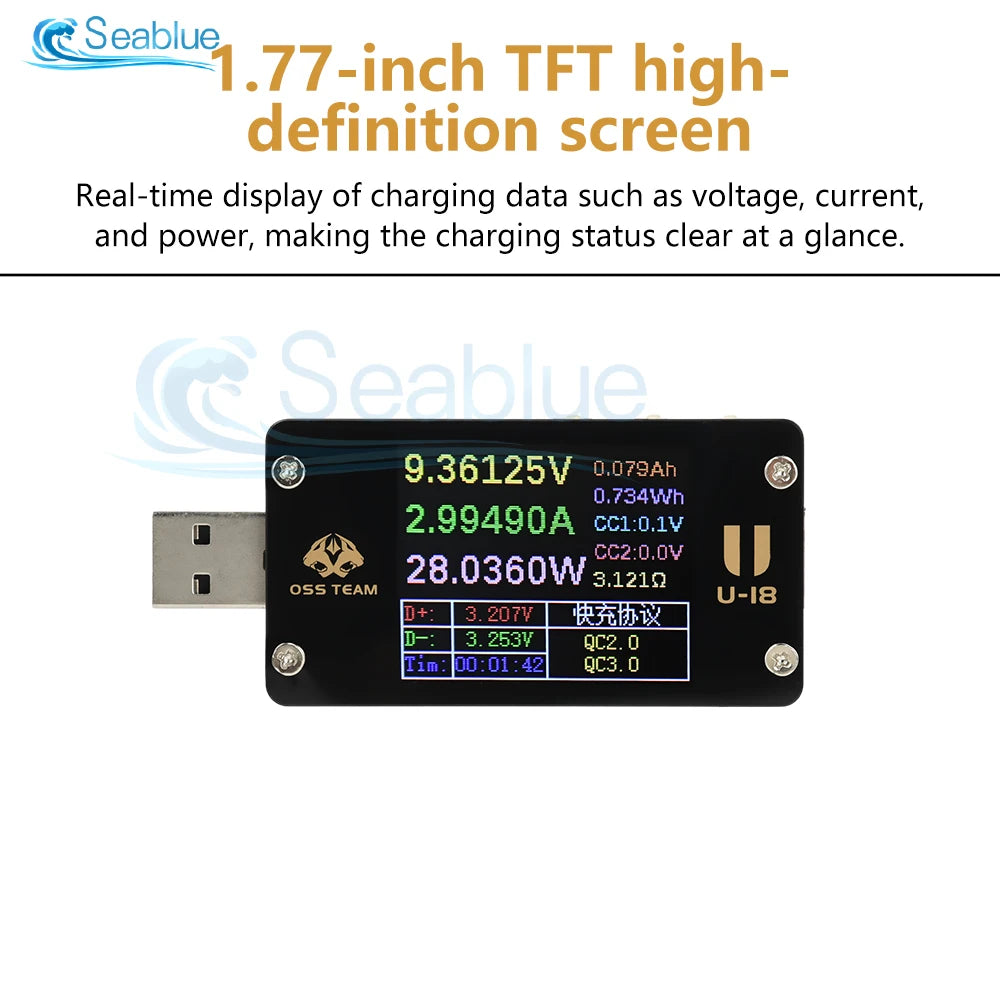

1. 1.77-inch TFT HD display: Real-time display of charging data including voltage, current, and power, providing clear visibility of charging status

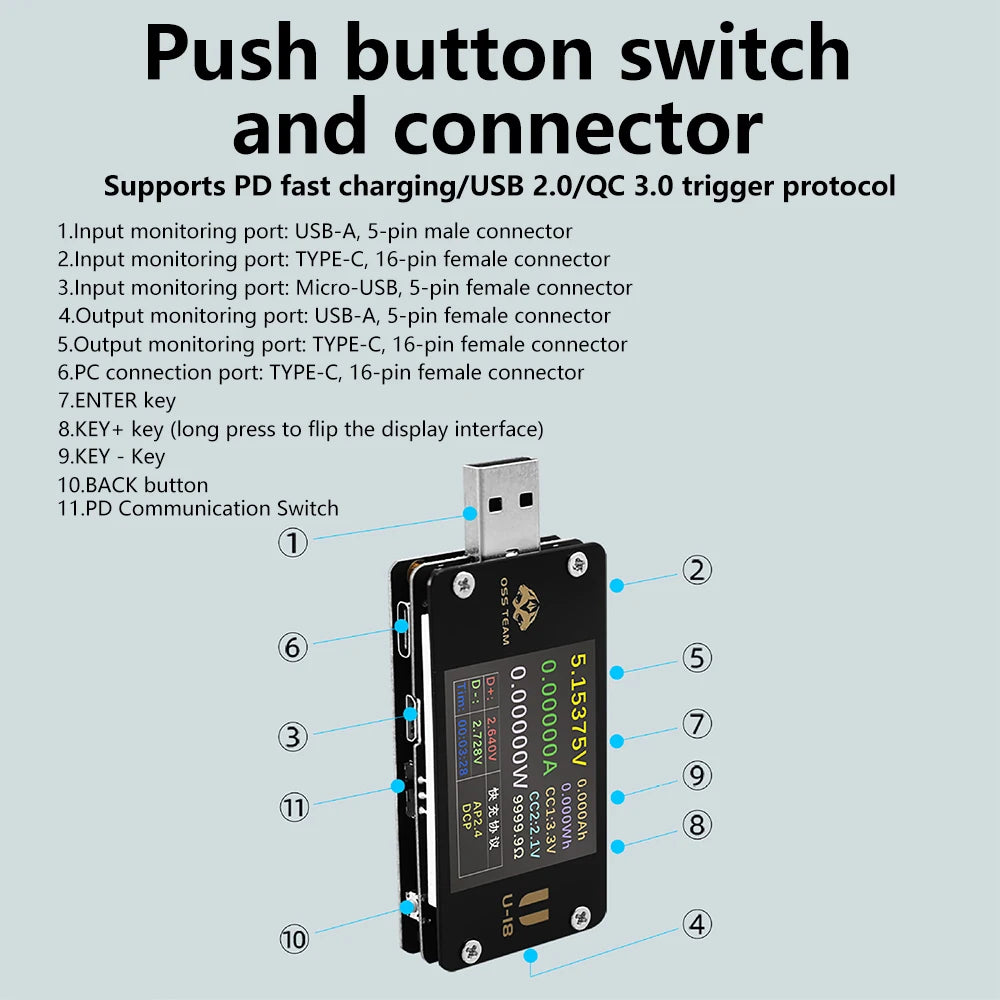

2. Supports fast charging protocols: Compatible with PD, QC 2.0, QC 3.0, and other protocols, widely adaptable to various charging devices

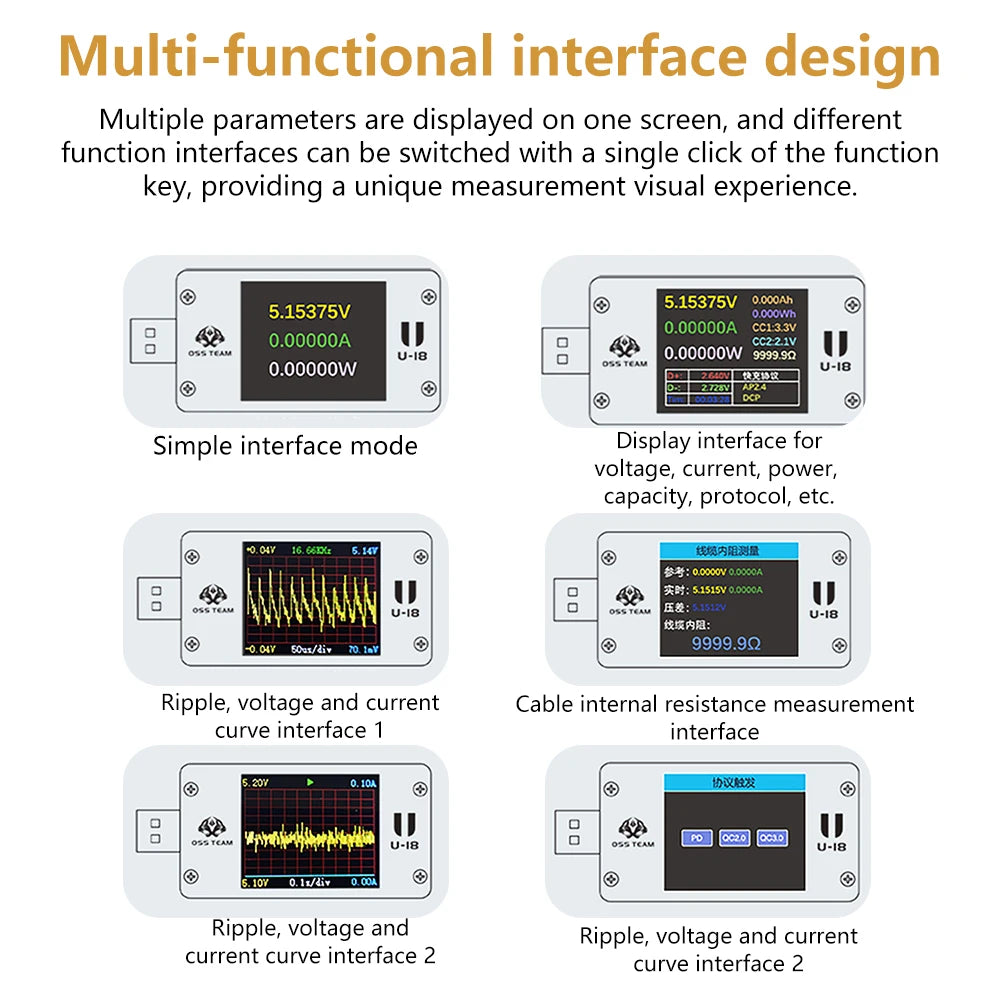

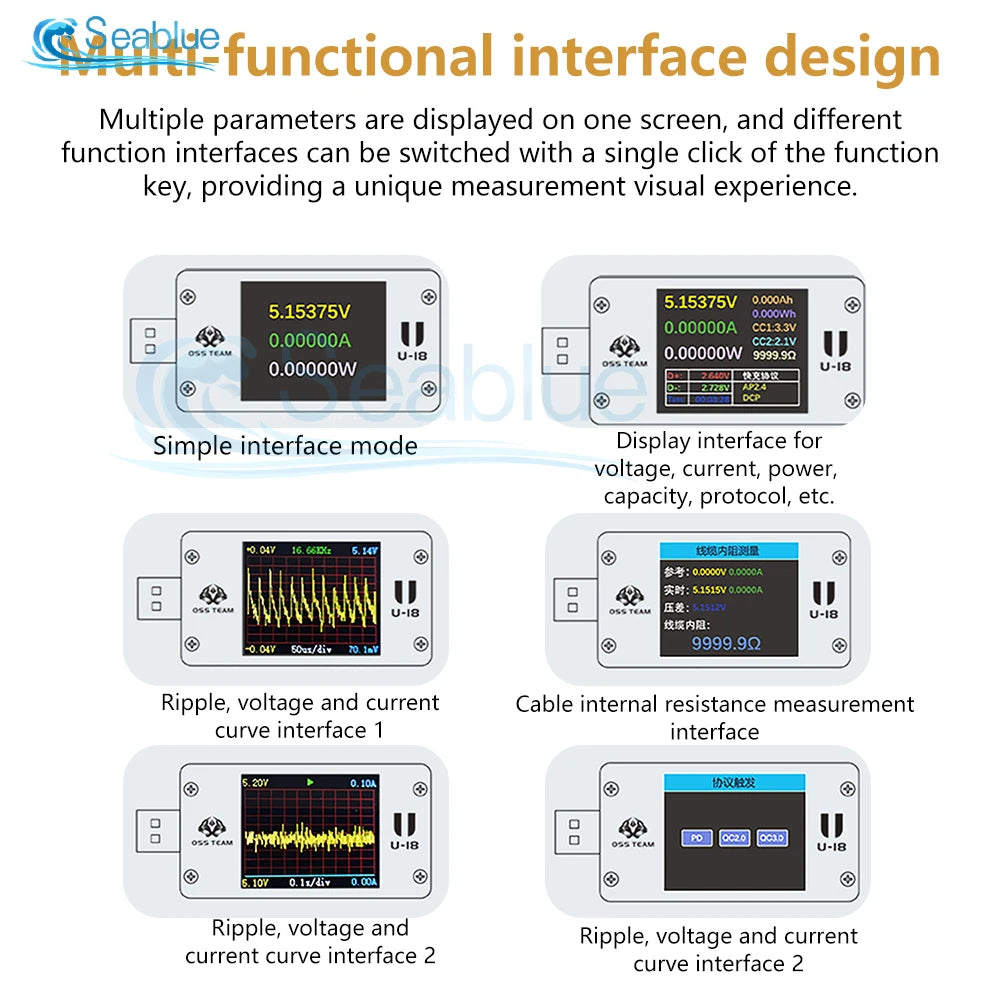

3. 7 selectable display interfaces: Diverse interfaces offer intuitive and convenient operation, personalized meeting needs for enhanced usability

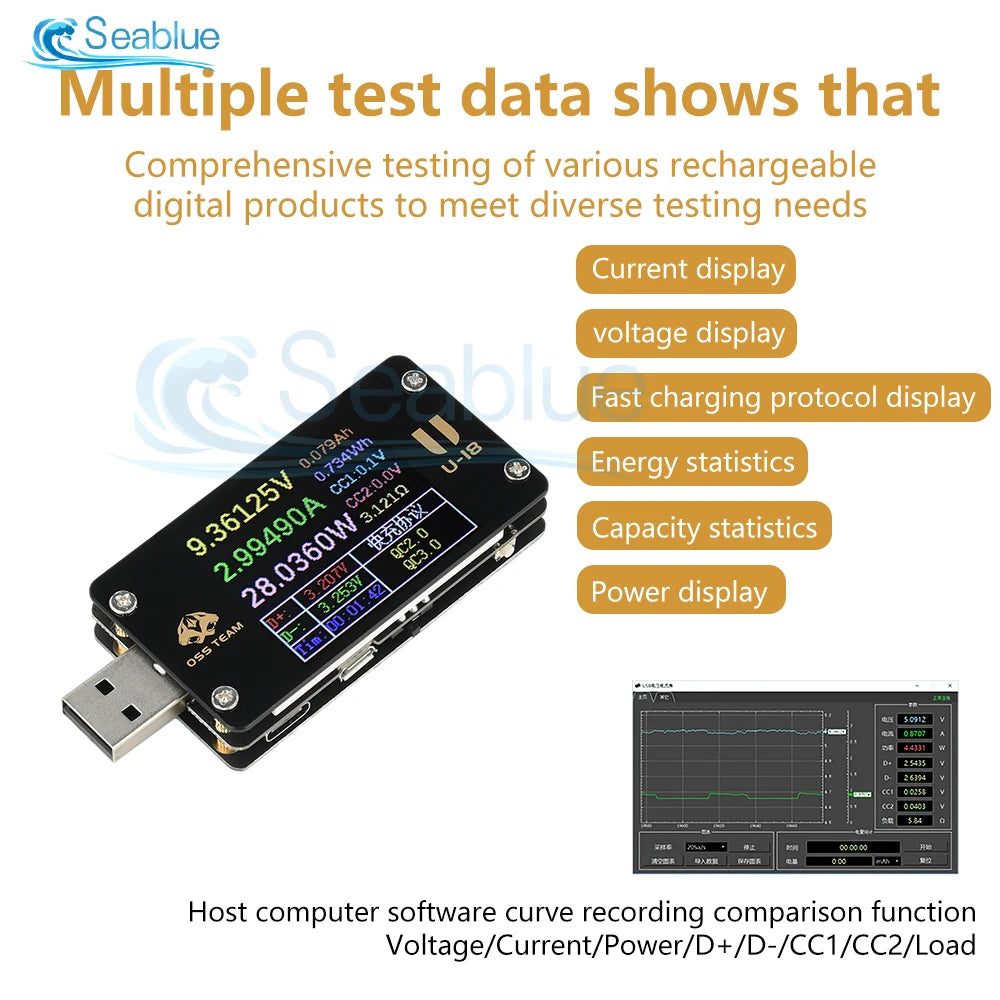

4. Multiple test data displays: Voltage, current, power, fast charging protocol status, energy consumption, and capacity statistics provide comprehensive insight into charging performance.
5. Cable resistance measurement: Utilizes the voltage drop method to measure cable resistance. Automatically calculates cable resistance after connection to assess charging efficiency and cable quality.

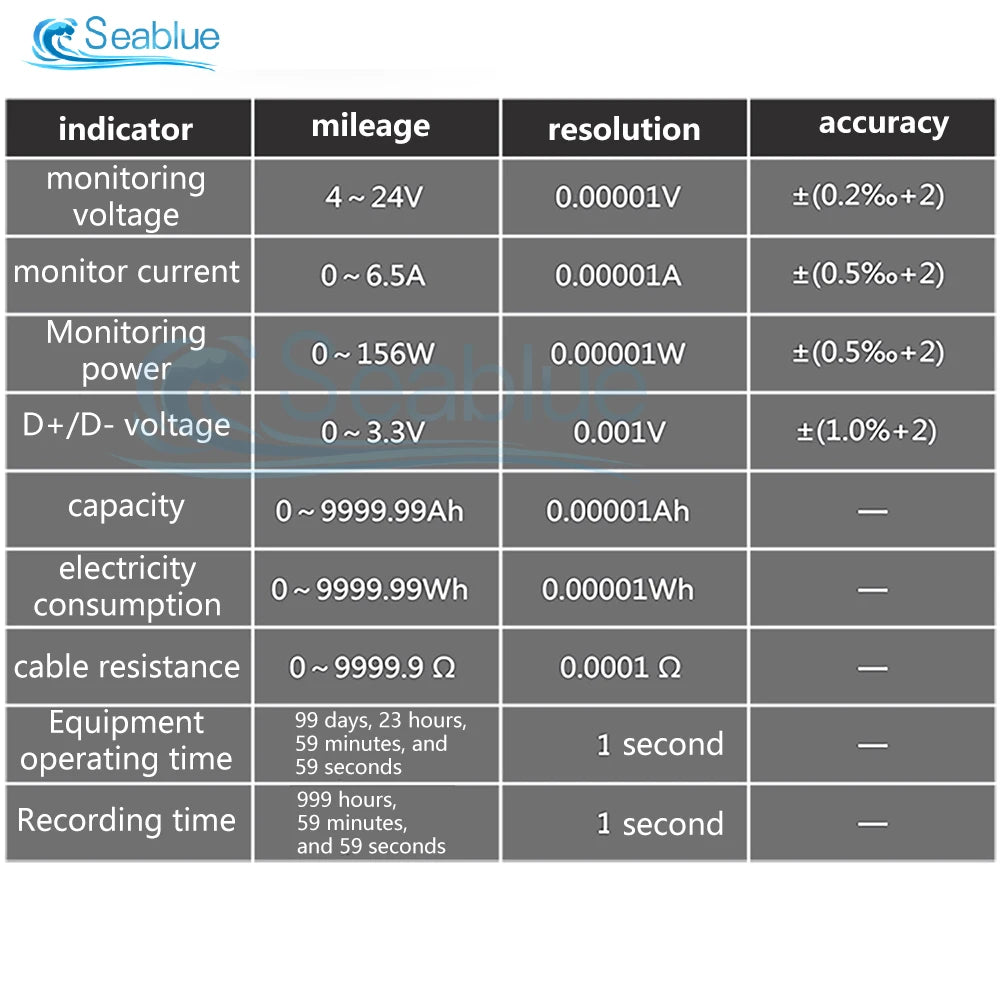

Parameters:
Monitoring Voltage: DC 4-24V

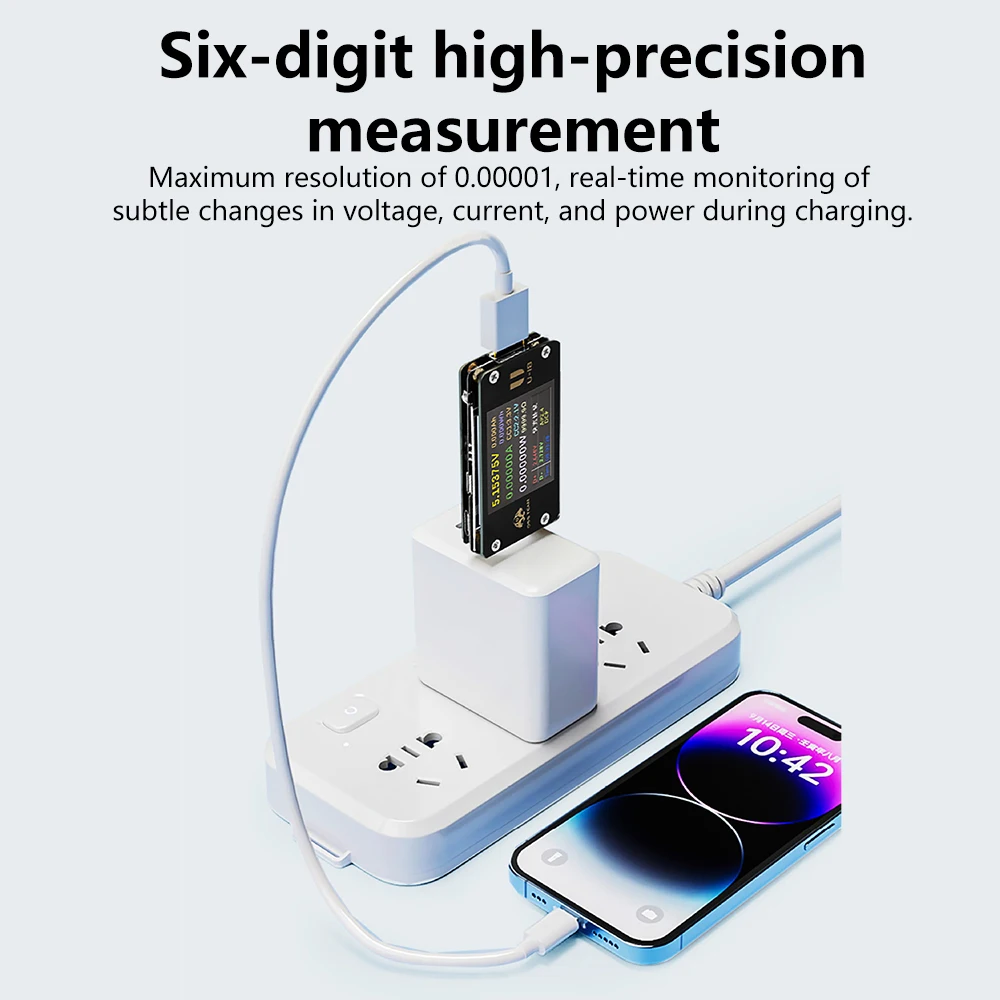

Resolution: 0.00001V
Accuracy: ±(0.2% + 2)
Monitoring Current: 0-6.5A
Resolution: 0.00001A
Accuracy: ±(0.5% + 2)
Monitoring Power: 0-156W
Resolution: 0.00001W
Accuracy: ±(0.5%+2)
D+/D- Voltage: 0-3.3V
Resolution: 0.001V
Accuracy: ±(1.0% + 2)
Capacity: 0-9999.99Ah
Resolution: 0.00001Ah
Energy Consumption: 0-9999.99Wh
Resolution: 0.00001Wh
Cable Resistance: 0-9999.9Ω
Resolution: 0.0001Ω
Device operating time: 99 days 23 hours 59 minutes 59 seconds
Resolution: 1 second
Recording time: 999 hours 59 minutes 59 seconds
Resolution: 1 second

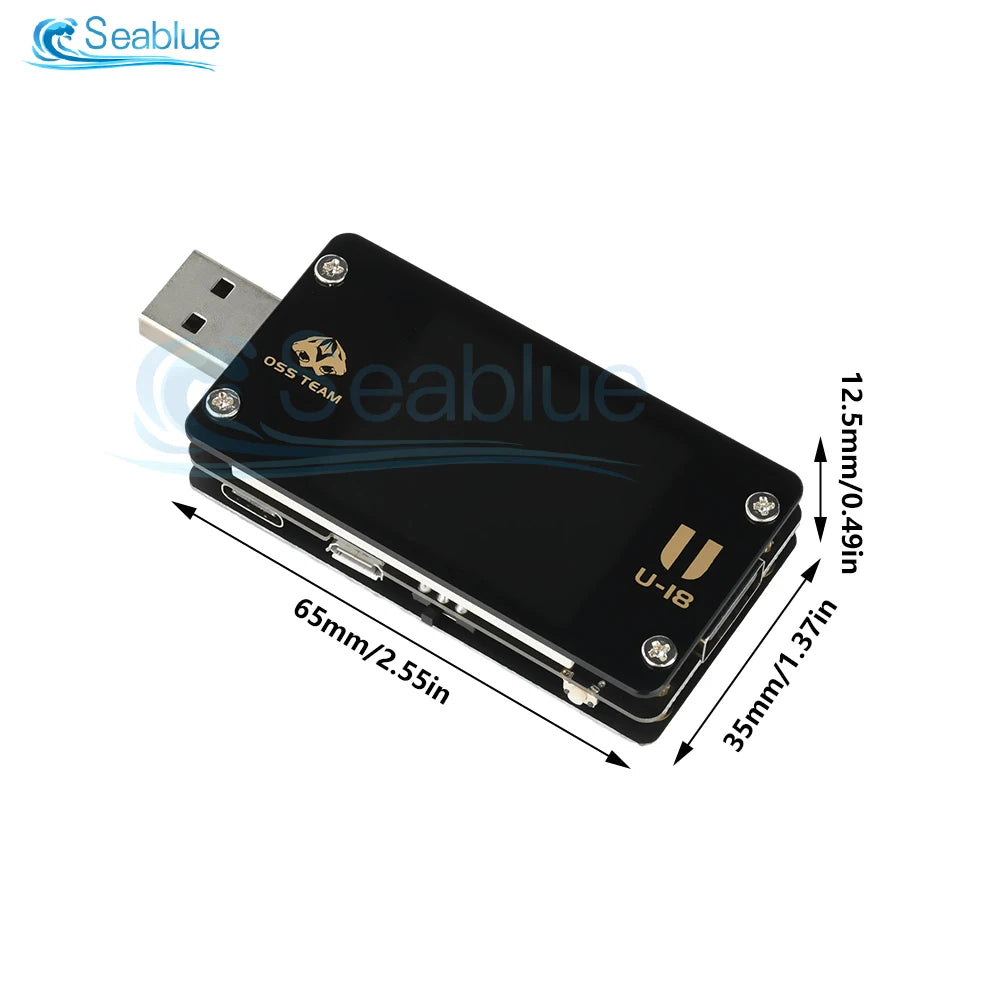

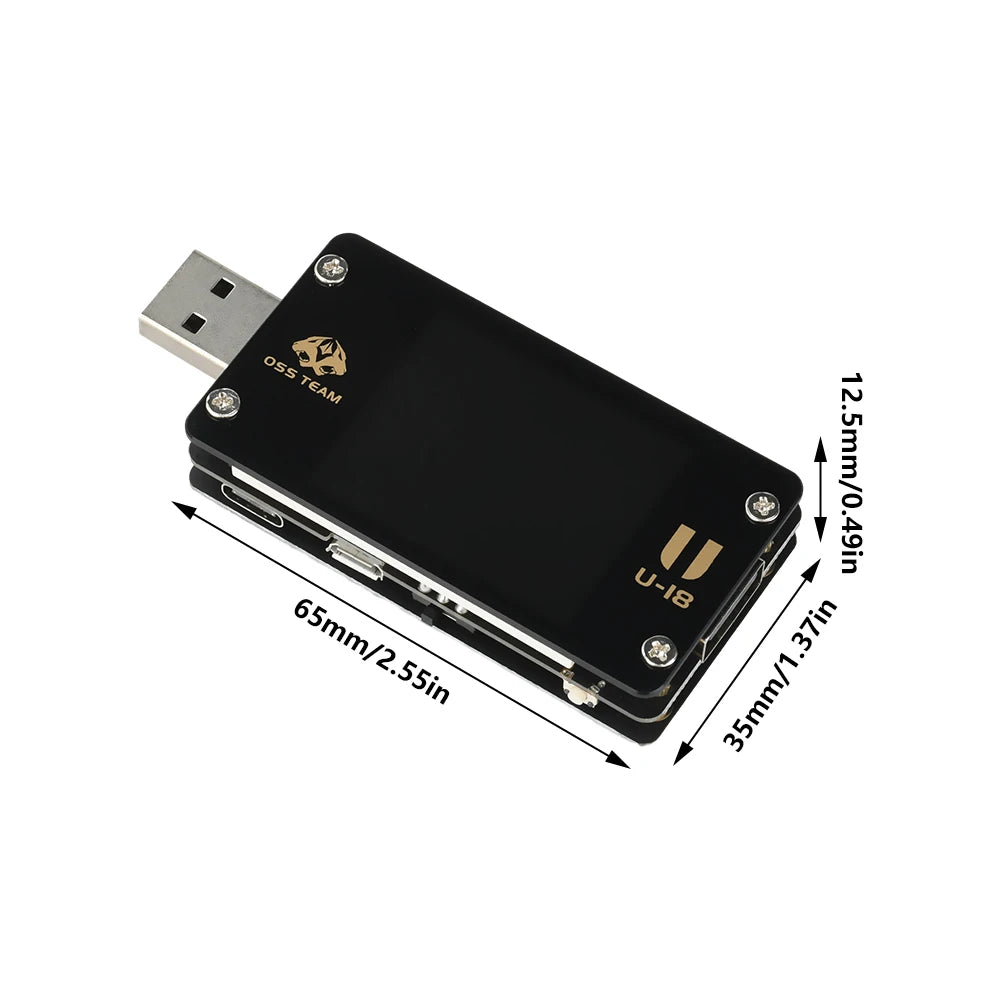

Product dimensions: 65 × 35 × 12.5 mm
Package includes:
Tester*1
