Smart Switch 433MHz Remote Control 30A
Smart Switch 433MHz Remote Control 30A
House for sale
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Product specifications
Product specifications
Product details
Product details
SPECIFICATIONS
Battery Included : Yes
Brand Name : GGBEE
Certification : CE
Choice : yes
Communication method : RF
Does It Include Wireless Communication : Yes
Function : When you press the remote control, the switch makes a TI TA sound.
High-concerned chemical : None
Inbox adapter : No
Keywords 1 : smart switch
Keywords 2 : light switch
Keywords 3 : wireless switch
Model Number : 433Mhz RF Remote Control Switch
Origin : Mainland China
Power Source : AC&DC, AC&DC
Scope of application : water pump
State of Assembly : Ready-to-Go

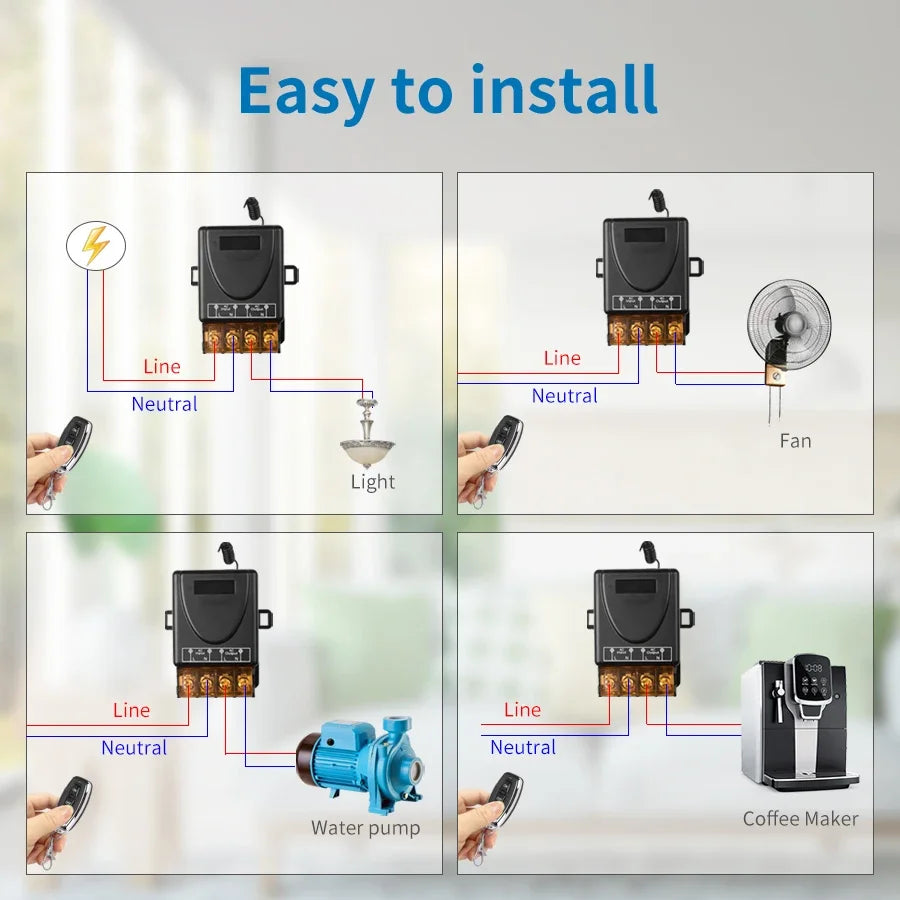

Wiring mode : 1 in 4 out
max load : 30A
Voltage : AC 75-220V DC 9-72V
working distance : 100m(In Open area)

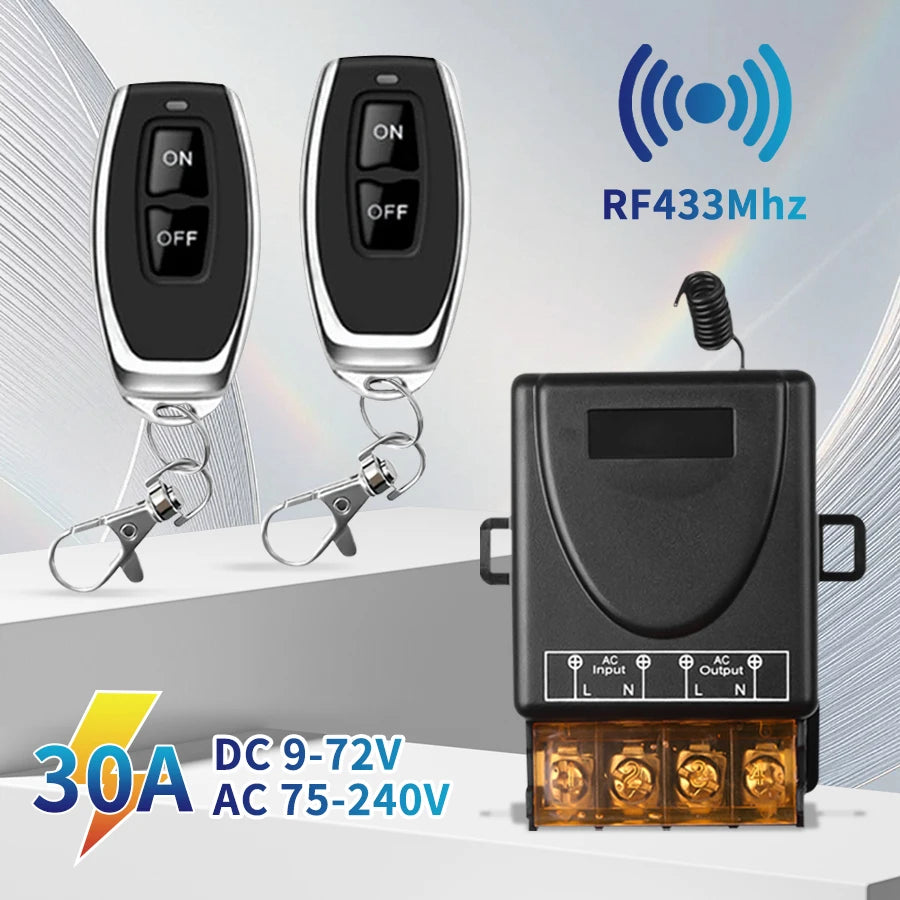

433Mhz Smart Switch Wireless Remote Control DC12V 24V 72V AC75-240V 30A High Current Relay On off Remote Control Transmitter for Pumps Lights Lamps

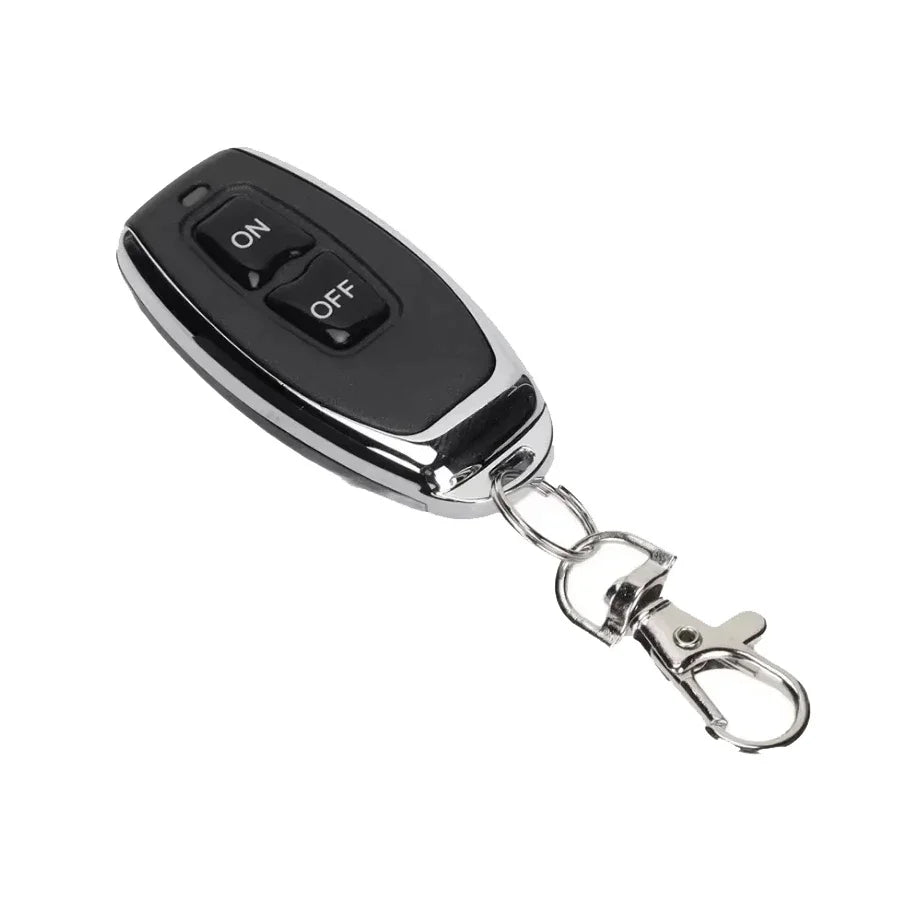

Transmitter (Remote control):
Operating voltage: DC12V (23A/12V battery x1)
Transmitting frequency: 433MHz
Encoding Type: Fixed code
Receiver sensitivity: > -105dB
Transmission distance : 100M (Open field)
Size: approximately 55*28*10mm

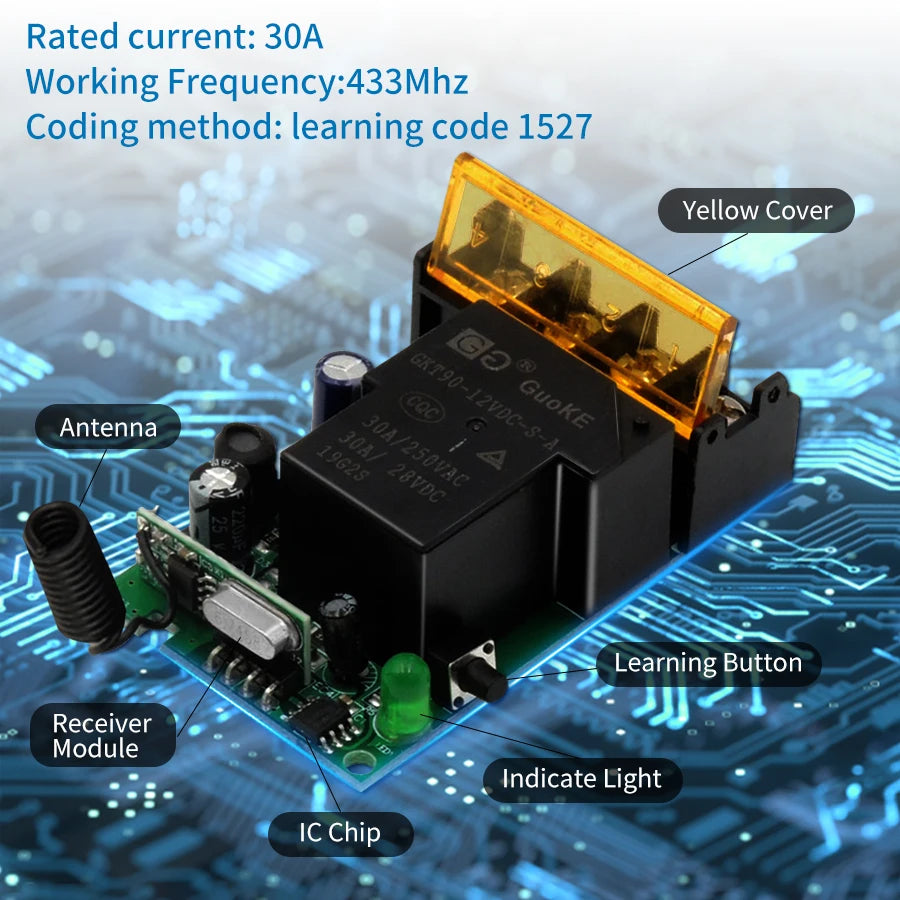

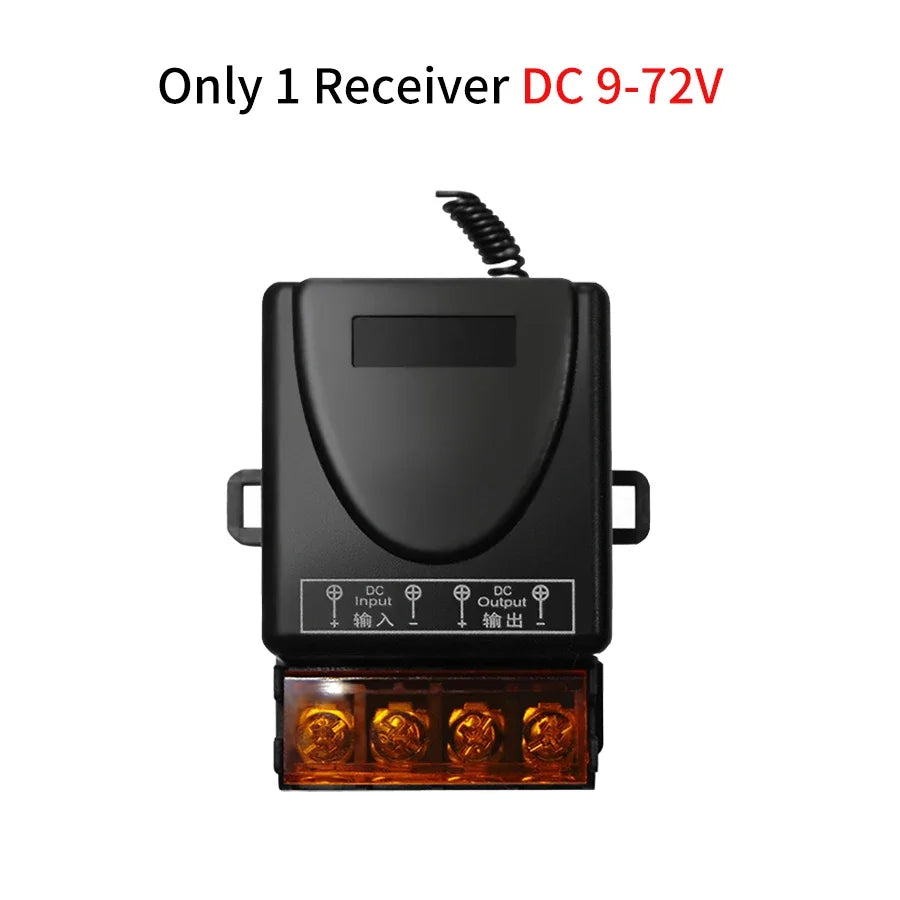

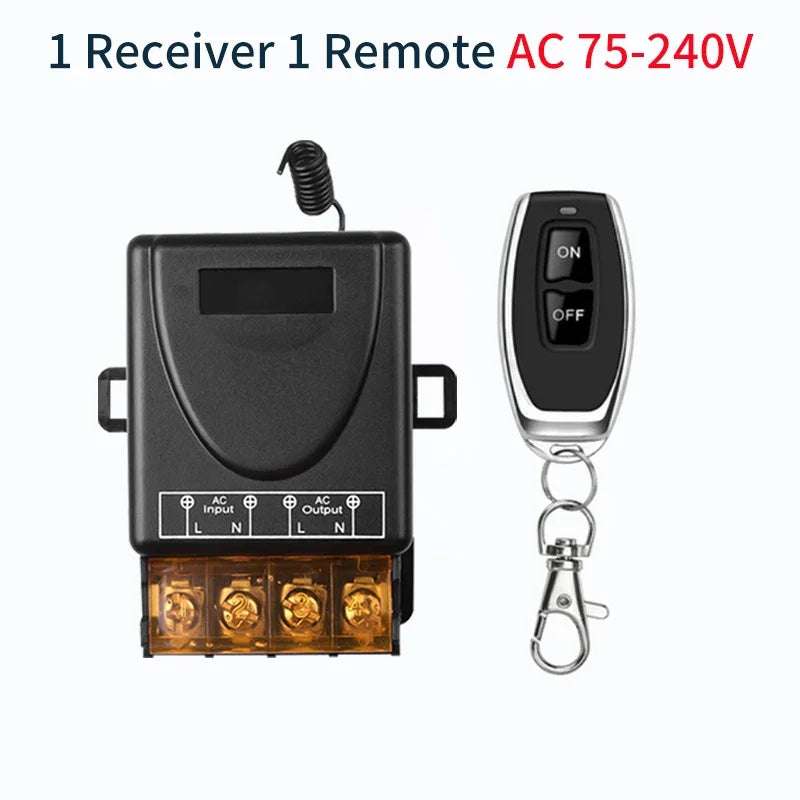

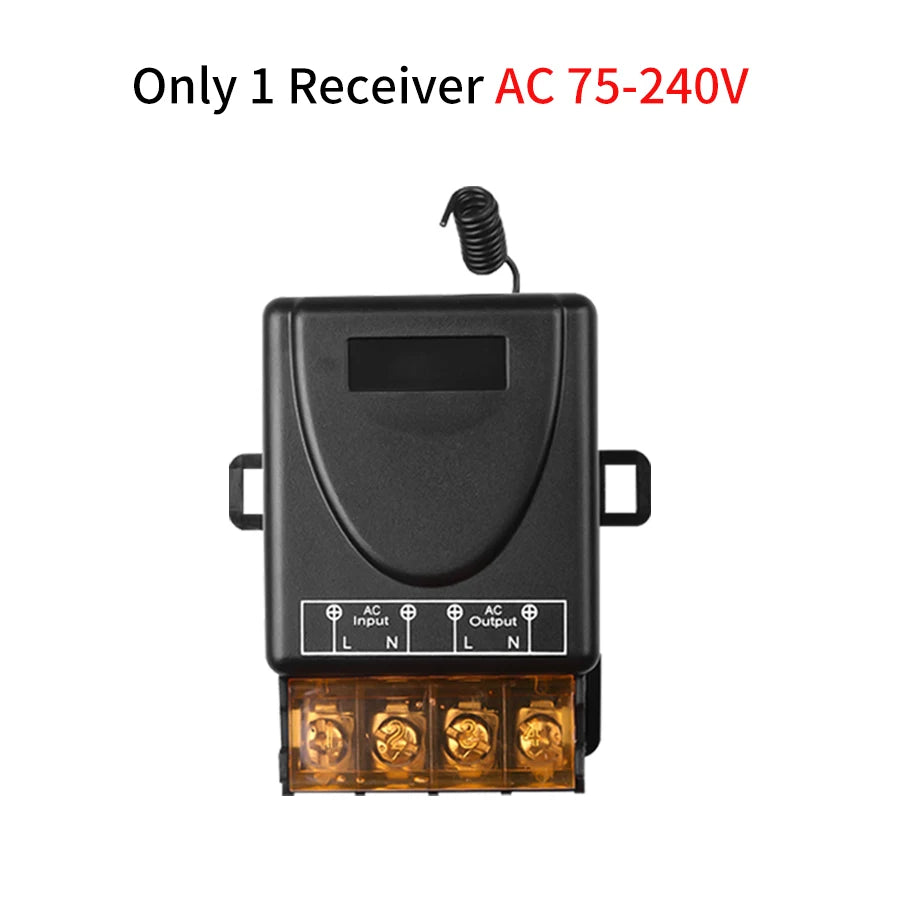

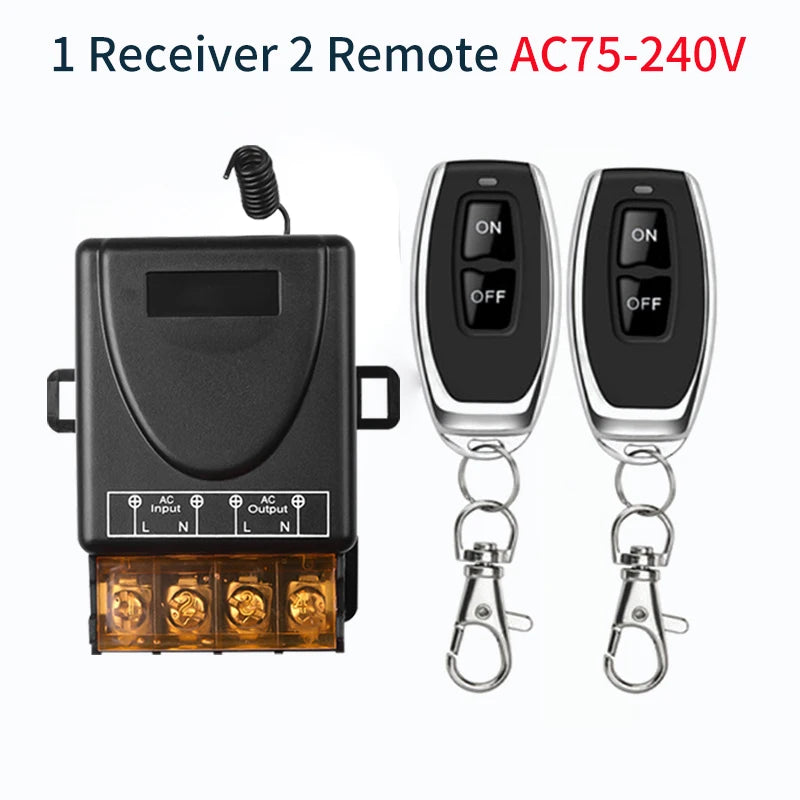

Receiver:

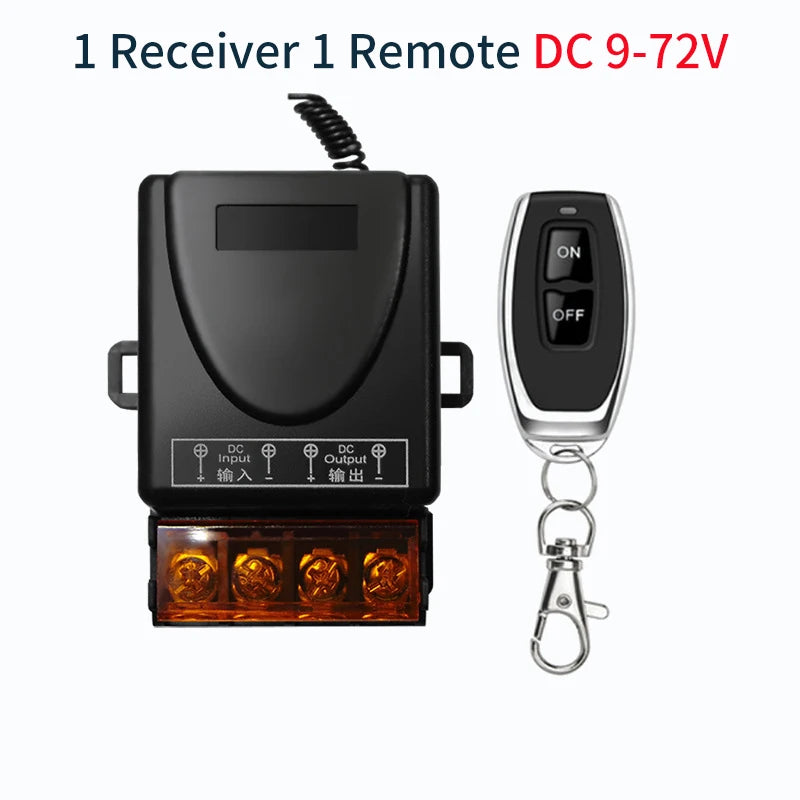

Operating voltage: AC 75V - 240V DC9-72V
Output voltage = Operating voltage
Operating frequency: 433MHz(Same with Remote control)

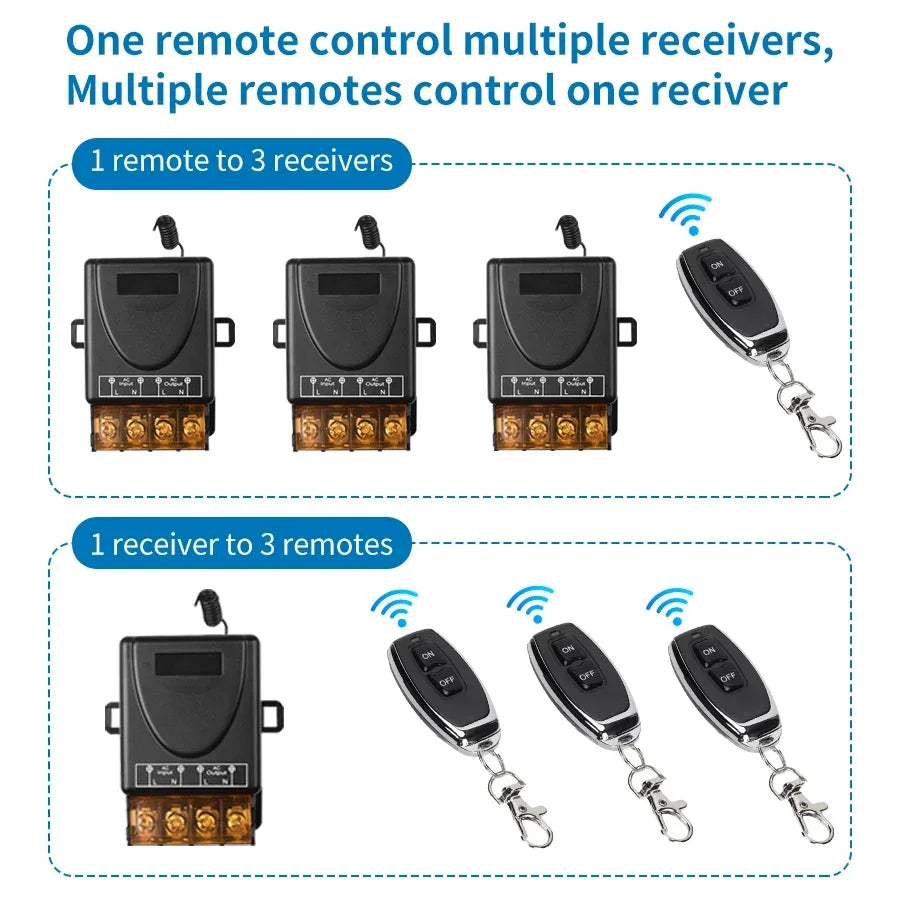

Encoding Type: learning code(you can buy extra 315MHz remote controllers for this receiver)
Rated contact current of relay: 15A/240VAC, 15A/110VAC
Box size: approx 65 x 45 x 28mm
Please notice that:
Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should be less than 15A.
About Learning and clearing Method:
12V input for the Receiver,
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 times, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 times, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it means Clearing Code
