SPECIFICATIONS

Amount of storage remote controls : About 15 pieces

Application Scenario : Fan, Fish tank, Light, LED, Lamps, Electric kettle, Coffee machine

Brand Name : SLMPLEFUN

Certification : RoHS,CE,ce,ROHS

Choice : yes

Code : 1527 learning code

Controller terminal : L/N

Current : 10A

Features : Wireless remote control

Hign-concerned Chemical : None

Is Smart Device : No

Item Type : SWITCHES

Material : Plastic

Max Load : 2500W

Max current : 10A

Model Number : 2201F+WP27 series

Modulation Mode : ASK superheterodyne wireless reception

Origin : Mainland China

Quiescent Current : less than 5mA

RF Frequency : 433.92MHz

Receiver Shell : YES

Receiver Size : 47*28*22mm/1.85*1.1*0.87inch

Receiving Sensitivity : more than -97dbm

Remote Distance : 30~60m indoor 150 meters open space

Remote operating mode : Momentary/ Toggle/ Latched Mode

Switch Type : REMOTE CONTROL

Switch Working Voltage : AC 110~250V 50/60 HZ

Wall Panel Switch Battery : CR2016*2 (Included)

Wall Panel Switch Size : 86*86*9 mm

Warranty : 1 YEAR

Wireless Wall Switch Feature : Fireproof, easy to clean

Wireless Wall Switch Range : Up to 50-150m(theoretical distance)

Working Temperature : -30~+80 Celsius

semi_Choice : yes

!!NOTE !!
●Hello, friend, In order to meet the needs of different customers, our purchase page has multiple options to choose from.

It includes options for a single receiver and a single remote control. Please verify your order carefully before making the payment. Thank you.

Dear customer：
This should be one of the smallest AC remote - control receiver modules in the market in terms of size.

!!NOTE !!
●Hello, friend, In order to meet the needs of different customers, our purchase page has multiple options to choose from.

It includes options for a single receiver and a single remote control. Please verify your order carefully before making the payment. Thank you.

Product Advantages

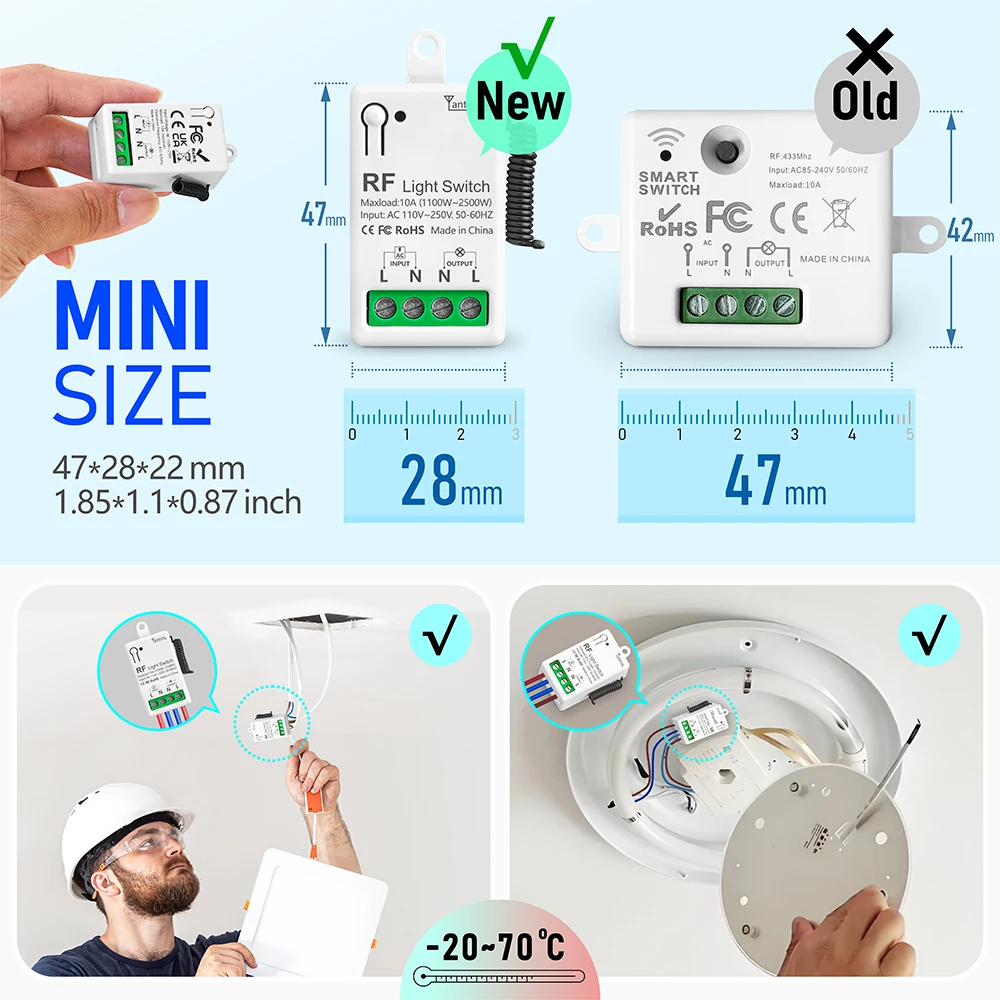

▶Super Mini Body
It is suitable for a variety of installation scenarios. For example, it can be installed in a ceiling lamp, inserted into a ceiling opening with a small diameter, installed in the base of a strip lamp, etc.
It can be used normally in scenes ranging from -20 to 70 degrees Celsius.

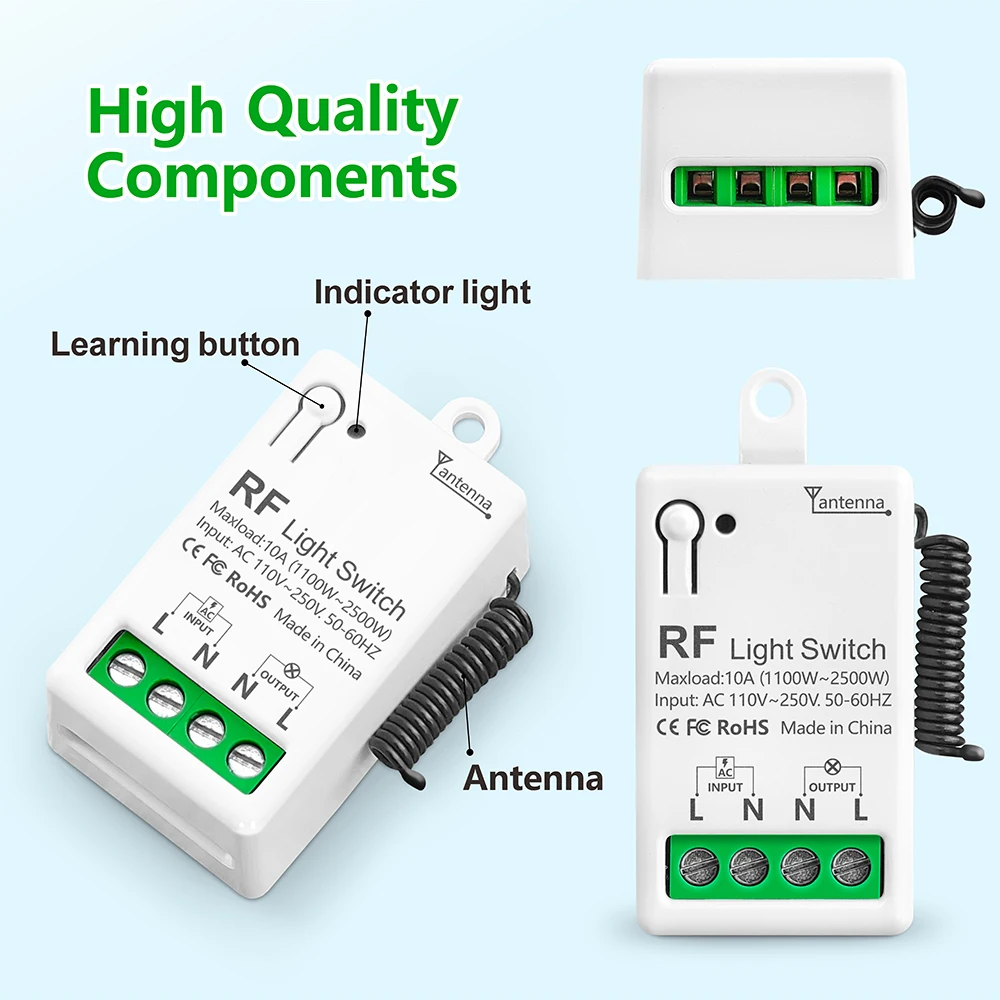

▶High Quality Chips. Support High Power.
It is applicable to AC voltage ranging from 110V to 250V , and the maximum current load is 10A .
High-quality chips, support more electrical appliances, more usage scenarios, and safer to use.

▶Wireless Touch-type Wall Panel Switch:
●No wiring required, can be installed anywhere you like.
●High sensitivity, you can touch the switch with wet hands.
●Easy to clean,Better touch experience.

▶Long Remote Control Distance:
The signal can pass through the wall, and the remote control distance can reach 20-30 meters in a room,50 meters(in open space).

▶2 intelligent DIY control methods:
*Momentary Mode*
*Toggle Mode*
(Detailed introduction below)

▶ You can set the initial state to “on” or “off”. After power restoration, there are two states:
1. “Off” state: The light remains off upon repowering.
2. “On” state: The light turns on automatically after repowering.

▶Supports Multiple Remotes
Different buttons on the wireless panel switch can control different receivers respectively, and one receiver can be controlled by multiple wireless panel switch.

▶Comprehensive after-sales and service
Fast logistics. Goods will be shipped within 24 hours after an order is placed, and can be delivered within one week to most countries and regions.
Our after-sales service team can provide the most professional solution to any of your problems.

Features

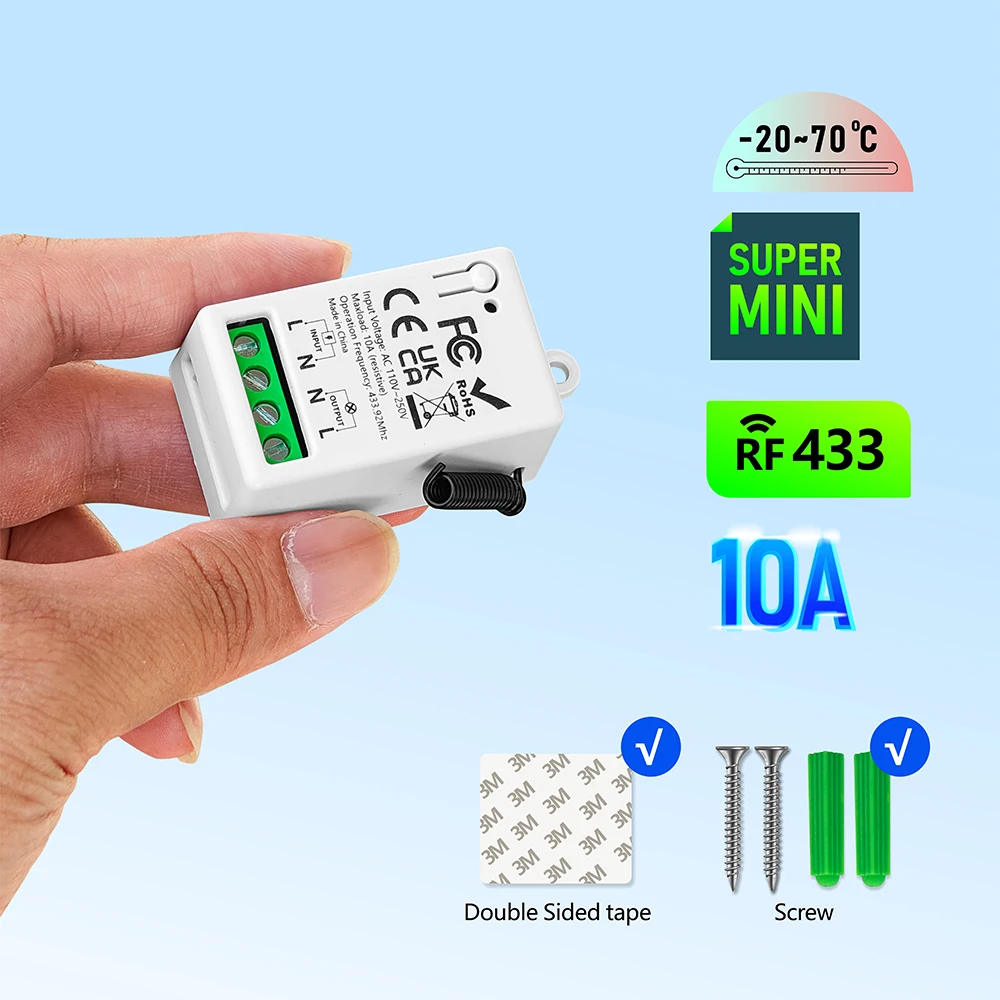

▼Super Mini Body▼
Double - sided adhesive and screws are included for easy installation.

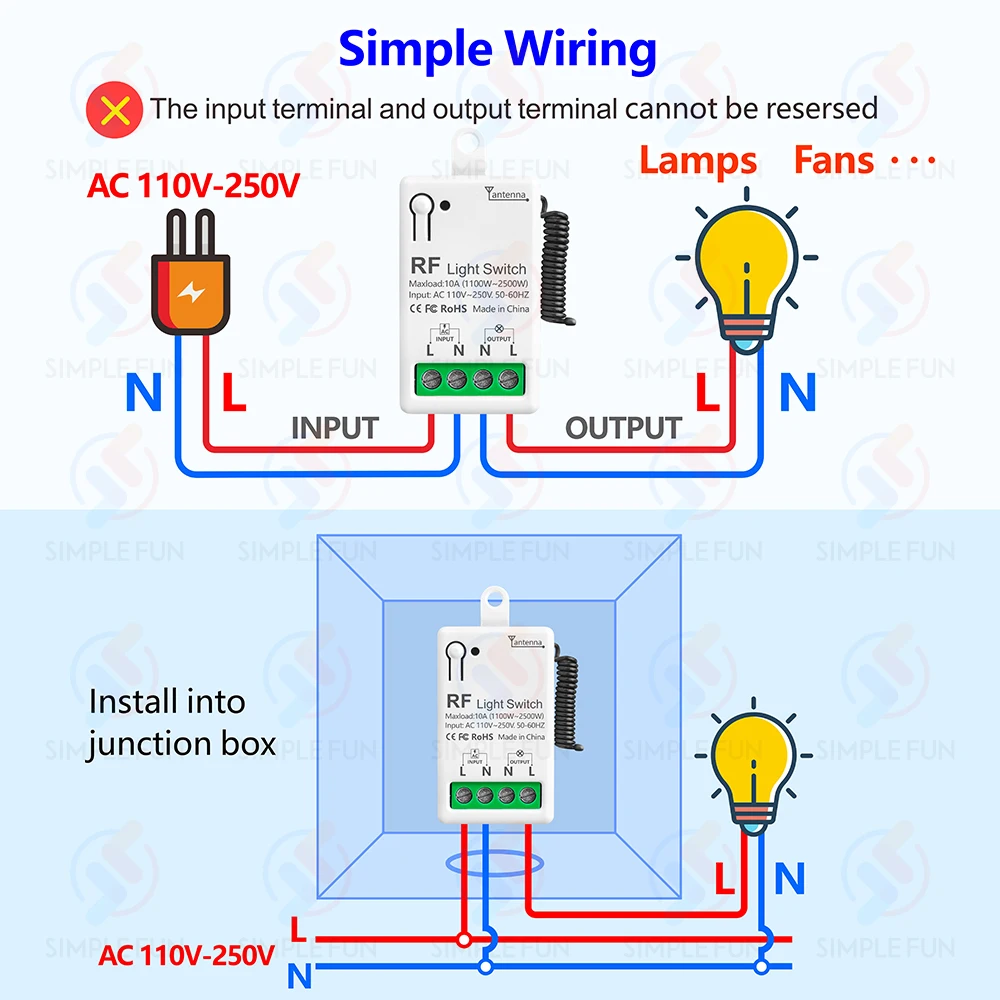

▼Simple Wiring▼


●Supports Multiple Remotes
Different buttons on the wireless panel switch can control different receivers respectively, and one receiver can be controlled by multiple wireless panel switch.


●Long Remote Control Distance
The signal can pass through the wall, and the remote control distance can reach 20-30 meters in a room，50 meters(in open space).



▼High Quality Chips. Support High Power▼
High-quality chips, support more electrical appliances, more usage scenarios, and safer to use.
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control Electric Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission,
Remote control humidifiers, microwaves, coffee machines.



▼Wireless Touch-type Wall Panel Switch▼
●No wiring required, can be installed anywhere you like.
●High sensitivity, you can touch the switch with wet hands.
●Easy to clean,Better touch experience.

▶ 2 intelligent DIY control methods

Note
1. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.
2. After deleting the data, all the remote controls cannot work any more.

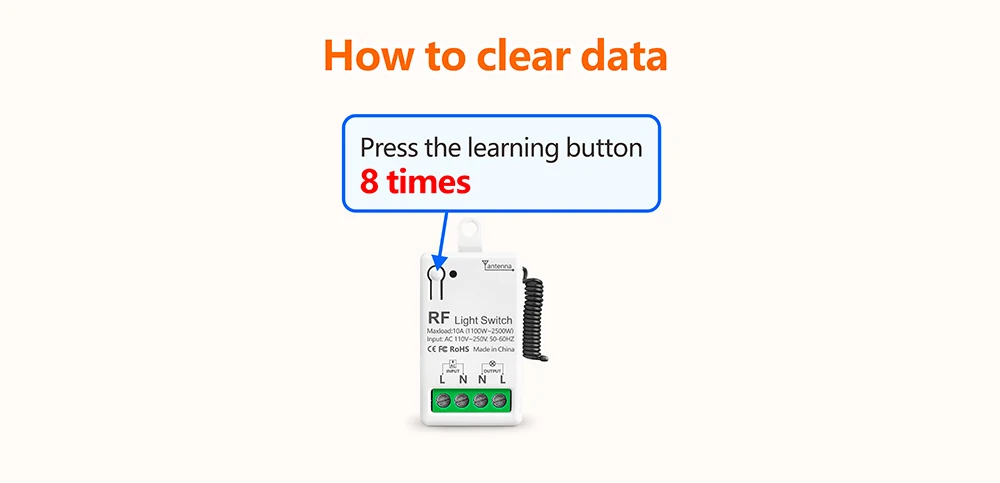

Clear data:
Press the learn button (on the receiver) 8 times. Existing data will be successfully deleted.

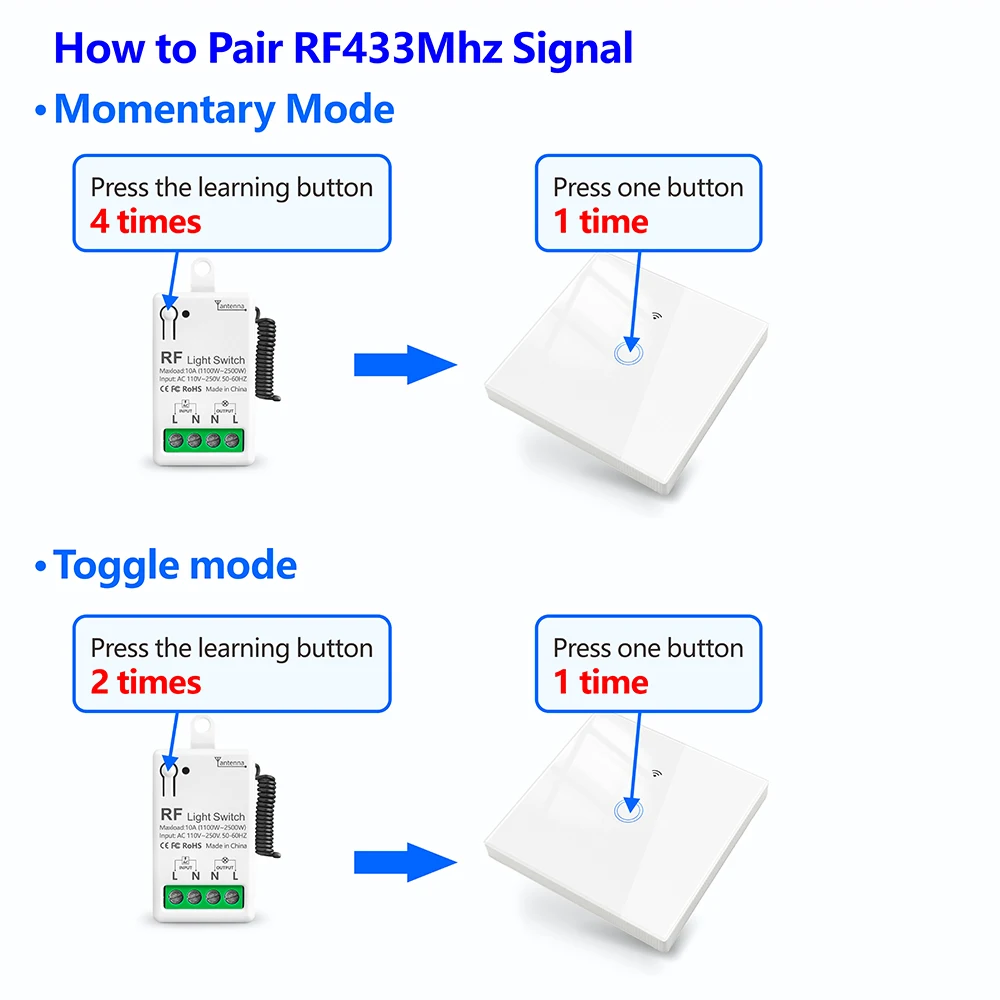

*Momentary Mode*
Description :
1. Press and hold one button, The device will turn ON .
2. Release the button, The device will turn OFF .
Set up:
Step1:Press the learning button on the receiver 4 times , Wait for 3 seconds;
Step2:Press one button on the remote 1 time , Wait for 3 seconds.Succeed.

*Toggle Mode*
Description :
1. Press one button 1 time ,The device will turn ON .

2. Press the same button again ,The device will turn OFF .
Set up:
Step1:Press the learning button on the receiver 2 times , Wait for 3 seconds;
Step2:Press one button on the remote 1 time , Wait for 3 seconds.Succeed.



▶ Customize the default status of the module after power on
Press the module's learning button 6 times to switch the module's default state after power on to on or off.
1. “Off” state: The light remains off upon repowering.
2. “On” state: The light turns on automatically after repowering.

!!! If you want to keep the original manual switch, you can take advantage of this feature.
!!! If you need to keep the original manual switch, ensure it is powered on when using the remote control !!!

Parameter

▶ Mini Smart Switch Parameters :
Working voltage: AC 110V~250V 50/60HZ.
Max current :10A.
Max power: less than 2500W.
RF Frequency: 433MHz.
Receiving Distance : up to 50m
Code : 1527 learning code.
Size: 47*28*22 mm.
Work with remote : Can be controlled by 15pcs remotes.
Appliance: LED,Lamp,Ceiling Light,Crystal Light,Wall lamp,floor lamp,etc.

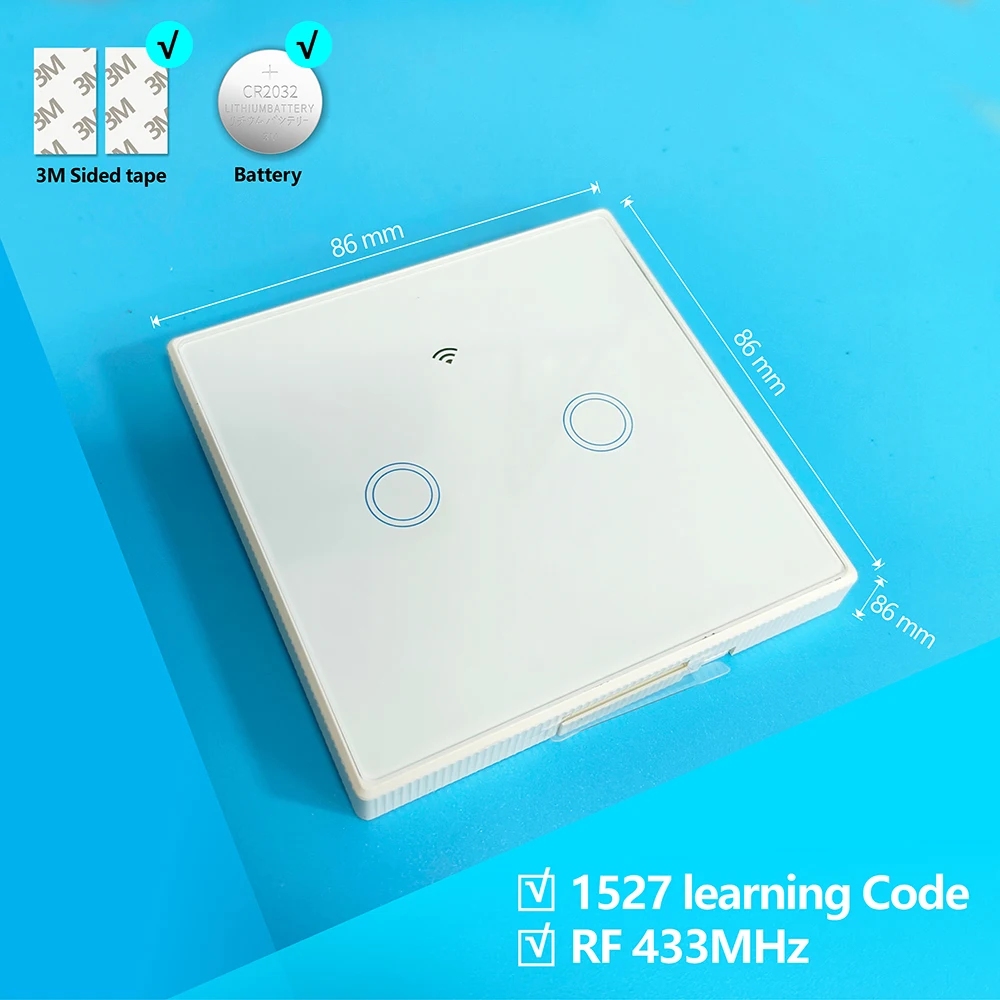

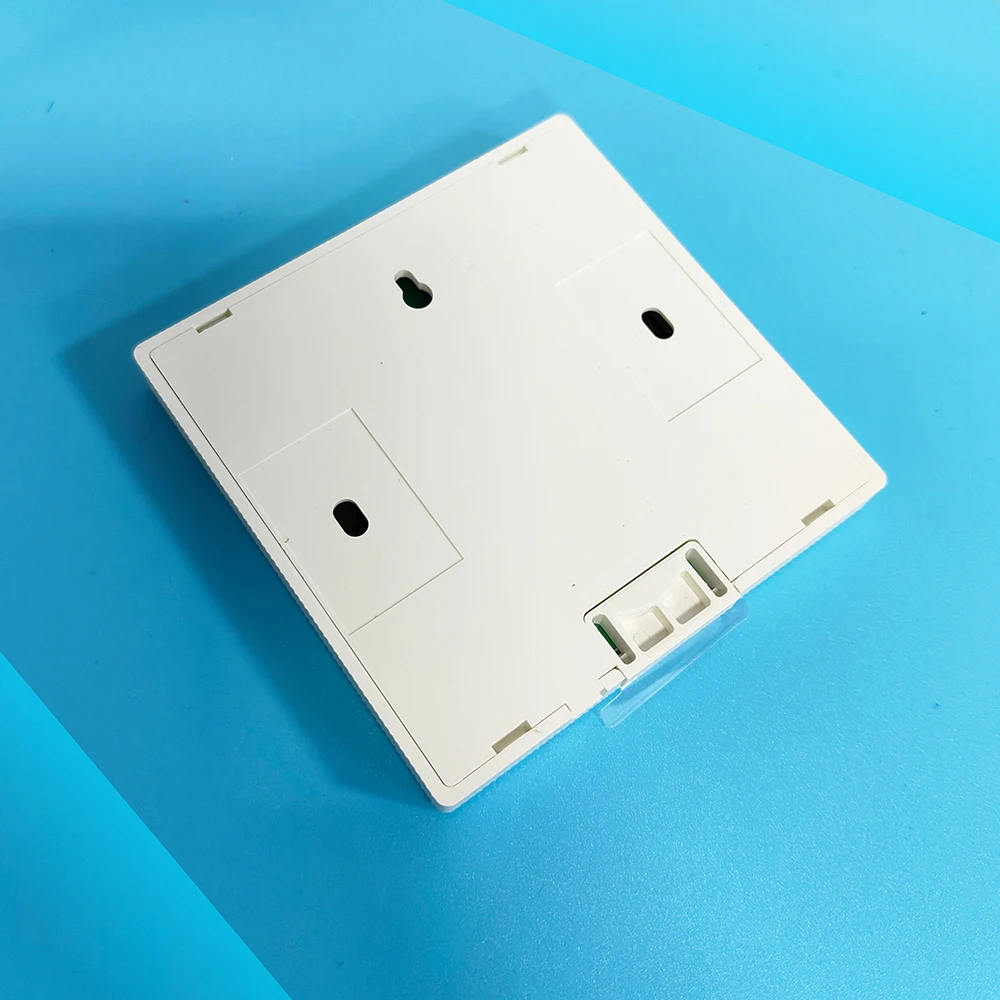

▶ Wireless Touch-type Panel Switch
Support encoding : 1527 Leaning code
RF frequency : 433MHz
Size: 86*86*9 mm.
Battery : CR2016*2( Included)
Screw: Included
Double-sided tape: Included
Base:Included

▶Please contact us if you have any questions.Thank you.

▶We have our own factory, if you want to do ODM OEM business, please contact us.
