Specification:

Features:
Good anti-interference performance, high reliability.
Low working temperature, long service life.
Good insulation and high electrical strength.

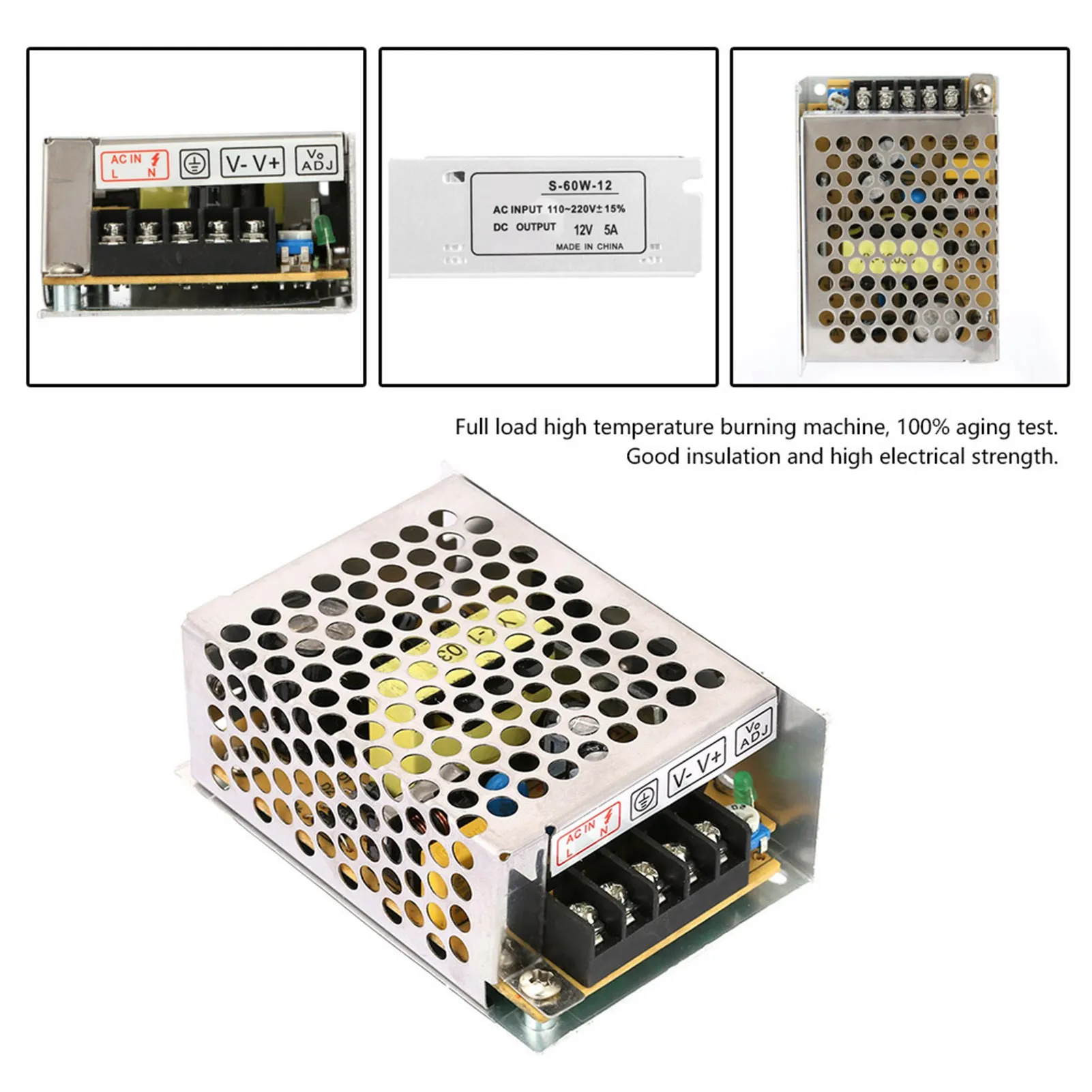

Full load high temperature burning machine, 100% aging test.
Specification:
Condition: 100% brand new
Weight: 130g/4.6oz

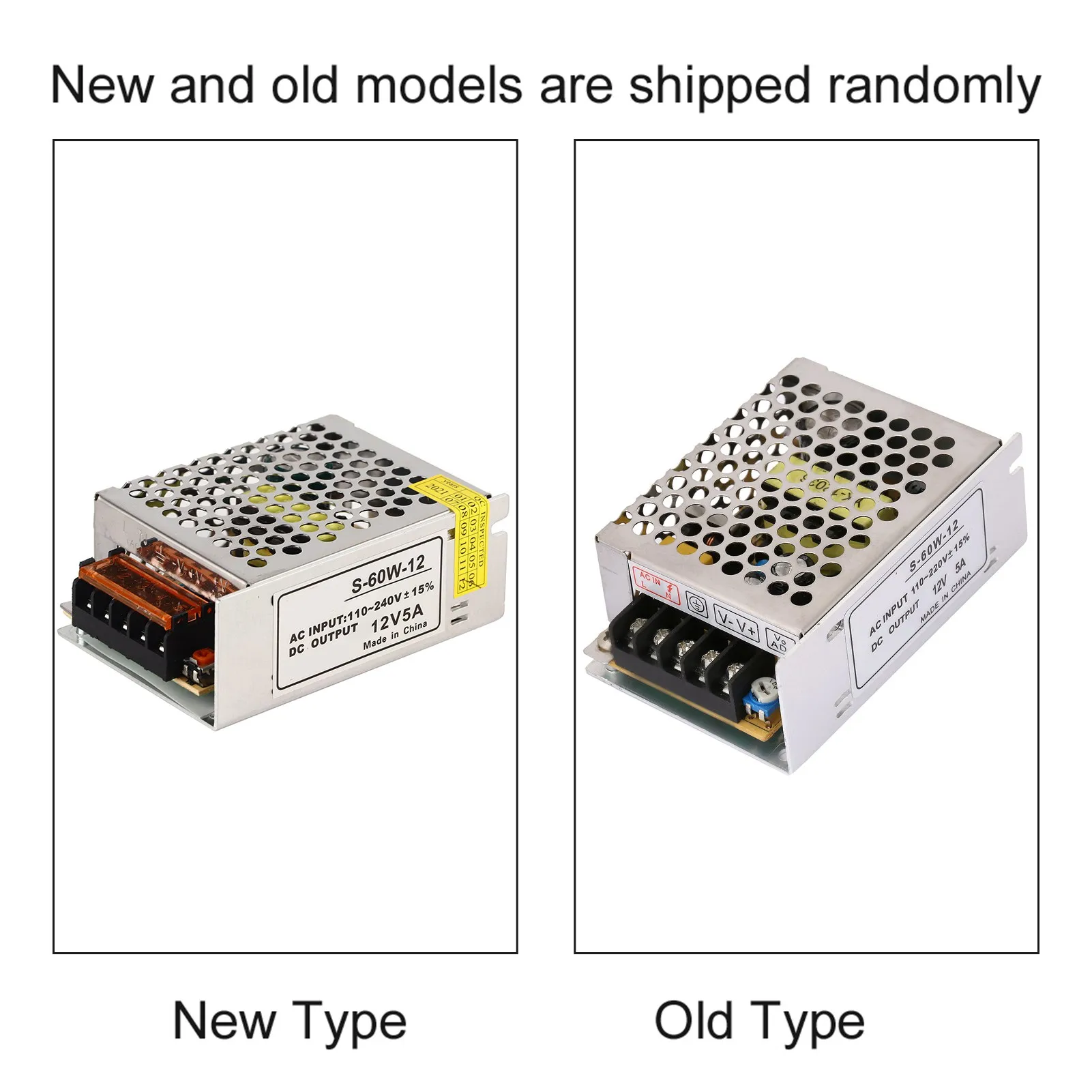

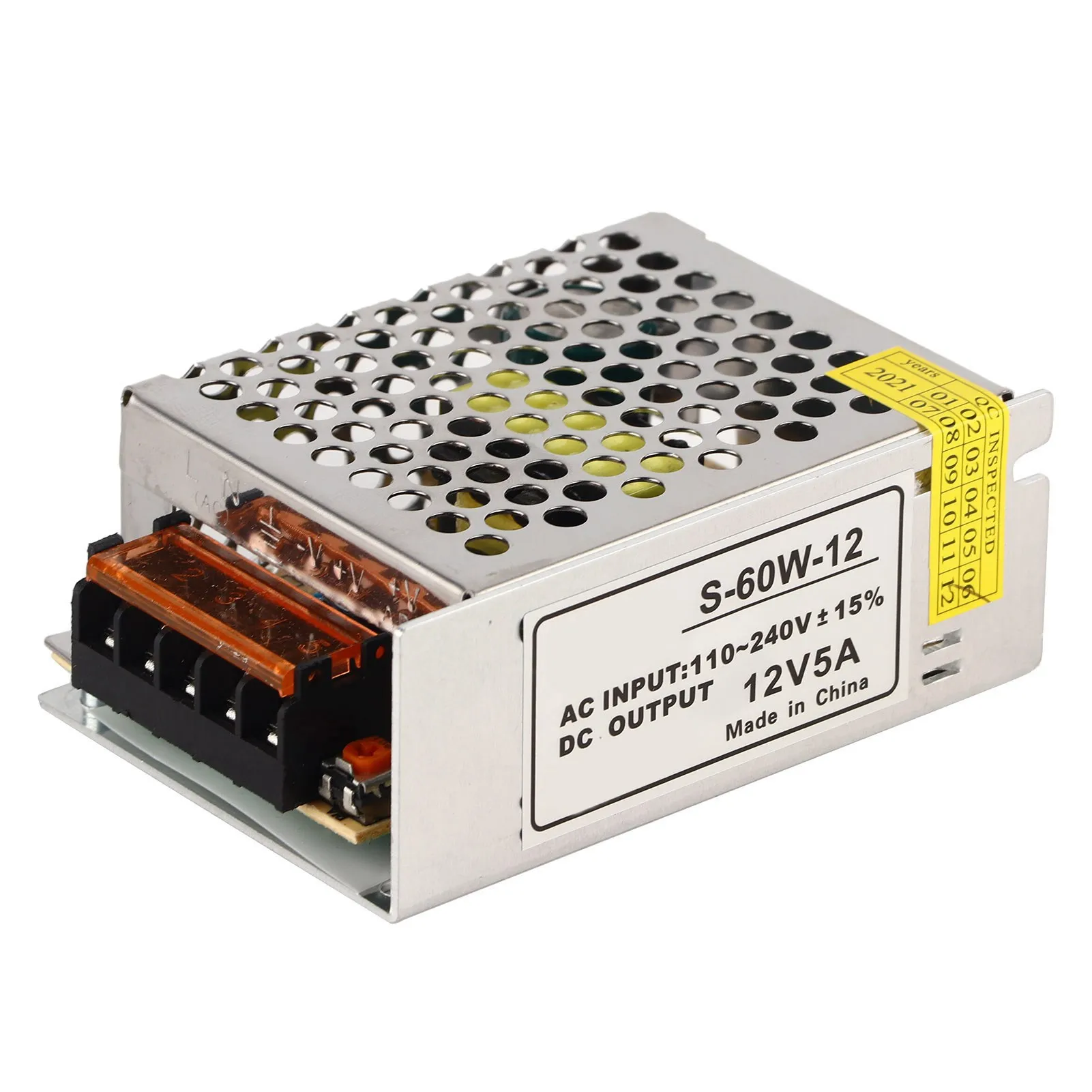

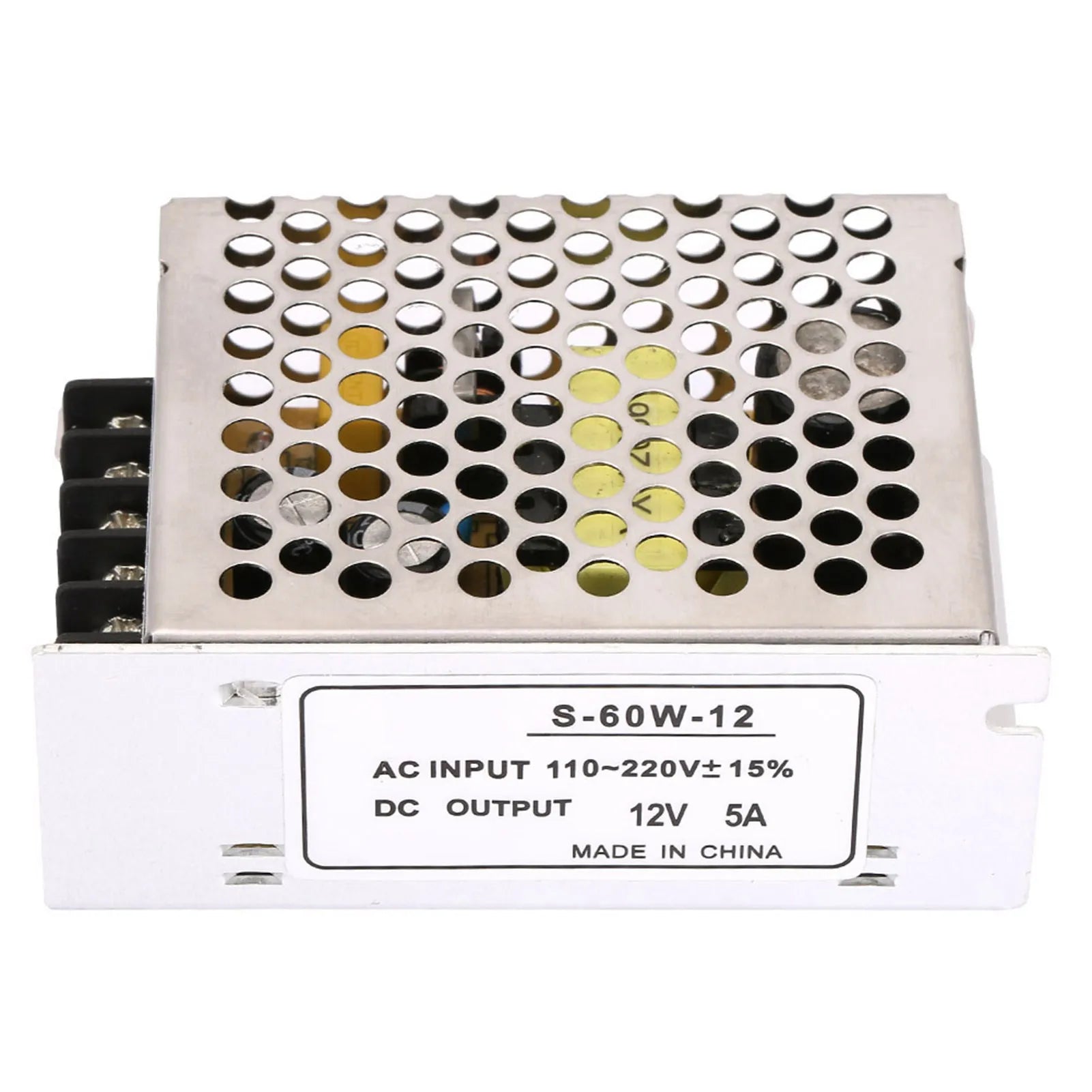

Model: HS-60-12
Rated output current: 5A
Output current range: 0 ~ 5A
Ripple noise: 100 mVp-p
Stability of incoming line: ±0.5%
Load stability: ±0.5%
DC output power: 60W
Efficiency: 85%
Leakage current: < 3.5ma /240VAC
Overload protection: 105% ~ 150%; Type: cut off output; Reset: automatic recovery
Overvoltage protection: 115%-135%
High temperature protection:
Temperature coefficient: + 0.03% / ℃ (0 ~ 50 ℃)
Start, rise and hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC
Seismic resistance: 10 ~ 500Hz, 2G 10min, /1 cycle, 60 minutes in total, each-axis
Pressure resistance:
Between input and output: 3KvAC input and housing; 1.5kvAC output and housing; 0.5 KvAC
Isolation resistance:
Between the input and output, the input and the shell, the output and shell: 500 VDC / 100 m Ω
Working temperature and humidity: - 10 ℃ ~ + 60 ℃, 20% ~ 90% RH
Storage temperature and humidity: - 20 ℃ ~ + 85 ℃, 10% ~ 95% RH
Size: 85 * 60 * 34mm / 3.3 * 2.4 * 1.3in
Package List:

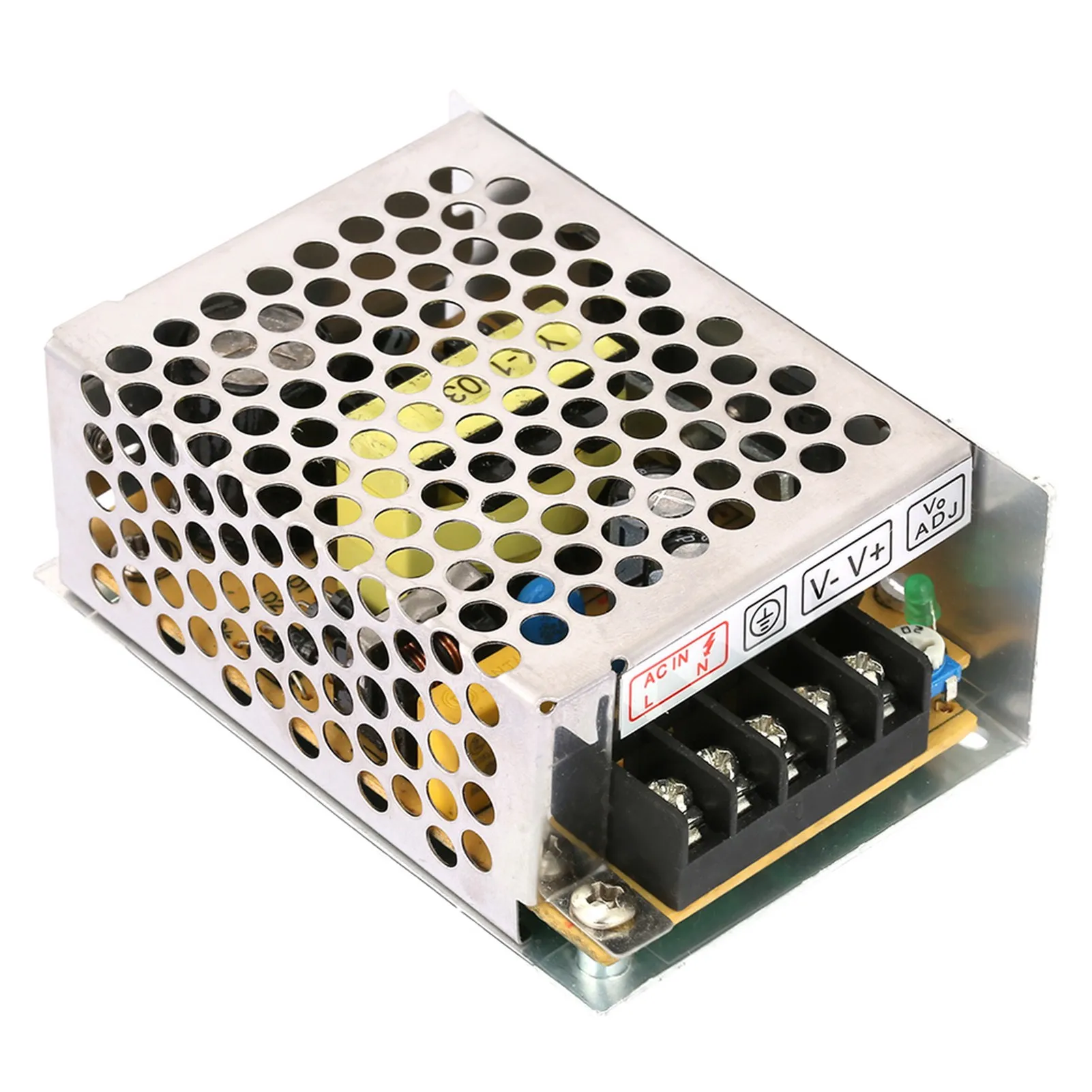

1 x Power Supply Regulated Switch
