SPECIFICATIONS

Air consumption : 55L/Min

Application : Ceramic Tile Stone Marble Granite Quartz Sandstone

Brand Name : BAOTAO

Core Components : motor, PLC

Cutting thickness (max) : 20mm

Dimension(L*W*H) : 6000*2200*1800

Electricity consumption : 23kw/h

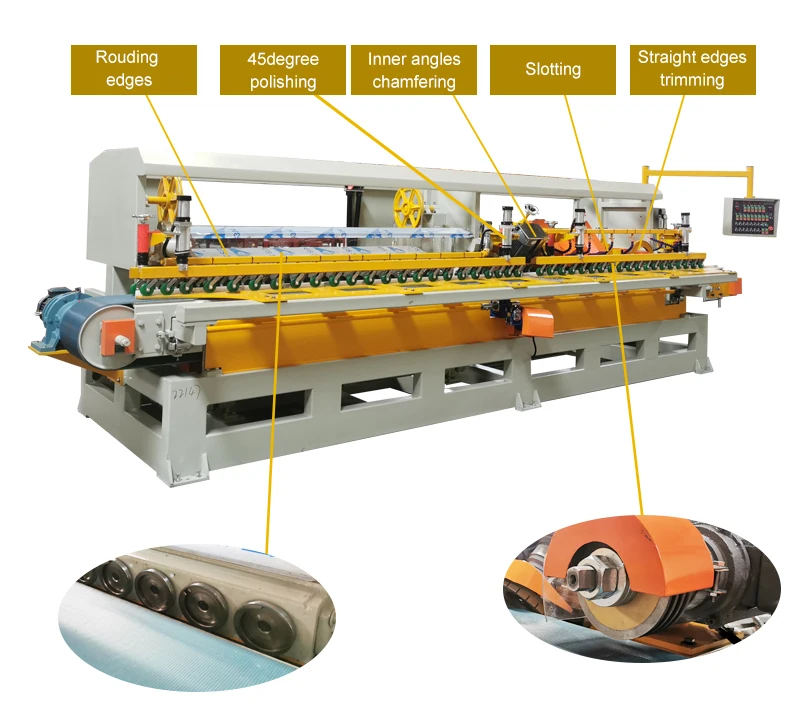

Function : edging, chamfering grinding bullnose, polishing, slotting

Key Selling Points : High-accuracy

Machinery Test Report : Provided

Max Cutting Length : continuous,1200mm

Place of Origin : Guangdong, China

Power(W) : 37.2kw

Type : Stone Polishing Machine

Use : Granite, marble and other stones...

Video outgoing-inspection : Provided

Voltage : 380V

Warranty : 1 Year

Water consumption : 490L/Min

Weight : 6200 kg

Product Overview

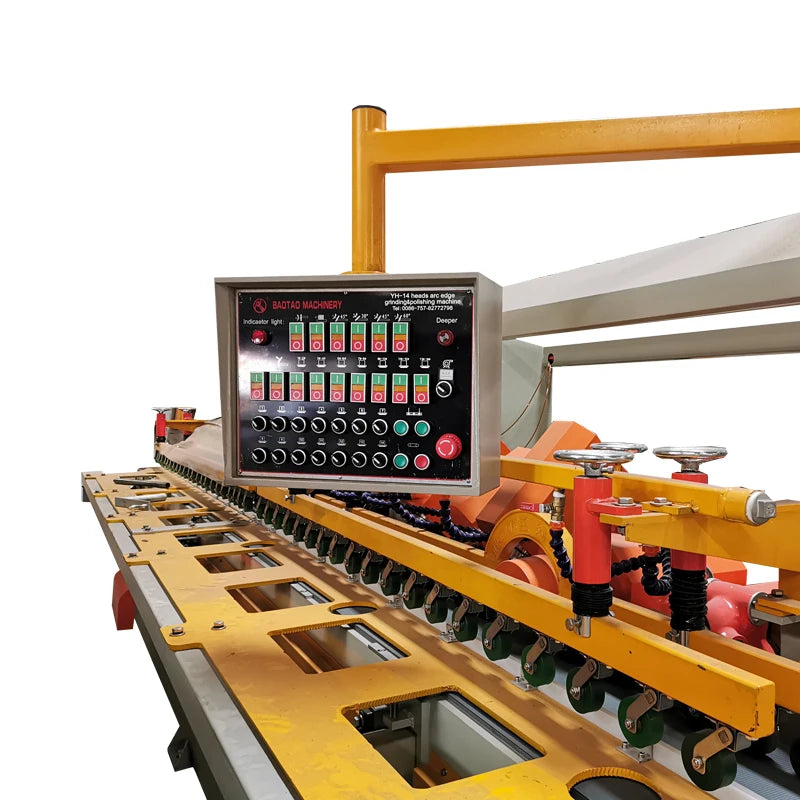

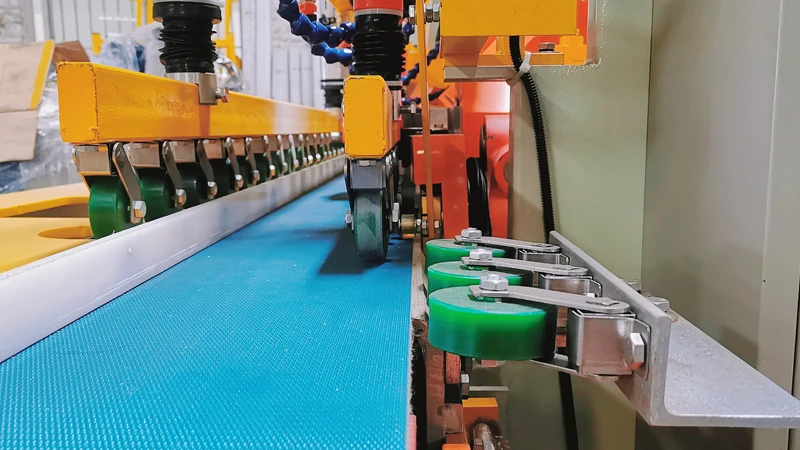

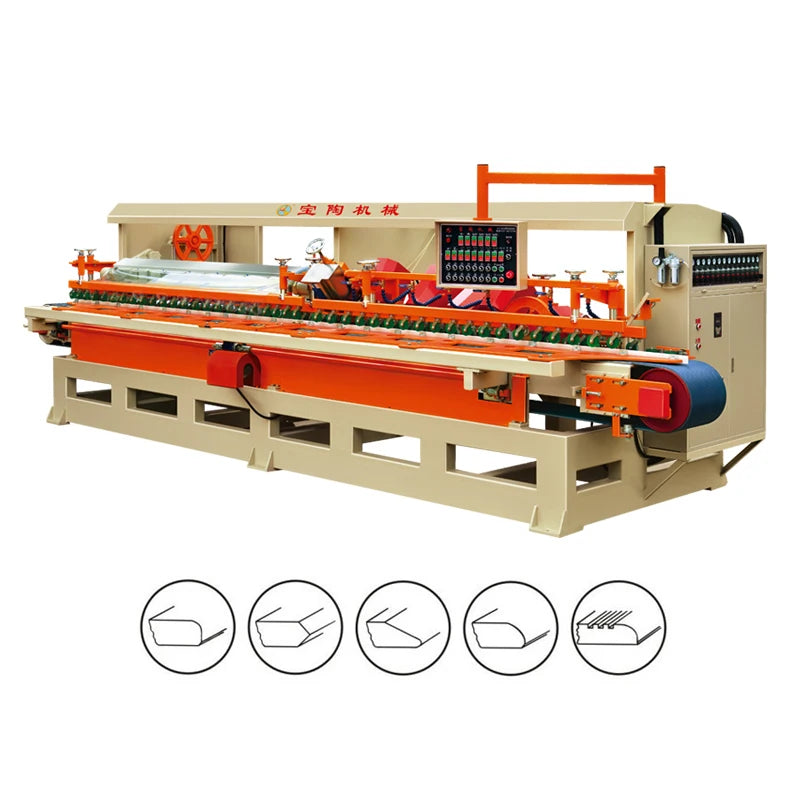

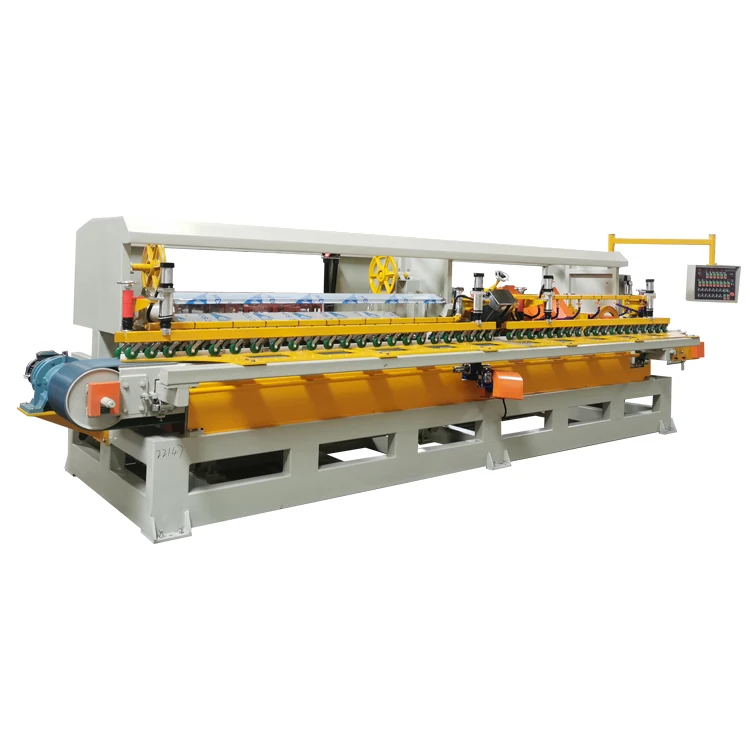

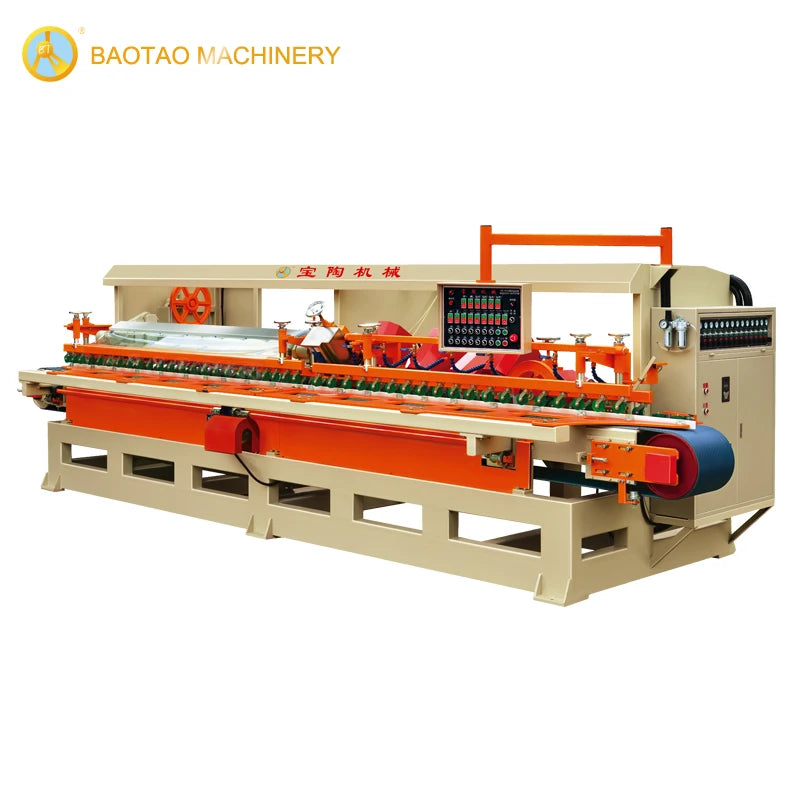

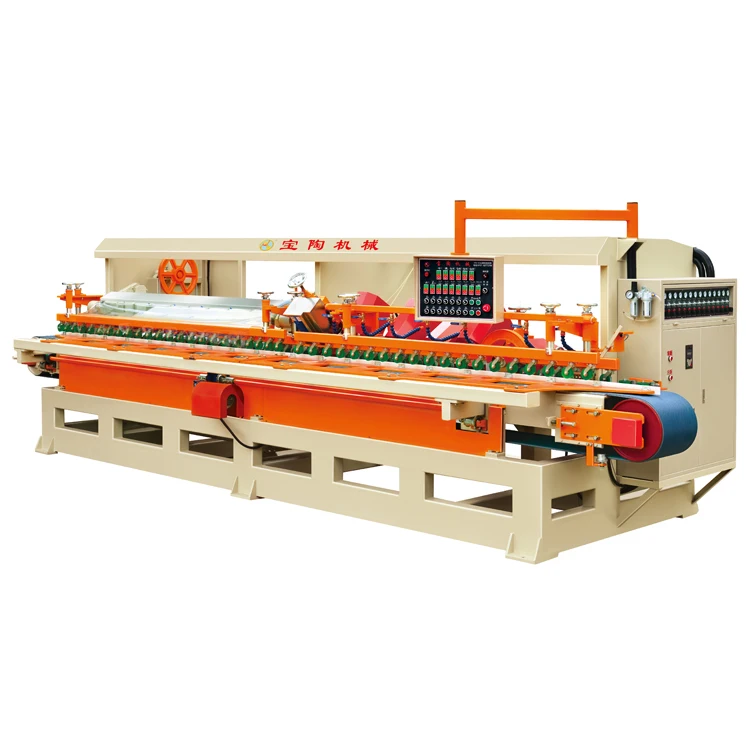

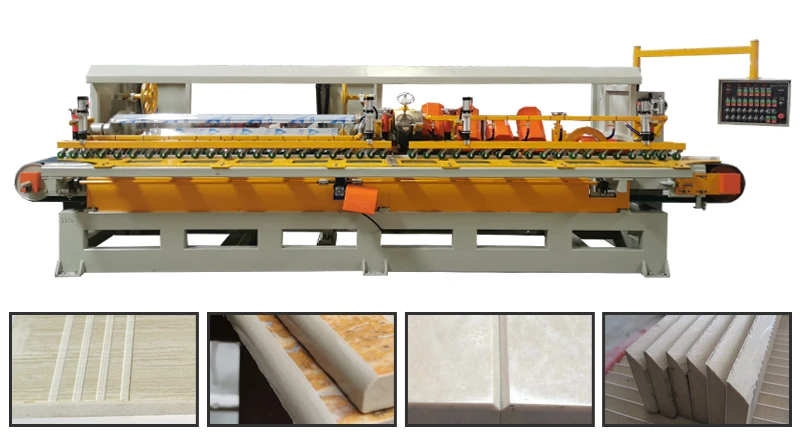

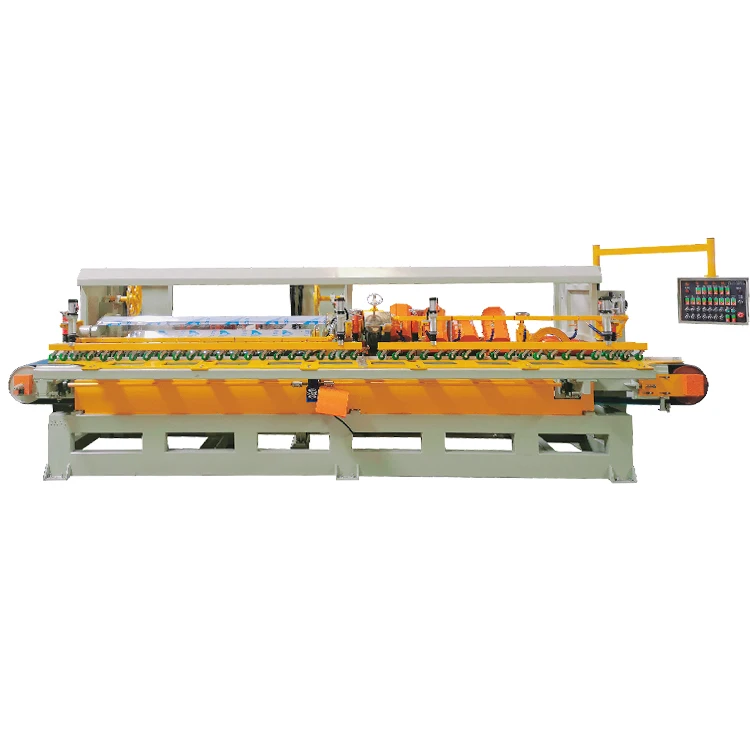

14Heads Ceramic Tile Bullnose Polishing Machine

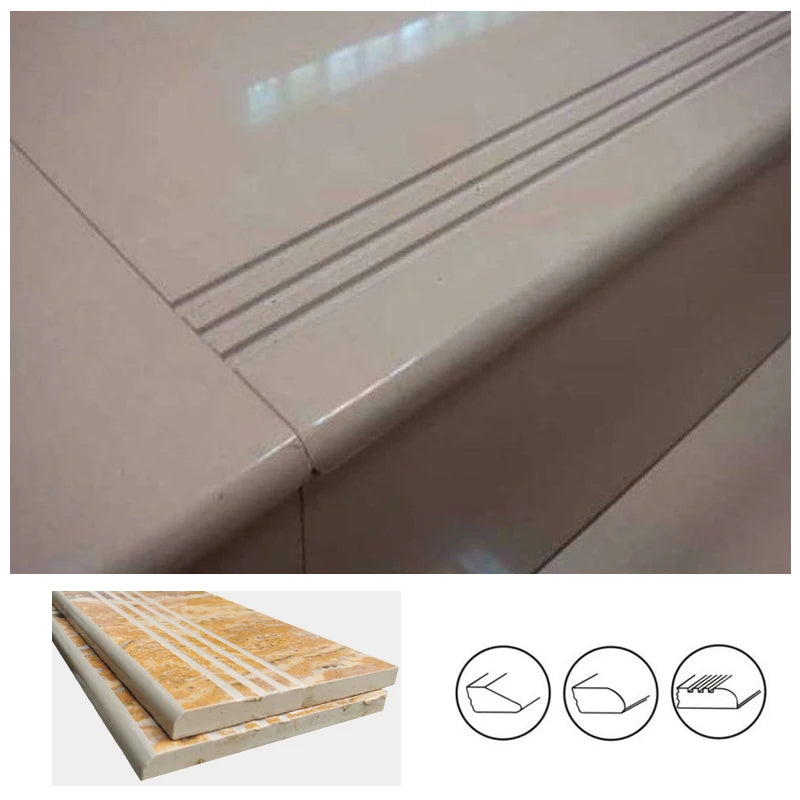

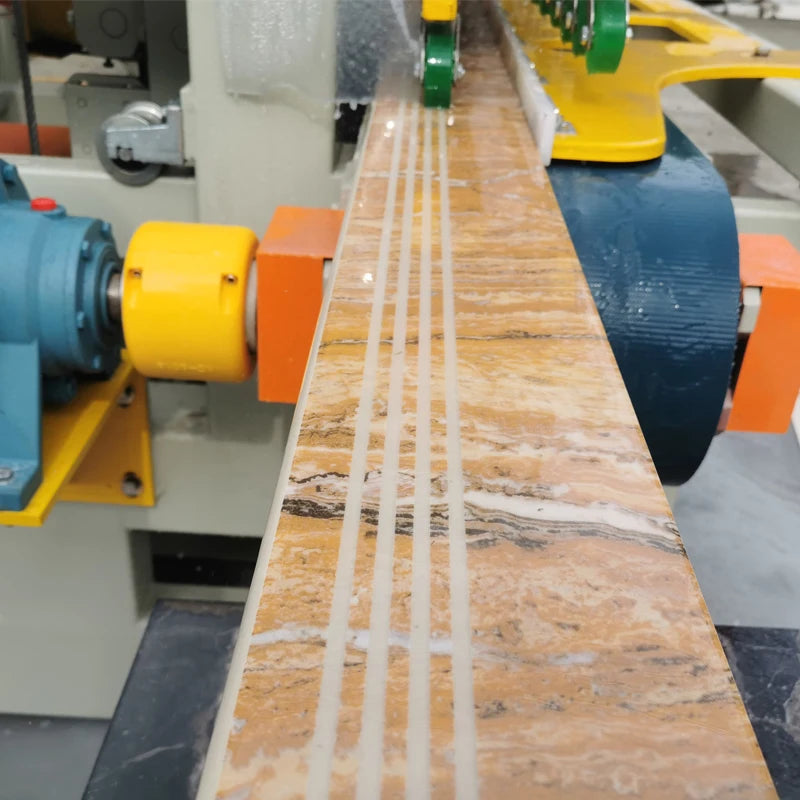

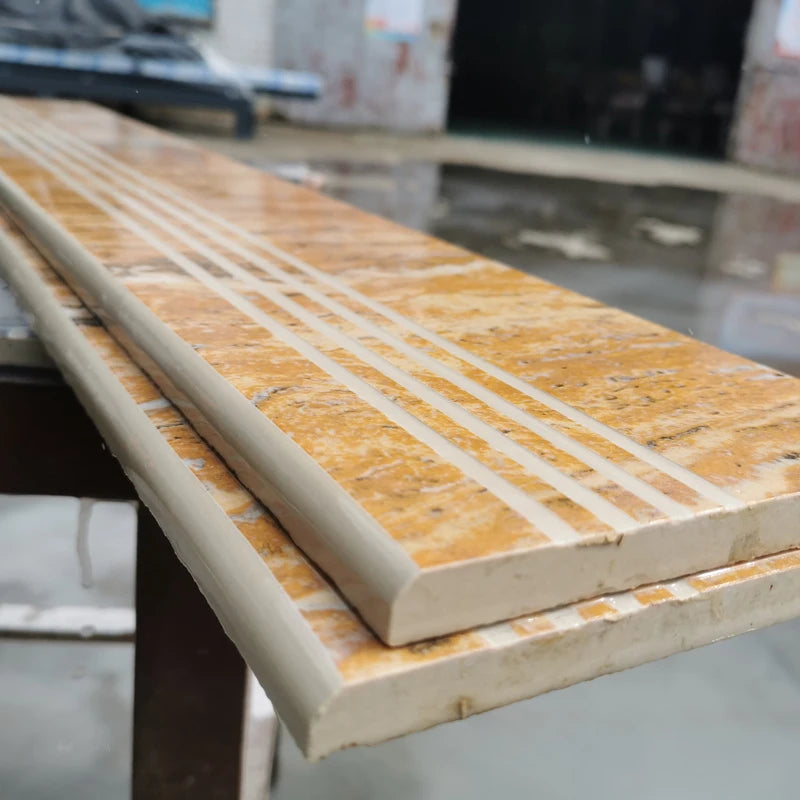

Automatic ceramic tiles arc edge grinding polishing machine for Ceramic Tiles Stone Tiles to make bullnose, bevel, squared, 45 degree tiler edge，Anti-slip grooves，stair treads tiles, skirting tiles，flooring tiles making.

Purpose:

1. Polishing Arc-edge range reach 1/4 (90°). 2. Full automatic processing of flat-edge, bevel-edge, round-edge. 3. The processing thickness is up to 35mm. 4. Gloss reach more than 90°,even higher than the gloss of the original surface. .

Right elevation

Left elevation

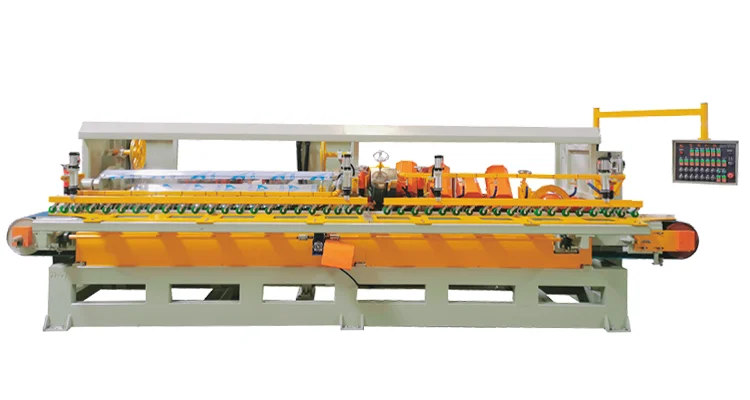

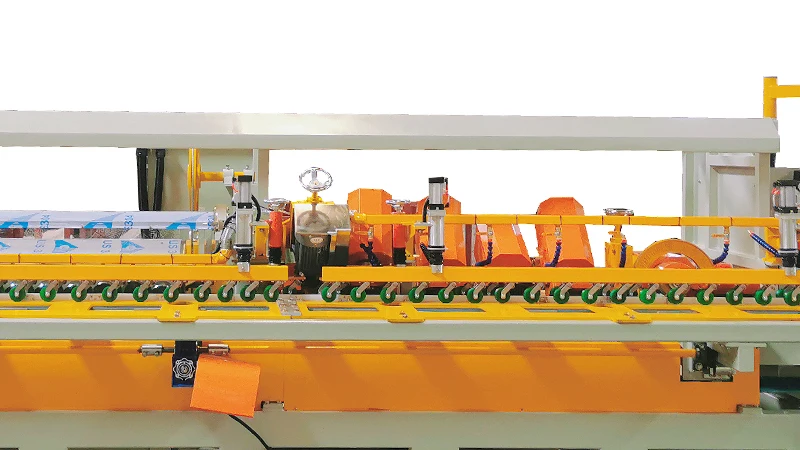

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Conveyor belt	300mm
2	Processing speed	1.5-7.5m/min
3	Cutting thickness	6-20mm
4	Working width	100-1200mm
5	Nos. of polishing head	14pc
6	Nos. of chamfering head	5pcs
7	Diameter of polishing wheel	φ120mm
8	Diameter of chamfering wheel	φ200mm
8	Water consumption	490L/min
9	Electricity consumption	23kw/h
10	Air consumption	55L/min

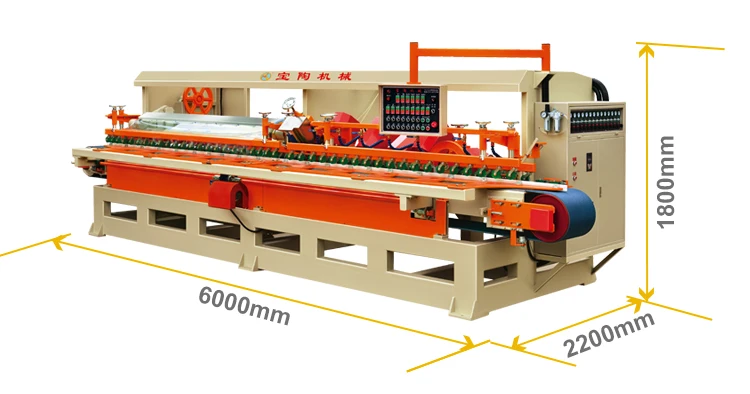

11	Size	6000*2200*1800mm
12	Total power	38kw
13	Weight	6200KG

Mechanical related accessories

Here is the use of the machine grinding hardware, belongs to the consumption of tools, with the machine use, better play the performance of the machine.

High power diamond blade

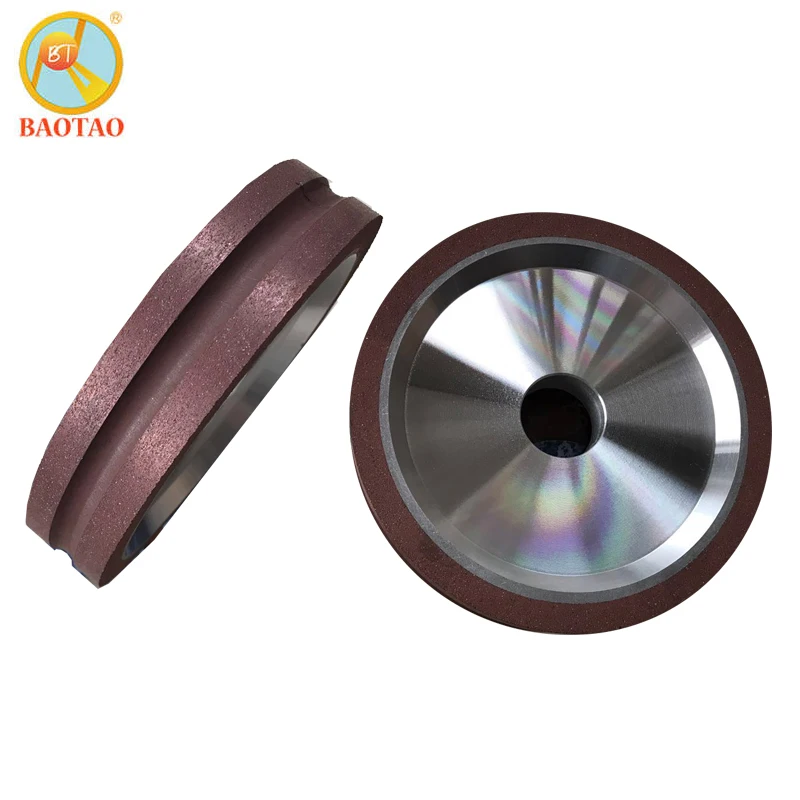

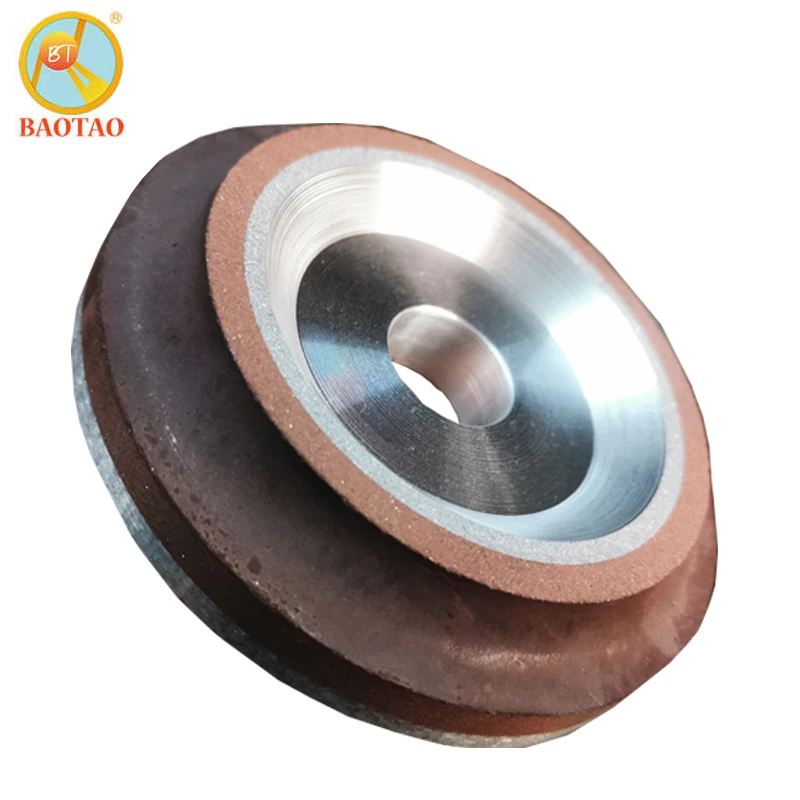

Resin grinding wheel

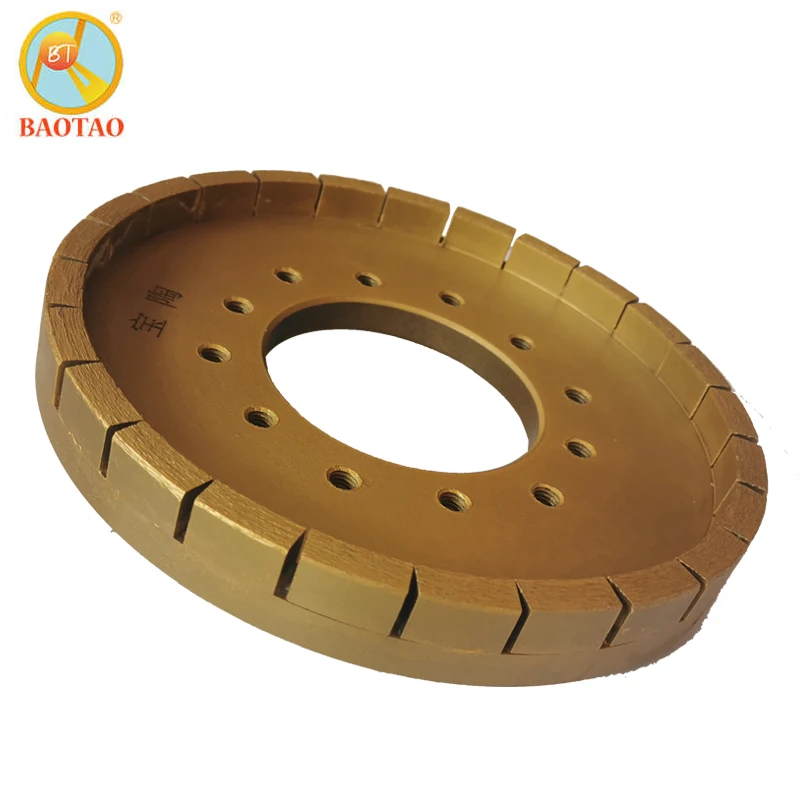

Edge grinding wheel

SALES AND SERVICE NETWORK

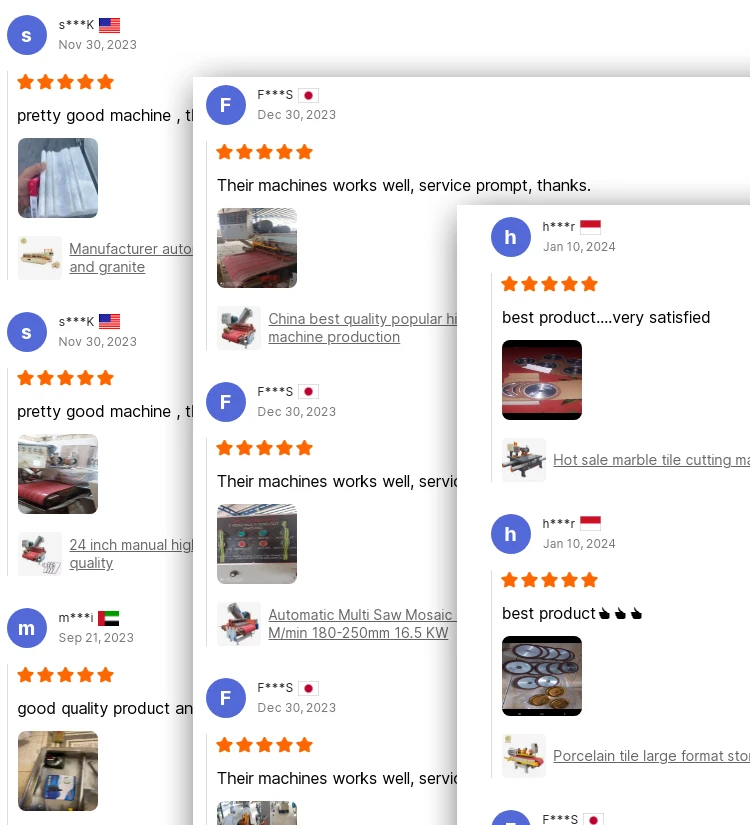

Ratings & Reviews

Supplier service ☆ ☆ ☆ ☆ ☆ On-time shipment ☆☆☆☆☆ Product quality ☆☆☆☆☆

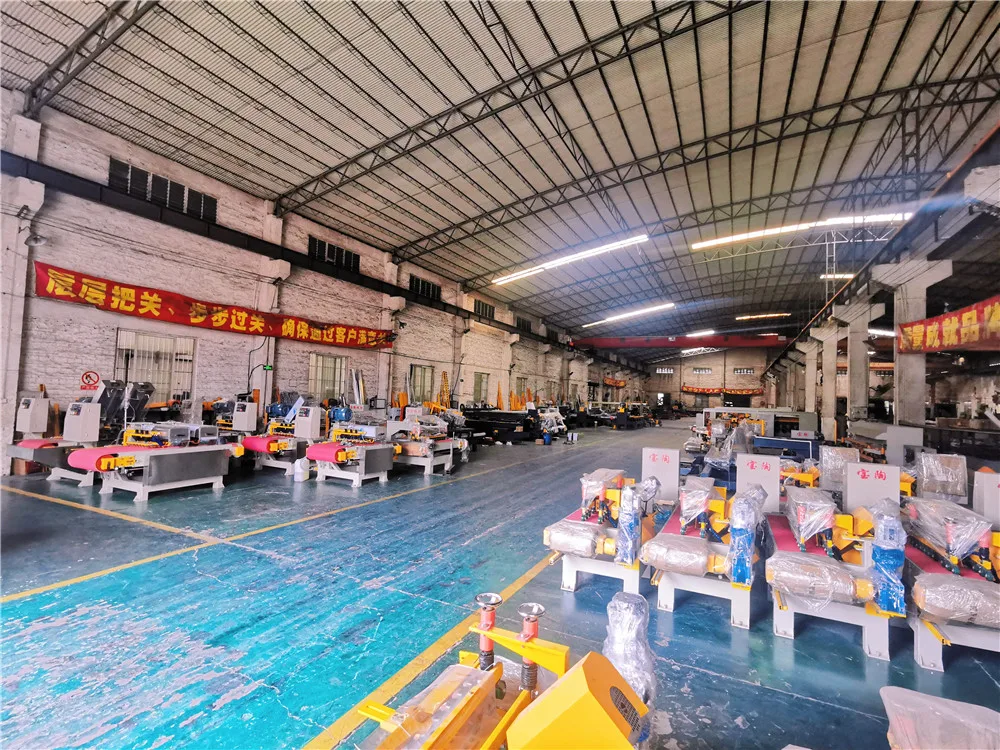

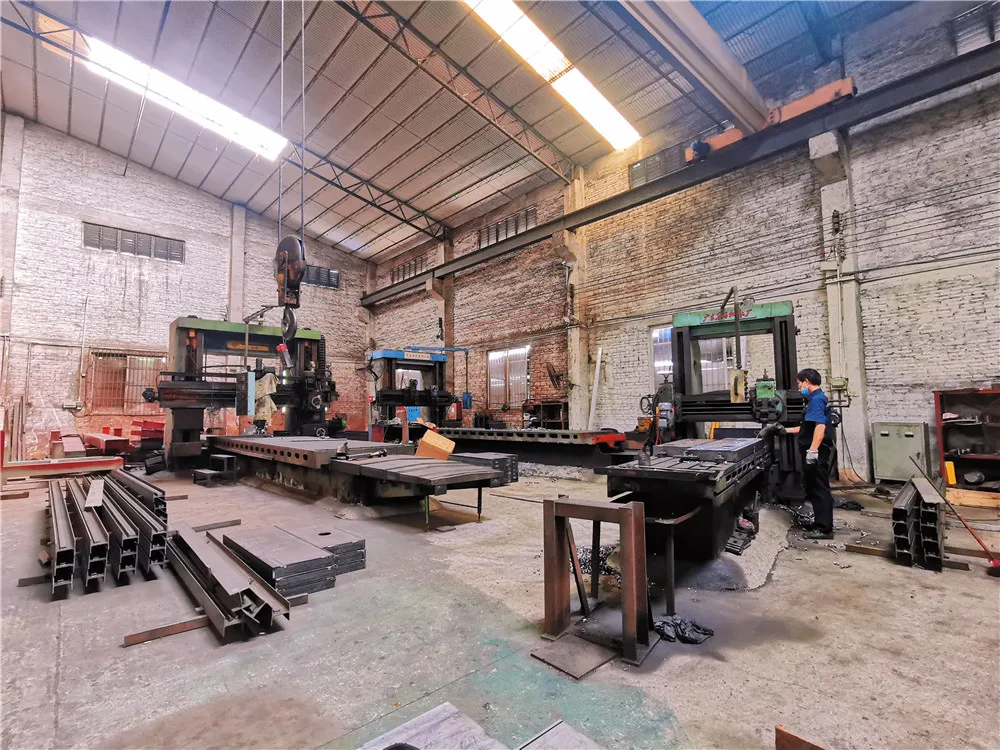

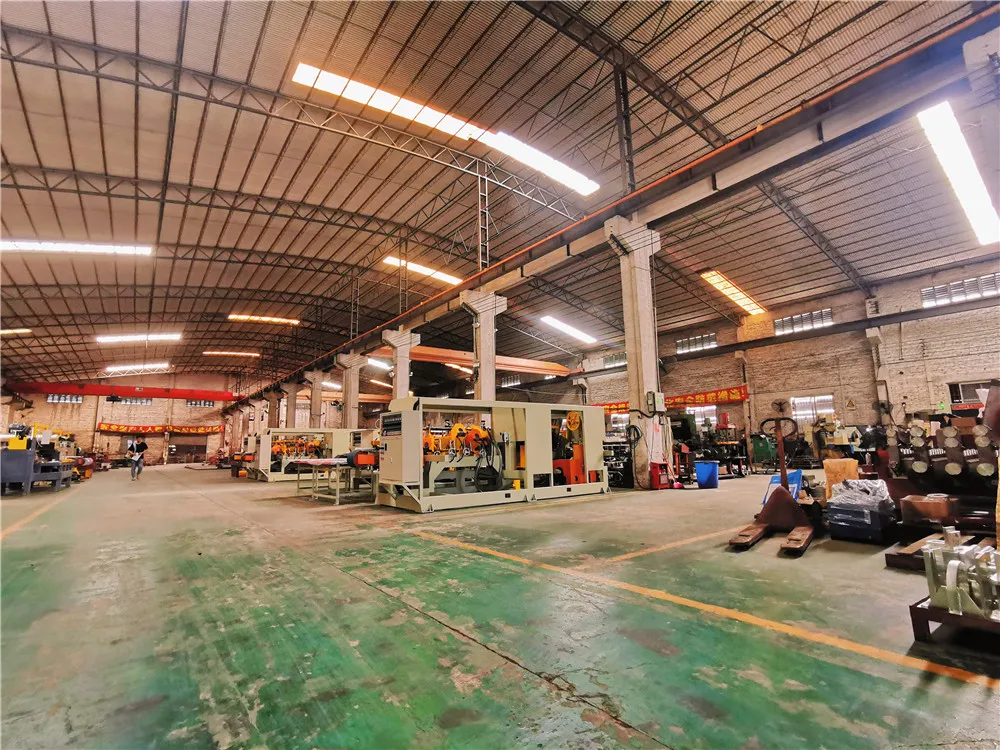

Company Profile

Our company is a professional manufacturer of ceramic tile & stone deep processing equipments,manufacturing in waterjet cutter,ceramic tile cutter,stone cutter ,tile beveling machine ,ceramic tile and stone edge grinding machine,tile arc edege polishing machine,CNC tile cutter,automatic tile cutter,CNC manual tile cutter,and multifunctional tile cutter and so on,won the tile of advanced sales unit in the industry for many years.

VR

Certifications

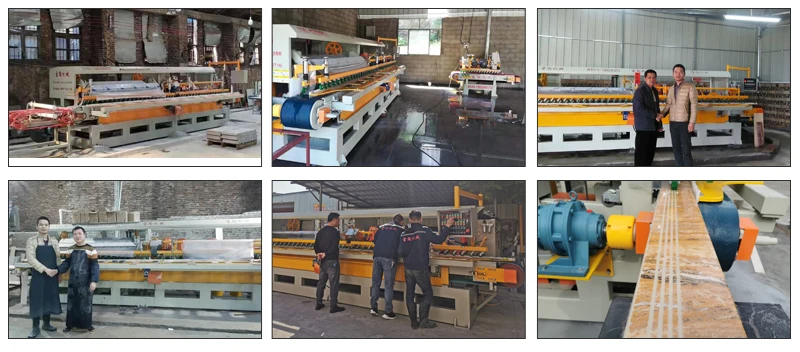

Customer Photos

Project in Russia

Project in India

Project in Libya

Project in South Africa

Project in Germany

Project in Oman

Exhibition

FAQ

Q:How can I place order?

A:You can contact us mobile +8613924897901(whatsapp or wechat) , or place order on-line store. Q:How can I pay you? A:T/T, bank transmission; or online payment on Alibaba(credit card, paypal, ali-pay, western union).

Q:What's the delivery term? A:For stock products, within one week, while non-stock regular model can be prepared 14-20 working days. Customization order 20-45 days. Lead time negotiable.

Q:How about the warranty?

A: Whole machine 6 months, motor 1 year. Free technical support for life time.

Q：what kind of package do you offer?

A：Bare machine with protection of fragile parts for free; Other packing method, for example wooden cases or pallets, steel pallets need extra charges.

Q:Can we visit your factory before ordering?

A:Yes,we warmly welcome and sincerely invite you to visit our factory,we will help to arrange hotel and pick up you from airport.

Q:What service can you provide?

A: We have a professional after-sale team, who can help you all setting up of the machines and your workshops or factory. Free training or tutorial guiding.
