SPECIFICATIONS

Brand Name : NoEnName_Null

Certification : CE

Current : 0.89A

Door Material : Aluminum alloy

High-concerned chemical : None

Installation Method : Assembly

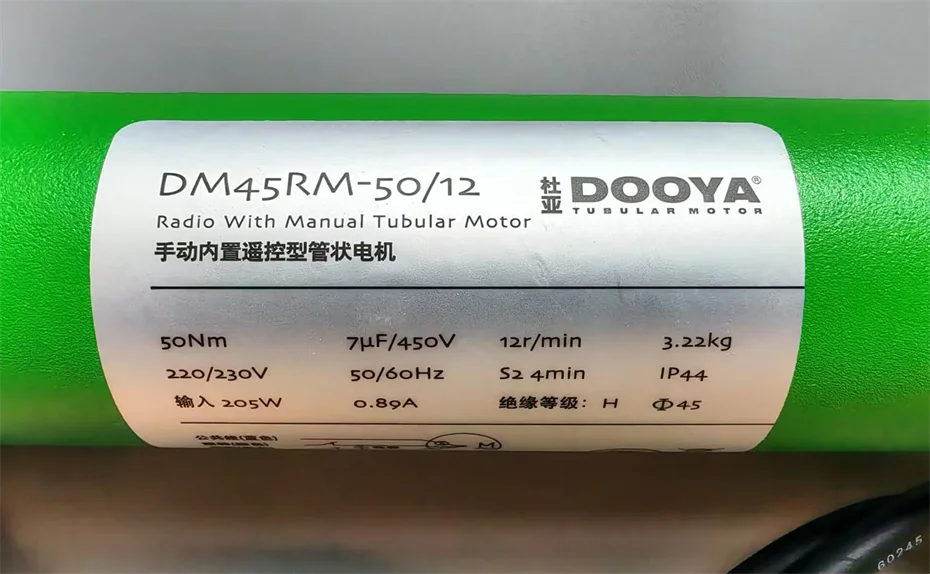

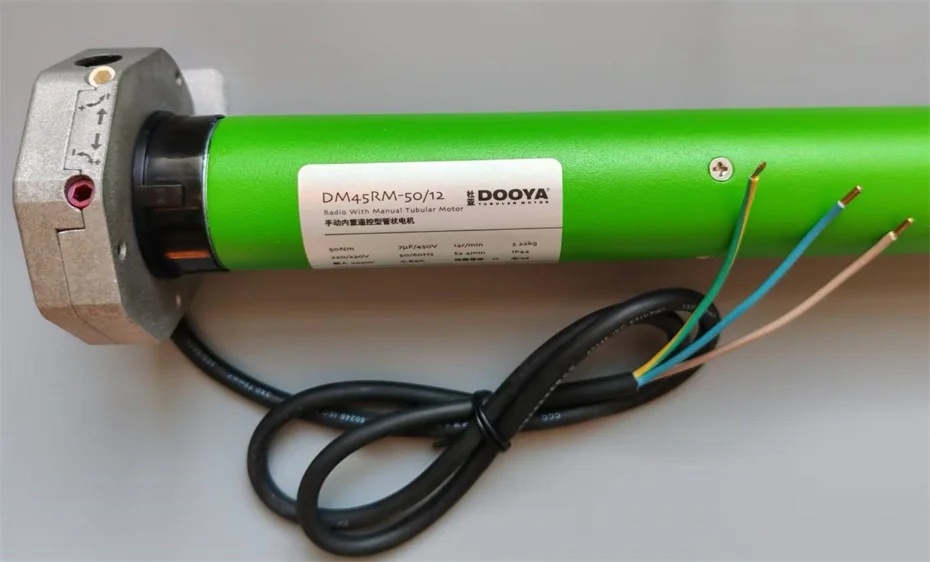

Item name : Dooya DM45RM 50/12

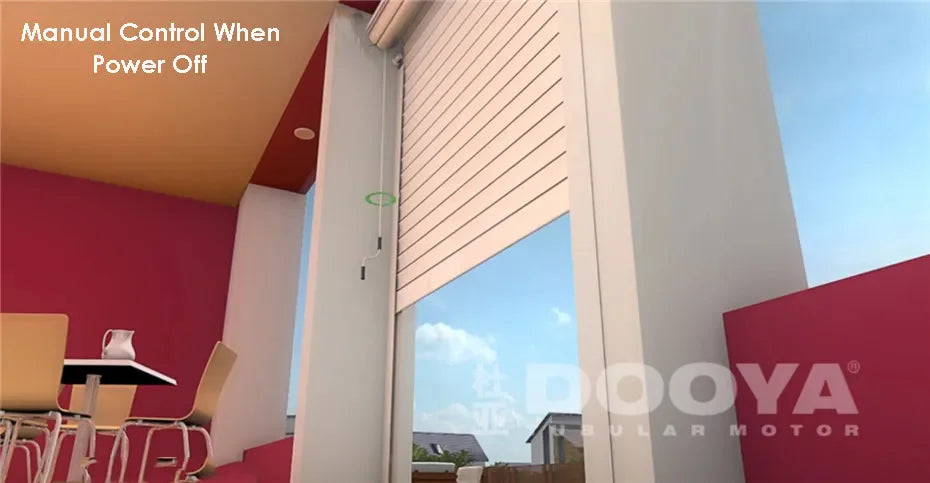

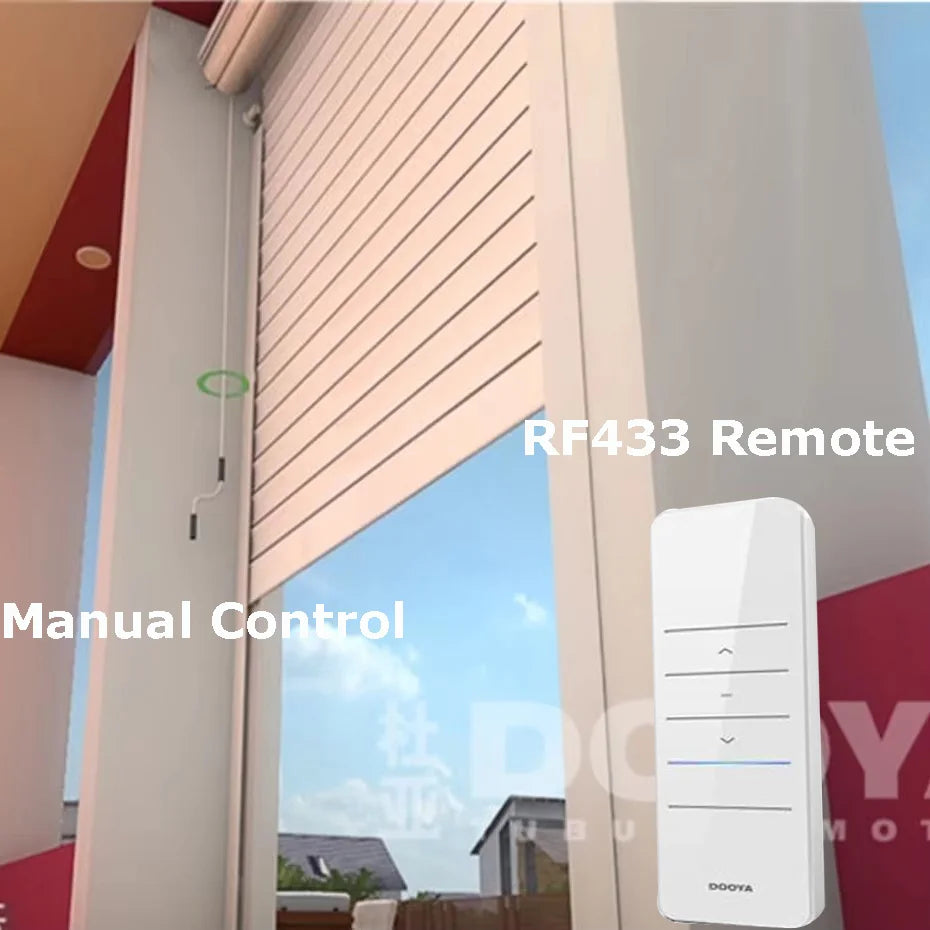

Manual Control : Support

Model Number : DM45RM 50/12 with short Axis

Open Style : Automatic

Opening Method : Rolling Pull

Origin : Mainland China

Position : Garage

Power : 205W

RF433 remote control : Support

Short Axis : 1CM

Type : Manual+RF433 Tubular Motor

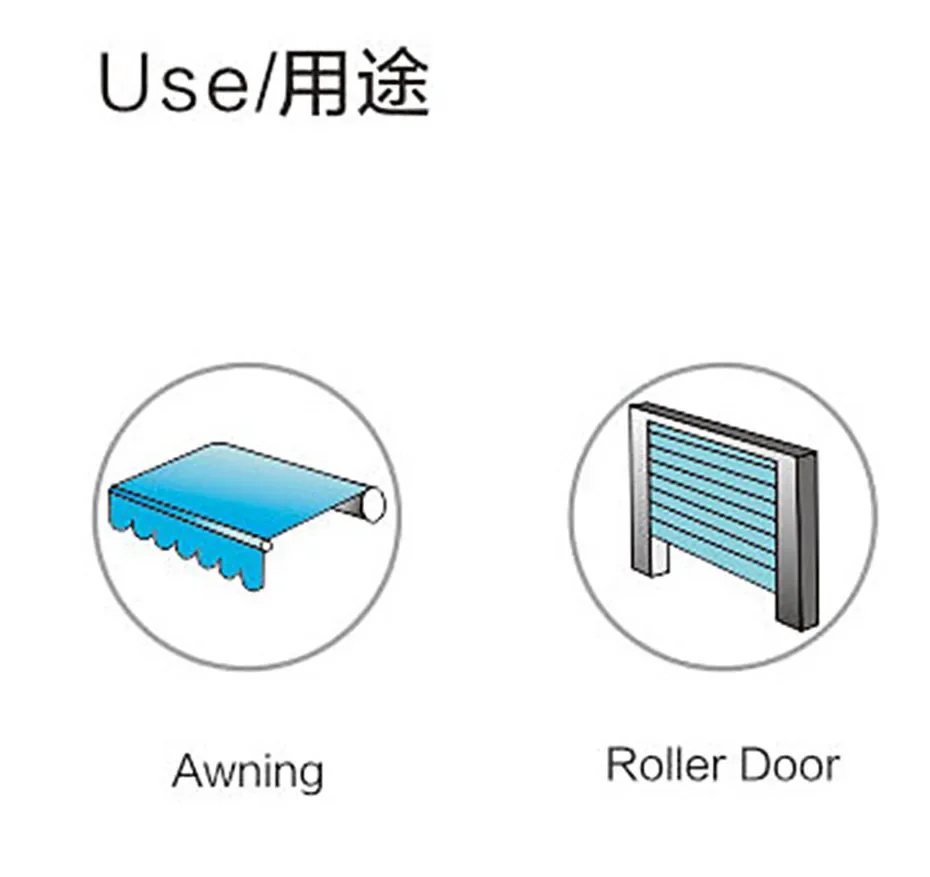

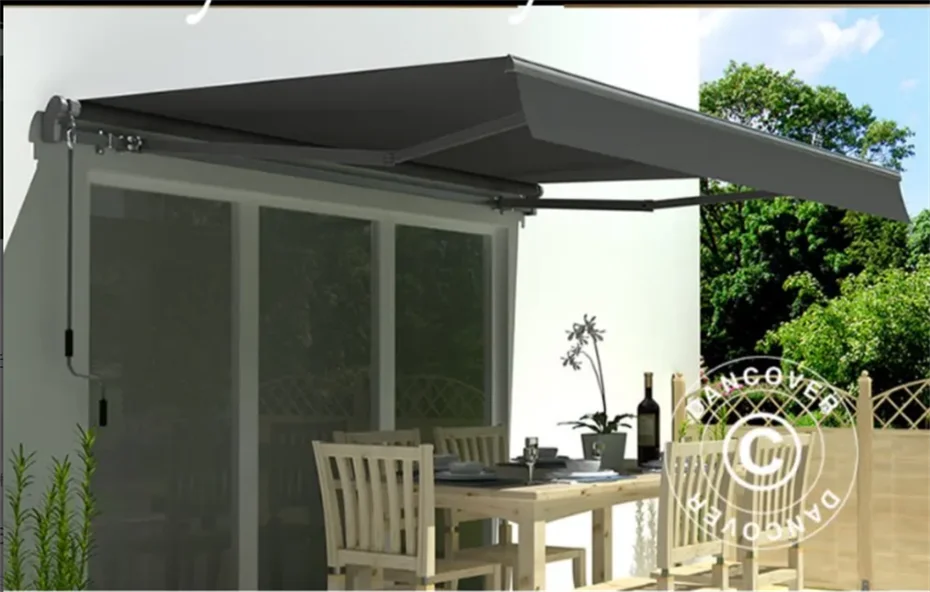

Usage for : Motorized Rolling Shutter Door/Awning/canopy

Voltage : 220/230V, 50/60HZ

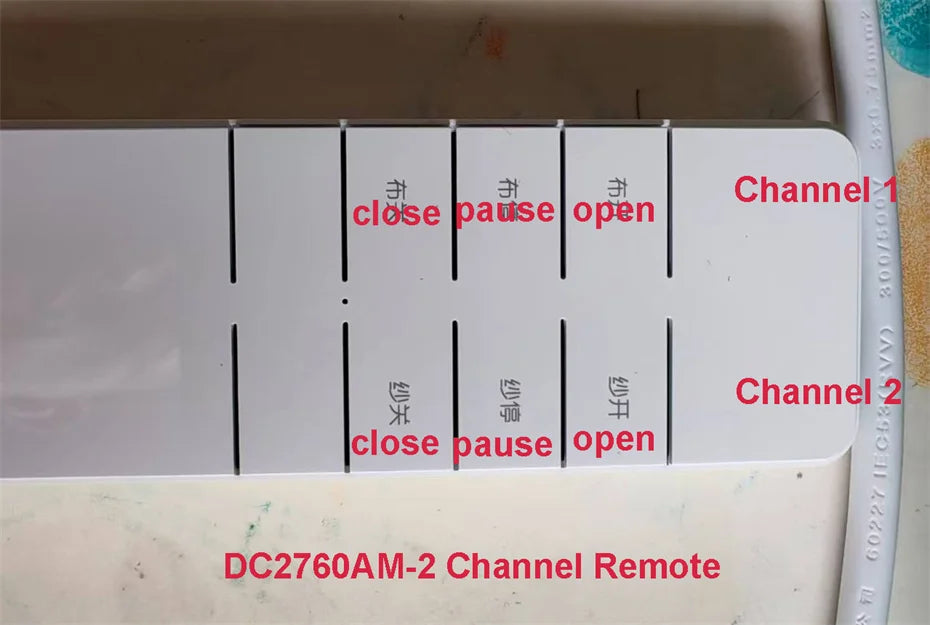

With Remote Controller : YES, DC2760AM(Rolling Code)

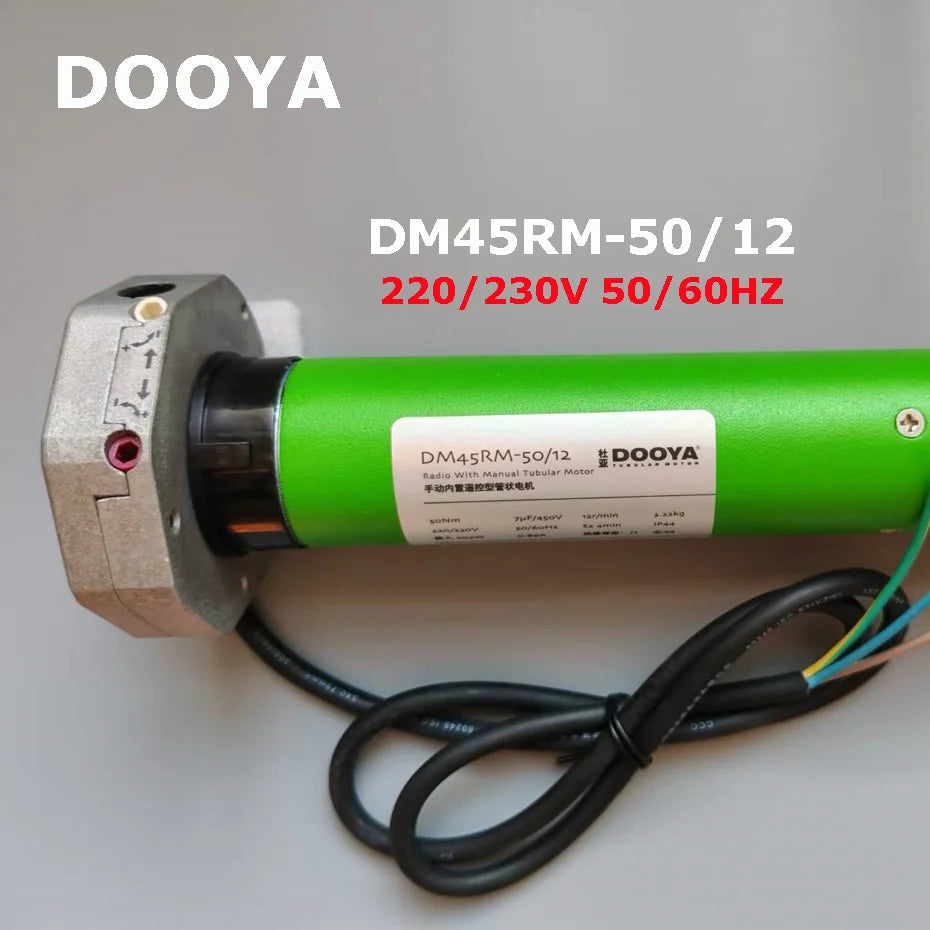

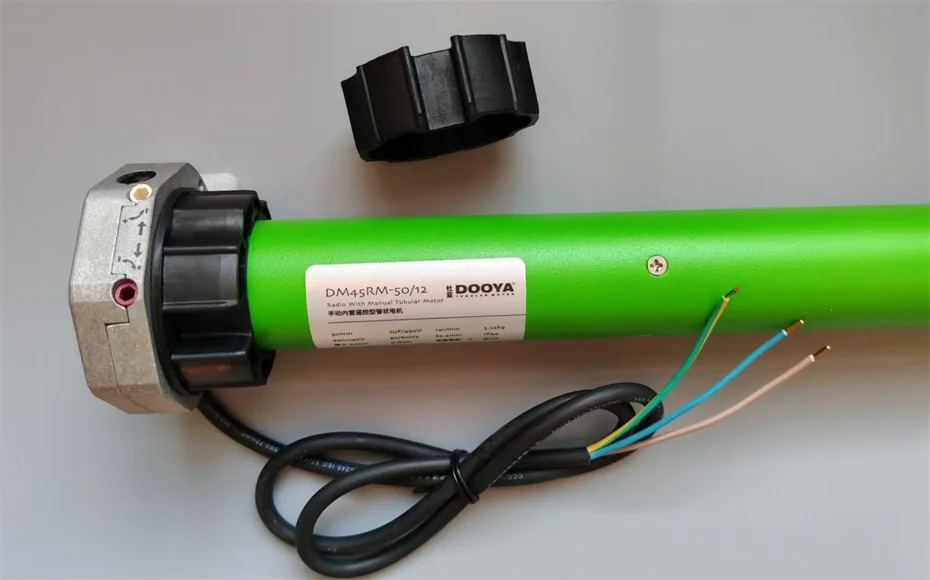

Dooya DM45RM 50/12 Tubular Motor Short Axis for Motorized Rolling Shutter Door/Awning/Sunshade,by Manual Control+DC2760AM Remote

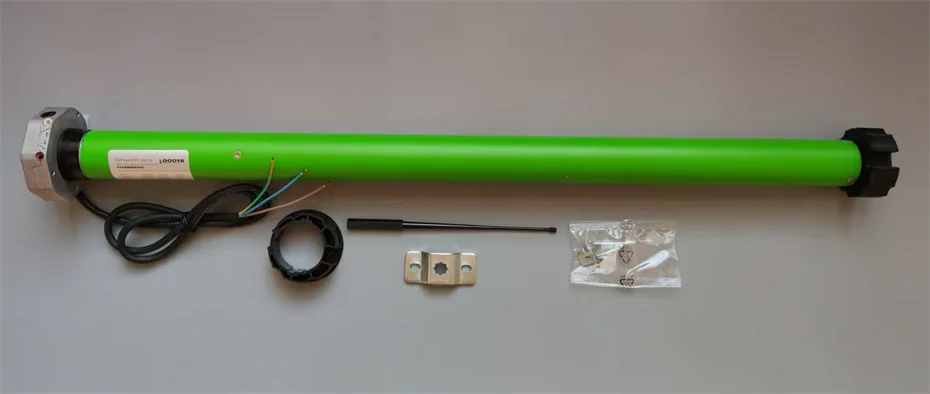

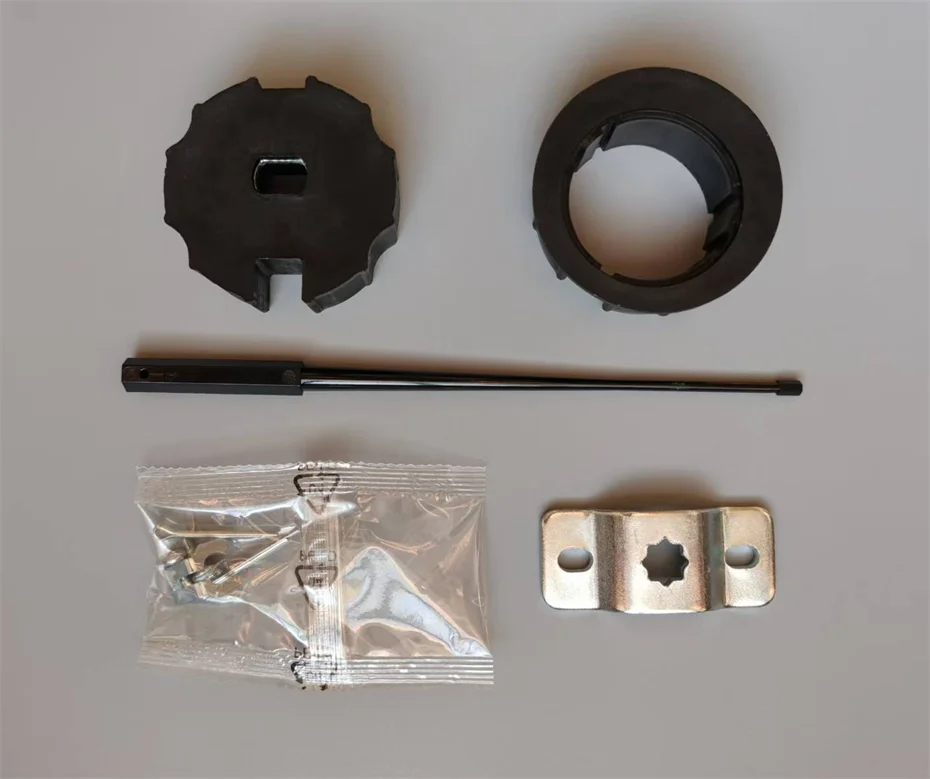

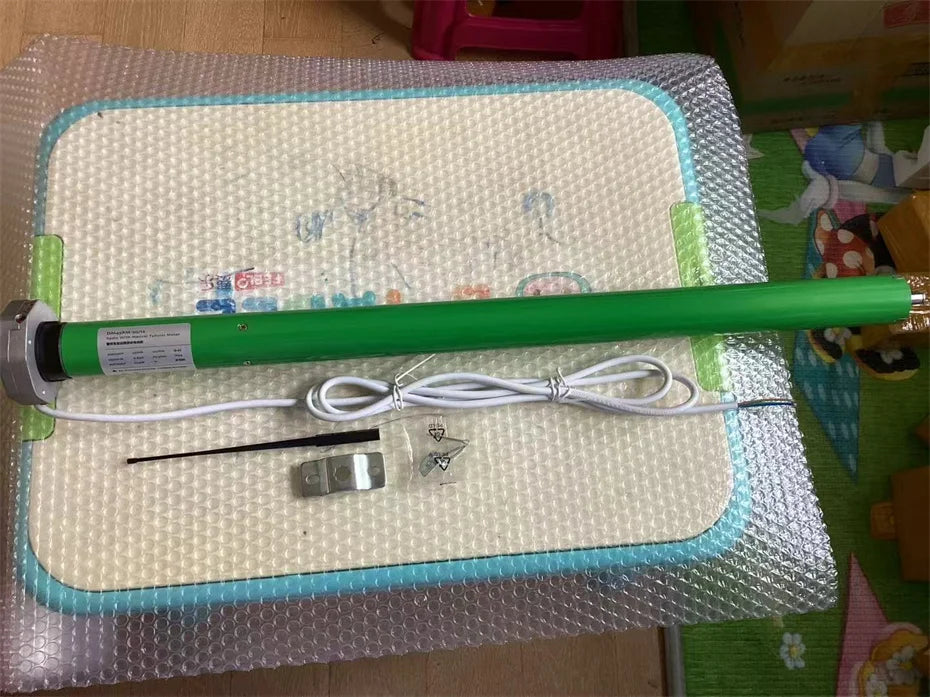

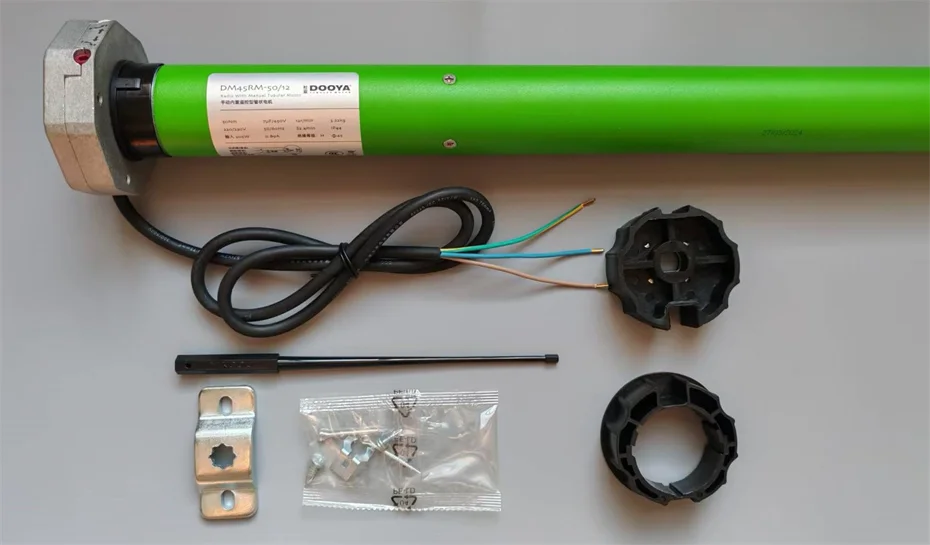

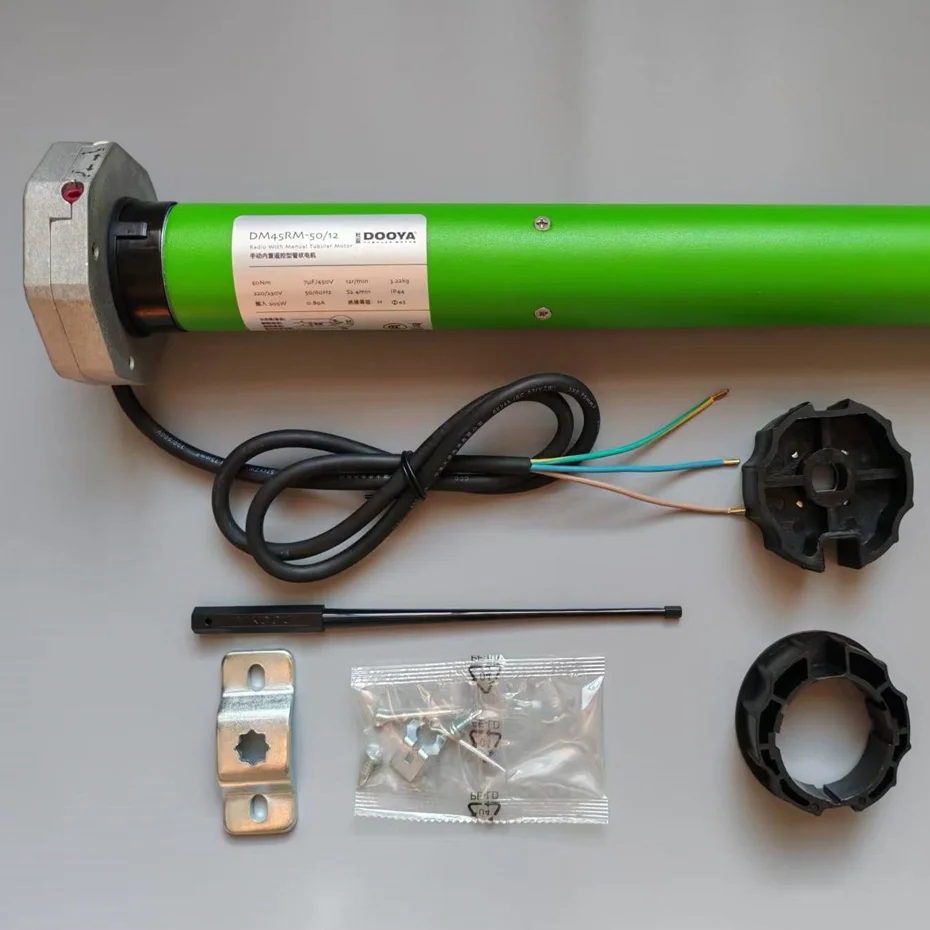

Package List:  DM45RM 50/12 *1 + DC2760AM *1+ Adjusting Rod*1+ Bracket*1+ Crown*1 + Drive adapter*1

(Notes: for the crown & drive adapter, we will offer you based on the type of the tube you have in the bundle)

Remarks: 1. Dooya DM45RM 50/12 is rolling code motor , which can only work with Dooya Rolling code remote like DC2760AM or DC2702D.

2. Here this package only includes 1pcs motor+2CH Remote, you need to order the tube,bracket...separately.

(Notes: Please pay customs fee if produced. Thank you. As each country has its rules, customs fee is not included in the price.)

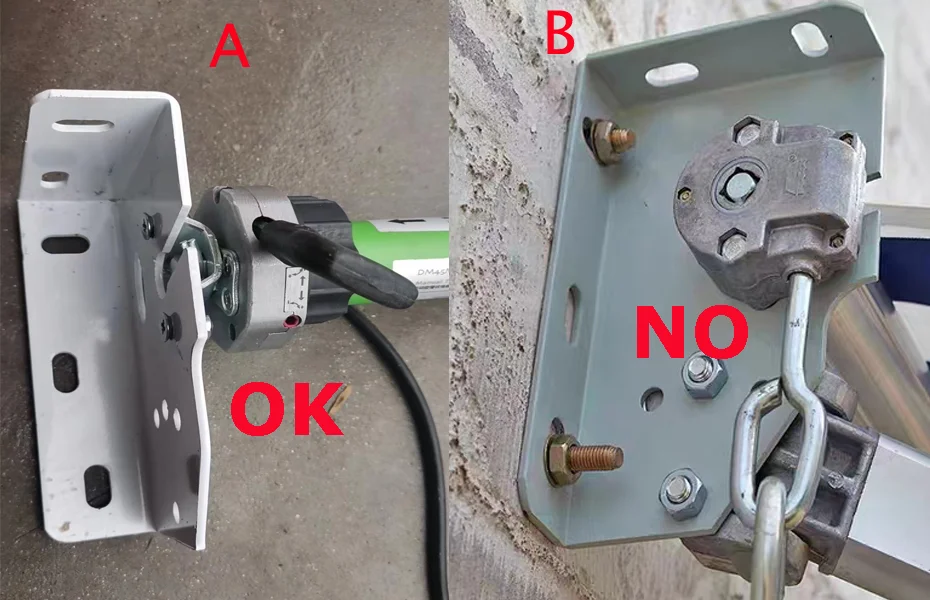

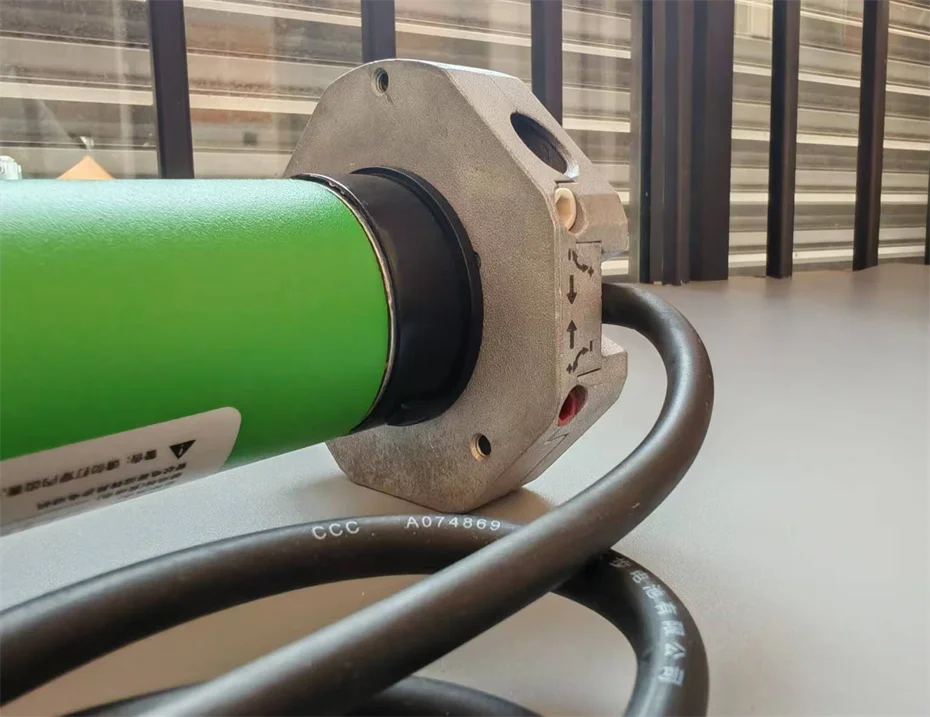

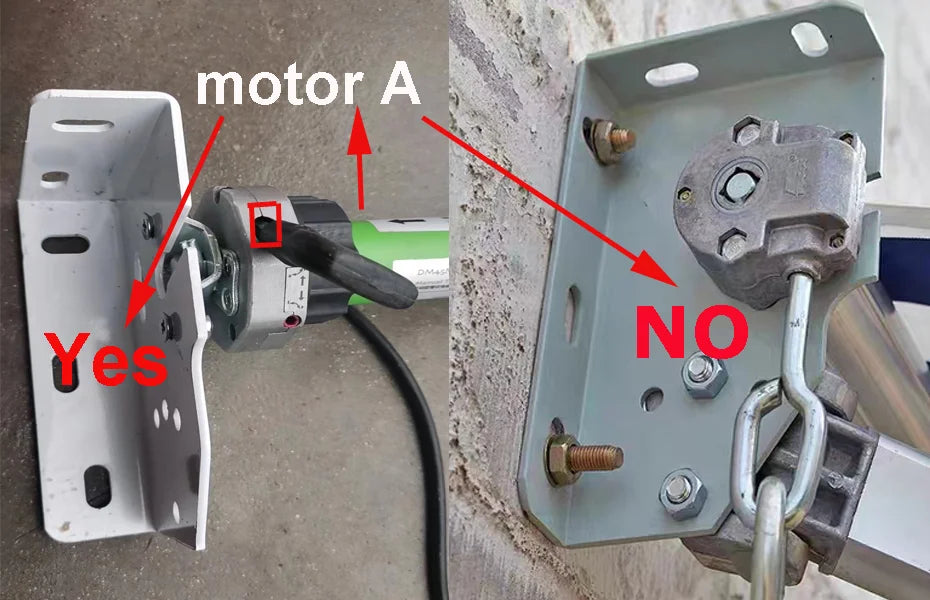

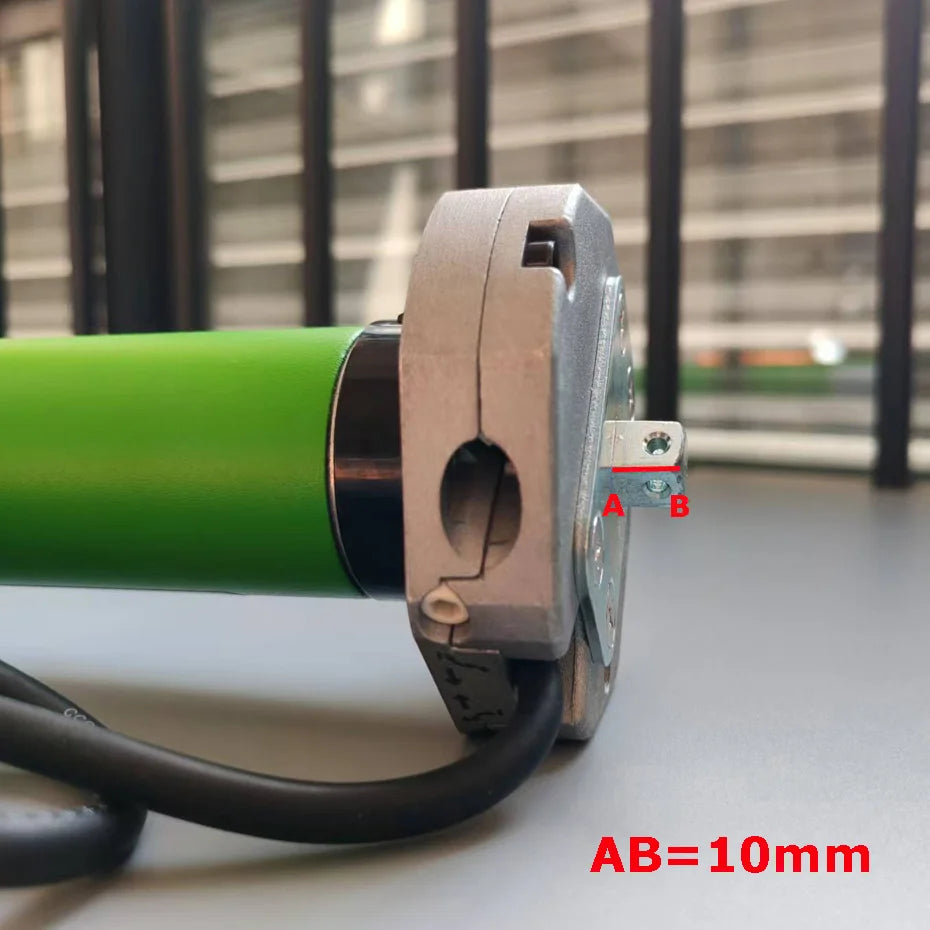

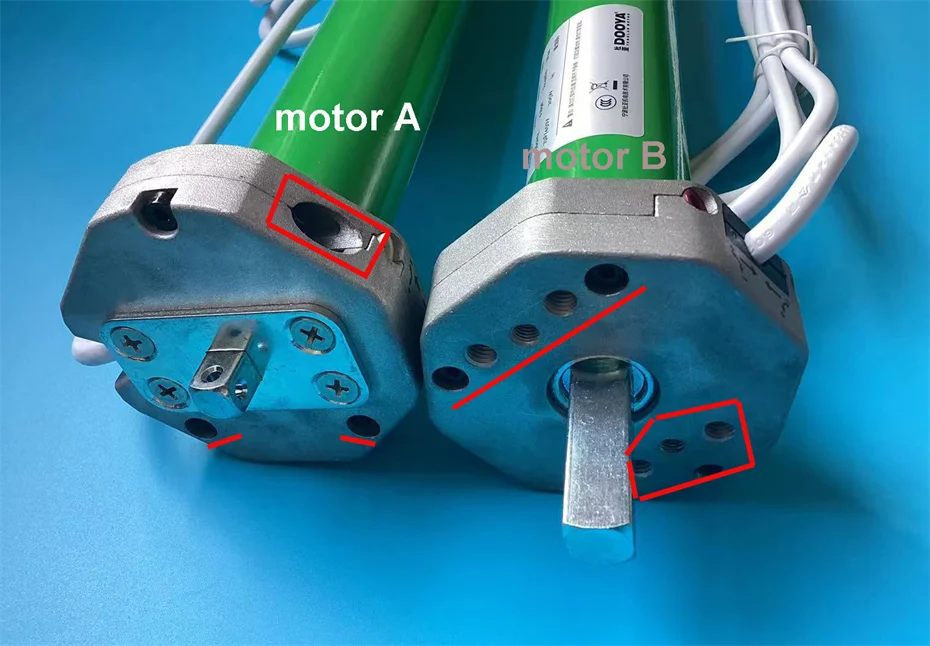

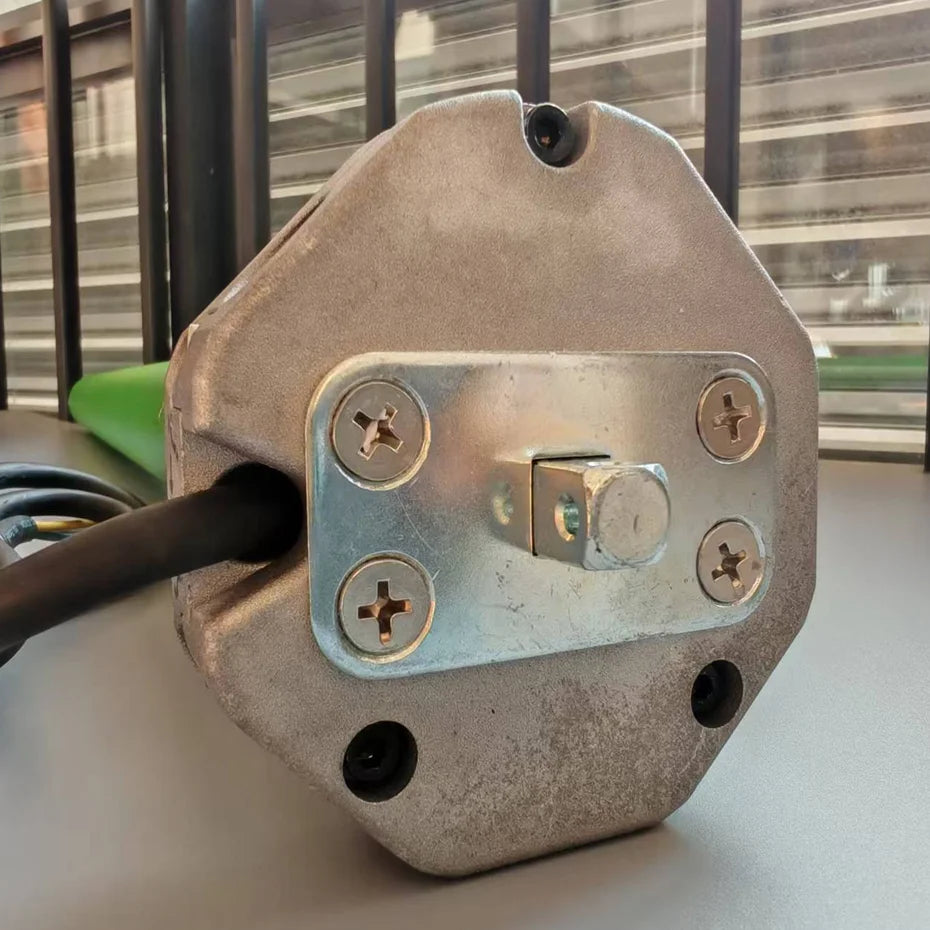

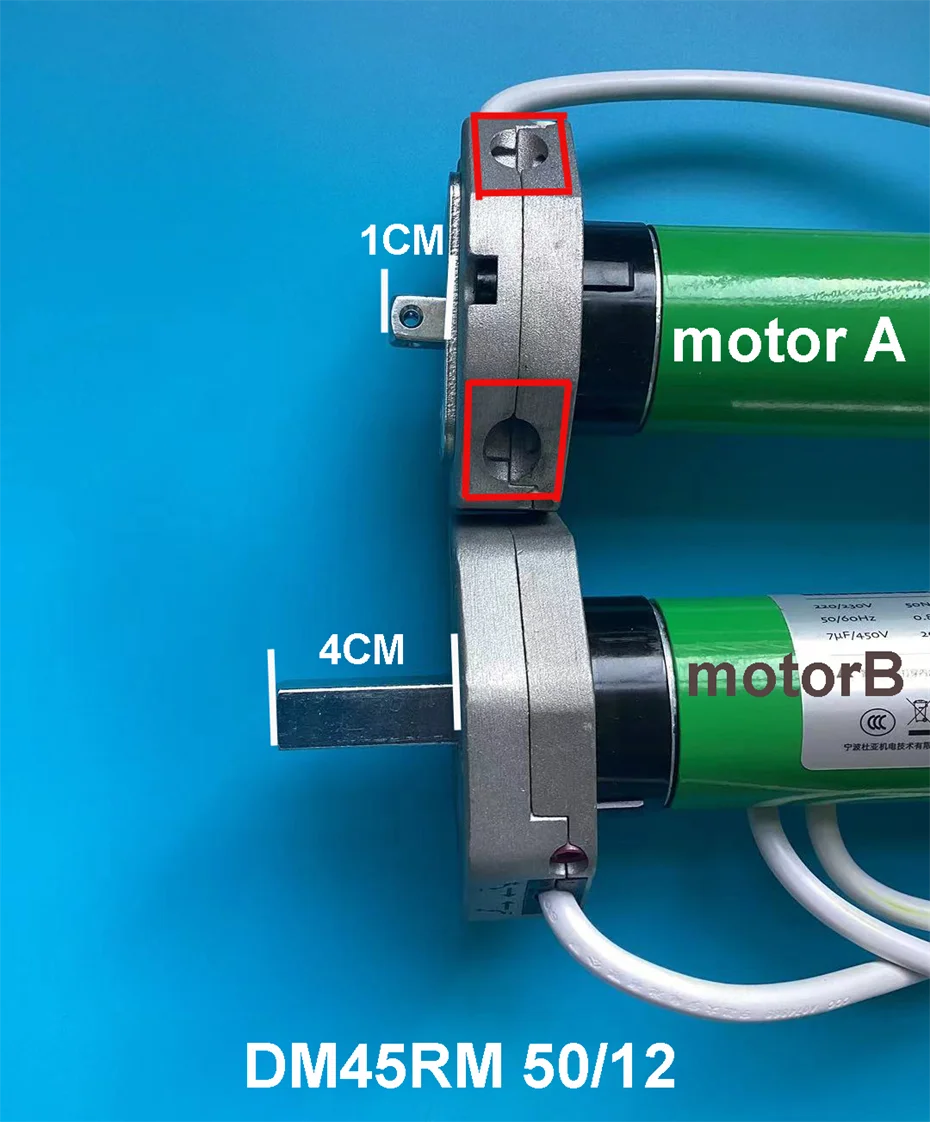

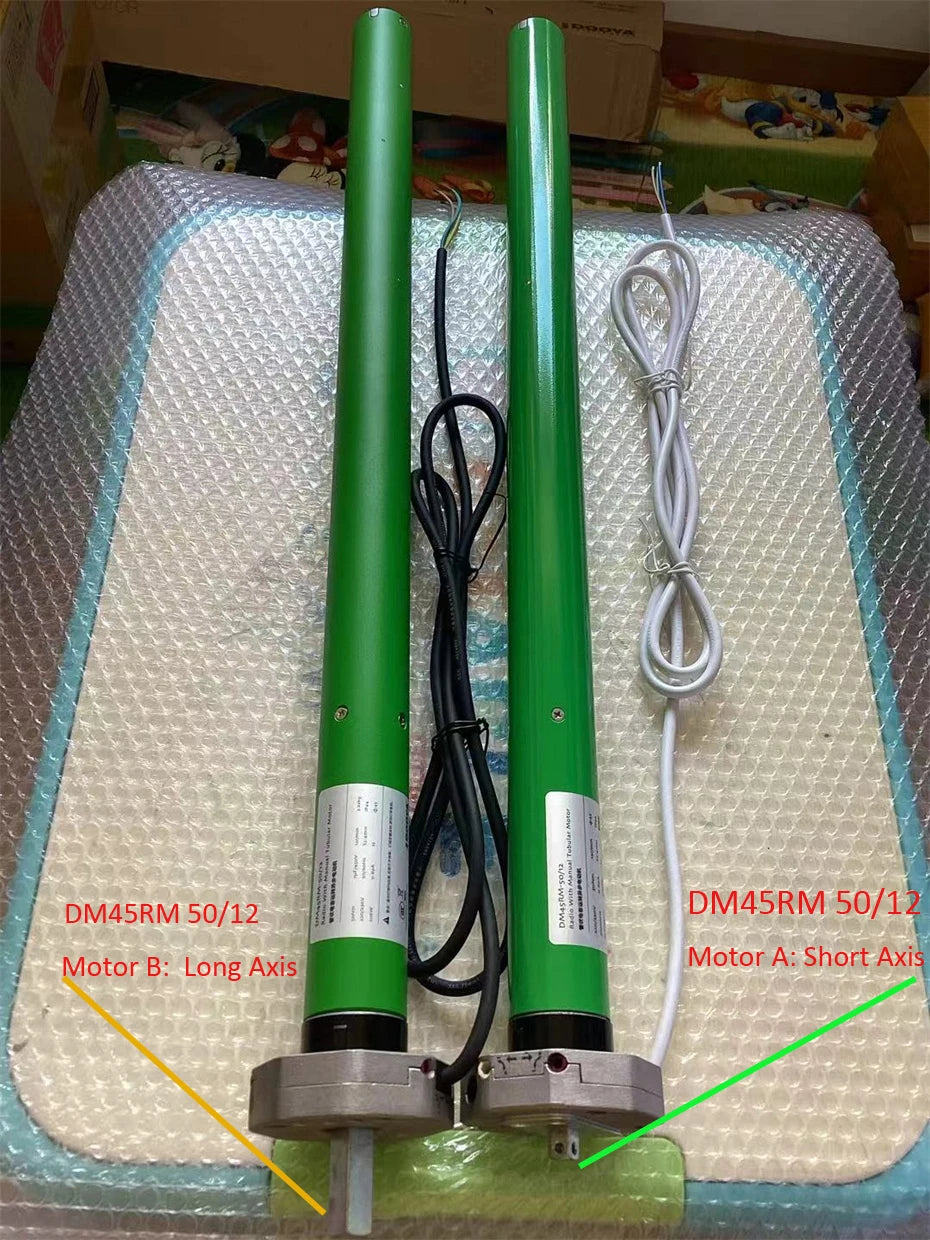

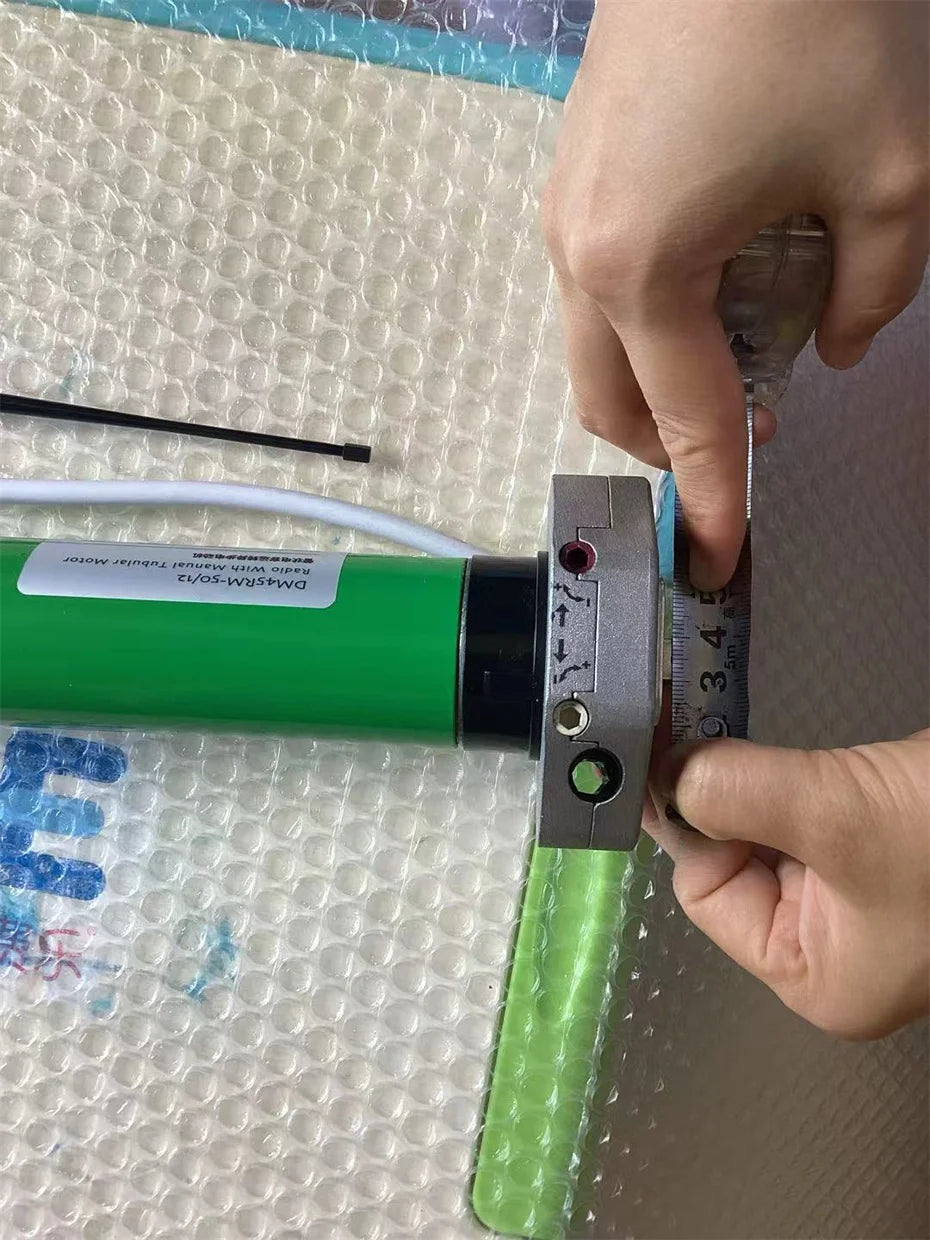

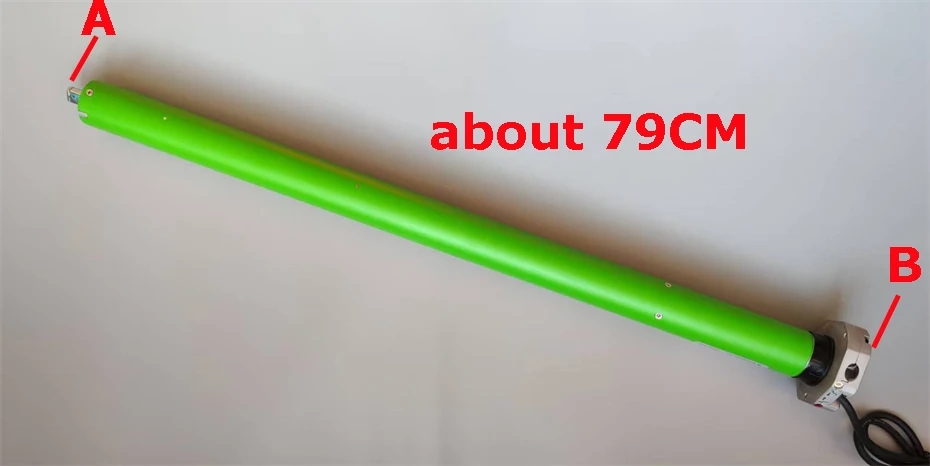

3. DM45RM 50/12 is SHORT AXIS VERSION-1CM (It is motor A in below pictures). The width of the top axis of this short axis motor is about 1CM(10MM) .

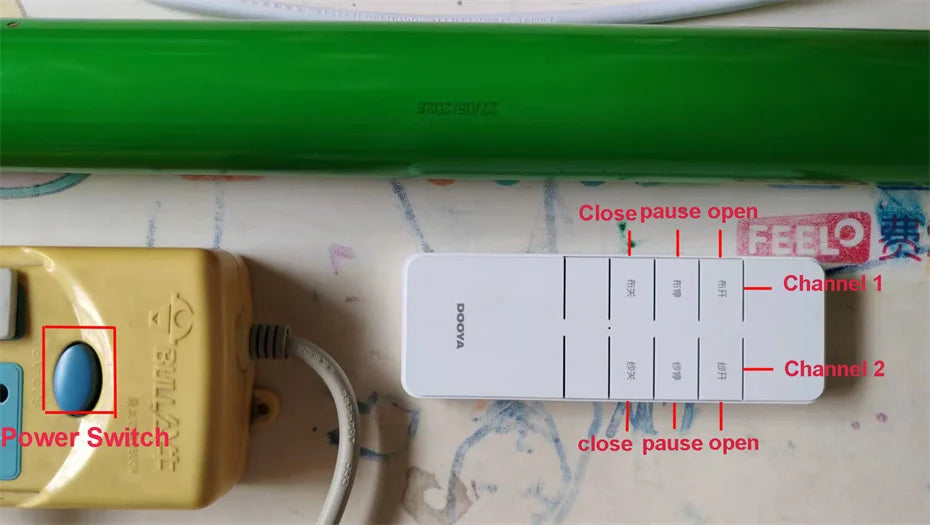

How to make pair between motor DM45RM 50/12 and remote?

1. Turn on the power switch and the motor will beep for a long time

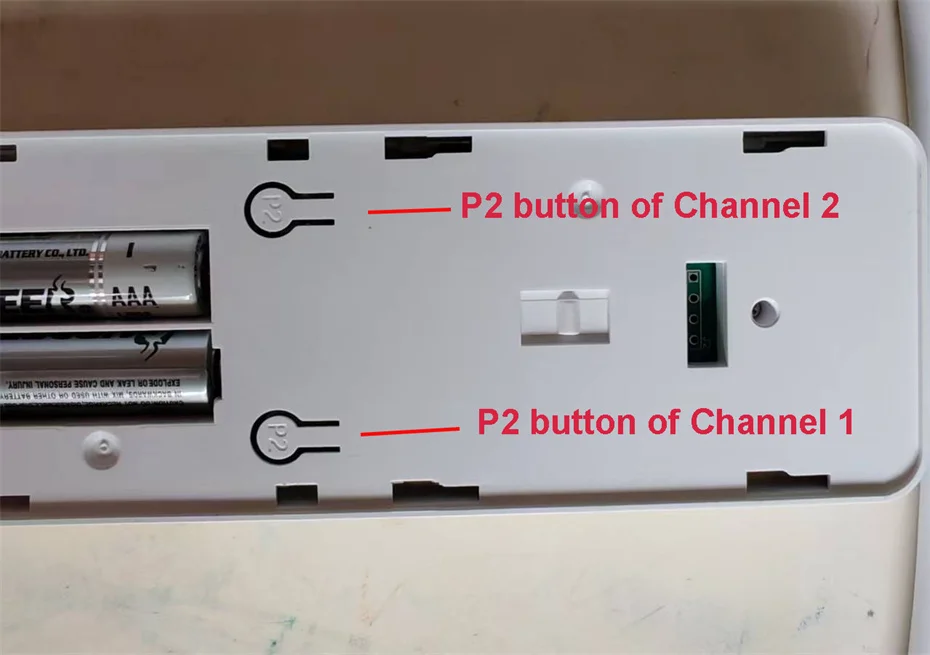

2. Press the P2 key once, and the motor will rotate back and forth once，then Press the P2 key once again, and the motor will rotate back and forth once

3. Press open button once on the remote, then pairing ok

Tips About Crown and Drive Adapter:

1. for rolling tube with same outer diameter, there are so many different inner structures in different countries. we can only offer you crown and drive adapter from original package of Dooya for different tubes as below. Please check first.

2. For the crown and drive adapter, sometimes you need to modify and make them work with your tube.

3. Some buyers can make crown and drive adapter with 3D printer, very good and nice, it is a good choice.

4. Or you need to find crown and drive adapter in your local market and get them.

5. If your old crown and drive adapter on your tube still work well, it is a better choice.

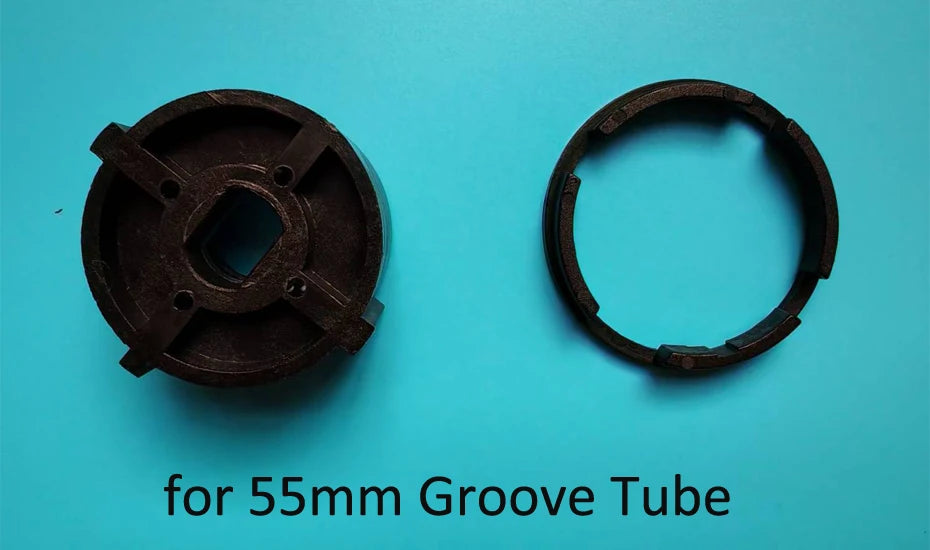

Below Crown and Drive Adapter is for 55mm Groove Tube:

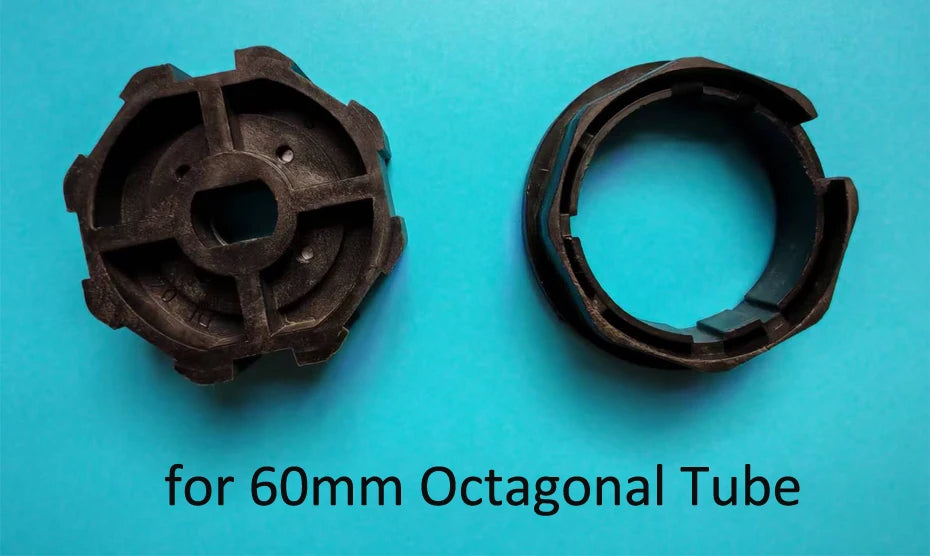

Below Crown and Drive Adapter is for 60mm Octagonal Tube:

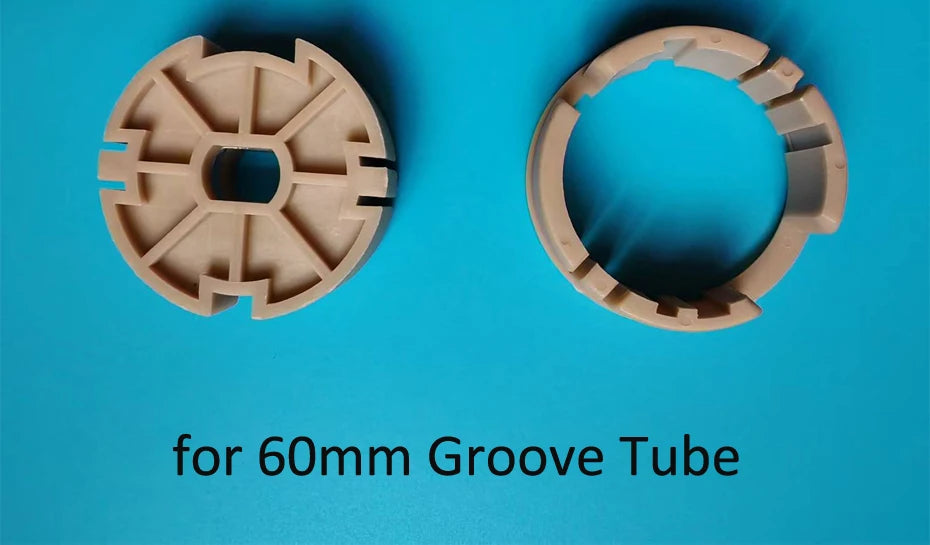

Below Crown and Drive Adapter is for 60mm Groove Tube:

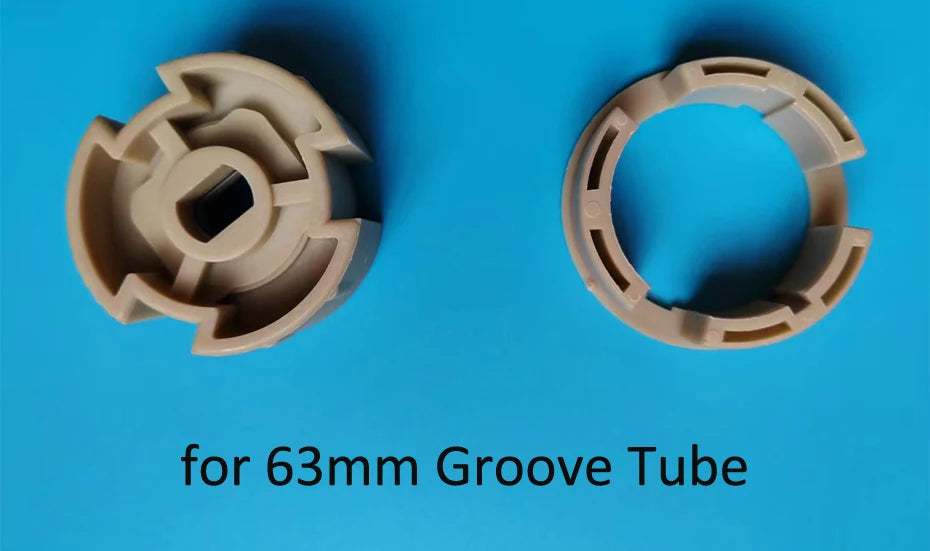

Below Crown and Drive Adapter is for 63mm Groove Tube:

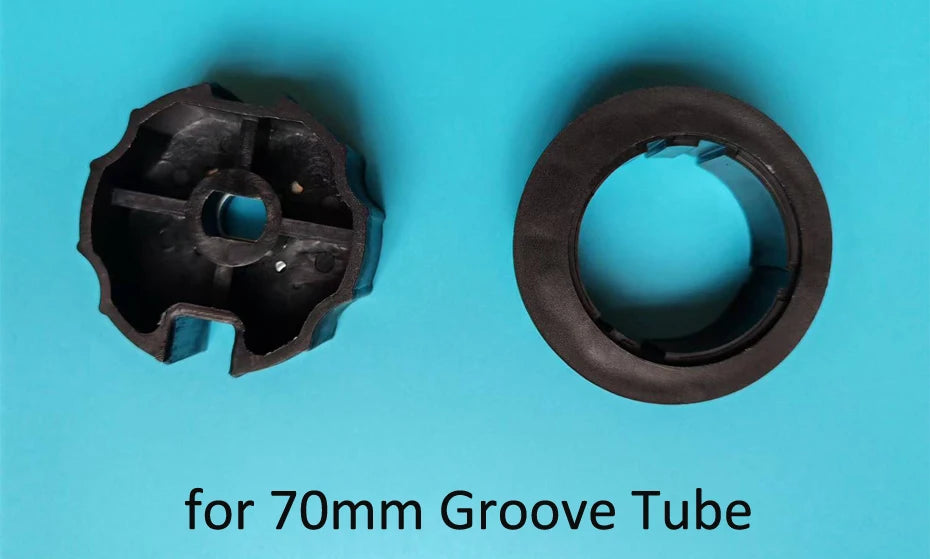

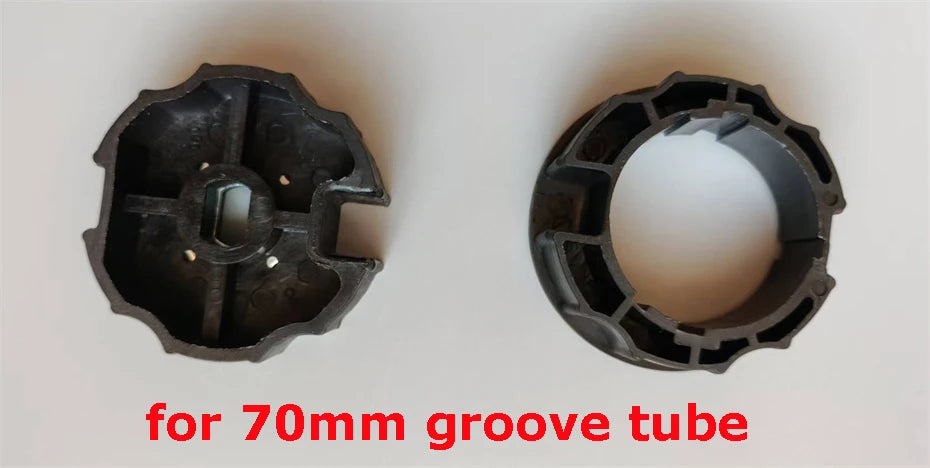

Below Crown and Drive Adapter is for 70mm Groove Tube:

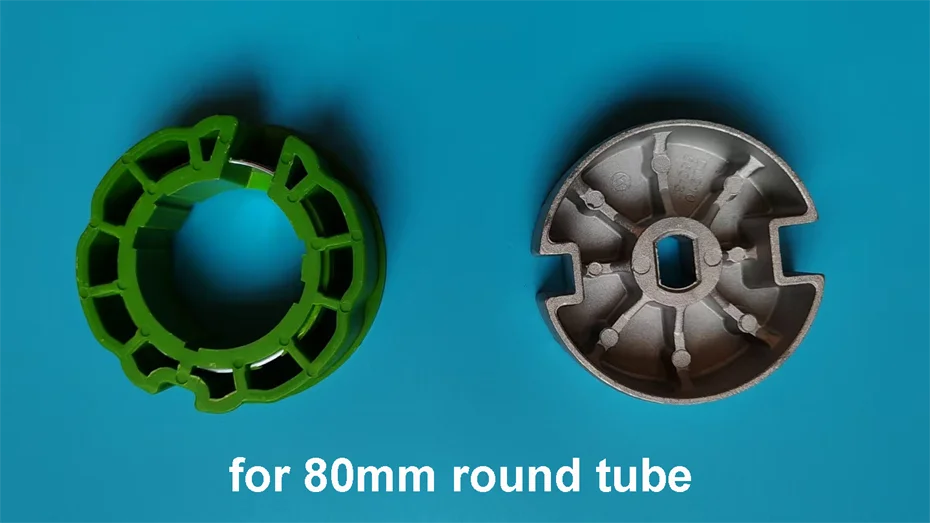

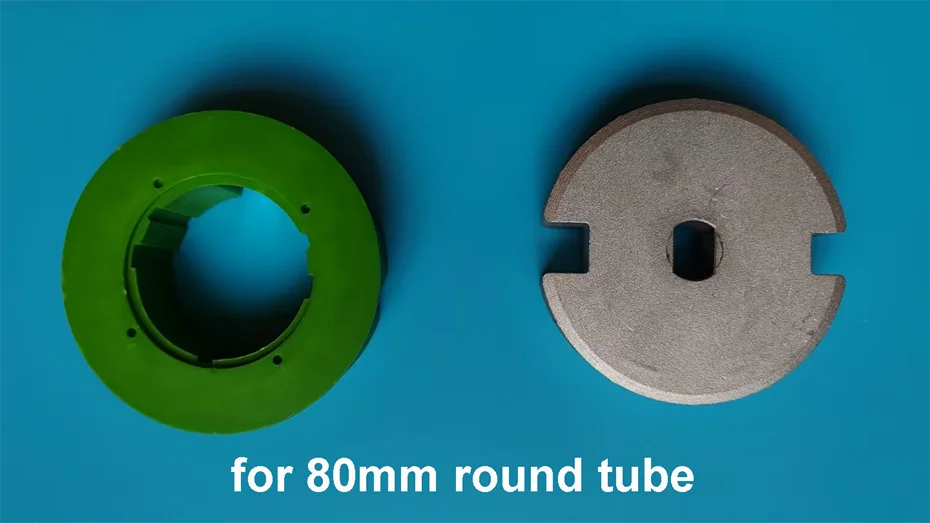

Below Crown and Drive Adapter is for 80mm Round Tube:

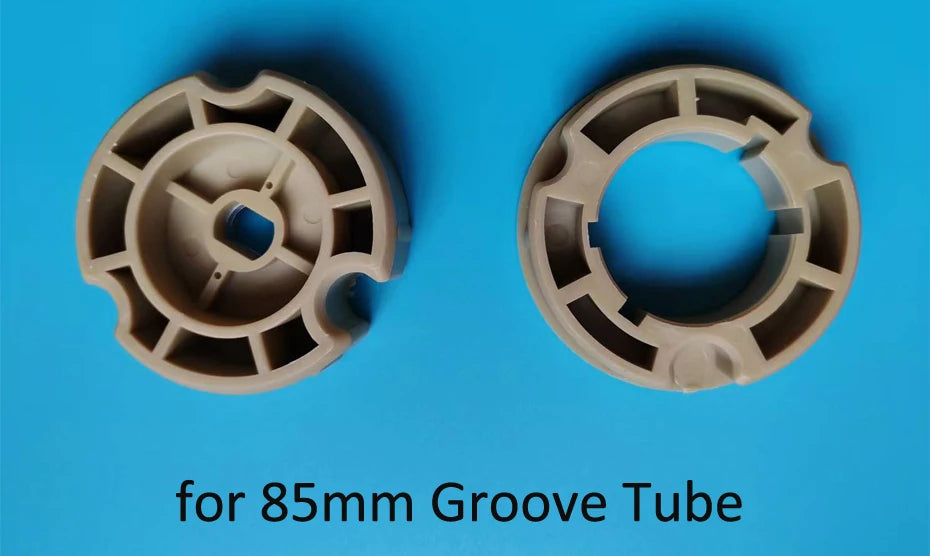

Below Crown and Drive Adapter is for 85mm Groove Tube:

Below Crown and Drive Adapter is for 90mm Groove Tube:
