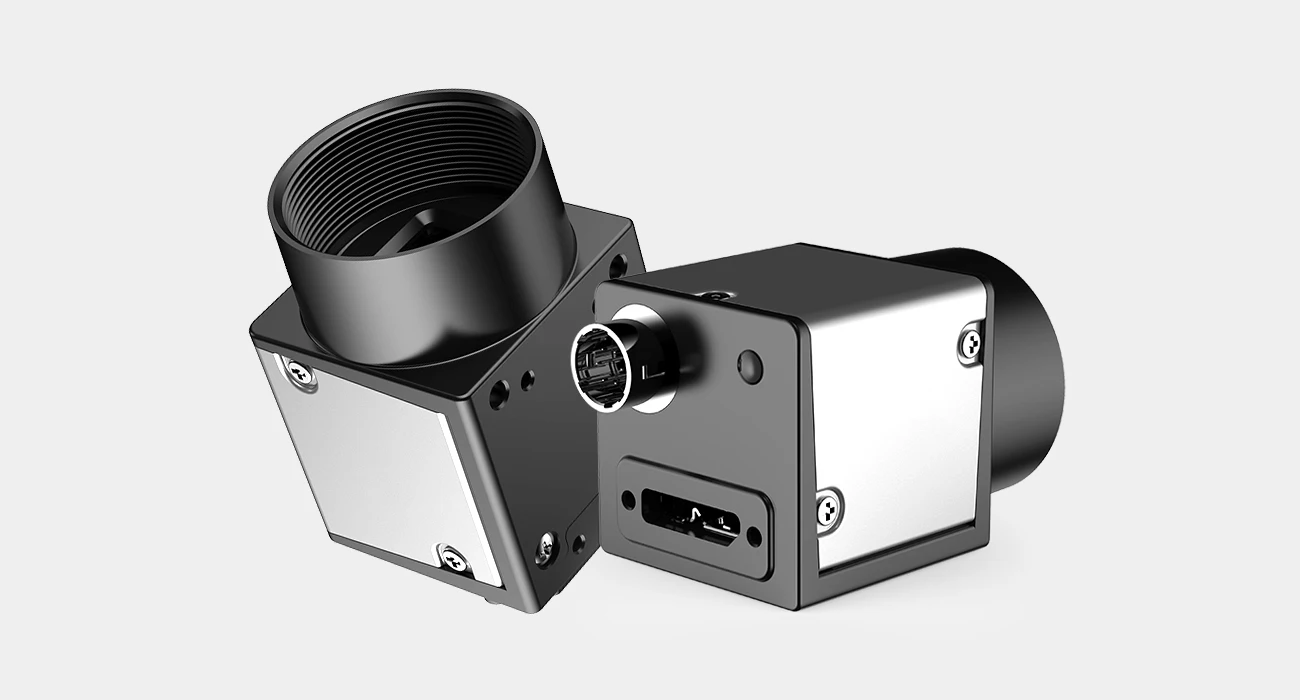

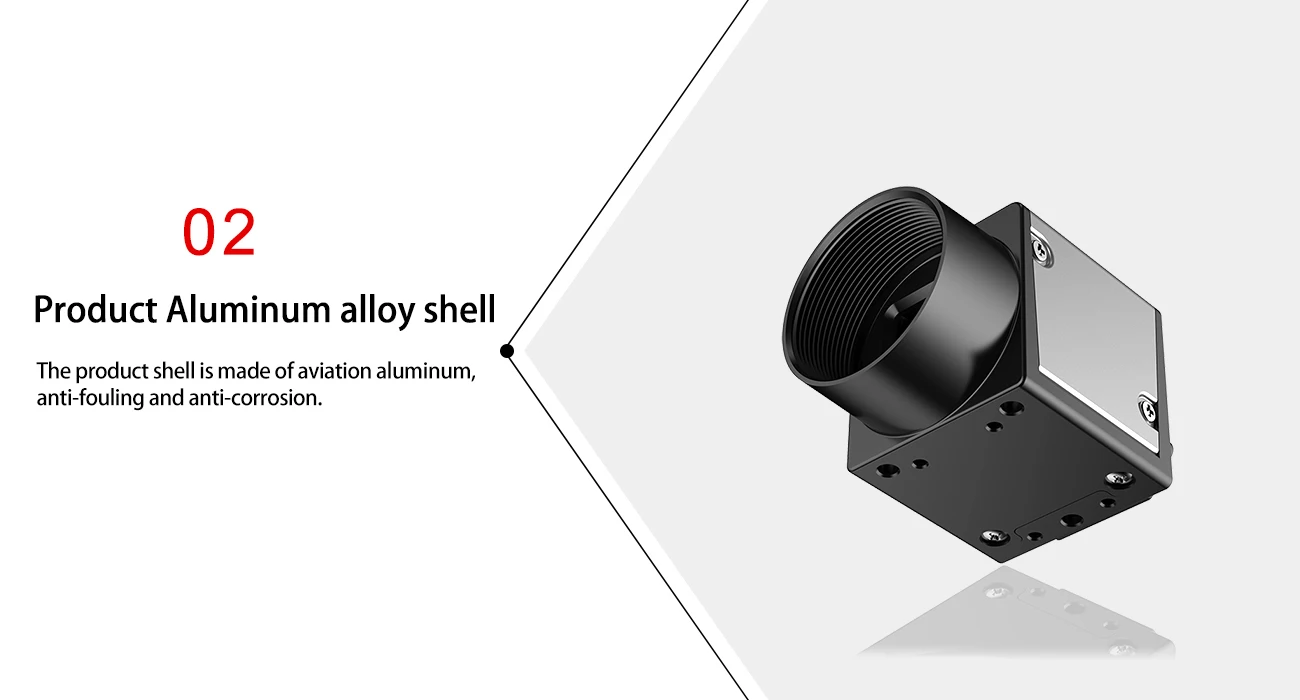

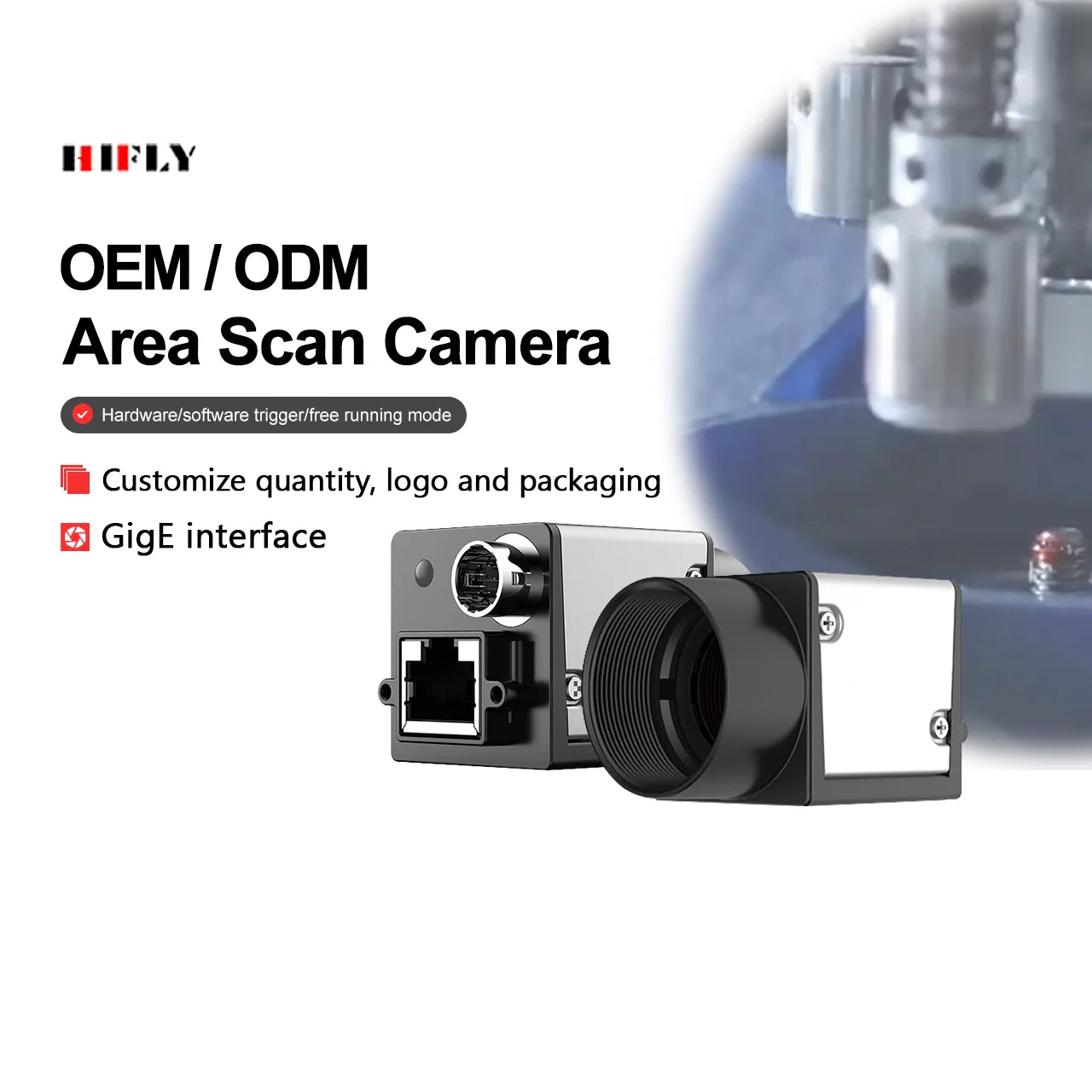

815FPS USB3.0 Gige Vision Super Speed Industrial Camera
815FPS USB3.0 Gige Vision Super Speed Industrial Camera
House for sale
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Product specifications
Product specifications
Product details
Product details
SPECIFICATIONS
Application : Automation,Machine vision

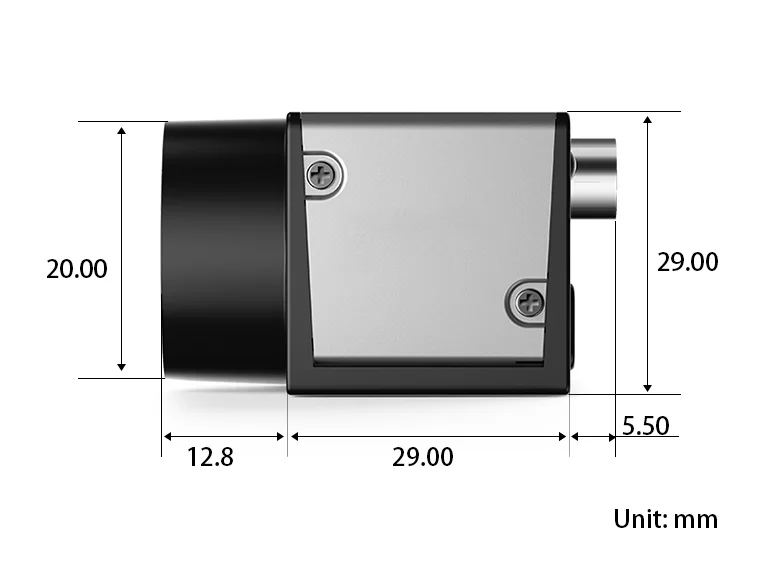

Dimension(LxWxH) : 29.0x29.0x29.0mm
Format Size : 1/4"CMOS
Frame rate : 815fps

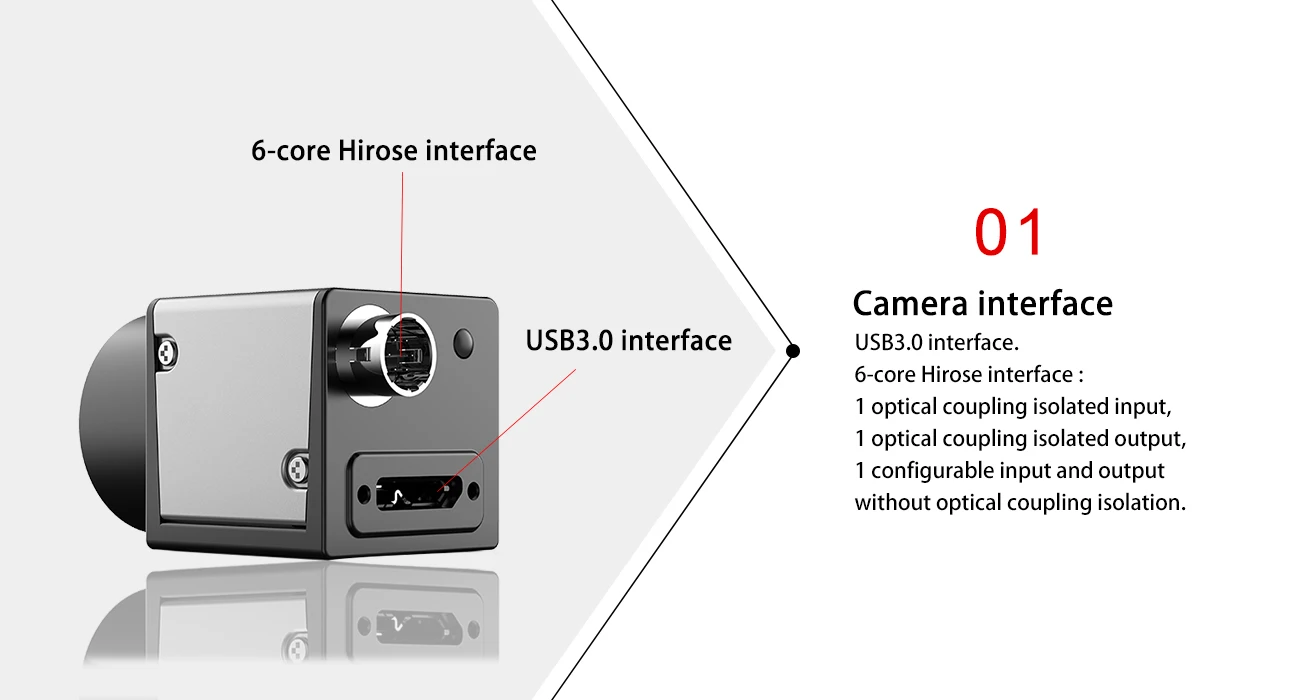

Interface : USB3.0

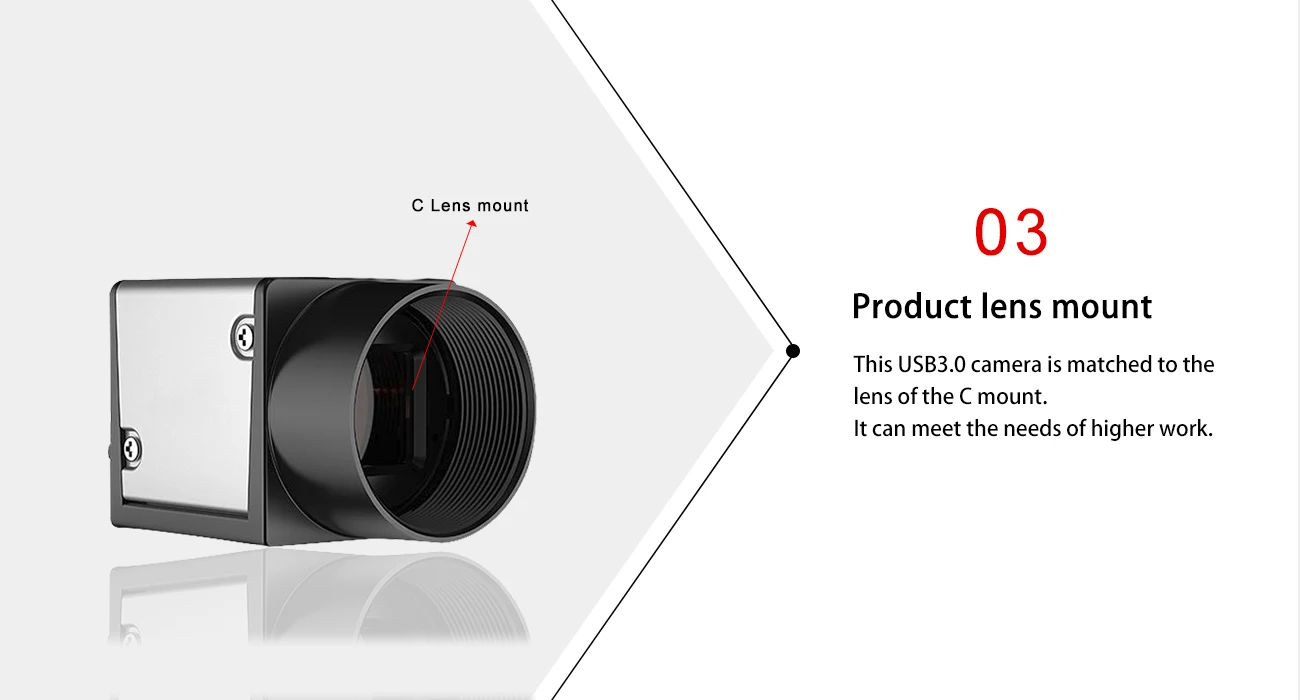

Lens Interface : C-mount
Pixel Size : 4.8μm
Product name : Machine Vision Camera
Sensor : Python300
Shutter Mode : Global Shutter
Brand name : HIFLY
function : Machine Vision Inspection
place of origin : Guangdong, China
Private mold : No
special features : Character Defect Detection
Type : Area Scan Camera

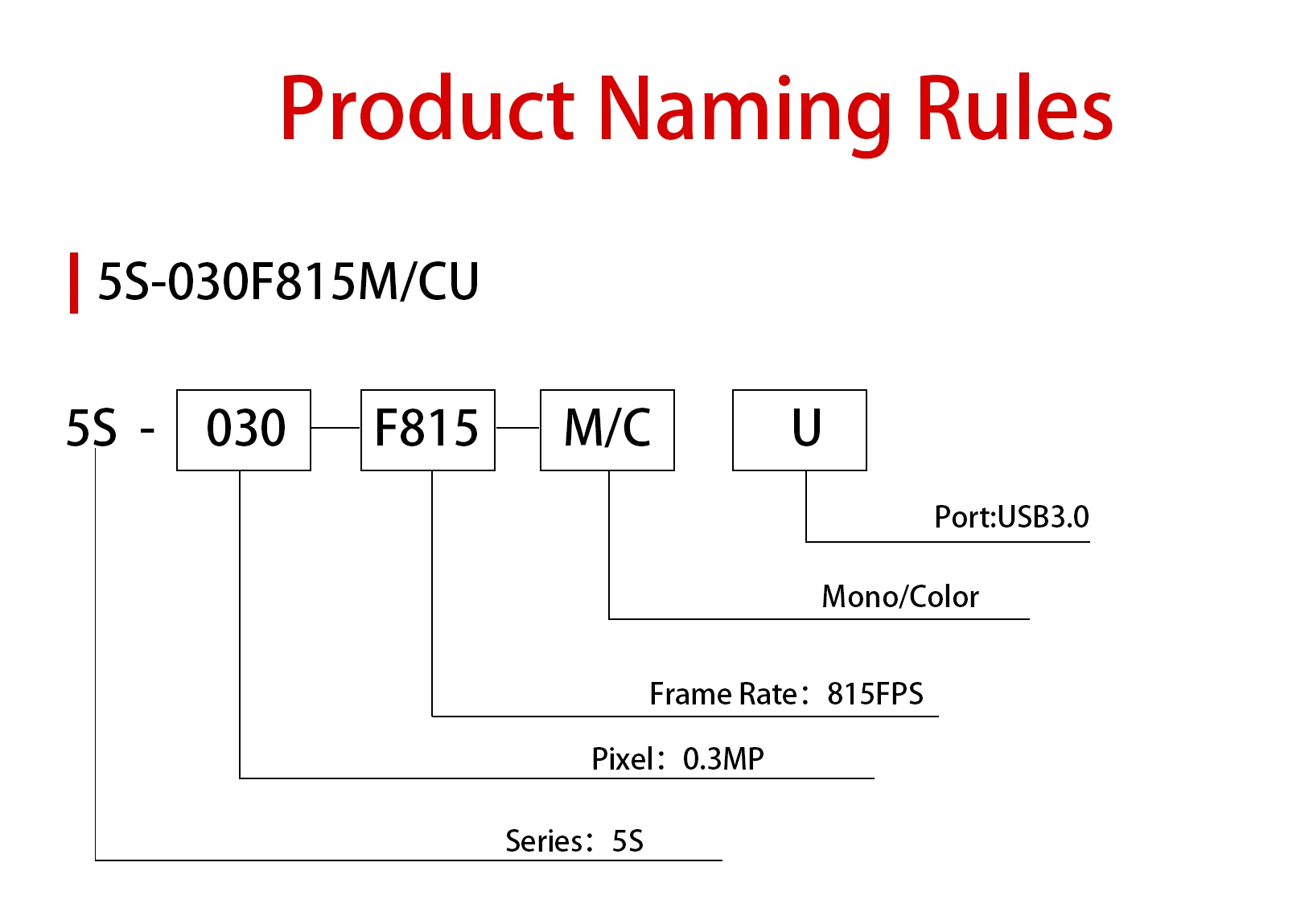

Model
|
Frame Rate
|
Shutter type
|
Interface
|
Resolution
|
Pixel size
|
815FPS |
Global |
USB3.0 |
640 x 480 |
4.8μm |
|
5S-052F545M/CU |
545FPS |
Global |
USB3.0 |
800 x 600 |
4.8μm |
5S-130F90MU |
90FPS |
Global |
USB3.0 |
1280 x 1024 |
4.8μm |
208FPS |
Global |
USB3.0 |
1280 x 1024 |
4.8μm |
|
5S-201F89M/CU |
89FPS |
Global |
USB3.0 |
1624 x 1240 |
4.5μm |
150FPS |
Global |
USB3.0 |
1920 x 1200 |
4.8μm |
|
5S-420F90M/CU |
90FPS |
Global |
USB3.0 |
2048 × 2048 |
5.5μm |
60FPS |
Global
|
USB3.0 |
2592 x 2048 |
4.8μm |
|
5S-2500F14M/CU |
14FPS |
Global |
USB3.0 |
5120 x 5120 |
2.5μm |
5S-231F37M/CK |
37.8FPS |
Global |
CameraLink |
1920 x 1200 |
4.8μm |
5S-2501F30MK |
30FPS |
Global |
CameraLink |
5120 x 5120 |
2.5μm |
300FPS |
Global |
GigE, PoE |
640x480 |
4.8μm |
|
5S-052F200M/CGP |
200FPS |
Global |
GigE, PoE |
800x600 |
4.8μm |
5S-131F90M/CGP |
90FPS |
Global |
GigE, PoE |
1280 x 1024 |
4.8μm |
5S-201F56M/CGP |
60FPS |
Global |
GigE, PoE |
1624 x 1240 |
4.5μm |
50FPS |
Global |
GigE, PoE |
1920 x 1200 |
4.8μm |
|
20FPS |
Global |
GigE, PoE |
2592 x 2048 |
20FPS |
|
4FPS |
Global |
GigE, PoE |
5120 x 5120 |
2.5μm |
|
5S-900F13MGP |
11FPS |
Global |
GigE, PoE |
4200 x 2160 |
2.5μm |

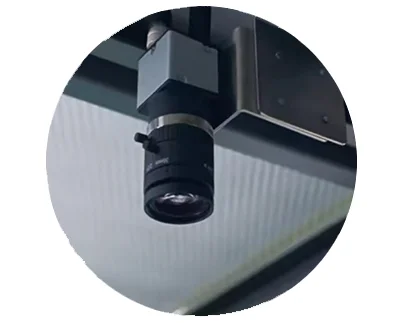

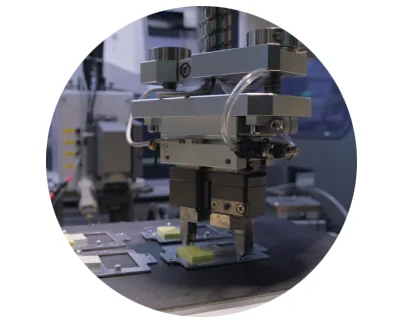

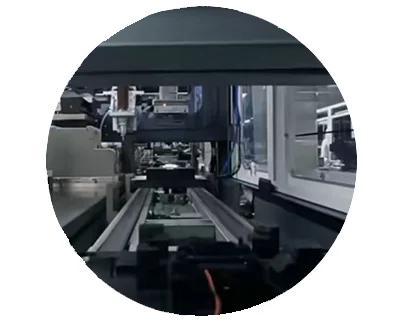

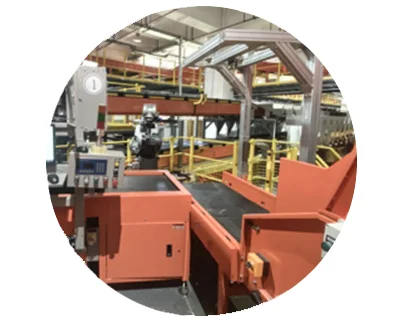

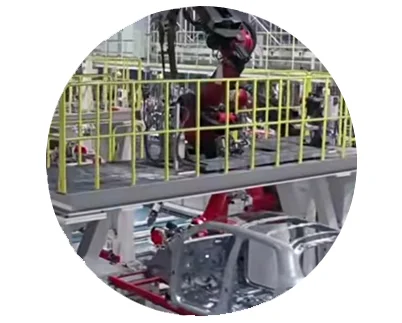

Application Fields




Touch screen industry

Healthcare industry

Food industry
