SPECIFICATIONS

Battery Included : No

Brand Name : OPEN-SMART

Certification : None

Choice : yes

Color : Blue

High-concerned chemical : None

Model Number : DIY Soldering Parts Kit

Origin : Mainland China

Package : Yes

Product Status : Stock

Type : Industrial Computer Accessories

semi_Choice : yes

Features

Note: If you want to place the bulk order but the stock is not enough, please contact us.

Note: This kit will be sent as parts, please know

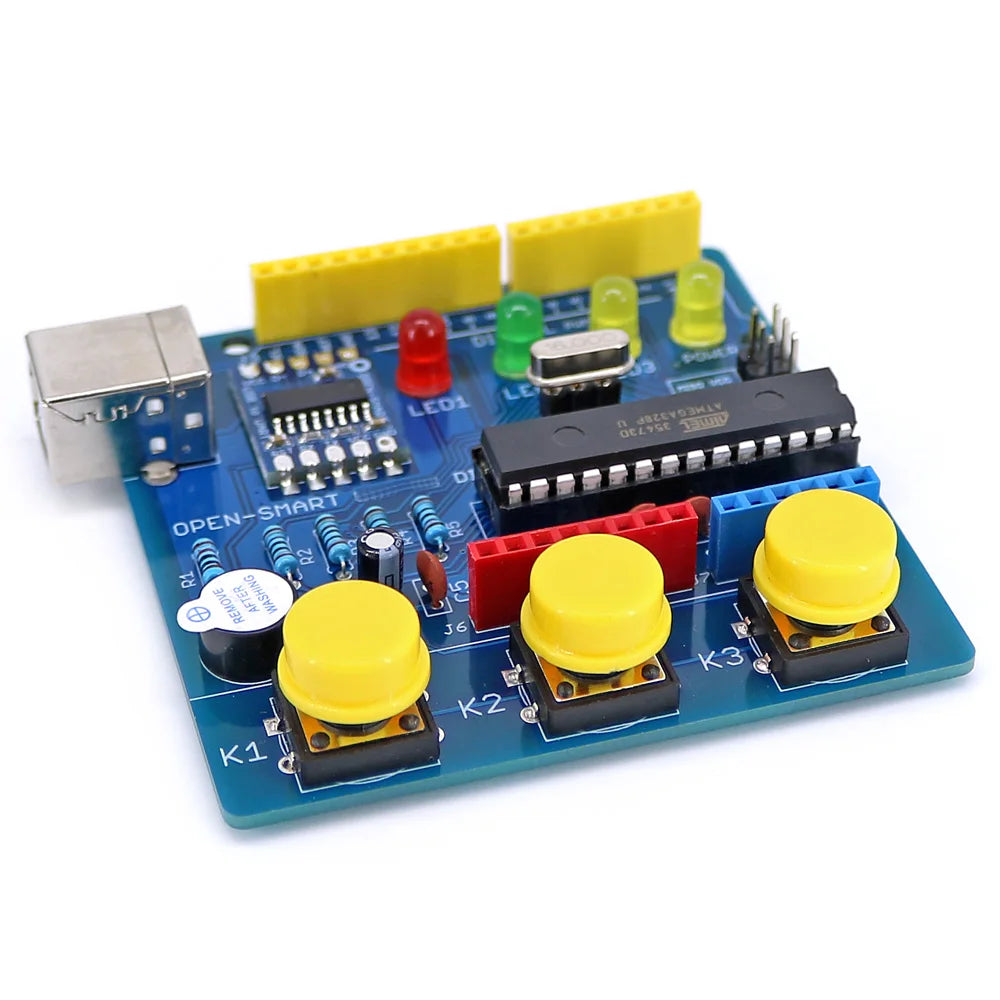

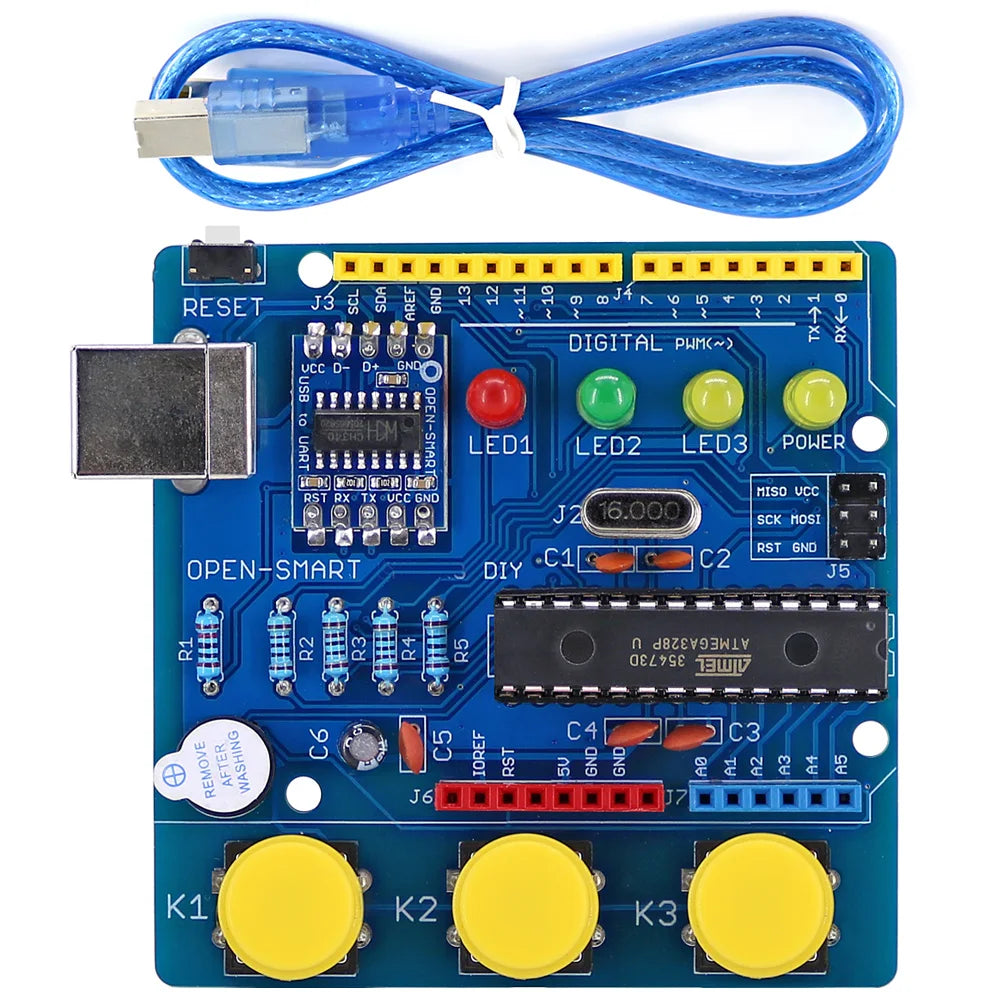

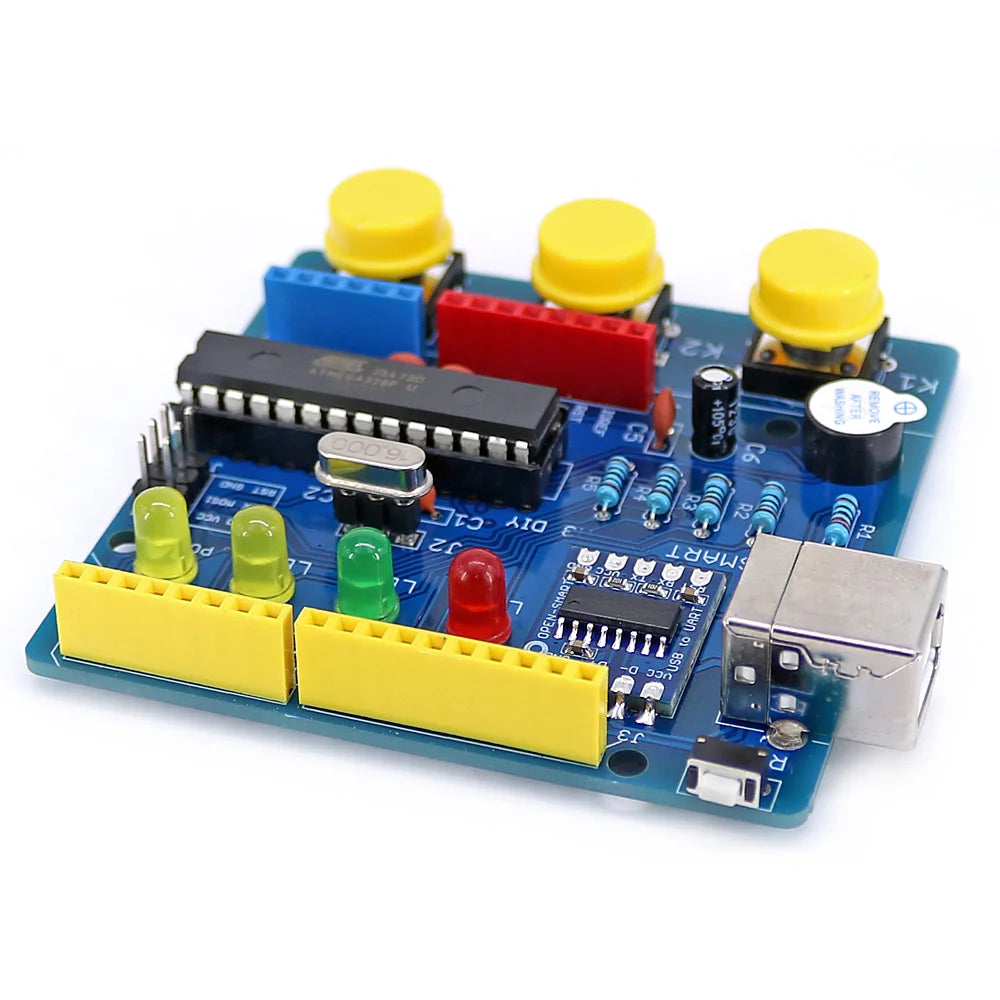

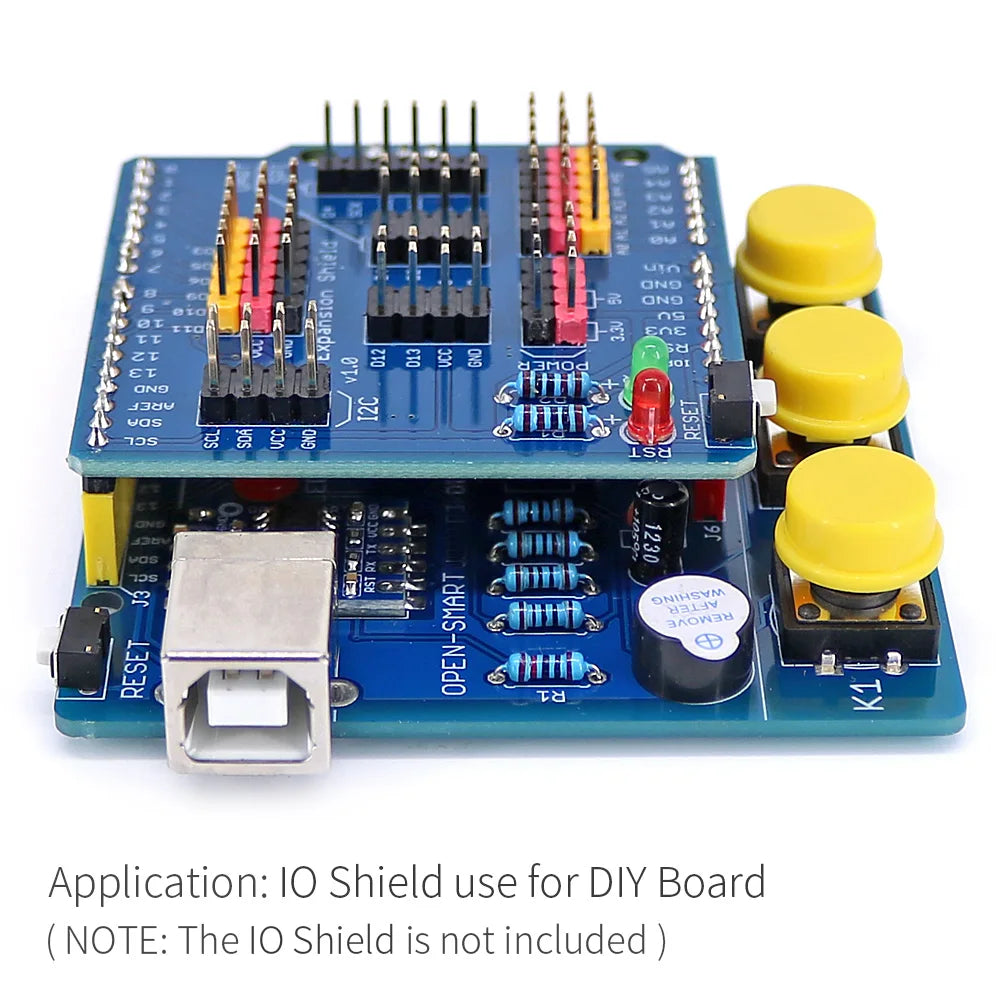

This is high quality DIY board Soldering Parts Kit for 328P Board .

The development board is based on ATMEGA328P.

It is great for beginners, students, training institutions.

Advanced Features:

- Included ATmega328P-PU has been burned for R3 bootloader;

- Included CH340 USB to UART module that you can upload code directly after installing CH340 driver for your PC, compatible with win7, win8, linux, MAC OS;

- Included colorful Shield pin headers compatible for 328P Board ;

- Included 3 Programmable LEDs which connect to D13 / D8 / D7;

- Included 3 Buttons which connect to D4 / D3 / D2;

- Included 1 Buzzer which connects to D6;

- Included 28PIN-DIP socket so you can replace the ATmega328P-PU chip;

- Included 49S Crystal oscillator socket, so you can replace it easily;

- The program, expansion shields, development environment IDE are compatible.

- Microcontrollers: ATmega328P-PU

- Operating voltage: 5V

- IO interface logic voltage: 5V

- Operating Current: 500mA (max)

- Digital I/O pins: 14 (of which 6 can provide PWM output)

- Analog input pins: 6

- Clock frequency: 16MHz

- Onboard power indicator.

- Bootloader burning Interface: ICSP

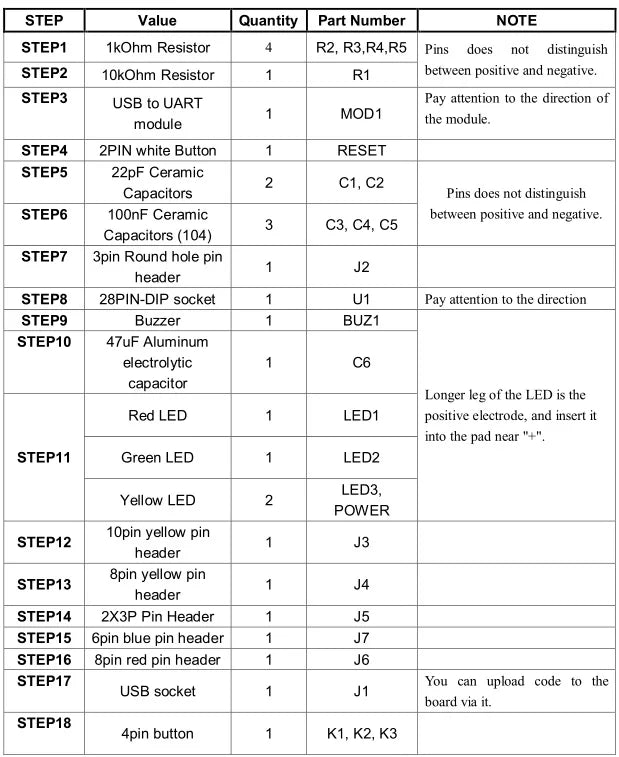

Soldering in the order shown in the following table:

Then, you can plug the HC-49S 16MHz crystal oscillator onto the 3pin Round hole pin header.

And then, you can plug ATmega328P-PU onto the 28PIN-DIP socket, please pay attention to the direction and be careful

Do not bend the pins.

After you have done all of the previous steps, you can use it as for R3 board because the ATmega328P-PU has been

burned for R3 bootloader.

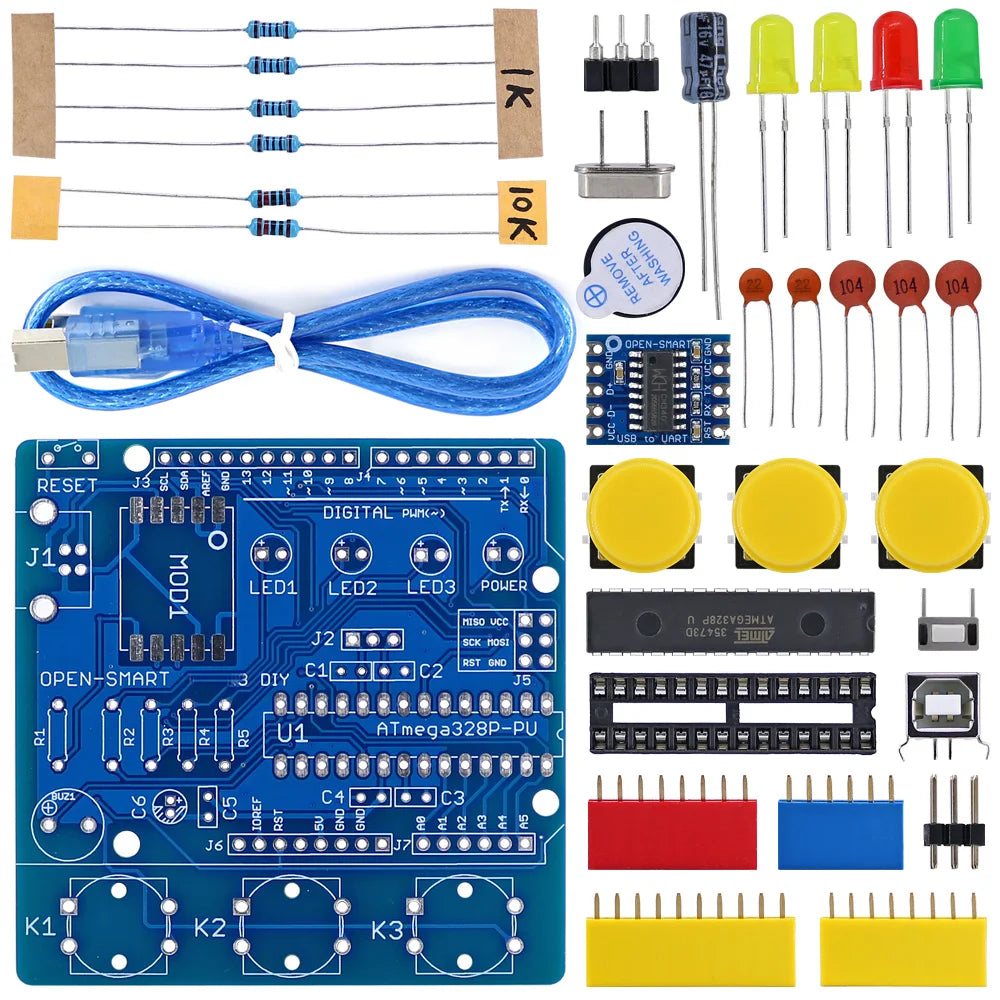

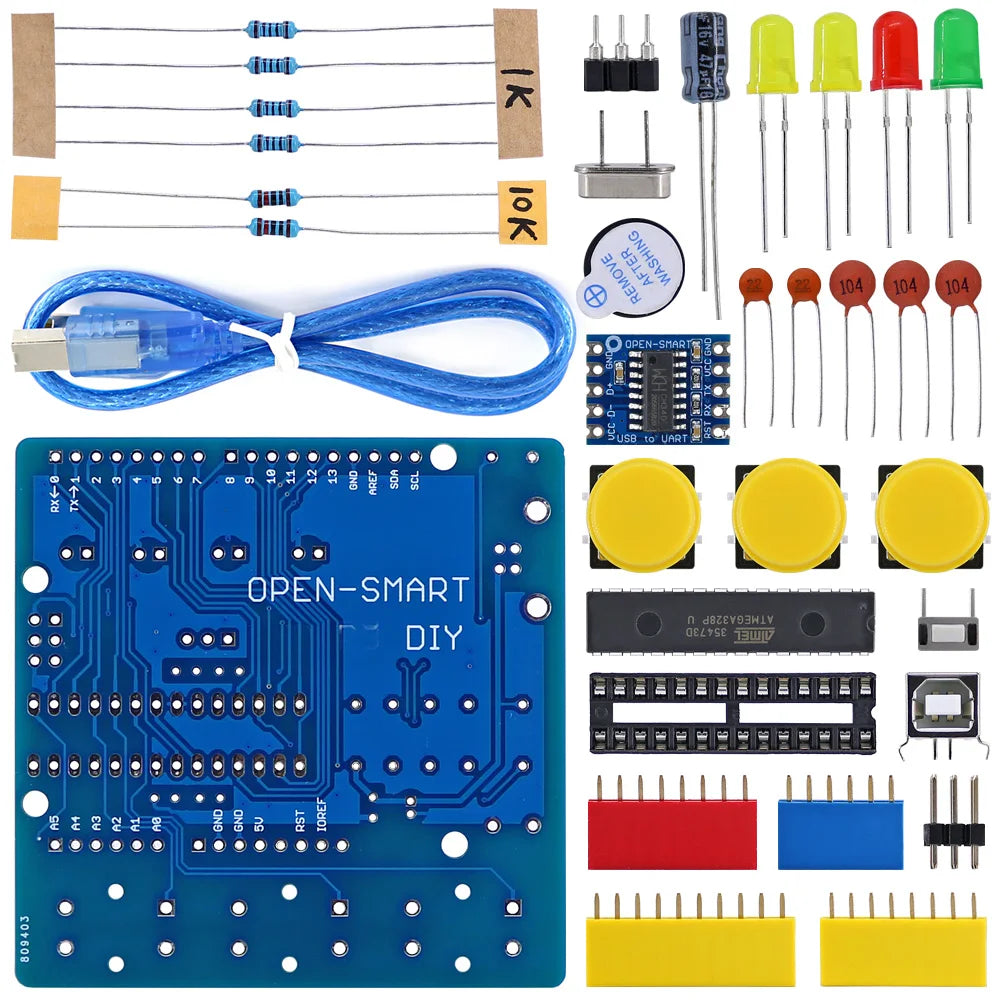

Part List ( Schematics and program can be sent , Please contact us)

4 x 1kOhm metal film resistor

2 x 10kOhm metal film resistors

1 x USB to UART module

1 x 2-pin button

2 x 22pF Ceramic capacitor

3 x 100nF ceramic capacitor

1 x 3pin Round hole pin header

1 x 28PIN DIP socket

1 x Buzzer

1 x Aluminum electrolytic capacitor 47uF

1 x 5mm Red LED

1 x 5mm Green LED

2 x 5mm Yellow LED

1 x 10pin yellow female pin header

1 x 8pin yellow female pin header

1 x 2X3P pin header

1 x 6pin blue female pin header

1 x 8pin red female pin header

1 x USB socket

3 x 4-pin buttons

1 x ATmega328P-PU

1 x HC-49S 16MHz crystal oscillator

1 x DIY PCB

1 x USB cable (50cm)
