Smart Switch RF 4in1 Remote Control 433MHz
Smart Switch RF 4in1 Remote Control 433MHz
House for sale
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Product specifications
Product specifications
Product details
Product details
SPECIFICATIONS
4-in-1 Remote Control Battery : 23A 12V (Not included)
4-in-1 Remote Control Range : Up to 50m(theoretical distance)
4-in-1 Remote Control Size : 110*38*15 mm
Amount of storage remote controls : About 15 pieces
Application Scenario : Fan, Fish tank, Light, LED, Lamps, Electric kettle, Coffee machine
Brand Name : SLMPLEFUN
Certification : RoHS,FCC,CE,CCC,ce,FCC
Choice : yes
Code : 1527 learning/2262 fixed code rf product
Controller terminal : L/N
Current : 10A
Features : Wireless remote control, mini size, multi control
Is Smart Device : No
Item Type : SWITCHES
Material : Plastic
Max Load : 2300W
Model Number : 2201M+KT2010A
Modulation Mode : ASK superheterodyne wireless reception
Origin : Mainland China
Quiescent Current : less than 5mA
RF Frequency : 433MHz
Receiver Shell : YES
Receiver Size : 1.85*1.65*0.91 in(47*42*23 mm)
Receiving Sensitivity : more than 97dbm
Switch Type : Push Button Switch
Switch Working Voltage : AC 85~240 V 50/60 HZ
Warranty : 1 Year
Working Temperature : -30~+80 Celsius
semi_Choice : yes
NOTE
●Alibaba standard logistics free shipping, faster delivery.

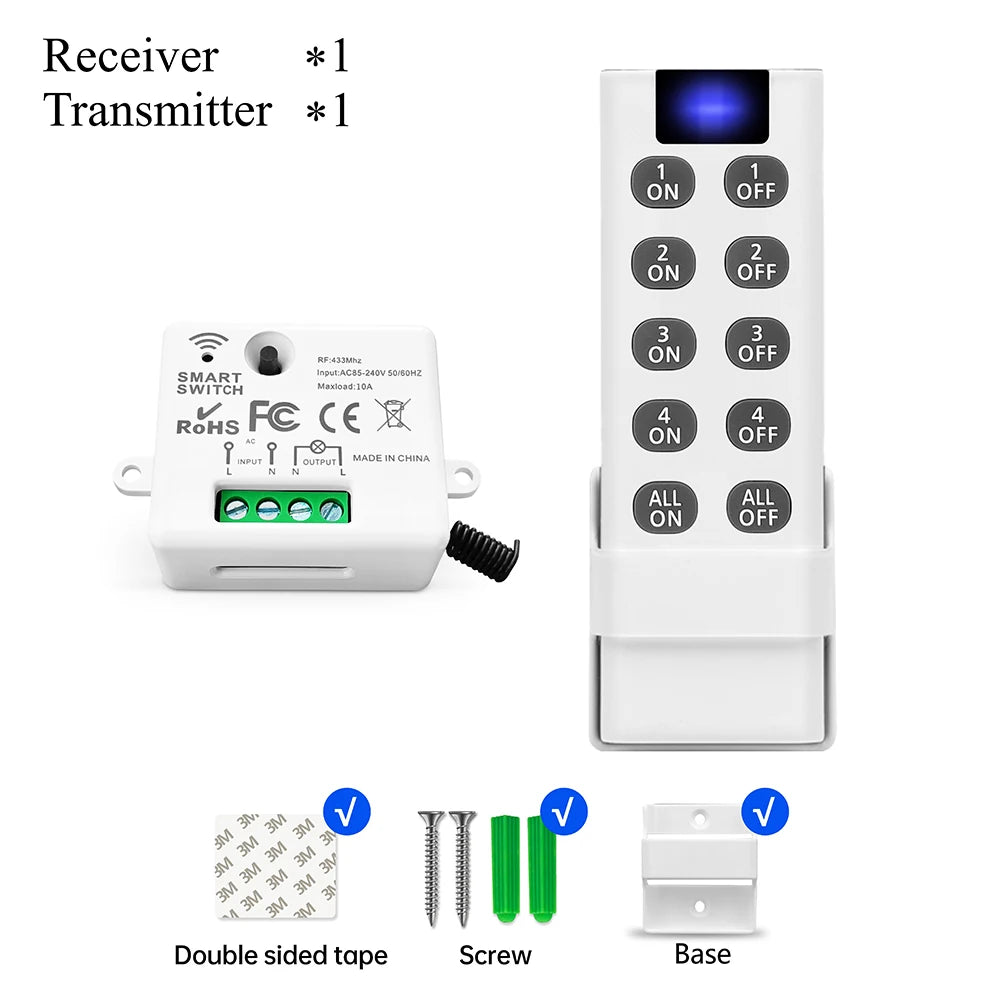

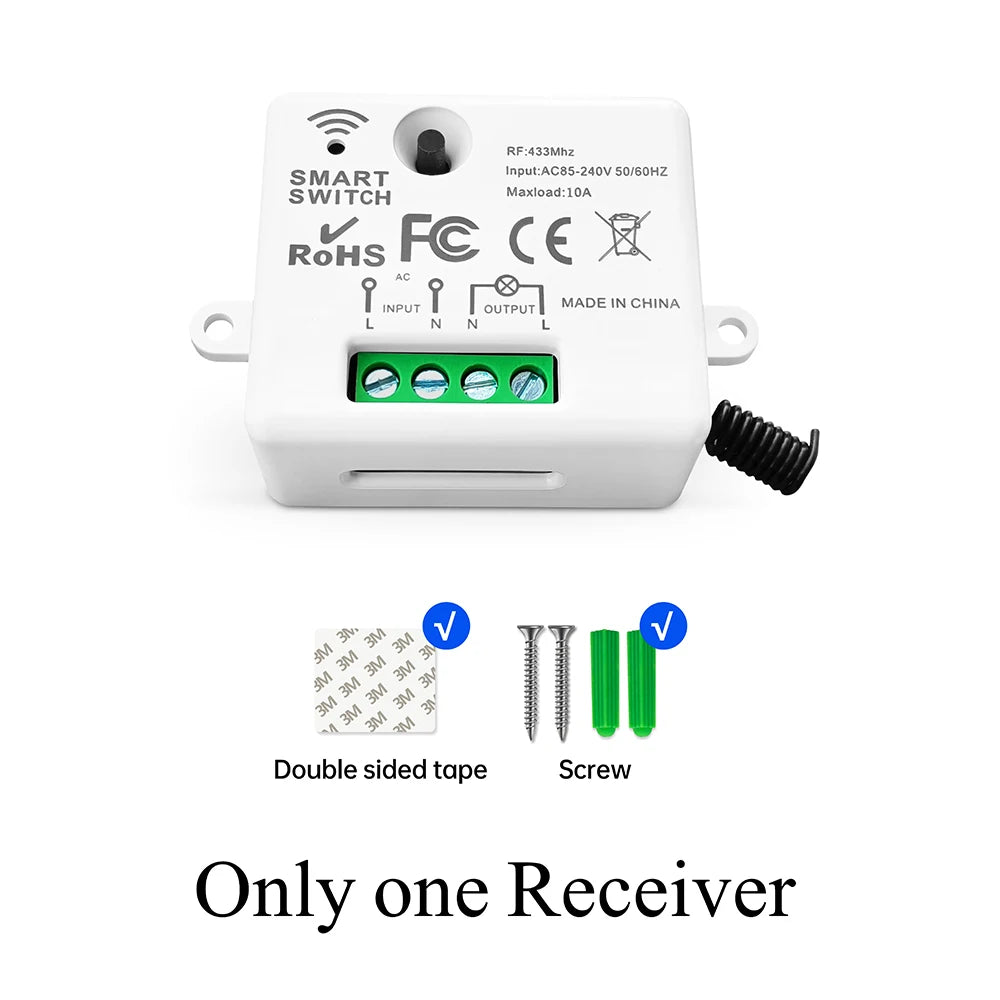

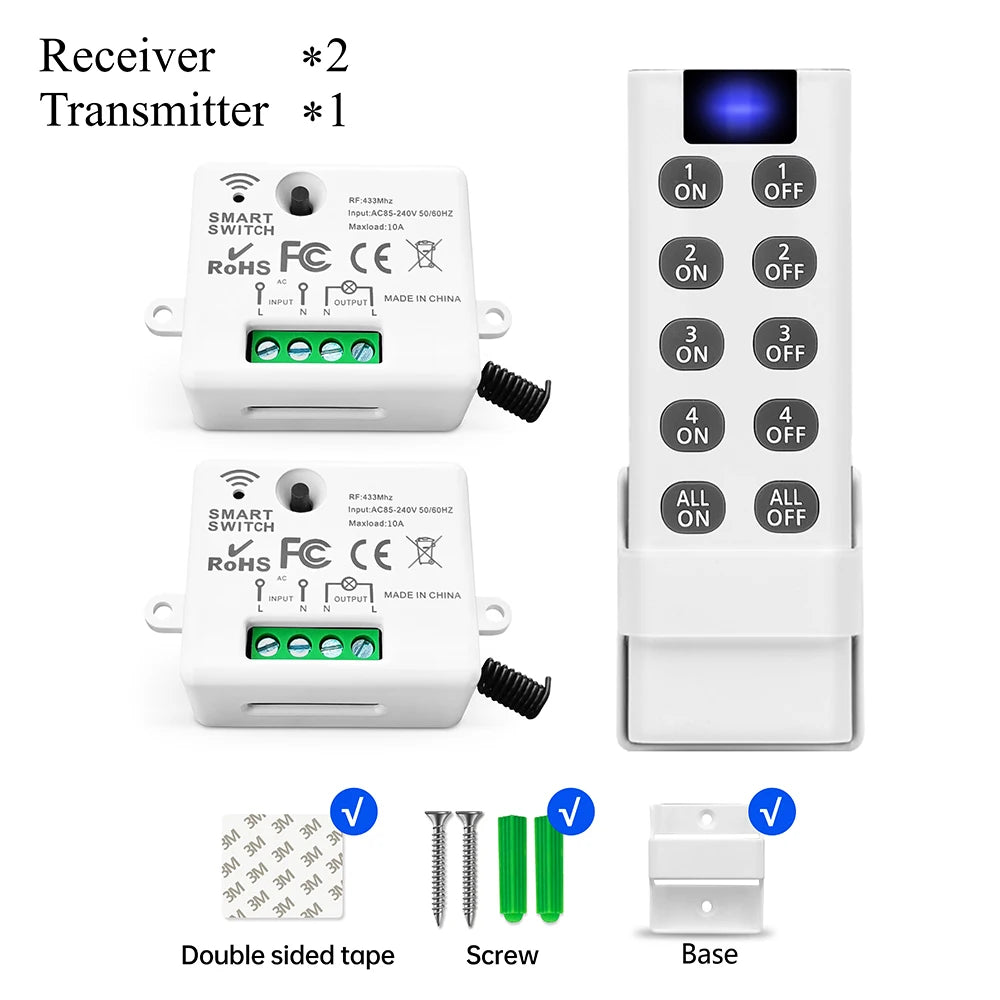

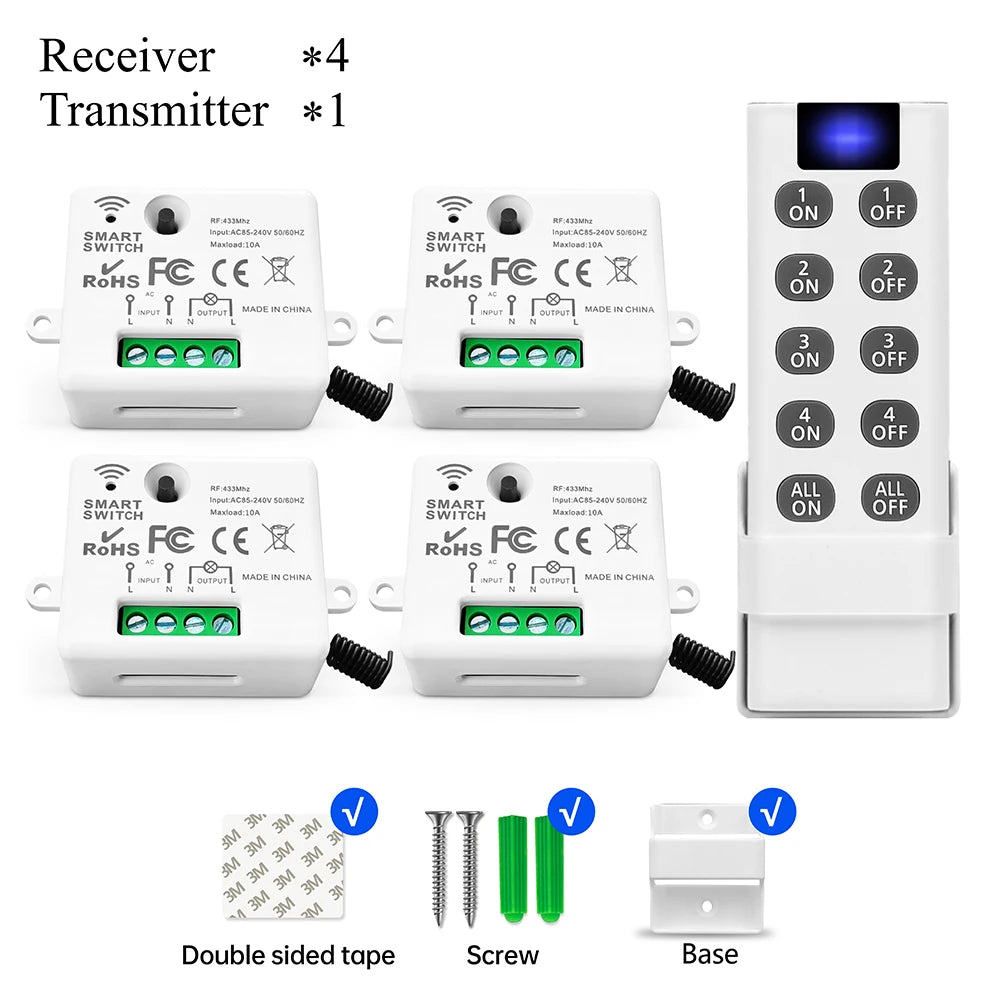

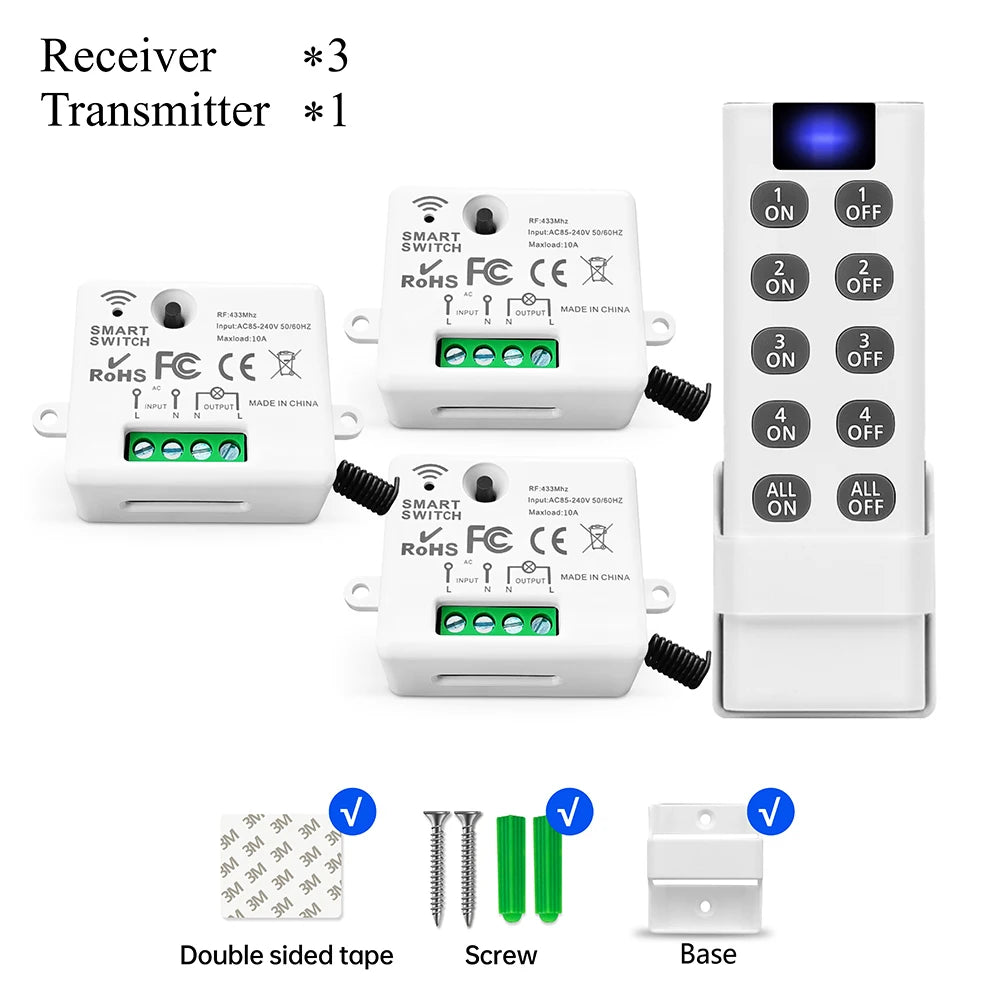

●Hello, friend, thank you for visiting our store. In order to meet the needs of different customers, our purchase page has multiple options to choose from. We provide: 1 receiver + 1 remote control, 2 receivers + 1 remote control, 3 Receiver + 1 remote control, 4 receivers + 1 remote control, single receiver, single remote control, a total of 6 options, please buy according to your own needs, thank you.
RF Wireless Smart Light Switch 433MHz 110V 220V Mini Relay Receiver Module ,4-in-1 Remote Control,For Led Light Lamp Fan ON/OFF
Product Advantages
▶Mini Body

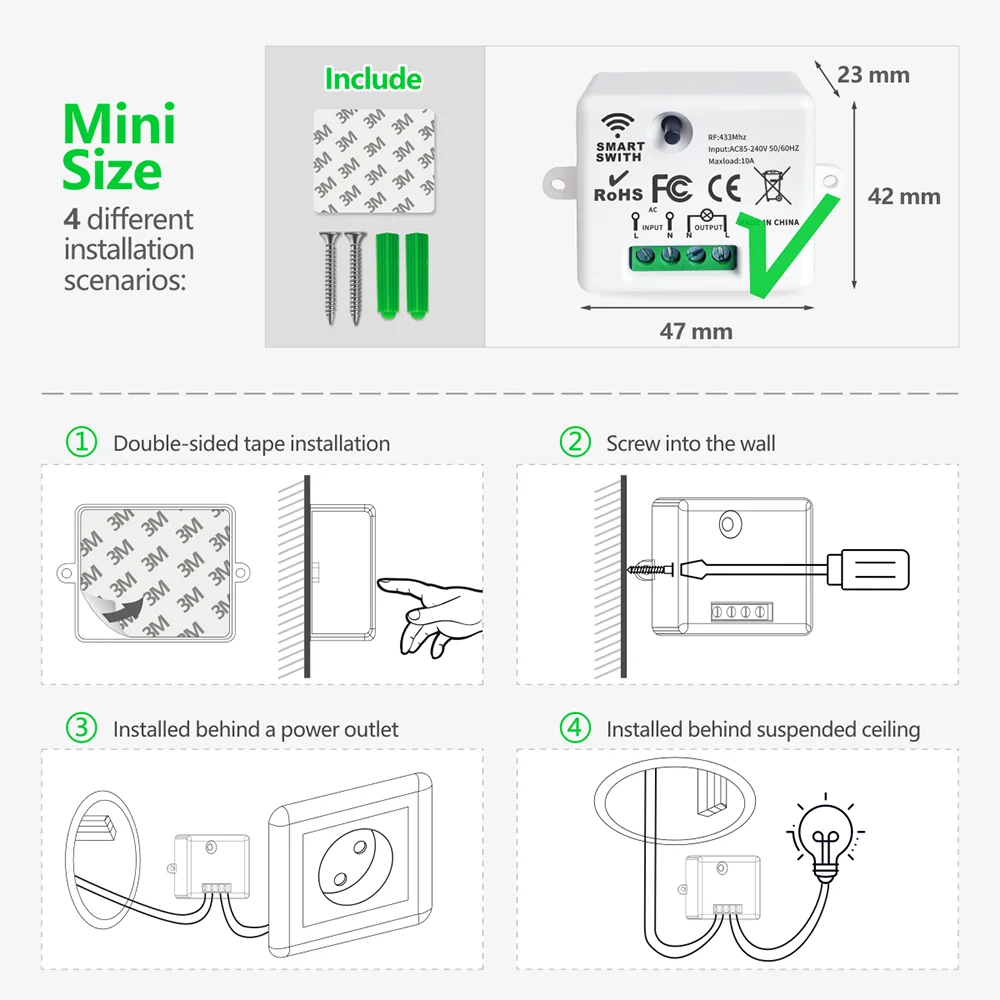

The receiver has 4 different installation scenarios(The product comes with screws and double-sided tape).
Work with most of approximating boxes and wall sockets.
▶High Quality Chips. Support High Power.
High-quality chips, support more electrical appliances, more usage scenarios, and safer to use.
▶RF433MHz Wireless Remote Control
Control lights, fans and other electrical appliances with your RF433Mhz remote without a network,
Smarter than traditional control,Simpler and suitable for the elderly.
▶4-in-1 RF Remote Controller
Simple and efficient, no need to buy multiple remote controls, which can save money and be convenient.(Product comes with base)
▶Long Remote Control Distance
The signal can pass through the wall, and the remote control distance can reach 50 meters.
▶Supports Multiple Remotes
One receiver supports about 15 remote controllers,The device can then be turned on and off in multiple locations for convenience and power savings.
▶Comprehensive after-sales and service
Our after-sales service team can provide the most professional solution to any of your problems.
Alibaba standard logistics, fast, traceable logistics information
Features

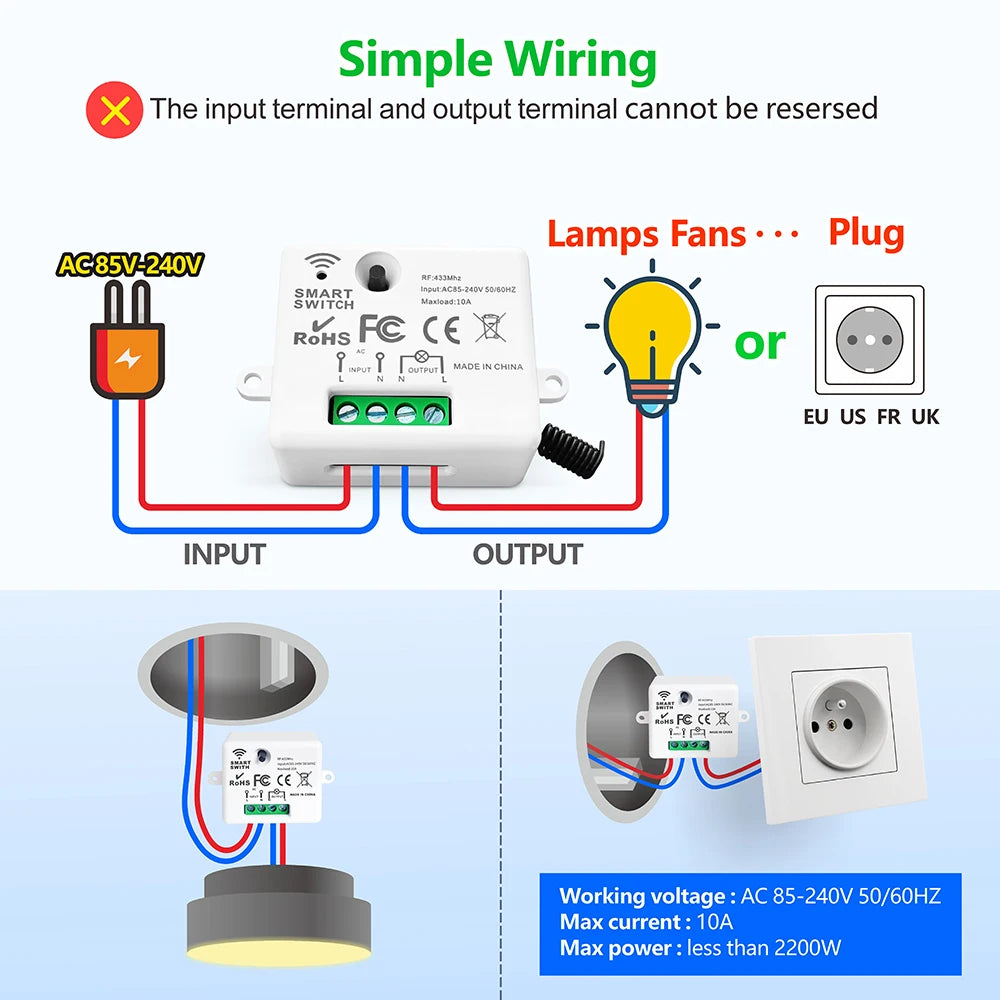

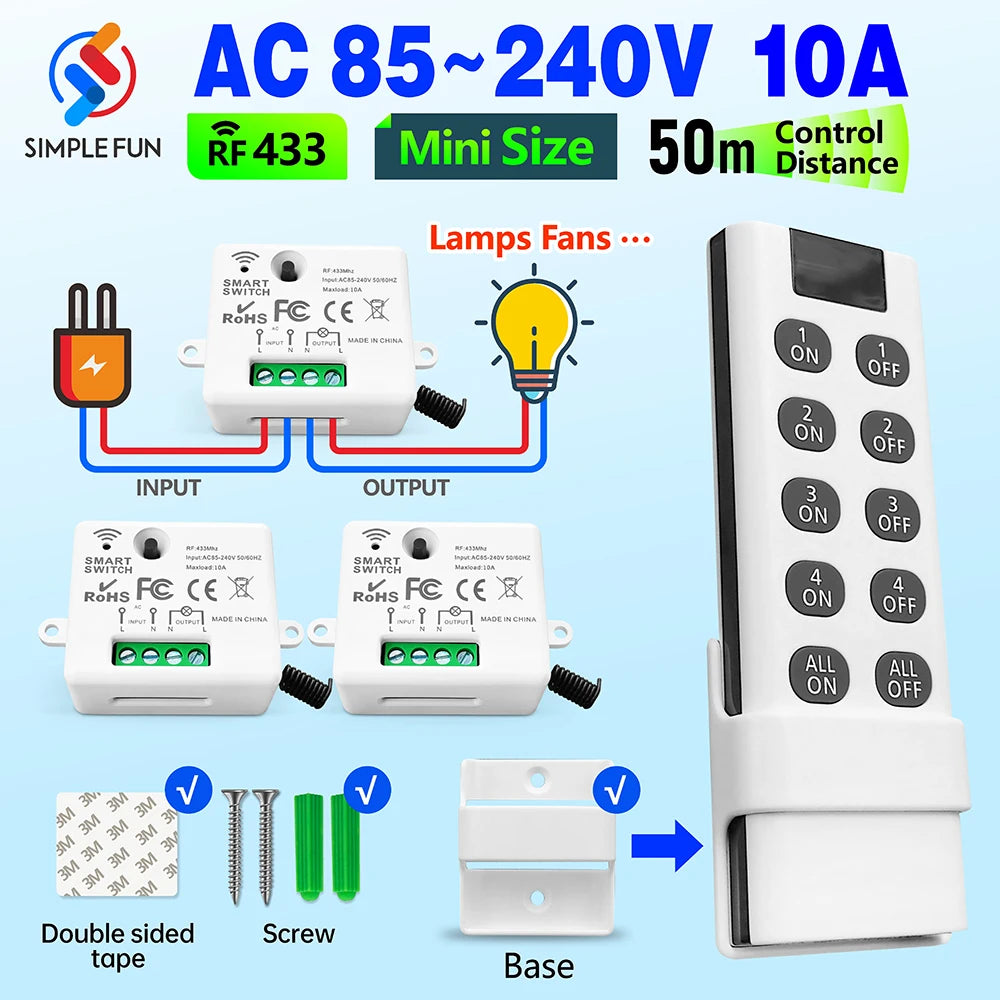

▼Simple Wiring and Mini Body▼
●Supports Multiple Remotes
One receiver supports about 15 remote controllers,The device can then be turned on and off in multiple locations for convenience and power savings.
●Long Remote Control Distance
The stable and real remote control distance of 50 meters is suitable for a variety of scenarios.
● 4-in-1 RF Remote Controller
1. Simple and efficient, no need to buy multiple remote controls, which can save money and be convenient.

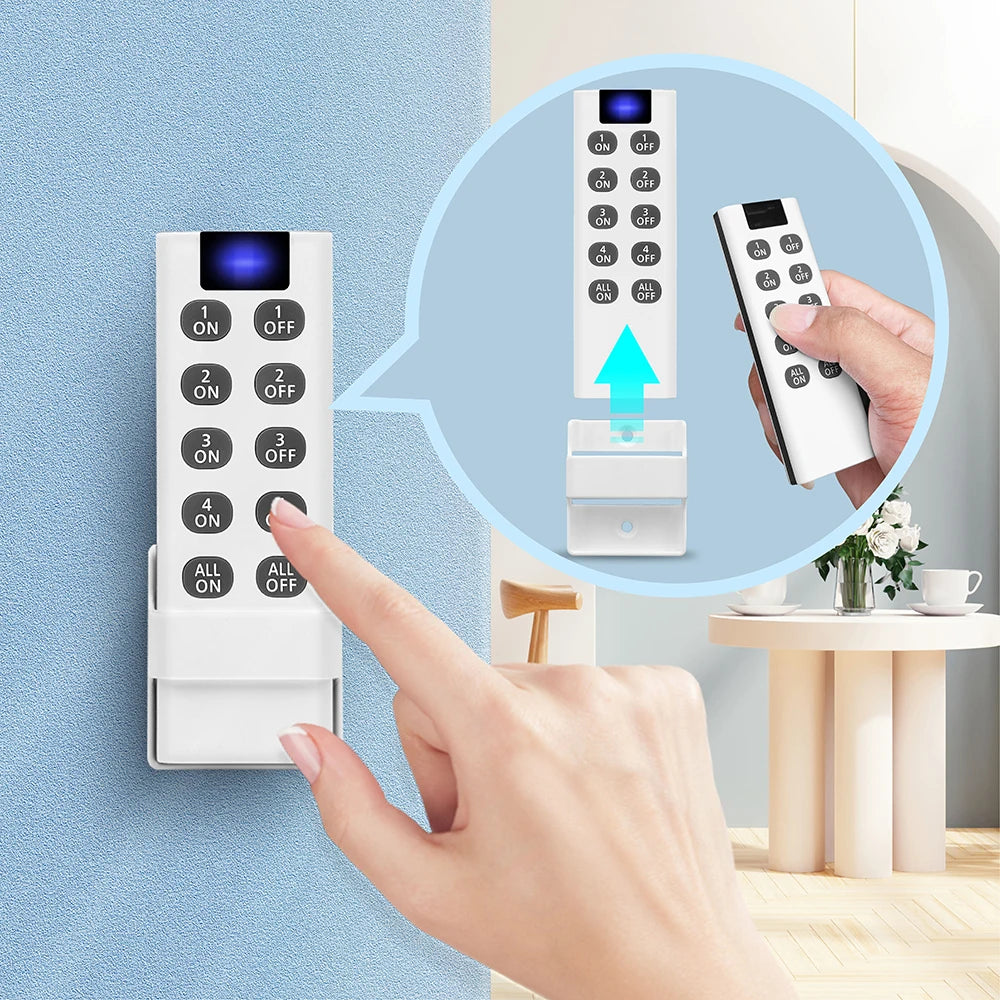

2. Product comes with base, it can be installed anywhere.The remote control can be removed from the base.

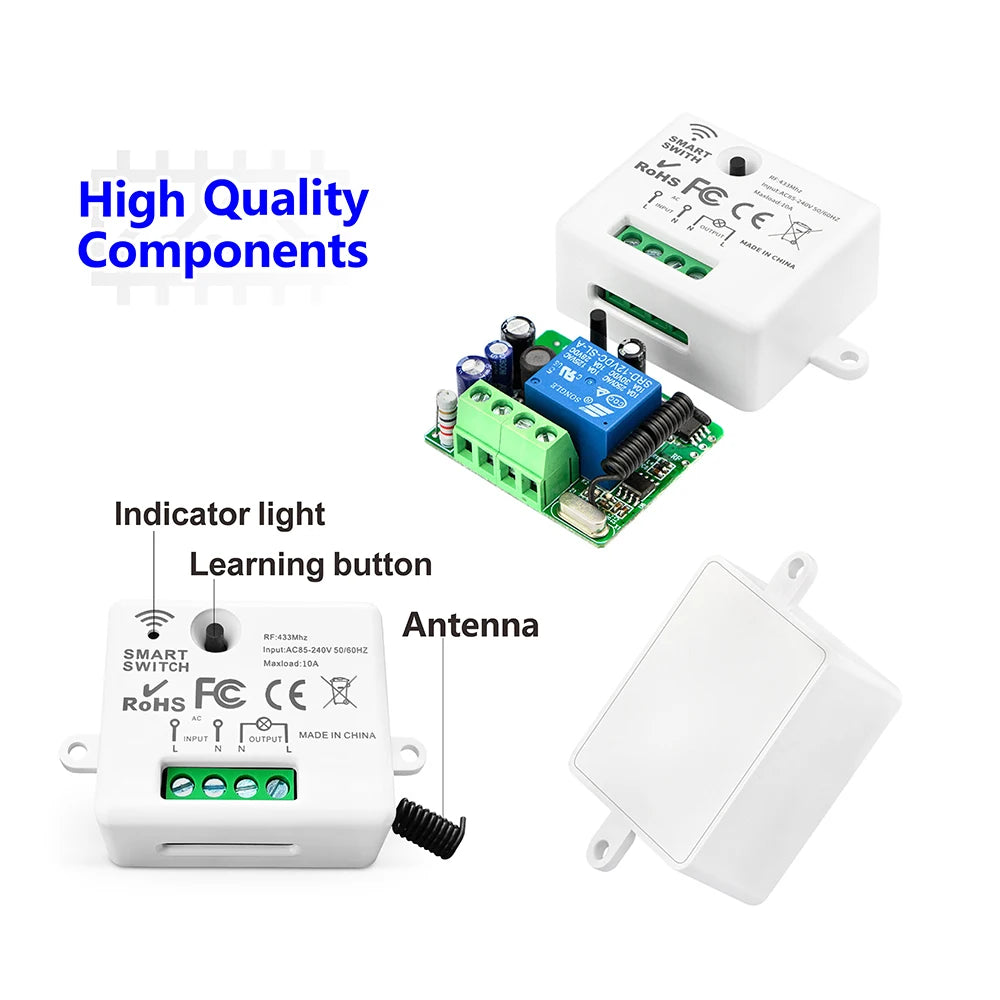

▼High Quality Chips. Support High Power▼
High-quality chips, support more electrical appliances, more usage scenarios, and safer to use.
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control Electric Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission,
Remote control humidifiers, microwaves, coffee machines.
Parameter

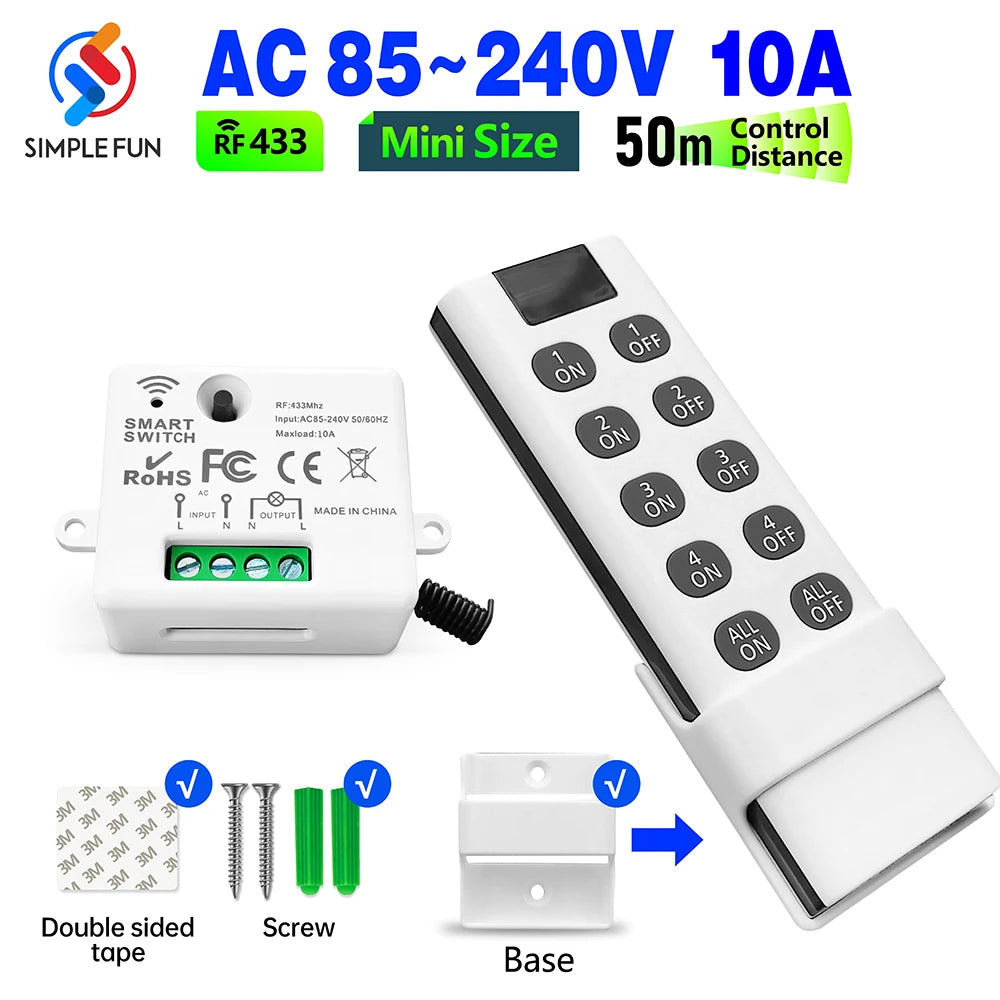

Mini Smart Switch Parameters :
Working voltage: AC 85-240V 50/60HZ.
Max current :10A.
Max power: less than 2300W.
RF Frequency: 433MHz.
Receiving Distance : up to 50m
Code: 1527 learning or 2262 fixed.

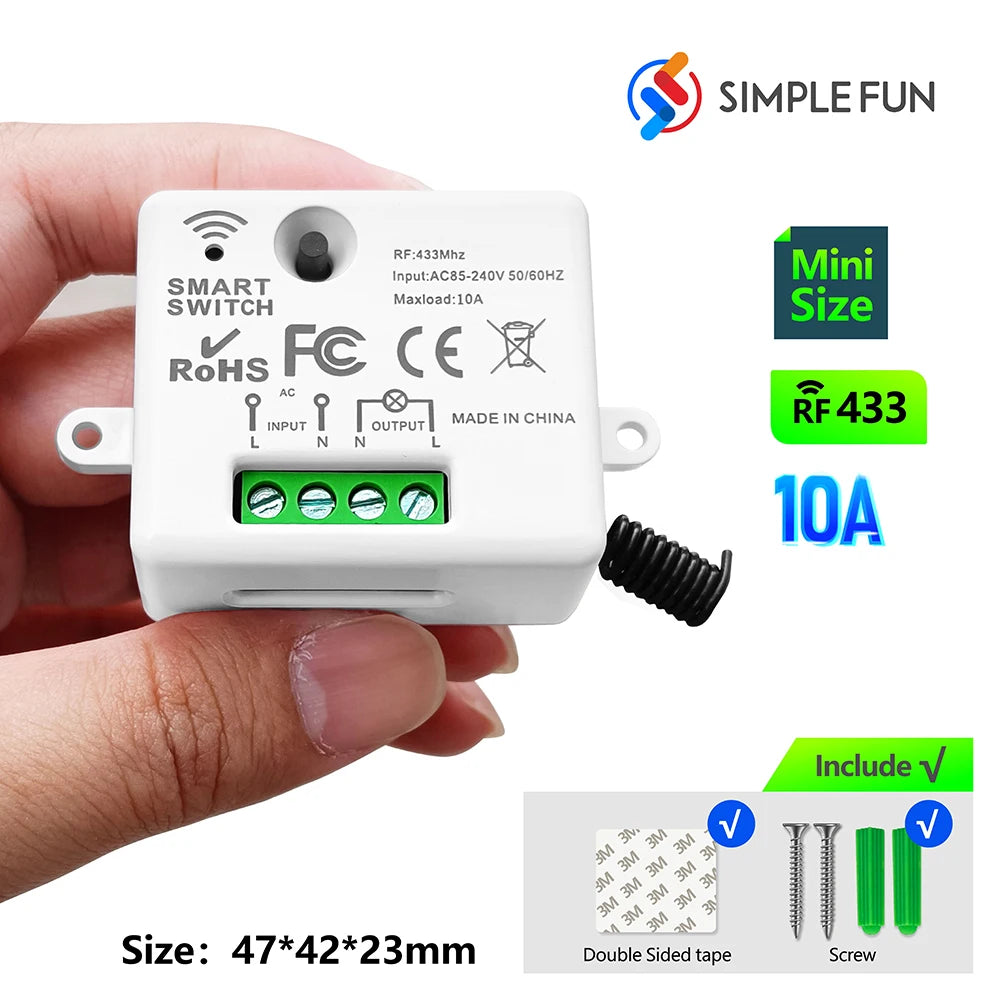

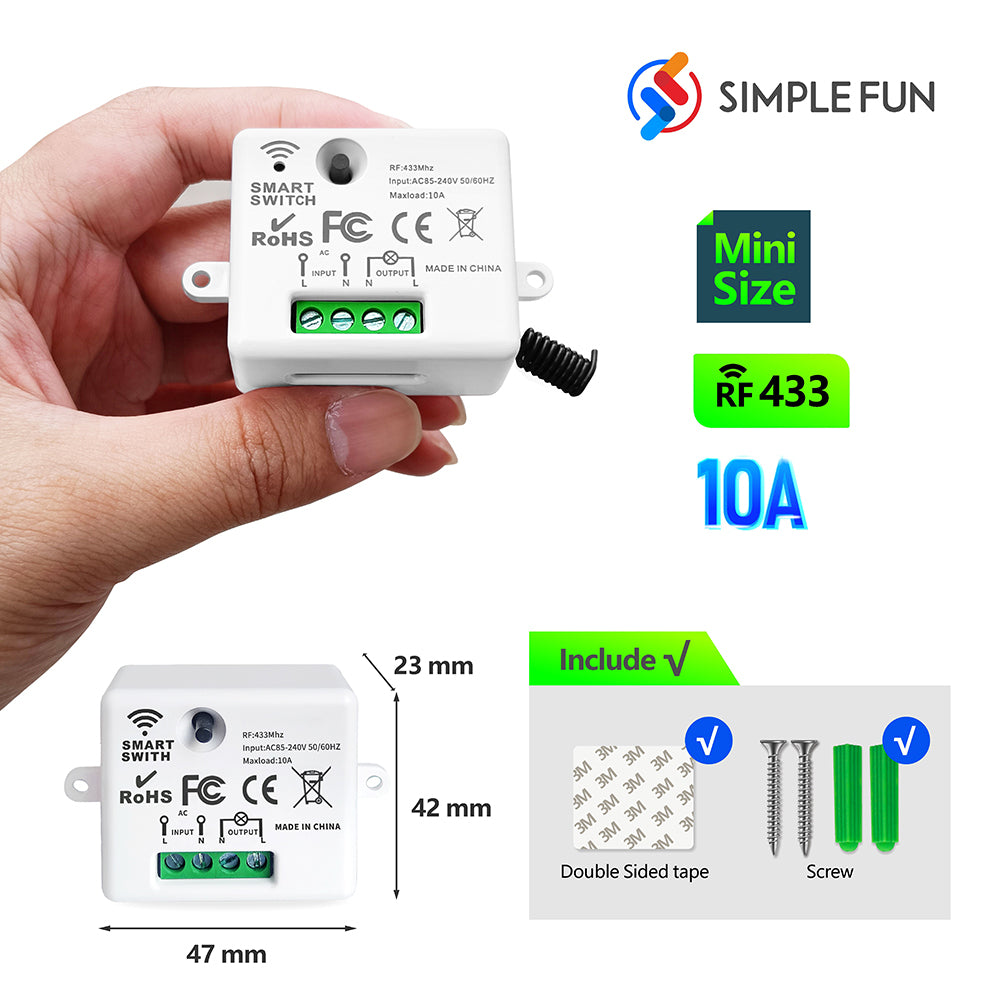

Size: 42*47*23 mm.
Work with remote : Can be controlled by 15pcs remotes.
Appliance: LED,Lamp,Ceiling Light,Crystal Light,Wall lamp,floor lamp,etc.

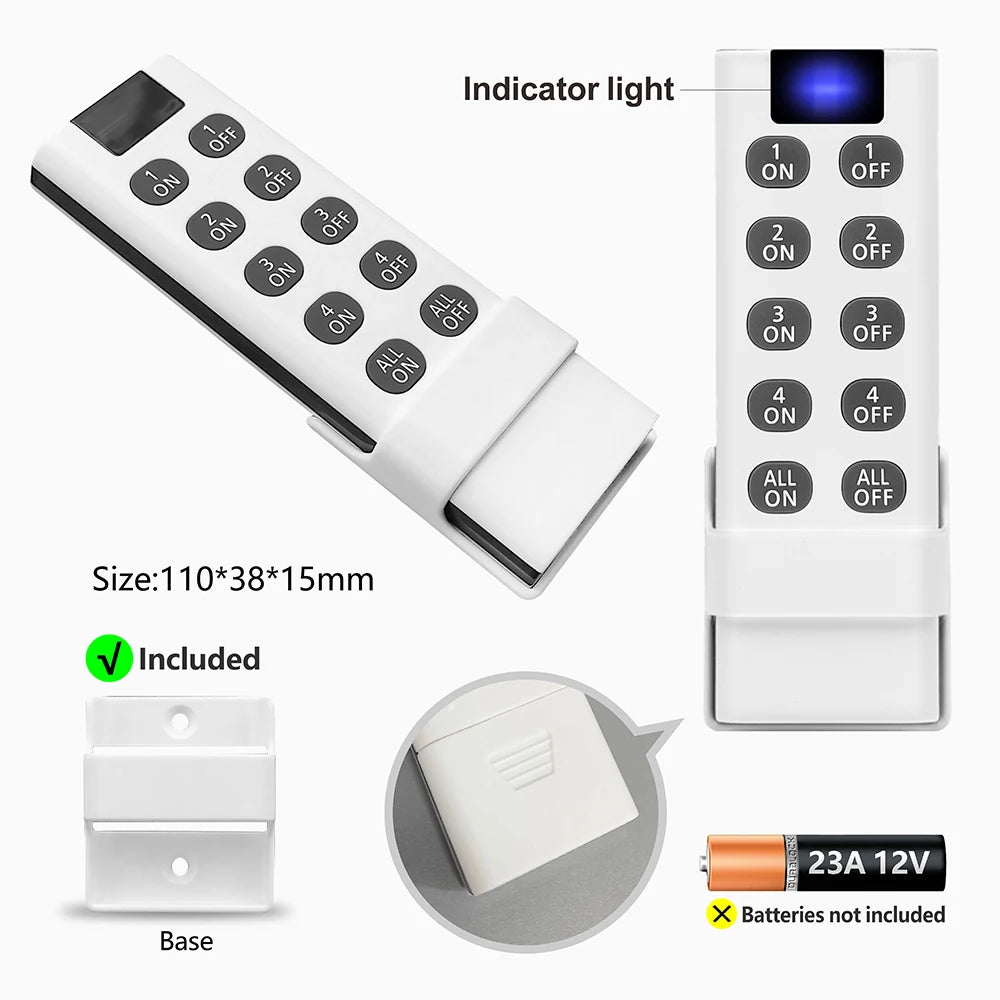

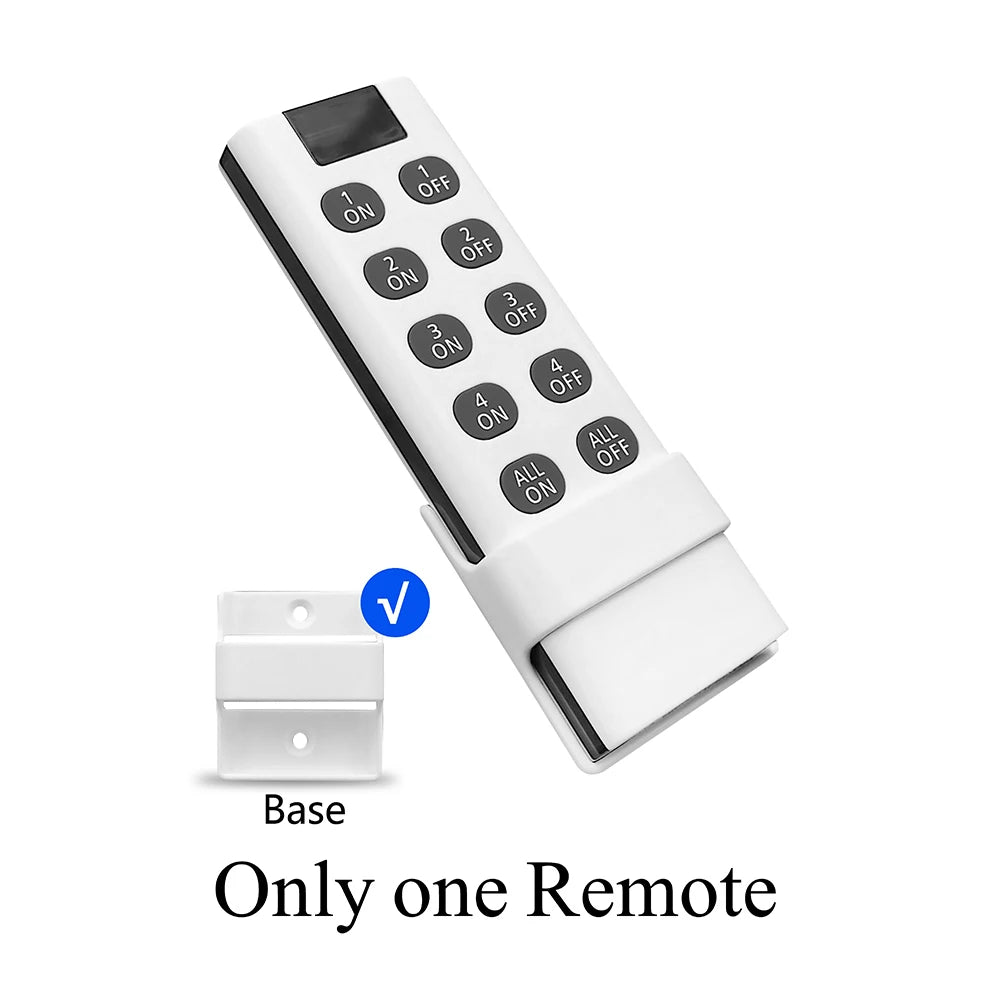

4-in-1 RF Remote Parameters:
Battery :23A 12V (Not included).
Code :1527 learning code.
Frequency: 433MHz.
Material :Plastic.
Size: 110*38*15 mm.
Feature :come with base

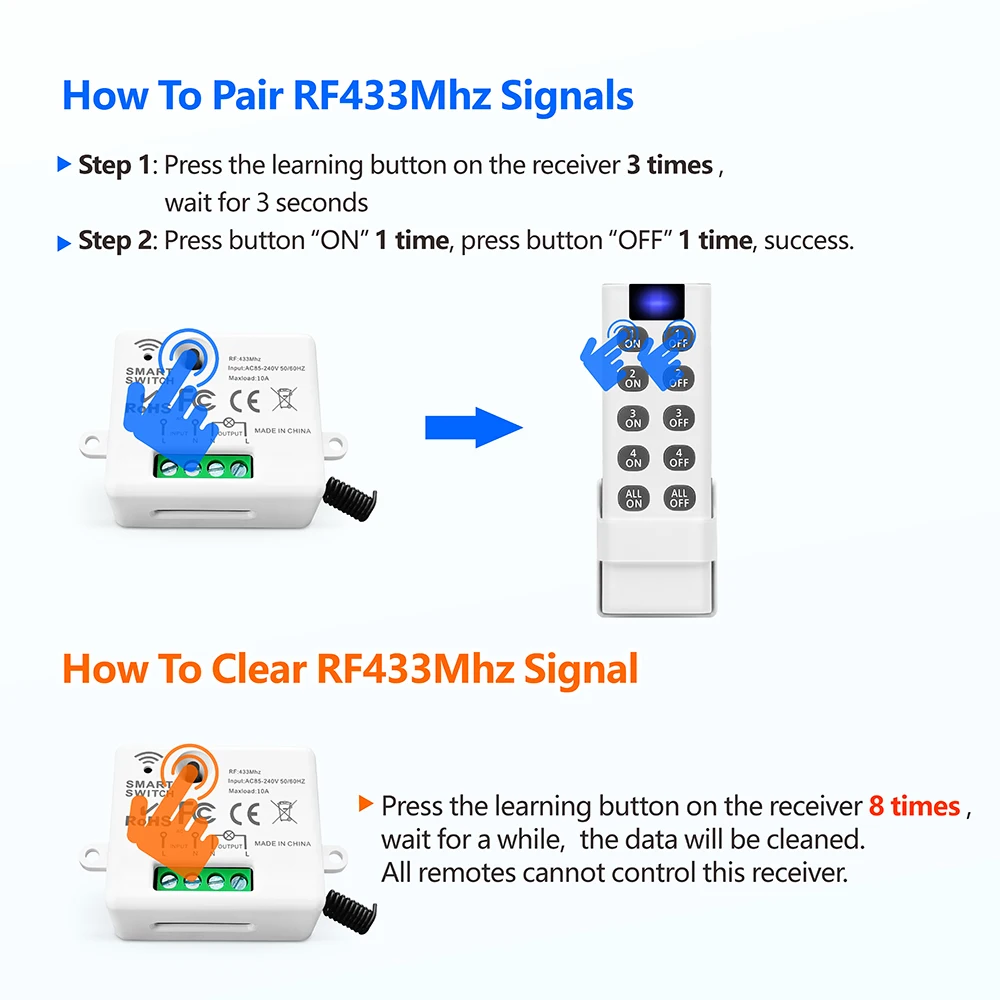

Signal pairing and clearing
How To Pair RF 433Mhz Signals
Step 1: Press the learning button on the receiver3 times.
Step 2: Press button "ON"1 time , press button "OFF"1 time, success.
How To Clear RF 433Mhz Signal
Press the learning button on the receiver 8 times , wait for a while, the data will be cleaned. All remotes cannot control this receiver.
▶Please contact us if you have any questions.Thank you.
▶We have our own factory, if you want to do ODM OEM business, please contact us.
