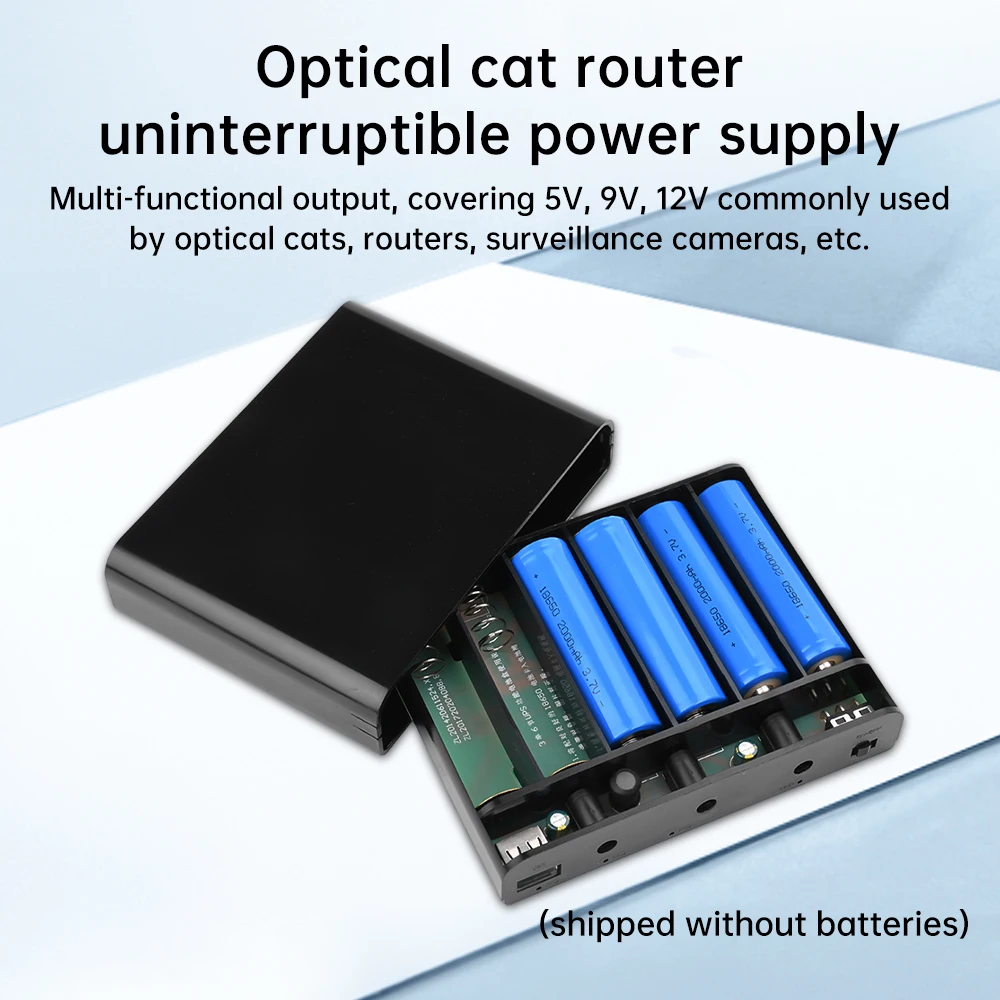

Self-Assembling UPS Battery Box 6x18650 Multi-Voltage
Self-Assembling UPS Battery Box 6x18650 Multi-Voltage
House for sale
Couldn't load pickup availability
Special Offers
Get $20 off when you spend $1,000 or more! Learn more
Product specifications
Product specifications
Product details
Product details
SPECIFICATIONS
Brand Name : DIY NOW
Choice : yes
Condition : New
High-concerned chemical : None
Origin : Mainland China
Type : Module
semi_Choice : yes
Product parameters:
Battery capacity that can be installed: 6*3.7V*3400mah=74 watt-hours (battery provided by the user)

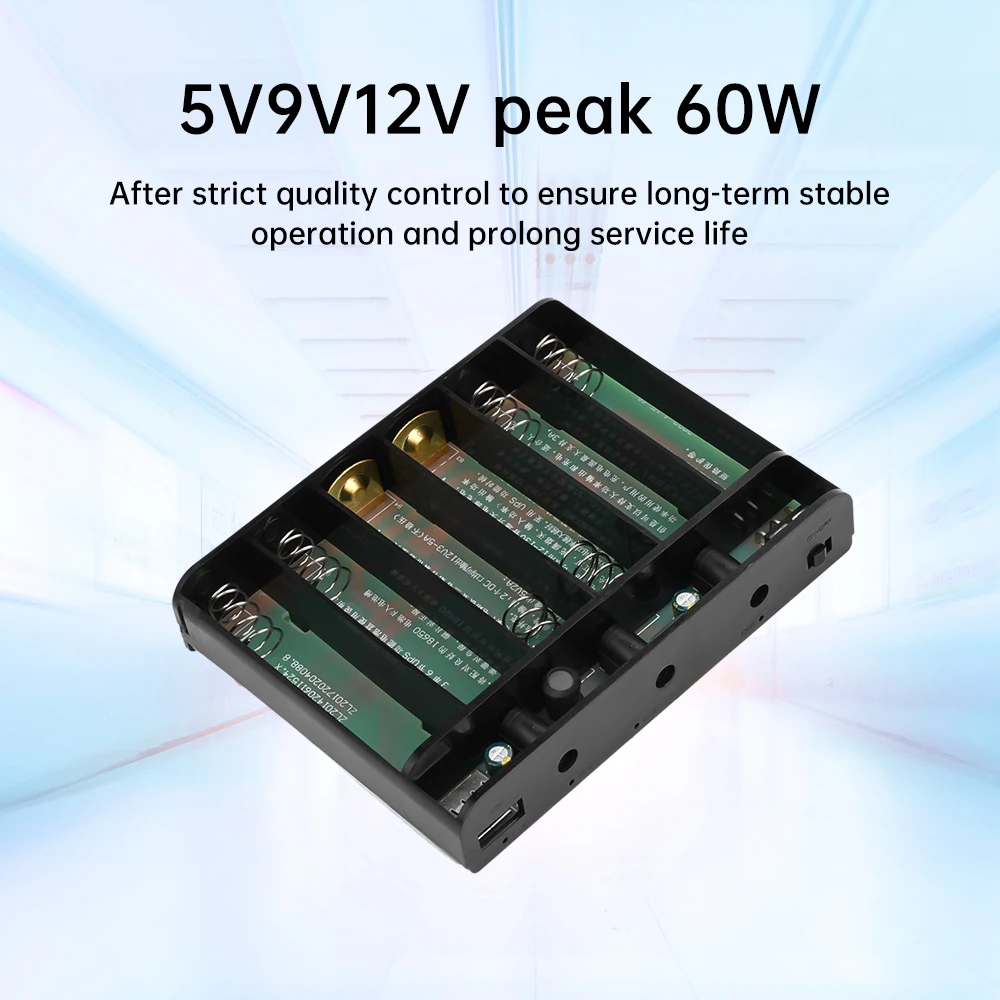

Rated output power: 12V5A=60W; the actual output power comes from the output power of the battery itself

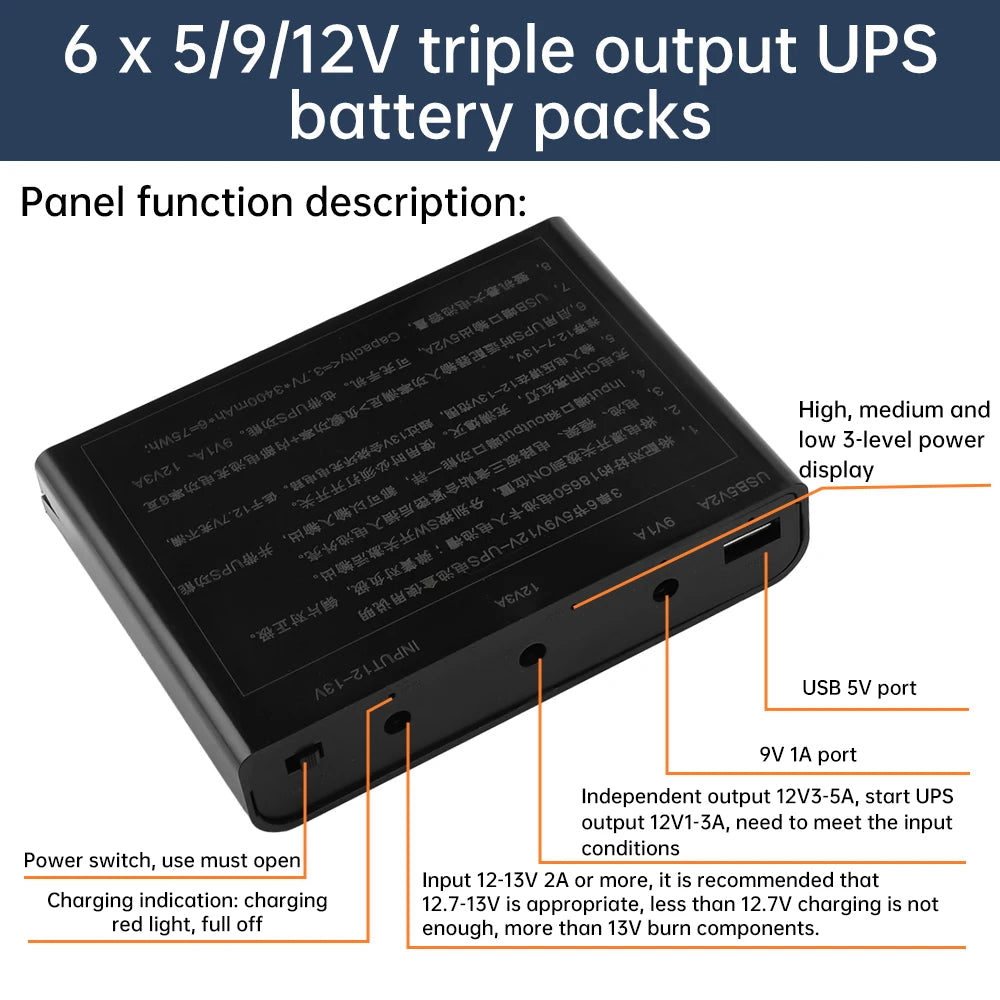

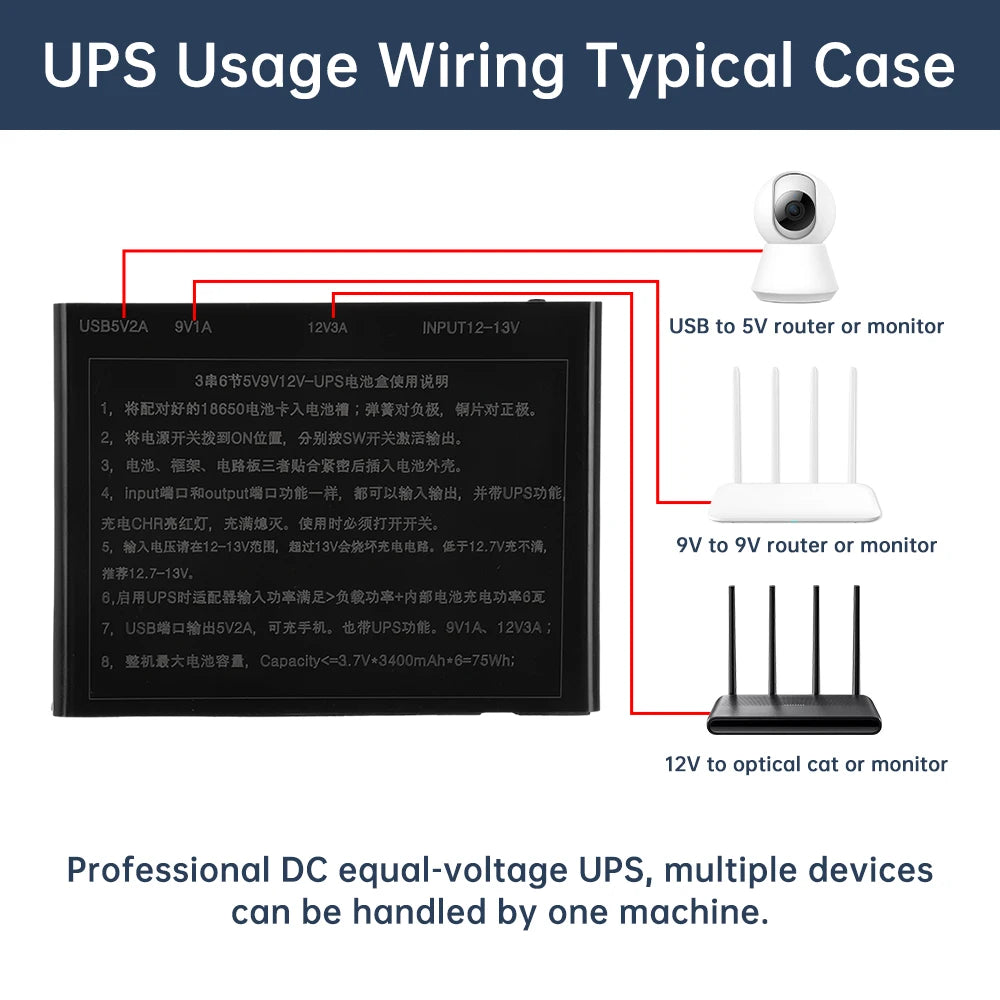

Output voltage: independent output 12V3-5A; 9V1A; USB5V2-3A; Enabling the UPS function requires meeting the input power conditions
The product is not stable, the power The battery is directly output in series, and the voltage increases or decreases with the power
Applicable to high-power electrical appliances that do not require voltage regulation, motors, LED lights, audio, solenoid valves, printers, etc.
Applicable batteries: 3.7V cylindrical flat head 18650 battery (recommended power battery)
Charger type: internal charging current limiting circuit, can be charged with a 12-13V adapter. When UPS is used, the greater the input power, the more stable it is
Charging power: input adapter power meets >= total load power + battery charging power 6W
Overcharge protection: 4.25V*3
Low voltage protection: 2.75V*3
Overcurrent detection voltage: 0.1V+-0.025V
Temperature range: -20~60℃

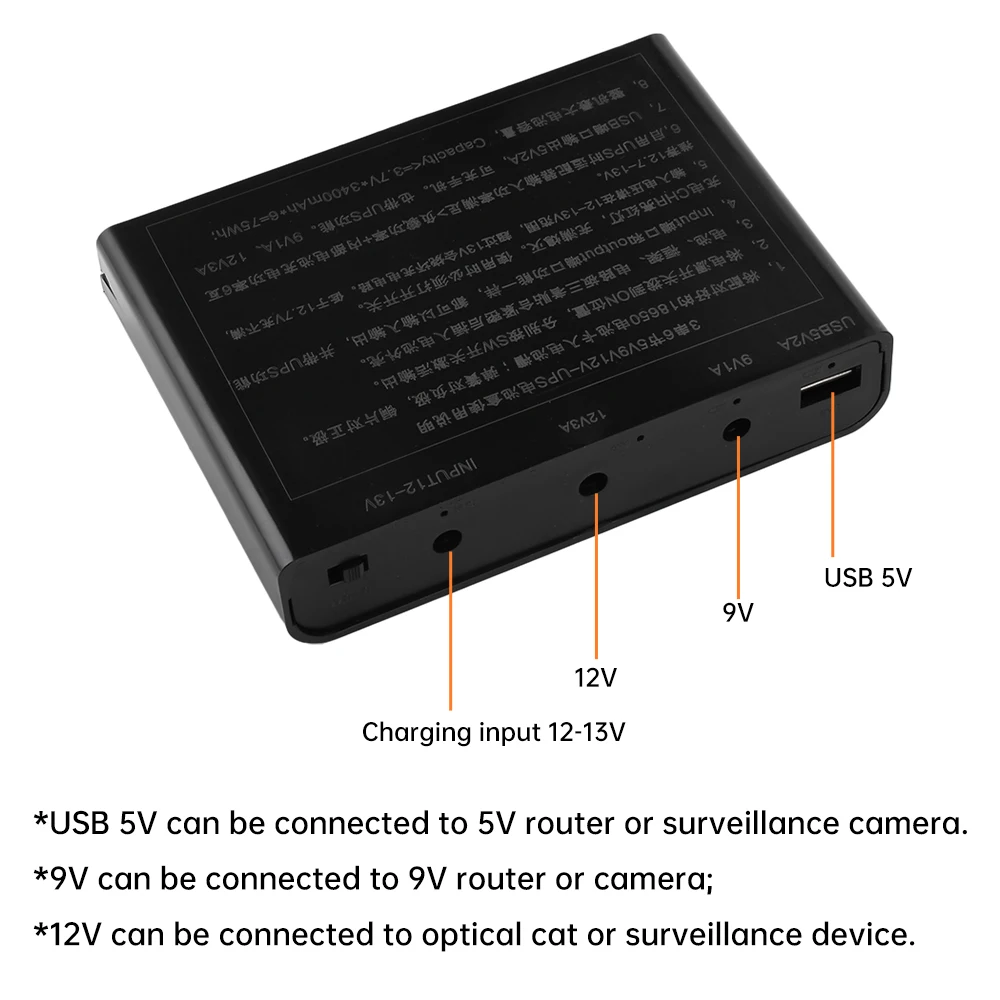

DC interface standard: DC5.5*2.1mm (positive inside and negative outside)

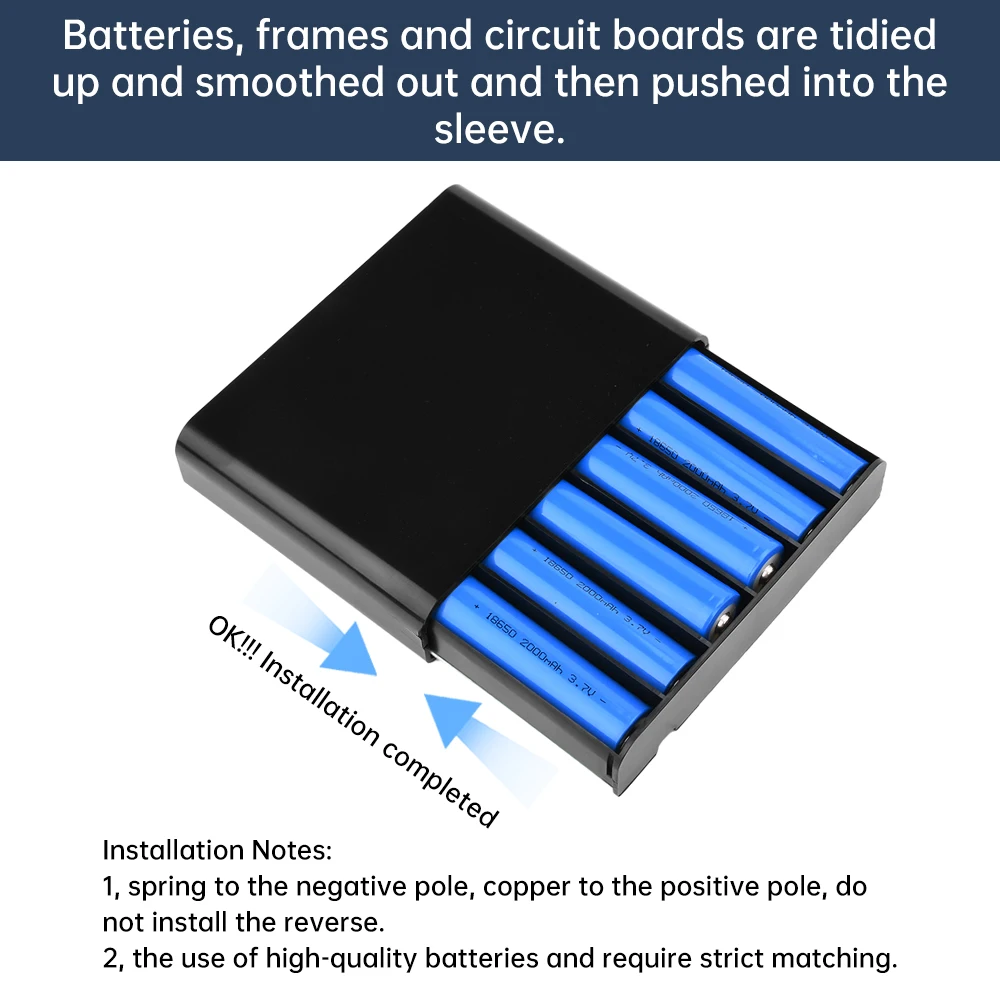

Precautions:

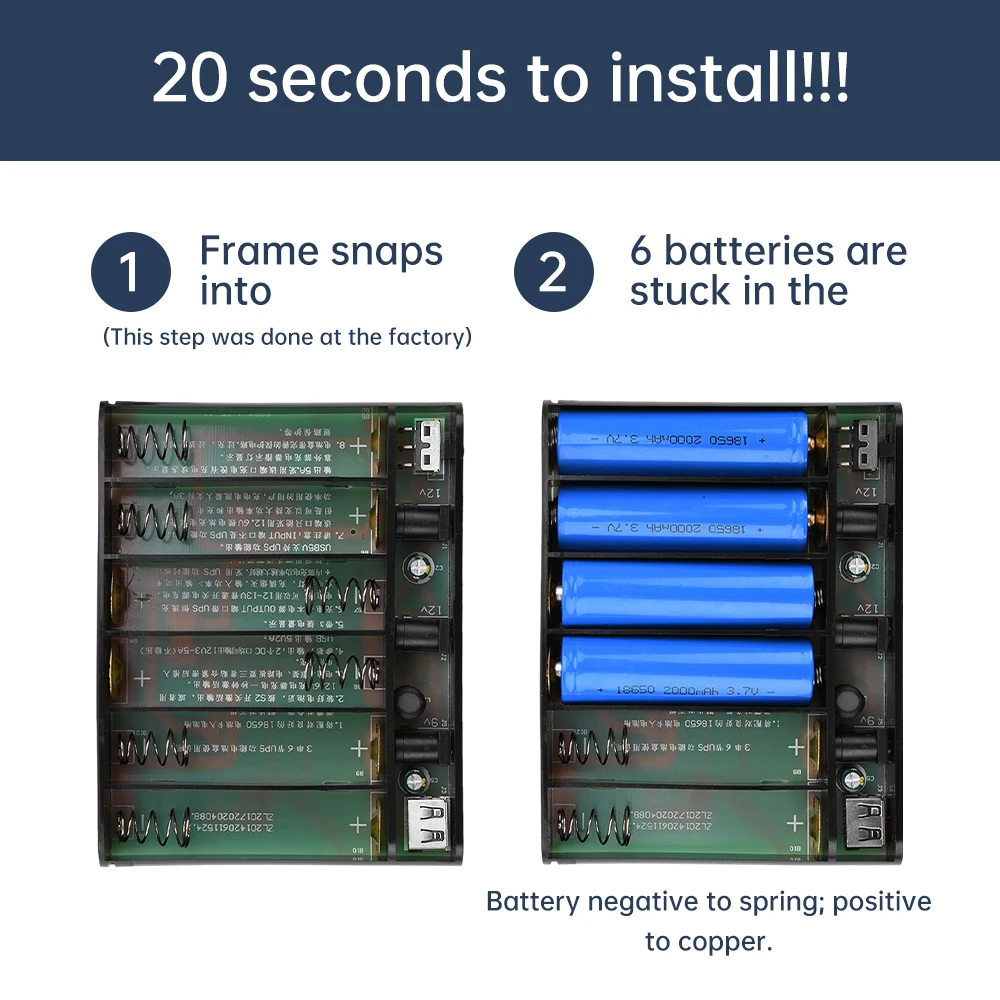

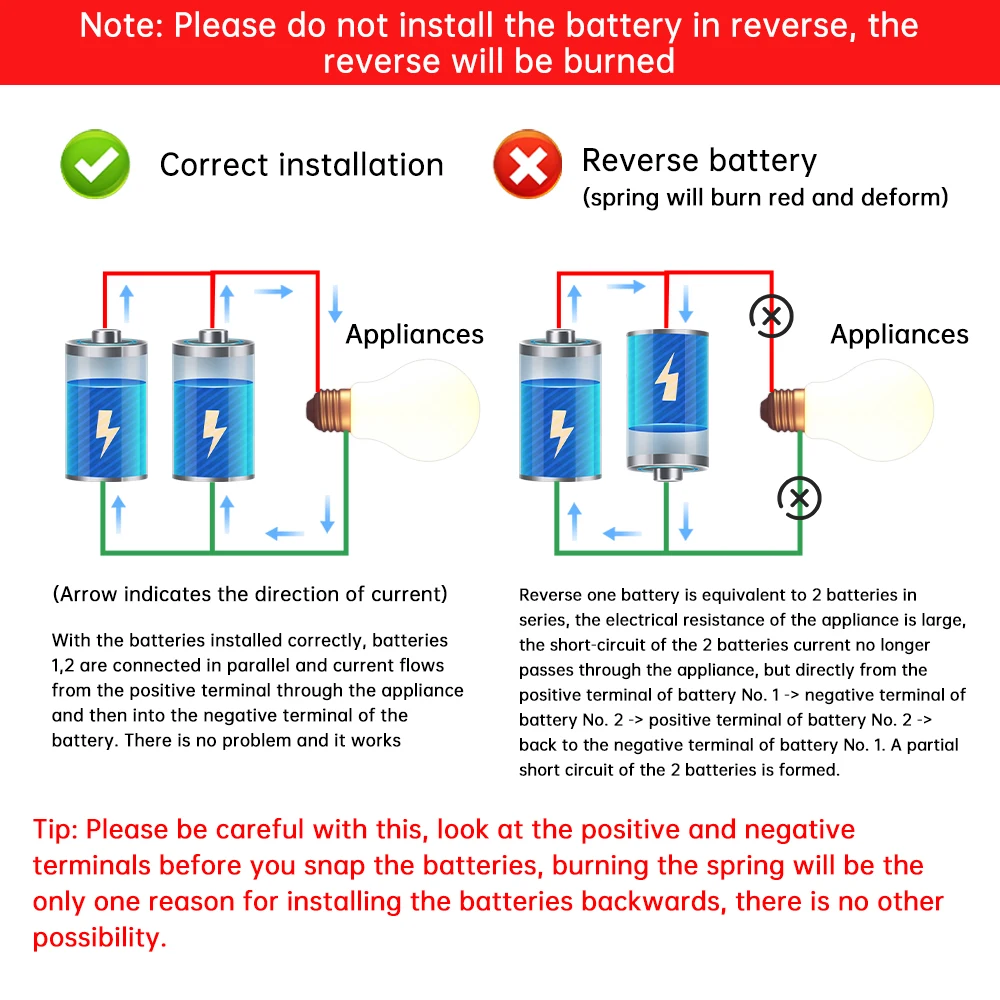

1. Spring to negative pole, copper sheet to positive pole, do not install it in reverse, it will burn if installed in reverse! ! !

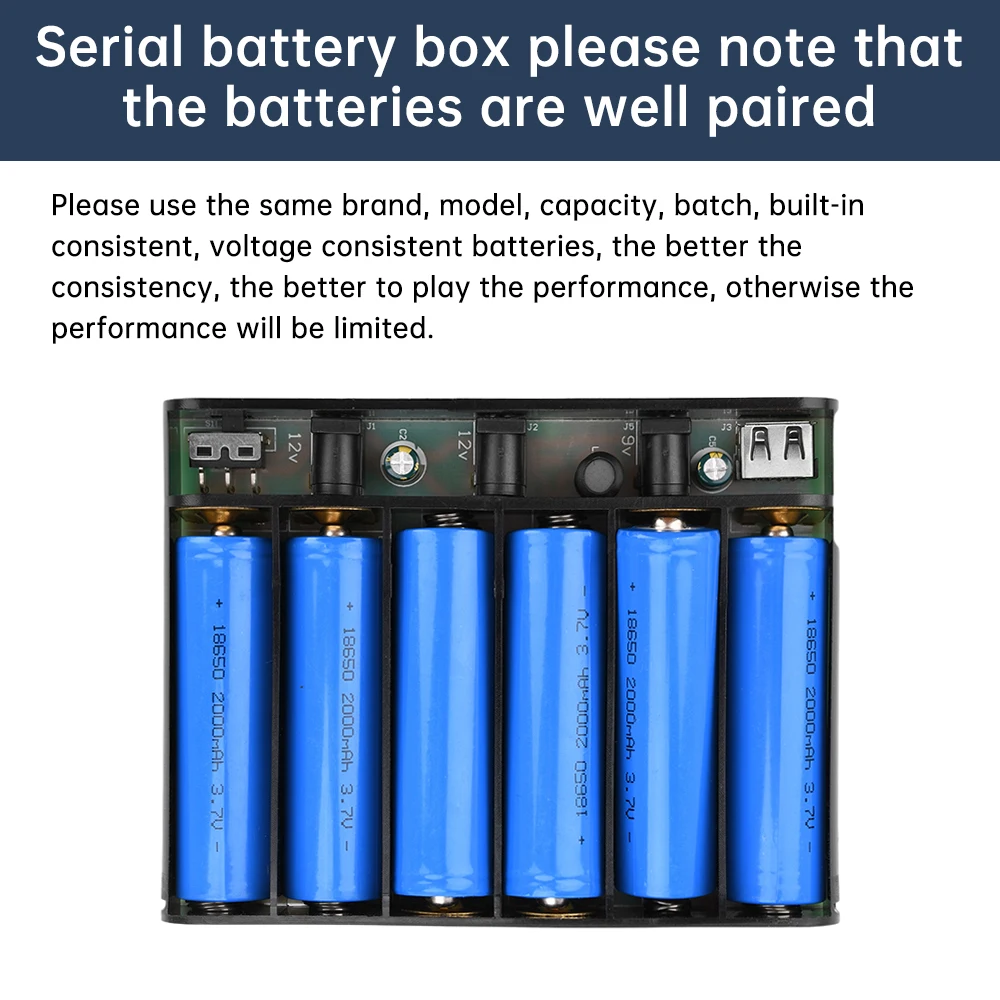

2. Use high-quality batteries and require strict pairing. The parameters of each single battery in the battery pack should be as consistent as possible.
3. This product can only use flat-head 18650 batteries. Pointed batteries longer than 2MM cannot be used.

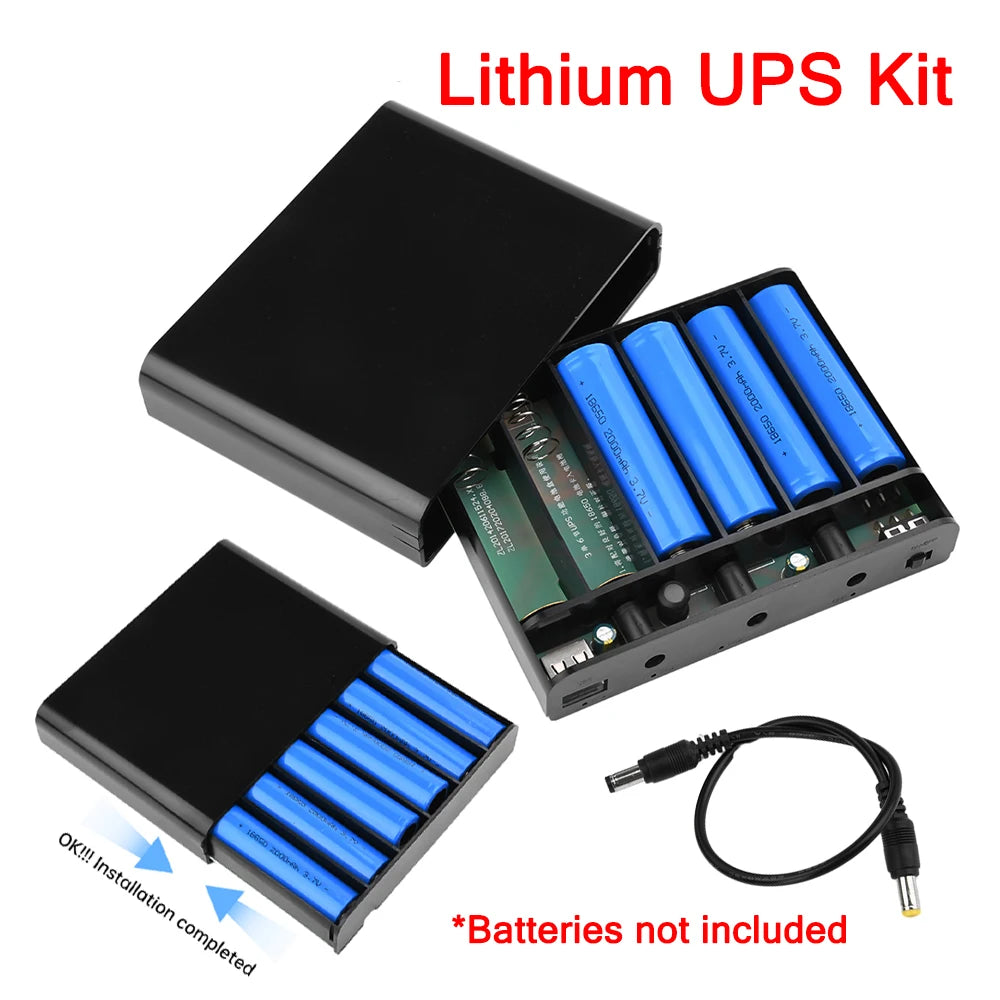

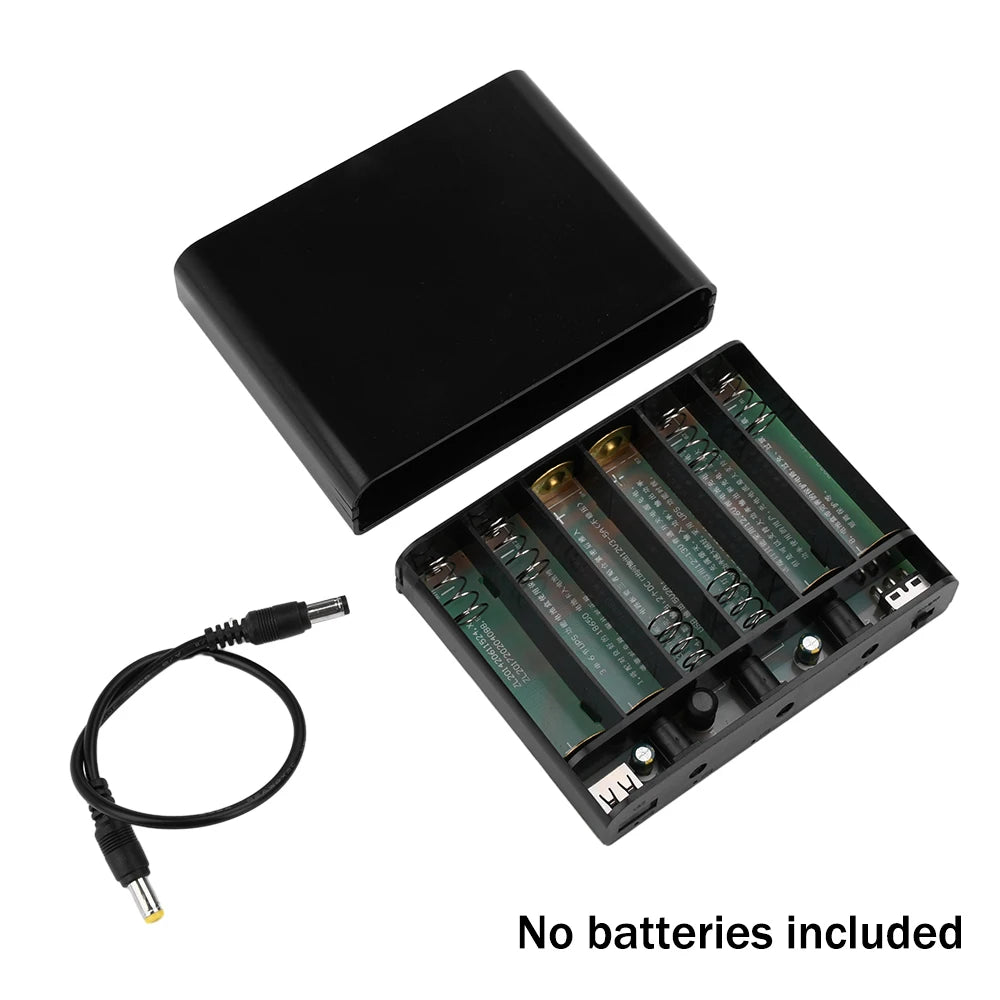

Package list:

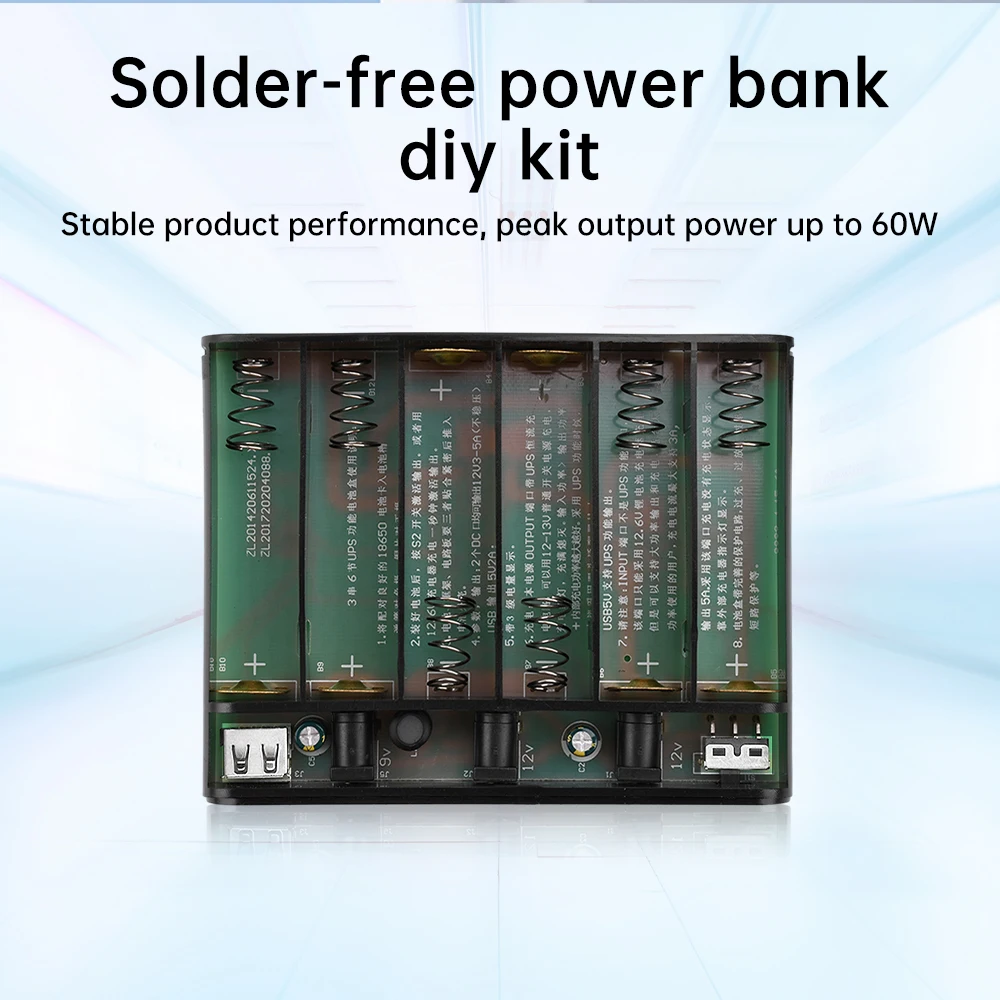

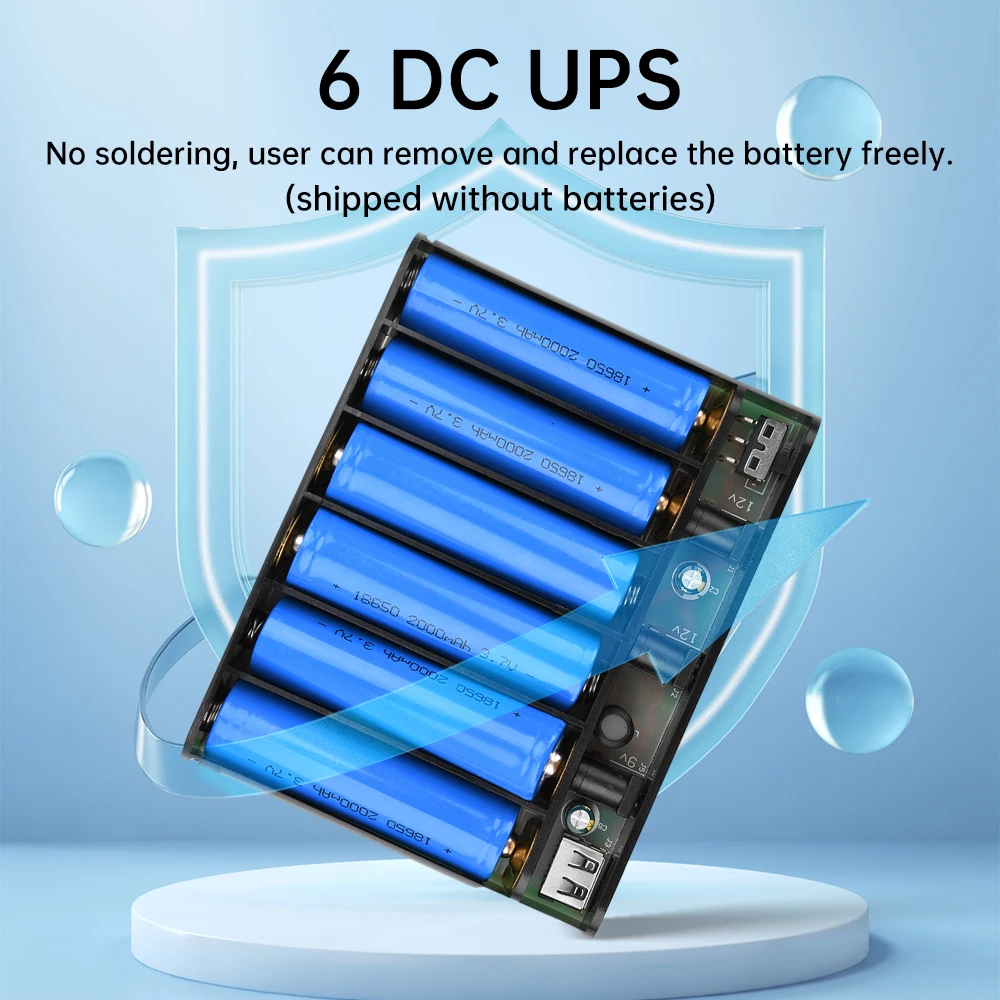

1 solder-free battery box
1 0.3-meter wire

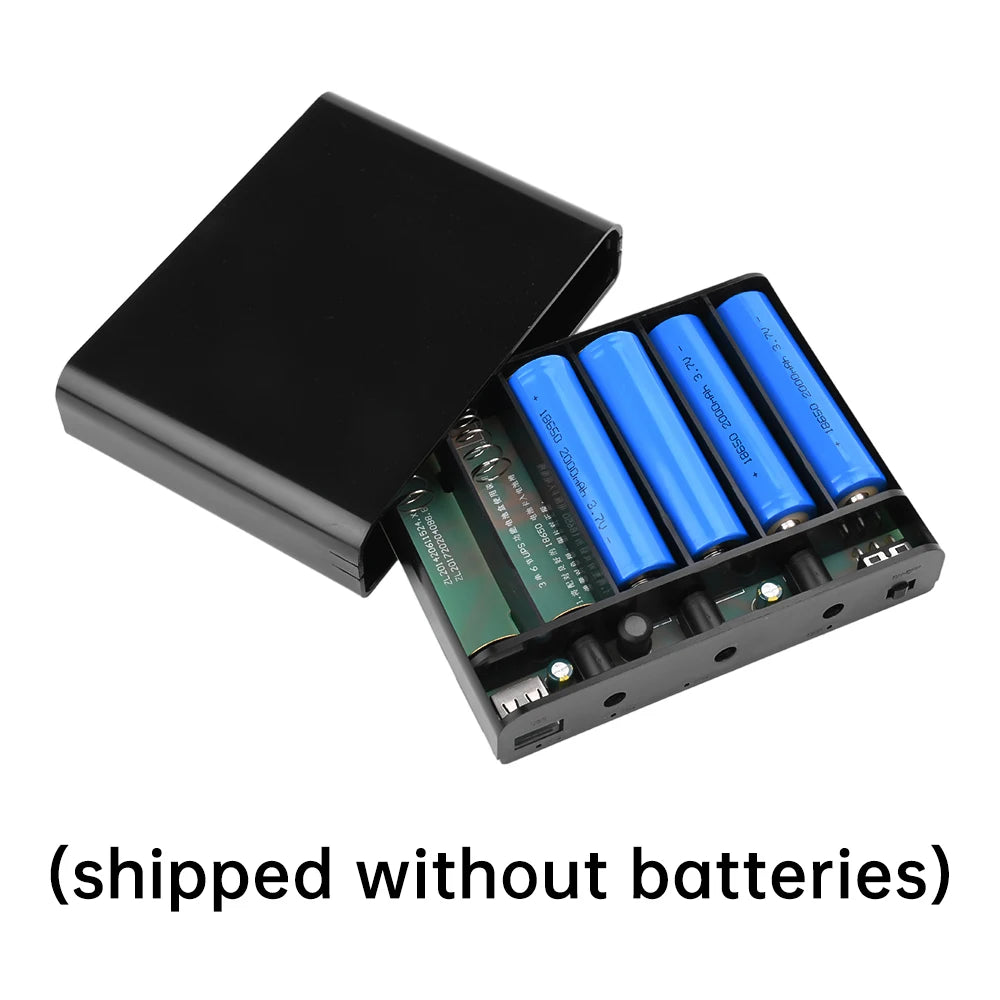

（Shipped without batteries）
Battery capacity that can be installed: 6*3.7V*3400mah=74 watt-hours (battery provided by the user)
Rated output power: 12V5A=60W; the actual output power comes from the output power of the battery itself
Output voltage: independent output 12V3-5A; 9V1A; USB5V2-3A; Enabling the UPS function requires meeting the input power conditions
The product is not stable, the power The battery is directly output in series, and the voltage increases or decreases with the power
Applicable to high-power electrical appliances that do not require voltage regulation, motors, LED lights, audio, solenoid valves, printers, etc.
Applicable batteries: 3.7V cylindrical flat head 18650 battery (recommended power battery)
Charger type: internal charging current limiting circuit, can be charged with a 12-13V adapter. When UPS is used, the greater the input power, the more stable it is
Charging power: input adapter power meets >= total load power + battery charging power 6W
Overcharge protection: 4.25V*3
Low voltage protection: 2.75V*3
Overcurrent detection voltage: 0.1V+-0.025V
Temperature range: -20~60℃
DC interface standard: DC5.5*2.1mm (positive inside and negative outside)
Precautions:
1. Spring to negative pole, copper sheet to positive pole, do not install it in reverse, it will burn if installed in reverse! ! !
2. Use high-quality batteries and require strict pairing. The parameters of each single battery in the battery pack should be as consistent as possible.
3. This product can only use flat-head 18650 batteries. Pointed batteries longer than 2MM cannot be used.
Package list:
1 solder-free battery box
1 0.3-meter wire
（Shipped without batteries）
