SPECIFICATIONS

Application : Outdoor

Brand Name : JIAJIU

Certificate : VDE

Communication : WIFI

Cooling : Natural

Input Voltage : 18V-60V

Inverter Efficiency : 95%

Inverter type : On-grid Inverter

Model Number : Die-cast aluminum

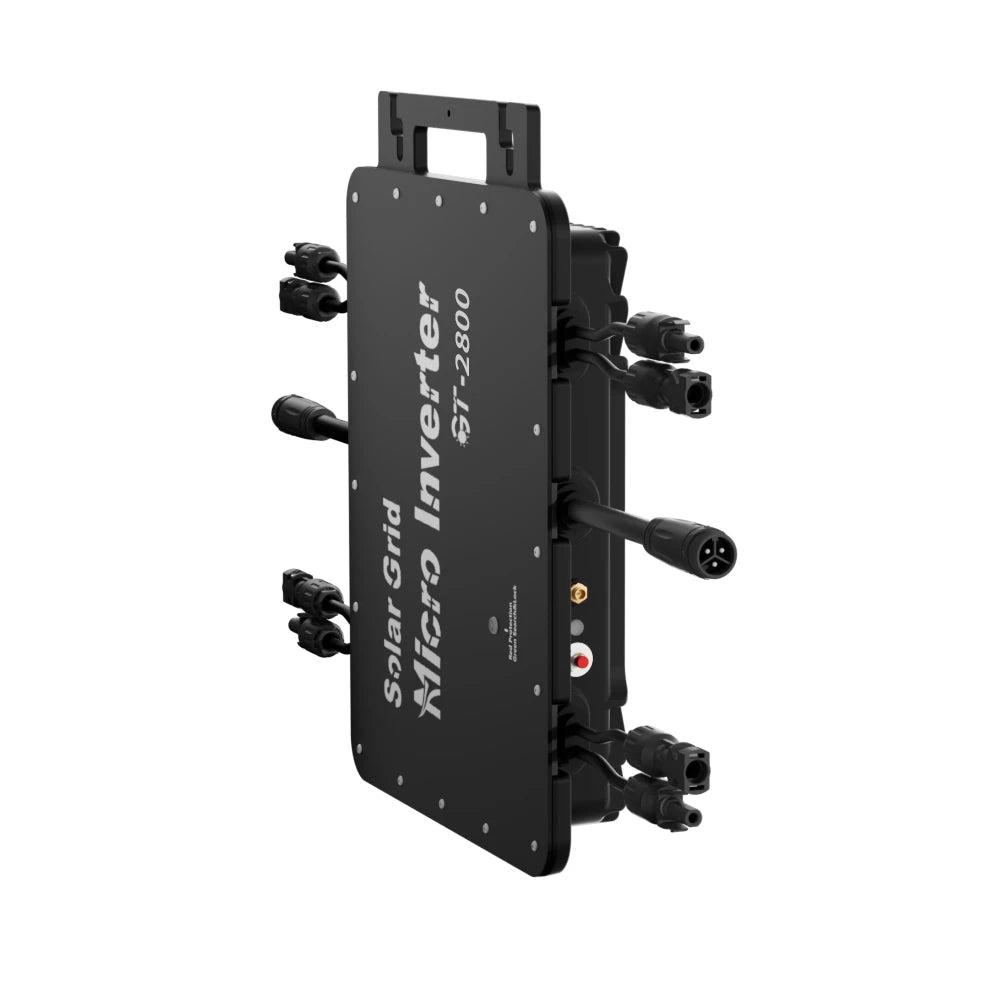

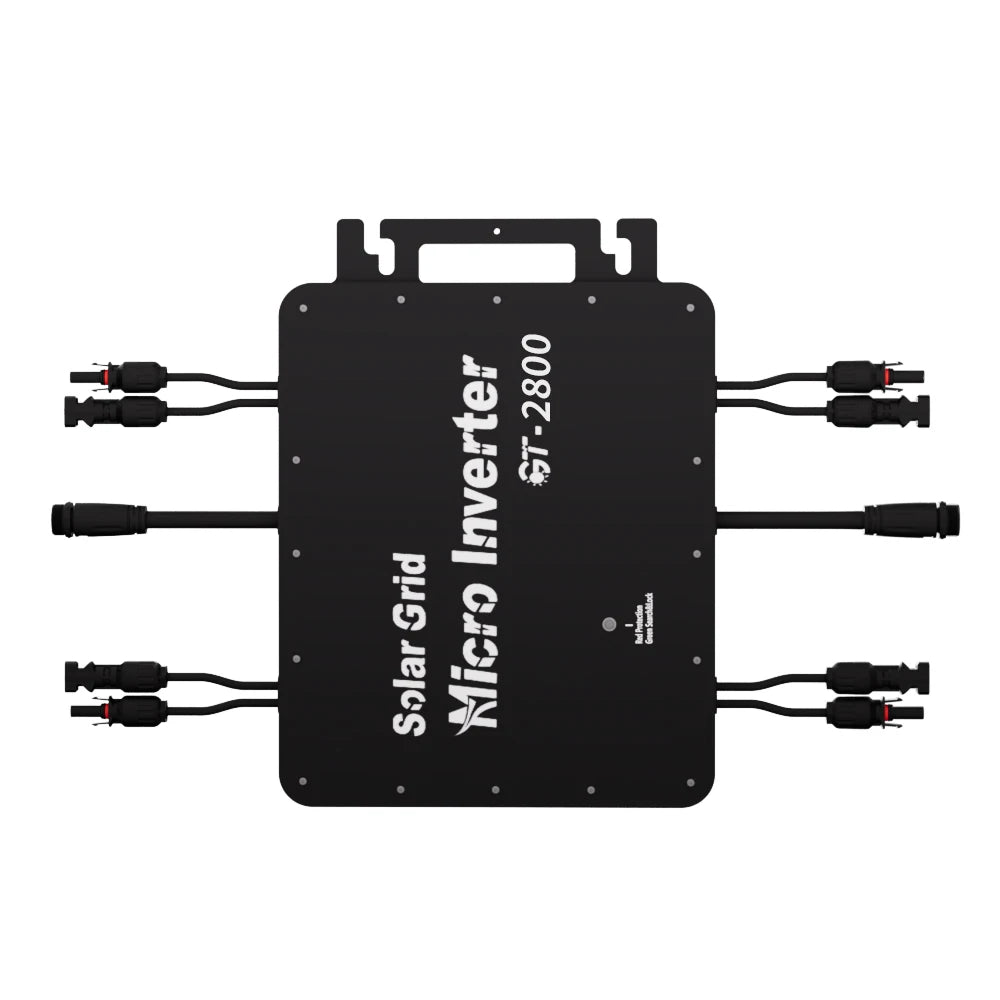

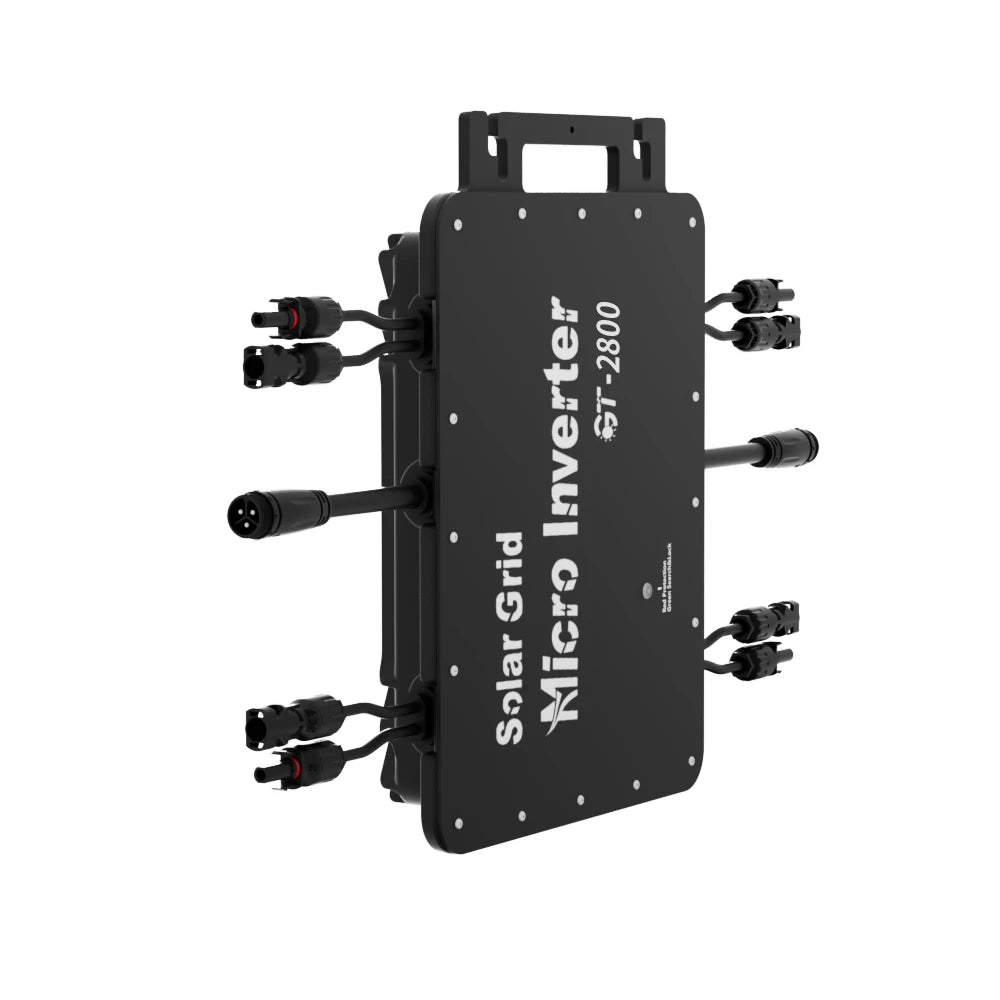

Name : die-cast aluminum micro inverter

OEM : Accept OEM

Output Current : 16A/8A

Output Frequency : 50Hz/60Hz

Output Type : Single

Output Voltage : 110V/220V

Place of Origin : Guangdong, China

Product name : Grid Solar Micro Inverter

Rated power : 2800w

Size : 340mm*255mm*45mm

Type : DC/AC Inverters

Waveform : Pure Sine Wave

Weight : 3.7kg

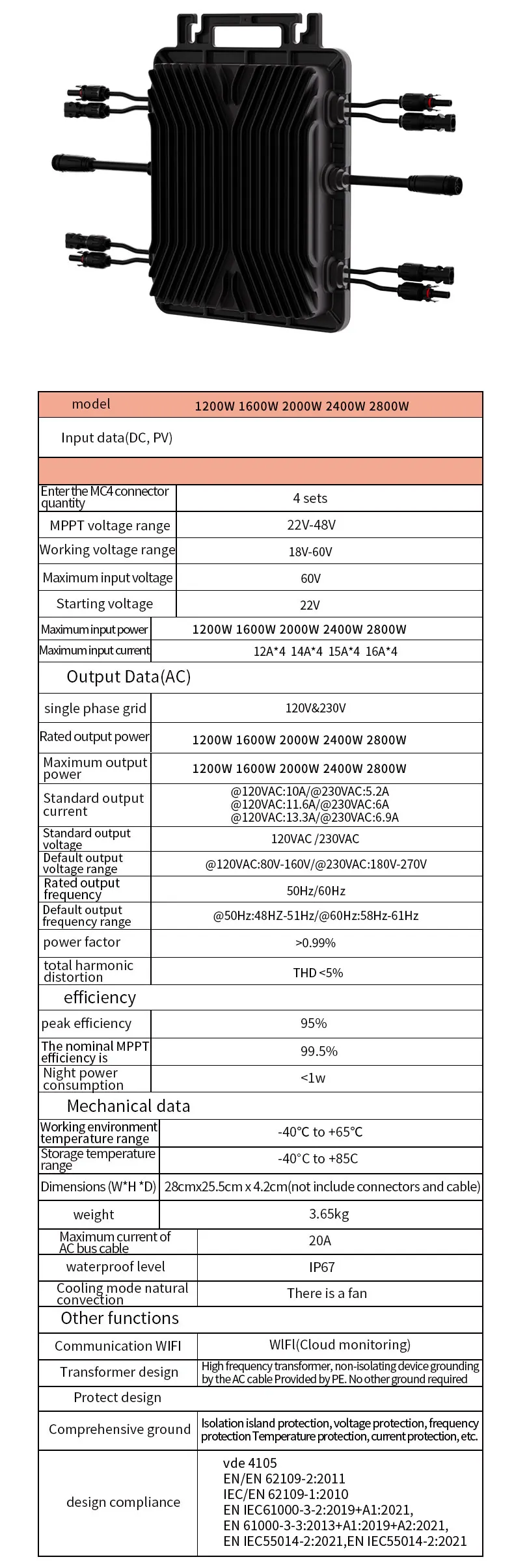

Model	2000w/2400w/2800w
Input Data (DC/AC)
Number of Input MC4 Connector	4 sets
MPPT Voltage Range	22V--48V
Operating Voltage Range	18V--60V
Maximum Input Voltage	60V
Startup Voltage	22V
Maximum Input Power	2000w/2400w/2800w
Maximum Input Current	12A*4 14A*4 15A*4
Output Data (AC)
Single-Phase Grid Type	120V & 230V
Rated Output Power	2000w/2400w/2800w
Maximum Output Power	2000w/2400w/2800w
Nominal Output Current	@120VAC: 10A / @230VAC: 5.2A @120VAC: 11.6A / @230VAC: 6A @120VAC: 13A / @230VAC: 6.9A
Nominal Output Voltage	120VAC/230VAC
Default Output Voltage Range	@120VAC:80V--160V/@230VAC:180V--270V
Nominal Output Frequency	50Hz/60Hz
Default Output Frequency Range	@50Hz:48Hz--51Hz/@60Hz:58Hz--61Hz
Power Factor	>0.99%
Total Harmonic Distortion	THD < 5%
Maximum Units per Branch	@120VAC: 2 units / @230VAC: 3 units
Efficiency
Peak Efficiency	95%
Nominal MPPT Efficiency	99.5%
Night Power Consumption	<1w
Mechanical Data
Operating Ambient Temperature Range	-40℃ to +65℃
Storage Temperature Range	-40℃ to +85℃

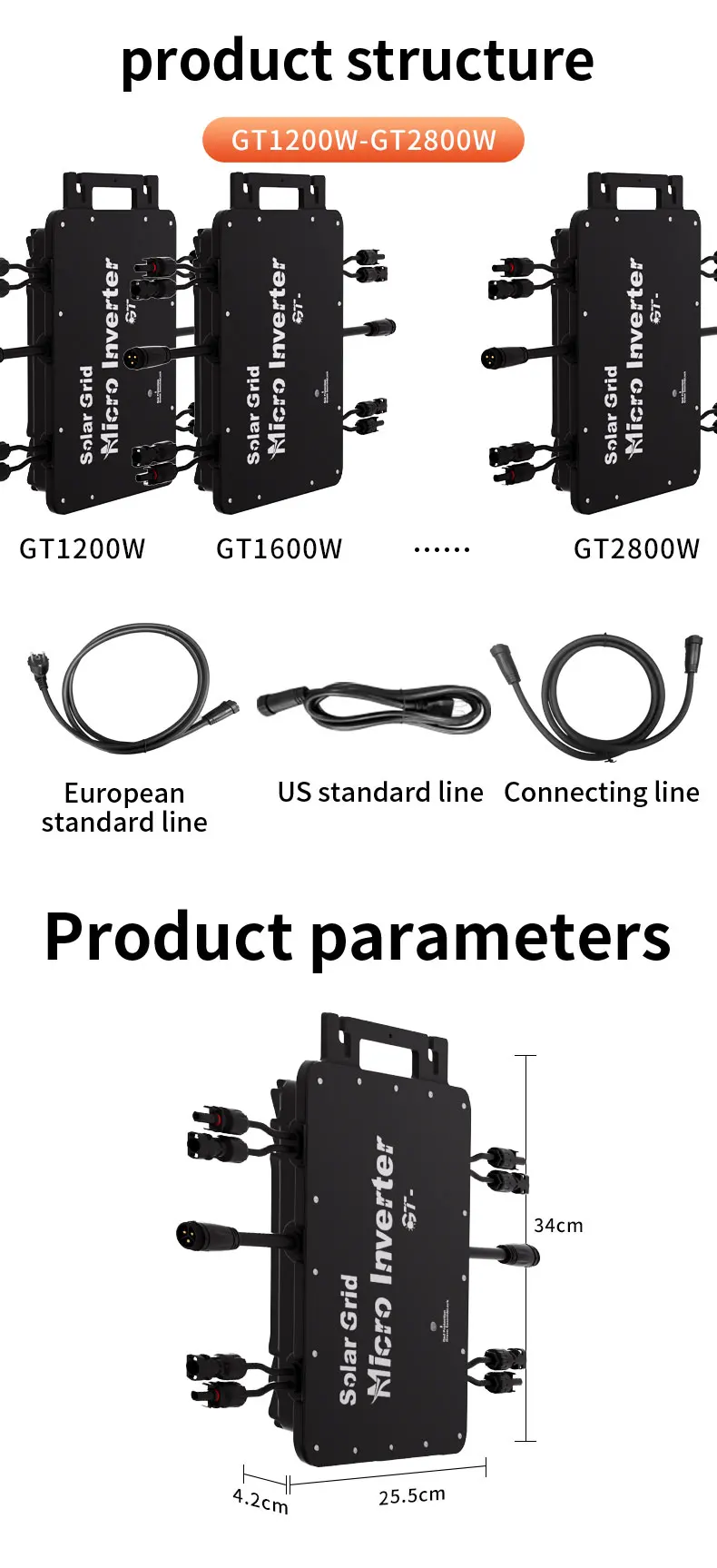

Dimensions (W*H*D)	340mm*255mm*45mm (not included connectors and cables)
Weight	3.7kg
Maximum Current of AC Bus Cable	30A

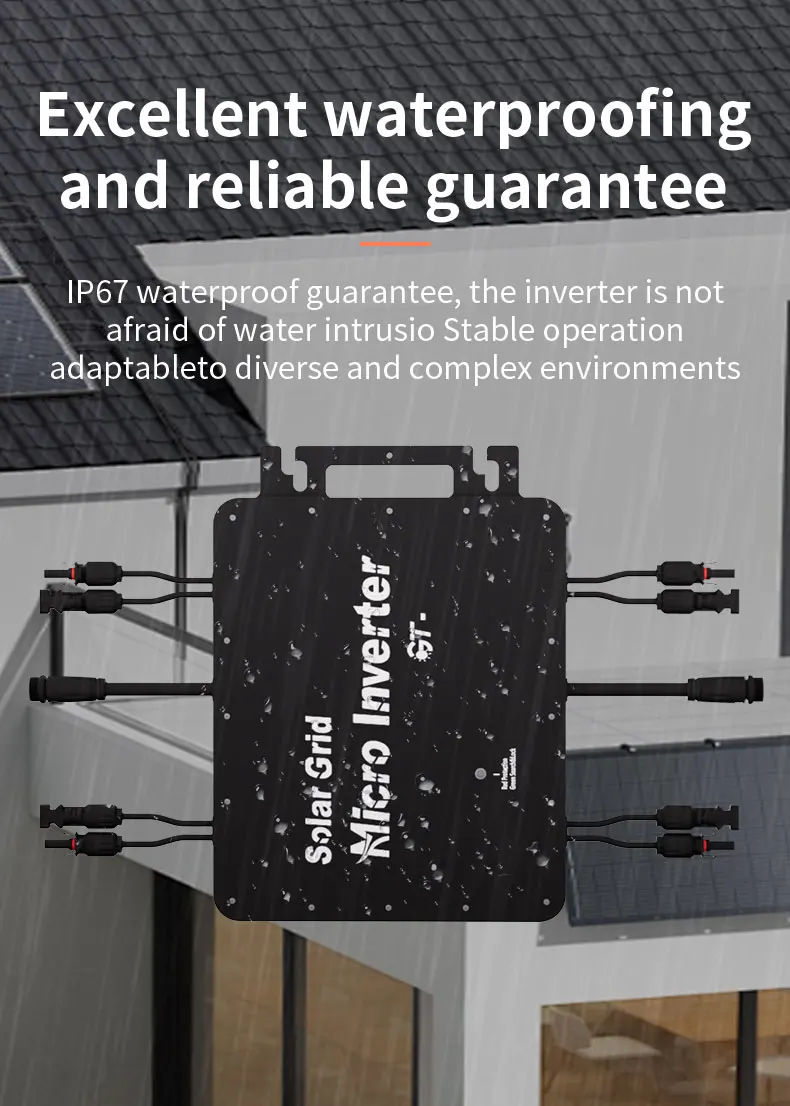

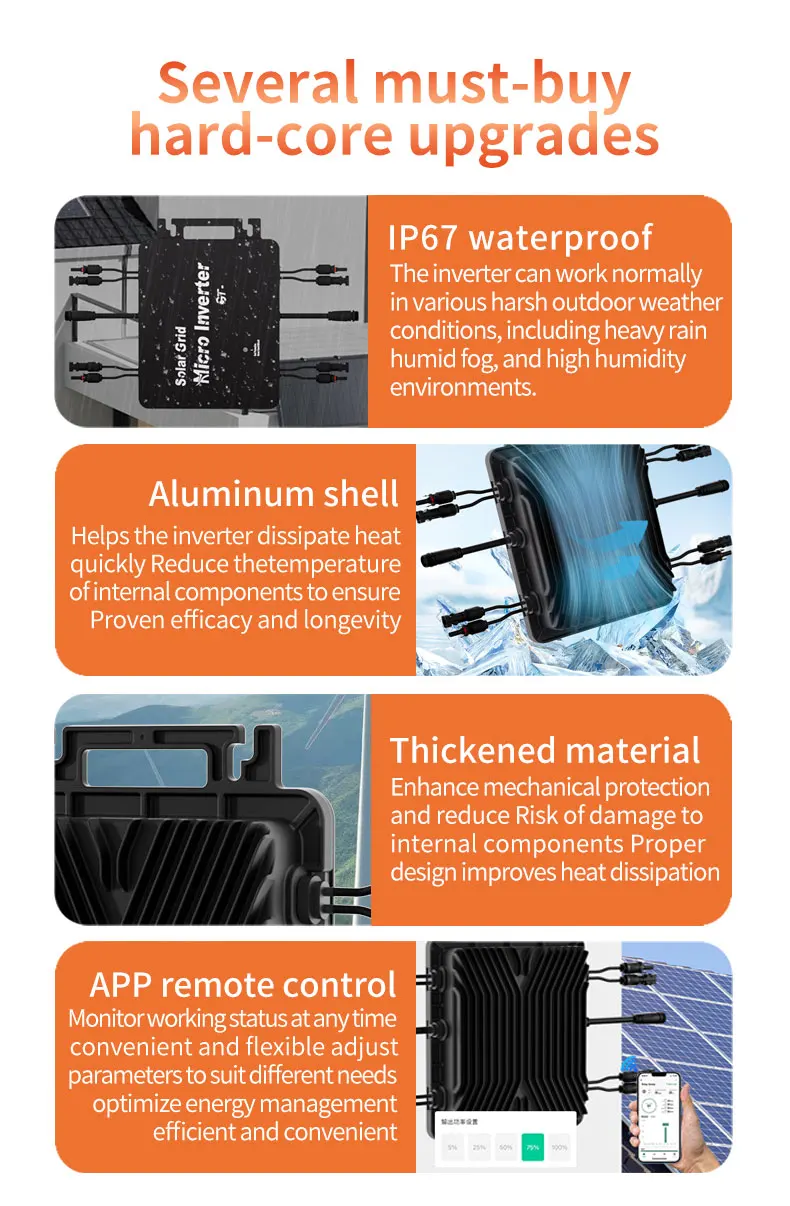

Waterproof Grade	IP67

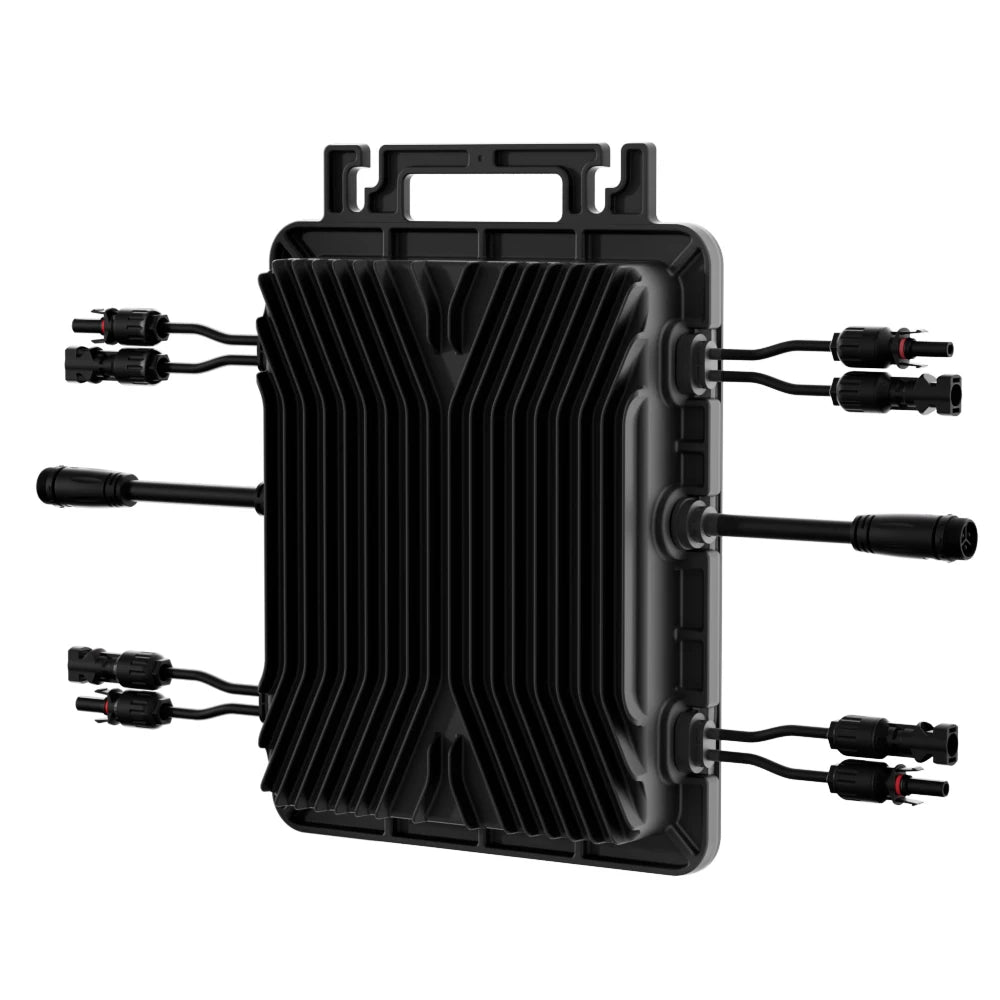

Cooling Mode	Natural Convection - No Fans
Other Features

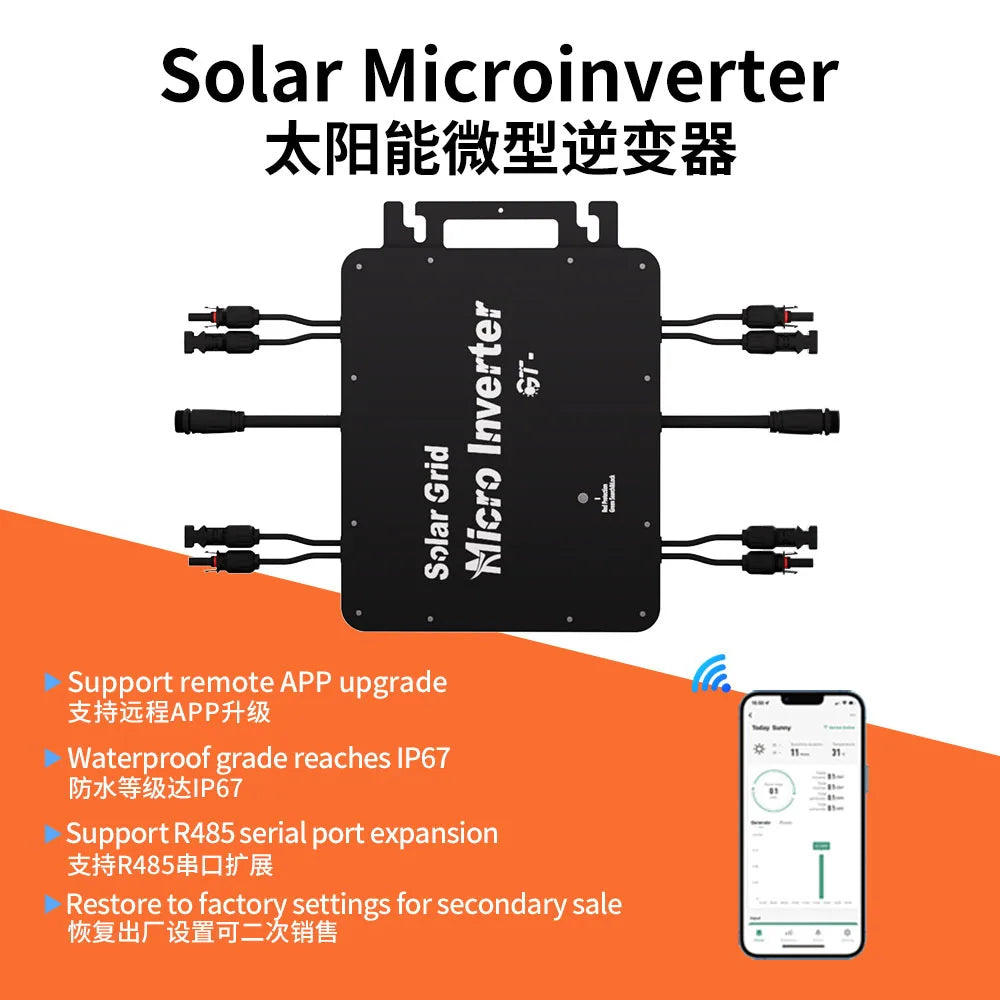

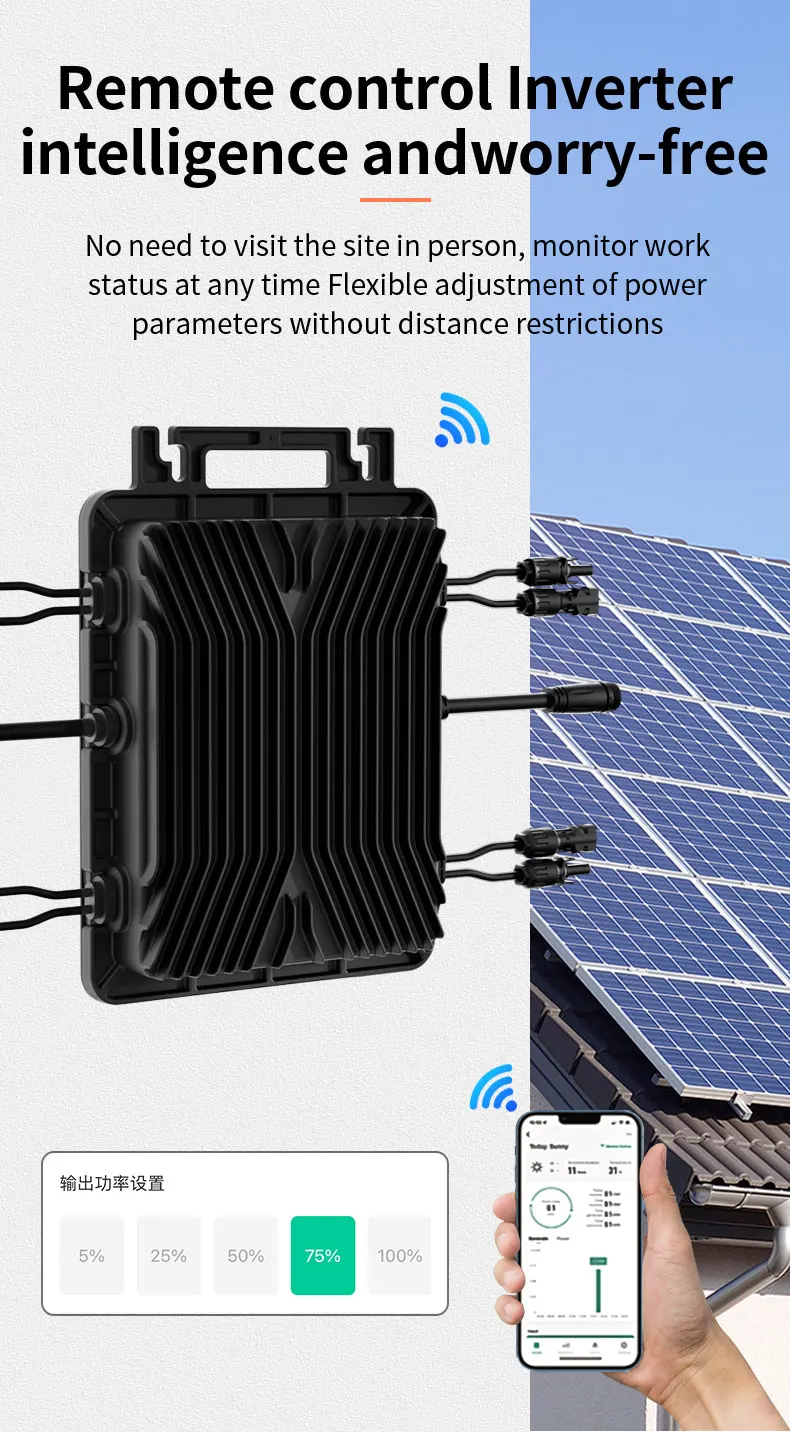

Communication	WIFI (Cloud monitoring)
Transformer Design	High Frequency Transformers, Galvanically Isolated
Integrated Ground	Equipment ground is provided by the PE in the AC cable, no additional ground is required.

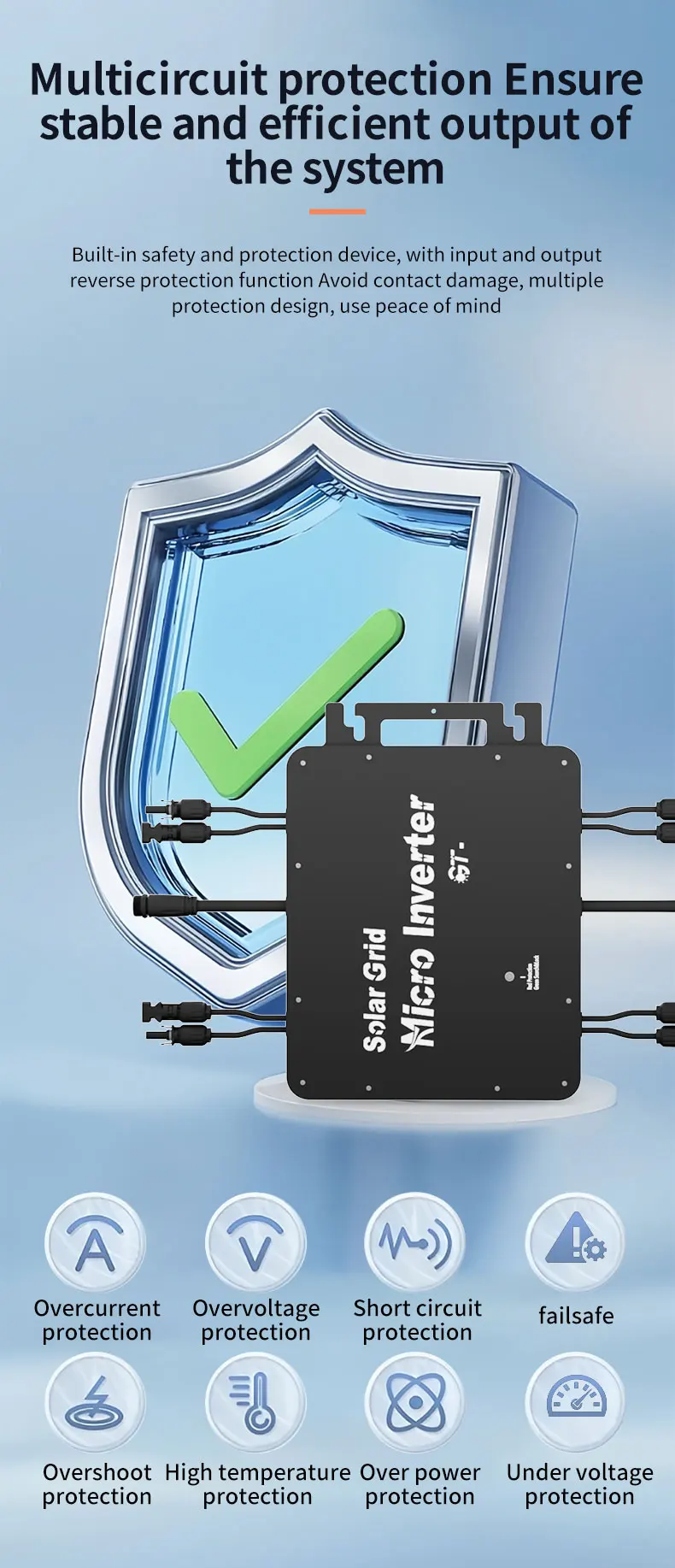

Protection Functions	Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.
Design Compliance	EN IEC61000-3-2:2019+a1:2021 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC55014-2:2021, EN IEC 55014-2:2021

FAQ

Q: Are you a factory or trading company? A: We are a professional solar inverter manufacturer in China Q: How can we ensure product quality? A: Always provide pre-production samples for our valued buyers before mass production; Always test each product before shipment; Q: What products can we provide you with? A: Micro inverter, solar controller and more Q: Where is your manufacturer? How can I visit there? A: Our factory is located in Chang'an Town, Dongguan City, Guangdong Province, China Q: Can the product pricing be cheaper? A: Of course, buying in large quantities will give you a very good discount. Q: Can our company logo be printed on the inverter? A: Yes! We accept OEM and ODM orders.
