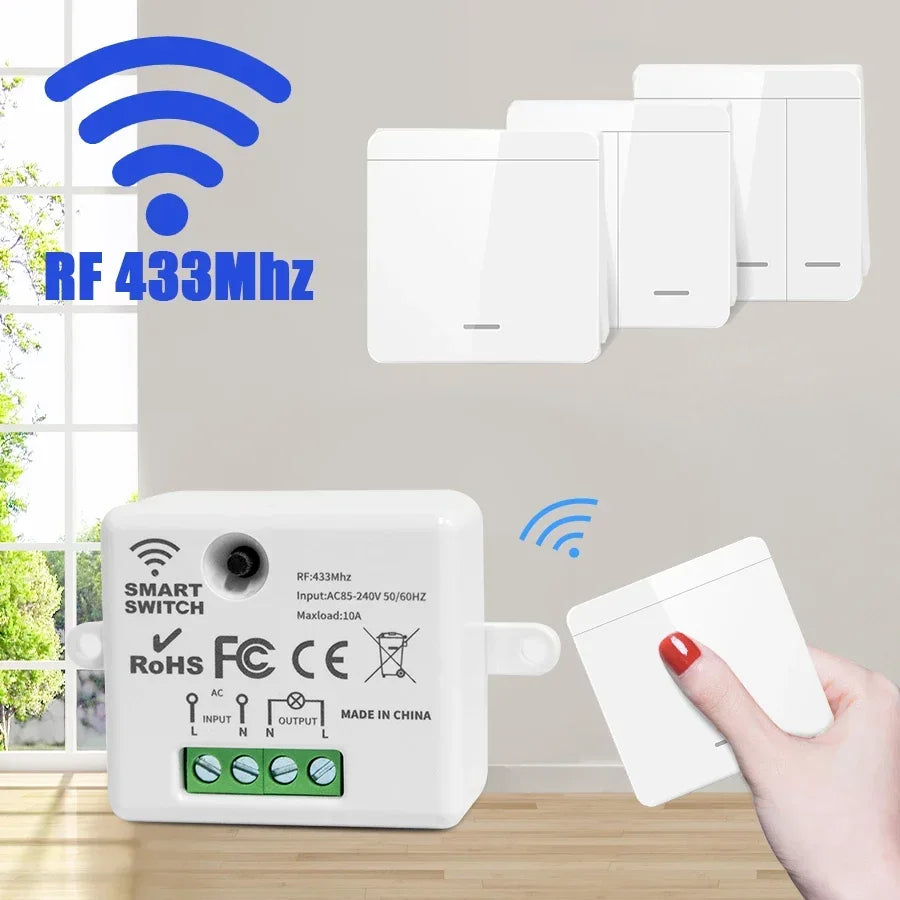

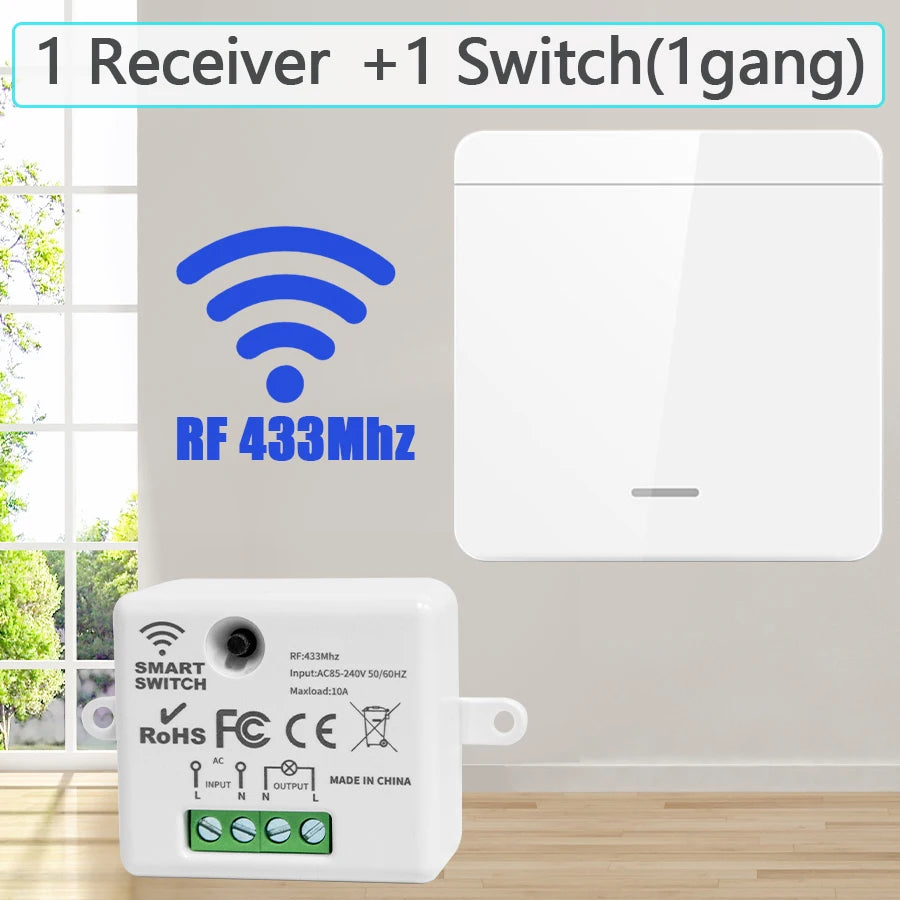

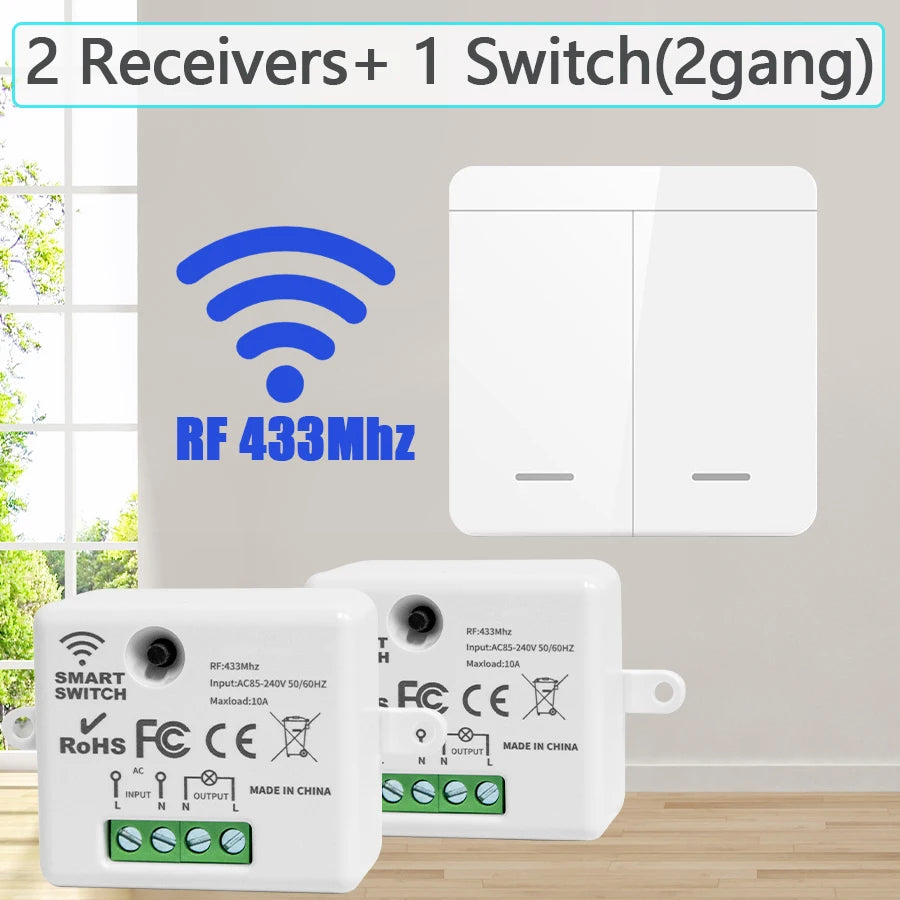

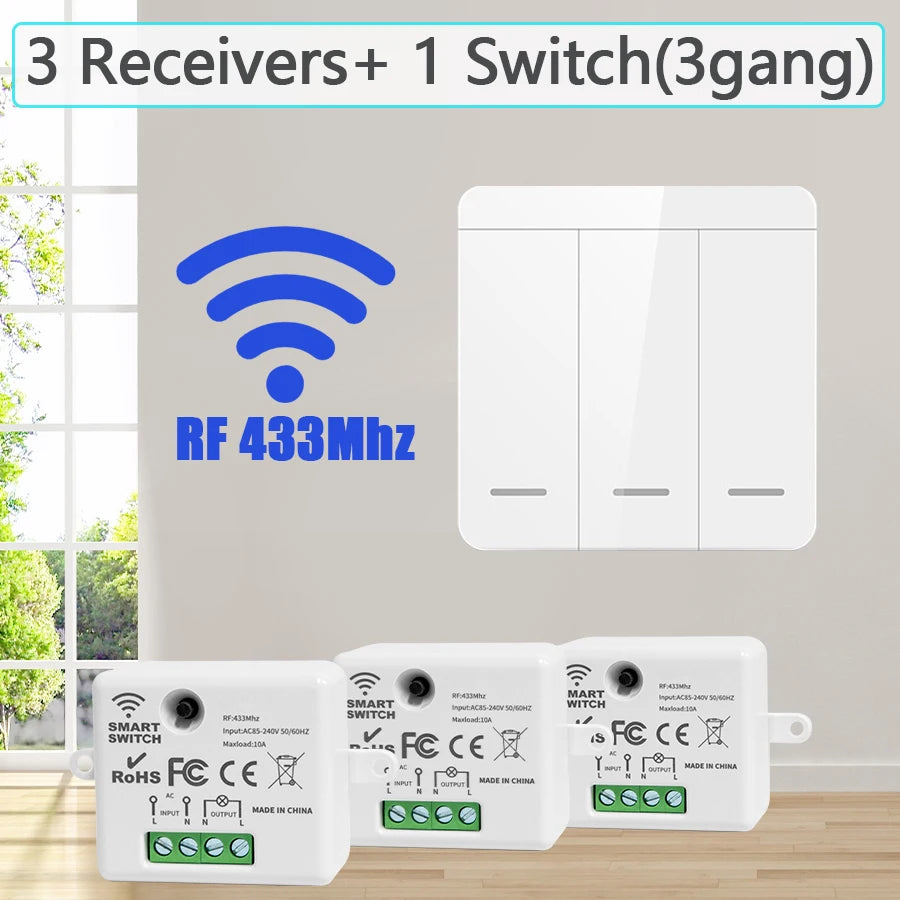

433MHz Smart Switch Remote Control 1/2/3 Buttons
433MHz Smart Switch Remote Control 1/2/3 Buttons
House for sale
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Product specifications
Product specifications
Product details
Product details
SPECIFICATIONS
Brand Name : GGBEE
Certification : CE
Choice : yes
Current : 10A
High-concerned chemical : None
Is Smart Device : No
Item Type : SWITCHES
Material : Plastic
Model Number : 433MHz Smart Switch
Origin : Mainland China
Switch Type : REMOTE CONTROL
Warranty : 1 year

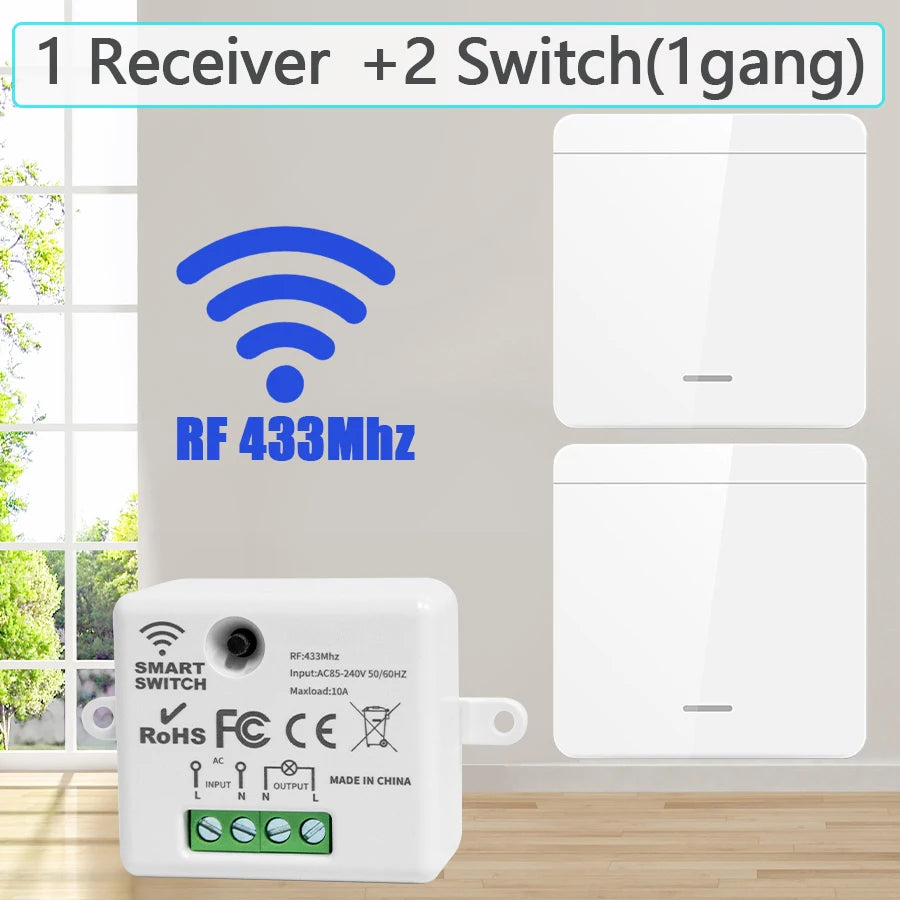

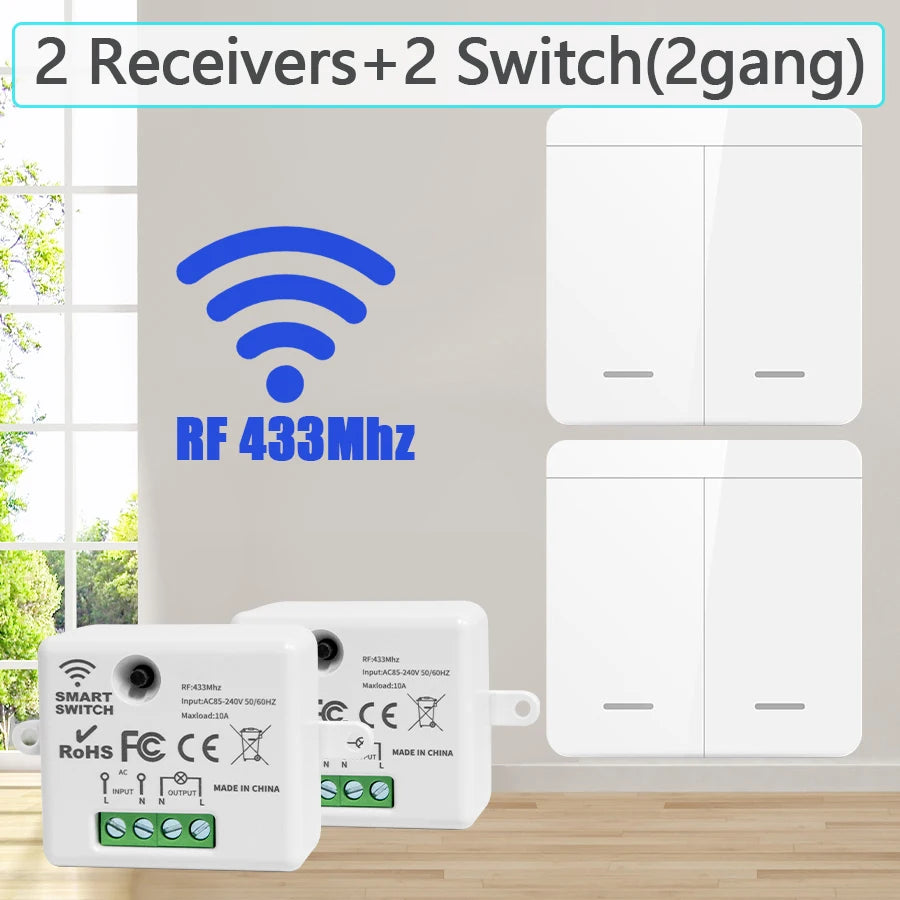

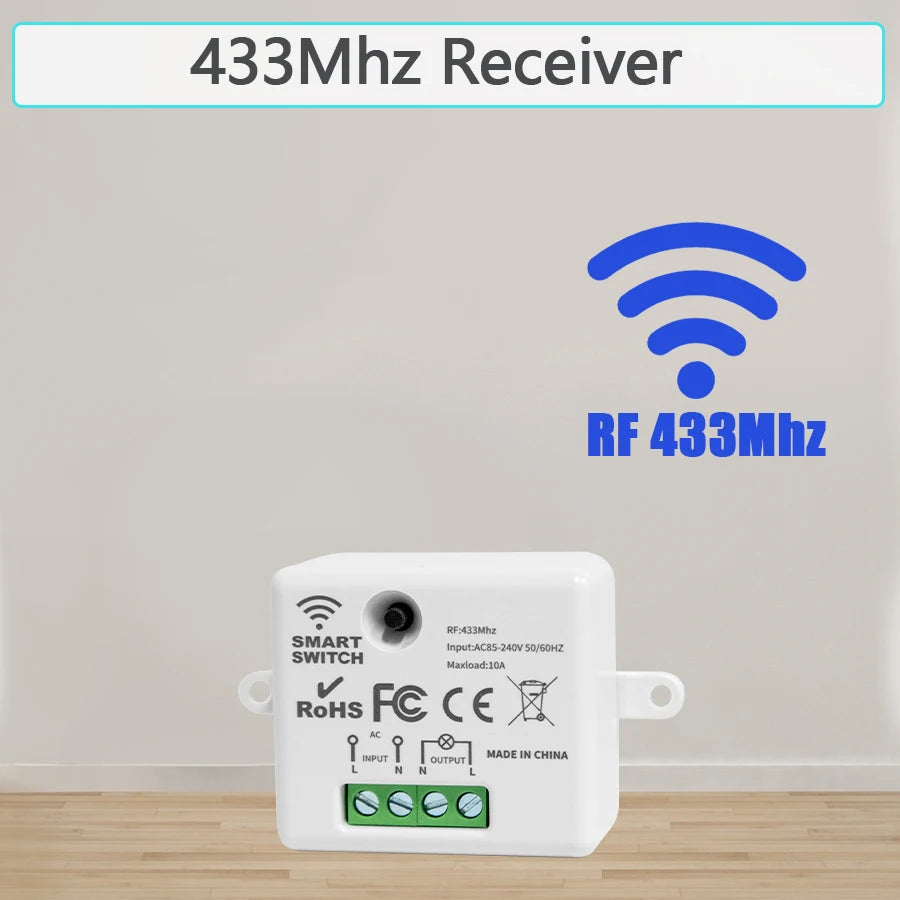

1.Controller (Receiver):
Working voltage: AC85-240V 60HZ/50HZ
Operating frequency: 433MHZ
Power consumption in standby mode: <0.3W
Load power: <1100W
Receiving sensitivity: -108dBM
Working way: wireless control
Coding way: learning code
Modulation: ASK
Working temperature: -10*C~+70"C
Size: 47.4*42*22.8 (mm)

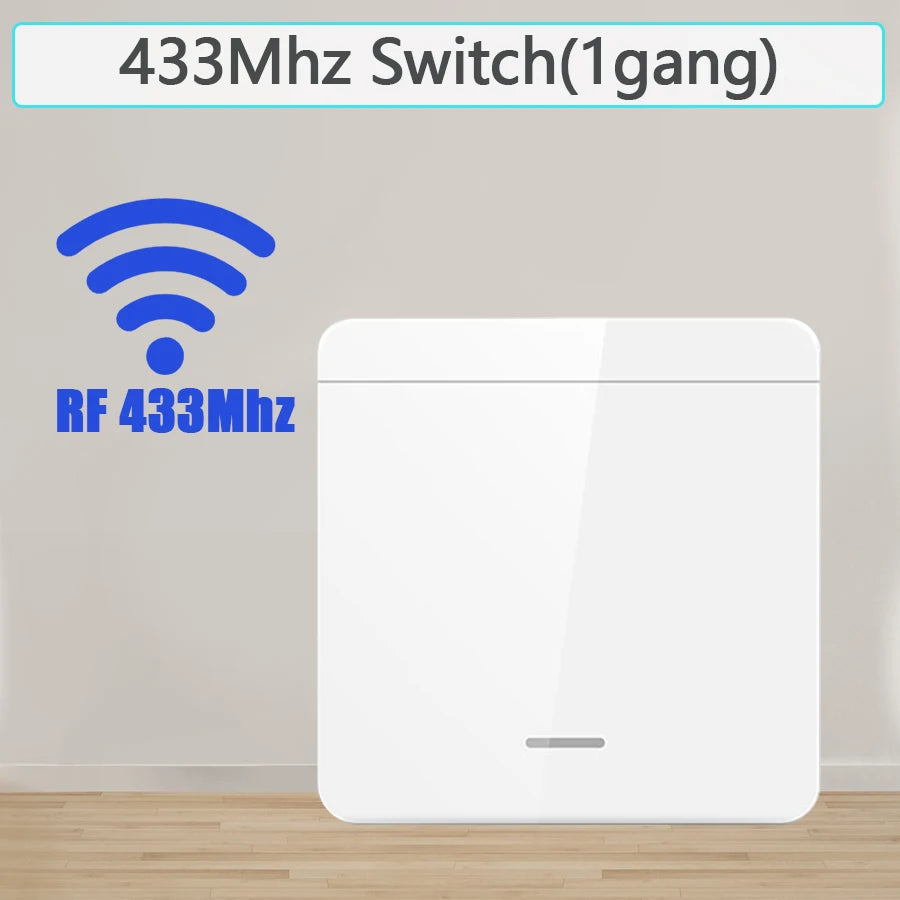

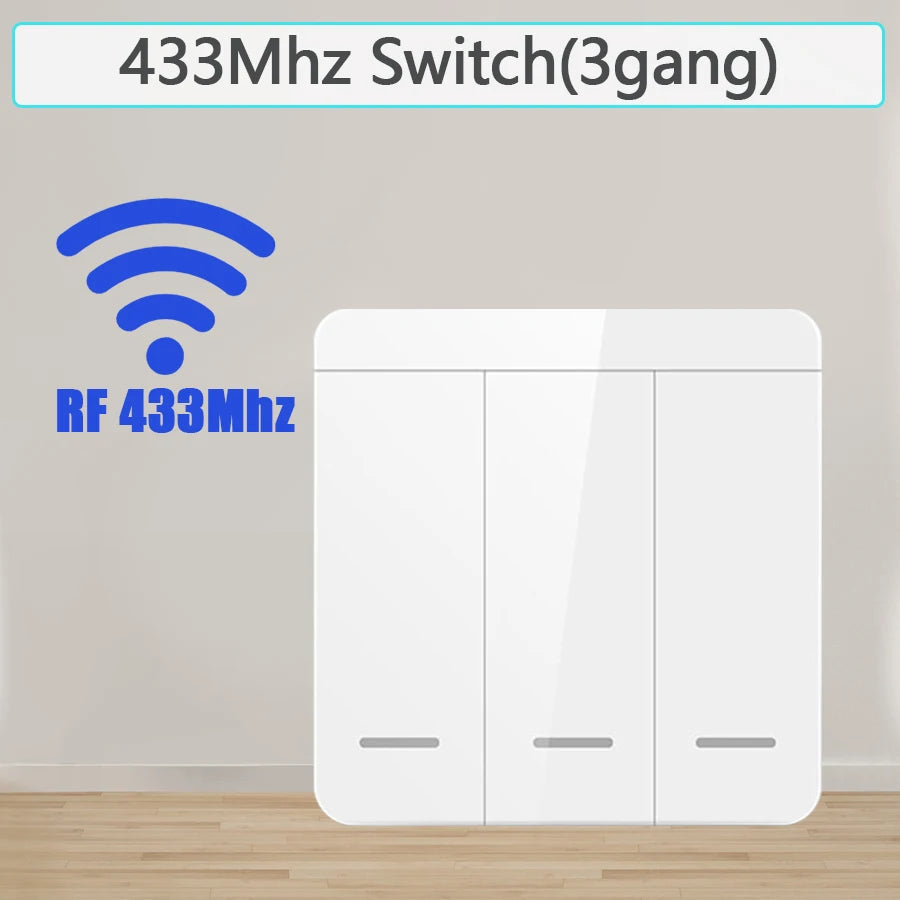

2.Wireless Wall Switch:
Working voltage: DC3.0V
Operating frequency: 433MHZ
Power consumption in standby mode:<1uA
Transmitter power: <10mW
Working way: wireless control
Coding way: EV1527 learning code
Modulation: ASK
Working temperature:-10"C~+70*C
Size: 86*86*15mm

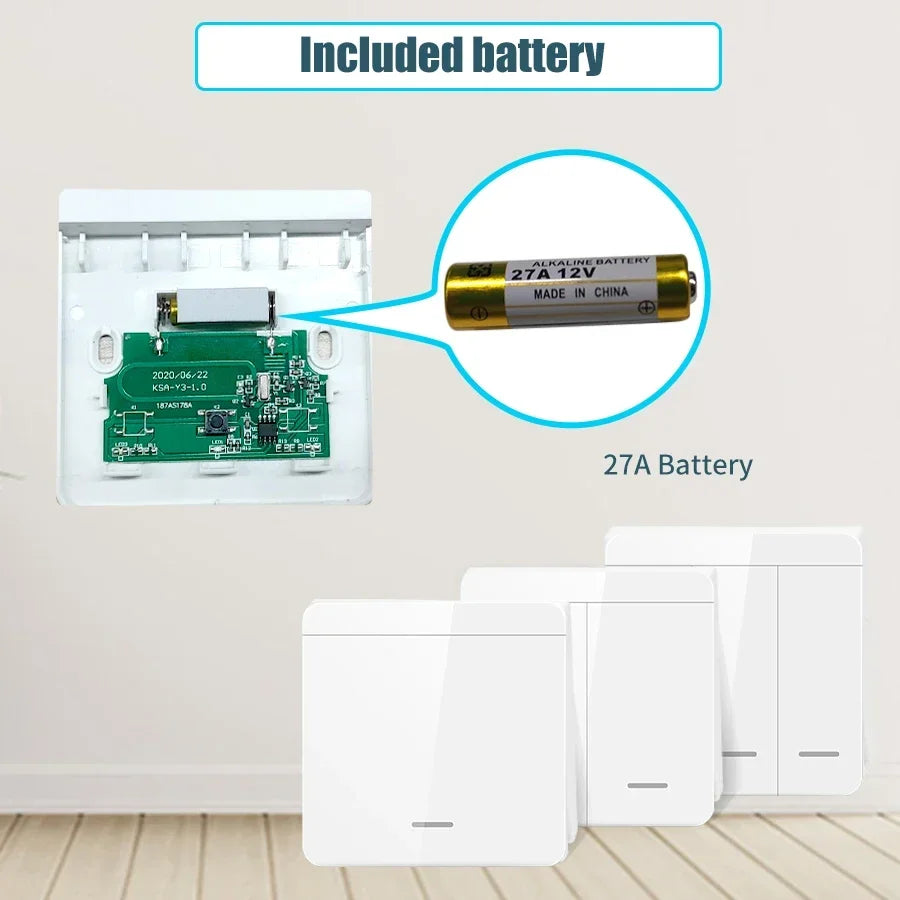

Battery:work with 12V 27A battery(battery included)
Features：

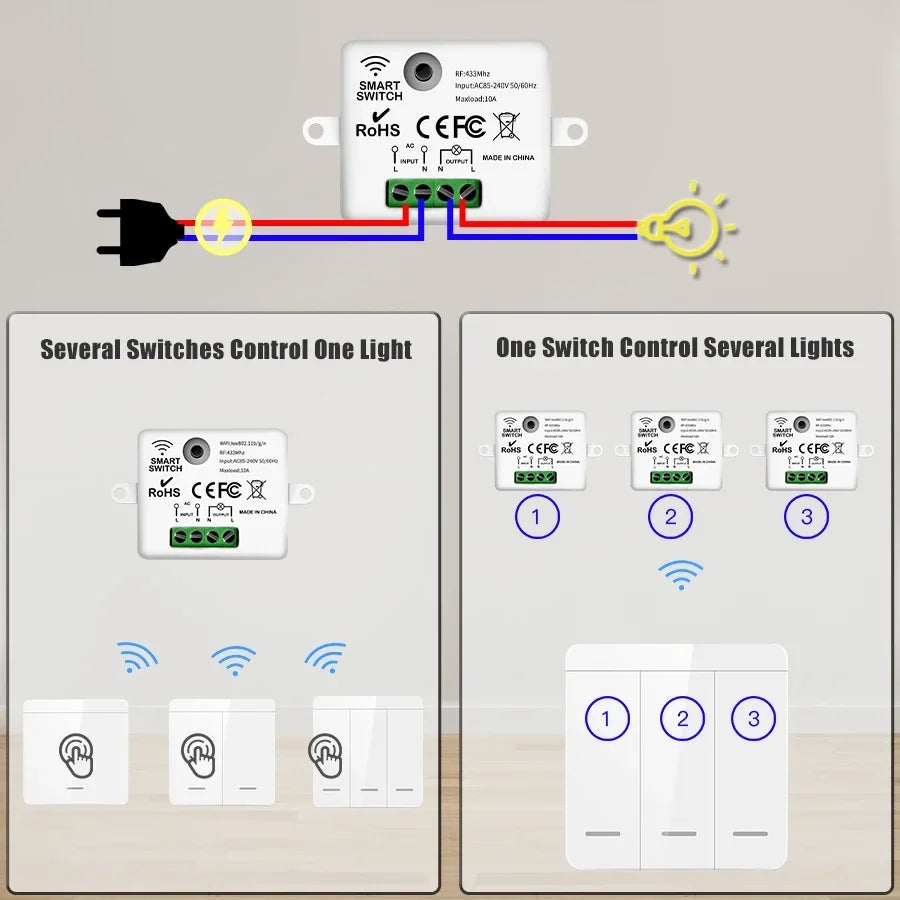

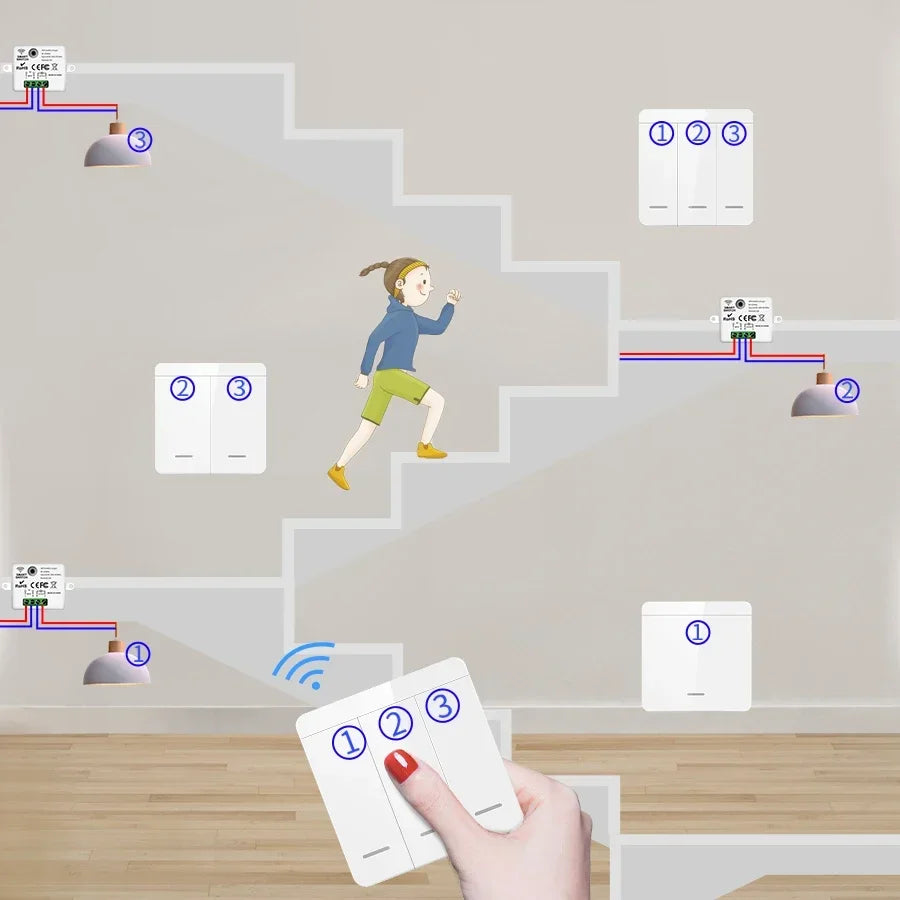

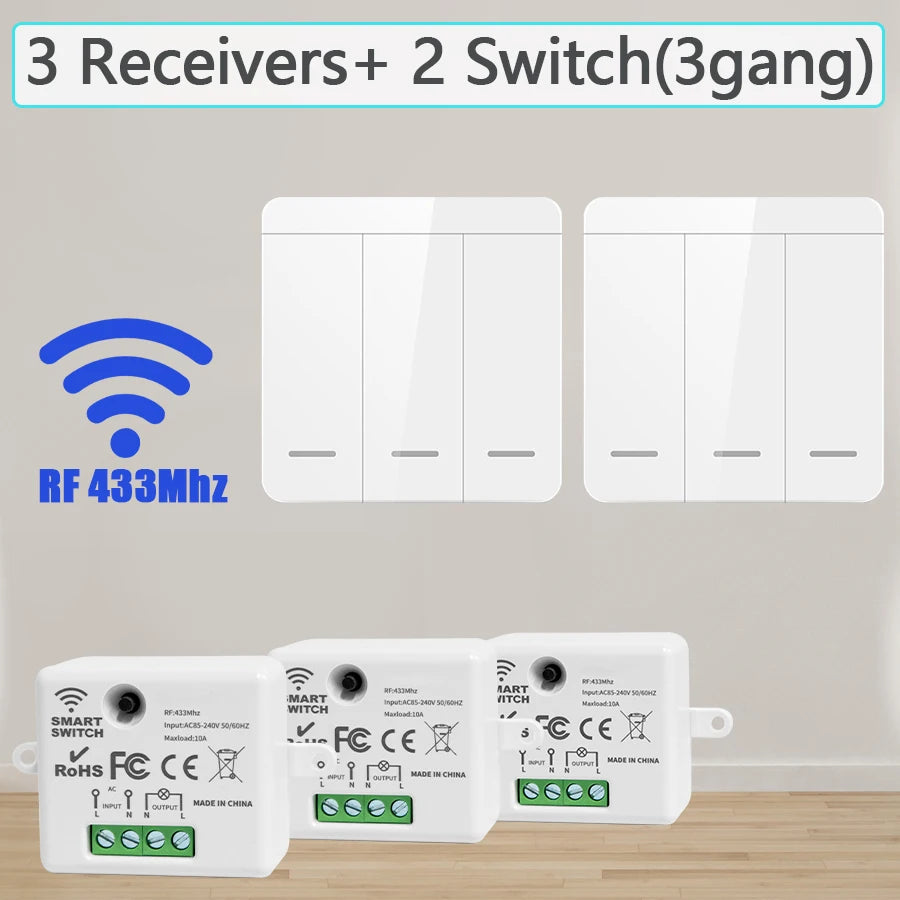

1.Multi switches can control different receivers.Save energy, avoid darkness.
2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.
3.It is an 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most learning code receivers.

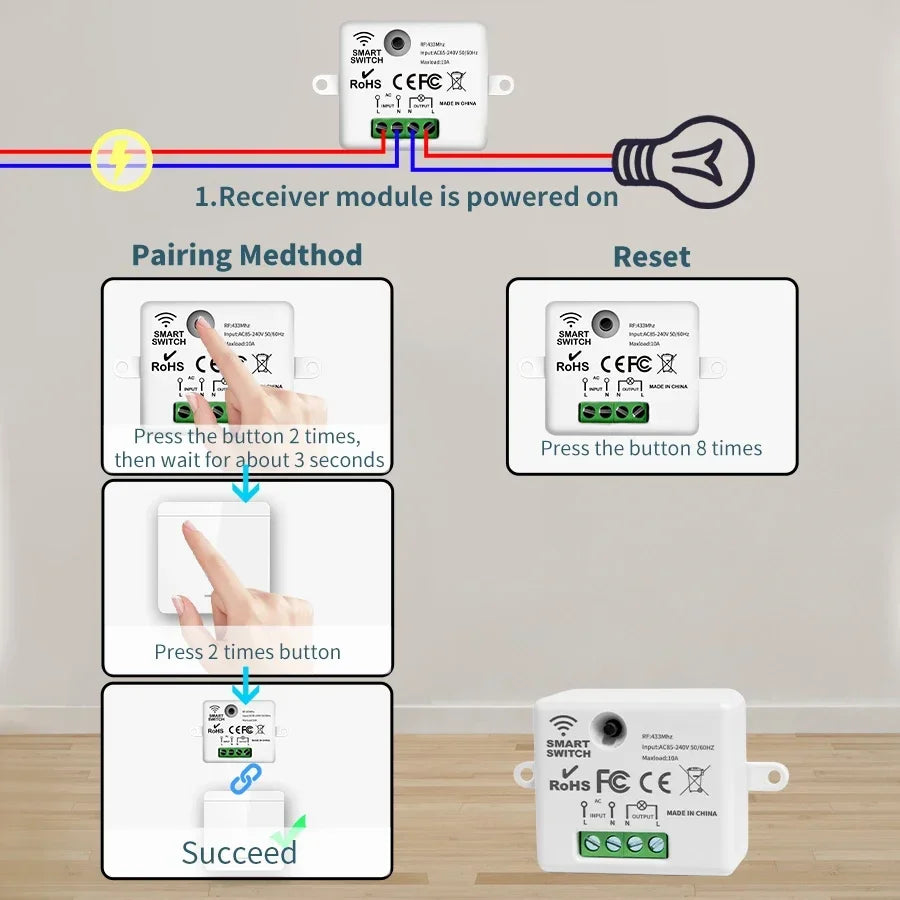

Setting way:
How to get the signal：
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal:
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
Note:
Wall switch itself cannot control lights on off.It needs to work with rf receiver together.
