SPECIFICATIONS

Cold room doors: Hinged Sliding Door

Cold roomCompressor brand: Copeland/Highly

Density: 44kg/m3

Functions: Fresh keeping

Noise Level: below 40dB

Product name: 20FT 40HQ Walk in Freezer Container Cold Storage Room

Refrigerant: R404A, R134A, R507A,R404A R22 R134a

Surface material: Color Steel

Thickness of Color Steel: 0.426/0.5/0.6/0.8mm

Type: Cold Room Freezing System

Usage: Fruit / Vegetable / Fish / Meat

Weight (KG): 2000

brand name: OnlyKem

compressor brand: TECUMSEH,Copeland,Bitzer,Emerson

core components: compressor,hinged door,pu panel

dimension(l*w*h): Customized

feature: Container

key selling points: Energy Saving

machinery test report: Provided

place of origin: Shandong, China

power: > 1000W

video outgoing-inspection: Provided

voltage: 380v/220v/110v

warranty: 1 Year

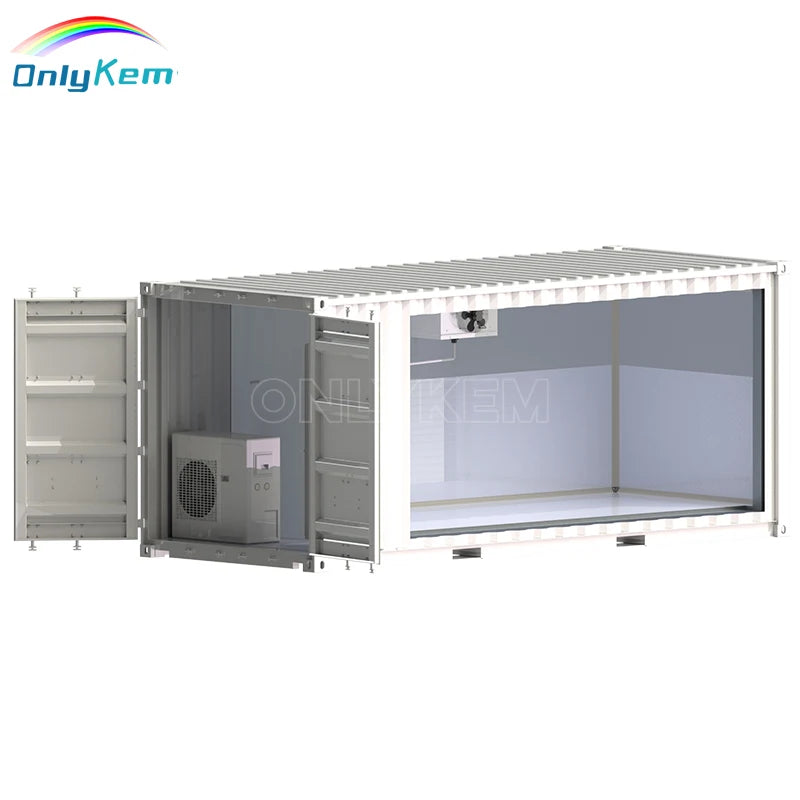

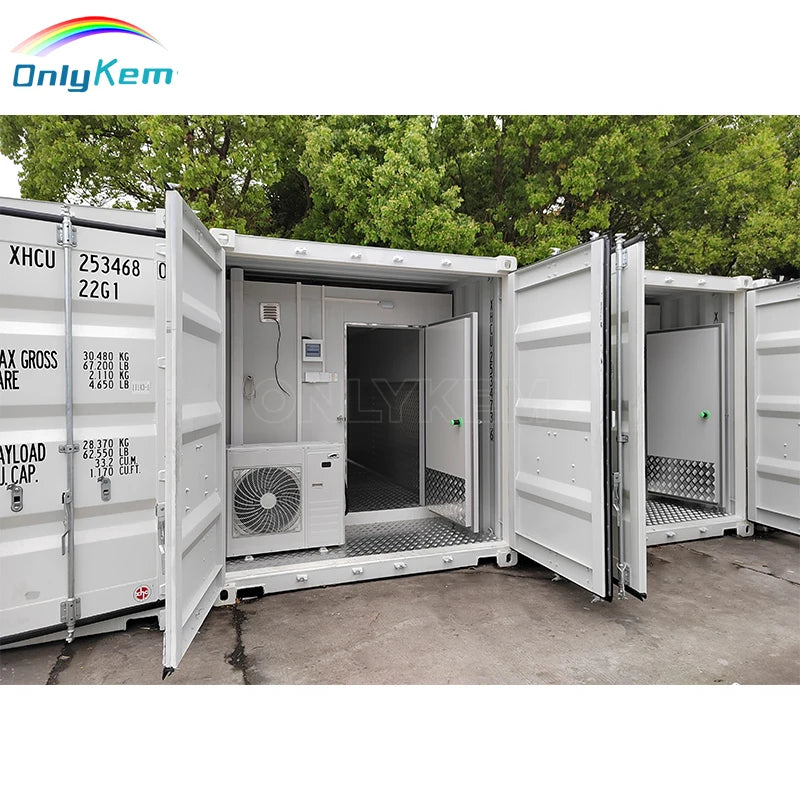

20FT 40HQ Walk in Freezer Container Cold Storage Room

Container cold room is the latest product in refrigeration field. The most advantage is it can be used directly after you receive the goods. The container cold room can be pre-assemble in the factory, that will save your more installation time and cost. It's a real one-step solution for you

Product Paramenters

20FT Container Cold Room

40HQ Container Cold Room

Container Size	Dimension (m)	Goods Capacity (ton)	Voltage	Temperature Range (℃)
20FT	4.88x2.3x2.28	2.5	380v/50hz/3ph	+10 to -18
20FT	4.88x2.3x2.28	3	380v/50hz/3ph	+5 to -25
20FT	4.88x2.3x2.28	2.5	220v/60hz/3ph	+10 to -10
20FT	4.88x2.3x2.28	3	220v/60hz/3ph	+10 to -30
40HQ	11x2.3x2.55	6.6	380v/50hz/3ph	+10 to -18
40HQ	11x2.3x2.55	8.5	380v/50hz/3ph	+5 to -25
40HQ	11x2.3x2.55	6.6	220v/60hz/3ph	+10 to -10
40HQ	11x2.3x2.55	8.5	220v/60hz/3ph	+10 to -30

Product Features

* Smart alarming * Antirust cam-lock connection * Hinged door with electric heater * Energy-efficient smart packaged unit * Polyurethane panel thickness 100/120MM

* Save energy. It can save 1500kw per year.

Why Choose Us

Why choose container cold room？What advantage does it have?
1. Container cold room is the latest product in refrigeration field. The most advantage is it can be used directly after you receive the goods.
2. The container cold room can be pre-assemble in the factory, that will save your more installation time and cost. It's a real one-step solution for you！
3. Install the cold room lights and light switches, connect the light lines, and directly connect to the power supply when it arrive at the customer site.
4. The installation machine interface is reserved in advance, and the customer can directly install and fix it on site, without the need to operate the library body.
5. The bottom plate is laid with anti-skid aluminum plate and plywood to protect the bottom plate during use and increase the service life.
6. After the assembled container, the remaining space can transport other goods at the same time, so that one cold room can beused for multiple purposes, saving transportation costs.
7. The use site can be changed at will. If you want to change the use site during use, you can directly hoist it and drag it away without disassembly, saving time and effort.

Detailed Information

Container

Different type to meet customer's requirement: 20ft, 40HQ, new and used The container will be transited to factory directly. We will built cold room in the container.

Cold Room Panels

0.426mm thickness galvanized steel: Good supportive Customized thickness panels: Good insulation will save your energy cost Cam-lock connection: Tight connection, prevent lose cool air

Smart Packaged Unit

Copeland/ Highly brand: Quality assurance Famous brand, it will be easier for after-sales service and maintenance

Be installed in factory. No need to charge refrigerant and debug in your local

Smart Packaged Unit

Hydrophilic aluminum material of fins, so the indoor unit easier to be corrosion. Indoor unit have anti-corrosion material on the surface, more safe, more beatuiful and have longer service time

Customer Case

Related Products

Company Profile

Onlykem Technology Co., Ltd is the leading cold room and refrigeration unit designer, manufacturer and exporter, which dedicated in supplying finest quality Cold Room, Blast Freezer, Unit Cooler, Condensing Unit, Door and PU Panel, etc. Product innovation and customer satisfaction are our long term commitment to all our partners.

FAQ

Question Answer	Question Answer
Q: It's hard for me to find professional engineer for installation, what should I do?	A: Only connect the plug to your main power, then you can use it directly. Because the whole project has been pre-assembling in factory.
Q: I would like to remove the cold room to my new factory after a few years, what should I do?	A: OnlyKem container cold room is movable, it can be removed to anywhere in anytime.
Q: My local energy cost is very expensive. What should I do?	A: Smart Packaged Unit defrost time 70% less at least; Energy consumption 80% less at least than regular unit. Will save your more than 1500kw energy per year.
Q: I want to build cold room outdoor, but no steel construction, what should I do?	A: Container can instead of outside construction to protect cold room. To ensure long service time.
