SPECIFICATIONS

Advantages: High Efficent

Brand Name: KINGREAL

Certification: CE Standard

Color: Customer's Requirement

Core Components: Motor,Other,PLC

Dimension(L*W*H): 100*120*100

Feature: Automatiic

Feeding width: Other

Keel size: According with customer's drawings

Key Selling Points: Automatic

Machine type: keel making machine

Machinery Test Report: Provided

Place of Origin: Guangdong, China

Product name: strut channel forming machine

Raw material: Galvanized steel or stainless steel strips

Roll Forming stands: 22 Rollers station

Rolling thinckness: 0.3-0.8mm

Tile Type: Steel

Type: Tile Forming Machine

Use: Other

Video outgoing-inspection: Provided

Voltage: 380V

Warranty: 2 Years

Weight: 1850 kg

forming speed: 15 m / min

Products Description

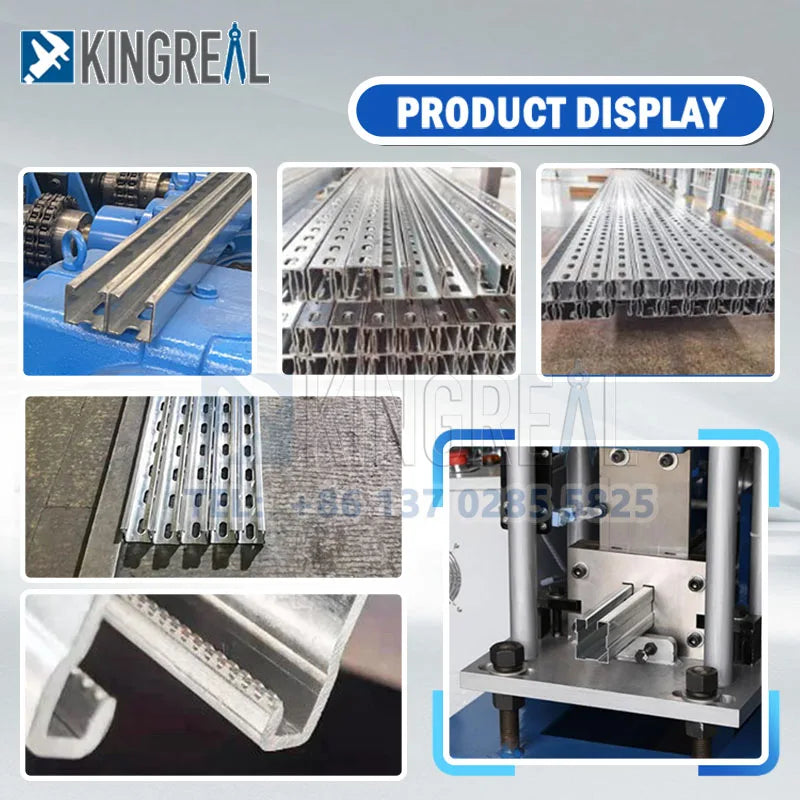

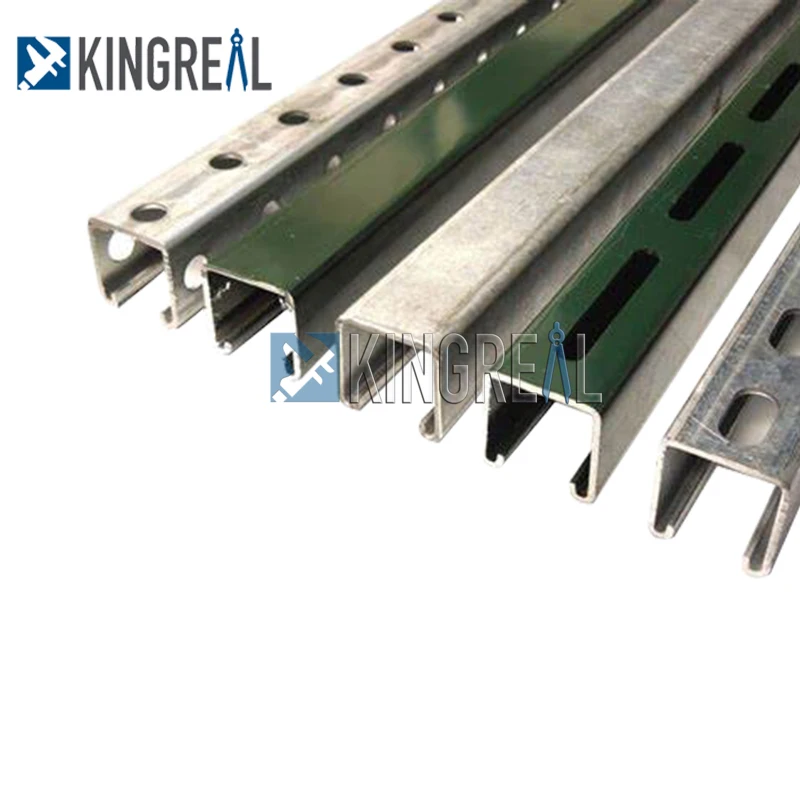

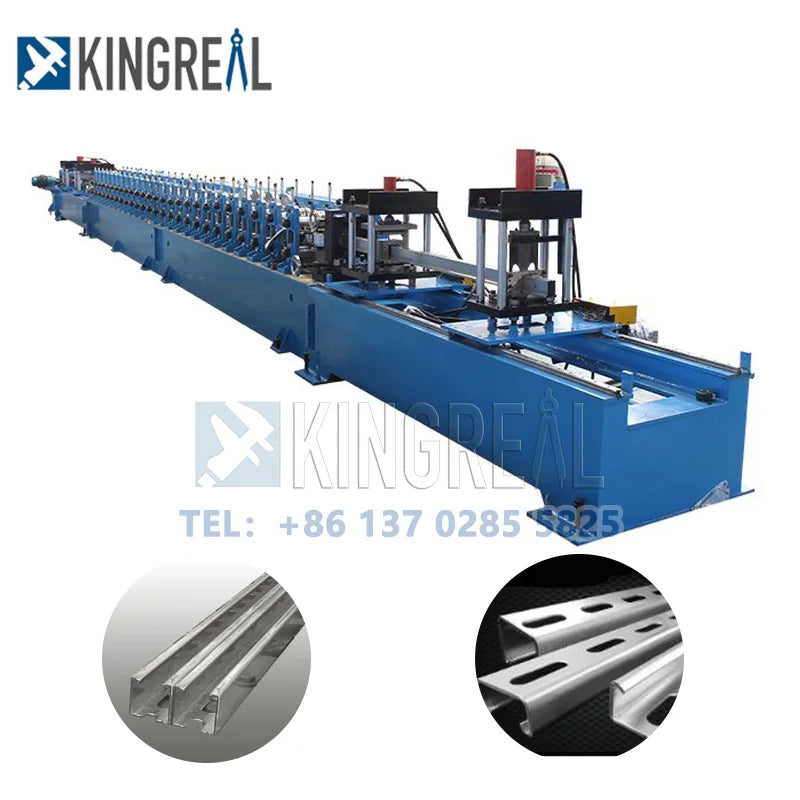

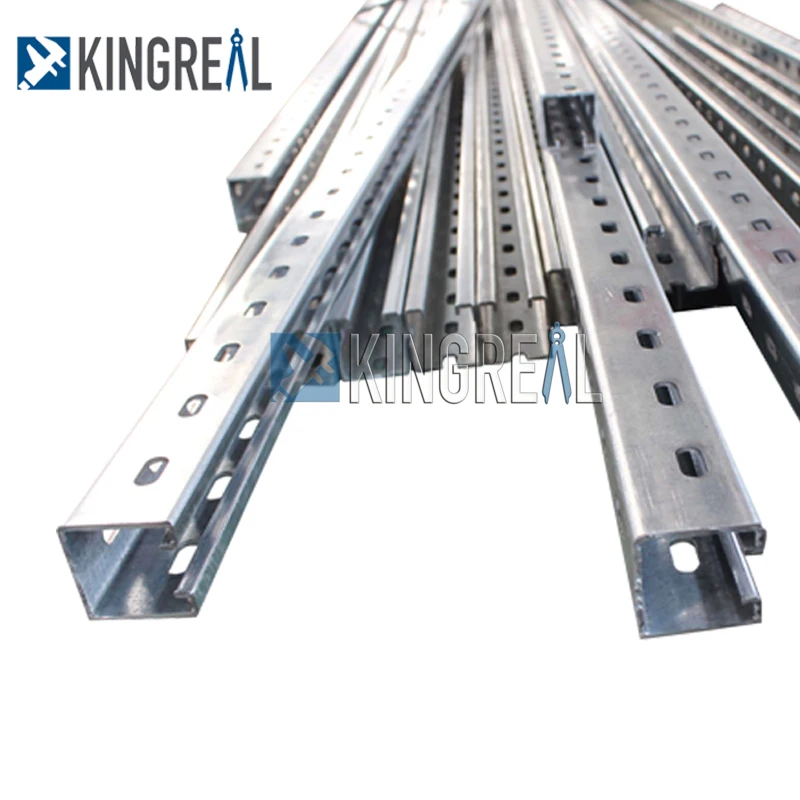

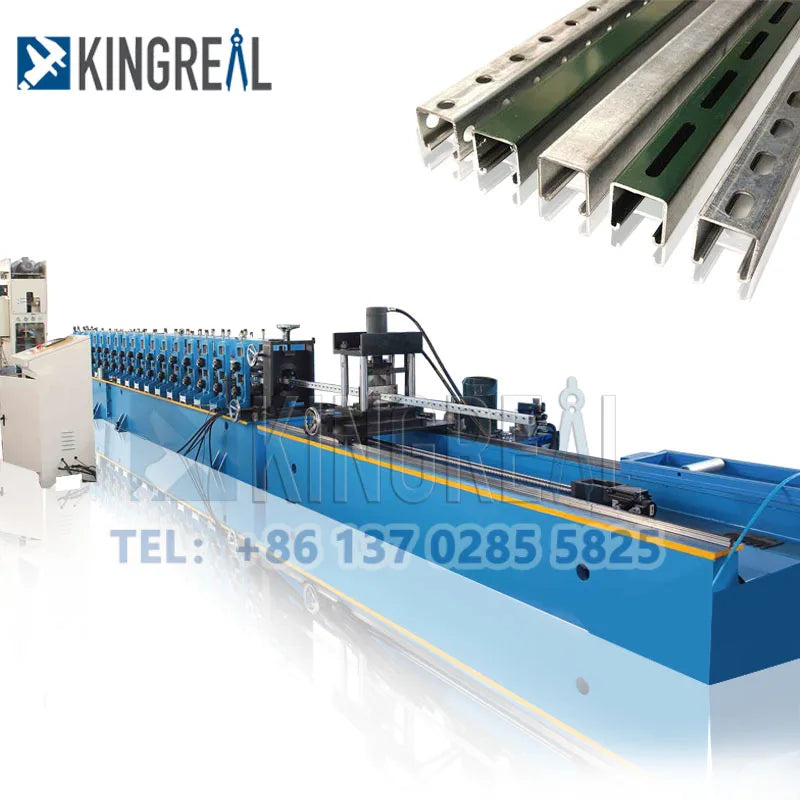

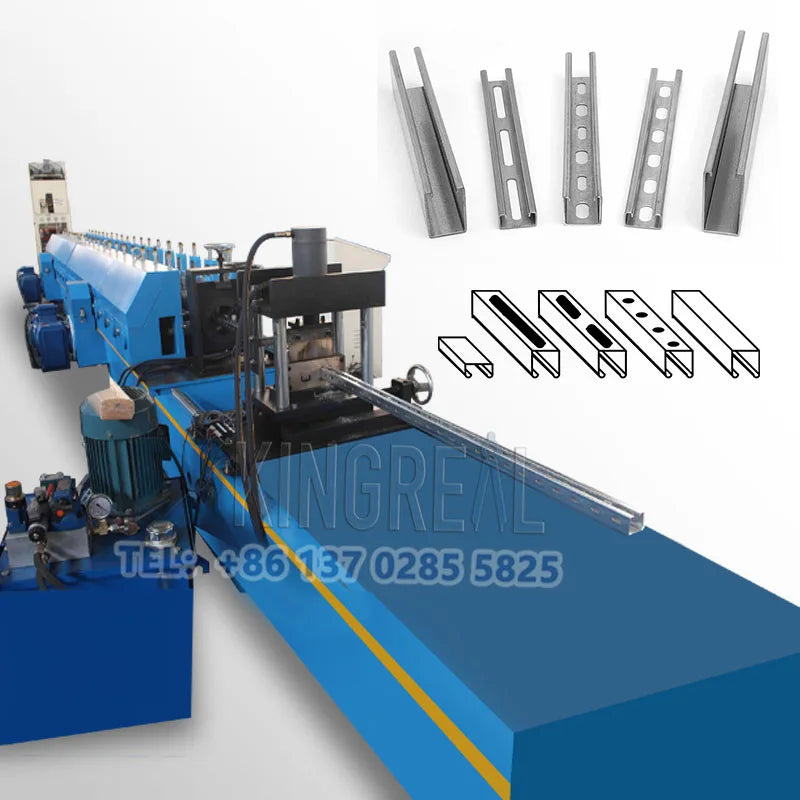

Heavy Duty Steel 41mm Strut C Channel Machine Slotted Angle Roll Forming Machine

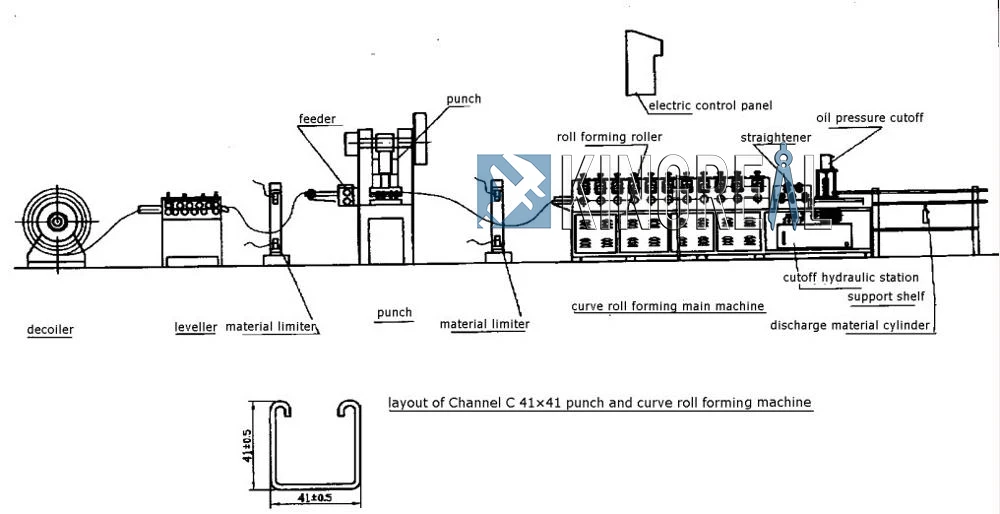

Automatic feeding-initial leveling-feeding (servo)-punching-cutting-conveying material-forming-discharging

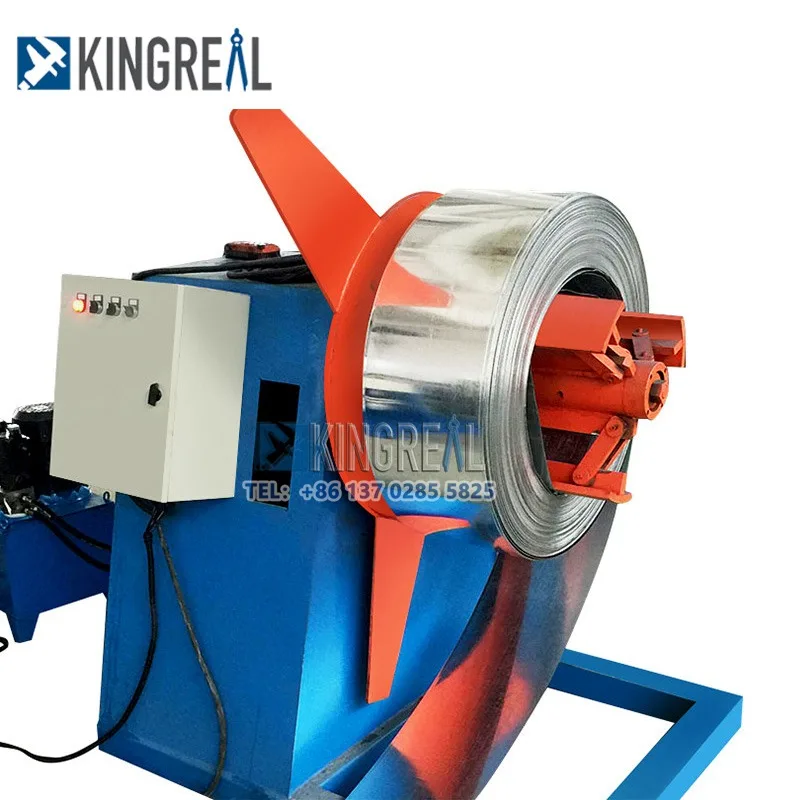

- Decoiler
- Precision leveler
- High speed punch press with punch moulds
- Servo feeder
- Main roll forming station

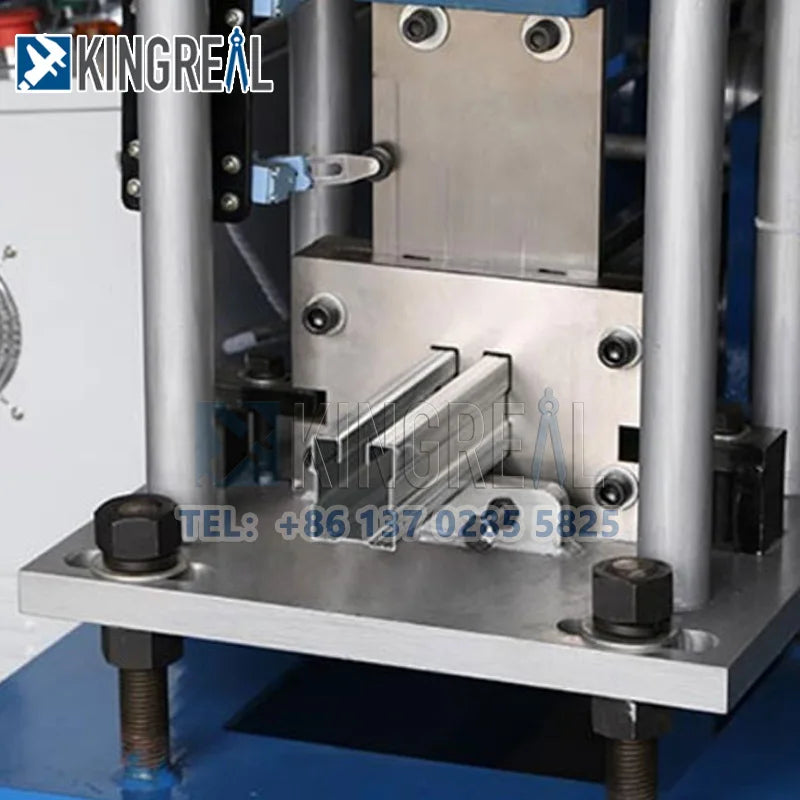

- Hydraulic shearing station
- Products stacker
- Electrical & Hydraulic system

Raw Material	Galvanized sheet, mild steel, etc
Roller Material	High grade 45# steel
Production Line	Fully automatic
Electrical Control System	PLC control
Usage	steel keel
Brand	KINGREAL

Product Features

Specialized Machinery:

Customers make adjustments based on their own production needs, product needs, plant needs, etc.

To address the various needs of consumers, our business relies on a strong internal technical staff and school resources from Shandong Vocational College of Science and Technology.

- The forming frame is made of cast iron and has undergone tempering. high durability and strength. - The roller shaft's material is 40Cr, and after quenching and tempering, it has an HB280 hardness rating. - The forming mold is made of quenched GCr15, which has a hardness range of HRC56 to HRC62.

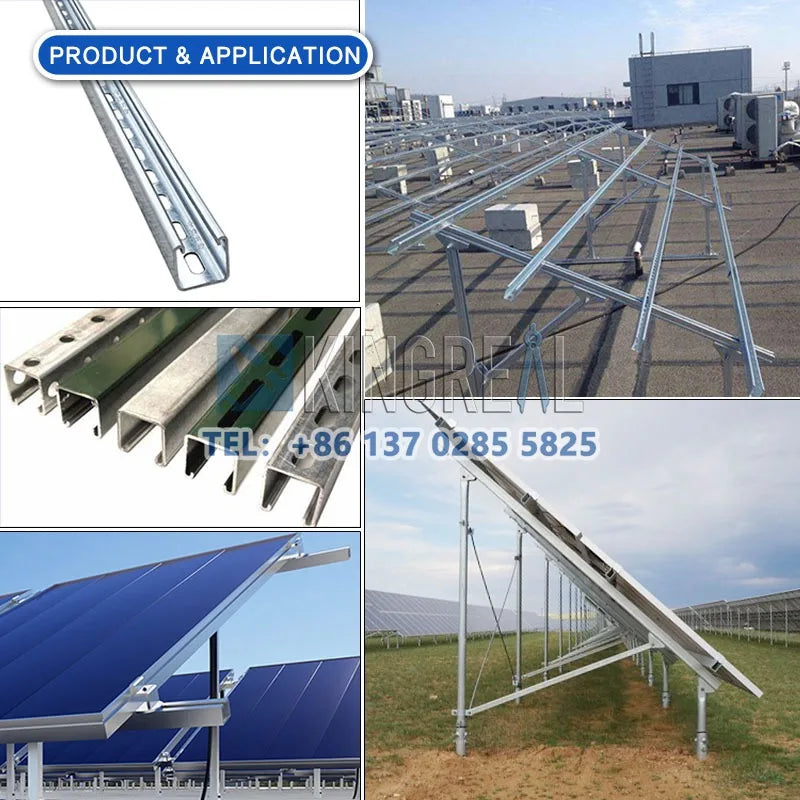

Application

Related products

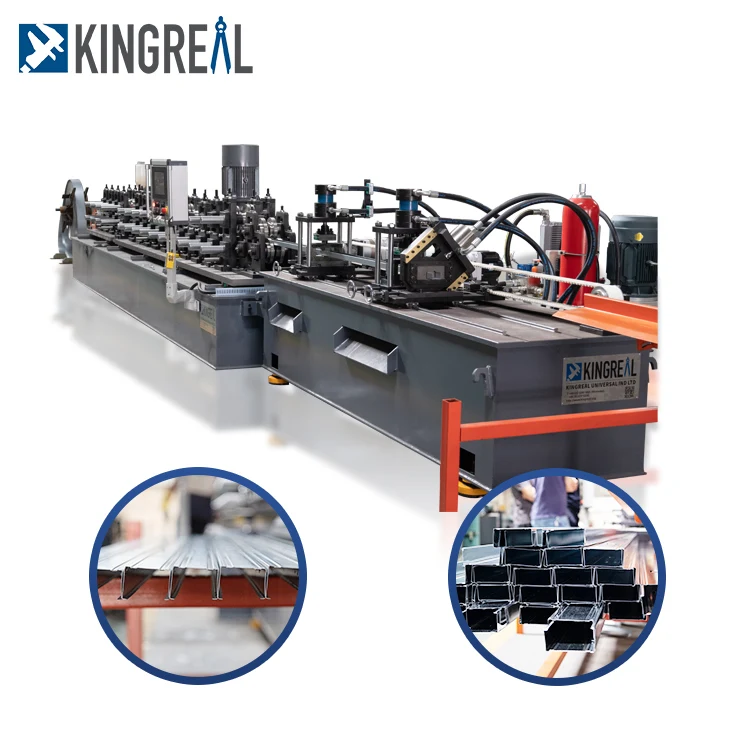

LGS Roll Forming Machine

CU Channel Roll Forming Machine

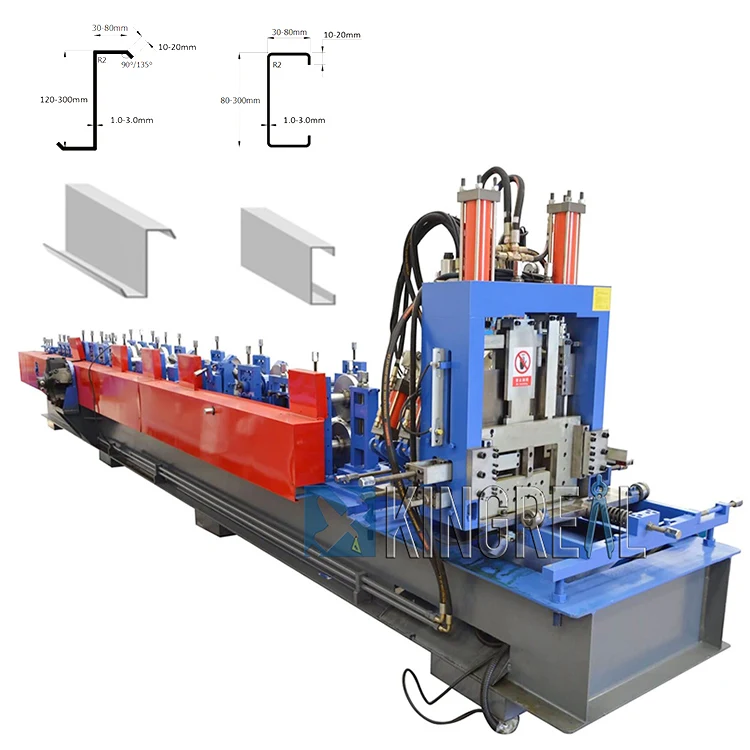

CZ Purlin Roll Forming Machine

Company Profile

KINGREAL UNIVERSAL INDUSTRIAL LIMITED is established on 1995 and is dedicated on researching, desgin and metal ceiling production factory manufacturing all kinds of metal ceiling perforation production line, HVAC Duct Auto Manufacture Line, T bar roll forming machine, metal slitting line, cut to length line, acoustical ceiling tile textile install machine, cold roll forming machine and etc.

Our machinery and production line had been exported to Turkey, Saudi, UAE, Russia, etc and win good reputation all around the world.We warmly welcome old and new customers from all over the world to visit our company and establish business relationships with us. We do believe our mutual cooperation will create a brilliant future.

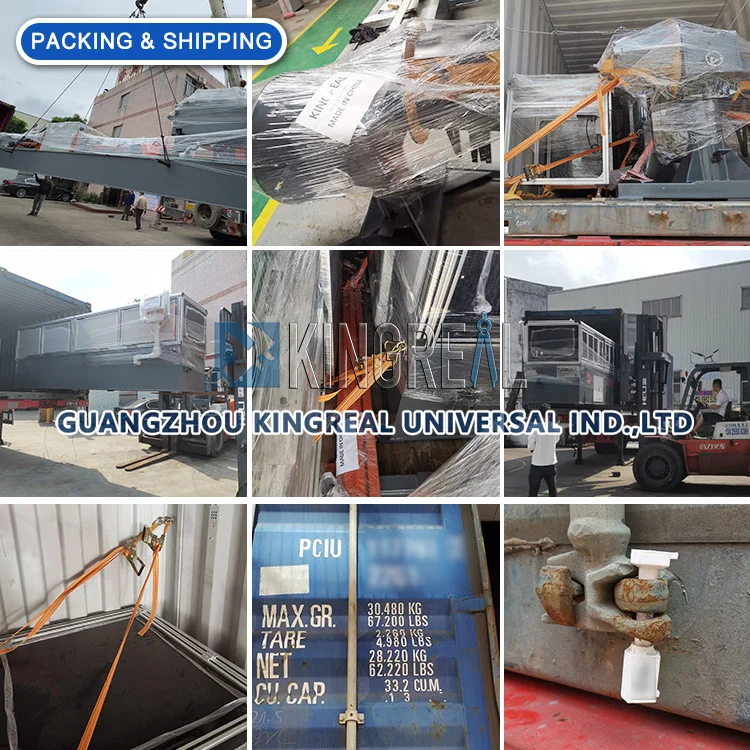

Product packaging

For different machines or production line parts, we have different packing solutions:

* For the machine or production line, using plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.

* For the key parts such as the roll forming rollers set, we will use the metal frame to package.
* For the electrical cabinets, molds set, we will use wooden carton to package and load.

Why Choose Us

Local After-Sale

In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.

Localized service points in other countries and regions are also in progress

Customer Feedback

KINGREAL has rich experience in production and sales, and is committed to providing customers with the best solutions to solve customer problems. At present, it has been recognized by customers from all over the world.

FAQ

Q:What's your Warranty ？
12 months, during which all parts damaged because of quality problem will be changed for free.

Q: What's your delivery Time ？
Within 45-60 days after receiving prepaid. Some machines in stock, can be delivered at any time.

Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q:What's your Install and Training ？
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.

Q: What's you after-sale service ？
We provide 24-hour online service for our customers.

A.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller. When technique men go to the buyer's place to debug the machines, the buyer should pay the expense of accommodation, and traffic for the buyer’s men.

B. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.

Q: How to place order ？
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
