120W~600W Solar Panel Kit Flexible Monocrystalline Cell 18 Volts 120 Watts Solar Panels 12V 24V Battery Charger For Home RV Caravan

New Solar PanelSize 1065*550*3 mm

120W solar panel Specifications

Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g
Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Features:

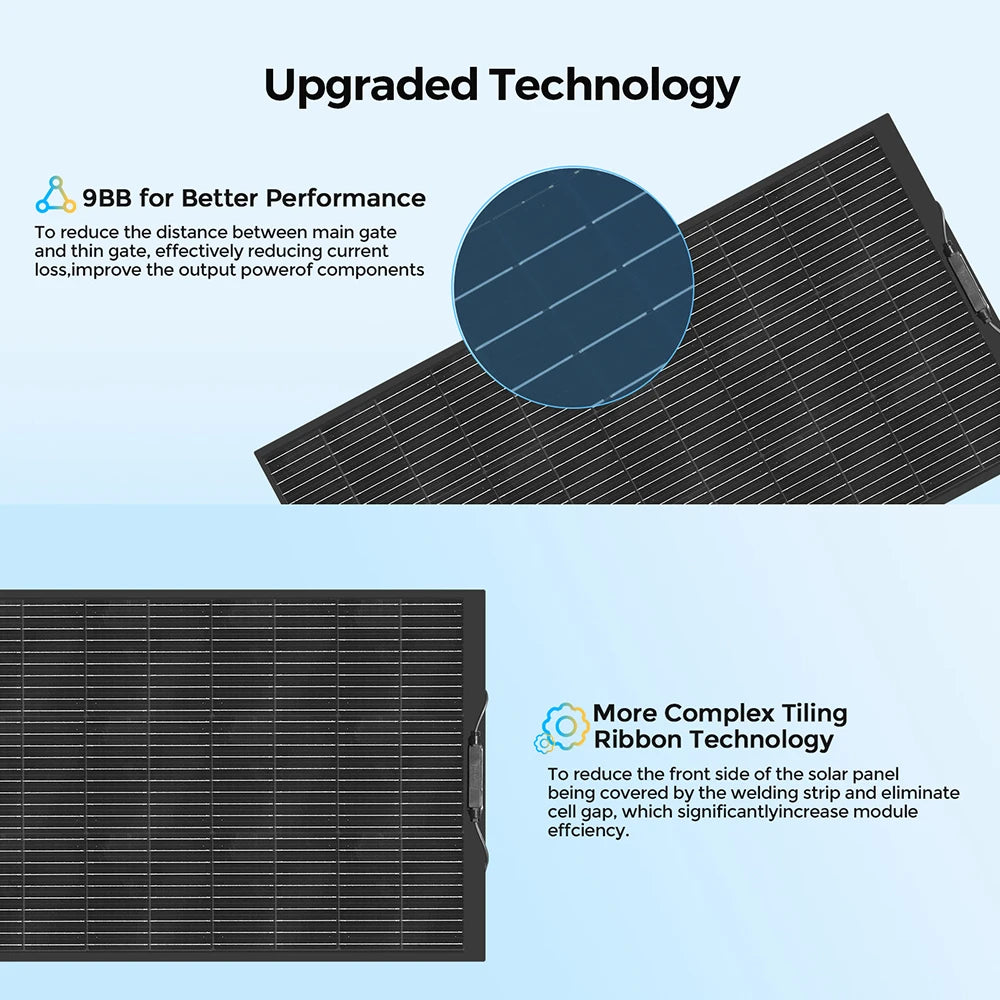

1.[Excellent performance] Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions

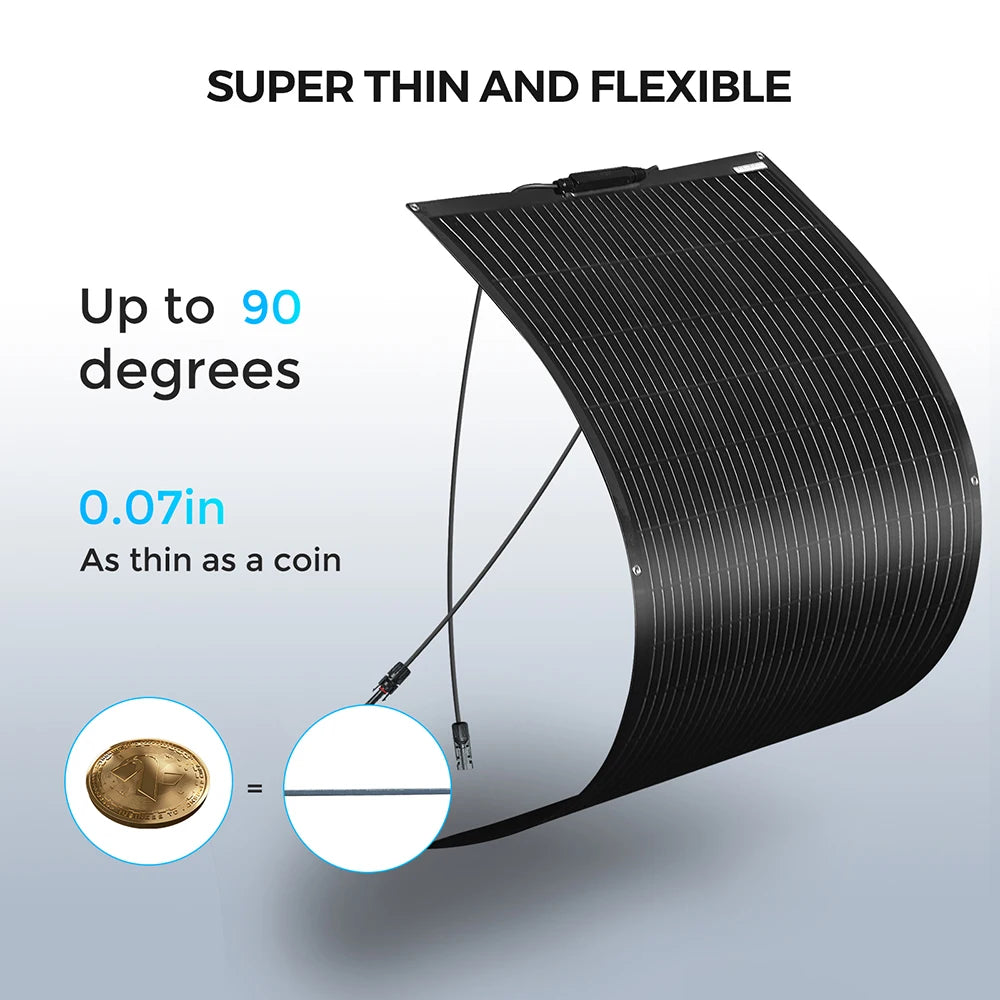

2.[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
3.[Practicality] Light energy converts electrical energy and has strong practicability. It is a good supplement for power shortages and places where the city power cannot reach, such as mountains, marine, deserts, etc.
4.[Nice Details] The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
5.[Easy Installation]The solar panel has 6 grommet mounting holes are available to attach fasteners,and can also be installed with silicone and adhesive tape. 12-month guarantee service.

Packing list

1 x 120W 18.15V Solar Panel (120W)

or

2 x 120W 18.15V Solar Panel (2pcs 120W)

or

3 x 120W 18.15V Solar Panel (3pcs 120W)

or

4 x 120W 18.15V Solar Panel (3pcs 120W)

or

5 x 120W 18.15V Solar Panel (5pcs 120W)

or

1 x 120W 18.15V Solar Panel (120W Kit)

1 set 3m cable with PV connector

1 set cable with Alligator clip

1 X 10A Controller

or

2 x 120W 18.15V Solar Panel (2pcs 120W Kit)

1 set 3m cable with PV connector

1 set cable with Alligator clip

1 X 20A Controller

1 set 2 in 1 PV adapter

or

3 x 120W 18V Solar Panel (3pcs 120W Kit)

1 set 3m cable with PV connector

1 set cable with Alligator clip

1 X 30A Controller

1 set 3 in 1 PV adapter

or

4 x 120W 18.15V Solar Panel (4pcs 120W Kit)

1 set 3m cable with PV connector

1 set 3m cable with Alligator clip

1 x 40A Controller

1 set 4 in 1 PV adapter

or

5 x 120W 18.15V Solar Panel (5pcs 120W Kit)

1 set 3m cable with PV connector

1 set 3m cable with Alligator clip

1 x 40A Controller

1 set 5 in 1 PV adapter
