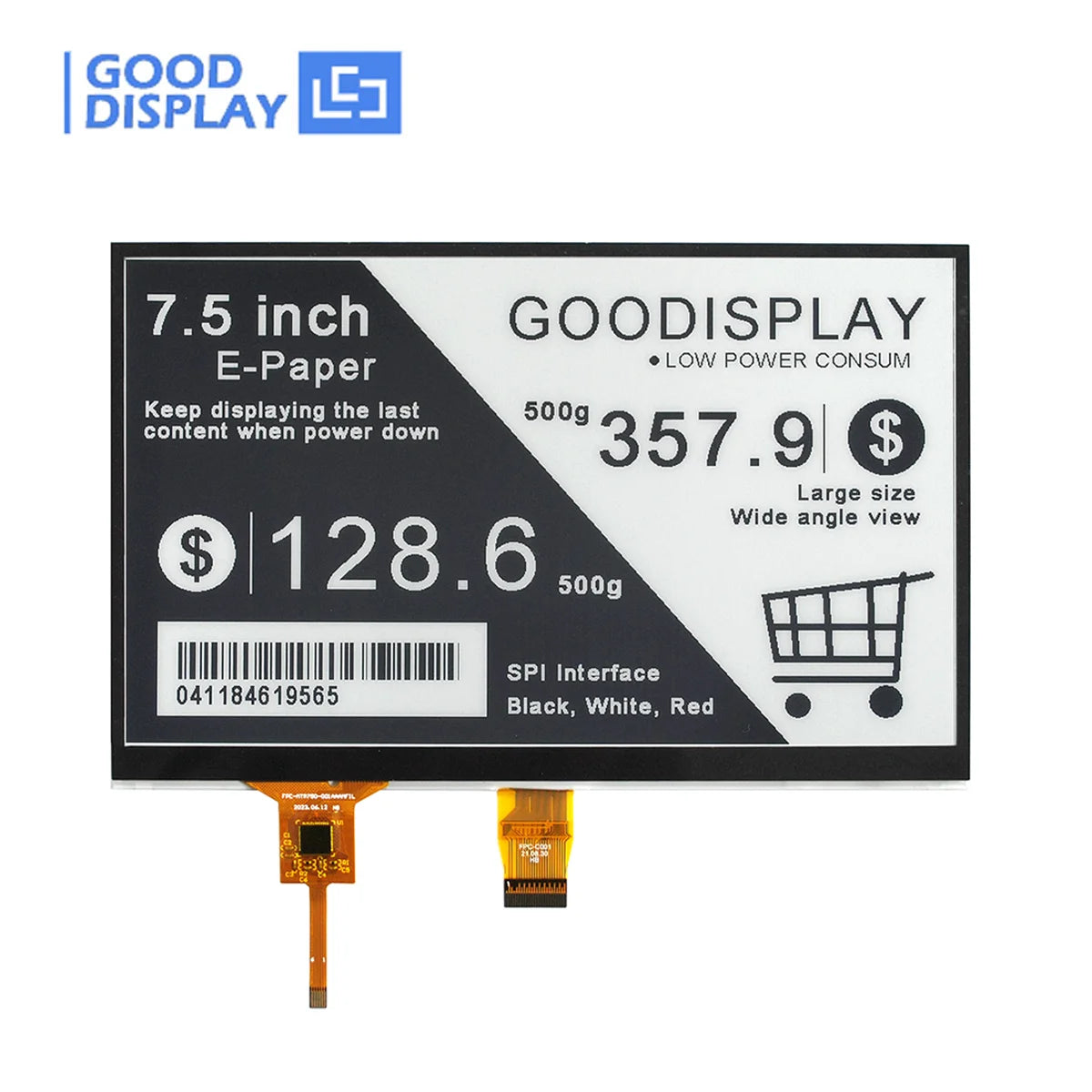

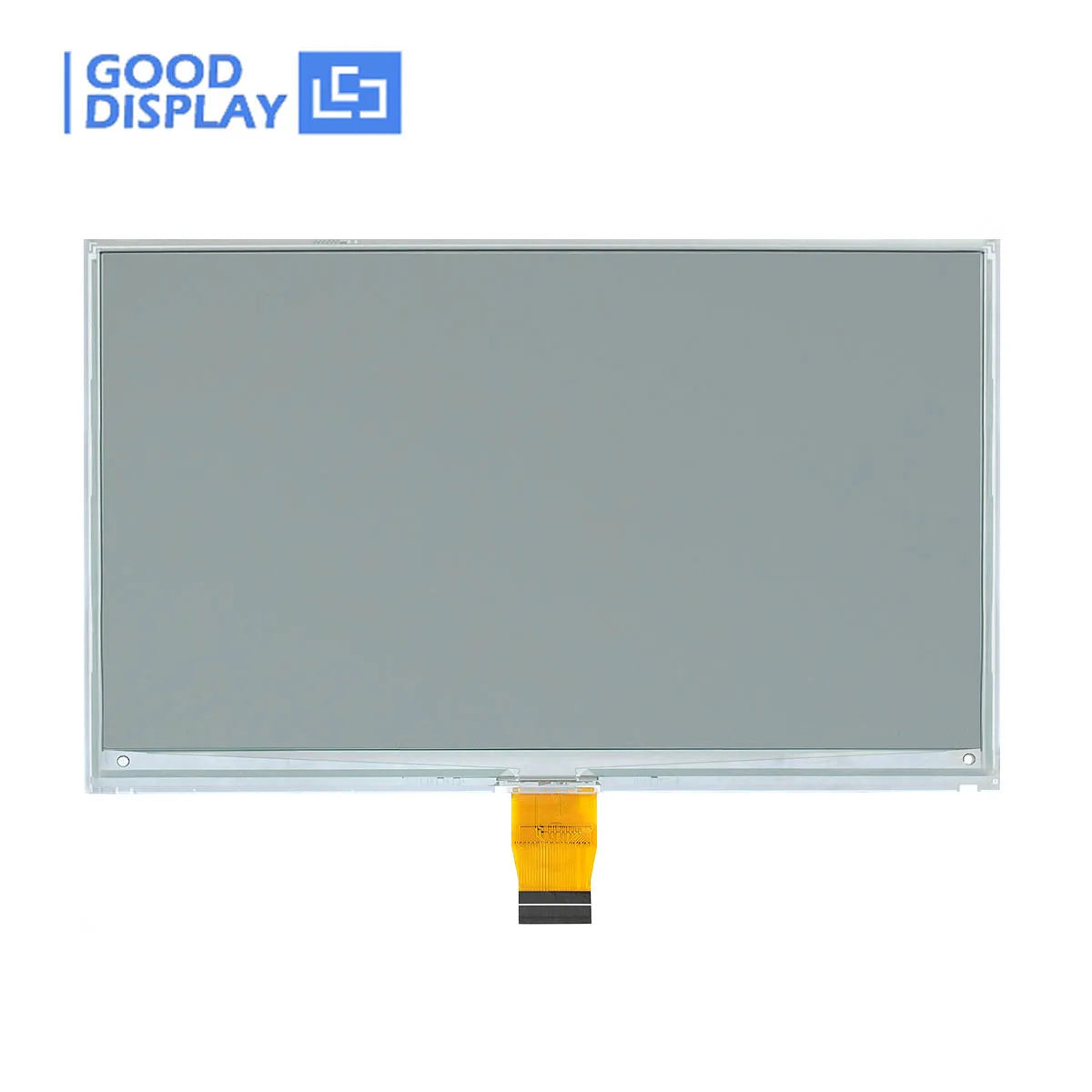

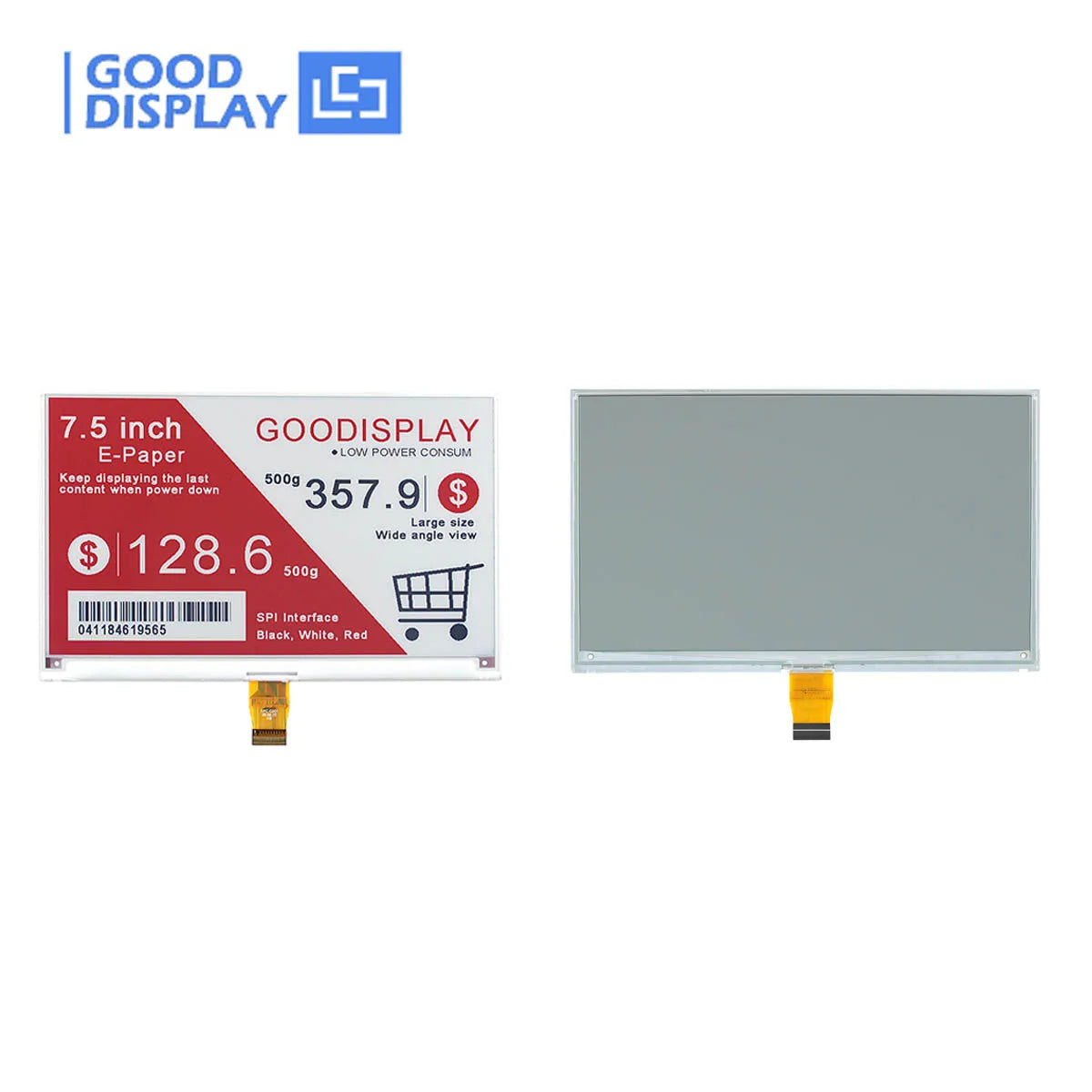

7.5 Inch Epaper Display with ESP32 Development kit Eink Screen Module, GDEY075Z08 with ESP32 Demo Kit
7.5 Inch Epaper Display with ESP32 Development kit Eink Screen Module, GDEY075Z08 with ESP32 Demo Kit
Nhà bán
Không thể tải tình trạng còn hàng để nhận hàng
Giảm giá khi đặt hàng số lượng lớn.Mua ngay
Thông số sản phẩm
Thông số sản phẩm
Chi tiết sản phẩm
Chi tiết sản phẩm
SPECIFICATIONS
ACTIVE SIZE(mm): 163.2x97.72
Battery Included: No
Brand Name: goodisplay
Certification: CE
Color: RED
High-concerned chemical: None
IC: UC8179
Model Number: GDEY075Z08 with ESP32 Demo Kit
OPERATING TEMP.: 0℃~40℃
OUTLINE SIZE(mm): 170.2x111.2x1.25
Origin: Mainland China
Package: Yes
RESOLUTION: 800x480
SIZE: 7.5 inch
TYPE: Dot Matrix
Type: Industrial Monitor
▎INTRODUCTION

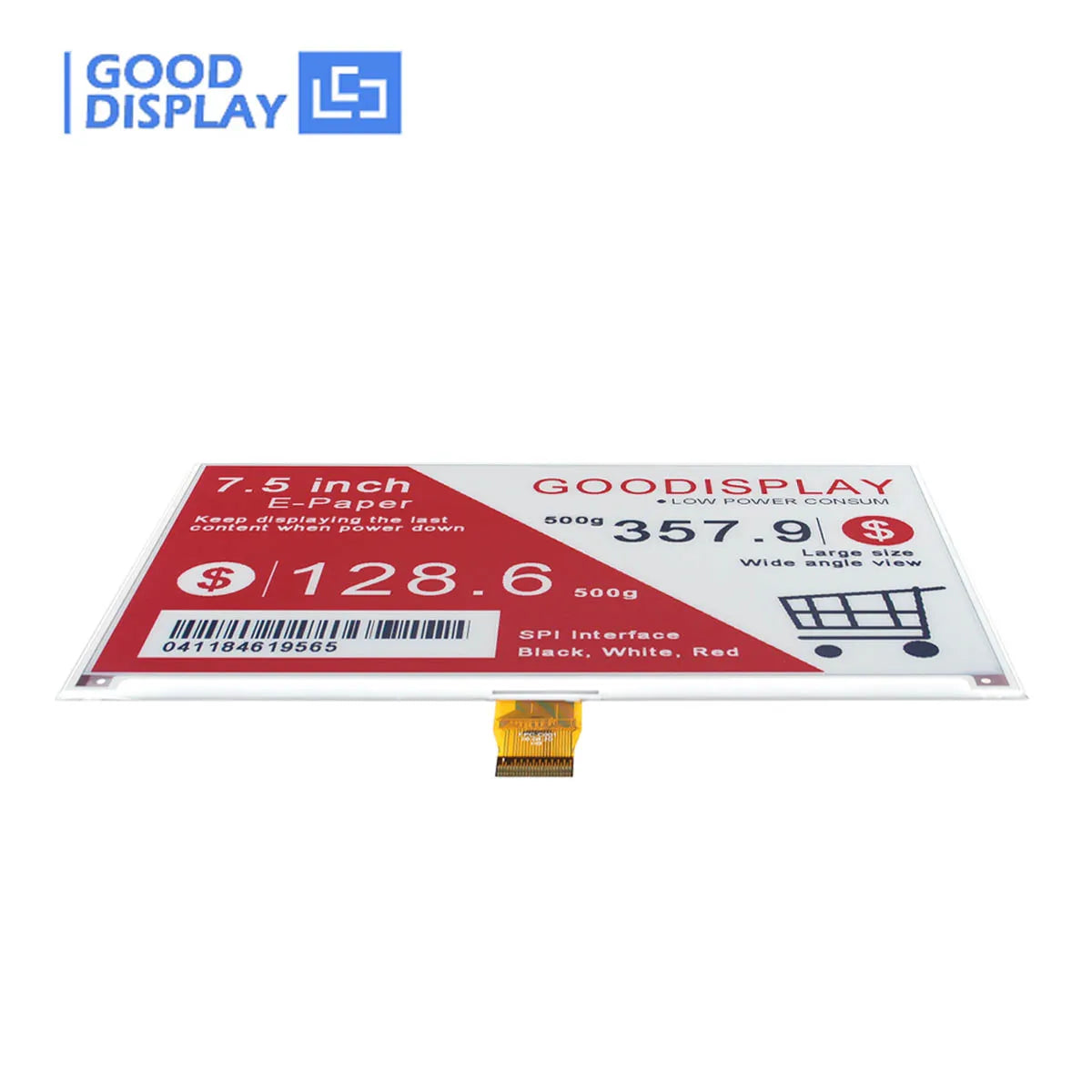

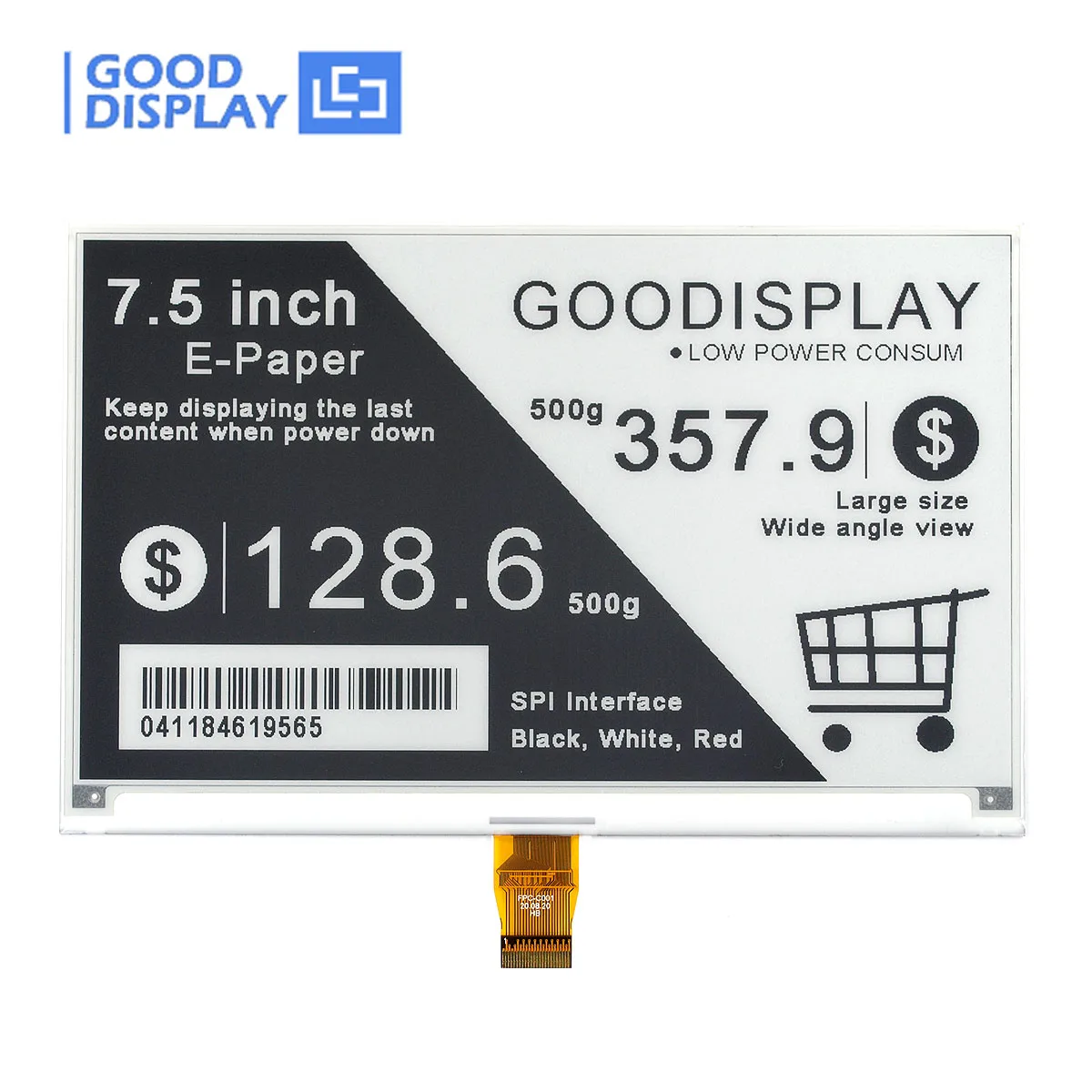

This is a set of ESP32 Epaper Module consist of ESP32 board and 7.5 inch color electronic paper screen with 800x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This 7.5 inch e-ink display GDEY075Z08 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

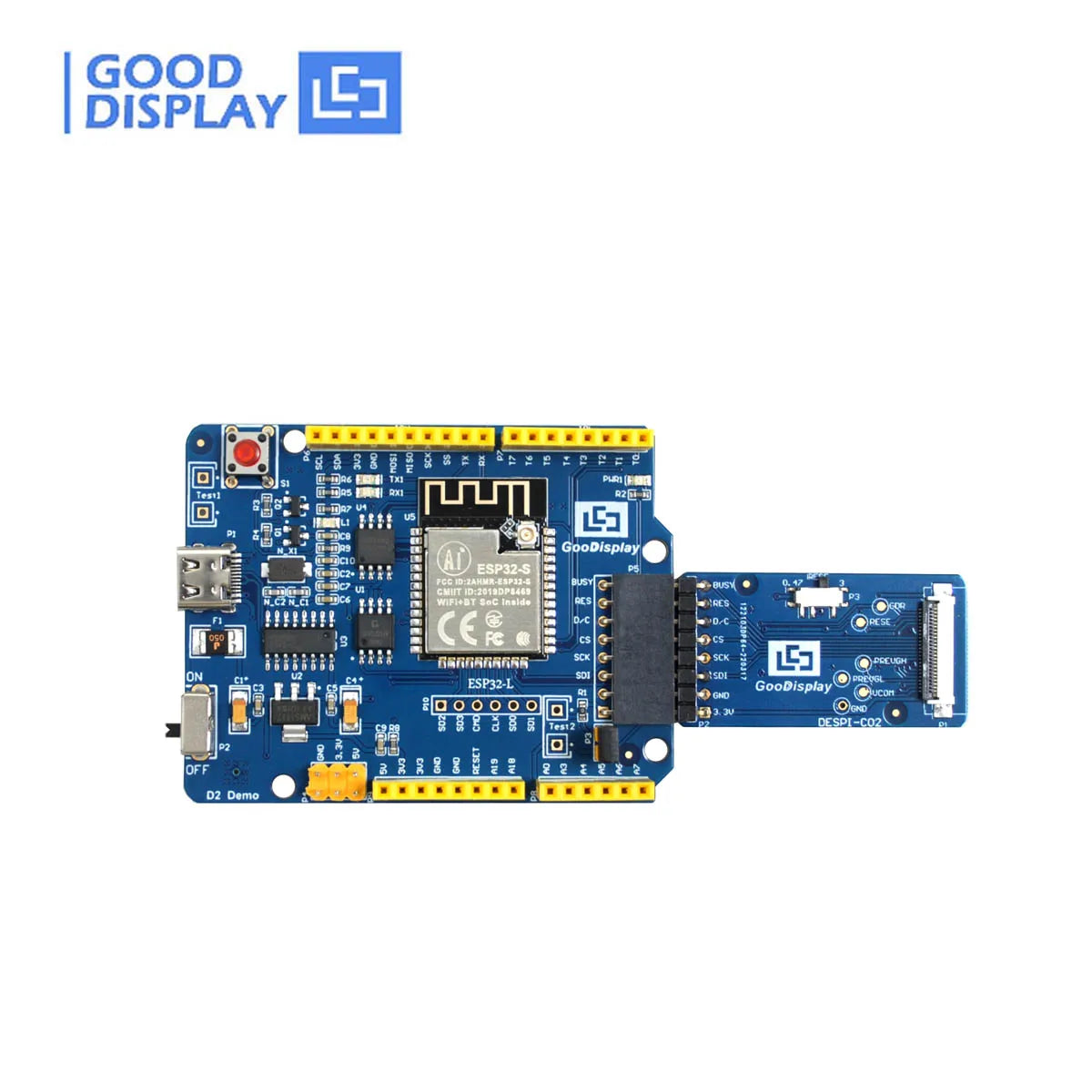

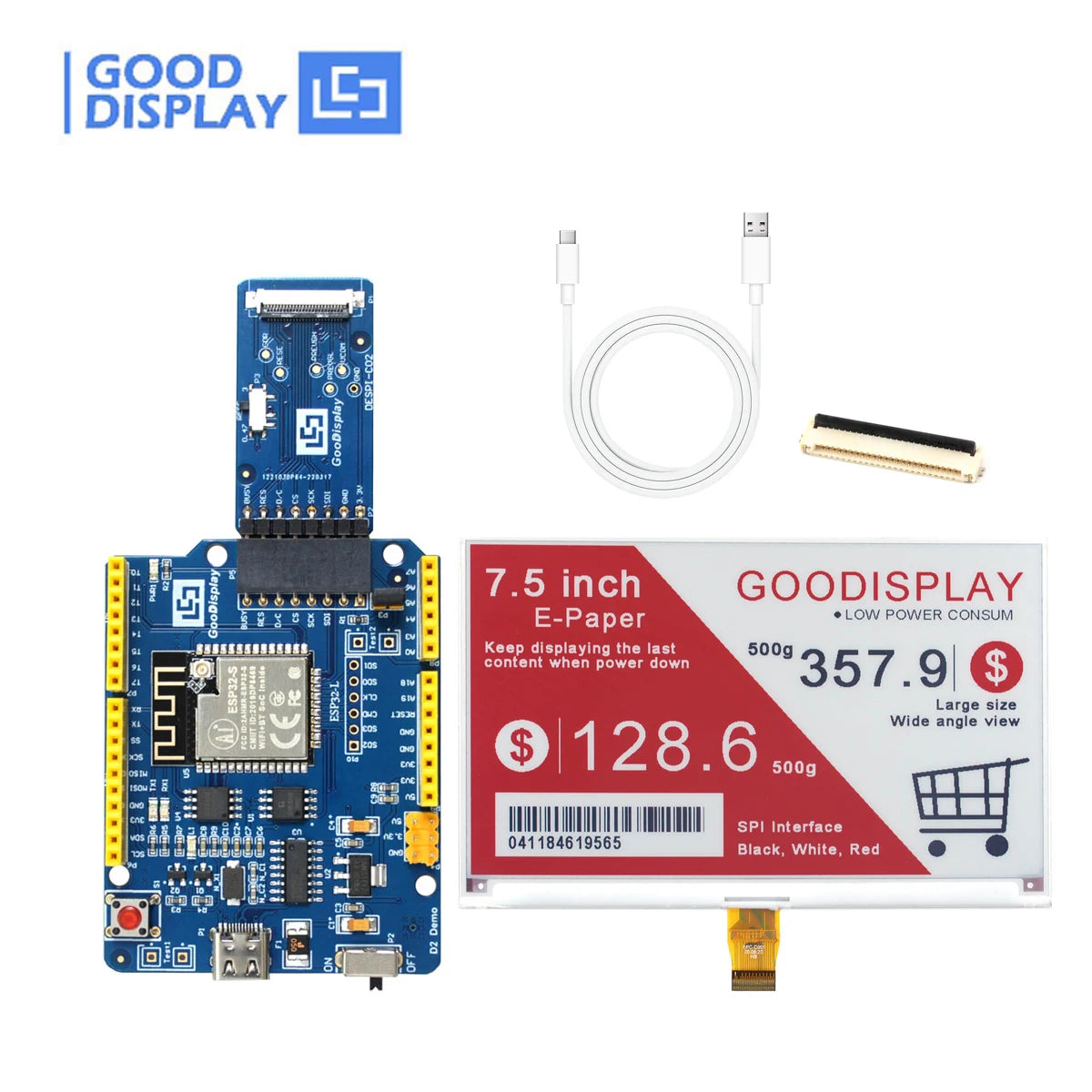

This Development Kit ESP32-L(C02) designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* Partial update only be used on black and white color instead of red color.

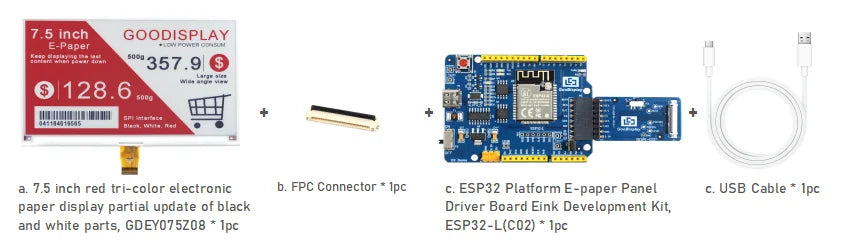

▎THE ABOVE PRICE INCLUDE

▎MAIN PARAMETERS
PART NUMBER |
GDEY075Z08 |
||
SIZE |
7.5 inch |
STORAGE TEMP. |
-25℃~70℃ |
TYPE |
Dot Matrix |
CONNECTOR |
24 Pin FPC |
IC |
UC8179 |
MAX GRAYSCALE |
2 |
RESOLUTION |
800x480 |
COLOR |
Black, White, Red |
OUTLINE SIZE(mm) |
170.2x111.2x1.25 |
INTERFACE |
SPI |
ACTIVE SIZE(mm) |
163.2x97.72 |
FULL REFRESH(s) |
18 |
PIXEL PITCH(mm) |
0.204x0.204 |
POWER CONSUMPTION OF THE REFRESH(mW) |
33.3 |
OPERATING TEMP. |
0℃~40℃ |
STANDBY POWER CONSUMPTION(mW) |
0.0165 |
PART NUMBER |
ESP32-L(C02) |
||
PLATFORM |
Arduino |
OUTSIDE DIMENSION |
70x54mm (ESP32-L) 41x22mm (DESPI-C02) |
POWER INPUT |
DC3.3V |
OPERATING TEMP. |
-20~70℃ |
FEATURE |
Support full refresh, fast refresh and partial refresh |
||

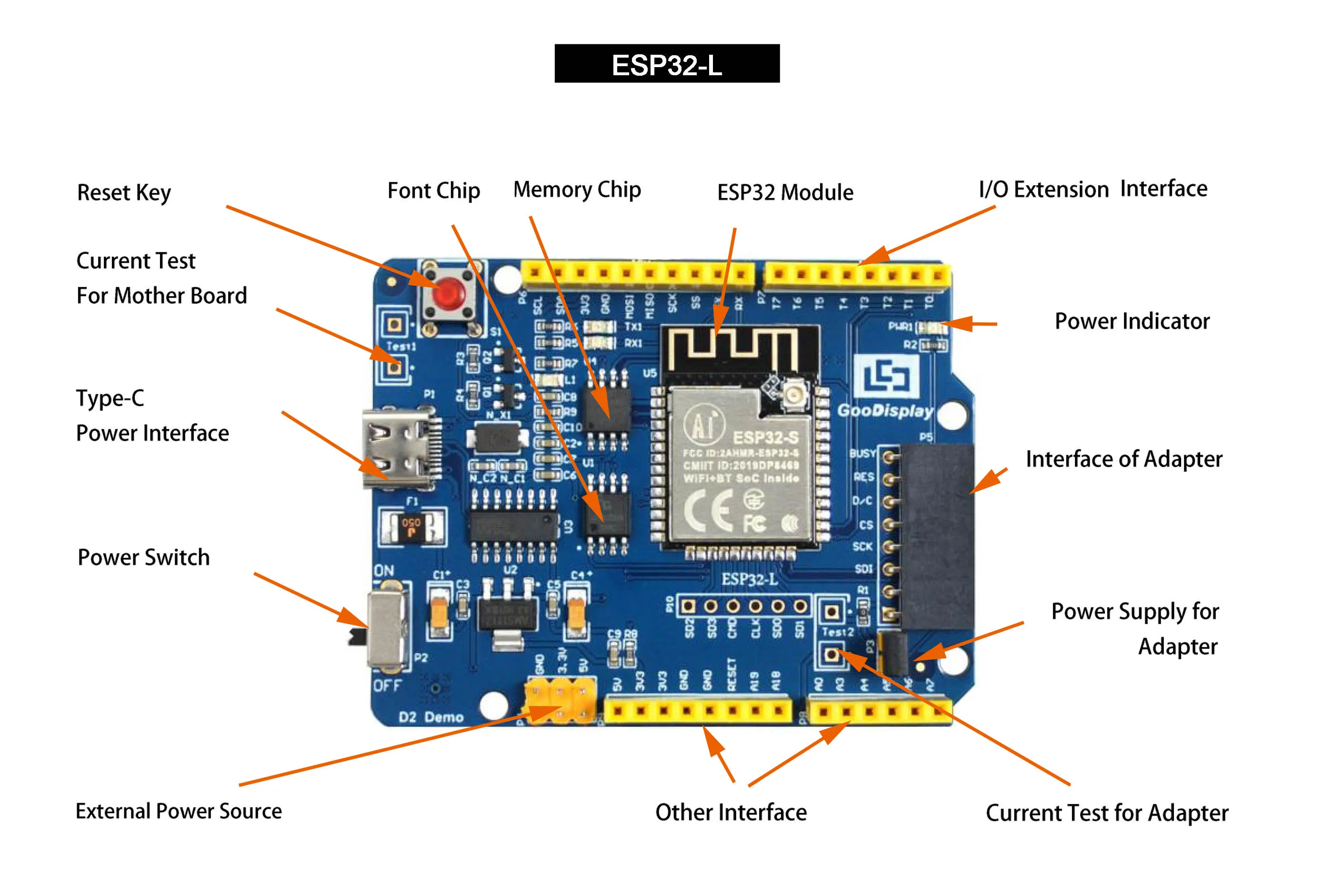

RESERVED FUNCTION |
Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection |
||
MAIN FUNCTION |
Learn to drive E-paper display; Test and evaluate e-paper display; Support secondary development |
||
▎FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

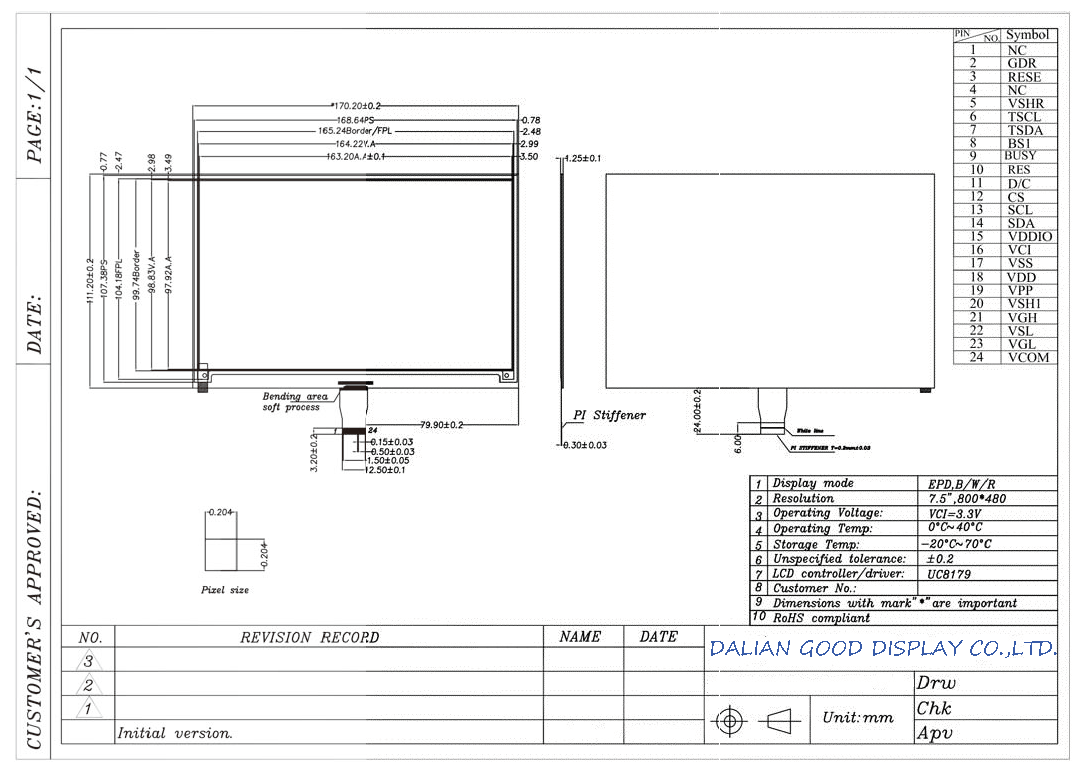

▎DRAWING



▎MATCHED DEVELOPMENT KIT

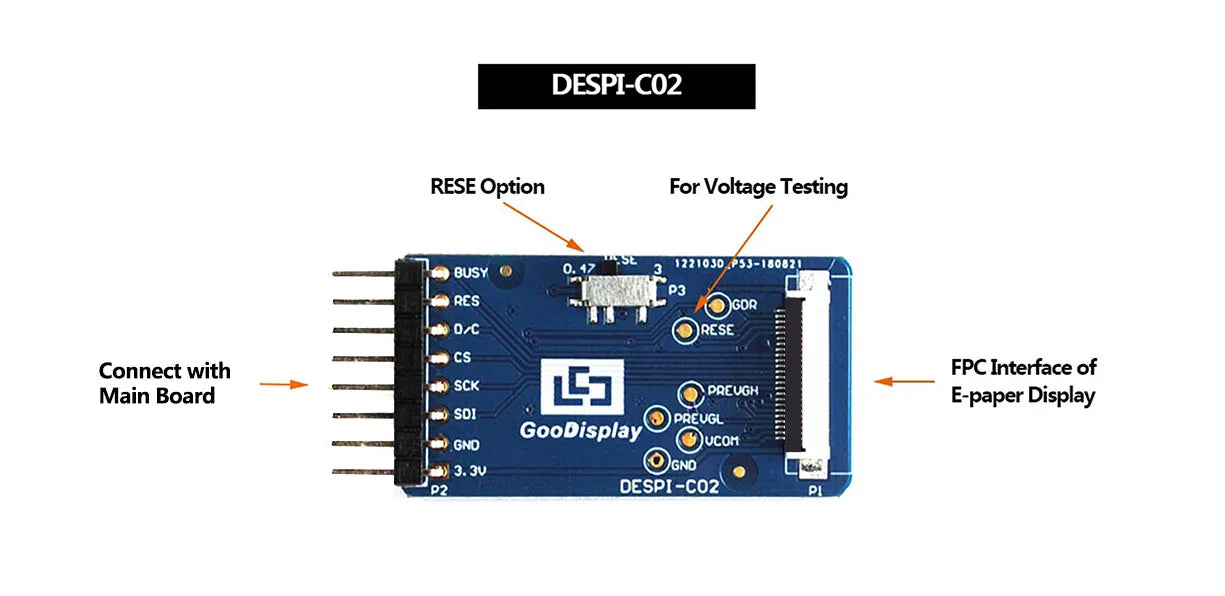

● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-PICO (Rasberry Pi Epaper HAT)
▎RELATED INFORMATION DOWNLOAD
● GDEY075Z08 Specification
● IC Driver UC8179
● GDEY075Z08 Picture Production and Bitmap Conversion
● GDEY075Z08 Arduino Sample Code
● GDEY075Z08 STM32 Sample Code
● GDEY075Z08_ESP32 Sample code
● GDEY075Z08 ESP8266 Sample Code
● GDEY075Z08 Raspberry Pi Sample Code
