SPECIFICATIONS

1.control mode: Toggle mode

2.control mode: Latching mode

3.control mode: Momentary mode

APP: Tuya smart life switch

Application: Light ,LED,Bulb,Lamp,Security access control system

Application 1: home light on/off remote control

Application 2: Led Light Lamp Switch, Home Security Alarm System

Application 3: Fluorescent strip design, luminous

Application 4: IFTTT

Application 5: Google Home

Application 6: Smart home

Brand Name: QIACHIP

Certification: ce,FCC,CE

Choice: yes

Current: 10A

Features: 2201W WIFI smart switch 433Mhz remote control switch Wireless

High-concerned chemical: None

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Max Current: 10A

Model Number: Tuya Wifi Smart Life Light Switch RF433 Remote Control Wall Panel Wire

Origin: Mainland China

RF: 433MHz

Rated Voltage: AC 90V 110V 220V 250V 50/60Hz

Switch Type: APP Control

Warranty: 3 year for smart home wireless remote control switch

WiFi: IEEE 802.11 b/g/n

semi_Choice: yes

WiFi Wieless RF Smart Home:

Input Voltage : AC 90-250V

Max Current : 10A

Wireless Type : Wifi 2.4GHz

Wireless standard : IEEE 802 .11 b/g/n

Remote ON/OFF: Turn electrical devices on/off from anywhere

App Support:  Free iOS and Android mobile App "Smart Life"

Sync Status: Real-time device status provided to App

Timing: Set scheduled/countdown/loop timers to turn on/off at specified time

Share Control: Control your smart home together with your family

Scene: Turn on/off a gang of devices with one tap

Voice Control: Works perfectly with Amazon Alexa,Google Home,IFTTT

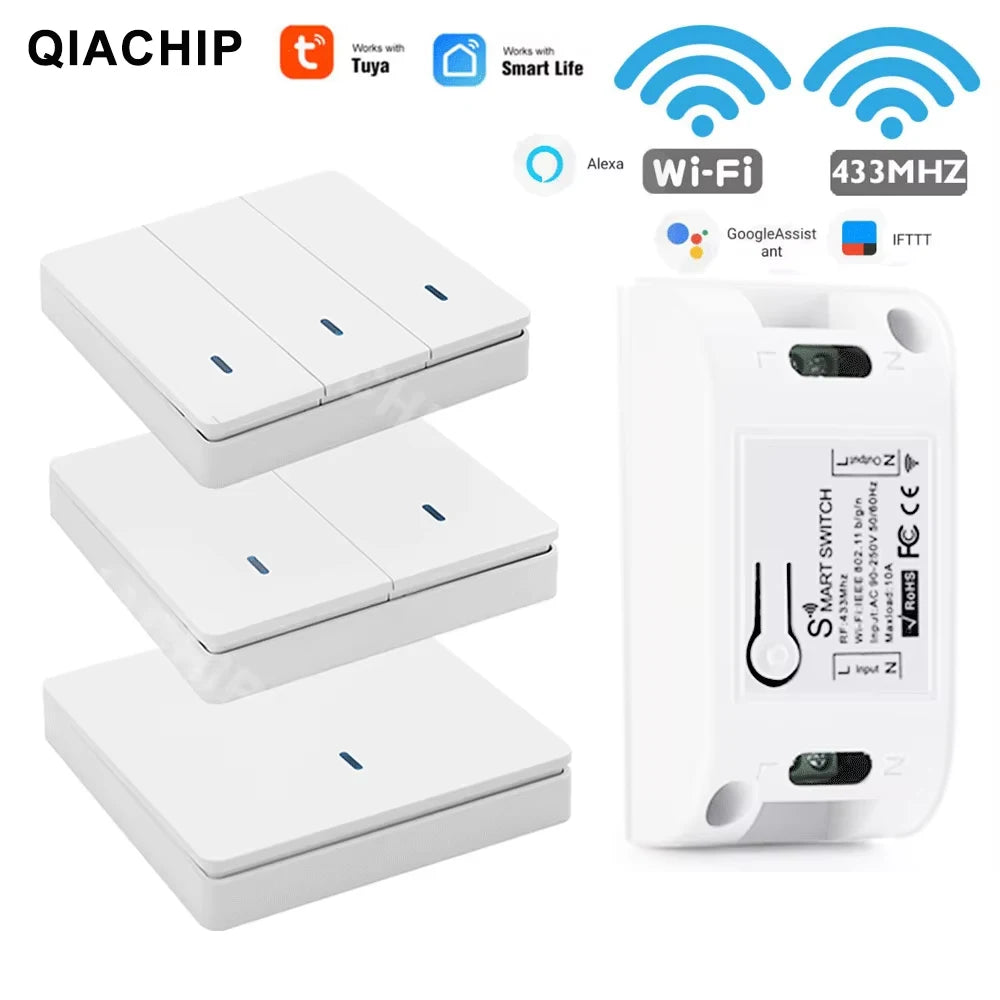

Wall Panel Transmitter:

Operating Frequency: 433MHz

Battery Model: CR2032(Package Not includedbattery)

Dimensions: 86mm x 86mm x 13mm

Distance: indoor (20 meters) outdoor (80 meters)

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Can be installed anywhere convenient and easy

Suitable for electrical products within 2000w,such as light bulbs,electric heaters,bath tubs,fans,water pumpsetc.

Voice control support, Alexa speaker, Google Home IFTTT

How to install this smart switch:

You don't need to open the outer casing of this smart switch

You can wire directly to the terminal block

Please note: Please turn off the power before wiring.

Please connect the wires according to the following diagram

WIRING DIAGRAM



After the wiring is completed, turn on the power and operate according to the status of the smart switch indicator:

1) If the red light of the smart switch flashes continuously at this time, it indicates that the smart switch has entered the state of waiting for connection to WiFi; then open the APP and follow the instructions to connect to WiFi.

2) If the indicator light of the smart switch is not flashing red light, please press the button of the smart switch and keep it for more than 5 seconds until the red light flashes continuously, then open the APP and connect to the WiFi according to the manual.

Scan the QR-code of the manual or Search ‘ Smart Life ’ to download and install the device's APP

How to match smart switch with 433Mhz RF remote control?

This Smart Switch only can link WIFI Then can match RF 433Mhz Remote Control.

This smart switch has 3 working modes to match the 433Mhz RF remote:

(smart switch, hereinafter referred to as: receiver)



About receiver's Working Mode:

Manual On/Off:Press the receiver's Learning button, the receiver's relay is ON; press button again, the receiver's relay is OFF.

Momentary mode:Press the Remote control button, the receiver's relay is ON; release button, the receiver's relay is OFF.

Toggle mode:Press Remote control button for 1 time, the receiver's relay is ON; press button again, the receiver's relay is OFF.

Latched mode:Press Remote control button A, the receiver's relay is ON, Press the transmitter's button B, the receiver's relay is OFF.



Setting power-OFF memory:

  When the power of the receiver is disconnected, the status before the power disconnection of the receiver will be recorded. When the power is restored, the receiver will return to the status before the power disconnection.

(For example: before the power is disconnected, the receiver is off, and the receiver will remain off after the power is restored;
Before the power is disconnected, the receiver is turned on, and the receiver will automatically turn on when the power is restored. )



Reset function:After push the receiver's learning button 8 times, the receiver Clear all the remote control data in its memory.

When the red LED flashes for a few times, it indicates that the clear function is completed.

(After cleared the code in the receiver, all the remote control cannot work with the receiver.)





Matching method:

1.Manual On/Off:

Press the receiver's Learning button 1 time,The receiver will turn on the relay and the circuit will be connected.

Press the receiver's Learning button again,The receiver will disconnect the relay and disconnect the circuit.



2. Setting Toggle Mode (Common working mode):

Press the receiver's Learning button 2 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's red LED will flash then come off, Setting successfully.



3. Setting Latched Mode:

(Note: When you choose "Latched Mode", you need to setting two different buttons on the Remote control, the first time learn is for “ON”, the second time learn for “OFF”.

For example: button A = ON, button B = OFF)

Press the receiver's Learning button 3 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's A button, the receiver's red LED will flash and then remains lit; Then press the remote's B button, the receiver's red LED will flash then come off, Setting successfully.



4. Setting momentary Mode:

Press the receiver's Learning button 4 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's red LED will flash then come off, Setting successfully.



5. Setting power-off memory

Press the receiver's Learning button 6 time, the receiver's red LED will be Flashing,the relay will energises the circuit.The setting is completed.





Note:

A Smart Switch can only store 12 buttons (on the remote). Saved button number of more than 12, it will cause all of the stored remote control cannot control the Smart Switch. You need reboot the power and reset the RF remote control settings (press the Smart Switch's matching button 8 times)

Thousands of Miles Away,A key to control



Q&A

1.My device has added successfully but stays “Offline”?

Answers:The newly added device need 1-2 min to connect to your router and the Internet. If it stays offline for a long time, please judge the problem by the led status:

Led quickly blinks one time and repeats, which means device failed to connect to the router. The reason may be you have entered wrong Wi-Fi password or your device is too far away from the router, which causes a weak Wi-Fi signal. The device cannot be added to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.

2. Why the APP can't find the device in pairing status?

Answers:That's because of your phone's cache. Please close the WLAN of your phone then open it after a minute. At the same time, please power off the device if you can, then power up to try again.

3.The led keeps off, even if the device is powered on. Press the button but the device does not work.

Answers:The circuit may be broken, please send it back for testing. Return shipping postage and packaging will be at buyer's expense, if the device is damaged by the buyer, and the buyer should bear extra repair cost.



Easy to replace the battery：





Instructions

The first step:Clear the receiver's memory

Press the Learning Button on the receivers for 8 times, the codes will be cleaned.

After cleaning the code, all the remote control can not work any more.

Step Two :Match Wall Panel Remote Transmitter and Receiver

Press the learning key on the receiver twice time, it comes into toggle setting mode.

Wait for a moment, the LED will be on , it comes into learning state.

Press the remote button, LED indicator on the receiver board will flash then come off

Learning successfully.
