Máy Hàn Đa Năng 3in1 Lotos LTPDC2000D 200A 220V
Nhà bán
Hãy nhanh tay nhé, chỉ còn 9 sản phẩm trong kho thôi.
Không thể tải tình trạng còn hàng để nhận hàng
Giảm giá khi đặt hàng số lượng lớn.Mua ngay
Thông số sản phẩm
Thông số sản phẩm
Chi tiết sản phẩm
Chi tiết sản phẩm
SPECIFICATIONS

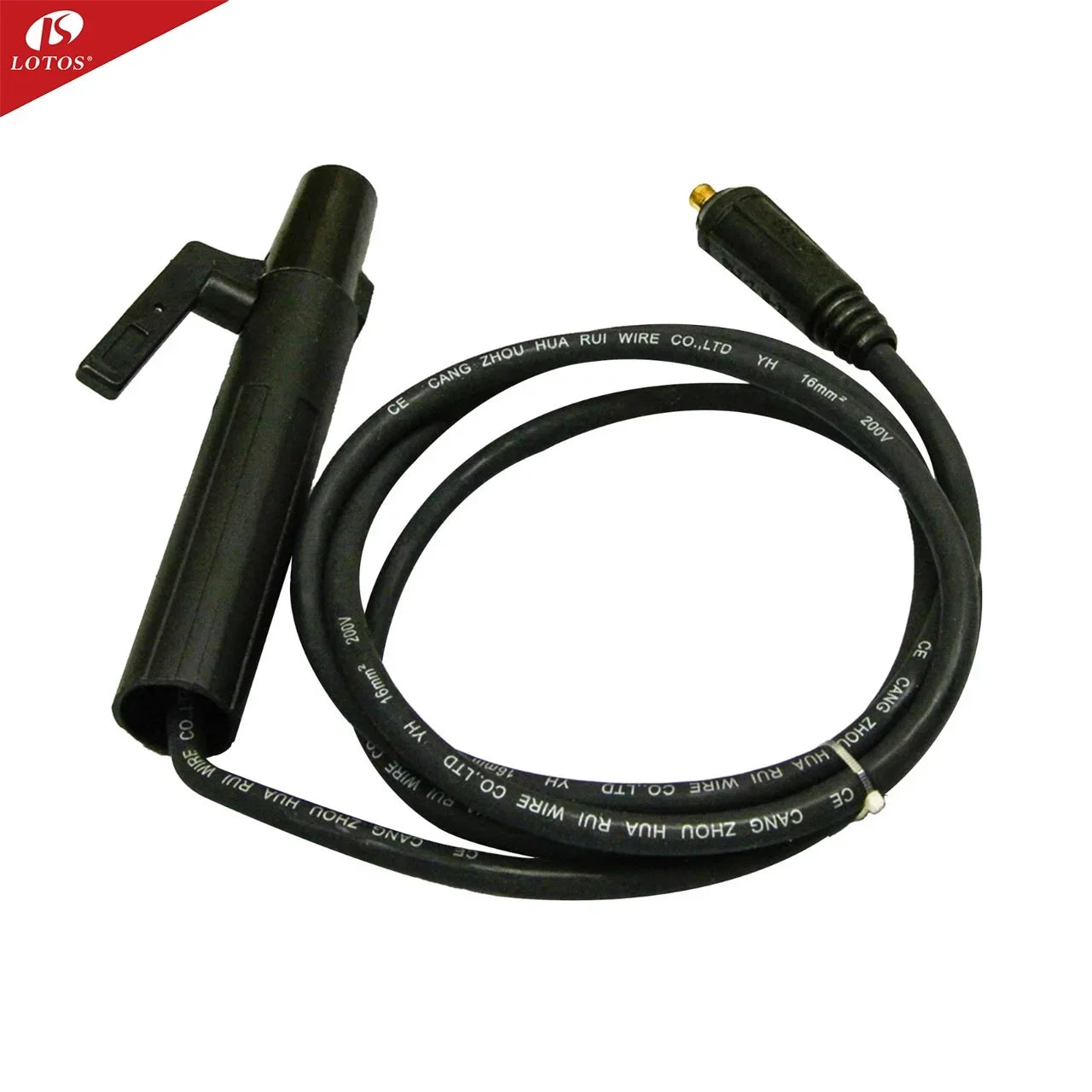

Accessories: Earth Clamp
After-sales Service Provided: Engineers available to service machinery overseas
Arc Current: 10-200A
Brand Name: XMSJ,Lotos
Color: Red
Condition: New
Core Components: PLC
Dimensions: 394*203*305mm
Hign-concerned Chemical: None
Input Power Cable Length: 6' (1.8m)
Key Selling Points: Long Service Life
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Motor Type: DC MOTOR
Origin: Mainland China
Packing: Carton
Pilot Arc Current: 10-200A Welding Machine
Place of Origin: Zhejiang, China
Power: 13KVA
Power Efficiency: 85%
Pulse Frequency: 50/60 HZ
Rated Duty Cycle: 60%
Showroom Location: United States, Philippines, Peru, Mexico, Russia, South Korea
Type: Submerged Arc Welding Equipment, IGBT
Use: Welding
Video outgoing-inspection: Provided
Voltage: 110-220V
Warranty: 2 years
Warranty of core components: 2 years
Weight: 19.5kg
Weight (KG): 20 KG

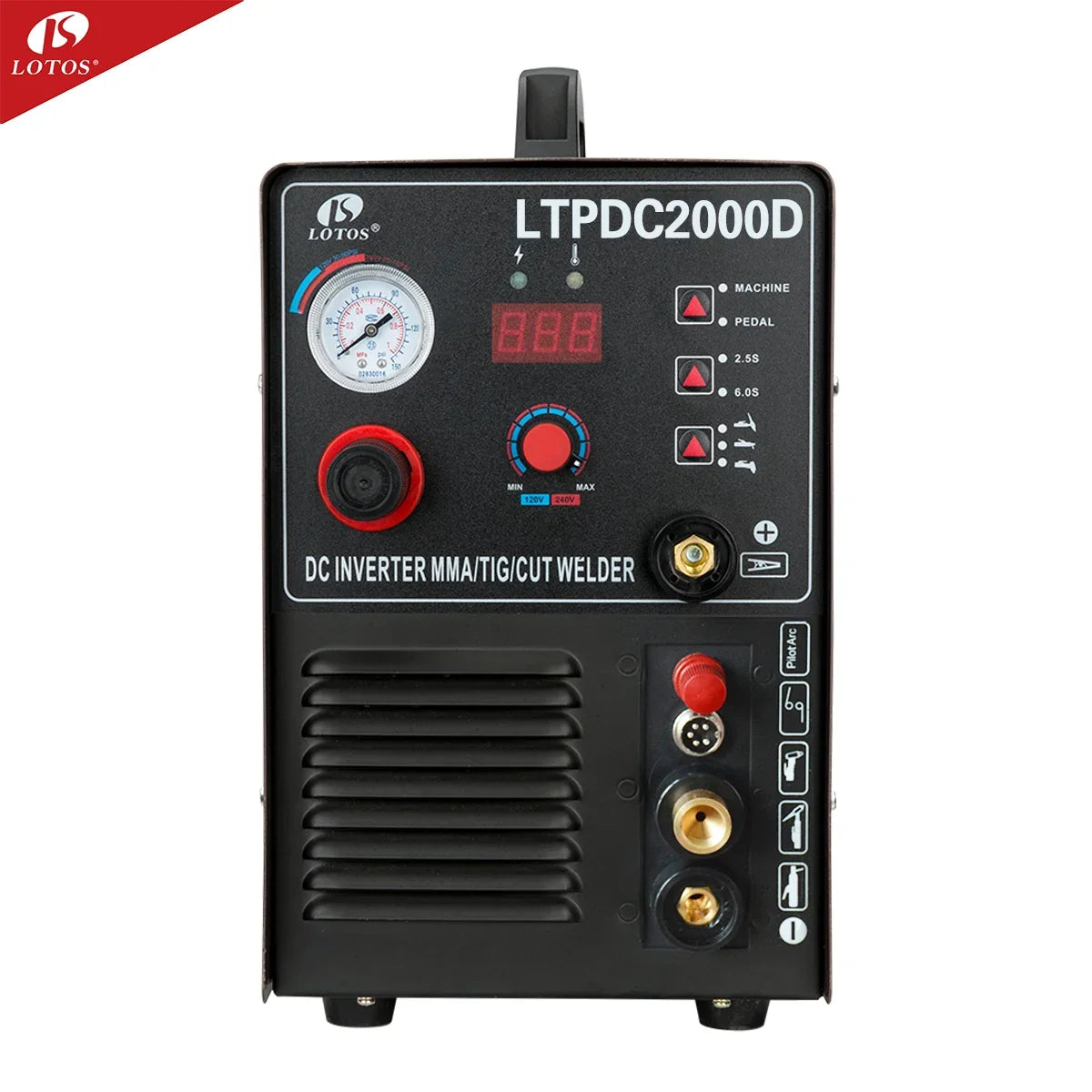

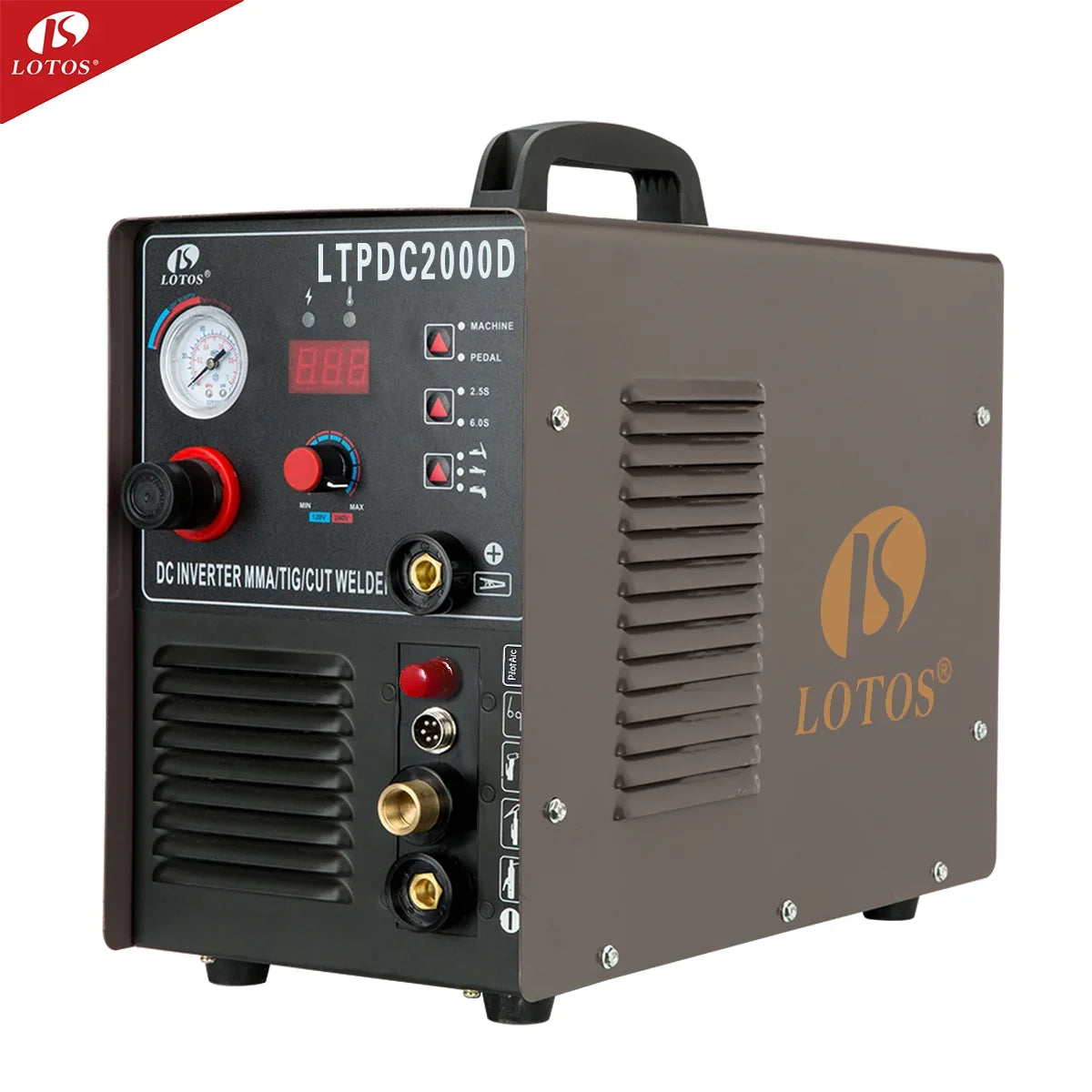

The Lotos LTPDC2000D is a first to market multi purpose welder that allows the user to DC TIG/Stick weld and plasma cut all from one portable machine. LTPDC2000D combines 3 functions into one with a 200amp DC TIG Welder, a 200 Amp Stick Welder, and a 50amp Pilot Arc Plasma Cutter with the flip of a switch. It is able to cut various types of metal up to 1/2 inch with the 50A pilot arc plasma cutting function. It is designed especially for businesses and DIY (do-it-yourself) users, while fully accommodating the demands of professional operators. An optional foot pedal is available for purchase.
| |||
|
3 in 1 Combo LOTOS LTPDC2000D is a multipurpose 3 in 1 combo welding machine (Dual Voltage 220V/110V): -50A Pilot Arc Plasma Cutter -200A TIG Welder -200A Stick Welder |

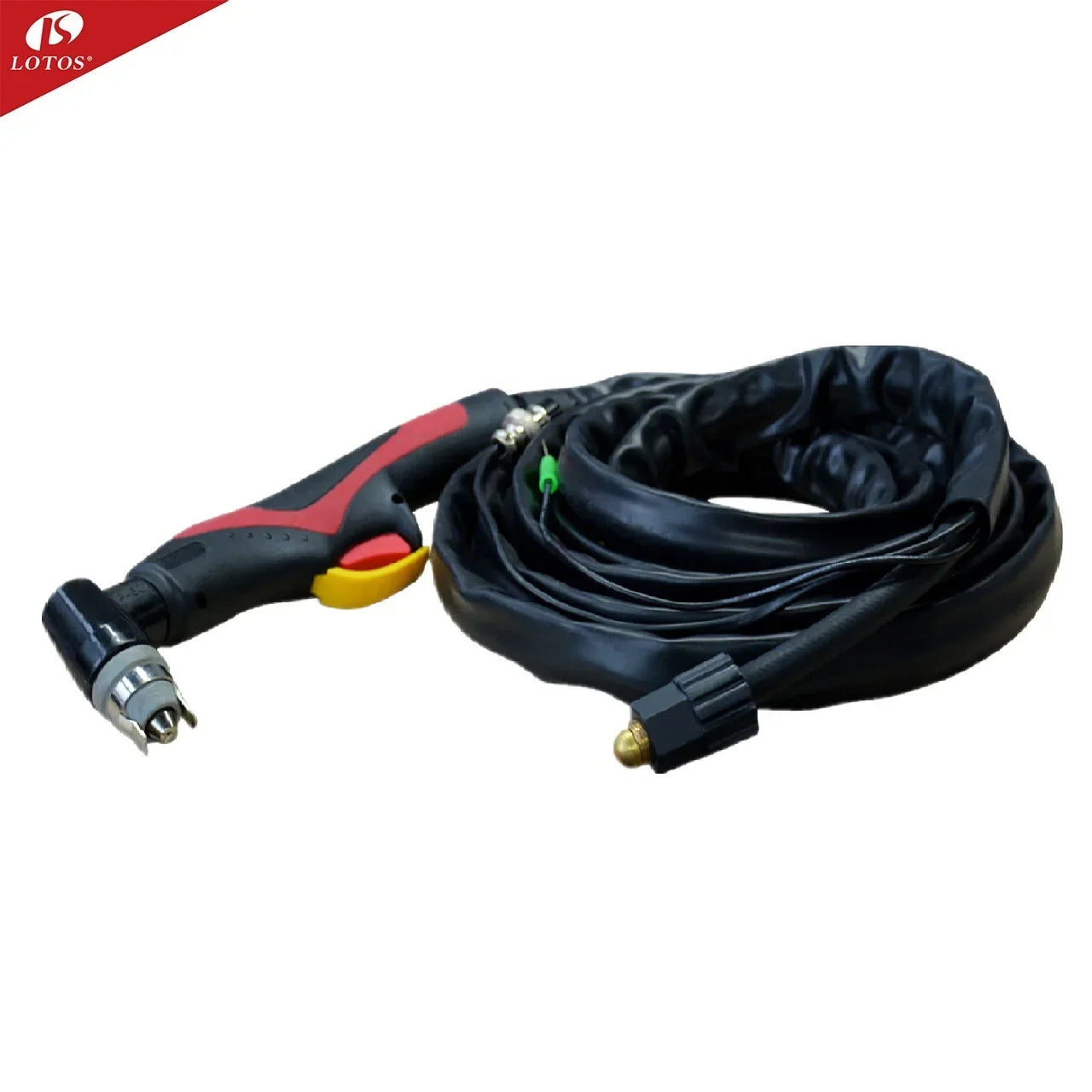

Non-touch Pilot ARC Pilot arc torch efficiently cuts through rough, painted and rusty surfaces and produces minimal slag. Pilot arc technology allows you to cut without touching the tip to the metal. Better cutting quality and longer consumable life. |
1/2 Inch Clean Cut -Max Rated Clean Cut Thickness: 1/2'' -Max Severance Thickness: 3/4'' -DC TIG Output Current: 10-200A @ 220V & 10-150A @ 110V -DC Stick/MMA Output Current: 10-200A @ 220V & 10-150A @ 110V |

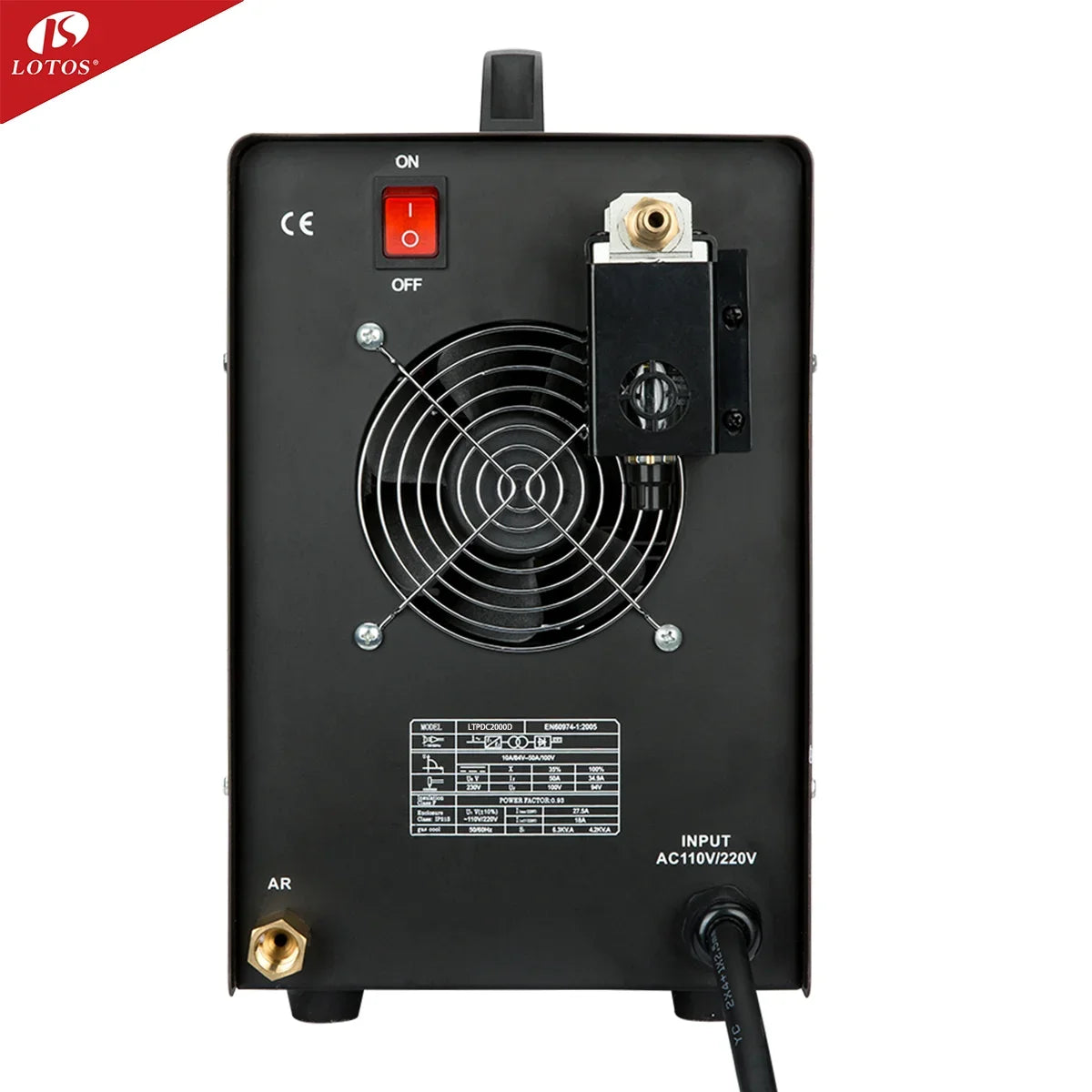

Dual Voltage Automatic Dual Voltage / Dual Frequency (110V/220V 50/60Hz). Dual voltage capability allows the machine to run directly on 220V 50/60 Hz power, or on 110V 50/60 Hz with the use of a pigtail (sold separately). |
[Non-Touch Plasma Cutter] 50AMP Plasma Cutter Current Output; Max Ideal Cut Thickness: 1/2" ; Max Severance Thickness: 3/4"; Pilot Arc Torch Efficiently Cuts Though Rough, Painted, and Rusty Surfaces and Produces Minimal Slag; Compact Plasma Cutter Has a Handle for Portability and Uses Non-Hazardous Compressed Air to Cut Stainless Steel, Alloy Steel, Mild steel, Copper, and Aluminum
[TIG Welder] 15-200AMP DC TIG Electric Current Output; Quality TIG welding on Stainless or Steel and Precise Welding of Thinner-gauge Materials;HF; Both HF start hand torch control and Support Precise Foot Pedal Welding Heat Control(Foot Pedal NOT Include).
[Stick/MMA Welder] 15-200AMP DC Stick/MMA Electric Current Output; Easy ARC Start, Stable Welding Arc,Deep Weld Pool and Beautiful Welding Shape; Adjustable Hot Striking Arc Current which Can Greatly Improve the Arc-Starting Function; Suitable for Welding with Different Kinds of Acid or Basic Electrode
[Dual Voltage] Automatic Dual Voltage / Dual Frequency (110/220V 50/60Hz); Dual Voltage Capability Allows the Machine to Run Directly on 220V 50/60 Hz Power, or on 110V 50/60 Hz with the Use of a Pigtail (sold separately)

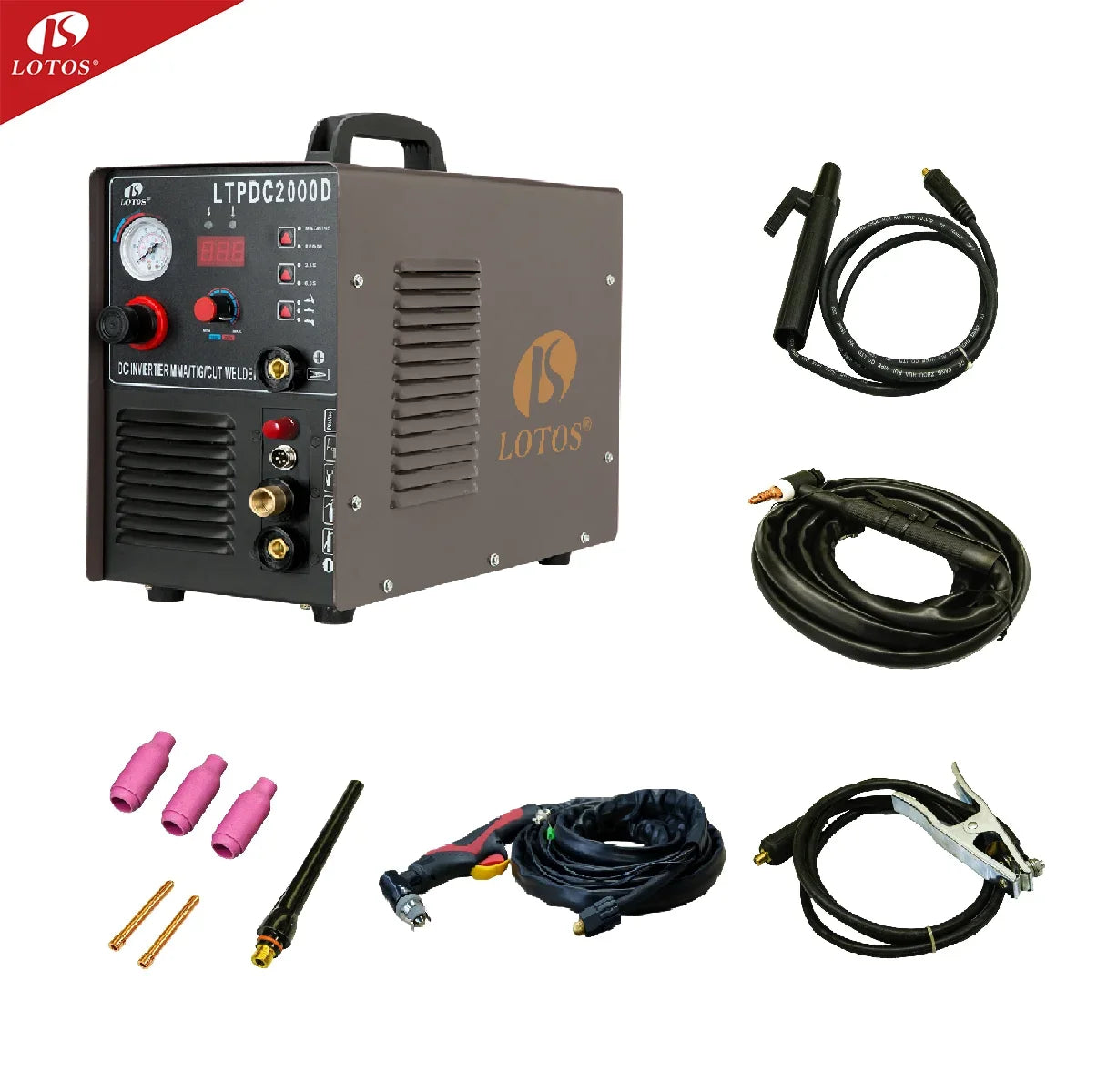

[Include]: 1 Year Limited Warranty; Power Supply; Cutting Torch; Tig Torch; Sitck/MMA Welder Torch; Consumables; Ground Clamp; Air Filter and Regulator; Argon Regulator; Connections
LOTOS LTPDC2000D | ||
|
General Specification |
Type |
Inverter-MOSFET |
Functions |
50A Pilot Arc Plasma Cutter 200A TIG Welder 200A Aluminum STICK Welder |
|
Input Voltage |
110-220V, 1-PH, 50/60 Hz |
|
Efficiency |
85% |
|
Dimension |
394*203*305mm |
|
Weight |
19.5kg |
|
|
Plasma Cutting |
Rated Input Power Requirement |
120-220V, 1-PH, 27A +/- 15%, 50/60 Hz |
Output Current |
10-50A @ 110/220V |
|
Duty Cycle @ 40℃ (104℉) |
60% @ 50A 100% @ 35A |
|
Cutting Material |
Mild steel, stainless steel, aluminum, etc. |
|
Max Cutting Thickness |
12.7mm |
|
Gas Supply |
Clean, dry, oil-free air |
|
|
DC TIG Welding |
Rated Input Power Requirement |
120-220V, 1-PH, 17A +/- 15%, 50/60 Hz |
Output Current |
15-200A @ 110/220V |
|
Duty Cycle @ 40℃ (104℉) |
60% @ 200A 100% @ 150A |
|
No-load Voltage |
62V |
|
Working Voltage |
16.9V |
|
Welding Material |
Steel, Stainless, Moly, Ferrous |
|
Gas Supply |
Clean, dry, oil-free argon gas |
|
|
DC STICK Welding |
Rated Input Power Requirement |
120-220V, 1-PH, 23A +/- 15%, 50/60 Hz |
Output Current |
15-200A @ 110/220V |
|
Duty Cycle @ 40℃ (104℉) |
60% @ 200A 100% @ 95A |
|
No-load Voltage |
62V |
|
Working Voltage |
25V |
|
Welding Material |
Steel, Stainless, Moly, Ferrous |
|




Packing Details:
1 set/carton
Cardboard carton with plastic bag and foam inside

Delivery Details:
Within 20 days after confirming the payment
3-5 workdays shipping from China by Air/Express (DHL, FedEx, UPS, EMS, etc.)
We could also arrange shipment by sea(About 20-25 days to Europe or North America). Minimum CBM: 1 CBM

Why choose us?
1 Affordable welding solution with High Quality and Excellent Service
2 We No.1 On Amazon with 10 years experience
3 We provide No.1 Service worldwide with professional teams in U.S. and China
Our Services:
Free friendly English user manual or operating video
24 hours technical support by email or calling
Warranty: 1 year free, 2 years cost price and free technical support always
Free training to make sure you master the operation of our products
OEM/ODM acceptable. But the MOQ of OEM/ODM is 50 sets.

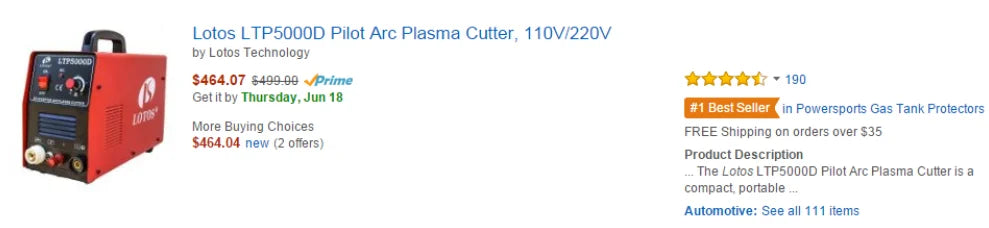

The Best Seller on Amazon: Lotos Tech!
We are specialized in high-quality plasma welder and cutter. After several years of management, we have made a successful brand: Lotos, which have won trust and acceptance by most of the American client. We also provide reliable quality assurance as well as best after-sale service!



MOQ:
The different products with different MOQ. Contact us with more details.
If with stock, 1-5 sets could be acceptable as well.
Payment:
TT payment would be preferred: usually 30% deposit and the balance before shipment
L/C, Western Union and paypal are also acceptable.
Delivery time:
Within 20 days after confirming the payment
Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for reference.
First time to use this kind of machine
There is an English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
24 hours to support by E-mail/calling
Free parts could be sent to you in machine warranty period.
