SPECIFICATIONS

Brand Name: XMSJ

Certification: CE,None

Cooling: Fan Cooled

Hign-concerned Chemical: None

Nominal Supply Voltage: 230V +/- 15%

Origin: Mainland China

Welder Type: Arc Dc Welder

arc current: 10-200A

brand name: vector

condition: New

dimensions: 675405540MM

motor type: AC Motor

pilot arc current: 20-120A

place of origin: Guangdong, China

power(w): 15.1KVA

pulse frequency: 50/60 HZ

rated duty cycle: 60%

type: MIG Welders

usage: Welding

voltage: 220V

warranty: 1 Year

weight (kg): 21

You can also add my What.app:+86 18774854715 where to reach me more and faster.

And my email: azhi@anteweight.cn Thank you very much for your patronage .

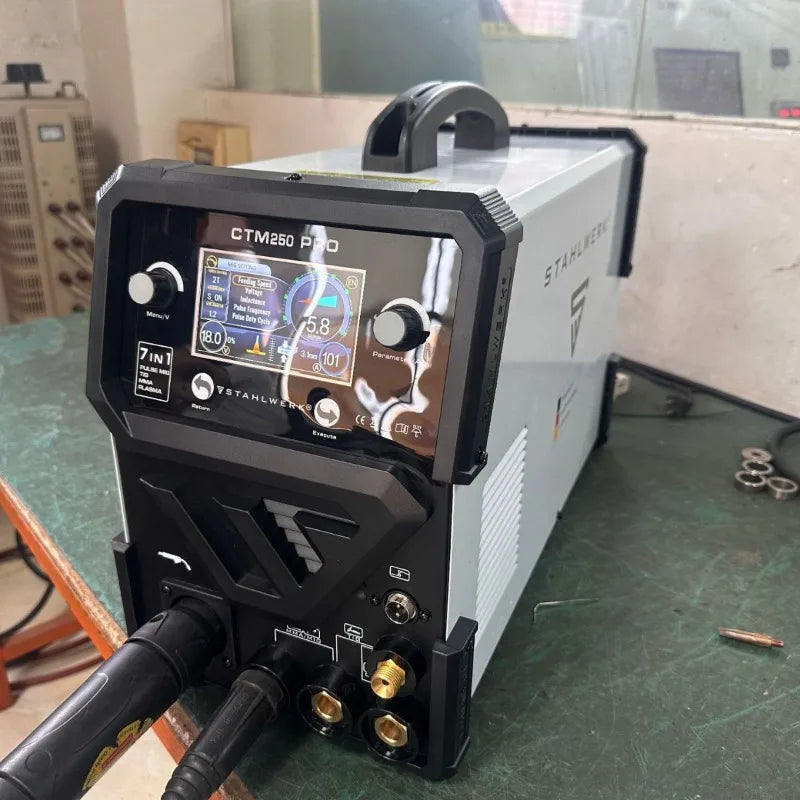

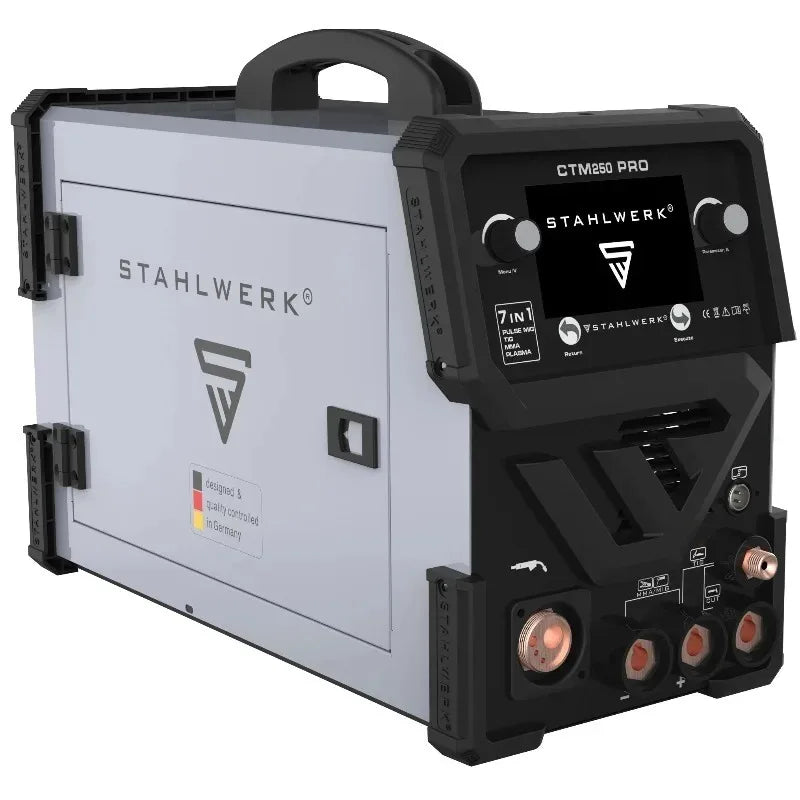

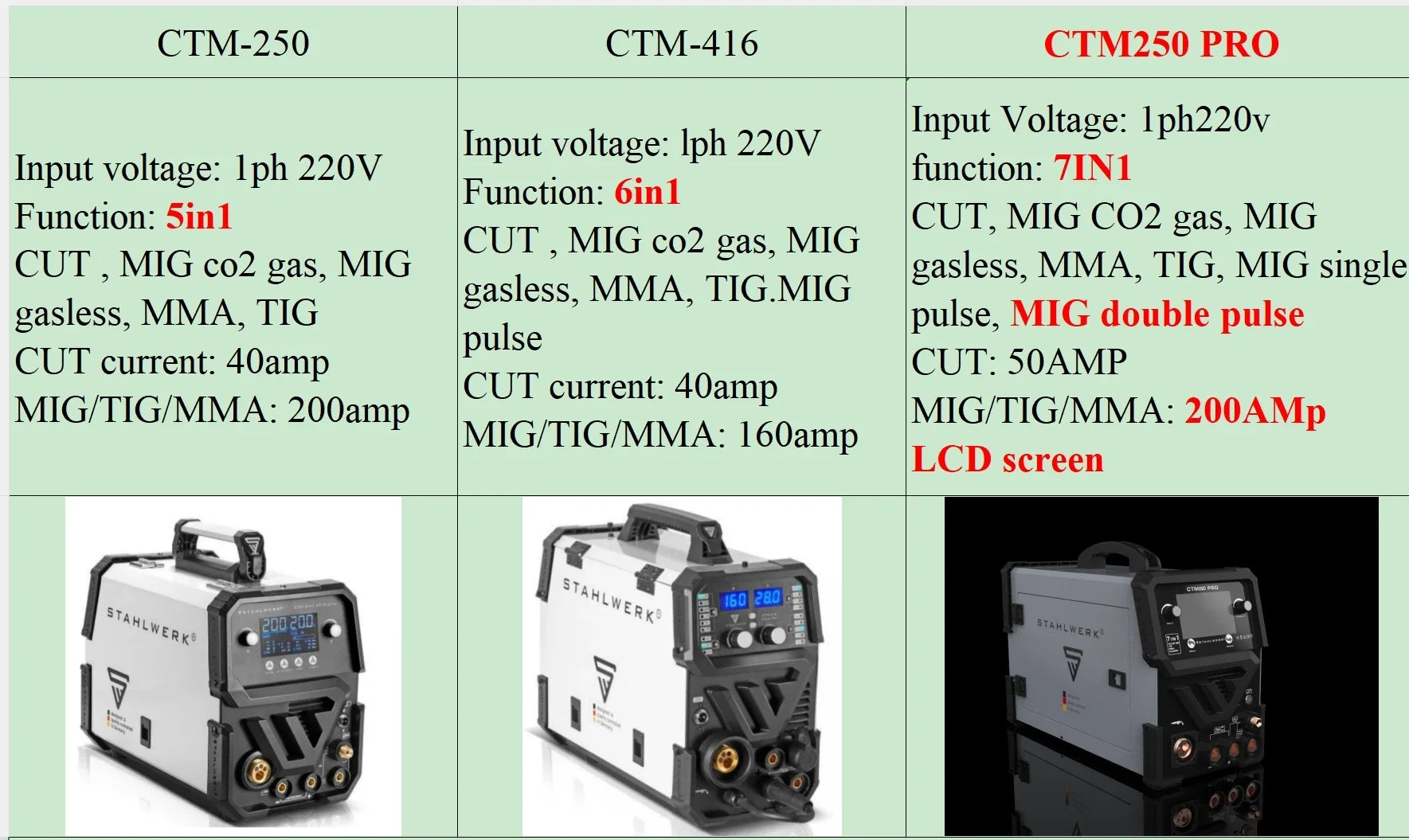

The STAHLWERK CTM-416 Puls Pro Already update to CTM250 PRO combination welding machine is a powerful 7 in-1 inverter with 200 A and combines the TIG | MIG MAG| MMA | FLUX welding processes in one device . Equipped with a pulse function, the welding machine is also suitable for processing cored wire and welding thin sheet metal and aluminum. The versatile multifunctional device also has an integrated 50 A plasma cutter, equipped with a precise contact ignition for the best ignition properties. Depending on the material, the cutting capacity is up to 15 mm (m ild steel ST37 up to 10 mm, V2A or V4A up to 7 mm, aluminum up to 4 mm). Equipped with the latest generation of IGBT technology, the versatile gas-shielded arc welder impresses with its synergic wire feed and numerous individually adjustable welding parameters.

Thanks to the pulse function in MIG MAG mode, the device is even suitable for aluminum welding.* MIG MAG. Gas metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG, e.g. argon) or active (MAG, e.g. CO2) gases. Gas and welding wire come from one torch head and enable welding work to be carried out with just one hand.

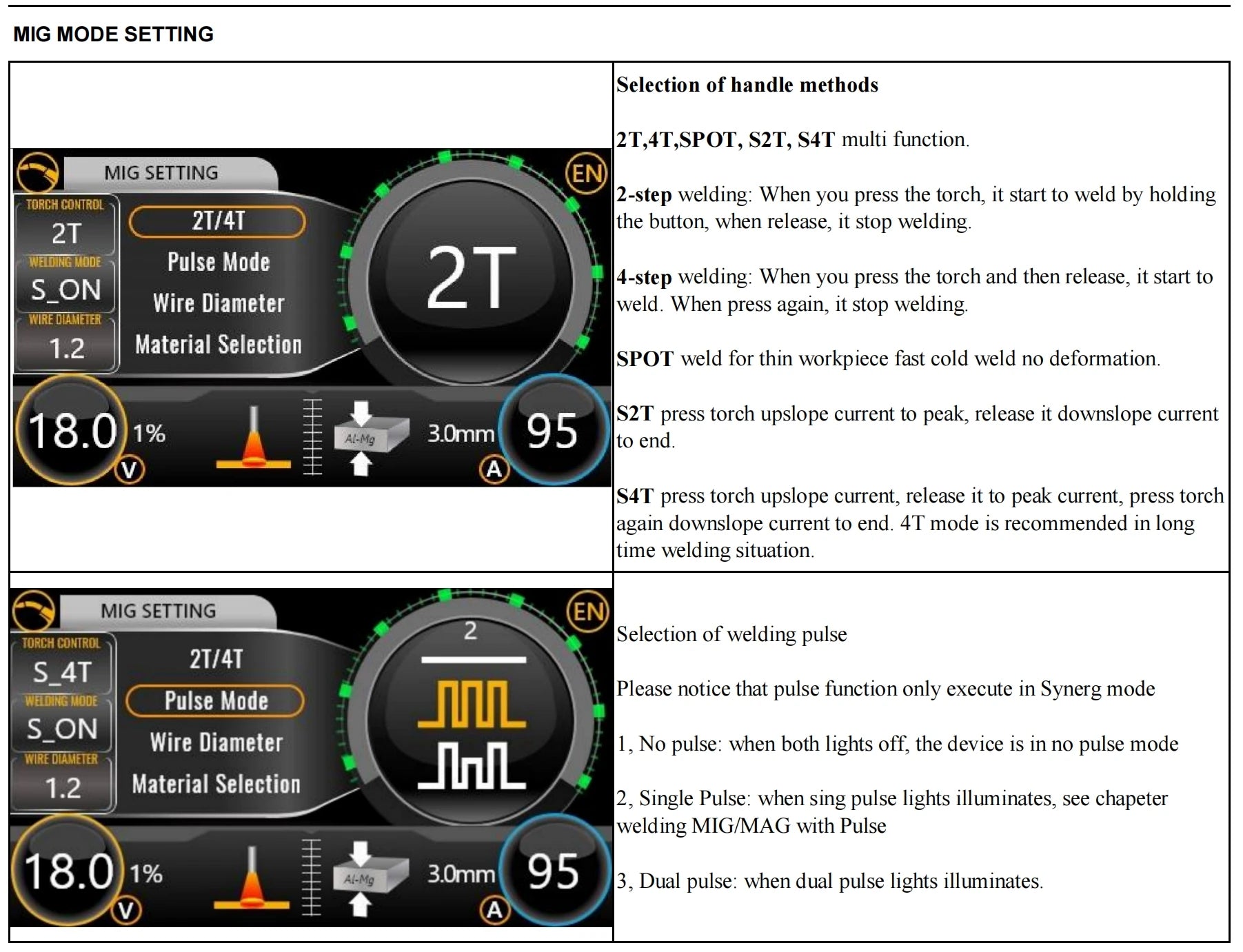

1, * MIG single pulse and MIG double pulse . The pulse function also allows aluminum to be processed.
2, * DC TIG welding. Direct current (DC). Welding of almost all metals, such as steel, stainless steel, copper, brass and many more.
3, * Flux-cored wire welding | FLUX. MIG MAG welding without gas using a special wire.

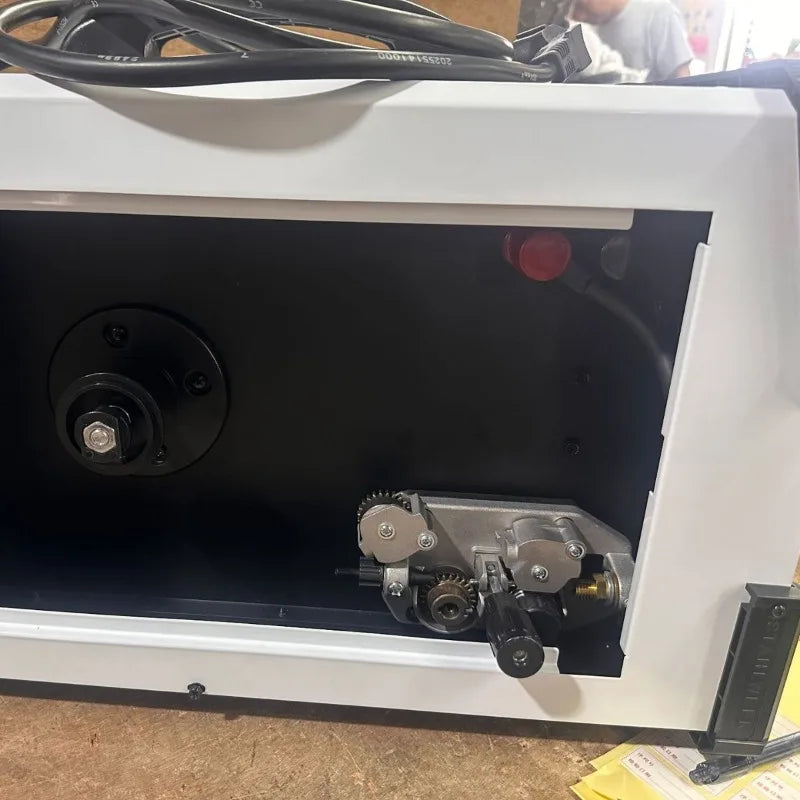

4, * Automatic wire feed speed (automatic wire feed). The welding wire is automatically untwisted from the spool and pushed by the wire feed unit through a hose package several meters long to the contact tip in the torch. The speed is self-regulating, depending on the welding current.
5, * MMA | E-Hand. Manual electrode welding is a universal welding process as it can be used under almost all conditions.

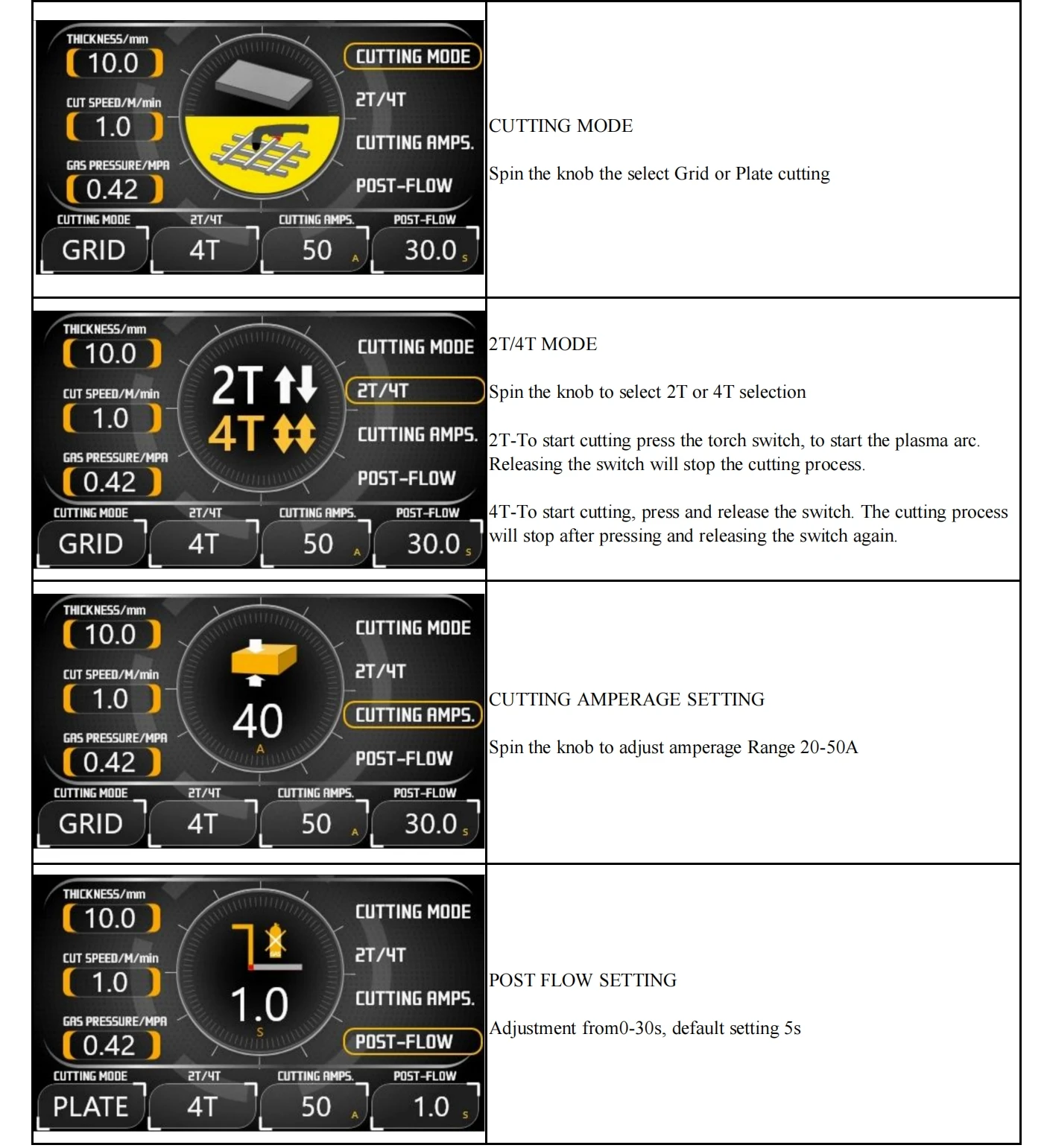

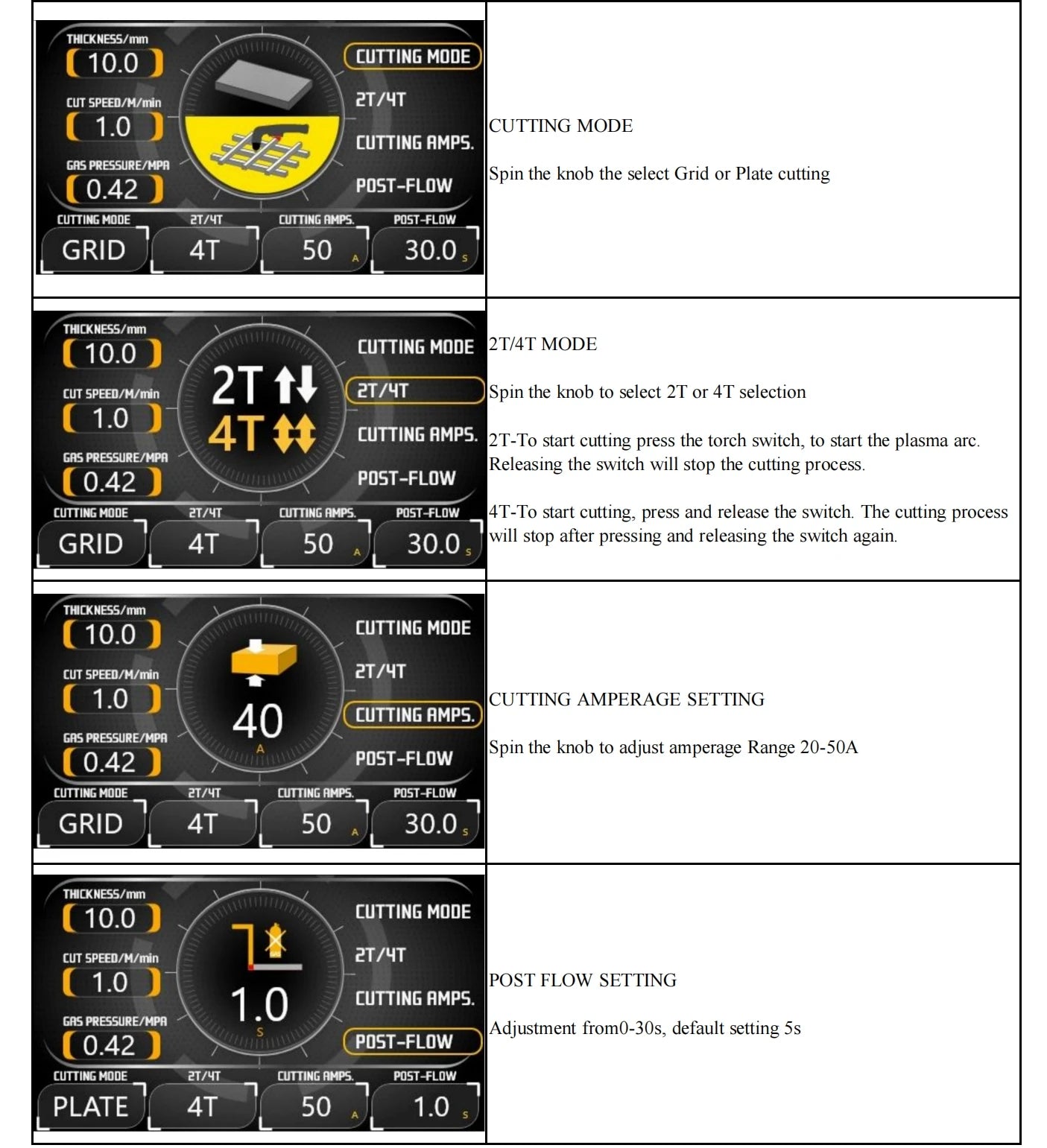

6, * Plasma cutter. All conductive metals, e.g. standard steel, copper, stainless steel, brass, aluminum, titanium, etc. can be cut without any problems.
* Contact ignition. A light touch on the workpiece is enough to ignite in plasma mode. There must be permanent contact with the workpiece for the cut.
* Anti-stick. If the electrode sticks to the workpiece, the welding current is automatically reduced. The electrode does not burn out and can be detached from the workpiece more easily.
