SPECIFICATIONS

Brand Name: HZXVOGEN

Certification: CE

Dimensions: 29x16x15cm

Function: MIG GASLEE/MMA/LIFT TIG

Hign-concerned Chemical: None

Hzxvogen Model: HVM140

Is Smart Device: No

Model Number: HVM140

Origin: Mainland China

Use: MIG TIG ARC welding

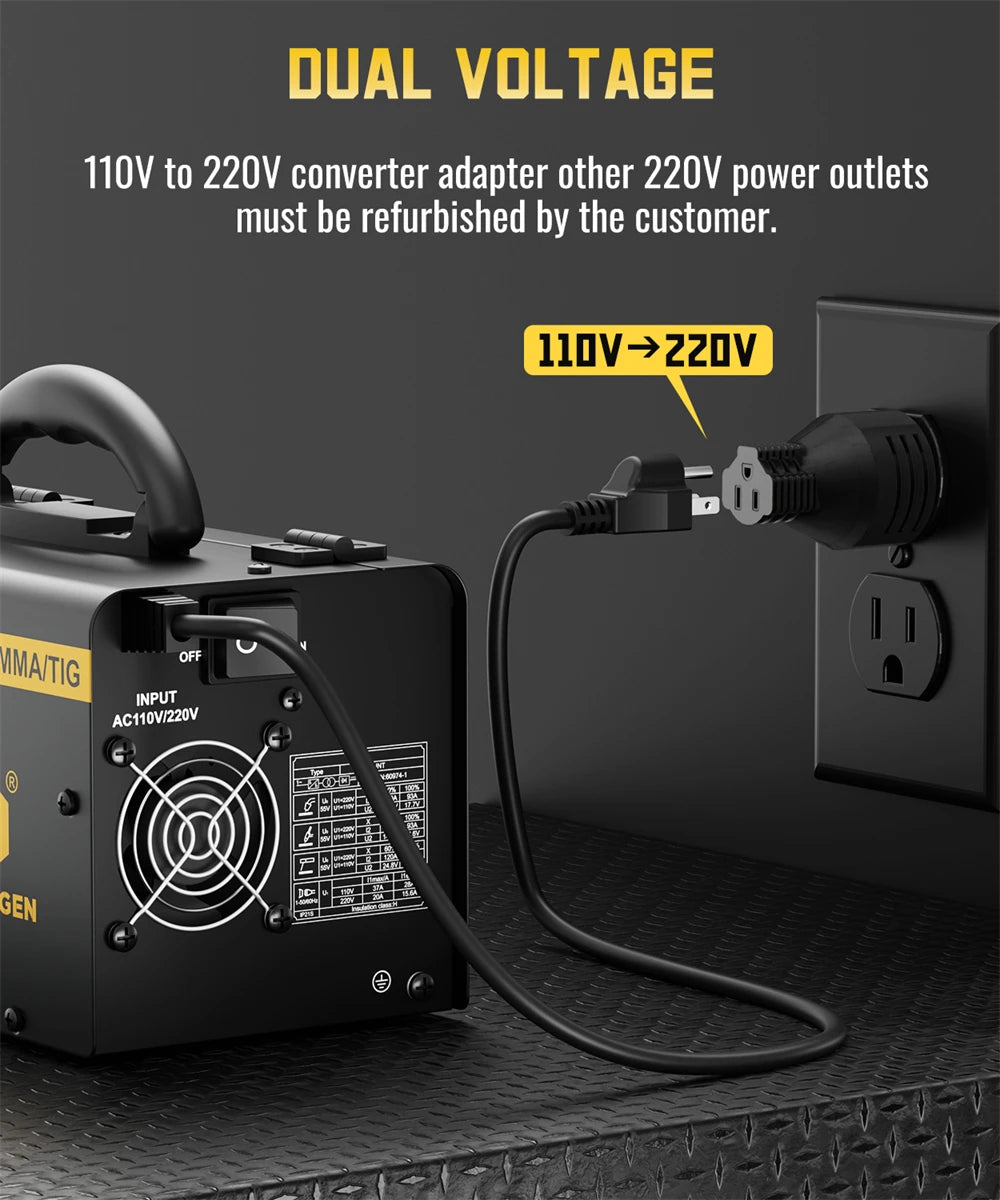

Voltage: 220V/110V

Weight: 3.5kg

Wire Feeding Speed: Automatically



* 5 Advanced Advantages：

【3 IN 1 FLUX CORE WELDER】: HZXVOGEN HVM200 MIG welder supports flux core gasless MIG/Lift TIG/MMA(Note: Need to buy extra Lift tig torch). Release gas hard conditions, perfect for use with flux cored wire (for 0.030/0.032/0.035" flux cored wire) and compatible with 1.0 to 2.5 conventional electrodes, good for welding metal parts up to 5.0mm.

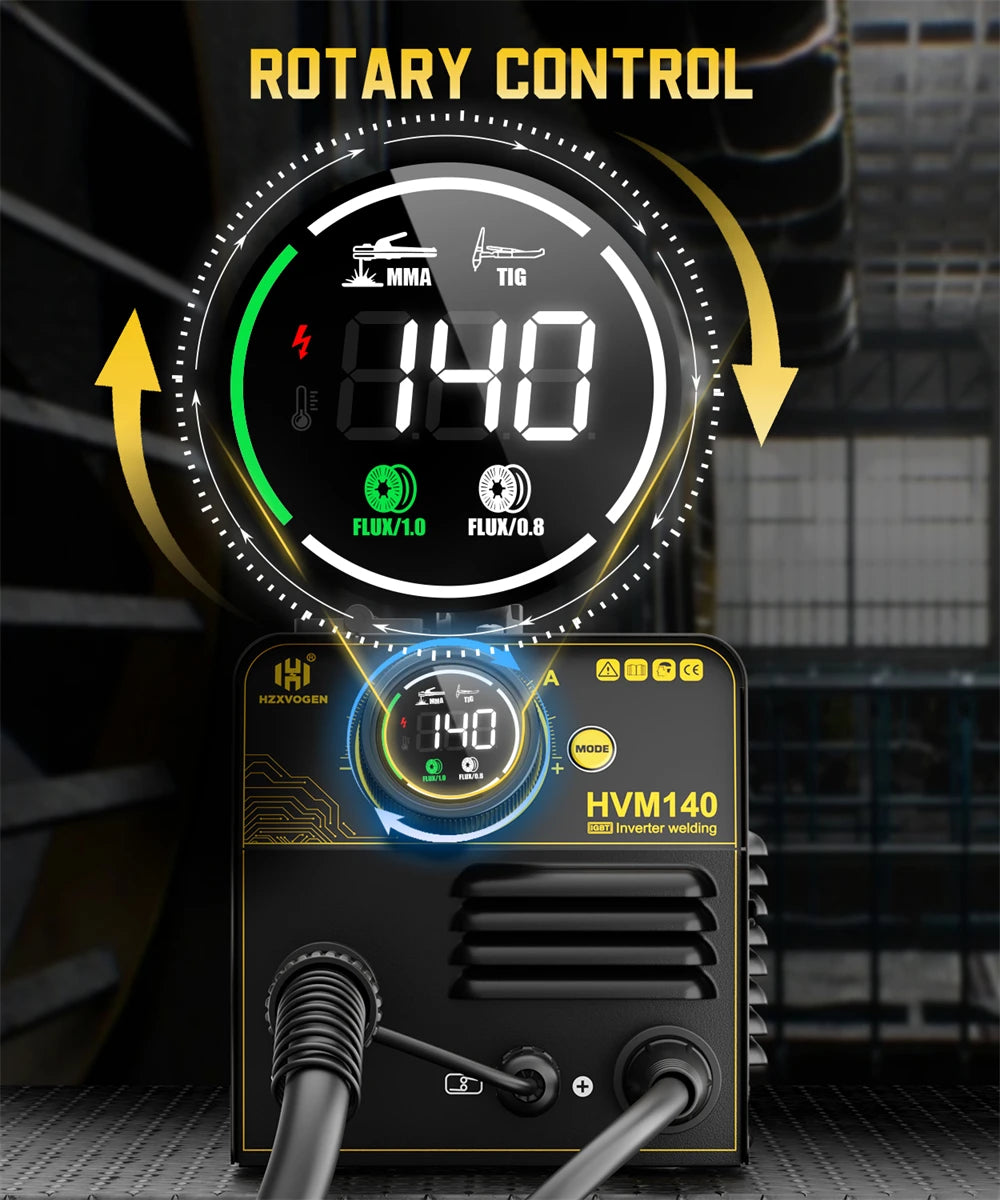

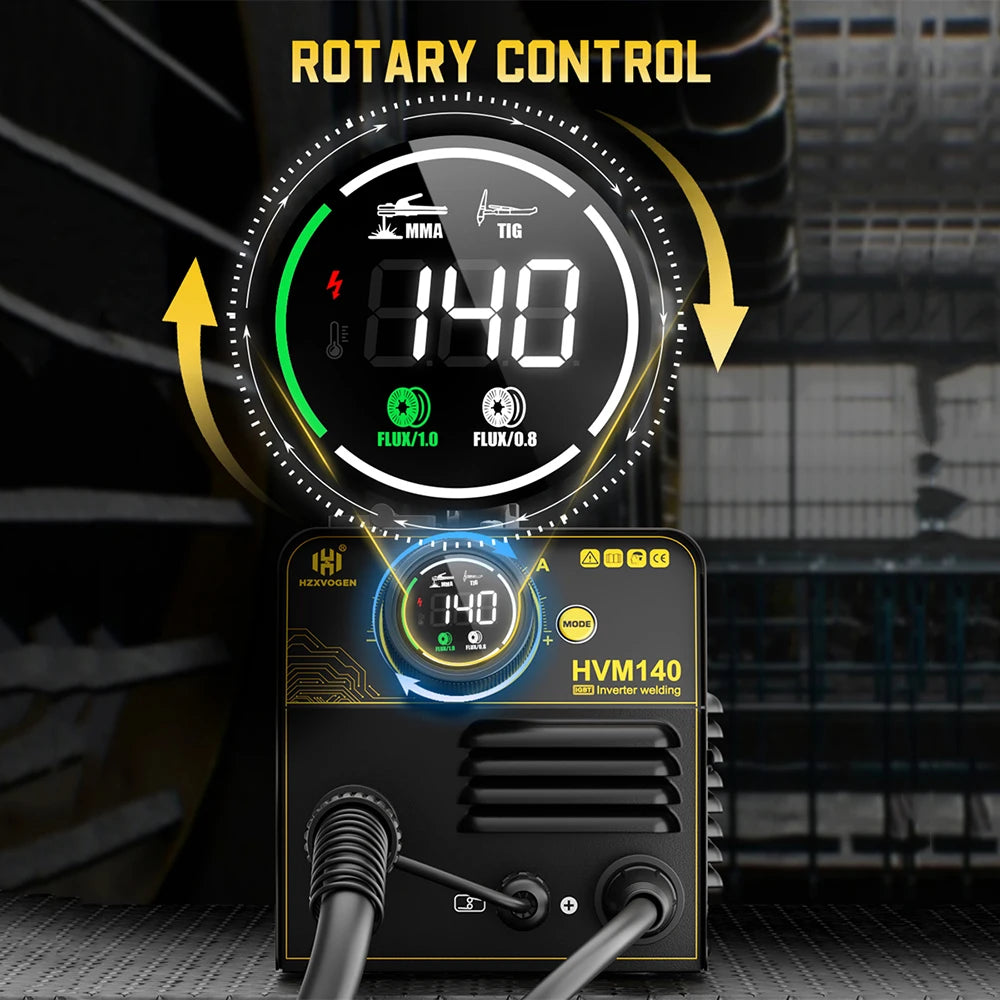

【EASY TO USE】: The welding machine is designed as a single-knob intelligent control system, coordinating the speed and current of the wire feeder. The precise digital display guides your welding work and provides a perfect weld.

【RELIABLE PERFORMANCE】: This mig gasless welder machine will automatically control voltage and current to achieve a smooth arc by synergy fuction,best ideal for welding beginner. The built-in overheating and overcurrent protection system and the fan cooling system will keep dust and dirt out, thus extending the life of the machine.

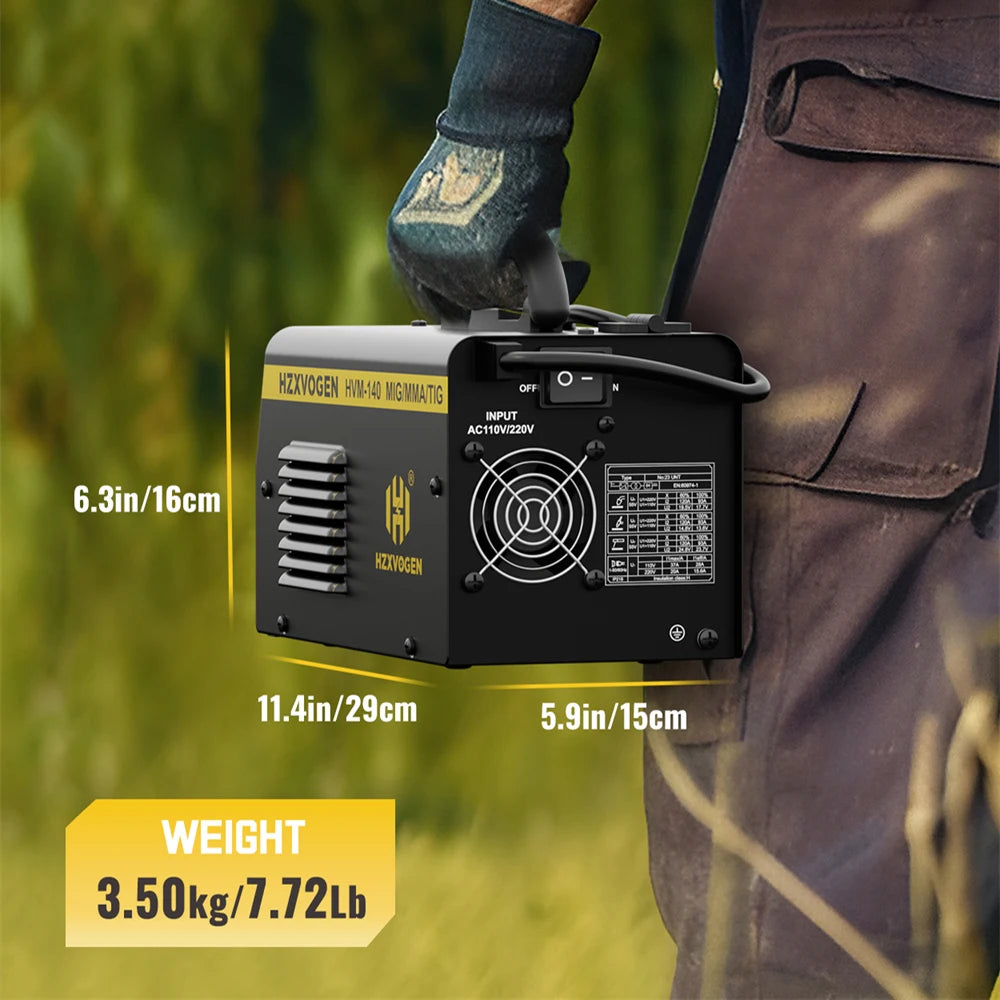

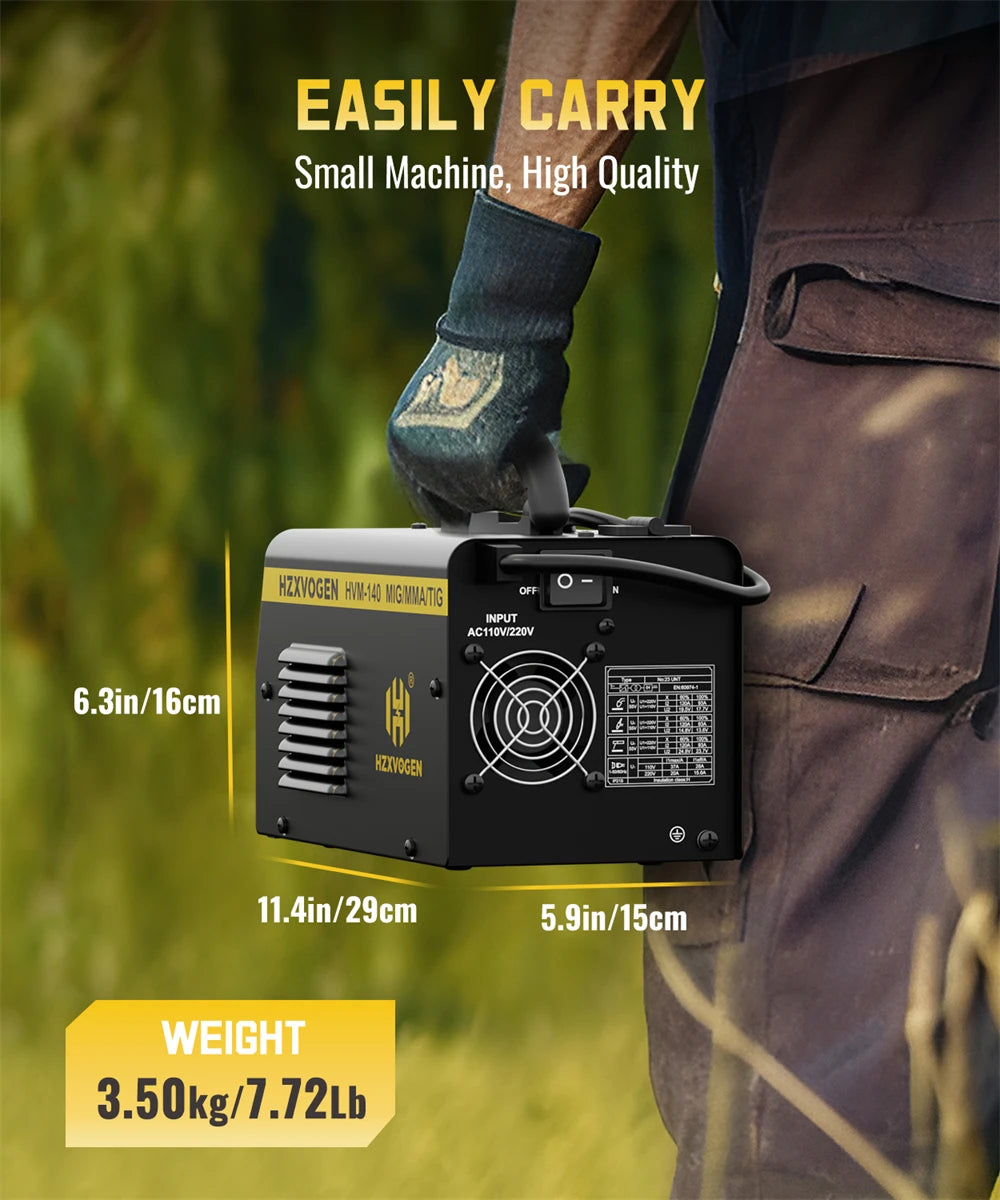

【PORTABLE DESIGN】: The wire feed welder weighs only 7.72 lbs/3.5 kg. Size: 11.4*6.3*5.9inch. The split torch is easy to set up and transport, allowing you to move around.

【PURCHASE WITH 100% CONFIDENCE】: The welder comes with 1 year warranty. If you’re not satisfied with your welder, please contact us. Faulty welders can also be replaced within 60 days. Arrives 1 to 5 days after the order is placed.

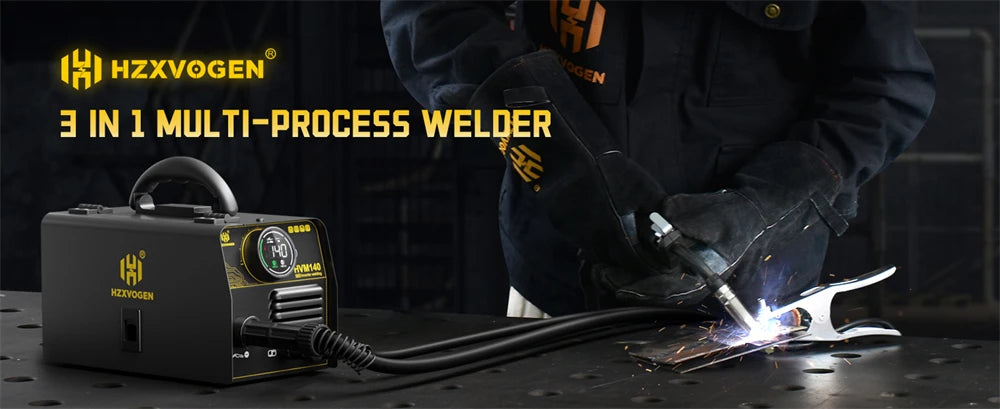

HZXVOGEN 3 IN 1 MIG Welding Machine：

1. Welding material：Iron, stainless steel, galvanized sheet, carbon steel, copper

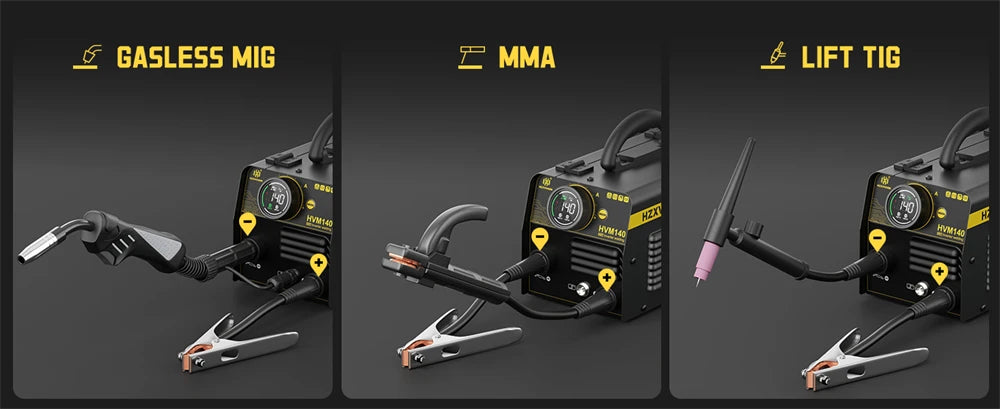

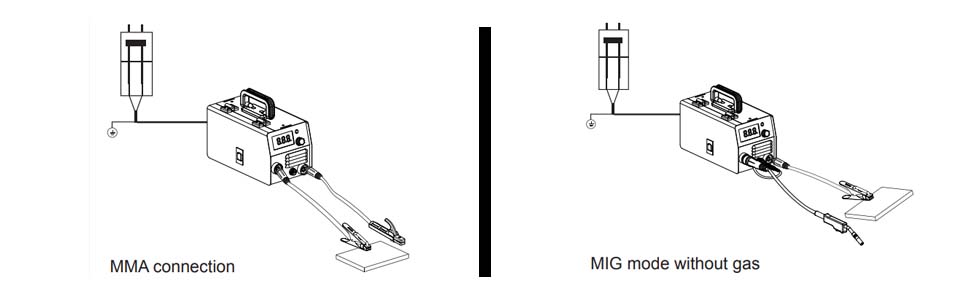

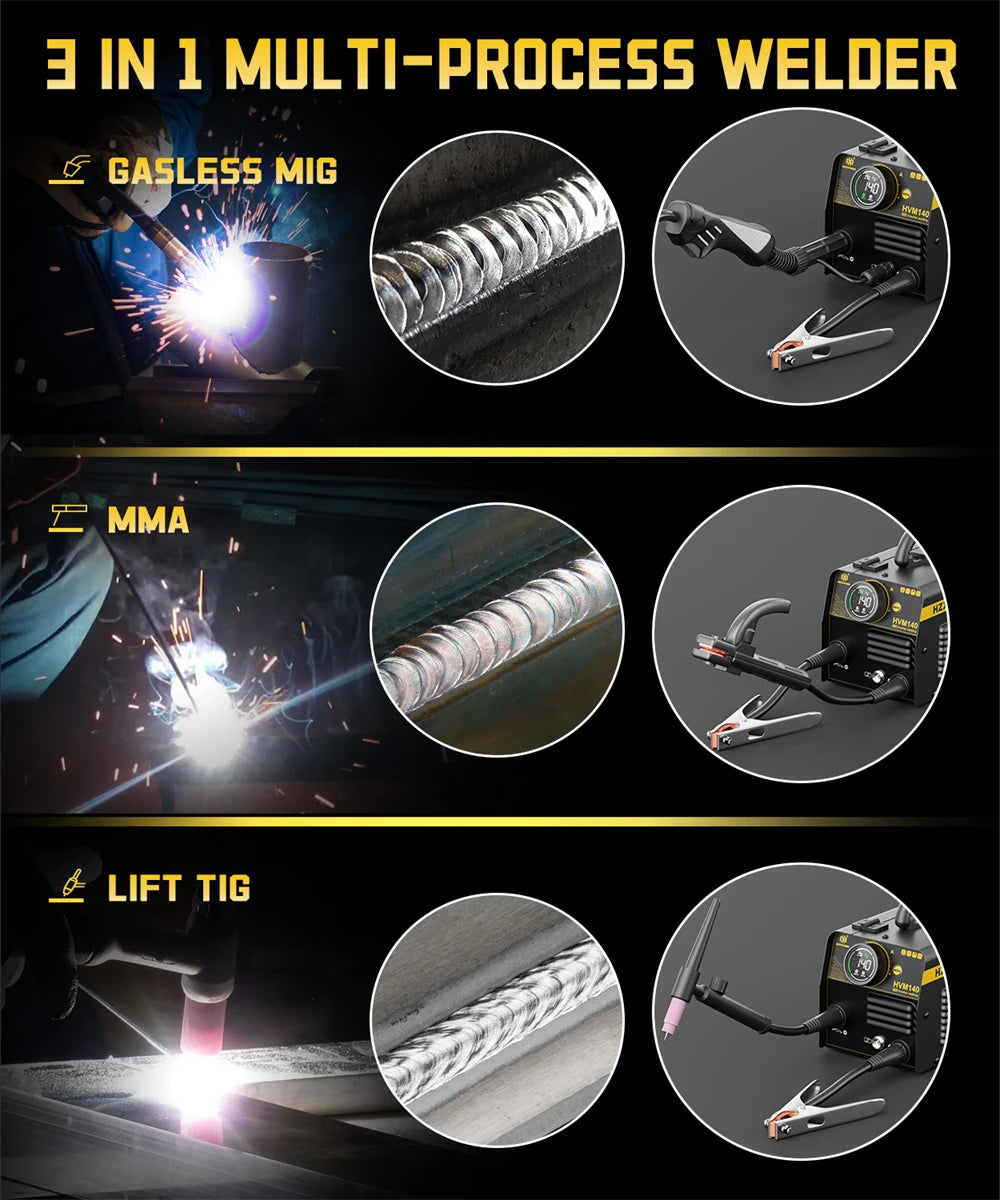

2. This all-purpose multi-process welder handles flux core gasless MIG, Lift TIG, or Stick welding.

3. MMA/ARC mode fits rods: E7018, E6013, E6011 Meet your welding needs.

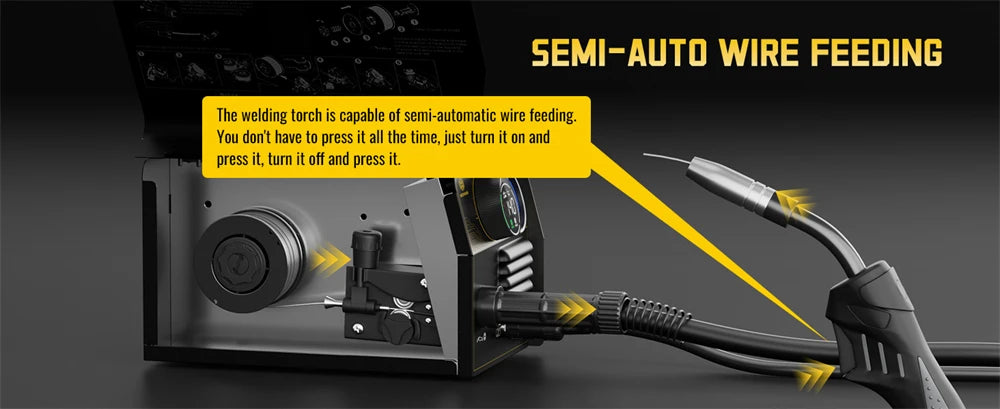

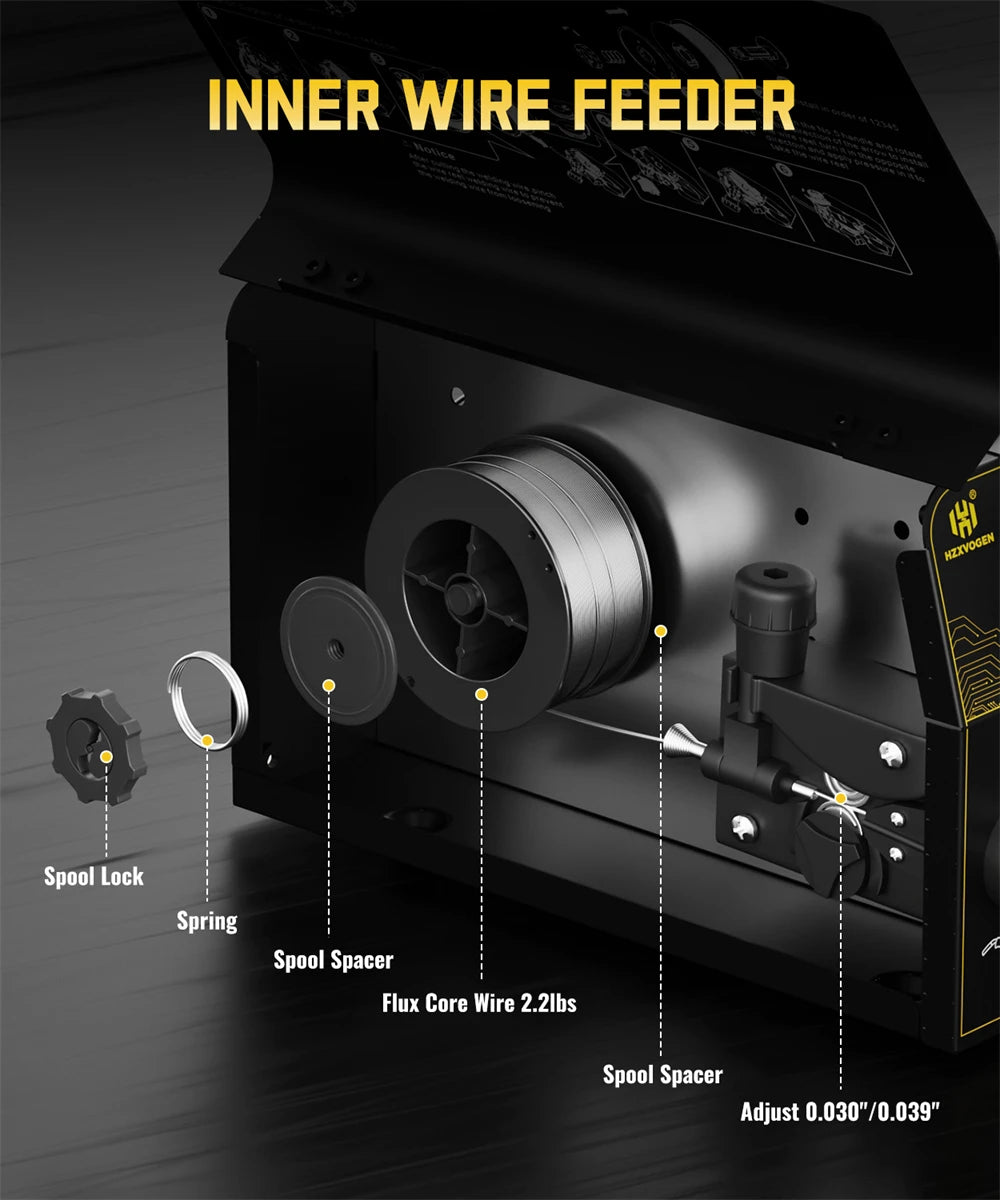

4. Use Synergic adjustment control system to realize precise and stable wire feeding.

5. Uniform adjustment, multi-functional integrated operation, easy for beginners to achieve welding project.

6. LED display for process selection and advanced controls.

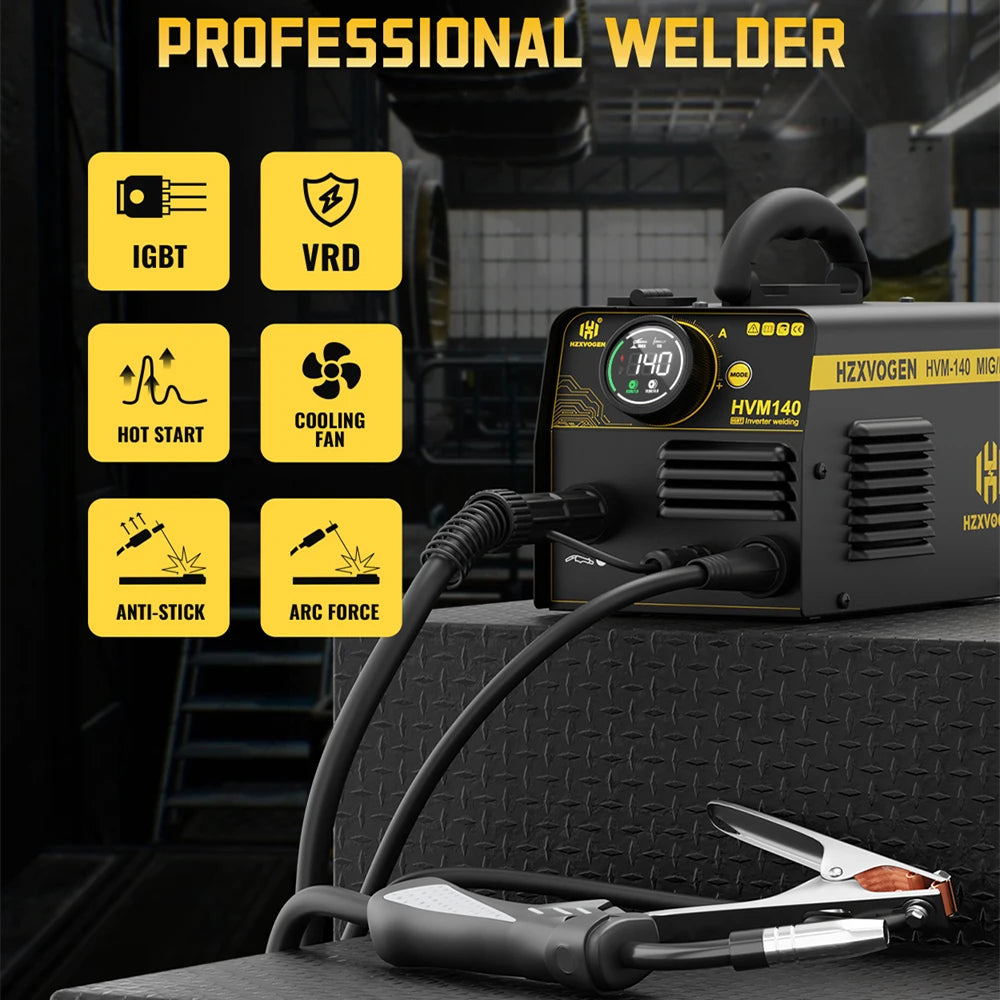

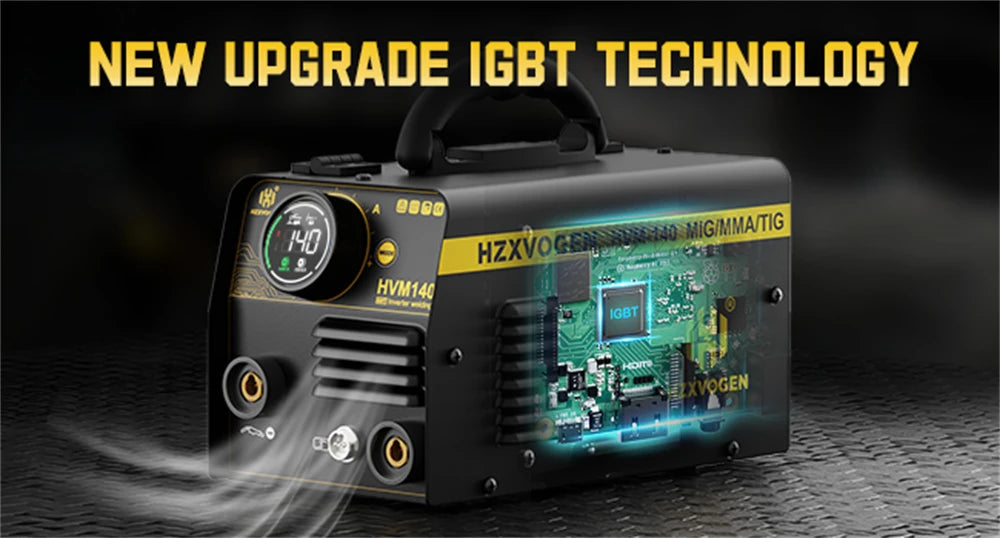

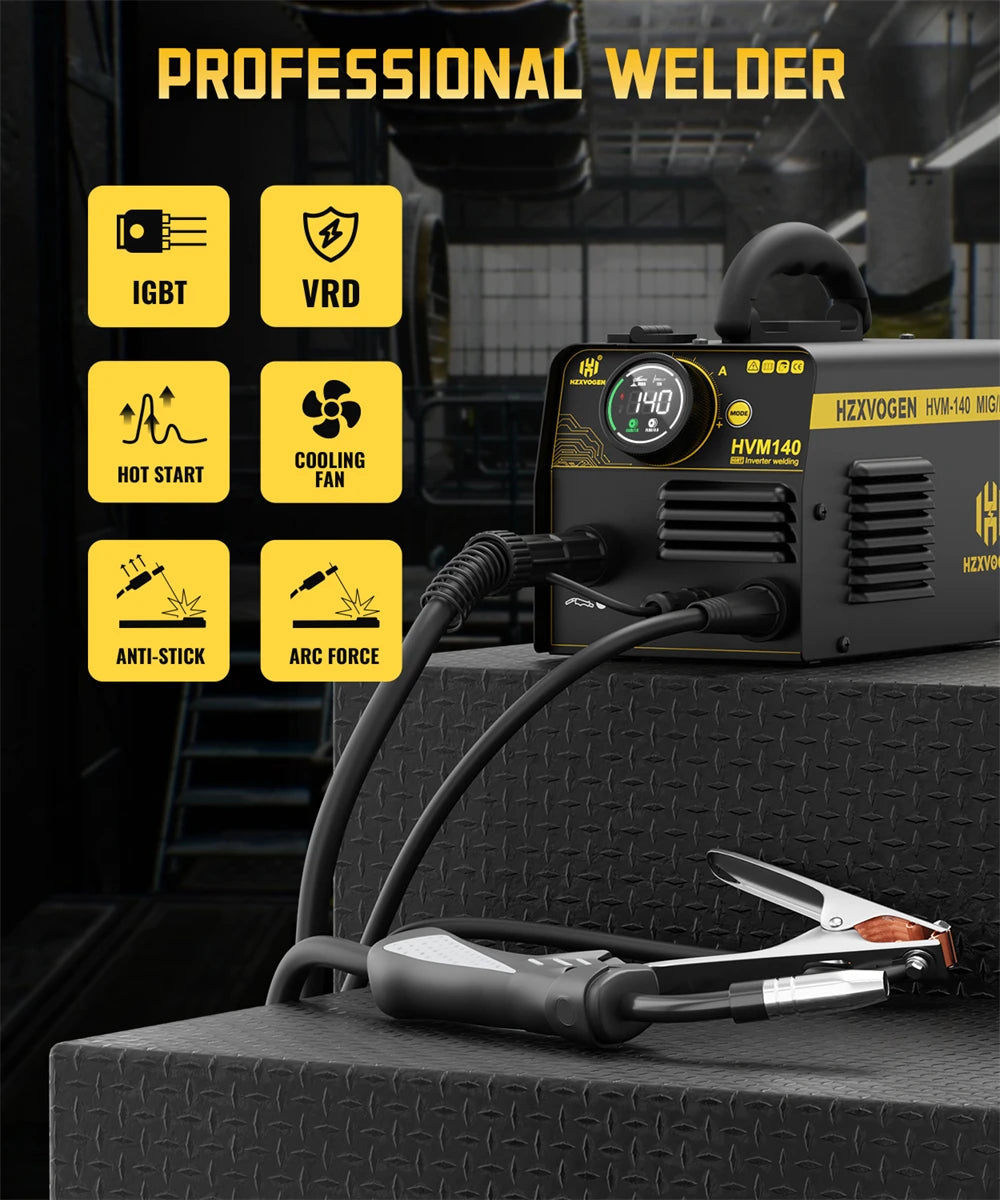

7. Dopts the most advanced IGBT inverter technology with excellent arc stability.

8. It only weighs 7.72lbs, ideal for shop or field use.

9. Widely used in interior decoration, DIY, Repair, Maintenance, Metal Fabrication, Farm & Road equipment.

10. Built-in safety protection design, with Over-heating protection, Over-current protection and over-loading protection.



Recommend:

*MIG function: No gas iron welding.

*ARC function: No gas iron welding.

*Full-digital control system to realize precise control and stable arc length during welding.

*Great reduction in metal loss obviously enhances the welding efficiency and energy saving effect.

MIG welding 0.5~6mm iron and mild steel plate

ARC welding 2.5mm acid electrode

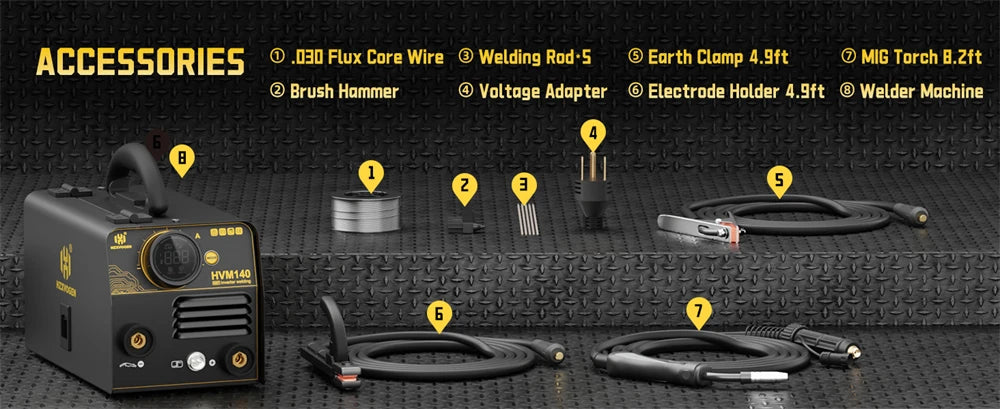

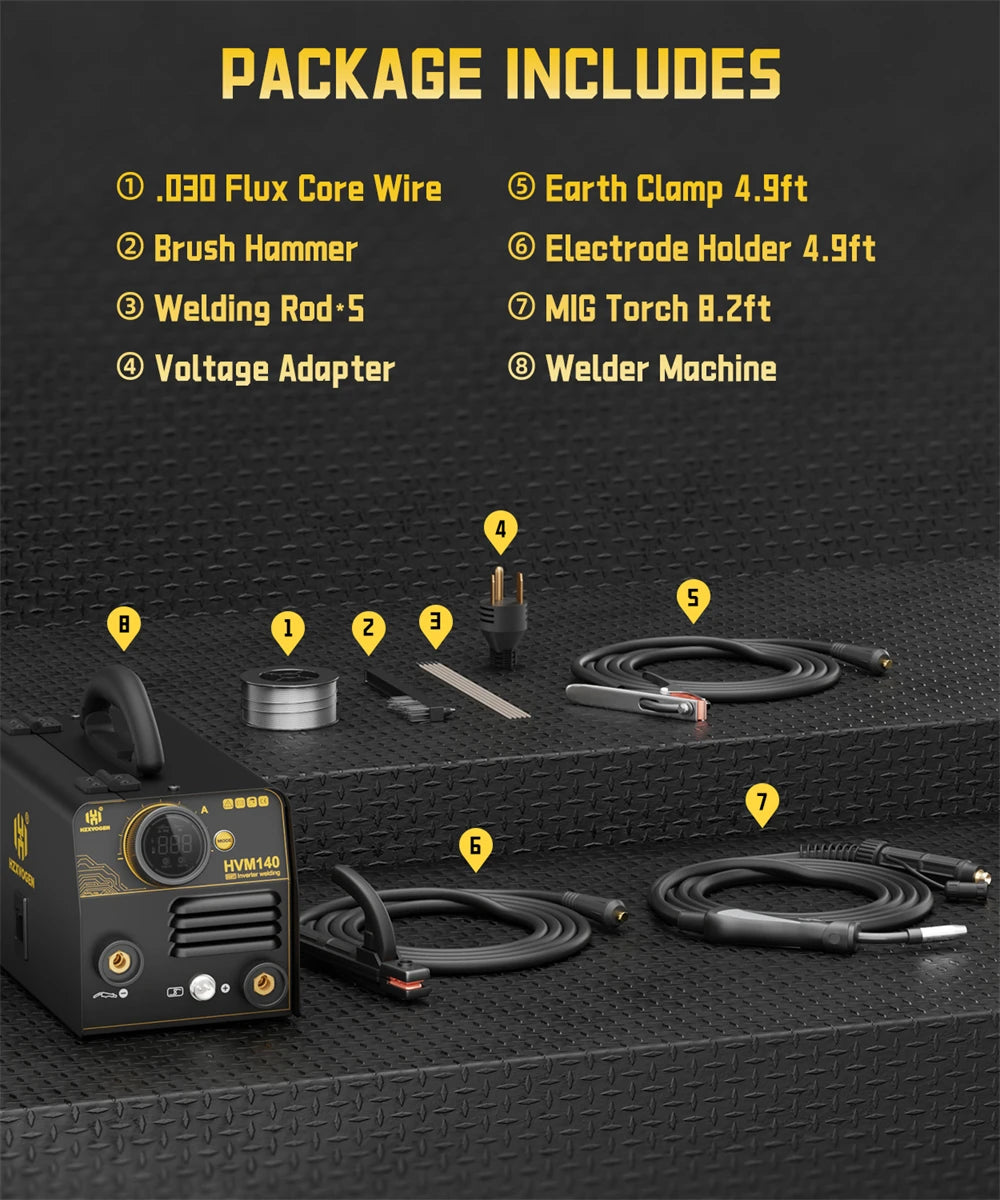

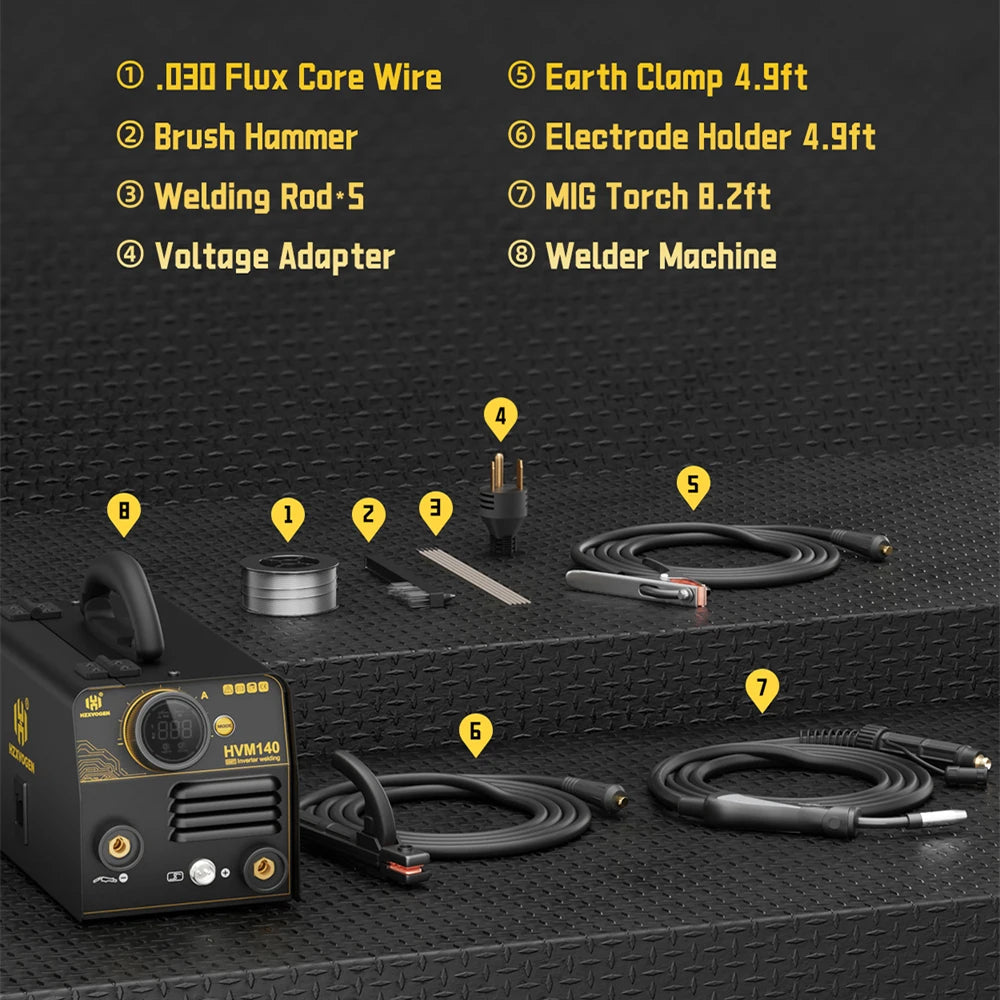

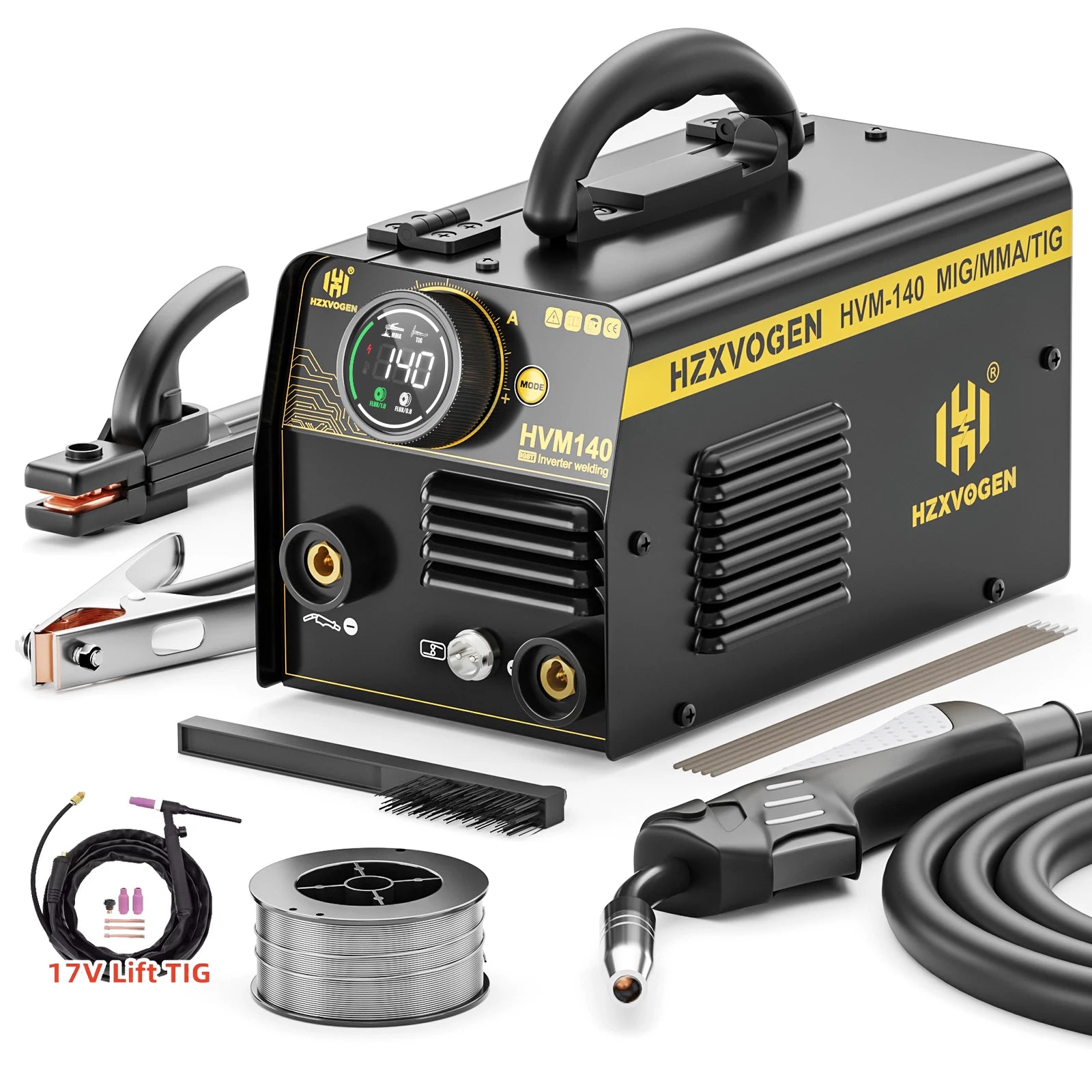

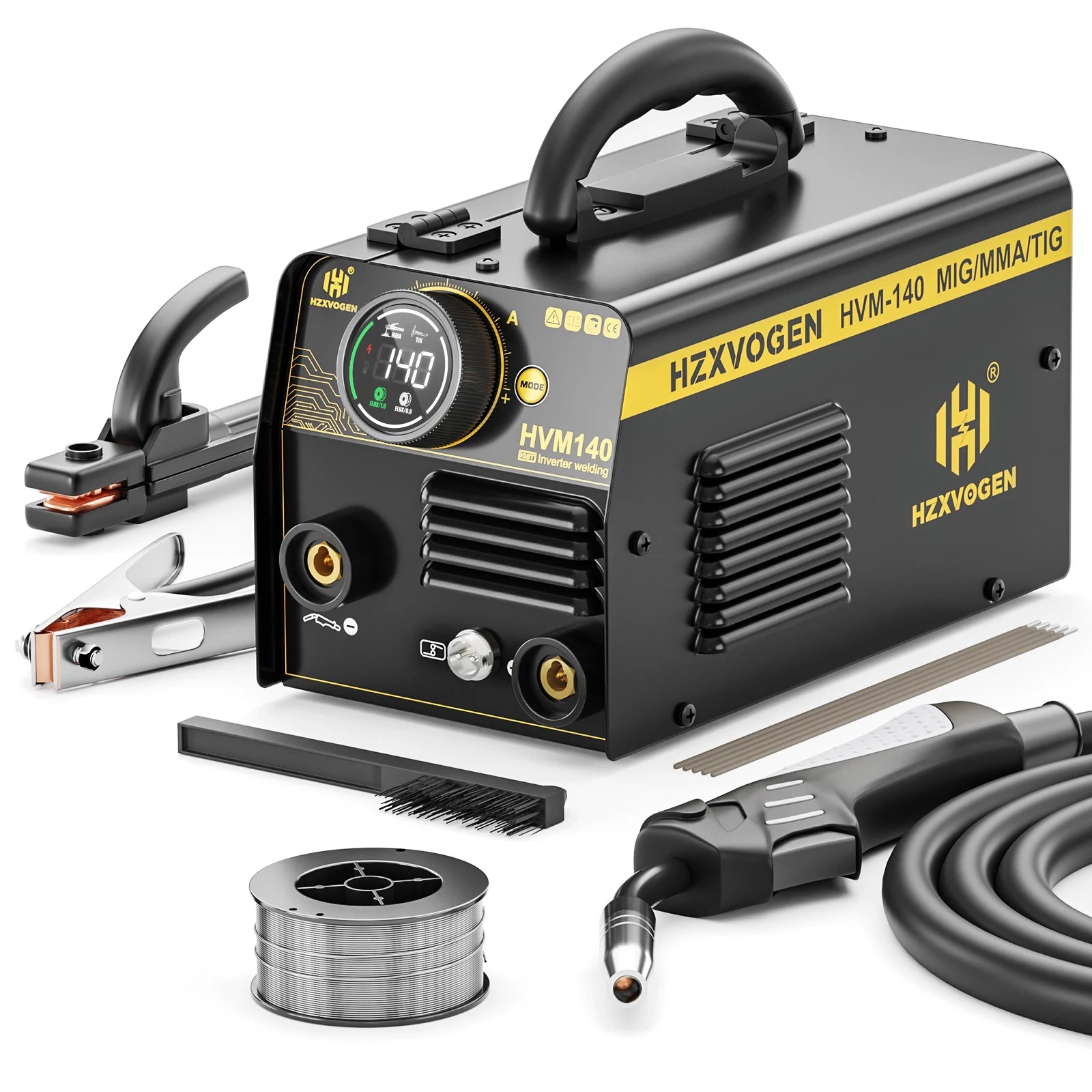

Package 1（HVM140）:

1x Welder Machine

1x Earth Clamp 4.9ft

1x Electrode Holder 4.9ft

1x MlG Torch 8.2ft

1x Flux Core Wire

1x Brush Hammer

5x Welding Rod

1x User Manual





Package 2（With 17V Torch）：

1x Welder Machine

1x Earth Clamp 4.9ft

1x Electrode Holder 4.9ft

1x MlG Torch 8.2ft

1x Flux Core Wire

1x Brush Hammer

5x Welding Rod

1x User Manual

1x 17V Lift Tig Torch

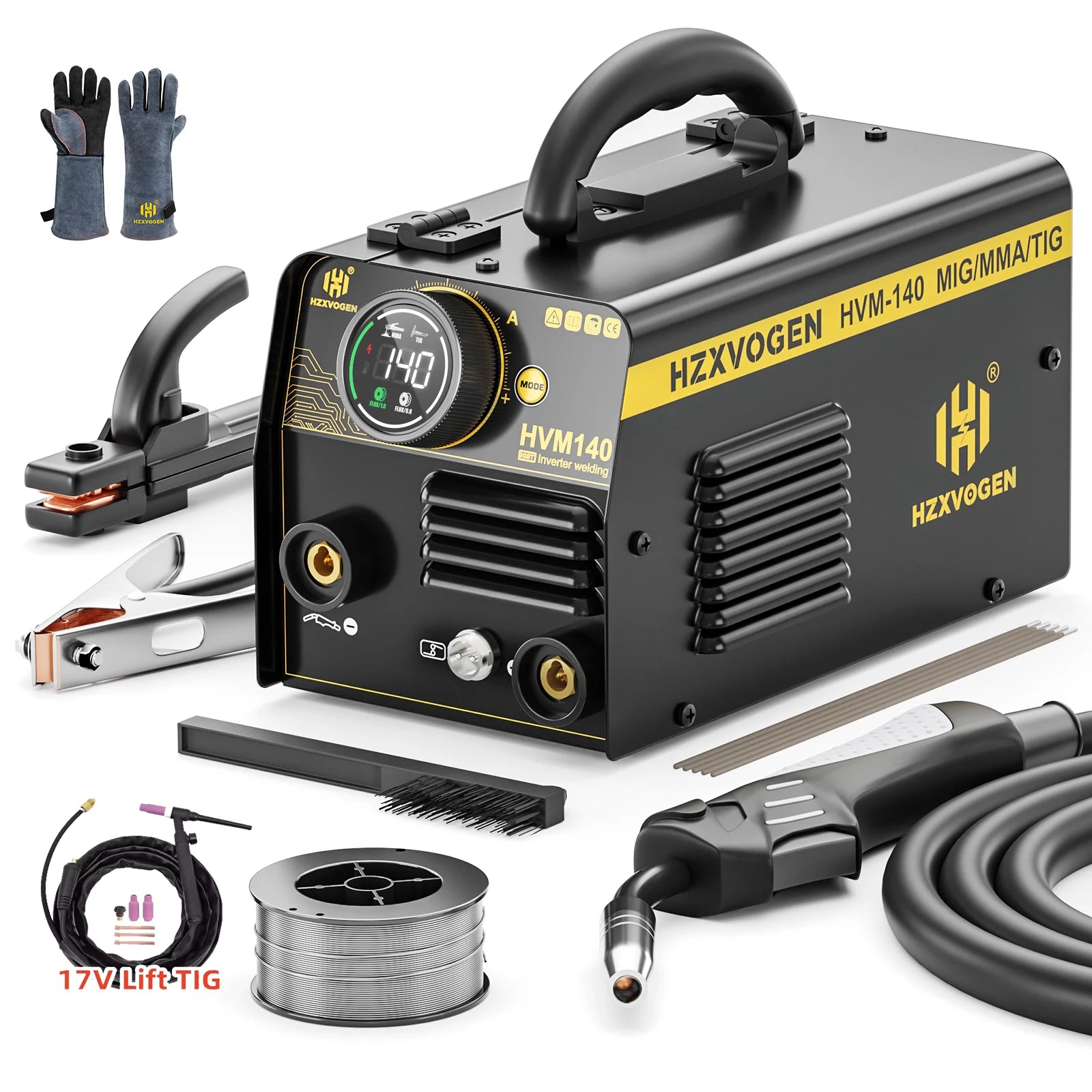

Package 3（With 17V Torch Gloves）：

1x Welder Machine

1x Earth Clamp 4.9ft

1x Electrode Holder 4.9ft

1x MlG Torch 8.2ft

1x Flux Core Wire

1x Brush Hammer

5x Welding Rod

1x User Manual

1x 17V Lift Tig Torch

1x Gloves

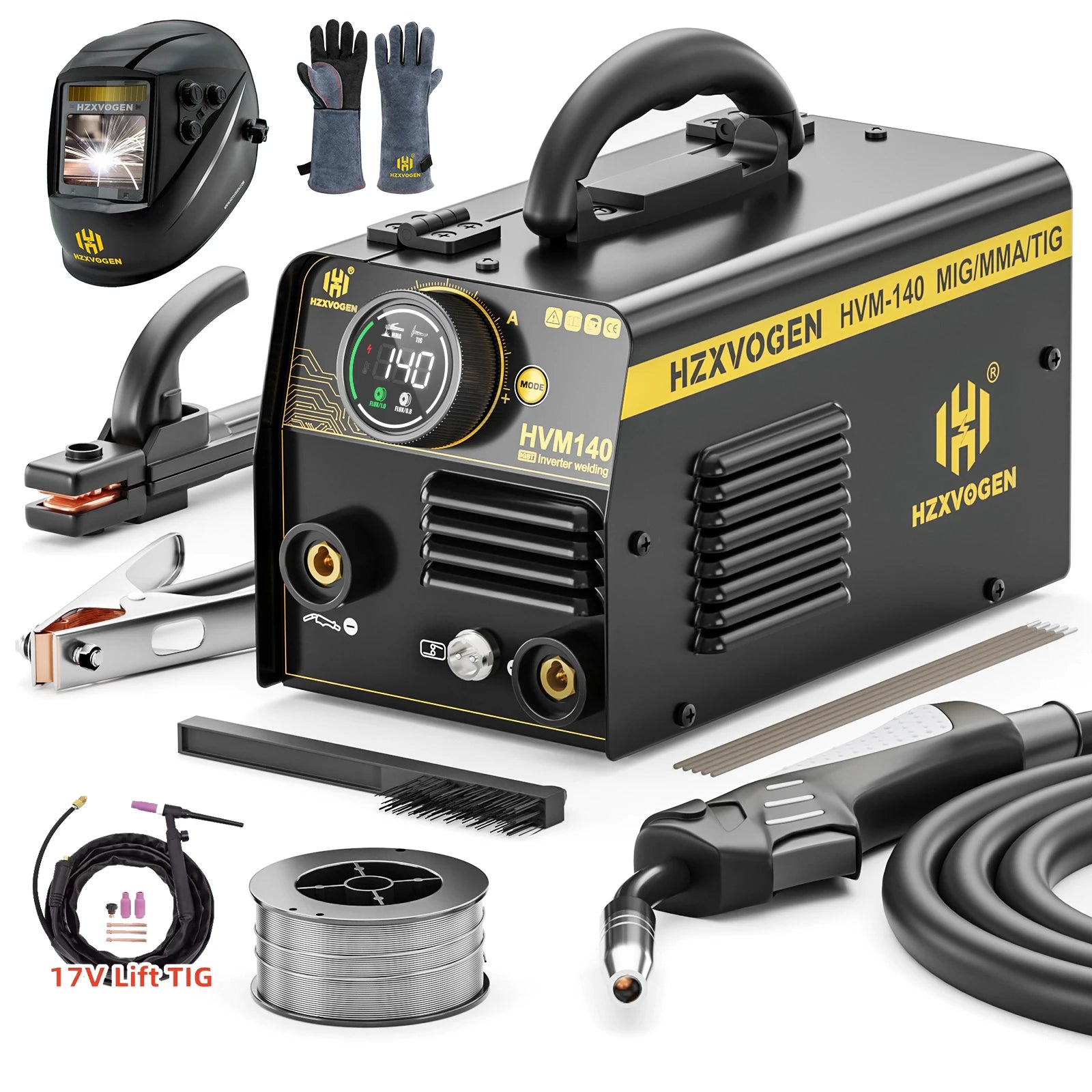

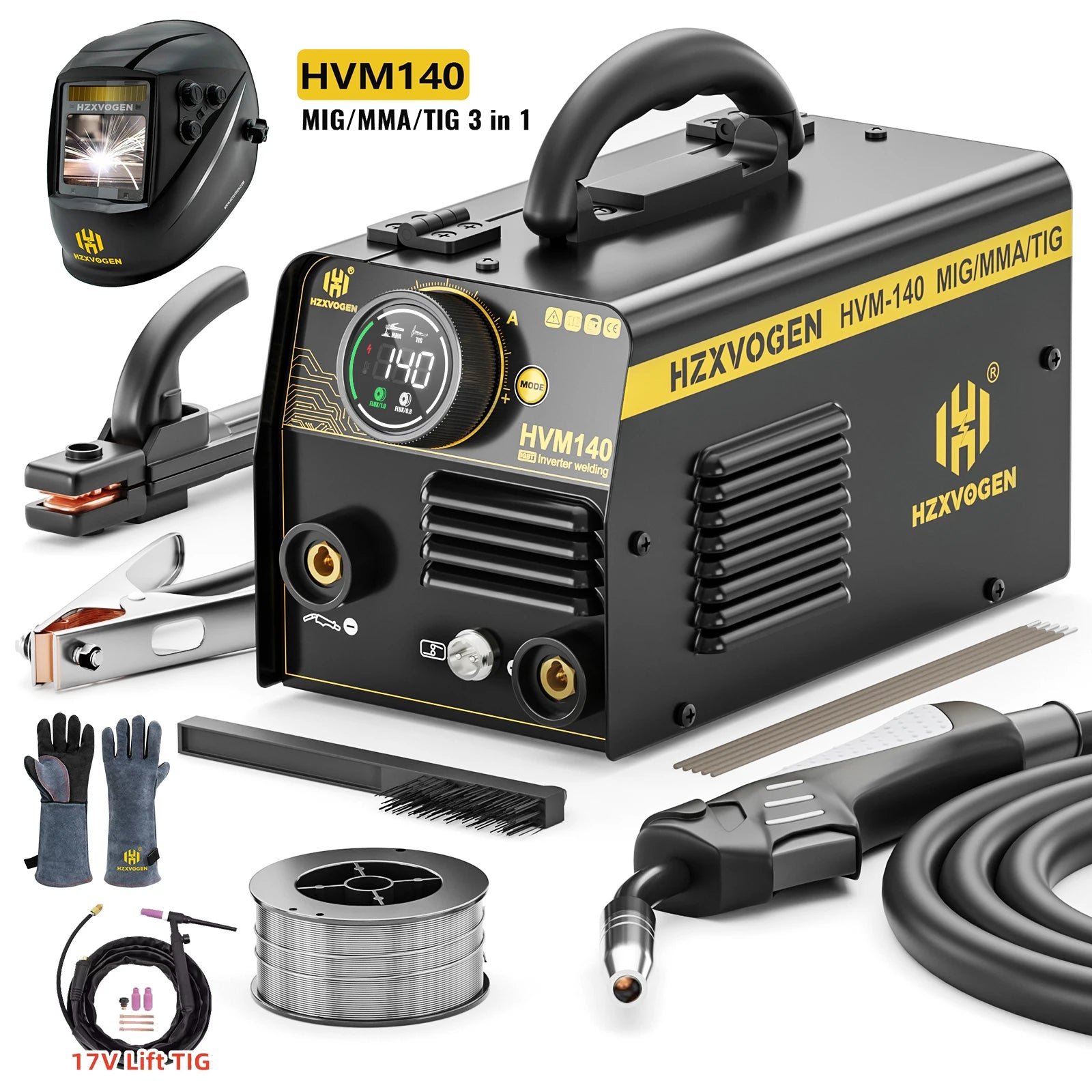

Package 4（Full Set）：

1x Welder Machine

1x Earth Clamp 4.9ft

1x Electrode Holder 4.9ft

1x MlG Torch 8.2ft

1x Flux Core Wire

1x Brush Hammer

5x Welding Rod

1x User Manual

1x 17V Lift Tig Torch

1x Gloves

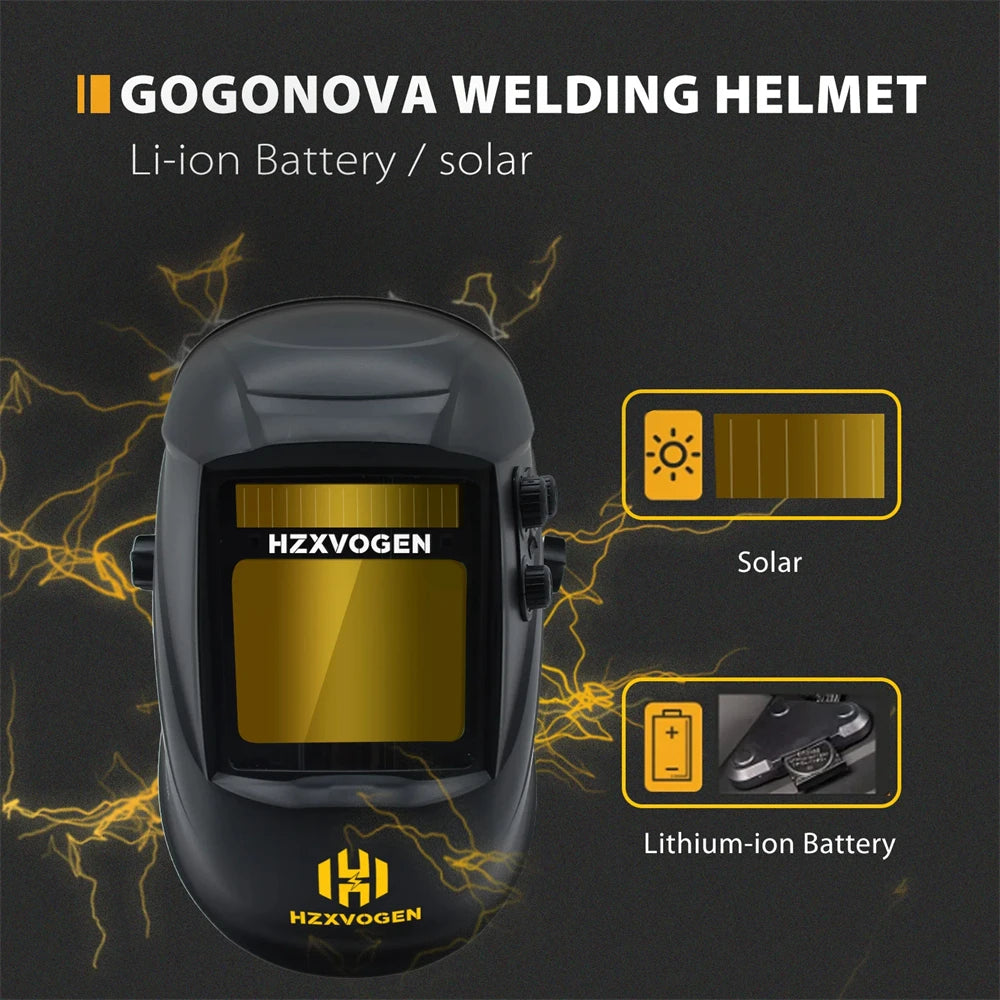

1X HV008 Welding Helmet

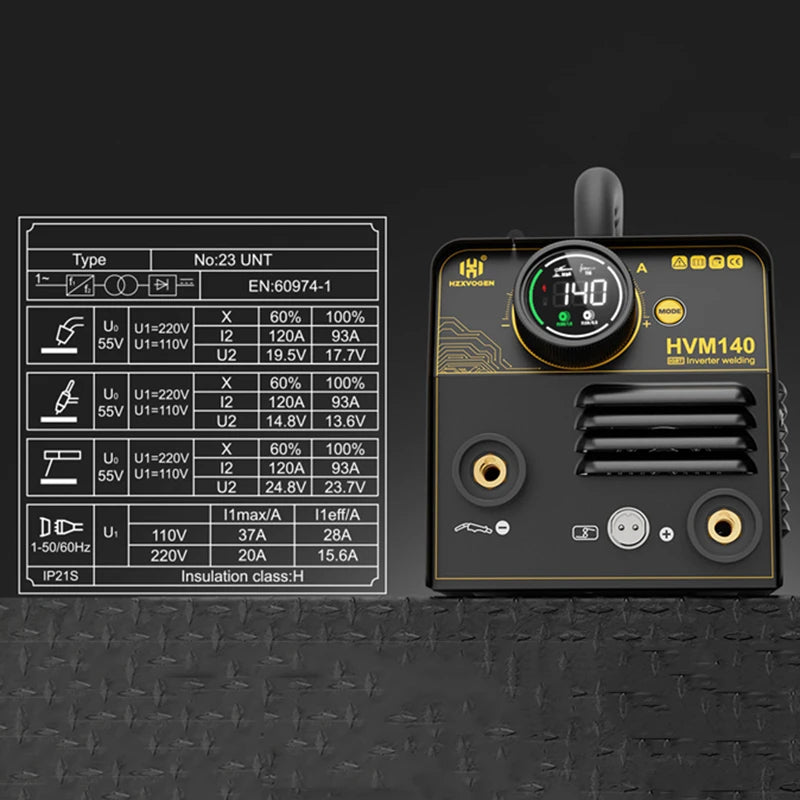

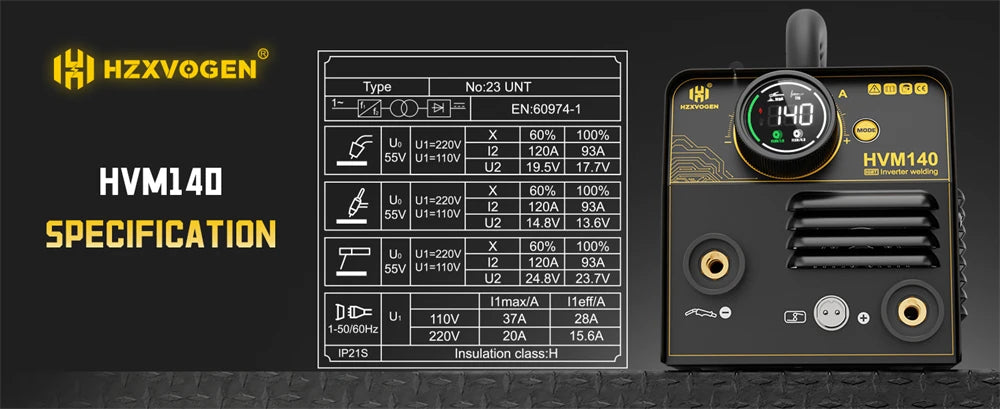

Specifications: ! Please leave message about the PLUG !

Model	110V HVM140	220V HVM140
Rated Input Voltage (V)	AC110V+10%,50/60Hz	AC220V+10%,50/60Hz
Rated Input Power (KVA)	4.2KVA	4.4KVA
Rated Input Current (A)	MAX:37A	MAX:20A
Rated Output Current & Voltage	MMA:120A / MIG:130A	MMA:120A / MIG:130A
Output Current (A)	MMA:20-120A/ MIG:40-130A	MMA:20-120A/MIG:40-130A
No-load Voltage (V	MMA:55V / MIG:56V	MMA:55V / MIG:56V
Rated Duty Cycle (%)	60	60
Efficiency (%)	85	85
Power Factor (coso)	0.73	0.73
Protection Class	IP21S	IP21S
Insulation Class	F	F
