Máy Hàn Nhôm Đa Năng 5in1 Plasma/TIG/MIG/MMA
Nhà bán
Phí vận chuyển được tính khi thanh toán.
Hãy nhanh tay nhé, chỉ còn 9 sản phẩm trong kho thôi.
Không thể tải tình trạng còn hàng để nhận hàng
Ưu đãi đặc biệt
Giảm giá khi đặt hàng số lượng lớn.Mua ngay
Thông số sản phẩm
Thông số sản phẩm
Chi tiết sản phẩm
Chi tiết sản phẩm
SPECIFICATIONS
Brand Name: XMSJ,HUSHANG/REDBO
Color: Black
Condition: New
Dimensions: 455*205*320mm
Efficiency: 0.93
Electrode rod dia: 1.6-3.2
Feature: Multifunction
Hign-concerned Chemical: None
Key Selling Points: Long Service Life
Keyword: mig cut tig mma welder
Machinery Test Report: Provided
Material / Metal Processed: Aluminium alloy
Max cutting thickness: 12MM
Max. Load Power Capacity: 7.5kw
Origin: Mainland China
Place of Origin: Zhejiang, China
Product name: 5 in 1 multi welder plasma cutter mig tig mma
Rated Duty Cycle @40°C (MIG): 60%
Rated Input Voltage: 220 V
Rated Output Current (MIG): 160 A
Rated Output Voltage (MIG): 22 V
Use: FLUX/MAG/TIG/Cut/MIG/MMA
Video outgoing-inspection: Provided
Warranty: 1 Year
Weight (KG): 10.8 KG
Welding Current/Voltage Range: 40-160 A
Welding thickness: 0.5-8mm
Wire Feeding Speed: 13 m/min
Wire Melting Type: Short Circuit Transfer
voltage: AC 220V/380V 15%
wire capacity: 1/5kg
wire dia: 0.8/1.0
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:765.3061224489796px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:765.3061224489796px}#detail_decorate_root .magic-3{border-bottom-style:dotted;border-bottom-color:#fff;font-family:Roboto;font-size:24px;color:#fff;background-color:#f14040;text-decoration:underline;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:937.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:937.5px}#detail_decorate_root .magic-6{vertical-align:top}#detail_decorate_root .magic-7{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-8{font-size:20px}#detail_decorate_root .magic-9{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-10{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-11{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-12{font-size:16px}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:348px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:358px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{text-align:left}#detail_decorate_root .magic-17{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-18{margin-bottom:0}#detail_decorate_root .magic-19{position:relative;width:100%}#detail_decorate_root .magic-20{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-23{overflow:hidden;width:184.5px;height:138.375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:184px;height:138px}#detail_decorate_root .magic-25{overflow:hidden;width:184.5px;height:138.375px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-26{overflow:hidden;width:373px;height:220px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:-28px;margin-left:-1px;width:372.99999999999994px;height:280.18779342723px}#detail_decorate_root .magic-28{overflow:hidden;width:373px;height:220px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:373px;height:223.054px}#detail_decorate_root .magic-30{width:320px}#detail_decorate_root .magic-31{overflow:hidden;width:320px;height:157px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:320px;height:240px}#detail_decorate_root .magic-33{overflow:hidden;width:320px;height:157px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{overflow:hidden;width:426px;height:319.5px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:426.00000000000006px;height:319.5px}#detail_decorate_root .magic-36{width:446px}#detail_decorate_root .magic-37{overflow:hidden;width:446px;height:361.55733333333336px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:24.976px;margin-left:-23.78666666666667px;width:482px;height:361px}#detail_decorate_root .magic-39{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-40{text-align:center}#detail_decorate_root .magic-42{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-43{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-44{width:371px;height:278.25px;overflow:hidden}#detail_decorate_root .magic-45{position:relative;left:0;top:0;width:370.99999999999994px;height:278.25px}#detail_decorate_root .magic-46{width:371px;height:278px;overflow:hidden}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:900px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:900px}#detail_decorate_root .magic-49{font-size:22px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:564.3939393939394px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:564.3939393939394px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:746px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:746px}#detail_decorate_root .magic-54{overflow:hidden;width:373px;height:209.87466666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:373px;height:209.87466666666666px}#detail_decorate_root .magic-56{overflow:hidden;width:373px;height:209px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-57{margin-top:-30px;margin-left:0;width:373px;height:248.791px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:485px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:-11px;margin-left:-1px;width:750px;height:525px}#detail_decorate_root .magic-60{overflow:hidden;width:750px;height:984px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:0;margin-left:0;width:750px;height:984px}#detail_decorate_root .magic-62{overflow:hidden;width:750px;height:103.88513513513513px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-63{margin-top:0;margin-left:0;width:750px;height:103.88513513513513px}
Products Description

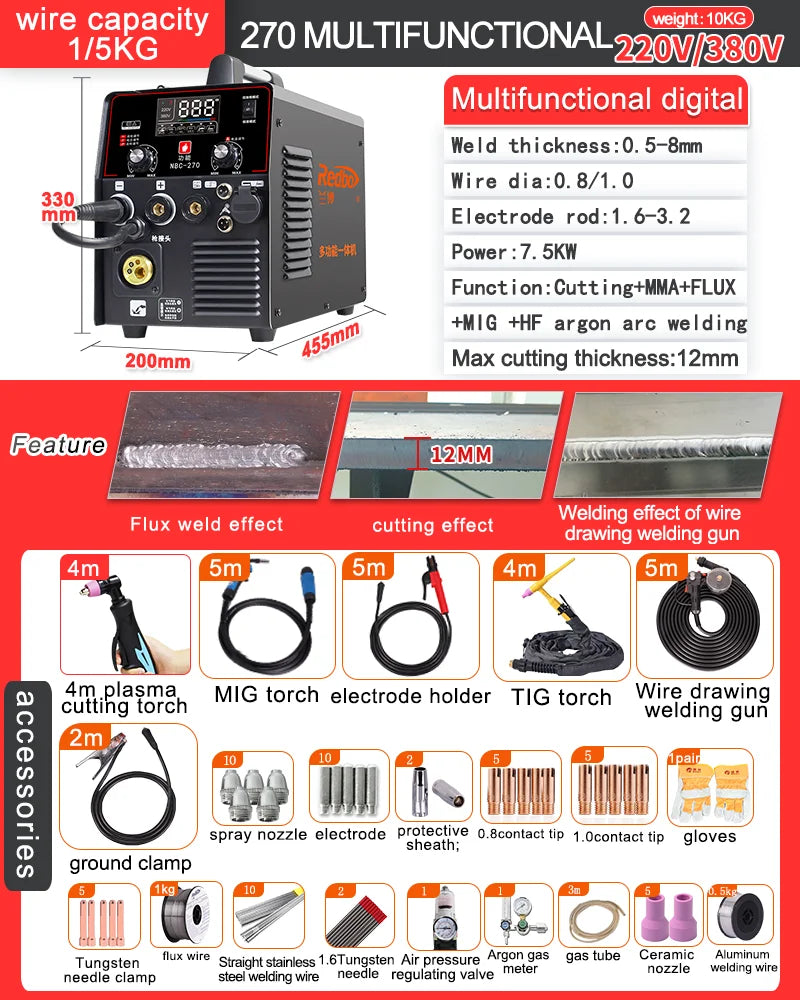

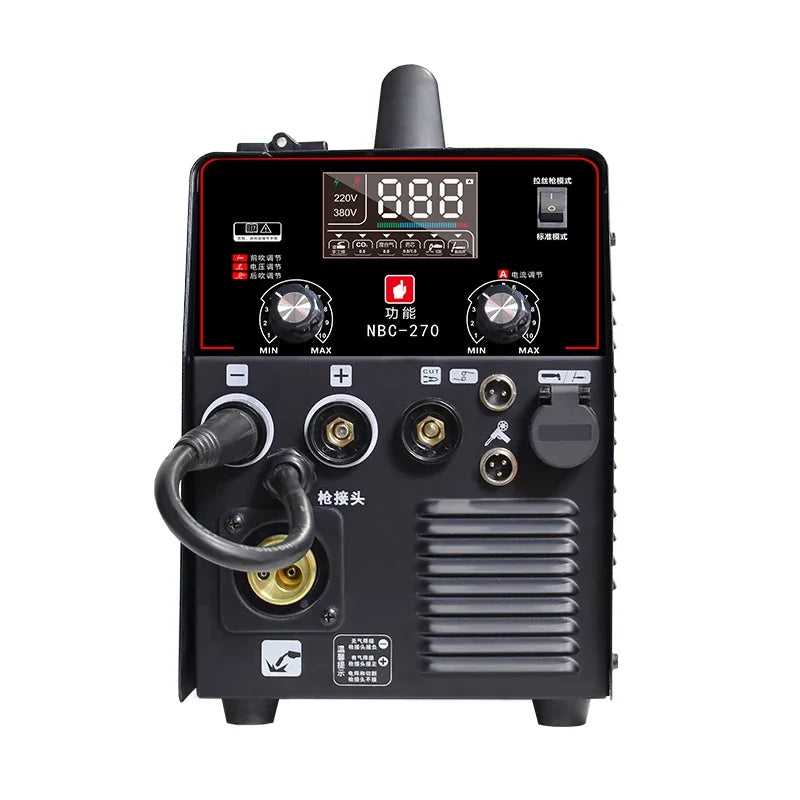

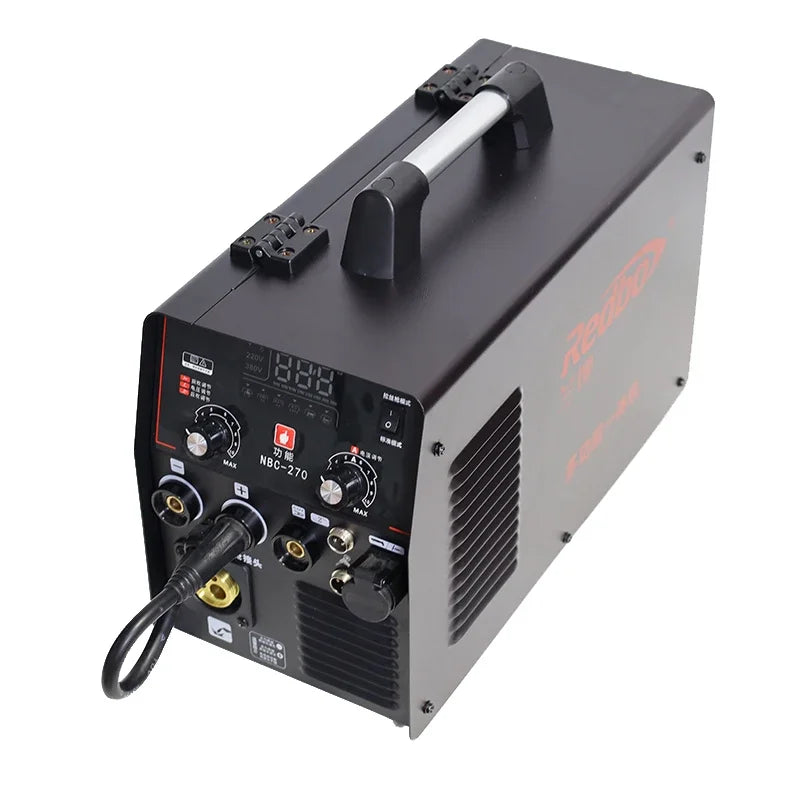

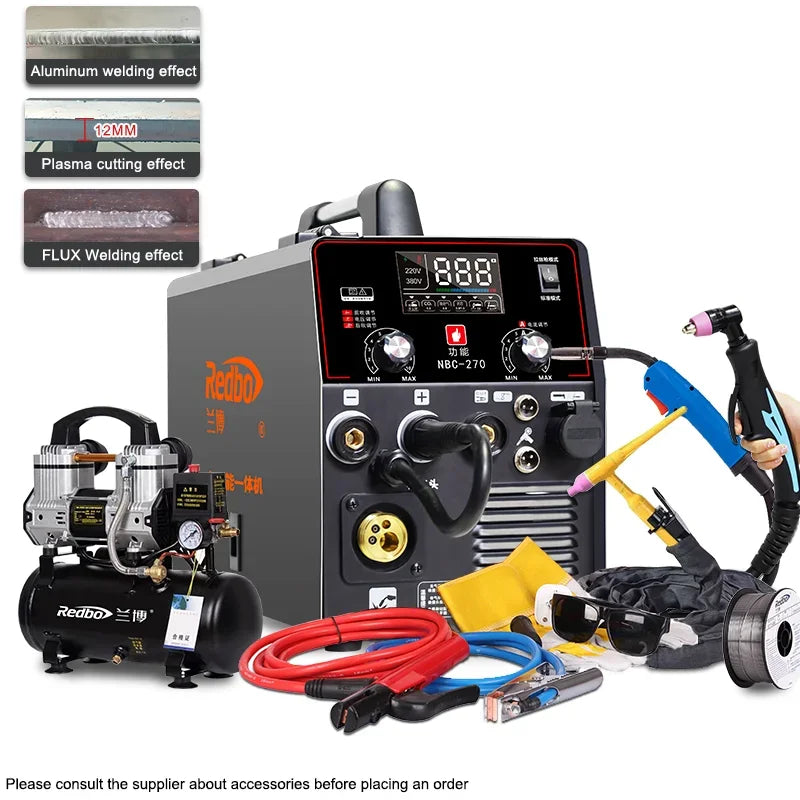

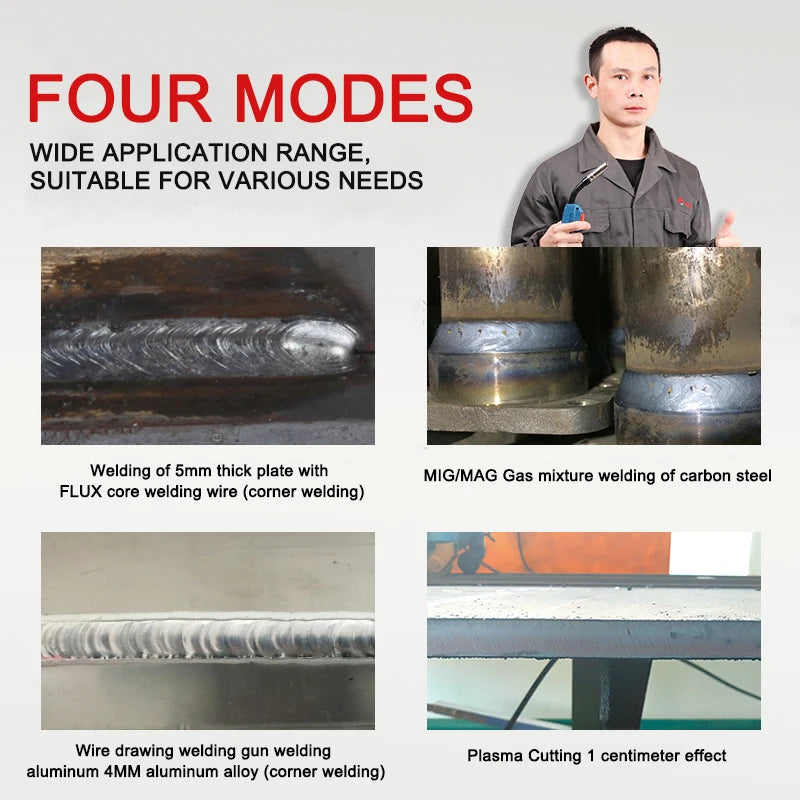

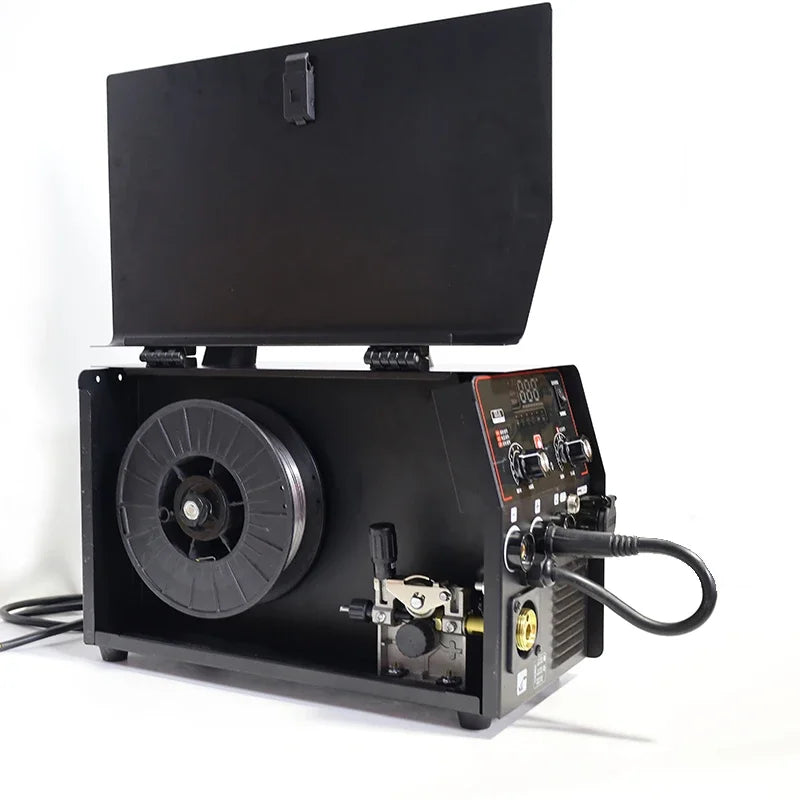

Portable Aluminum Welding Machine Multifunctional FLUX/MAG TIG 5 in 1 Multi Welder Plasma Cutter MIG TIG MMA With Air Compressor
Key Features: - **Max Cutting Thickness:** Effortlessly cut through materials up to 12mm thick. - **Electrode Rod Dia:** Optimal performance with electrode rod diameters ranging from 1.6 to 3.2. - **Wire Dia:** Seamlessly weld with wire diameters of 0.8/1.0, ensuring precision in your work. - **Welding Thickness:** Achieve precise welds on materials ranging from 0.5 to 8mm. - **Dual Voltage:** Equipped with dual voltage capability (AC 220V/380V) ensuring adaptability to various power sources. - **Wire Capacity:** Handle welding tasks with ease with a wire capacity of 1/5kg. - **Compact Size:** Measuring just 455*205*320mm, it's designed for portability without compromising functionality. - **Lightweight:** Weighing only 10.8kg, take this welding powerhouse wherever your projects take you. - **Versatile Functions:** FLUX/MAG/TIG/Cut/MIG/MMA functions offer unmatched versatility. - **Wire Feeder Speed:** A wire feeder speed of 13 m/min ensures precise control over your welding process. Technical Specifications: - **Current Range (MIG):** 40A/16V-160A/22V - **TIG:** 10A/10.4V-160A/16.4V - **MMA:** 20A/20.8V-160A/26.4V - **CUT:** 20A/88V-40A/96V - **Duty Cycle:** Enjoy a reliable 60% duty cycle for extended usage. - **Insulation Level:** F for enhanced safety. - **Cooling Method:** Efficient air cooling keeps the machine operating at peak performance. - **Protection Level:** IP21S for added durability. Whether you're a seasoned professional or a DIY enthusiast, our Portable Aluminum Welding Machine ensures unmatched precision and flexibility in your welding projects. Don't miss out on this opportunity to elevate your welding experience. Order now and experience the difference with our 5-in-1 Multifunctional Welding Machine.

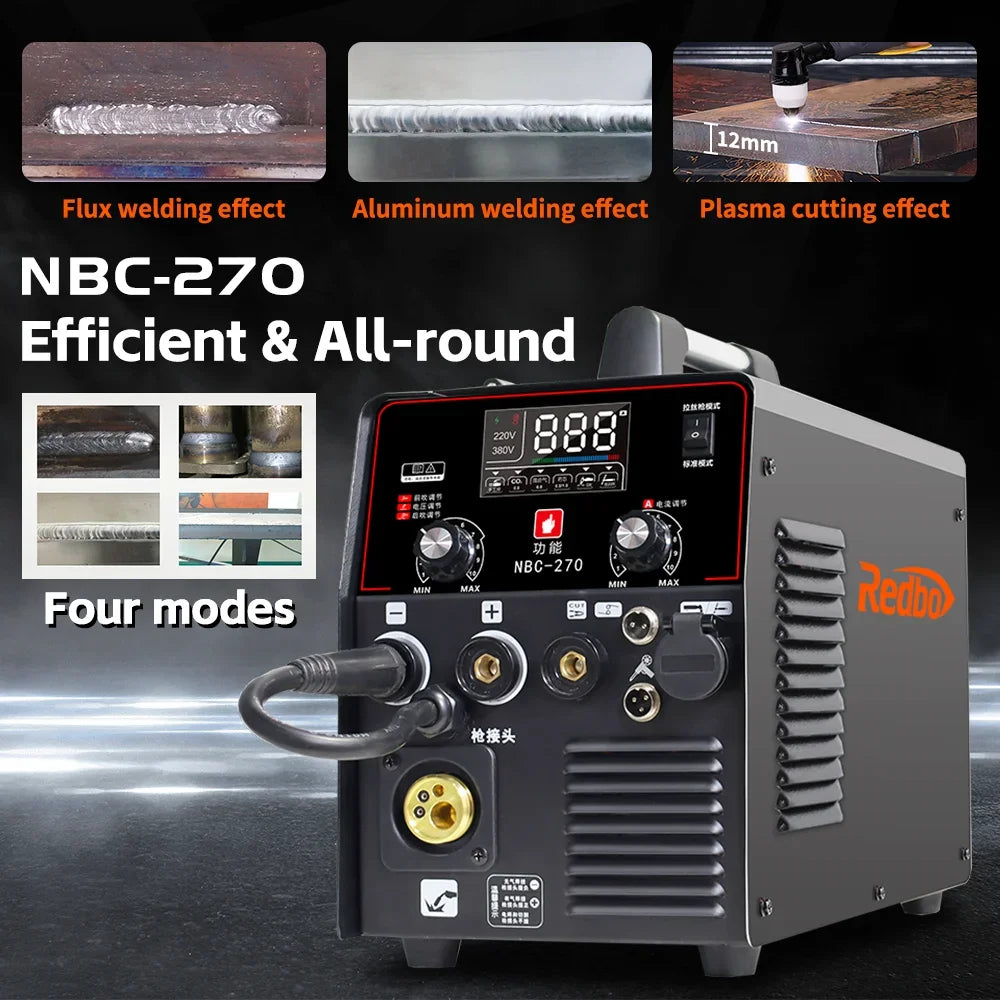

Model number |
NBC-270 |
Max cutting thickness |
12MM |
Electrode rod dia |
1.6-3.2 |
wire dia |
0.8/1.0 |
Welding thickness |
0.5-8mm |
Voltage |
Dual Voltage AC 220V/380V 15% |
Frequency |
50/60Hz |
wire capacity |
1/5kg |
size |
455*205*320mm |
weight |
10.8kg |
Function |
FLUX/MAG/TIG/Cut/MIG/MMA |
current range(MIG): |
40A/16V-160A/22V |
TIG |
10A/10.4V-160A/16.4V |
MMA |
20A/20.8V-160A/26.4V |
CUT |
20A/88V-40A/96V |
Duty cycle |
60% |
Insulation level: |
F |
Cooling method: |
air cooling |
Protection level |
IP21S |
Welding Material |
Carbon steel, stainless steel, iron, galvanized pipe, square pipe, copper (tig), aluminum (aluminum welding need Wire drawing / spool gun welding with argon gas ) |

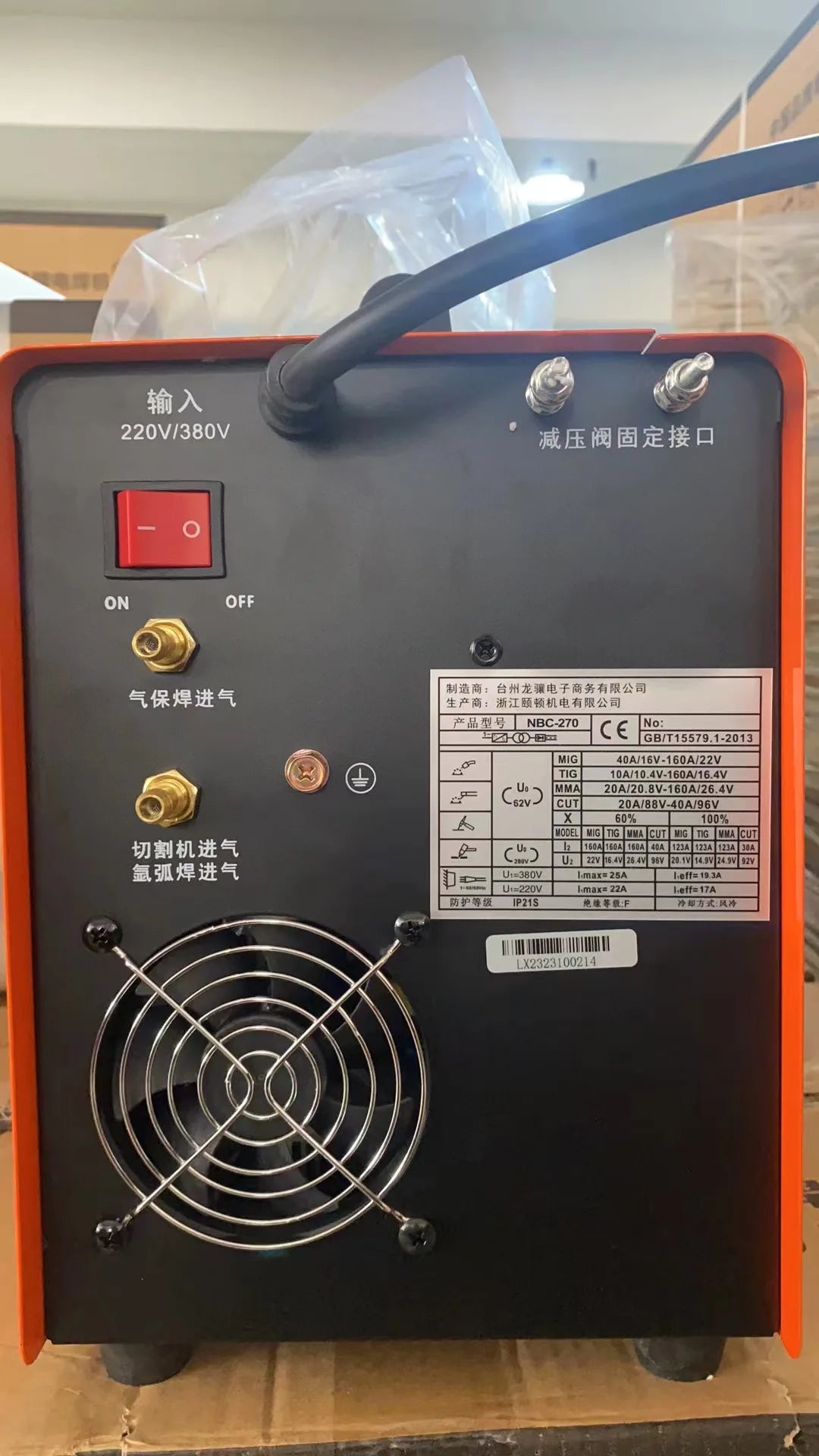

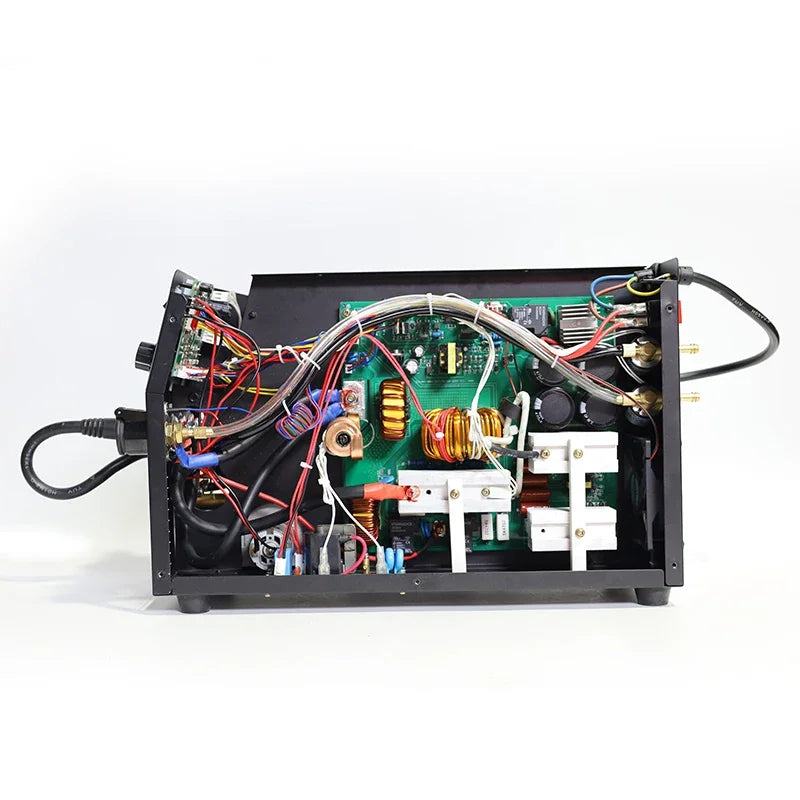

Details Images
Recommend Products
Why Choose Us

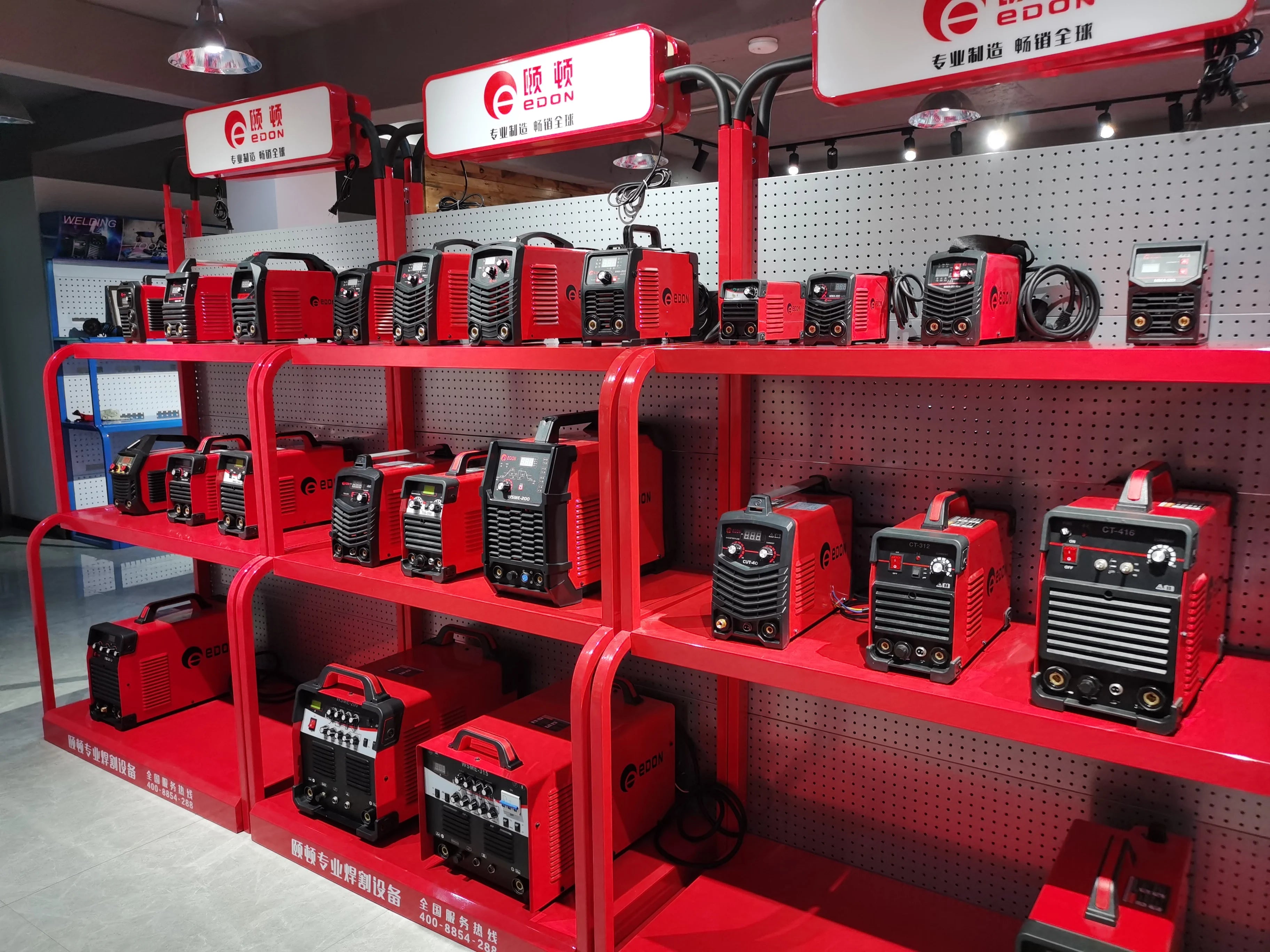

ONE STOP TOOLS SHOPPING

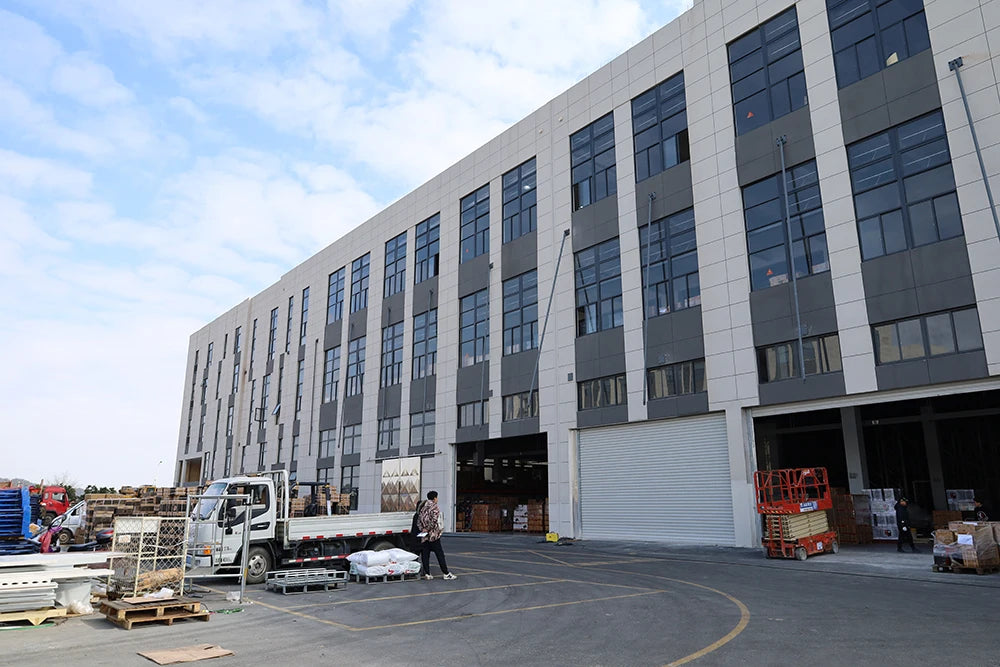

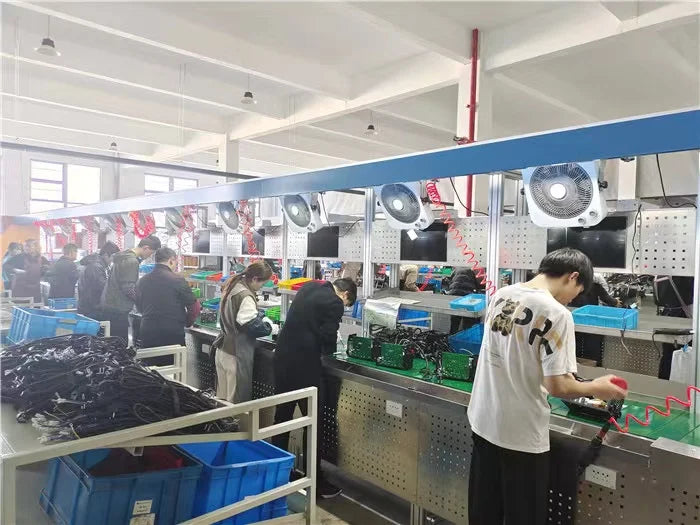

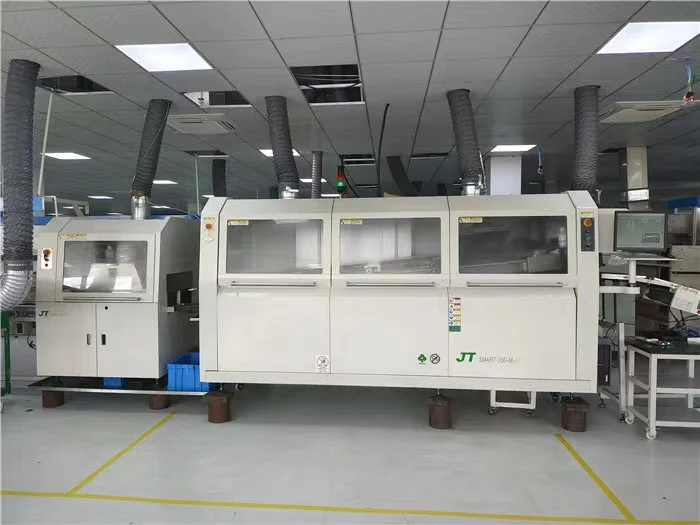

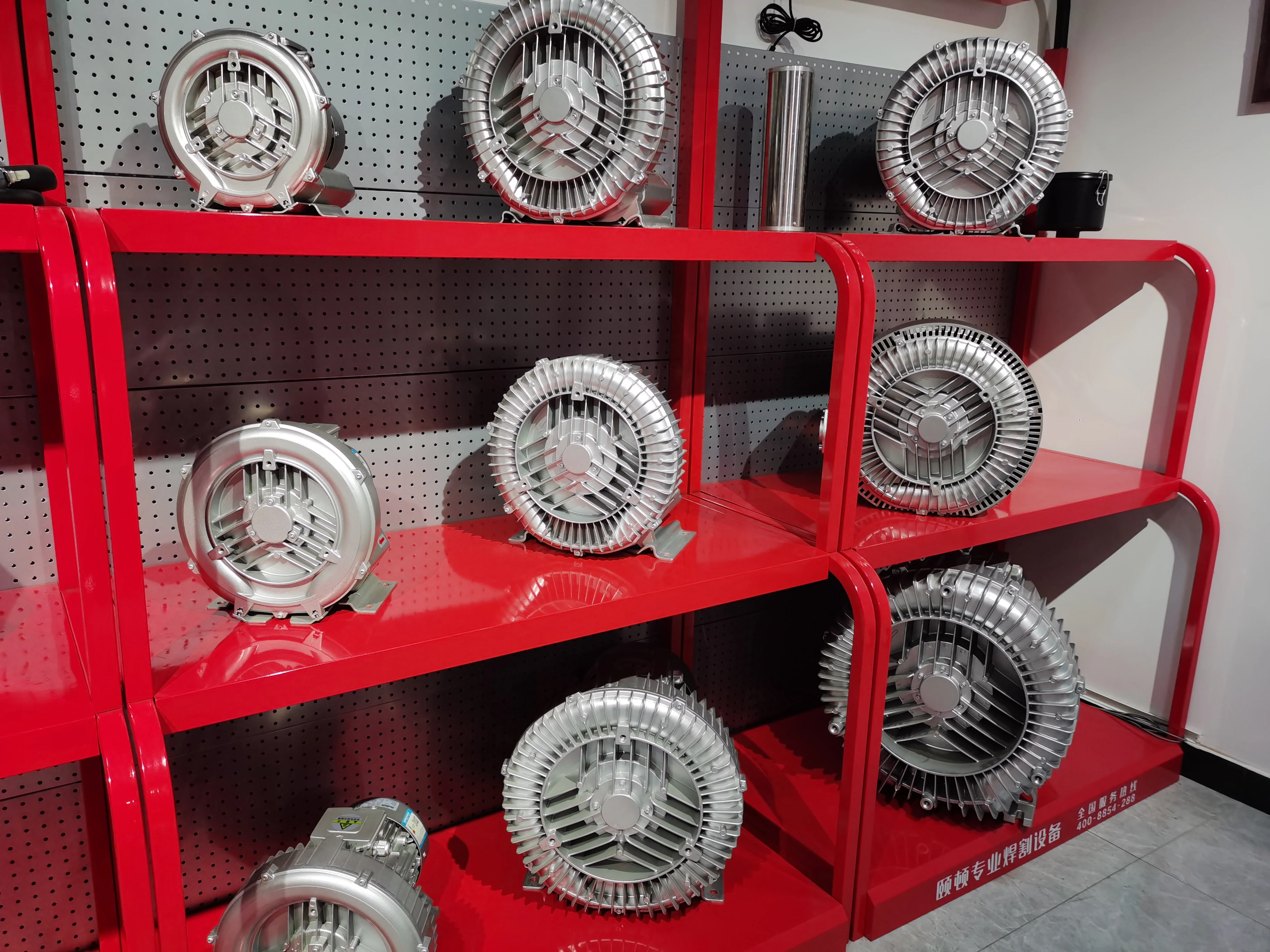

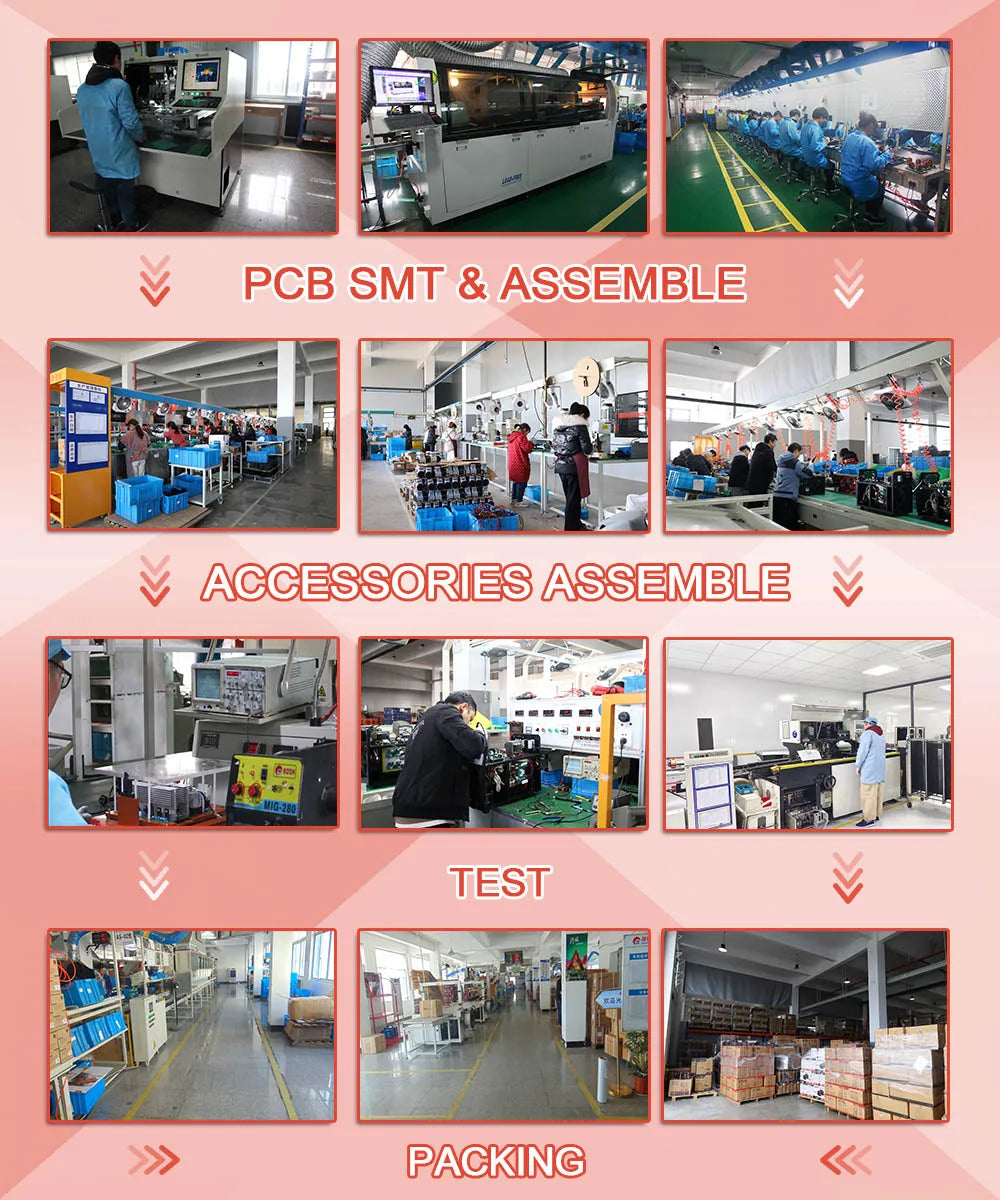

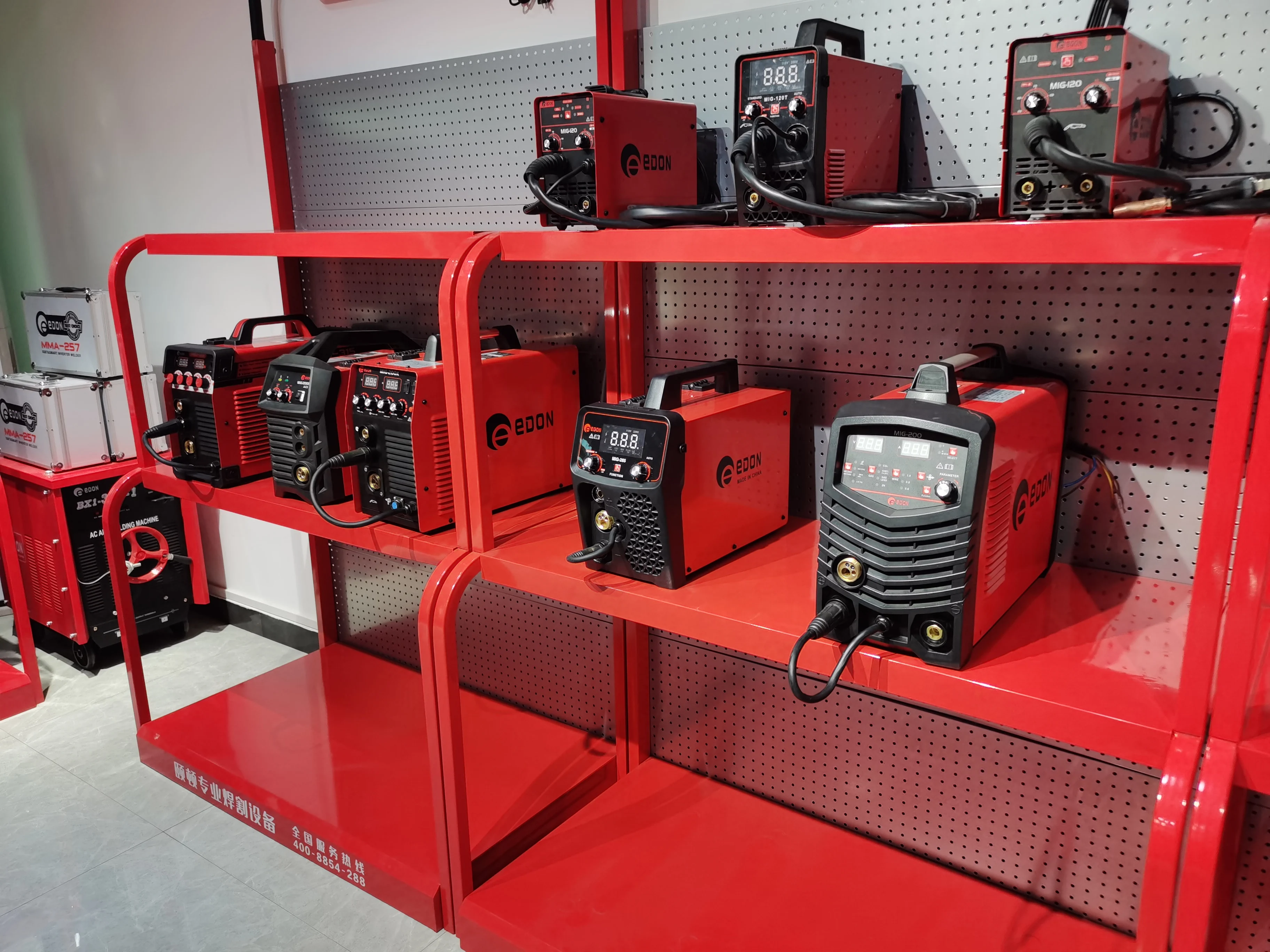

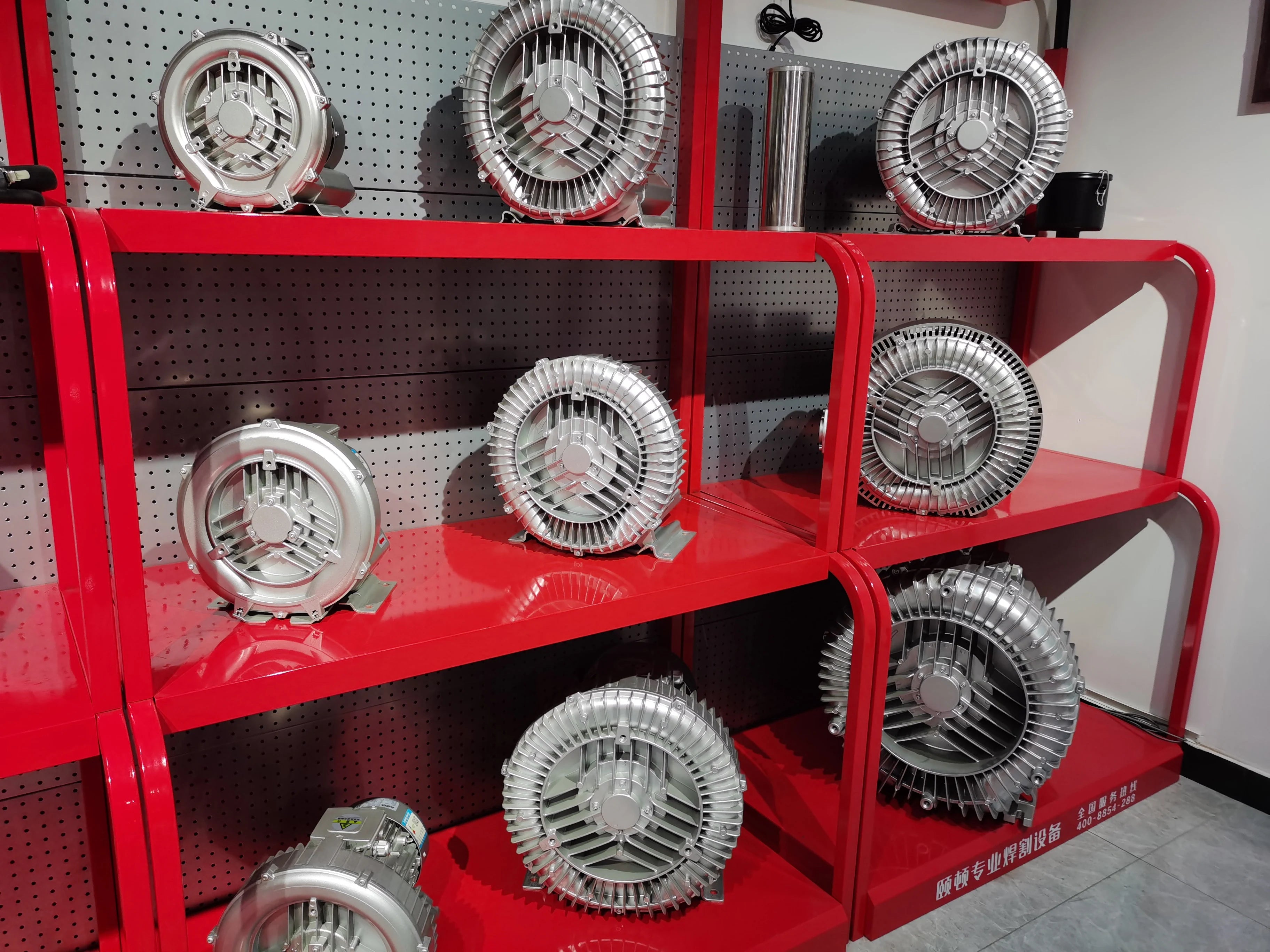

Our factory were founded in 2001 and we has three factories,one for welding machine,one for power tools ,one for side channel blower.The product category of our company becomes complete and various.now our products covers more than 300 different items,which include welding machine,cordless drill,side channel blower,air compressor,chain saw,demolition hammer,hammer drill,electric saw,jig saw,sprayer,circular saw,gasoline saw,generator,car pump,brush cutter and so on.
The company's sales volume has achieved a huge growth within the recent these yearsand now there are many distribution centers in the world & products have been exported to more than 30 overseas markets ,such as USA ,Europe,Canada, Mexico,Dubai,Ukraine,Turkey, Chile,Indonesia ,Italy,Russia and the Middle East bringing much convenience for customers to buy our products through online andoffline channels.
Our group is based in China to support global marketing and we are also looking for local distributors as our long term partners instead of setting up our own sales team to save the cost and maximize the benefits of our partners. Through continuous innovation and improvement, we will provide exceptional value to our partners. HUSHANG ,Strive for production with quality and win customers with reputation
Company Philosophy
Always bear in mind that quality is the cornerstone of Our survival and the reason for customers to choose us .We transfer the customer's requirements and expectations to the entire value chain of whole company , and jointly build quality; We respect the rules and procedures, do things right at one time; we play the potential of employees and make continuous improvement; We work with our customers to balance opportunities and risks, respond quickly to customers' needs and achieve sustainable development.
Our advantages are as follows: 1. With independent development capabilities, it can provide customers with ODM&OEM; 2. There are many product styles, and the latest products will be updated regularly; 3. Large warehouses are available for fast delivery; 4. The price is the same, and the quality is better than peers. 5. Our pofessional QC will check the quality during the production and do the quality test before shipment.
Certifications
Exhibition

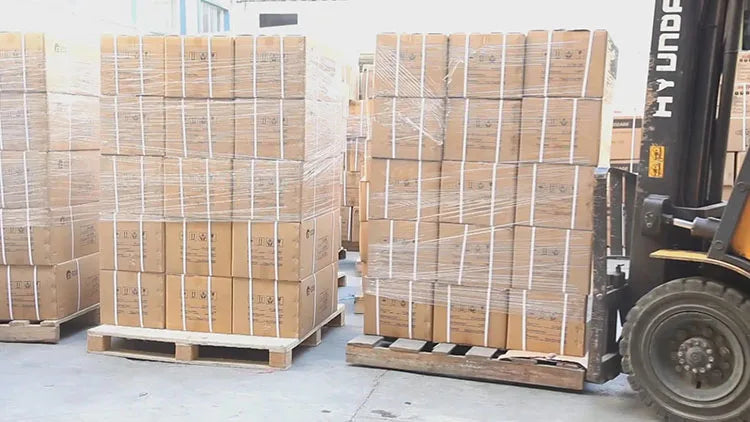

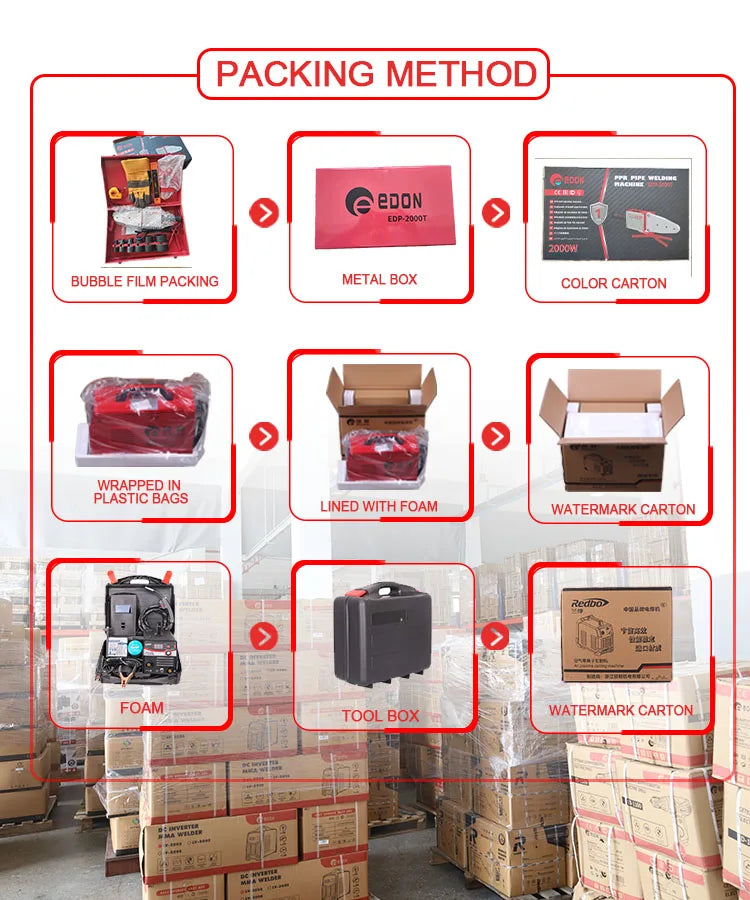

Product Packaging And Transportation
We offer various shipping methods for our products,such as SEA shipping (18-25 days) ,Truck (13-15 days),Train(18-30 days), air express Fedex, DHL,UPS,EMS etc (8-11 days), or if you have shipping agent in China , we can also send the goods to him and offer FOB shipping & export for your goods . And Whether selecting a current product from our catalog or seeking engineering assistance , you can talk to our customer service center about your requirements. Hope you join us,we trust our products and services will take you good benefit. Over the years, We has won praise from customers at home and abroad for "high quality, reasonable price, and professional service". Tailor client's assortment products with innovation, competitive price and well presentation.! Hope to have the opportunity to work with you, welcome to consult at any time!
