SPECIFICATIONS

Application: Phone Shell.Card.Udisk.Mobile Power.Hairpin .personalized Printing

Color & Page: Multicolor

Ink: UV Curable Ink

Interface: USB 3.0

Key words: Uv flatbed Printer Machine

Plate Type: Flatbed Printer

Print head: XP600,Epso DX8/DX10/4720

Print resolution: 2880x1440dpi

Printing Material: Acrylic, Metal, Plastic, glass, wood, Ceramics,PVC

Printing Size: 40*60cm((15.7*23.6 inches)

Product name: Ripple Color RC-4060 UV Flatbed printer

Resolution: 2880*1440dpi / 1440*1440dpi

Software: Maintop, Wellprint

Speed: A3 / 120 Seconds

Type: Inkjet Printer

Voltage: 110V/220V

automatic grade: Automatic

brand name: Ripple Color A2 RC-4050 UV flatbed Printer

condition: New

dimensions(l*w*h): 1000X960x770mm

ink type: UV Ink

place of origin: Shanghai, China

usage: Paper Printer,Label Printer,Card Printer,Tube Printer,Bill Printer,Cloths Printer,Leather printer,wallpaper printer

warranty: 1 Year

weight: 109

Product Overview

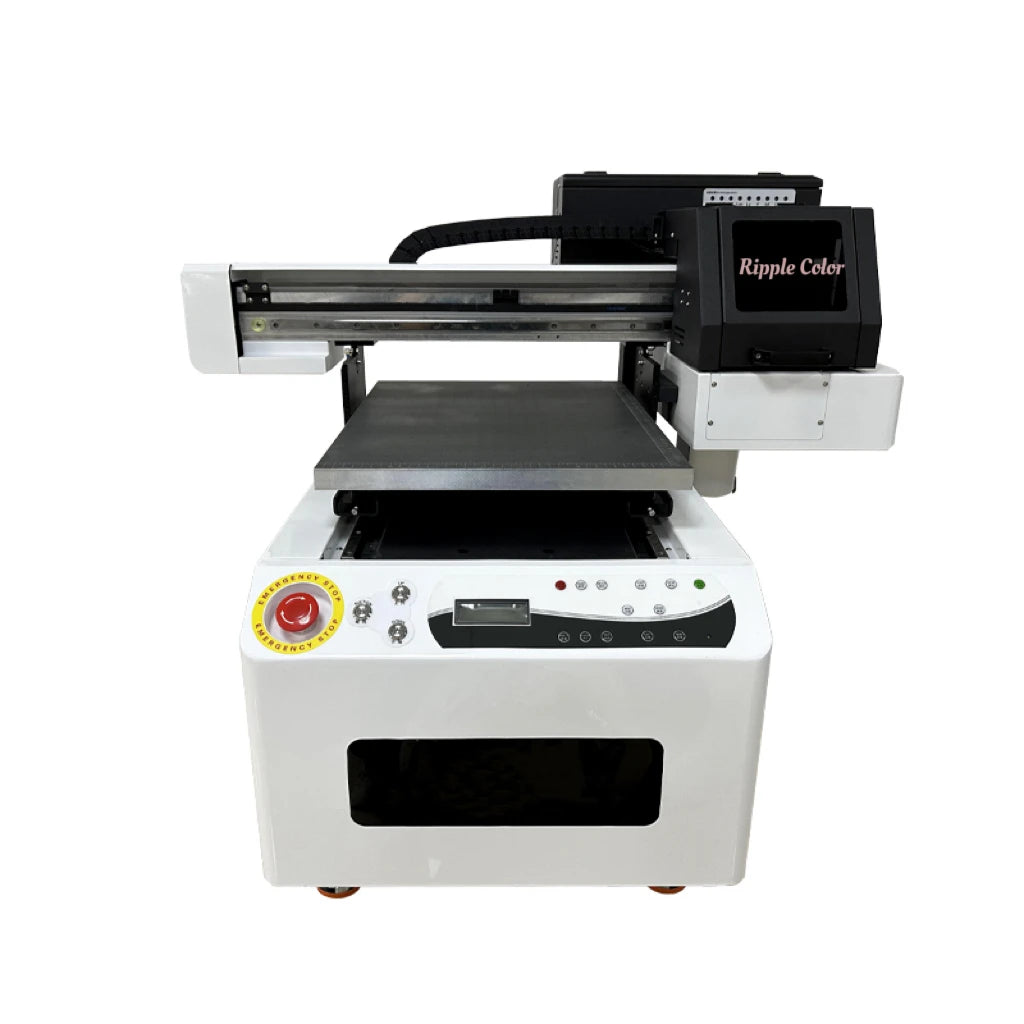

A2 SIZE RC-4050 UV Flatbed inkjet Printer

Ripple Color was located in Shanghai, China, who supply UV printer, DTG printer, DTF printer, Roll to roll printer over 10 years. Support OEM and ODM, welcome globle agent to contact us!

This machine can print on wood, glass, PVC, phone case, pens, bottles, cylinder, leather, tile, plastic, ABS, box, Paper, uv dtf film, golden and silver film etc. And it popular in gift shop, printing shop, phone case and design shop, which can print almost everything, and its easy to start in home or store.

Back Side

Right Side

Left Side

PRODUCT SPECIFICATIONS

No	Item	Data
1	Model	RC-4050 A2 UV flatbed inkjet automatic printer
2	Software	Maintop/Riprint
3	Print head	Epso single/double DX10/DX8/4720
4	Ink bottle volume	500ML
5	Printing size	40*50CM((16*20 inches)
6	Printing height	0-180mm(adjustable)
7	Temperature of working environment	10-35°C
8	Power	500W
9	Voltage/Plug	110V-220V
10	Printing direction	Bi-Direction
11	Color Configuration of printing	CMYKW+Varnish
12	Software Setting Precision	2880*1440/1440*1440DPI
13	Print Speed	approximately 90 seconds(photo mode)
14	Printer size	1000X960x770mm
15	Net/Gross Weight of printer	109kg/135KG
16	Size of package	1080X1100X890mm
17	Computer operating system	Win7/10/XP
18	Printing table	Vacuum table available
19	Print head protection	White ink stirring system,
20	Ink system	ink deficient alarm system
21	Picture design	JPG, PNG, PSD, EPS, PDF ETC.
22	Language	English/Chinese
23	Interface	USB 3.0

PRODUCT CONFIGURATION

Economic shipment cost:

_{The machine size is: 1000X960x770mm, and its easy to ship by both sea and air with reasonable price even long distance. And its easy to move by single people, popular in home use or shop use.}

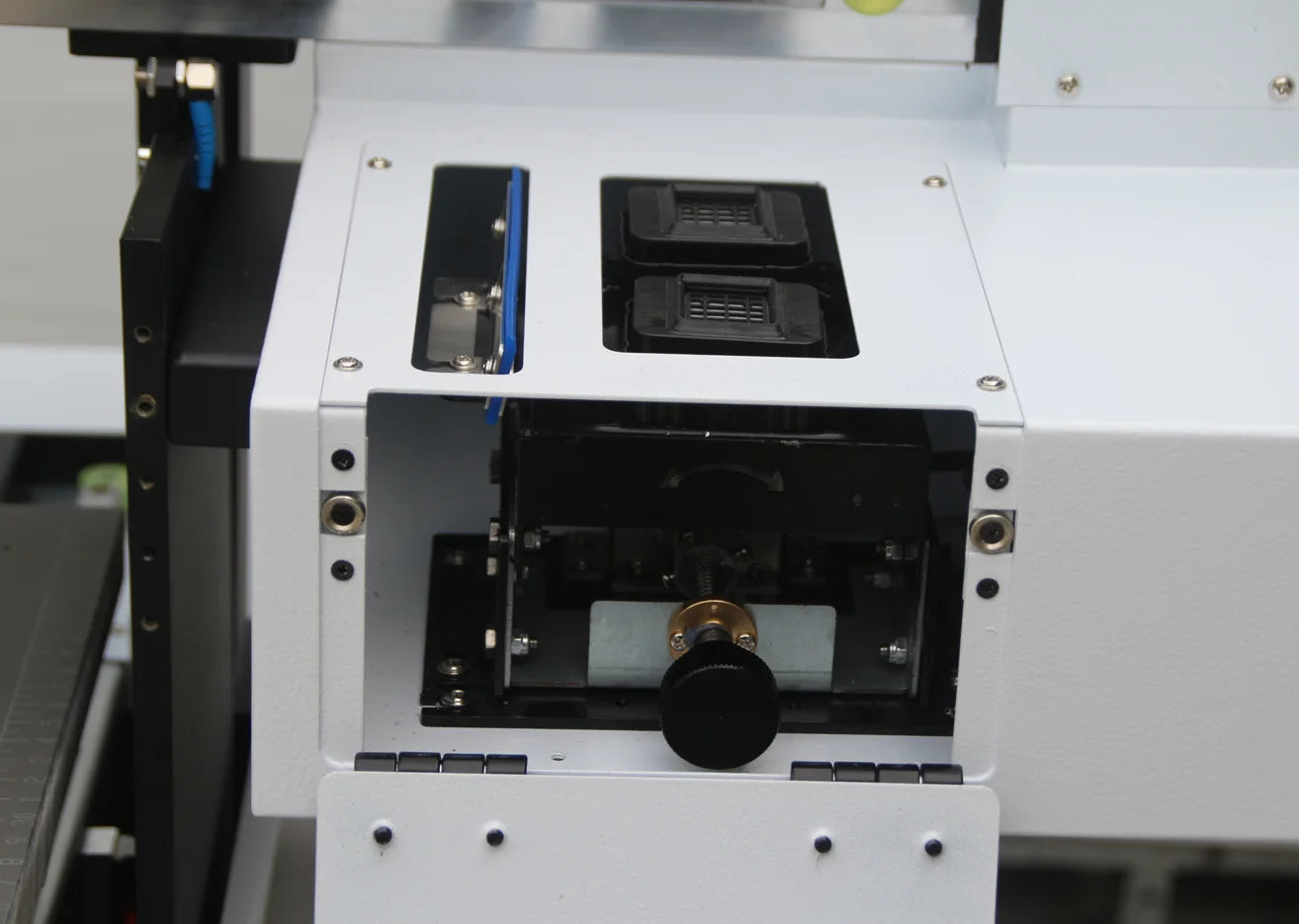

CNC Aluminium One-stop Cap Station and Most stable Board:

The print head is imported from Japan, which has highest resolution, and micro piezoelectric technology, while it support double heads with cyan, magenta, yellow, black, white and varnish. And this one stop Aluminium CNC cap station is more longer life and easy to operate, which is all in one auto up and down.This machine uses the most stable board in the market: Hoson Board and servo Motor which is more stable and longer life.Funsun uv Printer, sinocolor uv printer, Rainbow v printer, Audly uv printer

Vacuum Table:

Each Printer is available with PTEF high quality A2 40*50Cm Vacuum table with 36mm thickness which has ruler with it, can print on paper, UV DTF AB FILM, golden silver film, leather and sheet etc.

White Ink Stirring and Deficient Alarm System:

This A2 4050 UV printer has white ink stirring system as well which can help white head clog, and the stirring frequency can be set up in system. The machine also equipped with ink deficient alarm system to make sure machine working unstoppable. while it has cover for ink bottle from dust.

Support Rotary and Flatbed Printing:

This A2 RC-4050 printer not only can print on flat materials like phone case, metal, glass, it also can directly print on bottles, cylinder with rotary device.

Varnish and Embossed Support:

This UV machine can print CMYKW full color and varnish, which is glossary and can help ink not easy to peel off.

Print Height Adjustment:

Ripple Color A2 UV printer max printing height is 0-180MM, and the machine has print height detect system, saving time for you.

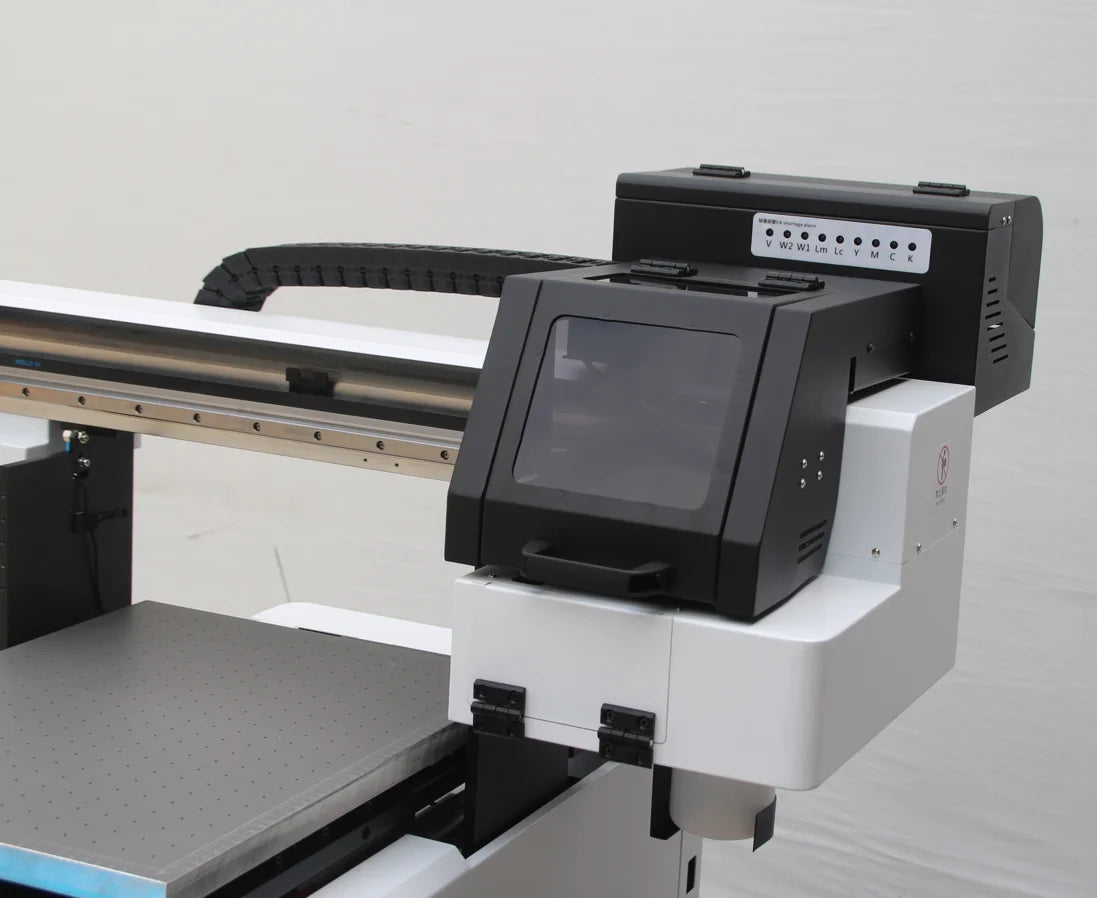

HI-WIN Guider:

This A2 RC-4050UV new update UV printer uses HI-WIN 3.5 cm straight square rail on X axis which very silence and firm even decade using.

Print head anti-collision:

Ripple Color a2 uv machine was equipped with print head anti-collision system which protect print head when print on high materials.

Applications and Samples

SALES AND SERVICE NETWORK

Bolivia Partner

Exhibition in Egypt

USA Client Visit

Consumable supply

UK Agent

Booth in Germany

Service:

1, We support 13 months Warranty and lifetime technology support;

2. Online service support and English-Speaking engineer;
3. Free technical training will be provide in the factory;
4. Consumables available: ink, print head, film, uv dtf film, spare parts etc.;
5. We can issue you exclusive dealership after we confirm our cooperation and we will 100% loyal to our dealers.

Product packaging

Safe International Wooden Package:

FAQ

1. How long can I get the feedback when we have questions on machine?

------We will reply you within 10 minutes in working day.

2. Can you do customization?

-----Yes sure, OEM and ODM available.

3, What's the universal lead-time for order delivery?

-----The machine can be shipped out in 3-5 working days after we get full payment.

4, Why choose us?

----Fast shipping, Timely service, professional technicial and sales team, it can save both of us time.
