SPECIFICATIONS

Applicable Industries: hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company,Manufacturing Plant

Brand Name: JNDO

Condition: New,New

Fork length: 1000mm

Machinery Test Report: Provided

Overall height: adjustable

Place of Origin: Hebei, China

Product name: crane pallet lifter

Showroom Location: None

Usage: Wide Usage

Video outgoing-inspection: Provided

Warranty: 4 years

Weight (KG): 310

fork width: adjustable

max capacity: 5T

Product Description

cceramic tile granite marble hoist overhead fork pallet lifter crane pallet lifter

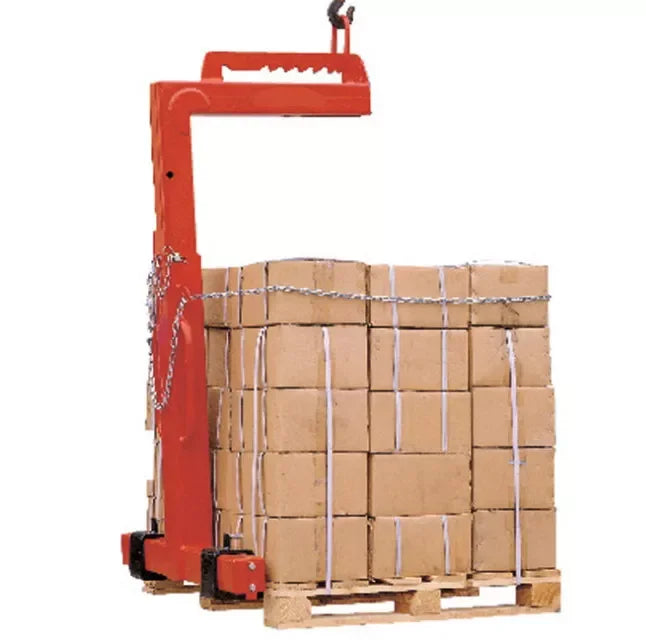

Crane pallet lifter is used for handling of standard pallets from the long side.Thanks to the spring loaded lifting eye,the pallet fork is self-balancing,which means that the forks are always horizontal,regardless of whether the pallet fork is empty or loaded.Please note the minimum load specified in the table.

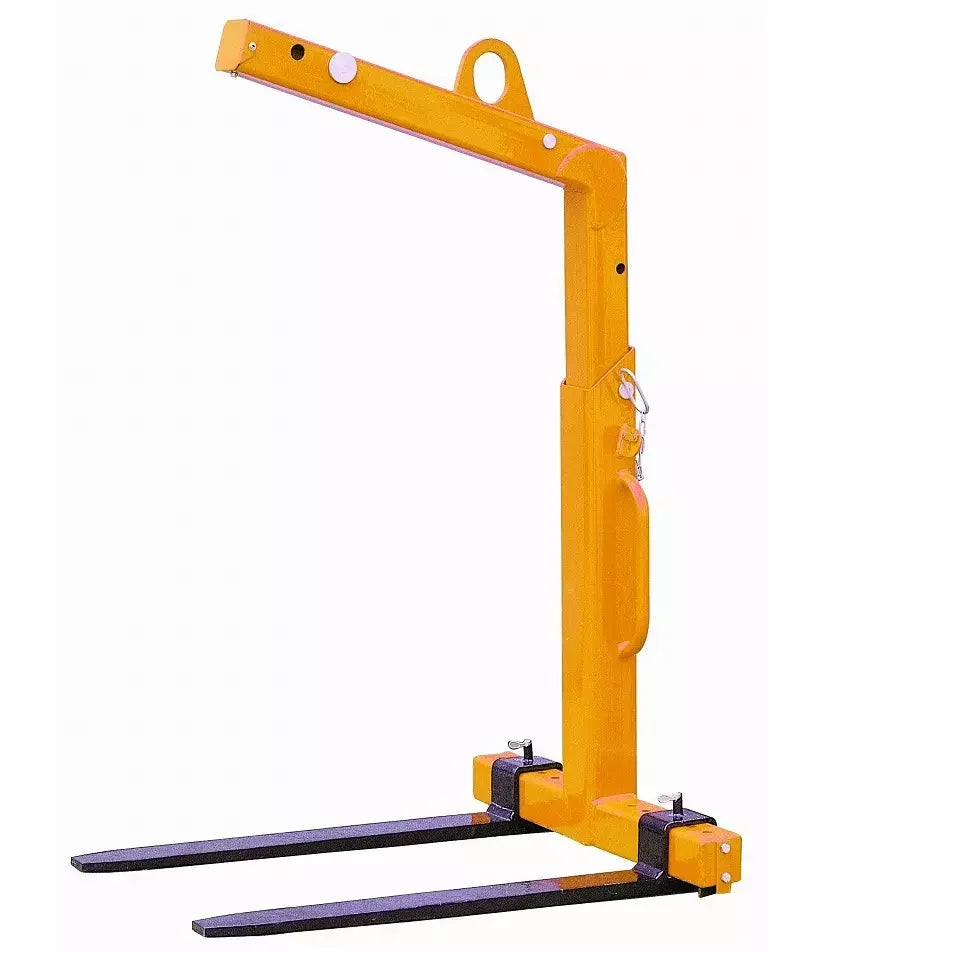

A self-levelling crane forks for lifting palletized material or pack of bricks.This is a handy crane attachment which can be used with a crane or other lifting machine to safely and efficiently lift and move loads on pallet.Fork width and overall height is adjustable.

Suitable for lifting building materials,such as ceramics,tiles,marbles.

specifications of crane pallet lifter

self-levelling crane pallet lifter
Please note the minimum load specified in the table.

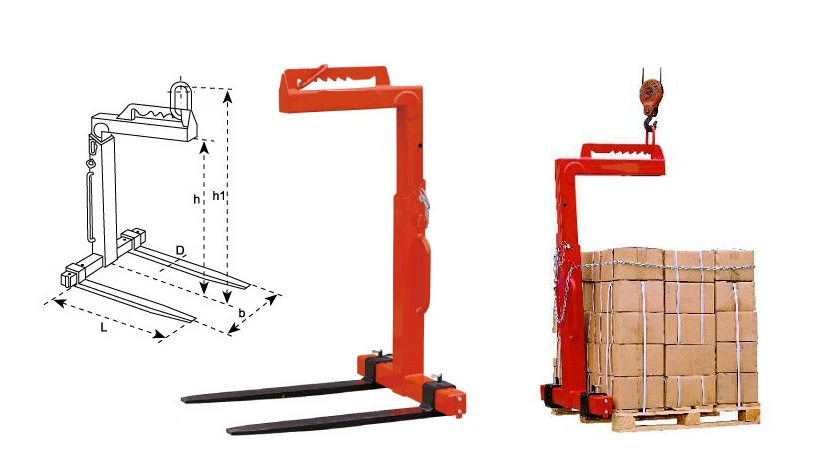

Model	rated capacity/kg	Fork  adjustable width b/mm	Adjustable effective height h/mm	Fork  length /mm	Fork width* fork thickness /mm	hook height h1/mm	net weight /kg
CY10	200-1000	350-900	1100-1600	1000	100*30	1420-1920	140kg
CY15	300-1500	350-900	1300-2000	1000	100*40	1650-2350	165kg
CY20	400-2000	400-900	1300-2000	1000	120*40	1655-2355	220kg
CY30	600-3000	450-900	1300-2000	1000	120*50	1720-2420	280kg
CY50	1000-5000	530-1000	1300-2000	1000	150*60	1710-2410	380kg

Manual center of gravity balance

Fork width and effective height adjustable.

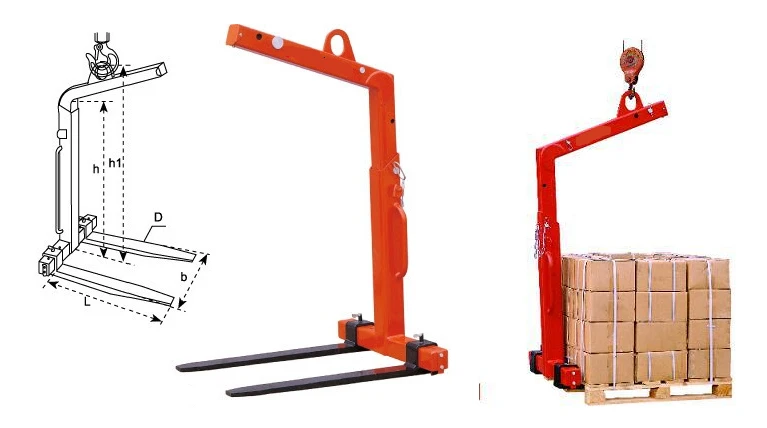

Model	rated capacity /kg	Fork adjustable width b/mm	Adjustable effective height h /mm	Fork length /mm	Fork width* fork thickness /mm	Ring height h1/mm	net weight /kg
CK10	1000	350-900	1100-1600	1000	100*30	1380-1890	130
CK15	1500	350-900	1300-2000	1000	100*40	1600-2300	150
CK20	2000	400-900	1300-2000	1000	120*40	1640-2340	200
CK30	3000	450-900	1300-2000	1000	120*50	1670-2370	250
CK50	5000	530-1000	1300-2000	1000	150*60	1700-2400	370

Hot Sale ceramic tile granite marble hoist overhead fork pallet lifter crane pallet lifter

Hot Sale ceramic tile granite marble hoist overhead fork pallet lifter crane pallet lifter
