Mechanical face seals are precision components,the smallest of material and design details can influence the quality.The metal ring is processed by CNC machine,the fine precision increase O-ring gripping ability,eliminating O-ring sliding,ensure runs smoothly.

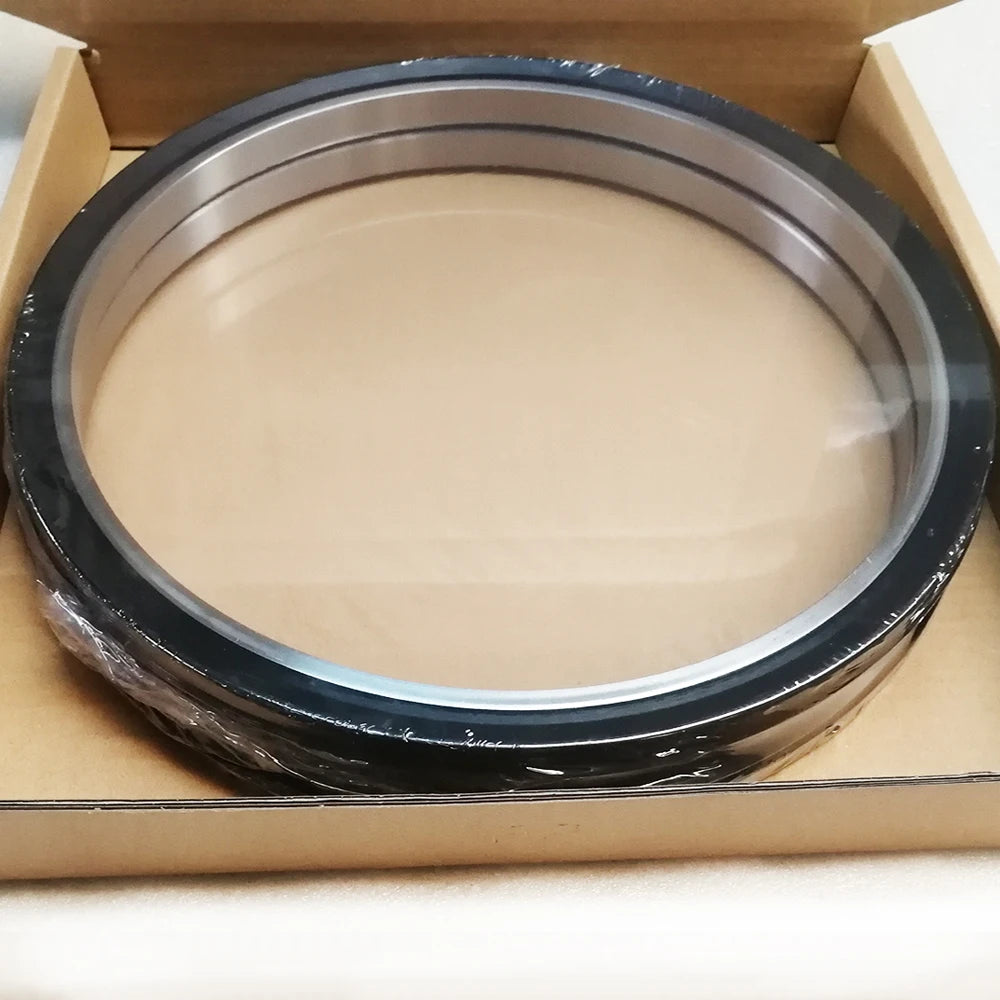

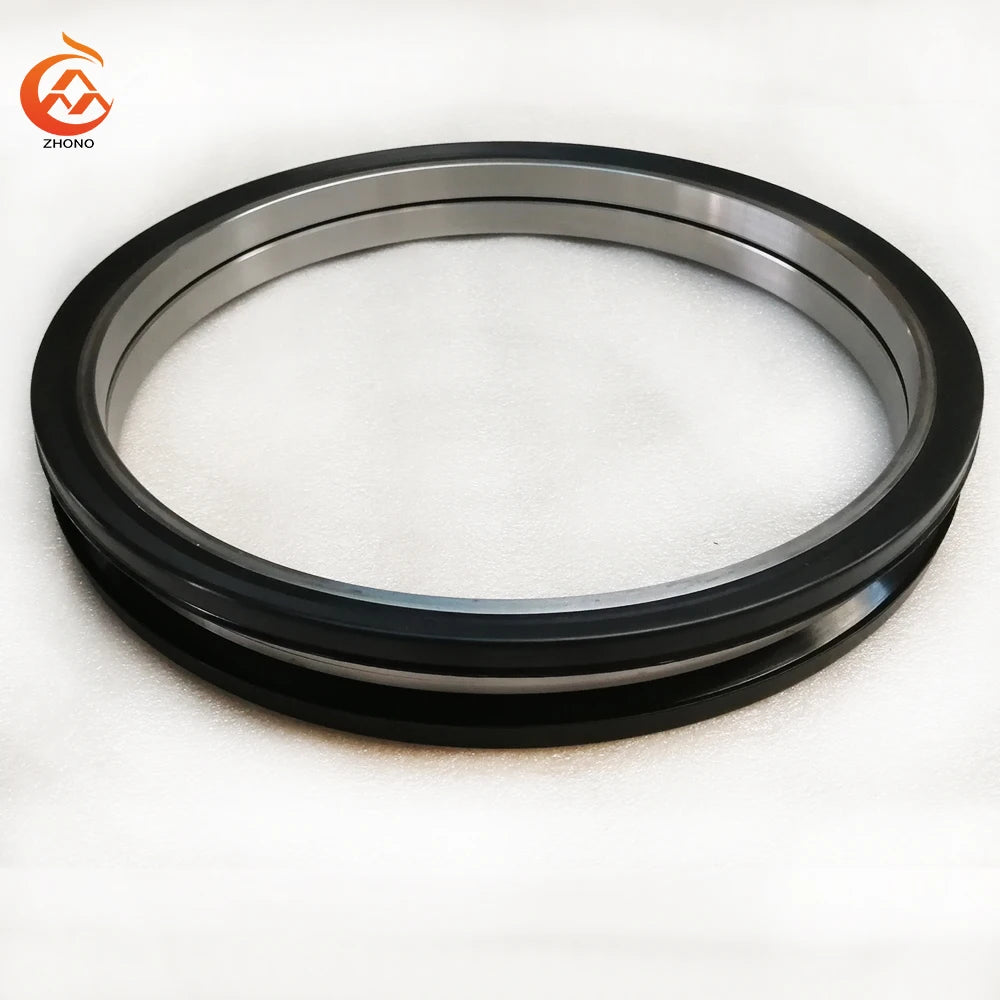

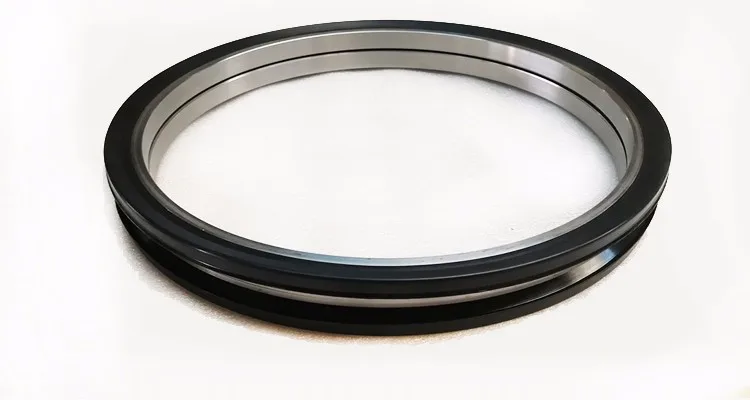

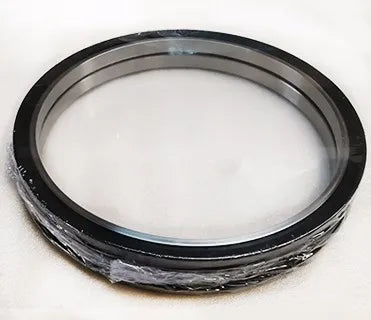

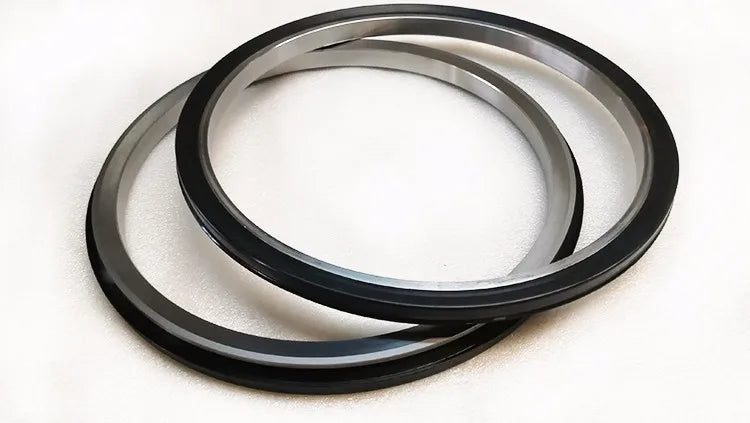

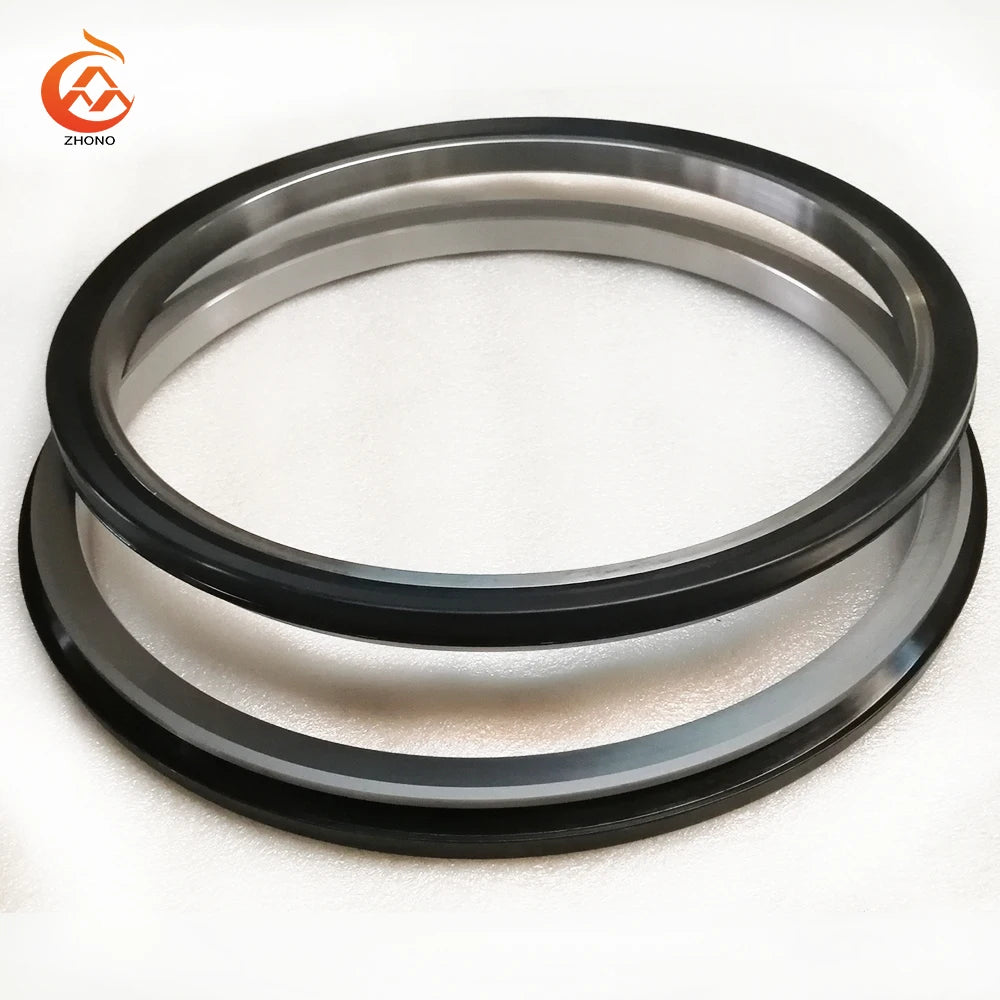

Mechanical Face Seal Assembly HDDF Type CR124020
Nhà bán
Phí vận chuyển được tính khi thanh toán.
Có sẵn trong kho (50)
Không thể tải tình trạng còn hàng để nhận hàng
Ưu đãi đặc biệt
Giảm giá khi đặt hàng số lượng lớn.Mua ngay
Thông số sản phẩm
Thông số sản phẩm
Chi tiết sản phẩm
Chi tiết sản phẩm
SPECIFICATIONS
Brand Name: ZHONO
Certificate: ISO9001
Hardness: 60-72HRC
Material of metal ring: Alloy casting iron
Material of rubber ring: NBR
Standard or Nonstandard: Standard
Type: DF
lifetime: 4500 hours
model number: Customized
place of origin: Beijing, China
size: 352*320*40
warranty: 18 month
Detailed Picture

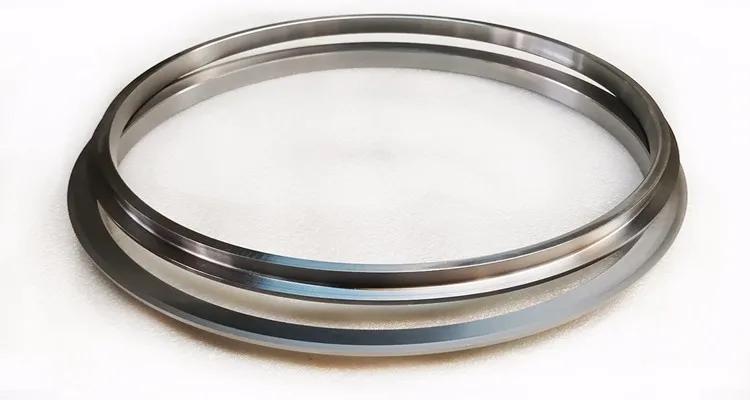

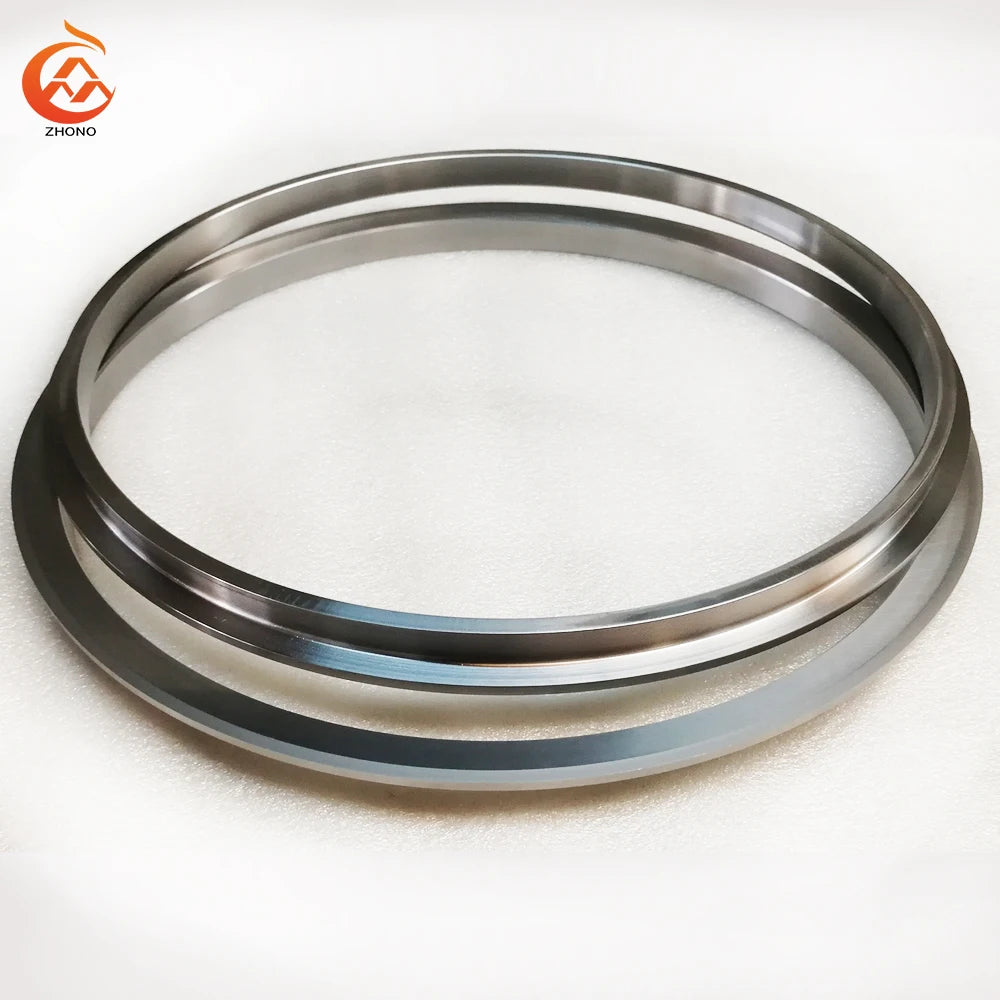

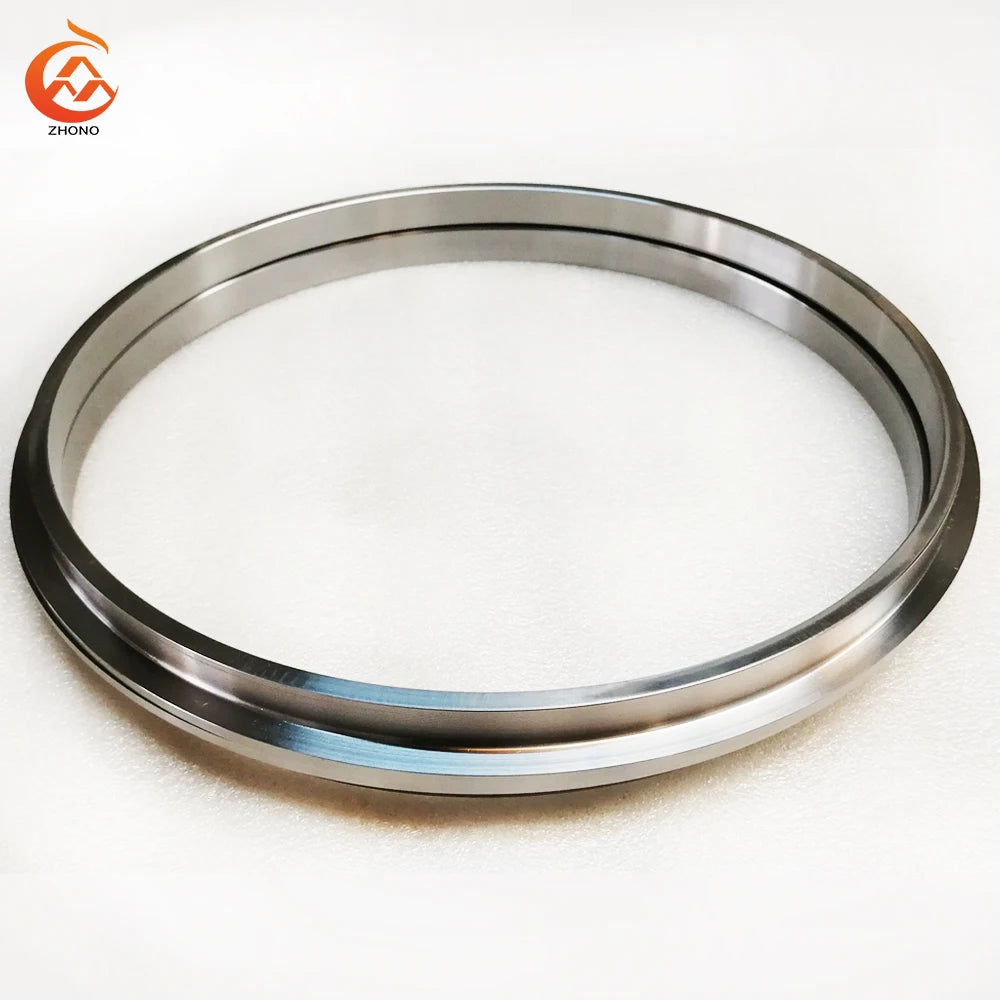

DF3200 Metal Ring Display
The metal ring is made in alloy casting iron,HRC is between 60-72,lifetime is over 4500 hours.

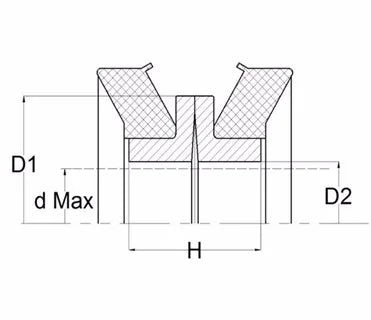

Mechanical Face Seal 352*320*40 mm |
||
Type |
DF Type |
|
D1(Outer Diameter) |
352mm |
|
D2(Inner Diameter) |
320mm |
|
H(Height of two metal rings) |
40mm |
|
O ring |
NBR/ HNBR/VMQ/FPM |
|
Zhono Number |
DF3200 |
|
Magnification Photos

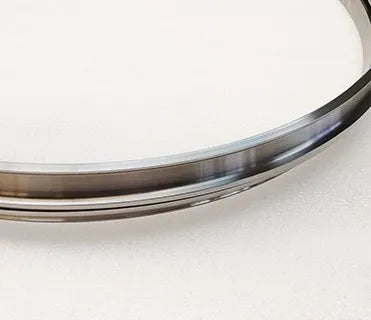

Conical Surface Details

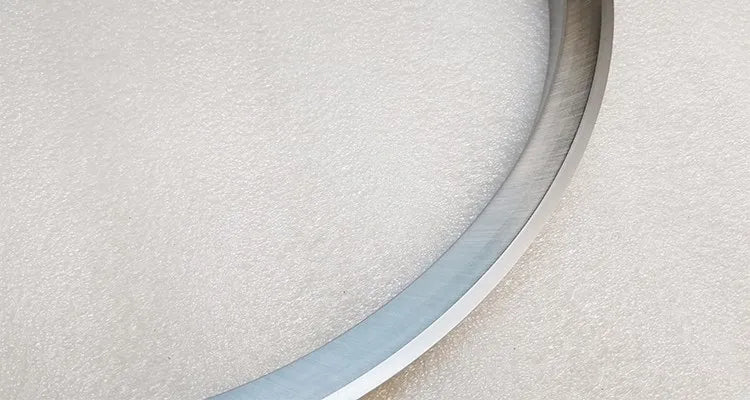

Working surface Details
Polishing attained by lapping process.The surface flatness of ZHONO products is within 3 light bands of Optical interference of monochromatic light., our standard of the working surface roughness is ≤Ra 0.1μm

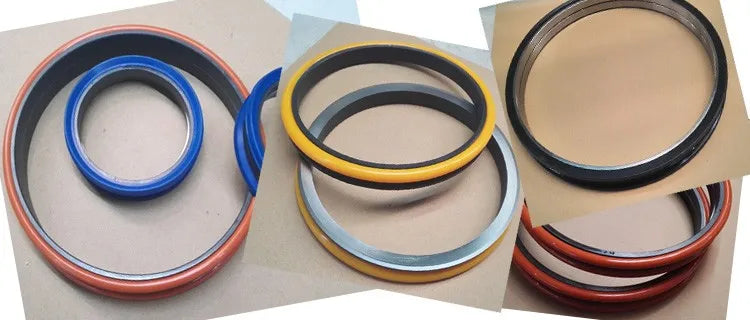

Types of O ring
Depending on the ambient and operating temperature of the face seal, the O-rings or trapezoidal rings can be made from a choice of four proven basic elastomeric materials in different grades.Each elastomeric material is highly resilient and will show very little permanent set which ensures a reliable static seal and clamping action.
NBR – standard
HNBR – higher temperatures
VMQ(silicone rubber) – covers temperature in both hot and cold extremes
FPM(Fluorine rubber) – extends the maximum temperature while offering excellent oil compatibility
Quality Control
To harvest the desired return on investment, the heavy equipment needs to run continuously and without costly breakdowns and unforeseen repair work.Our face seals'long service life is due to the use of chilled cast iron.This class of materials is very hard, resists abrasive wear and corrosion, and has excellent tribological properties.From the first contact with our customers to shipping the finished face seal we take full responsibility.
Applications
For Years together, ZHONO Mechanical Face Seals have been used by OEMs and Users of Seals with outstanding success in Construction Equipments,Transmission Drives, axles, Rollers and Argo machineries. The Special Alloy Cast iron materials Provided by ZHONO are having extraordinary capacity for wear resistance, for a verity of demanding applications, such as mining machinery, agriculture equipments, undercarriage vehicles, track rollers and many other applications.
ZHONO not only offers "off-the-shelf" designs –its engineering team is also available to work with your engineers to design 'non-standard' metal face seals.Whether developing a new seal size or type to fit your application, or utilizing a new metal seal or O-Ring material, ZHONO engineers have the experience necessary to design, procure and test these concepts and follow them to production.No matter what type you need,contact us please.

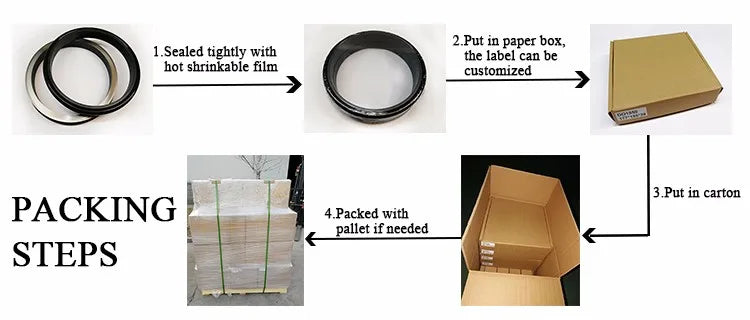

Packing and Delivery
We use neutral packing, cusmized packing with your logo is welcome.
No worry about delivery
We cooperate with the world's outstanding logistics company and supply perfect delivery consult service,gurantee that our products to arrive destiation safely and in time
By sea |
Heavy cargo by container transport,FOB Tianjin Xingang Port. |
Air to the port |
For goods above 100KG, it is economic choice for customers. |
International Express |
Such as DHL,TNT, FEDEX,UPS,EMS and so on.It is the best choice for sample order.Your consignee account is welcome. |
Our Service
Pre-sale Service
Sample testing support
View our factory
OEM NO. consult support
Any question is welcome
After-sale Service
All our mechanical face seals enjoy 18 months warranty,if any parts breaks during warranty,just offer us the photos,we will resend you the new one.
Installing suggestion is provided.
We are specialized in the manufacture of Floating Seal for heavy machinery for more than 20 years and have 15 years of export experience.Our main market is OEM customers and keep inventory for the popular dimension of mechanical face seals. All our products with ISO9001 approved,from designing to quality inspection,quality is controlled.
