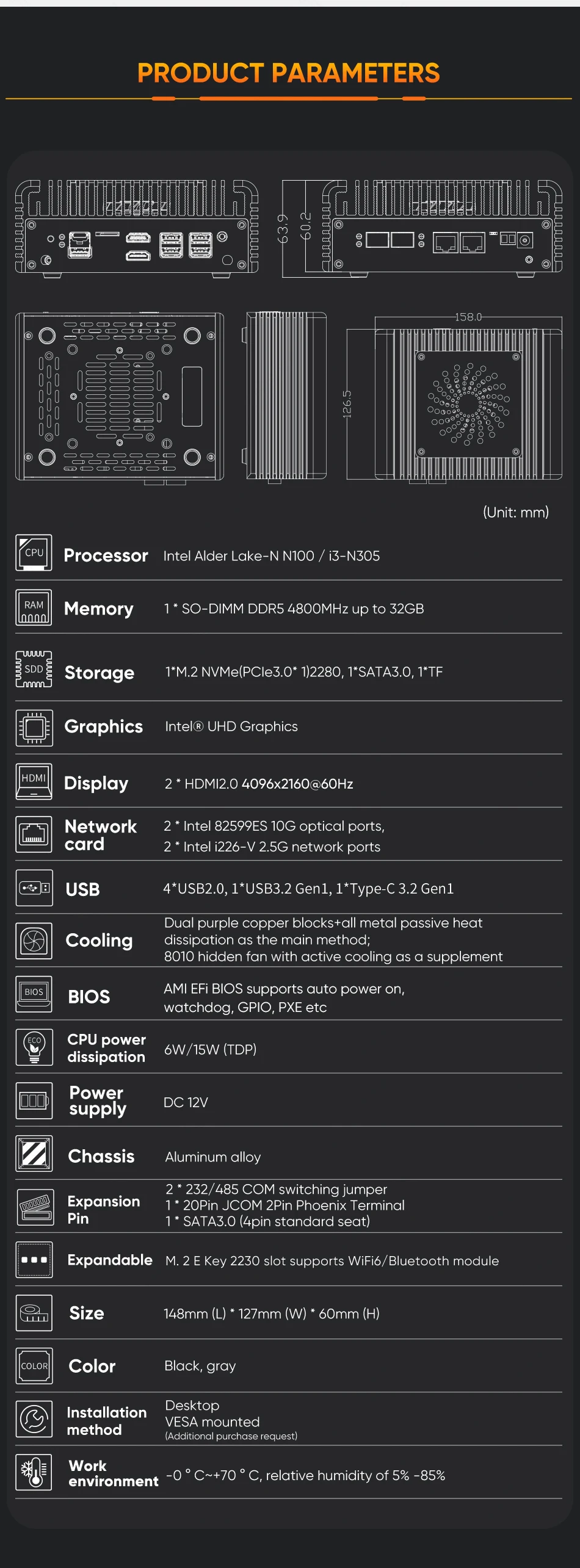

SPECIFICATIONS

Brand Name: Topton

Certification: CE,FCC,RoHS

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

High-concerned chemical: None

Memory Capacity: ≥ 4GB

Model Number: X4H

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: Depends on CPU

Processor Model: N100/N150/N305/N355

Type: Mini Desktop,Mini PC

Use: Commercial

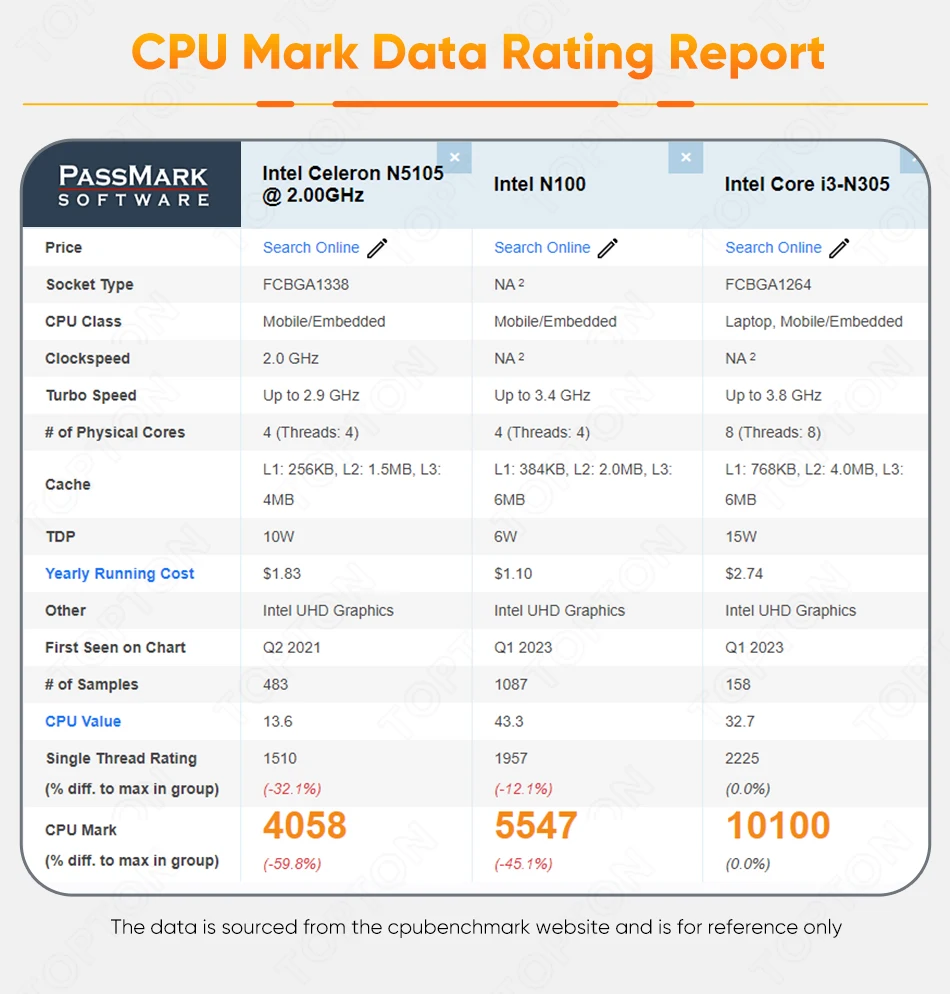

Processor parameter for referance only

Processors	Cores & Threads	Cache	Max Turbo Frequency	TDP	Graphics
Intel N100	4 cores, 4 threads	6M	3.40 GHz	6W	Intel UHD Graphics 24EUS
Intel Core i3-N305	8 cores, 8 threads	6M	3.80 GHz	15W	Intel UHD Graphics 32EUS
Intel N150	4 cores, 4 threads	6M	3.60 GHz	6W	Intel UHD Graphics 24EUS
Intel Core 3-N355	8 cores, 8 threads	6M	3.90 GHz	15W	Intel UHD Graphics 32EUS

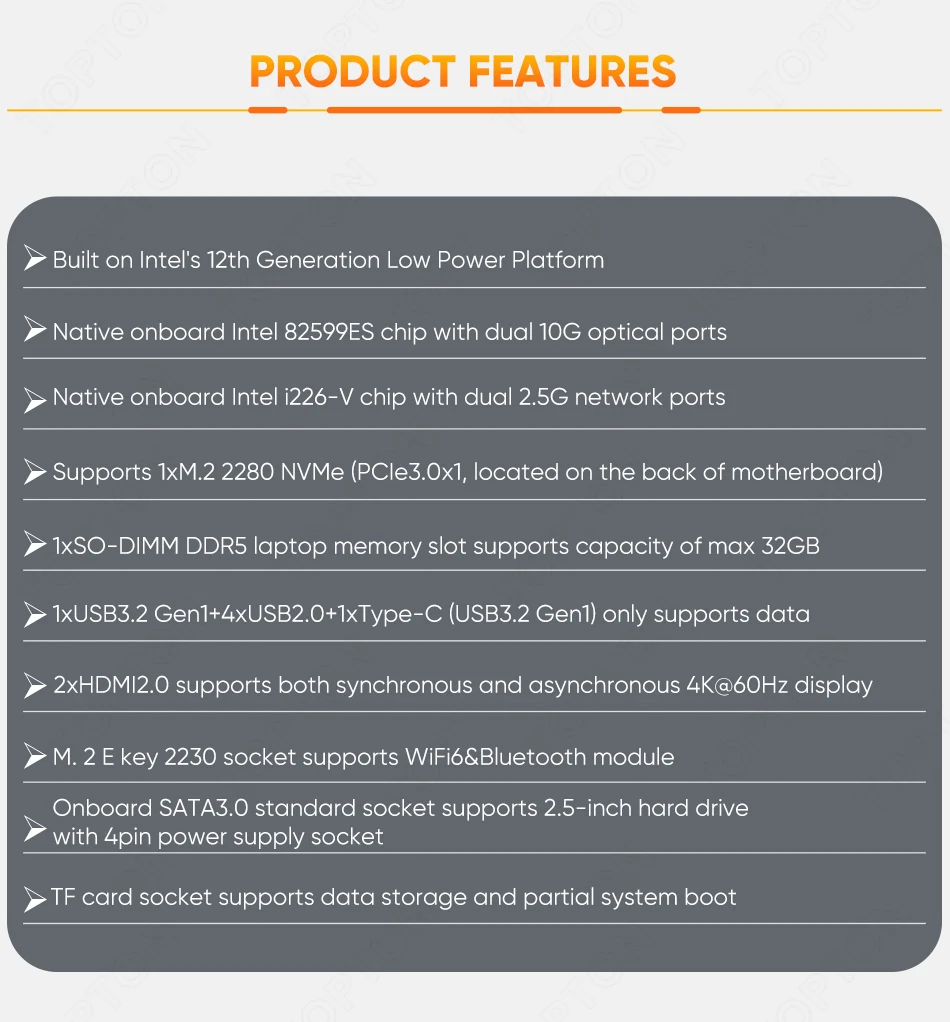

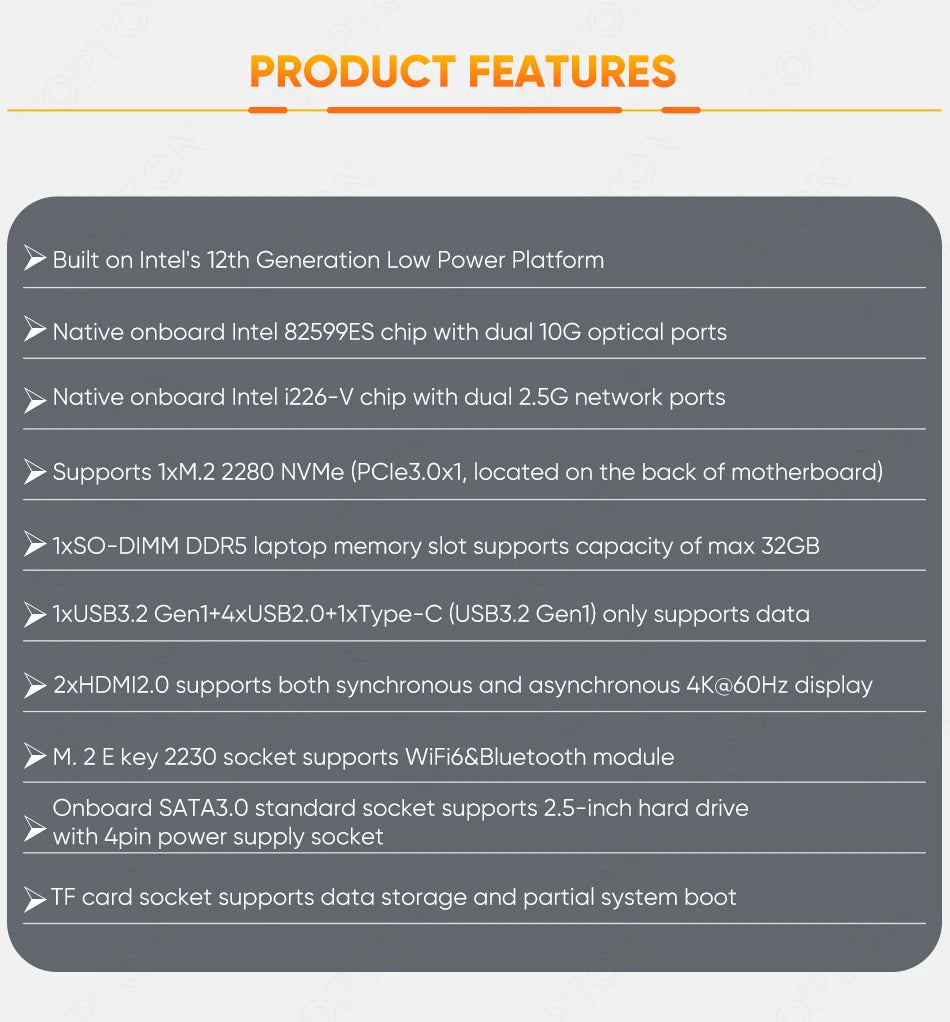

Product Highlight

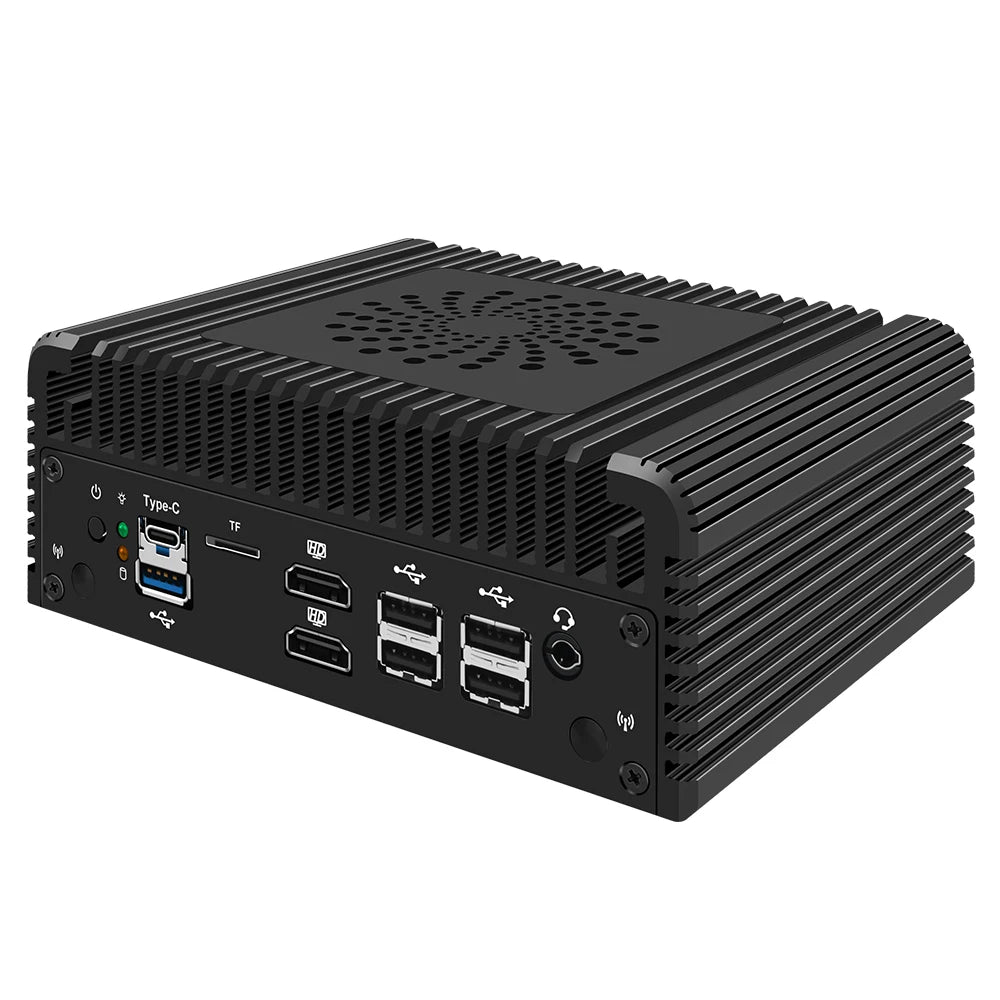

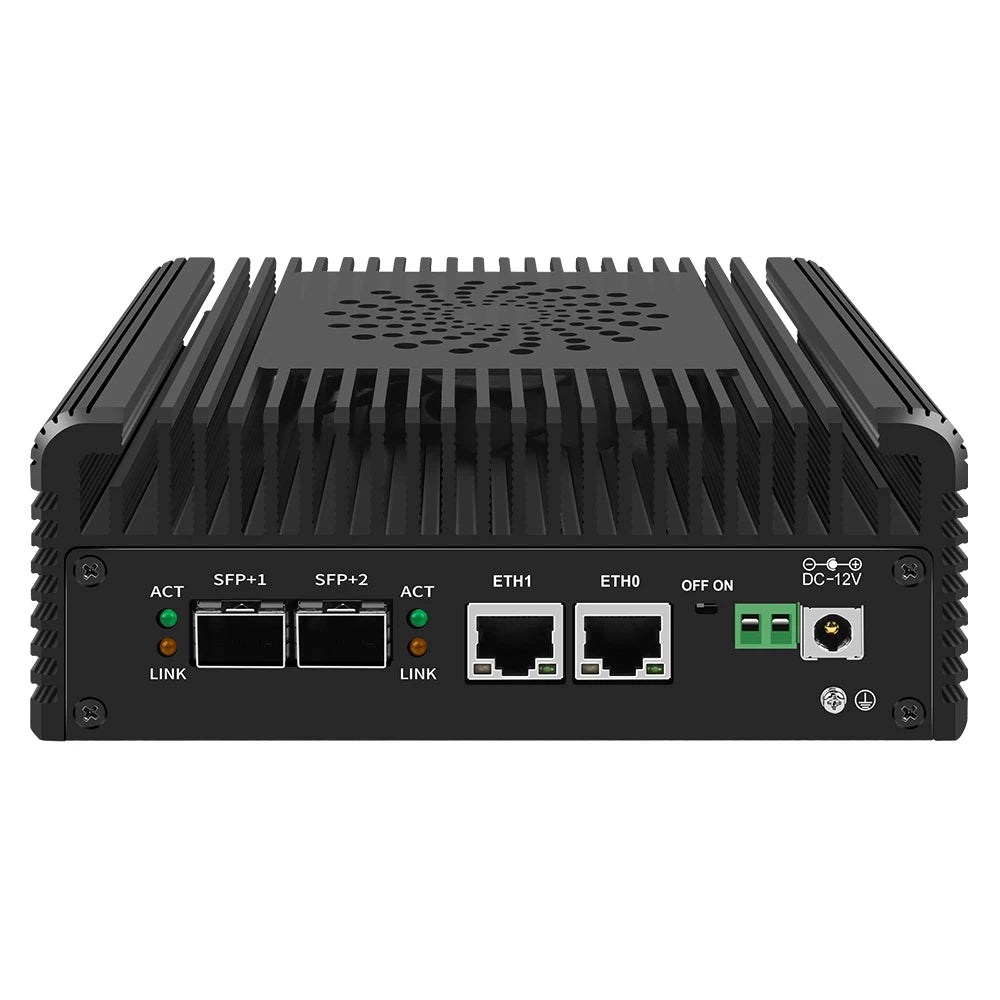

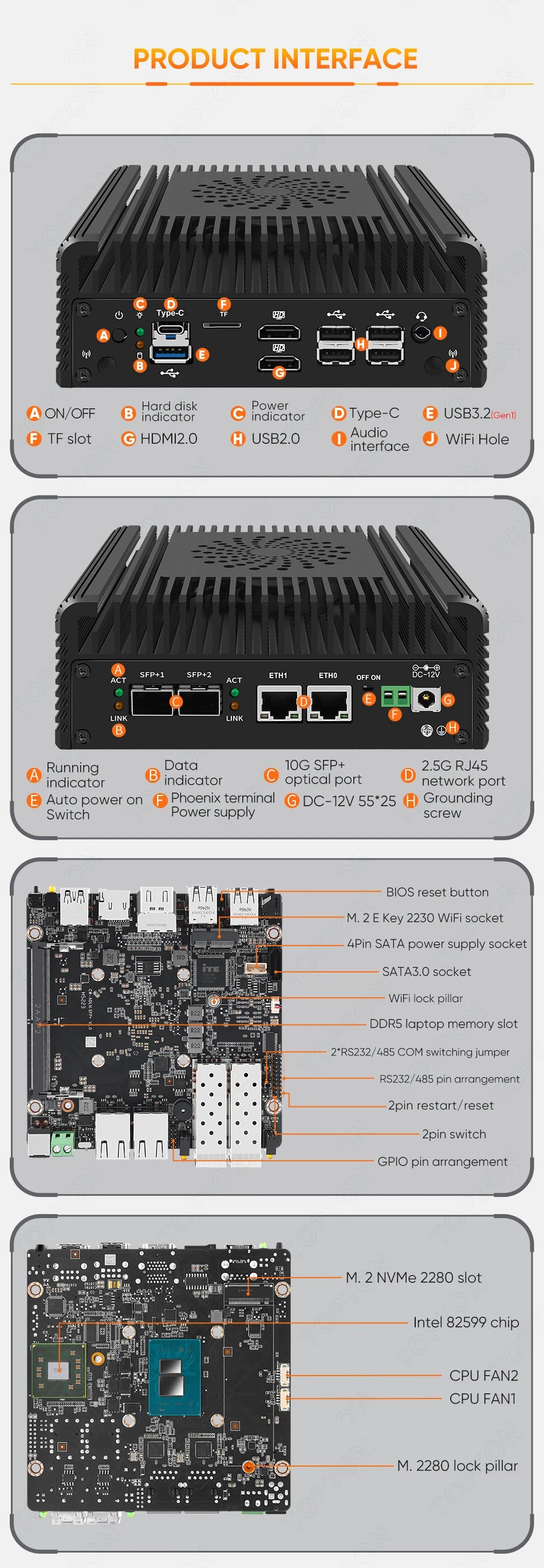

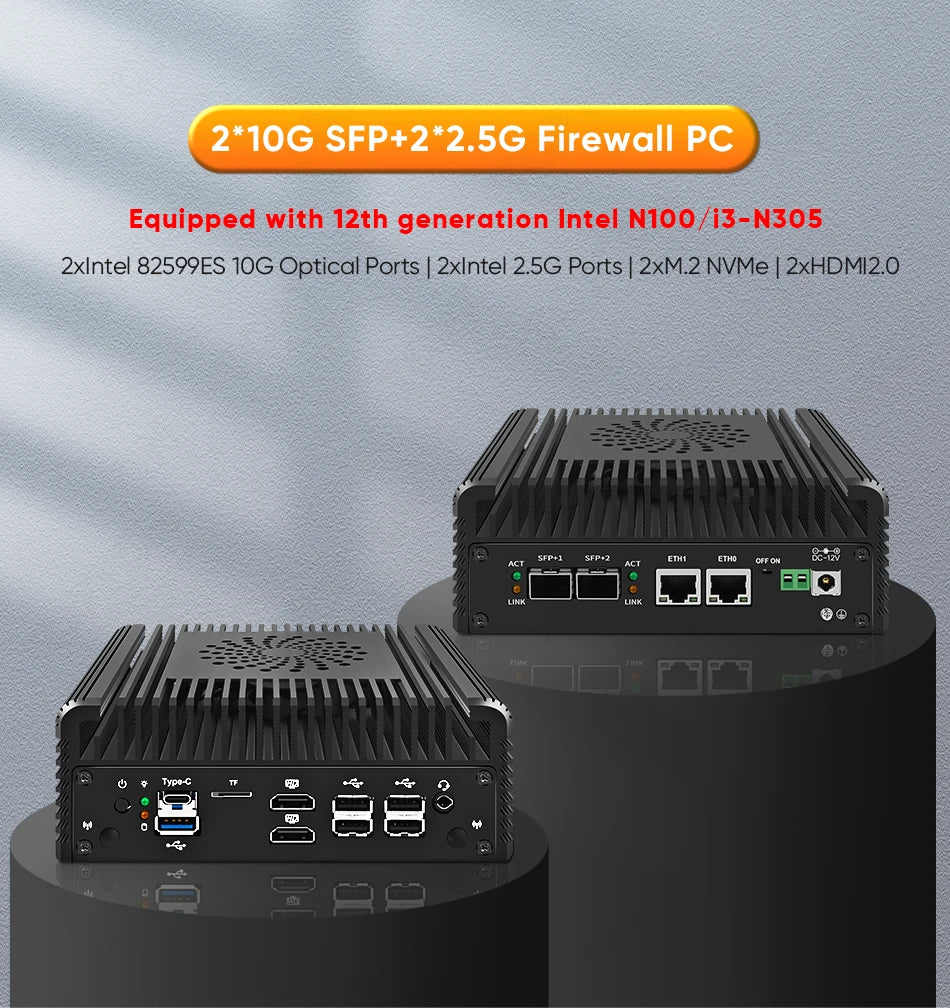

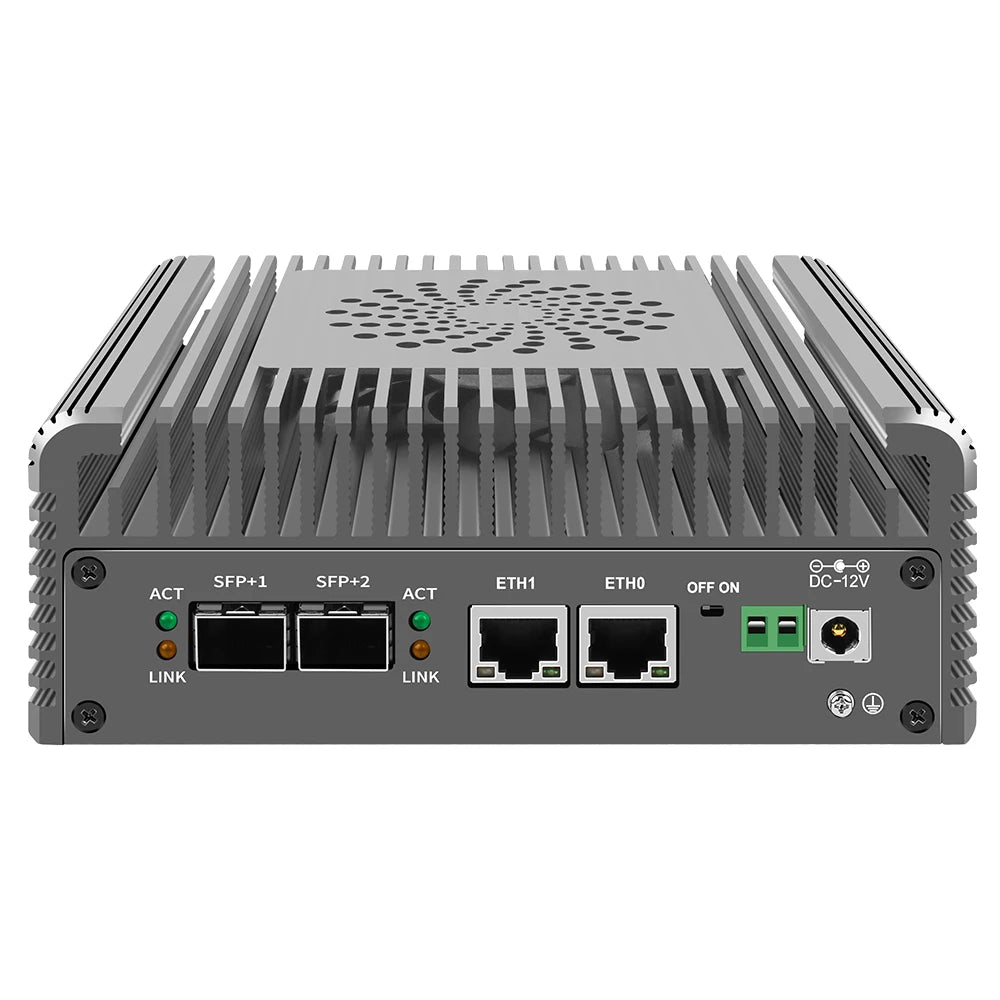

-2xIntel 82599ES 10G SFP+ ports, 2xIntel i226-V 2.5G RJ45 LANs, 1xType-C 3.2 Gen1, 1xUSB3.2 Gen1, 4xUSB2.0.

-1xDDR5 SODIMM ram slot, support 4800MHz.

-Support 3 storage: 2xM.2 NVMe(PCIe3.0x1, one on the back of motherboard) 2280 SSD+1x2.5-inch SATA3.0 SSD/HDD.

-1xM.2 E key 2230 slot, support WiFi6&Bluetooth connection and support transfer to 2280 NVMe by adapter board.

-1xTF card slot support storage and partial system boot.

-2xHDMI2.0 support 2x4K@60Hz UHD video display.

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

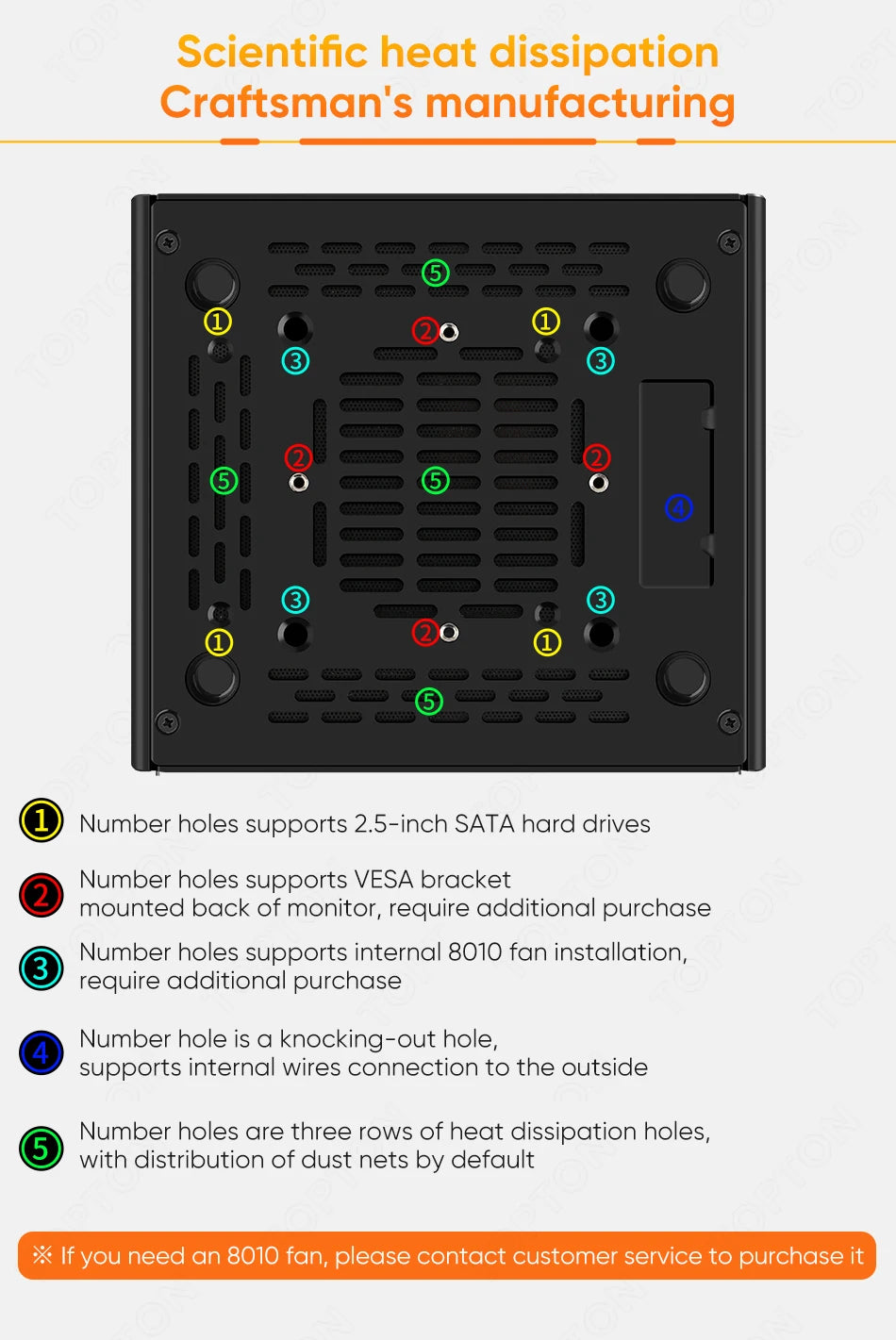

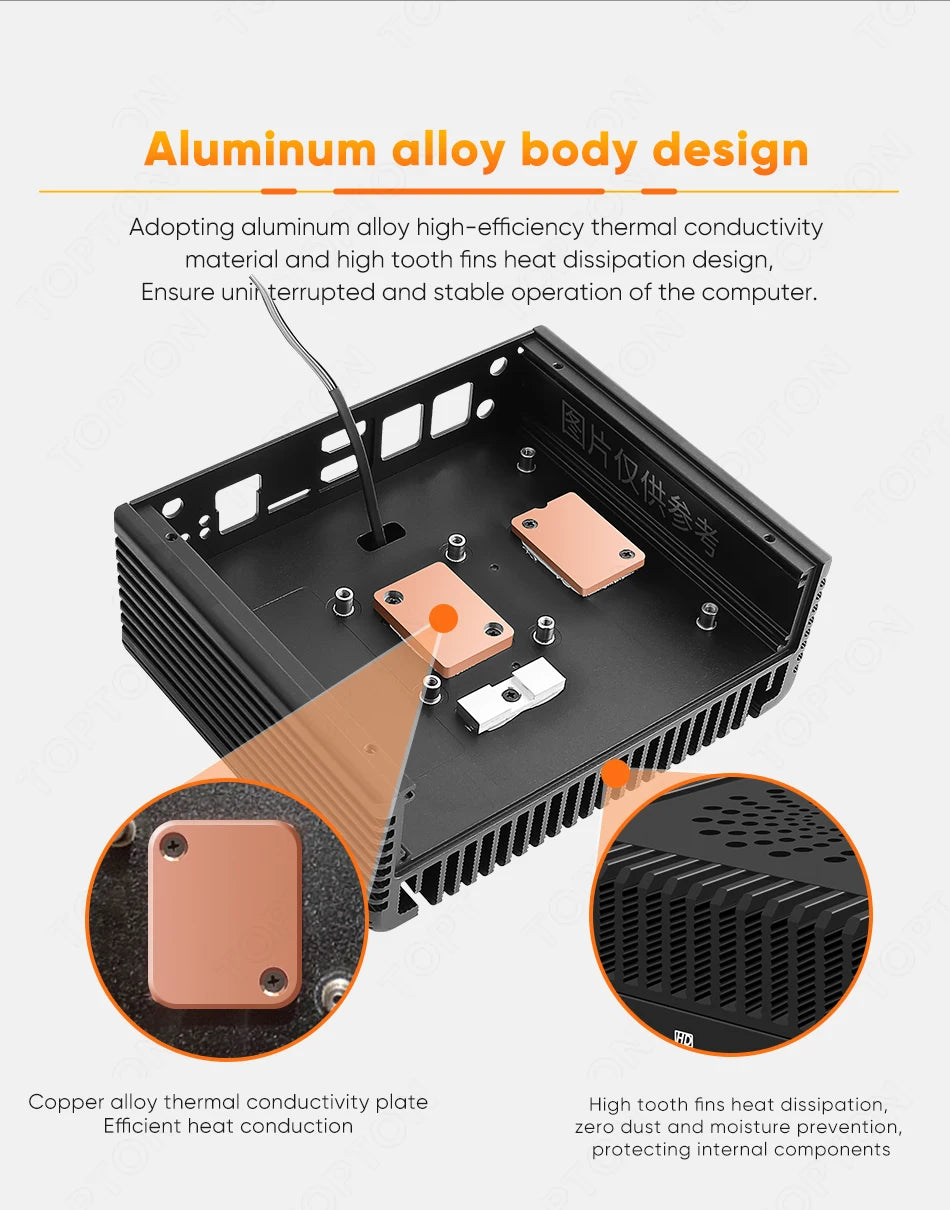

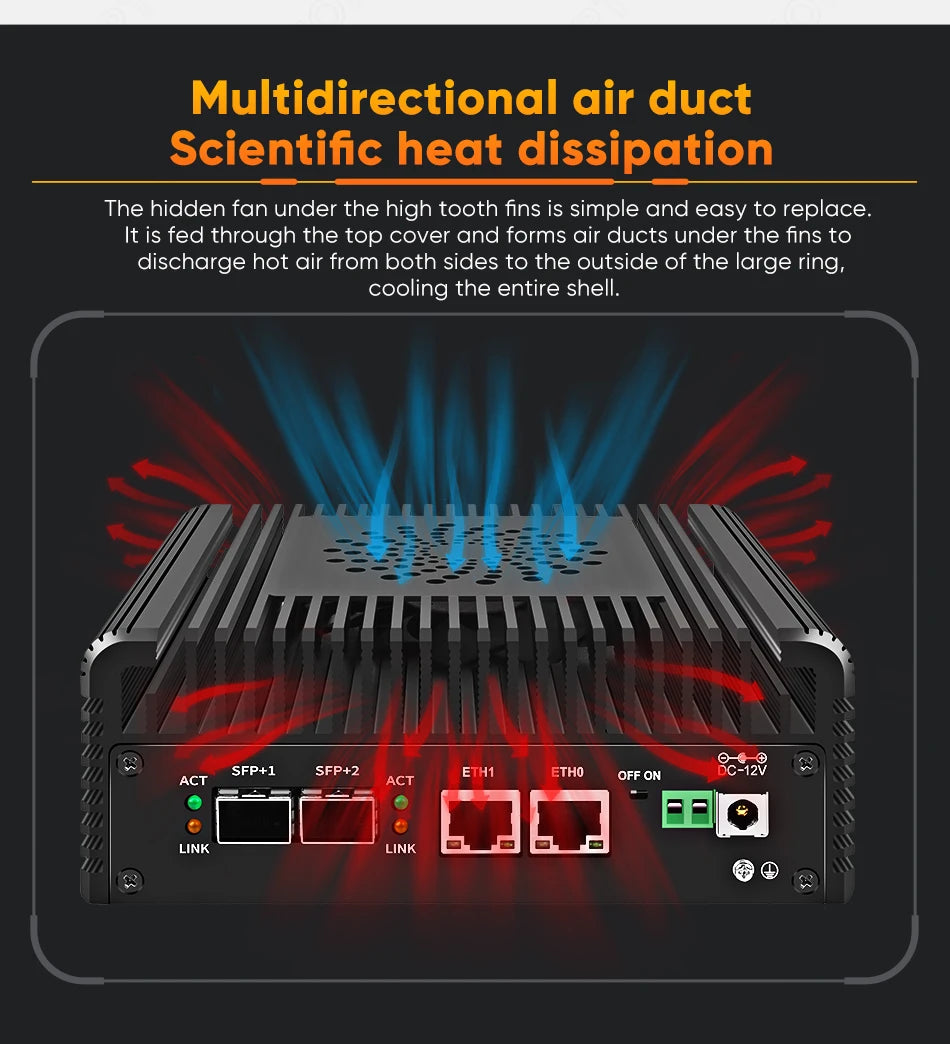

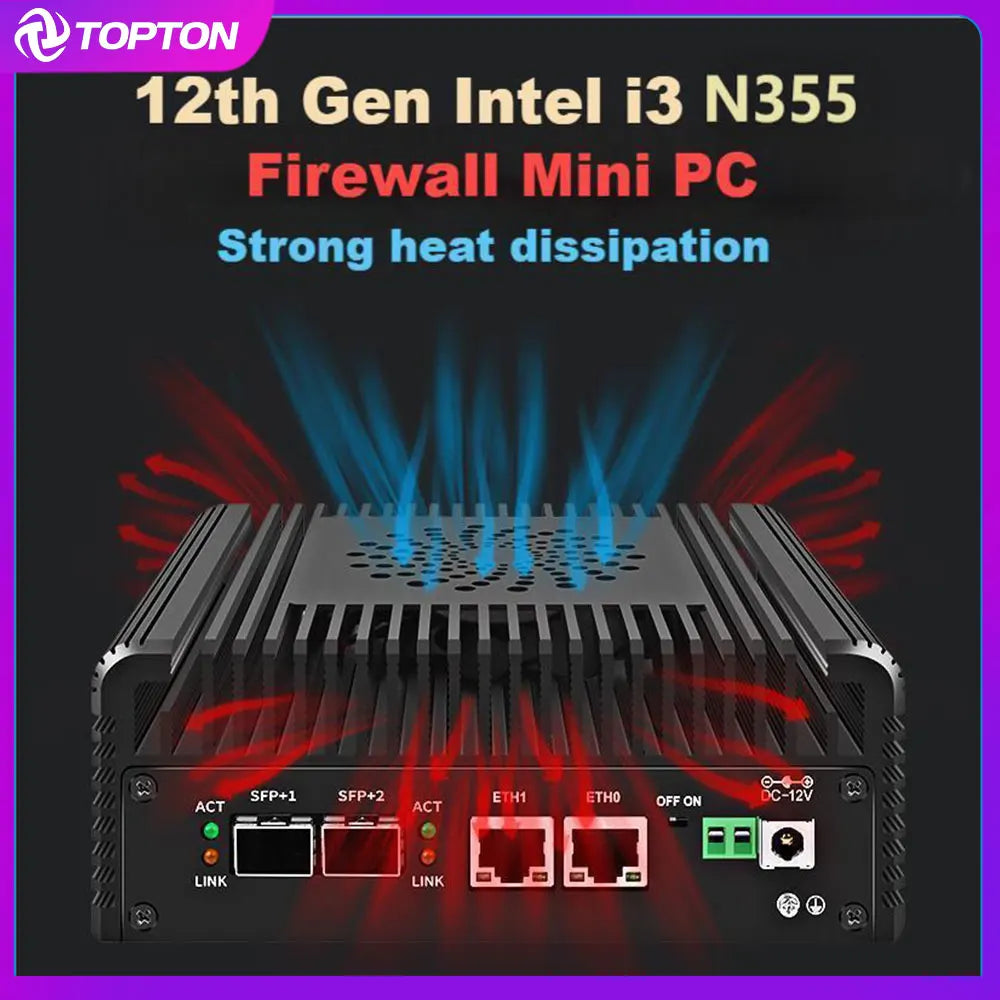

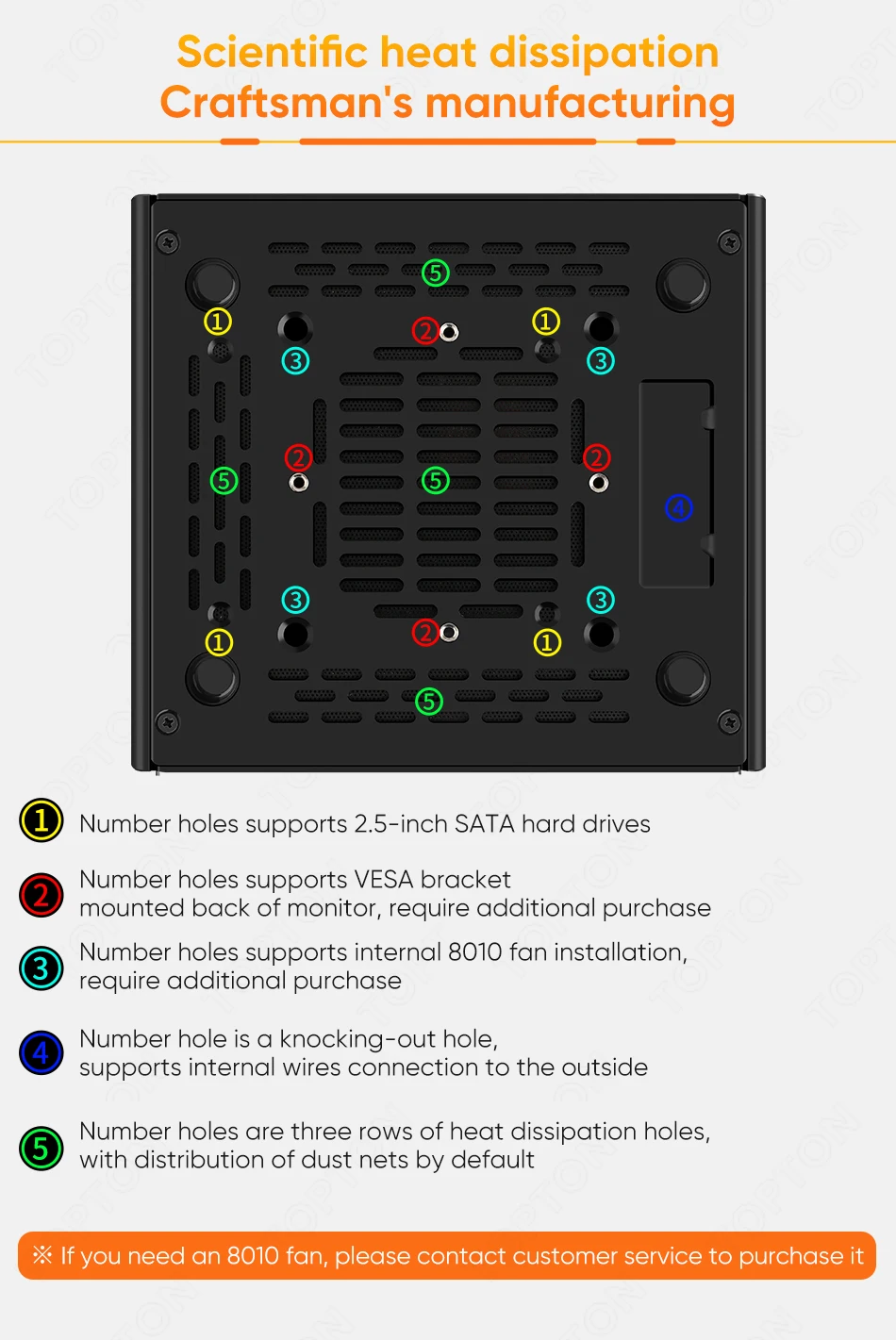

-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case already with high tooth fins and copper block gets much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.

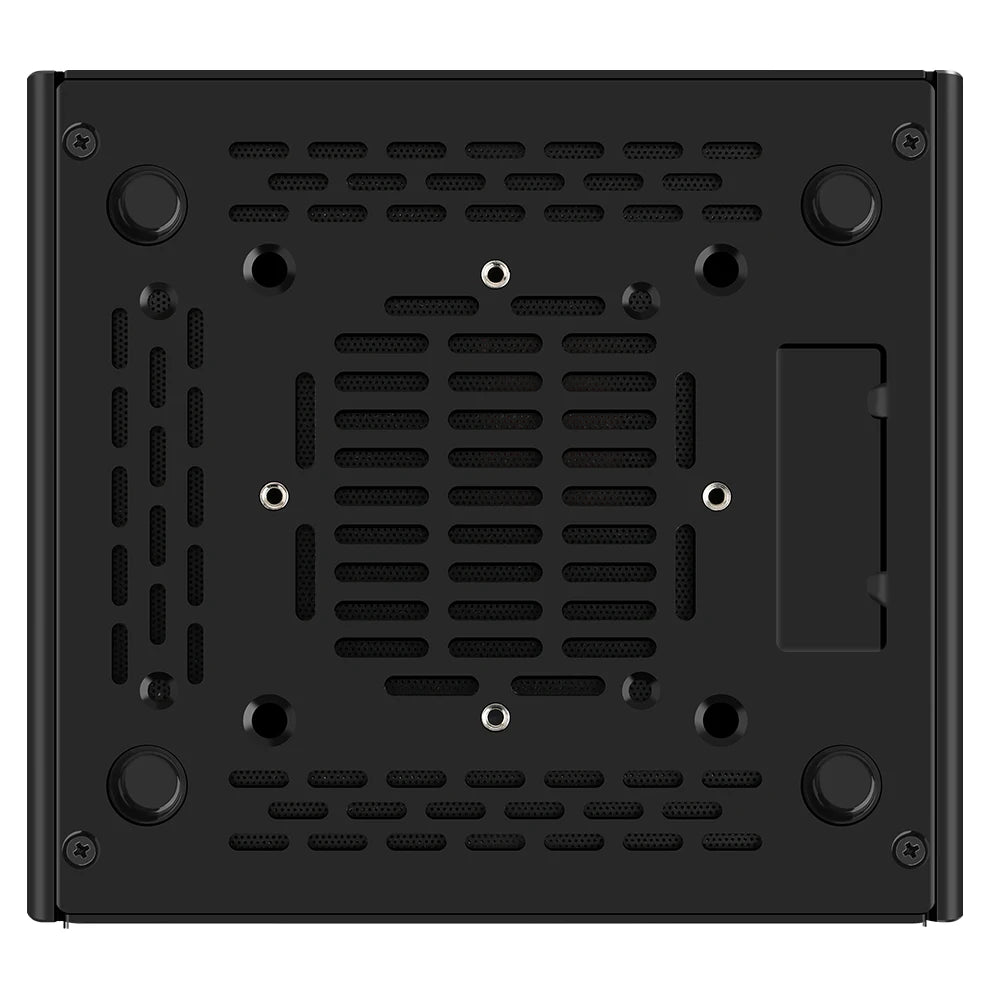

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord(EU/US/UK/AU plug based on buyer's country)

1xM.2 2230 to 2280 NVMe adapter board

All bundles on sale DO NOT include WiFi(antennas), AC WiFi(antennas) cost US $10, AX WiFi6(antennas) cost US $30, Internal 8010 cooling FAN cost US $9. If you need, please pay at this link.

Welcome to click the picture of VESA Bracket to order together if you need:
