SPECIFICATIONS

After-sale Service: Free Spare Parts,Online Technical Support

Application: Villa,Hotel,Apartment,Office Building,Hospital,School,Mall,Sports Venues,Leisure Facilities,Supermarket,Workshop,Park,Farmhouse,Courtyard,Other,Kitchen,Bathroom,Home Office,Living Room,Bedroom,Dining,Babies and Kids,Outdoor,Storage and Closet,Exterior,Wine Cellar,Entry,Hall,Home Bar,Staircase,Basement,Garage and Shed,Gym,Laundry,HVAC system,medium and high temperature

Brand Name: Famous

Design Style: Contemporary,Traditional,Modern,Industrial,Asian,Chinese

Displacement (m³/h): 37.5

Displacement(cm³/rev): 215

Feature: Durable

Material: Stainless Steel

Model Number: MTZ125

Net weight: 64 kg

No. of cylinder: 4

Oil charge: 3.9 dm³

Overheat: 10 K

Overheat(R407C): 11.1 K

Place of Origin: Shanghai, China

Project Solution Capability: N/A

Subcooling(R407C): 8.3 K

Voltage: 400 V / 3 / 50Hz

Warranty: 1 Year

Product Overview

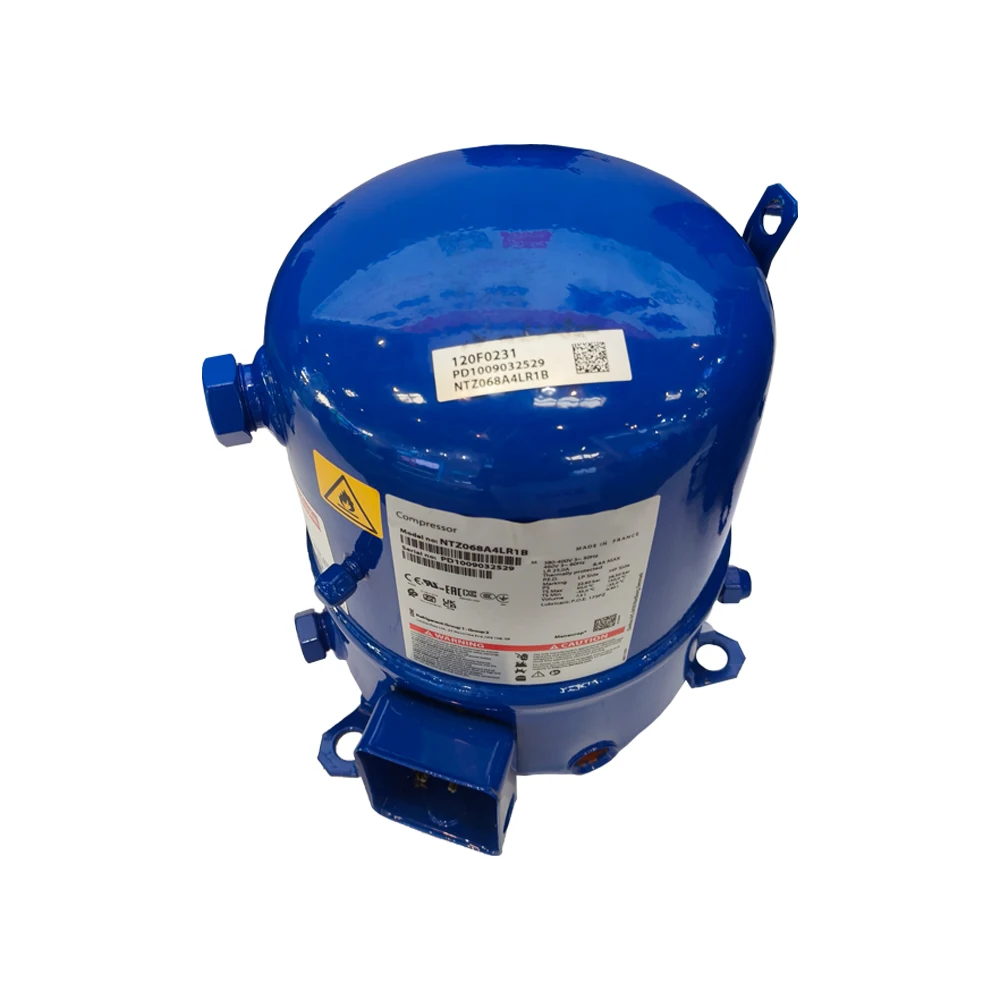

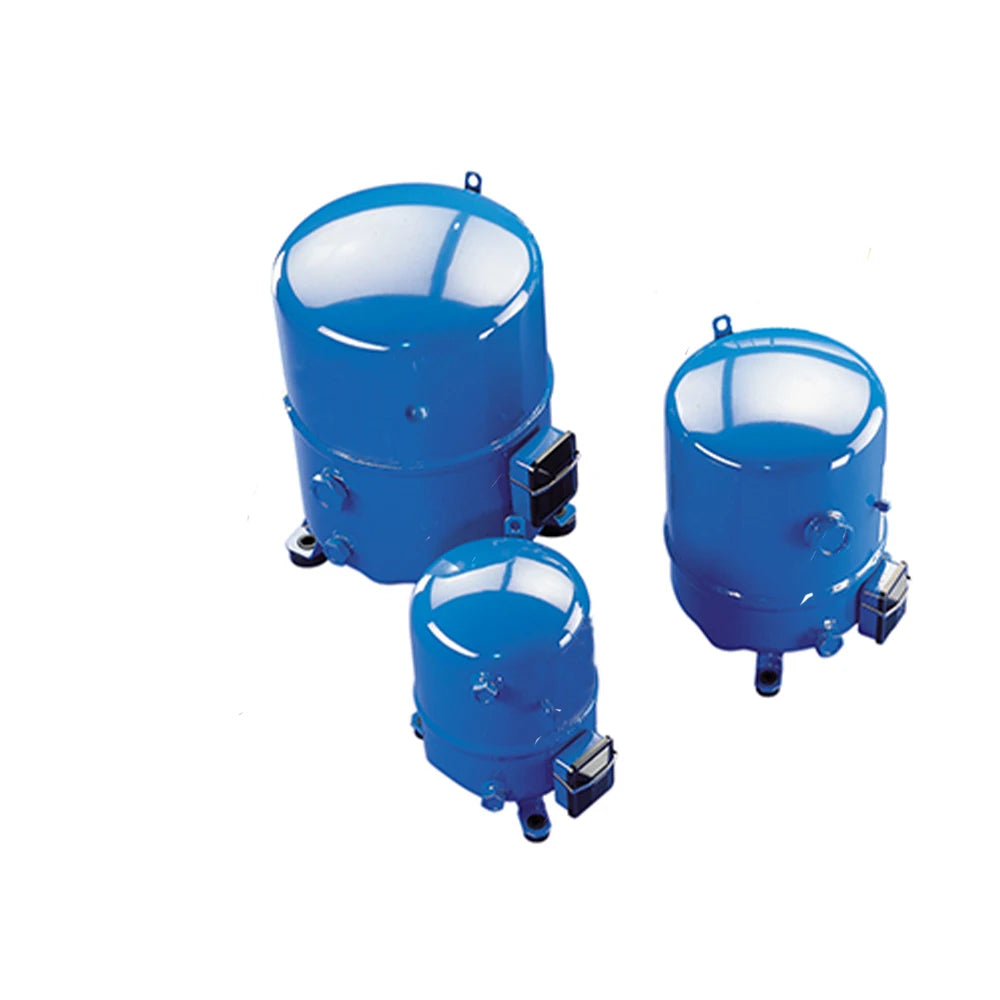

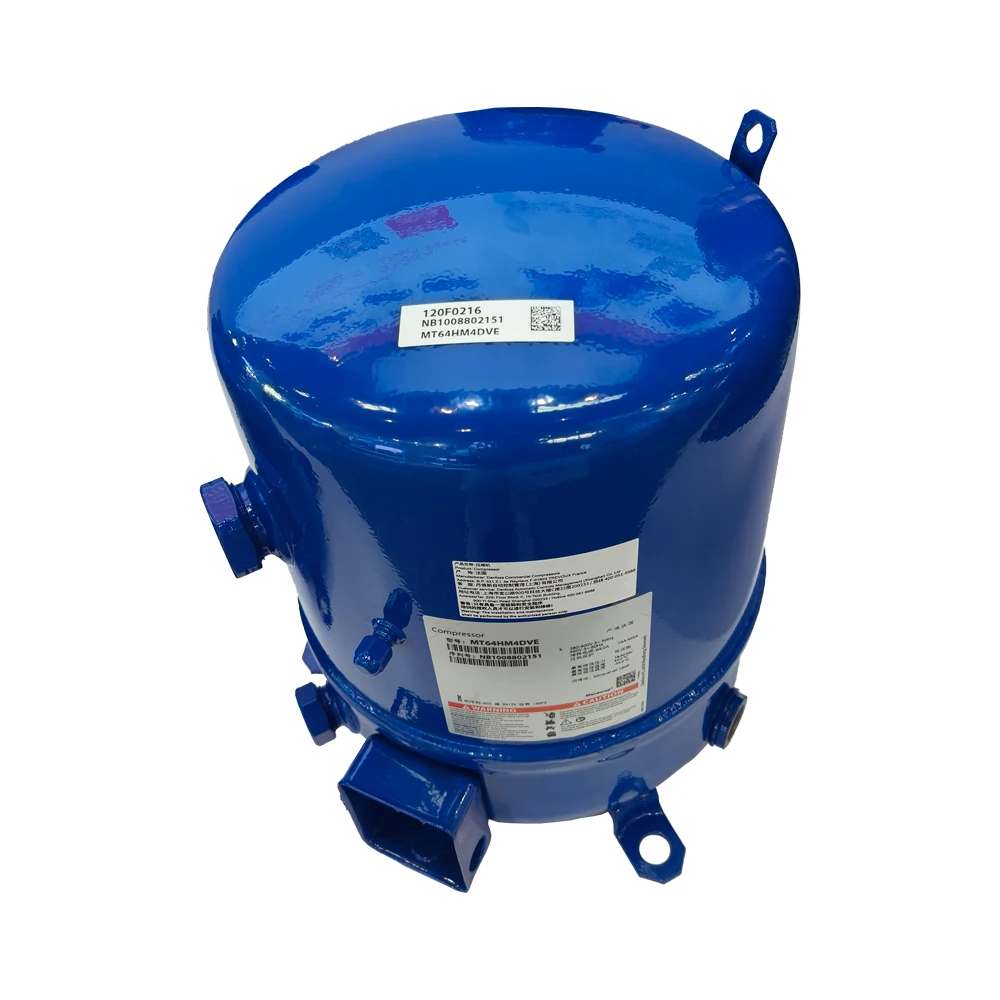

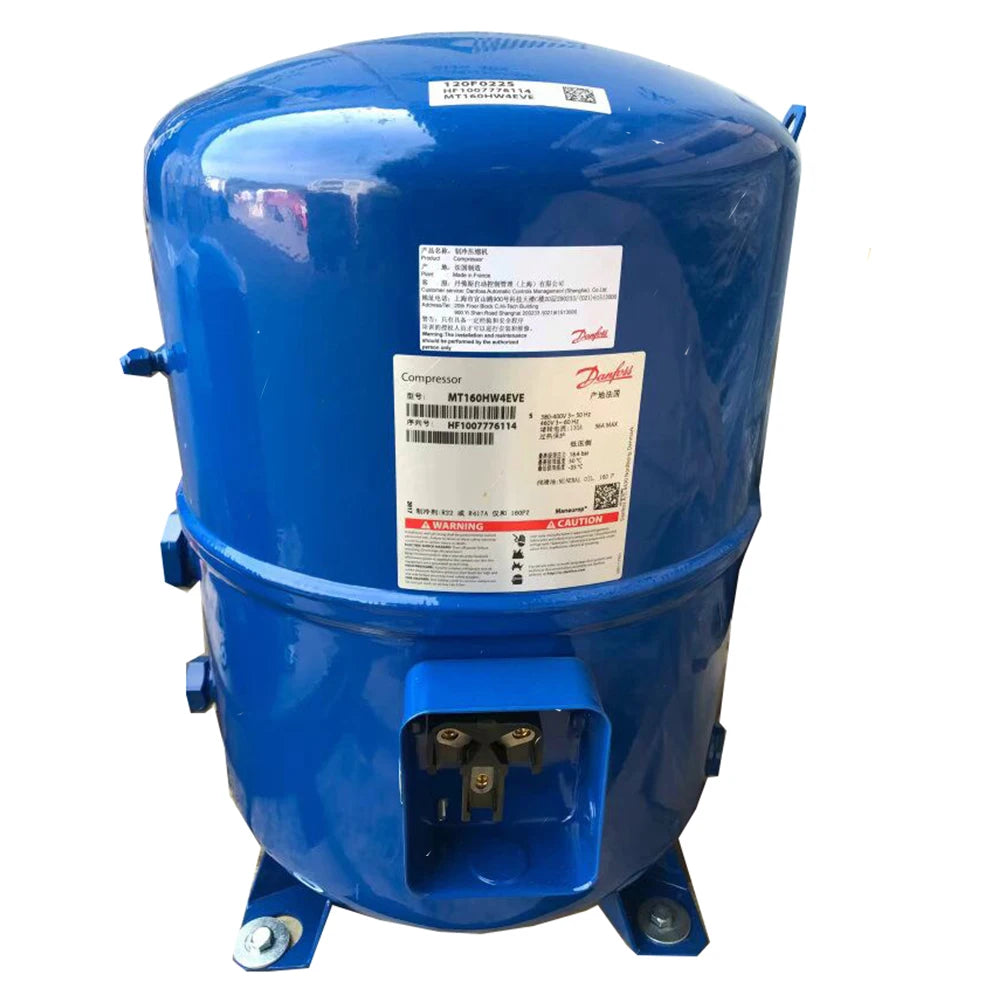

The MT / MTZ / NTZ series of compressors are hermetic piston compressors, of which the MT and MTZ are designed for medium and high temperature applications and the NTZ for low temperature applications. For the refrigerants R22, R404A, R134a, R407A / F, they are suitable for a wide range of different applications.

FEATURES AT A GLANCE

▪Large internal volume, large oil tank, durable design

▪Built-in motor protection

▪100% suction-cooled motor

▪Efficient annular valve design

Model	4	5
		460 / 3 / 60 380–400V/3/50Hz	220–240V/1/50Hz
MTZ018	MTZ18-4VM	MTZ18-5VM
MTZ022	MTZ22-4VM	MTZ22-5VM
MTZ028	MTZ28-4VM	MTZ28-5VM
MTZ032	MTZ32-4VM	MTZ32-5VM
MTZ036	MTZ36-4VM	MTZ36-5VM
MTZ040	MTZ40-4VM	-
MTZ044	MTZ44-4VM	-
MTZ050	MTZ50-4VM	-
MTZ056	MTZ56-4VM	-
MTZ064	MTZ64-4VM	-
MTZ072	MTZ72-4VM	-
MTZ080	MTZ80-4VM	-
MTZ100	MTZ100-4VM	-
MTZ125	MTZ125-4VM	-
MTZ144	MTZ144-4VM	-
MTZ160	MTZ160-4VM	-

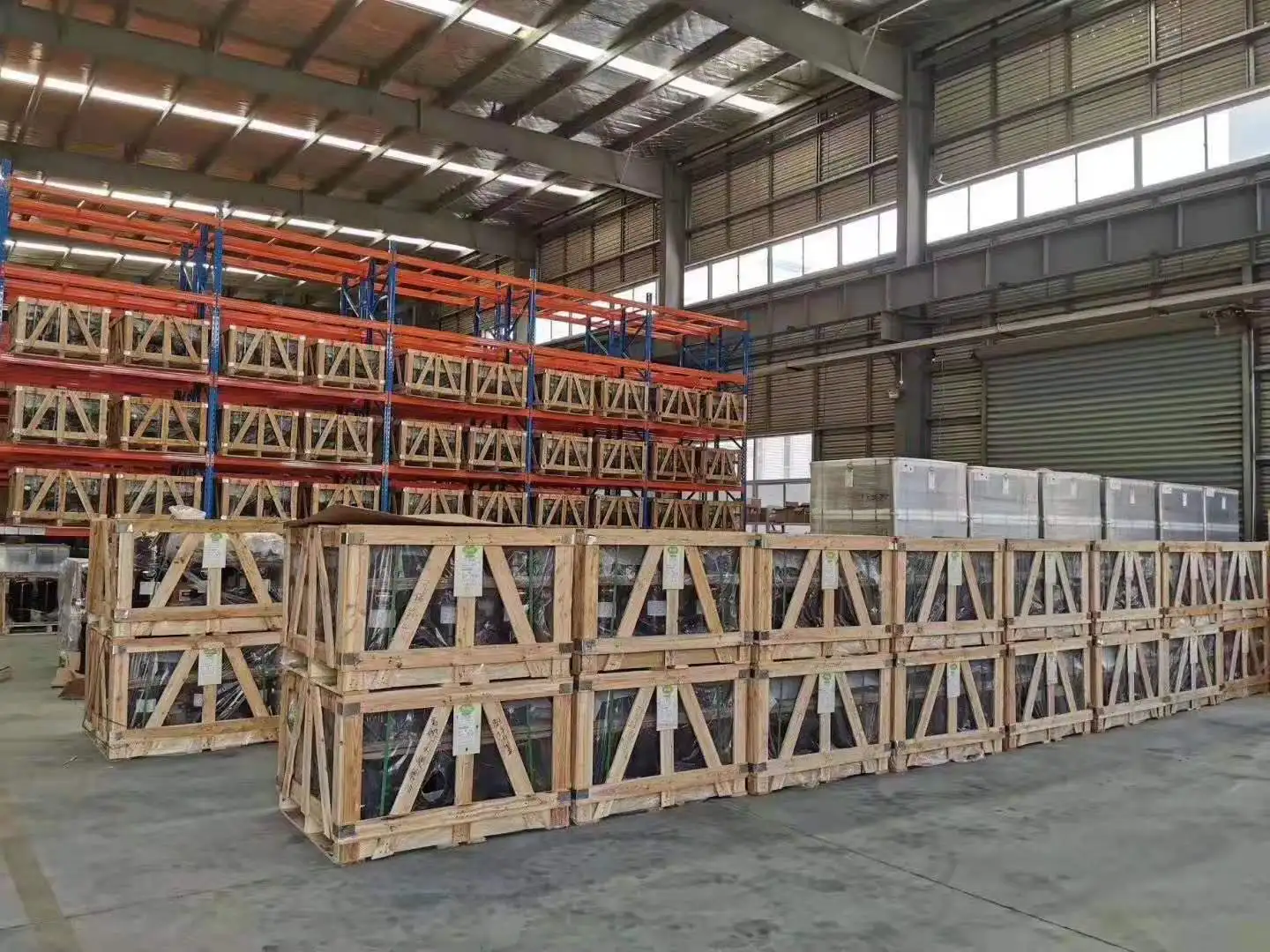

Package

Company Profile

Wuxi Lucky Way Industrial Co.,Ltd is one-stop supplier in HVAC field.

We devote to provide high quality products with reasonable price. Our company’s advantage products are including Solar AC,air conditioner compressor, condensing unit , heat pump, cold room , insulation pipe, copper pipe, all kinds of valves and tools.

In order to meet the rapid developing marketing needs and provide the customers with high quality products and satisfactory service, our highly experienced technical team is dedicated to sustainable product development, technology innovation and quality control.
