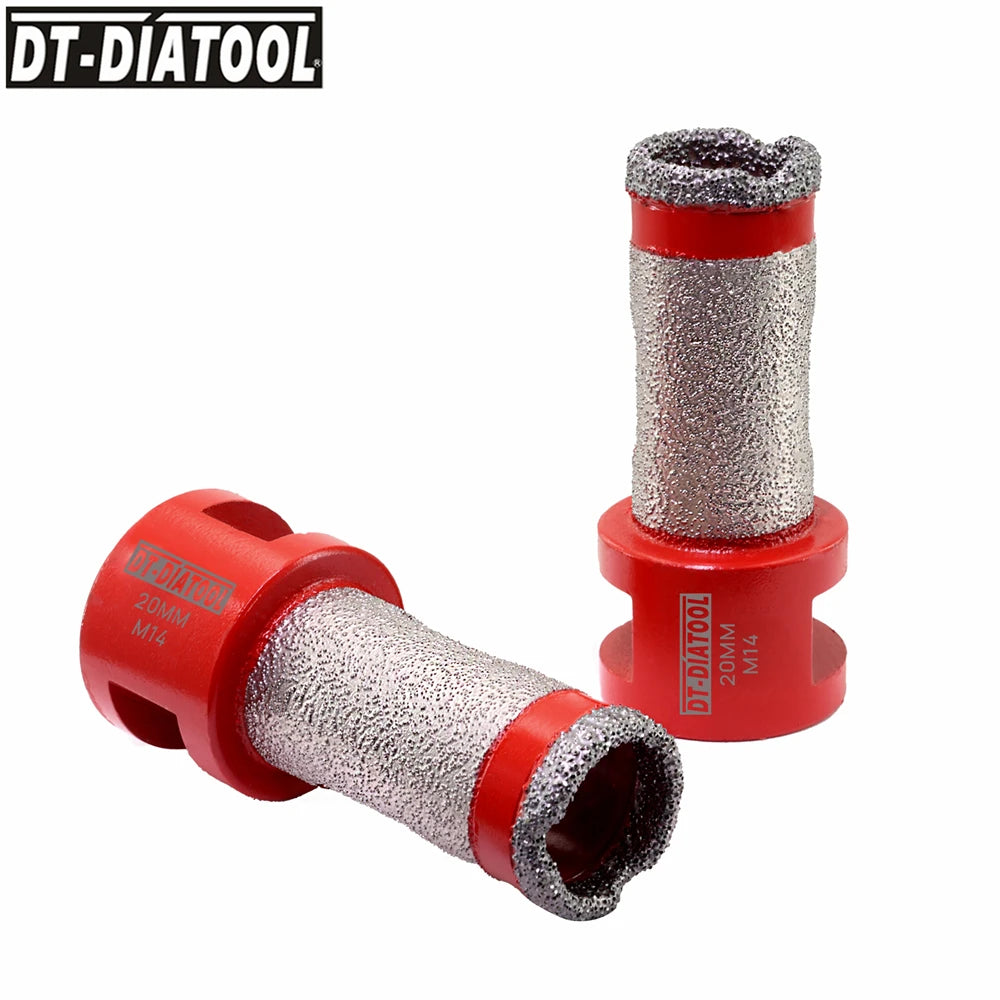

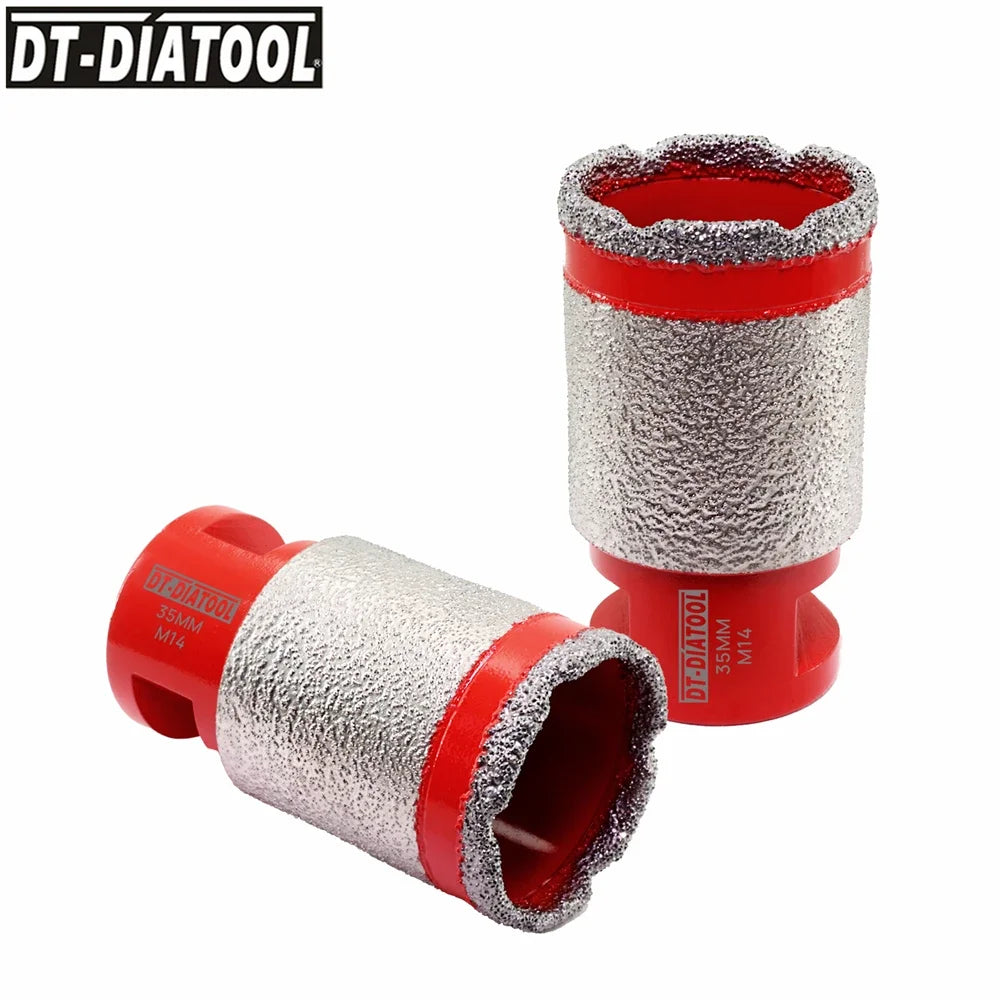

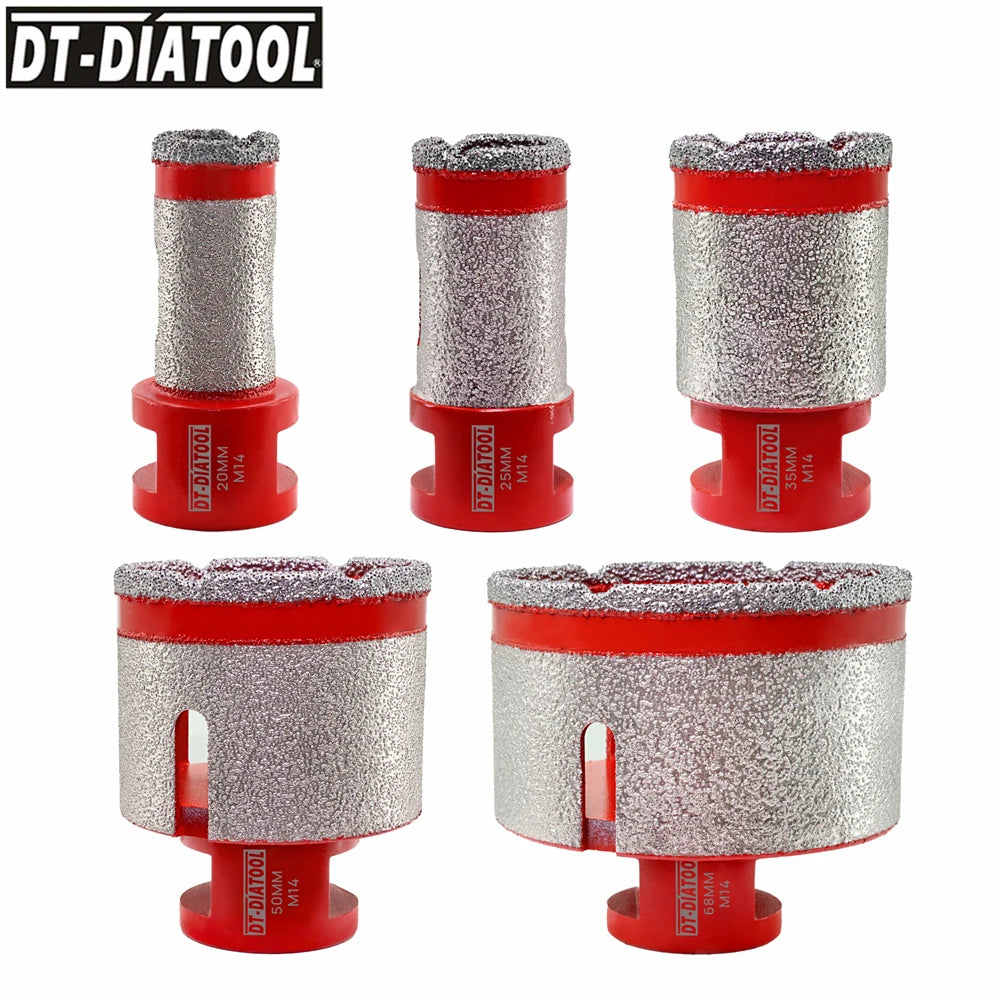

Product Name: Vacuum Brazed Integrated Grinding Rod Drilling for Porcelain Ceramic Tiles Marble

Specification:

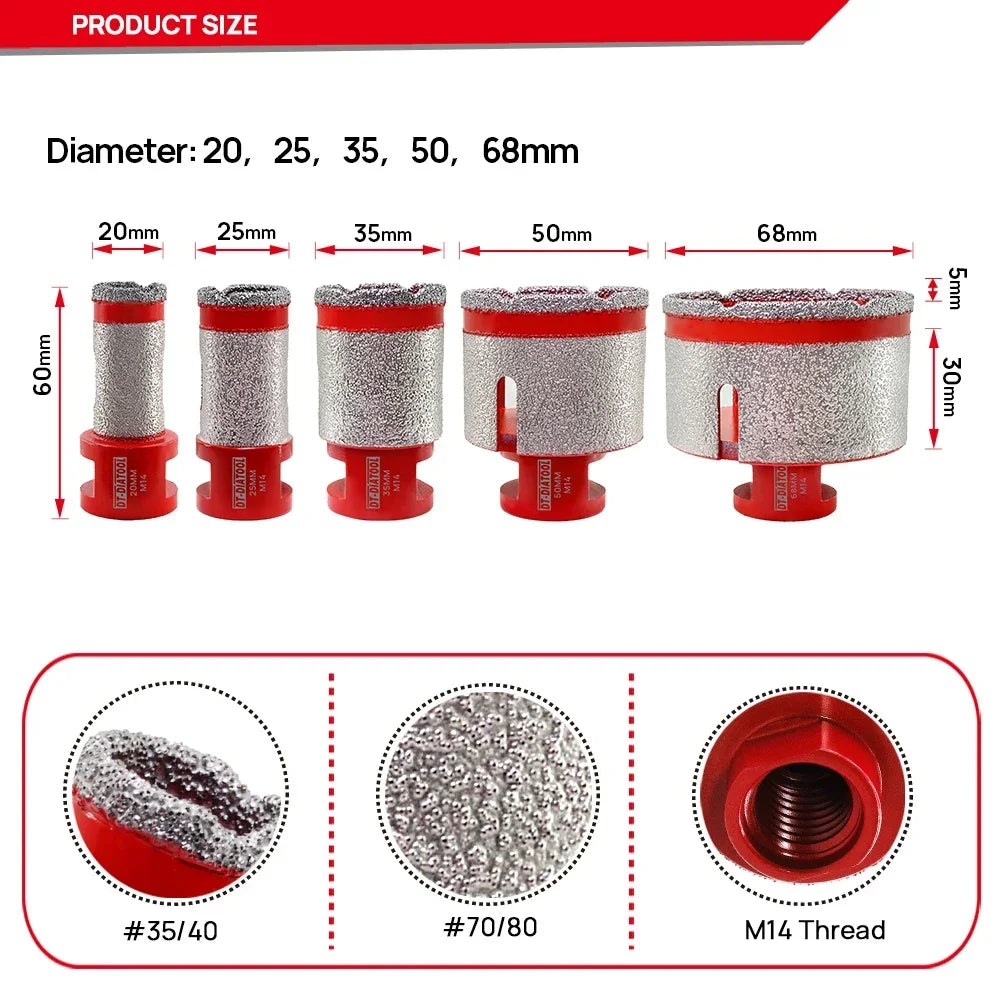

Diameter 20mm;Total length 60mm;M14/58 thread;Drilling Part: Length 5mm,Grit#35/40; Milling Part: Length 30mm, Grit#70/80.

Diameter 25mm;Total length 60mm;M14/58 thread;Drilling Part: Length 5mm,Grit#35/40; Milling Part: Length 30mm, Grit#70/80.

Diameter 35mm;Total length 60mm;M14/58 thread;Drilling Part: Length 5mm,Grit#35/40; Milling Part: Length 30mm, Grit#70/80.

Diameter 50mm;Total length 60mm;M14 /58 thread;Drilling Part: Length 5mm,Grit#35/40; Milling Part: Length 30mm, Grit#70/80.

Diameter 68mm;Total length 60mm;M14 thread;Drilling Part: Length 5mm,Grit#35/40; Milling Part: Length 30mm, Grit#70/80.

Quantity: 1pc

Application:

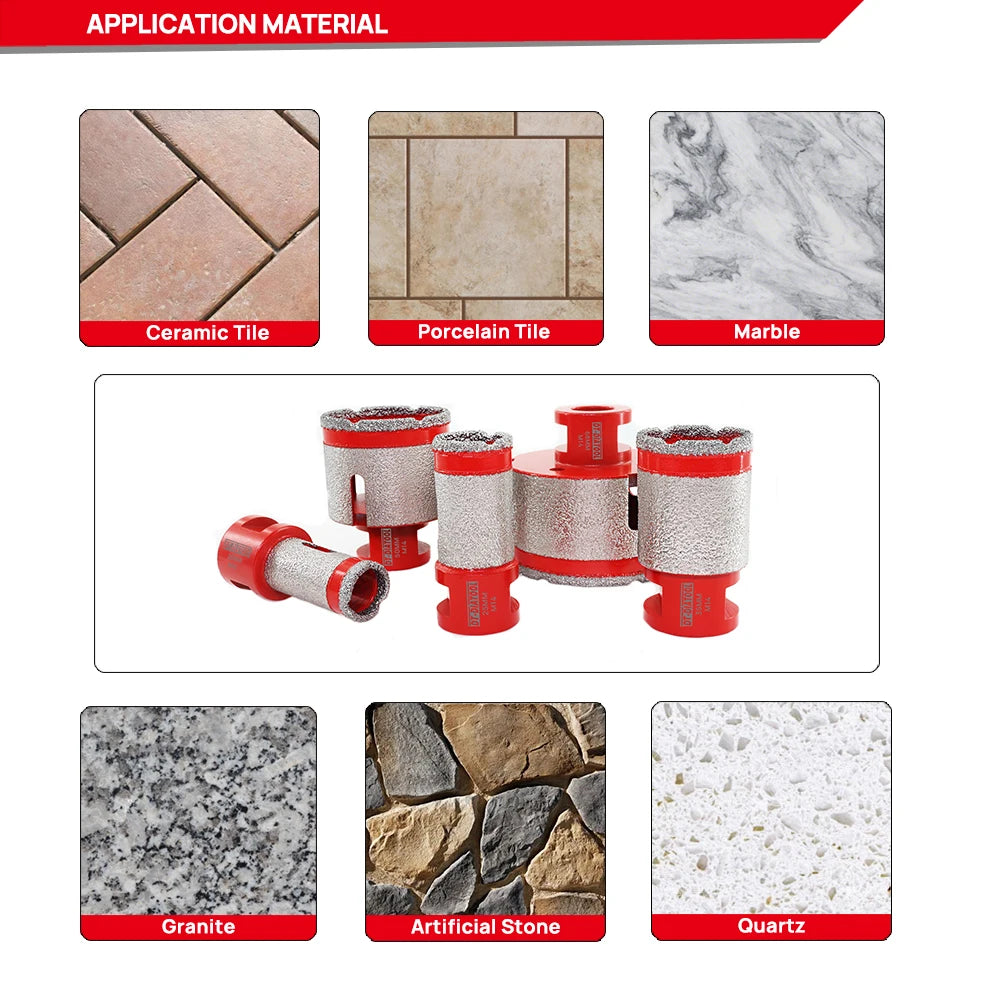

1. Used for processing ceramic tiles, porcelain tiles, marble, granite and other materials;
2. Enlarge, chamfer, grind and shape the formed holes, and repair the hole contour and finish;

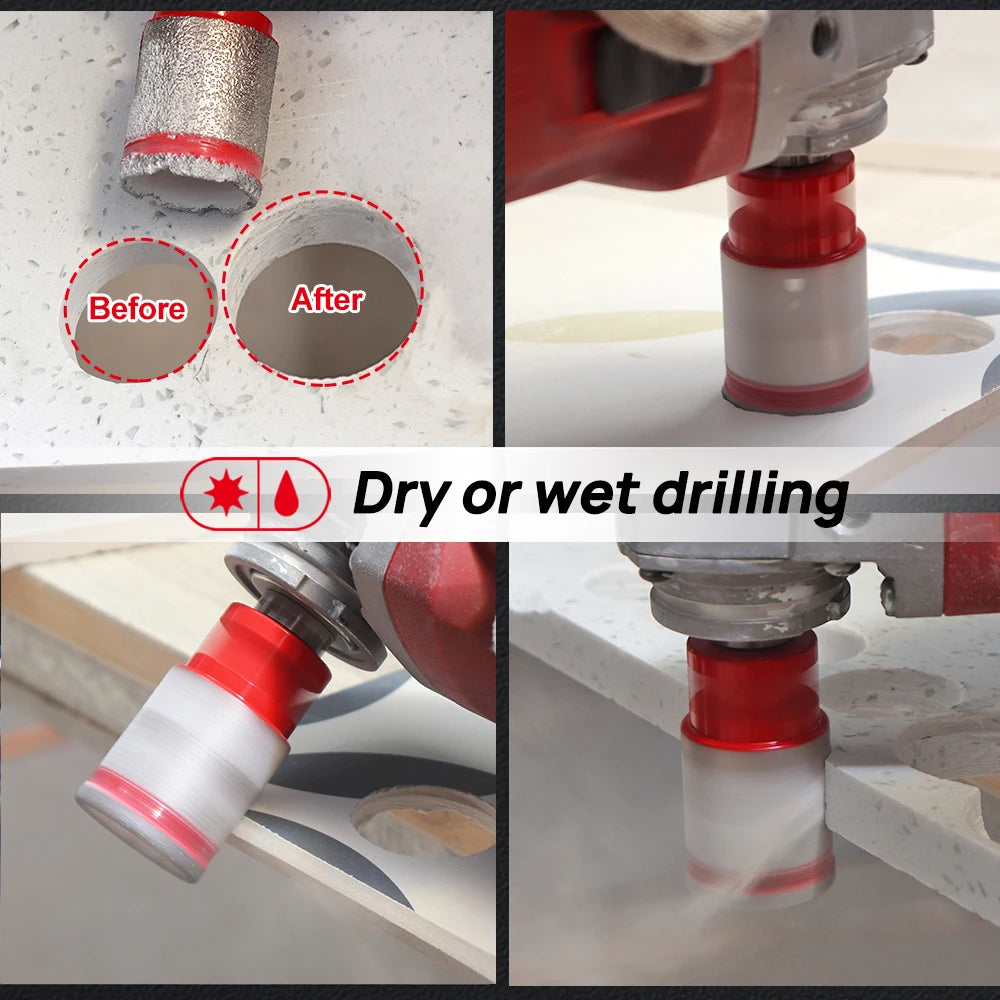

3. Dry and wet dual-use, suitable for angle grinder, easy to operate;

Features:

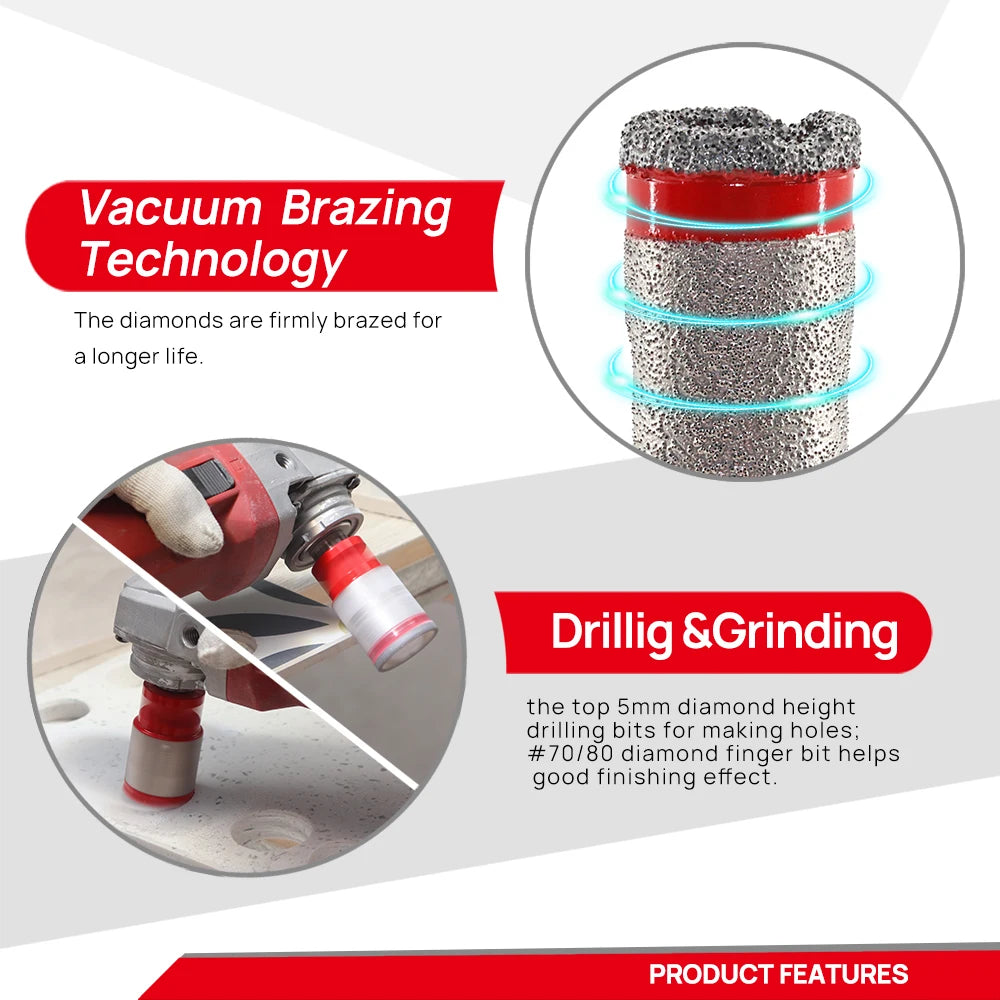

1. Drillig &Grinding ---the top 5mm diamond height drilling bits for making holes;#70/80 diamond finger bit helps good finishing effect.

2. Vacuum brazing processing technology, combined with high-quality steel, is sharp, sturdy and durable, extending the service life;

NOTE :

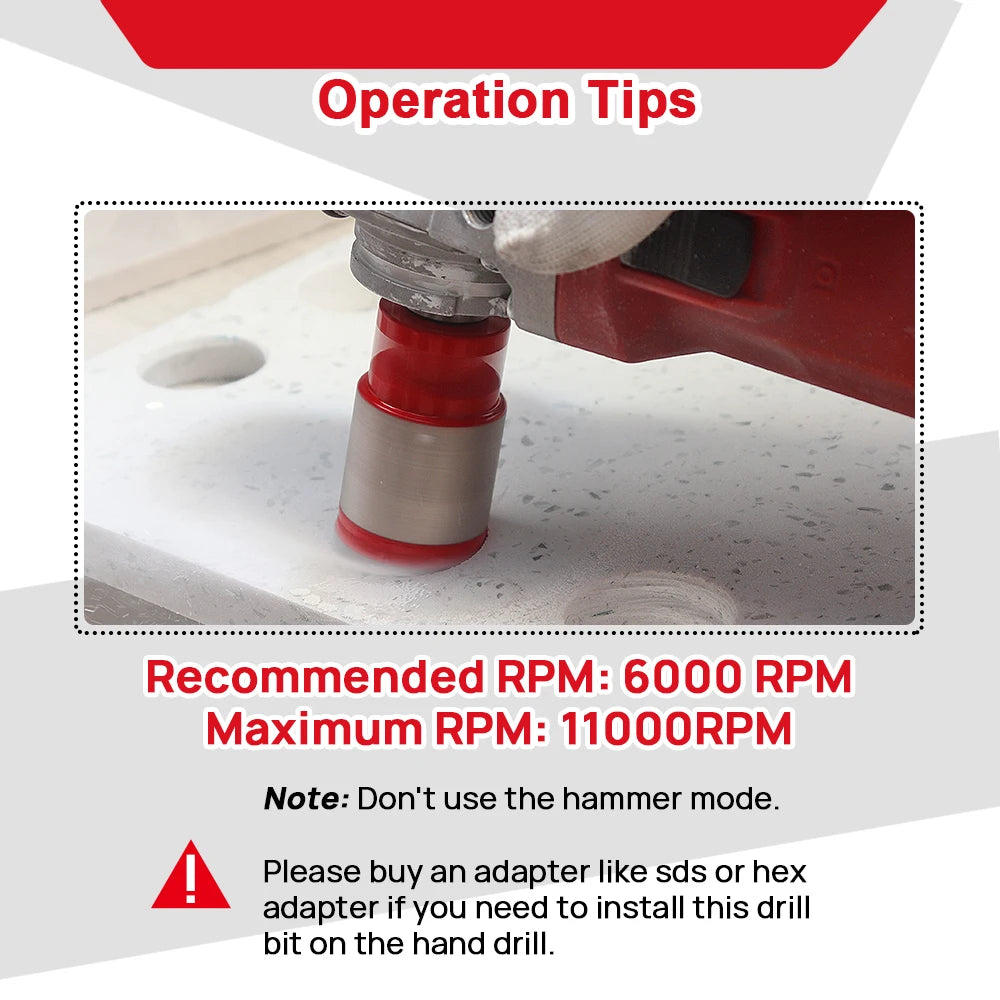

1. The recommended speed is 6000RPM, and the maximum speed is 11000RPM;
2. Do not use impact or hammer mode when connecting to a device with impact and hammer mode.

Ref. Brand: This product is marked our "DT-DIATOOL" brand name.  If you need these diamond disc without our brand, please leave us message.  we could send you products without brand. We also provide brand-customizing service  (If you order more 20pcs, we could mark your brand name on these products).

Note:

• Please allow 1-3mm errors due to manual measurement

• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
