SPECIFICATIONS

80 PLUS Certification: Other Certification

Application: Desktop

Brand Name: T.F.SKYWINDINTL

CPU Power Connector: 4 pin

Choice: yes

D-type Bus Number: 2

Fans: 1

Graphics Card 12V Pin Number: 0

High-concerned chemical: None

Input Voltage: 90-264V

Interface Type: 20 + 4Pin

Model Number: 500WATX

Modular: Non-Modular

Number of SATA Ports: 3

Origin: Mainland China

Output Voltage: 24A

PFC Type: Passive

Package: Yes

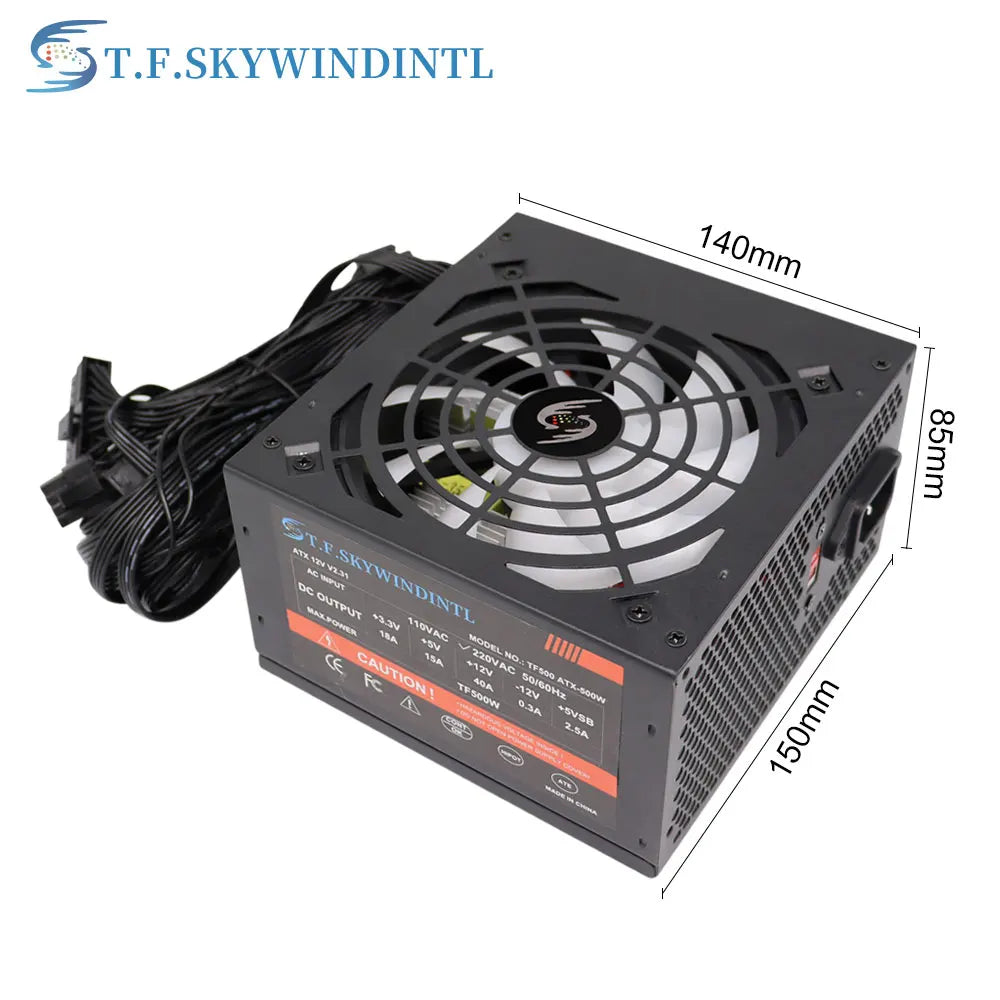

Quiet 500W 12V PC Power Supply 500W 24pin ATX Computer Power Supply PSU 500W PC Gaming Power

the limited of this power supply is 580 8g GPU Card , you can not use this power supply to carry

Graphics card Which need more power then 580 8g ,like  2060 2060s ect ,, if you do not know

,please contact our sales for help.

• Power standard: ATX 12V

• For CPU range: A M D, I n t e l

• PFC type: Passive PFC

• Rated power: 500W

• Authentication: CB, CCC, FCC, class, B, CE, ROHS

• Product weight: 1.5kg

• Support system: VISTA, Win7 operating system

• Support power supply: 20P and 24P motherboard

• Power output design: Multiplex +12V

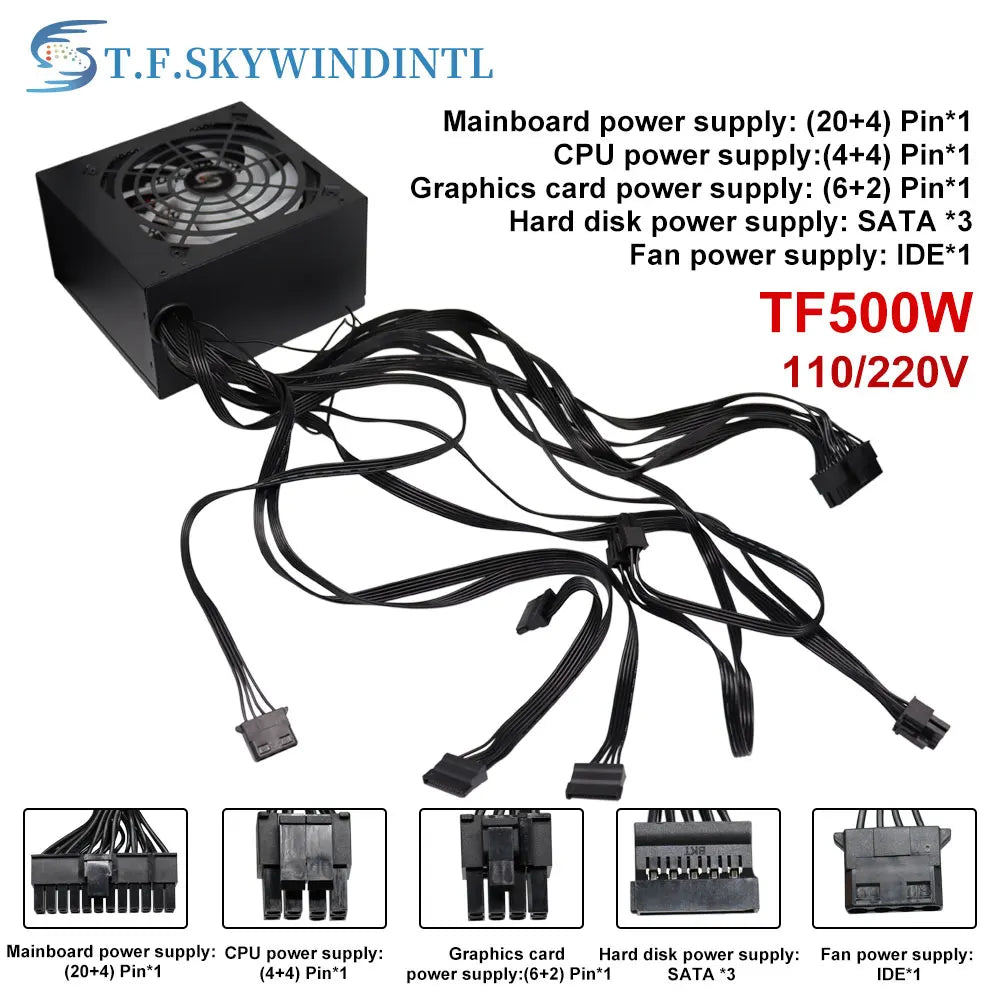

• 20+4 interface*1

• IDE interface:1

• SATA interface: 3

• 4+4pin *1

• 6+2pin *1

• 1 x Power Supply(not including power cable )

•


• why buy this power supply from us :

• 1:Using High effecient thickening aluminum radiator

  2:Withing High efficiency PFC,The Power factor up to 85%

  3:Environmental experts ,low carbon life

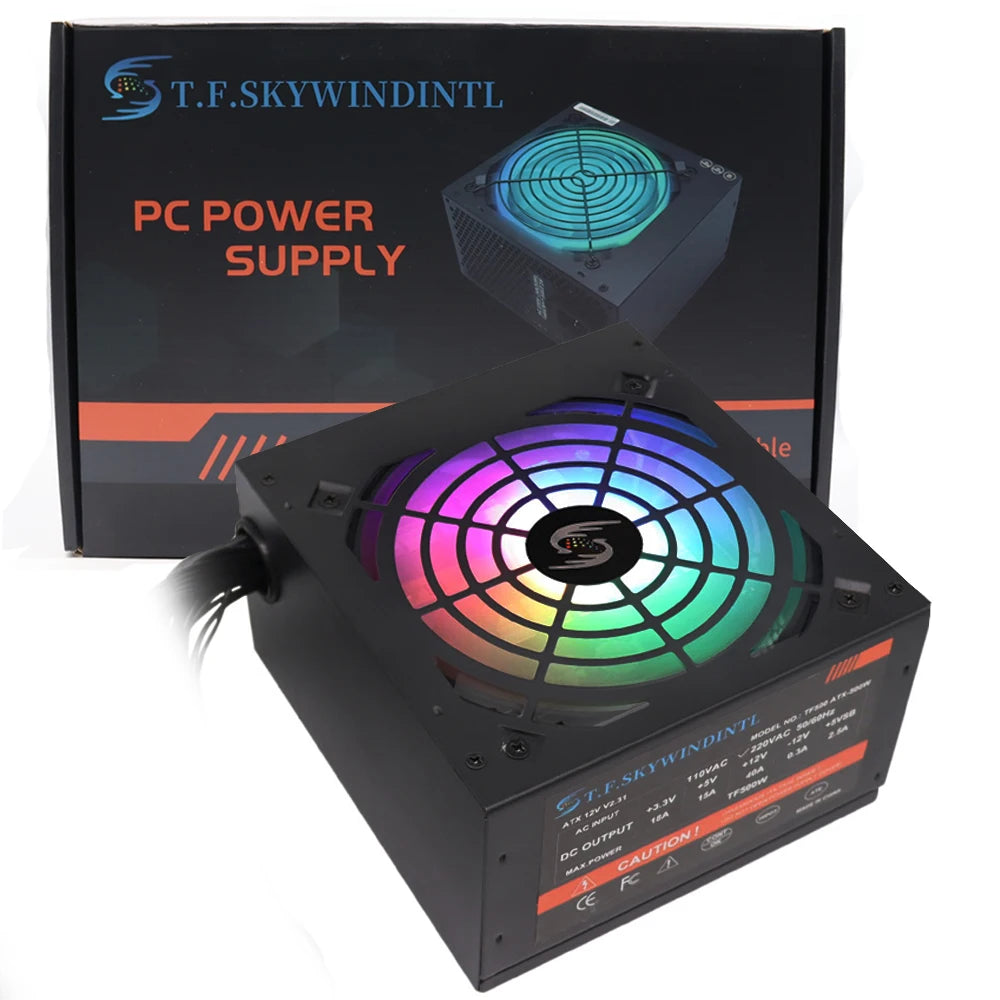

  4: fan with led

  5:Japan /taiwan Capacitance

  6:3C certification

  7:Double group +12V output (the combined ouput up to 29A )

  8:In Support of(6+2)pin pci-e interface



  +12V	+5V	+3.3V	VSB	-12V
  7.2A	2.6A	1.8A	0.4A	0.1A	20% load
  16A	6.5A	4.5A	1A	0.25A	50% load
  32A	13A	9A	2A	0.5A	100% load






  If your required voltage is 100v, 110v, 120v, please turn the switch to 110v, so as to ensure your normal use.




  When you receive the power supply, please do not connect your motherboard immediately, please check the power supply like this,




  If you have a power tester, you can use the power tester to connect the 24PIN of the power supply, and then connect the power supply to see if the fan rotates. If the fan rotates, it proves that the power supply is working normally. When you connect the motherboard, If there is no electricity, please check your other equipment, there is no problem with the power supply,




  If you have any questions, please contact us, we are happy to serve you
