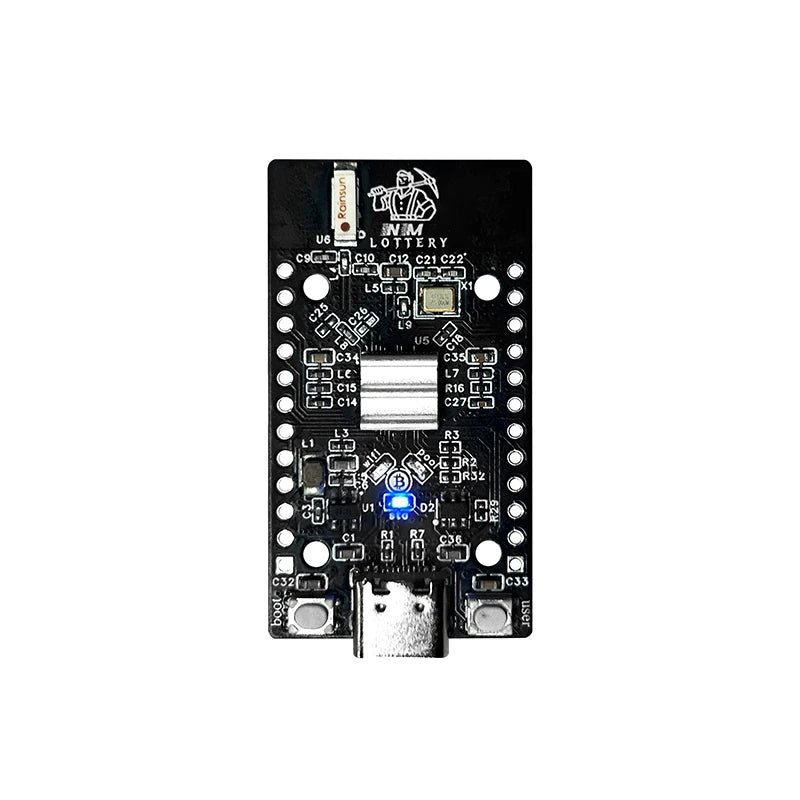

NMMiner Official new code Nerdminer 256KH/s*4=1MH/s deeply optimized ESP32 Mini BTC Solo Lottery Lucky Miner botchain tower
Nhà bán
Có sẵn trong kho (29)
Không thể tải tình trạng còn hàng để nhận hàng
Giảm giá khi đặt hàng số lượng lớn.Mua ngay
Thông số sản phẩm
Thông số sản phẩm
Chi tiết sản phẩm
Chi tiết sản phẩm
SPECIFICATIONS
Battery Included: No
Brand Name: Heltec Automation,NMTech
Demo Board Type: RISC-V
Function: BTC Lottery/Miner/Development Board
High-concerned chemical: None
MCU: ESP32-S3R8
Model Number: nm-bot-chain
Operating temperature: -20~60℃
Origin: Mainland China
Power Consumption: 1w
Storage temperature: -30~70℃
Transmission Rate: 10/100Mbps
Weight: 10g
Wi-Fi: 802.11 b/g/n
Description
It's the newest NMMiner version v1.1.x, deeply optimized the ESP32S3 codes, hashrate
reach 256KH/s, only 4pcs can reach 1MH/s.

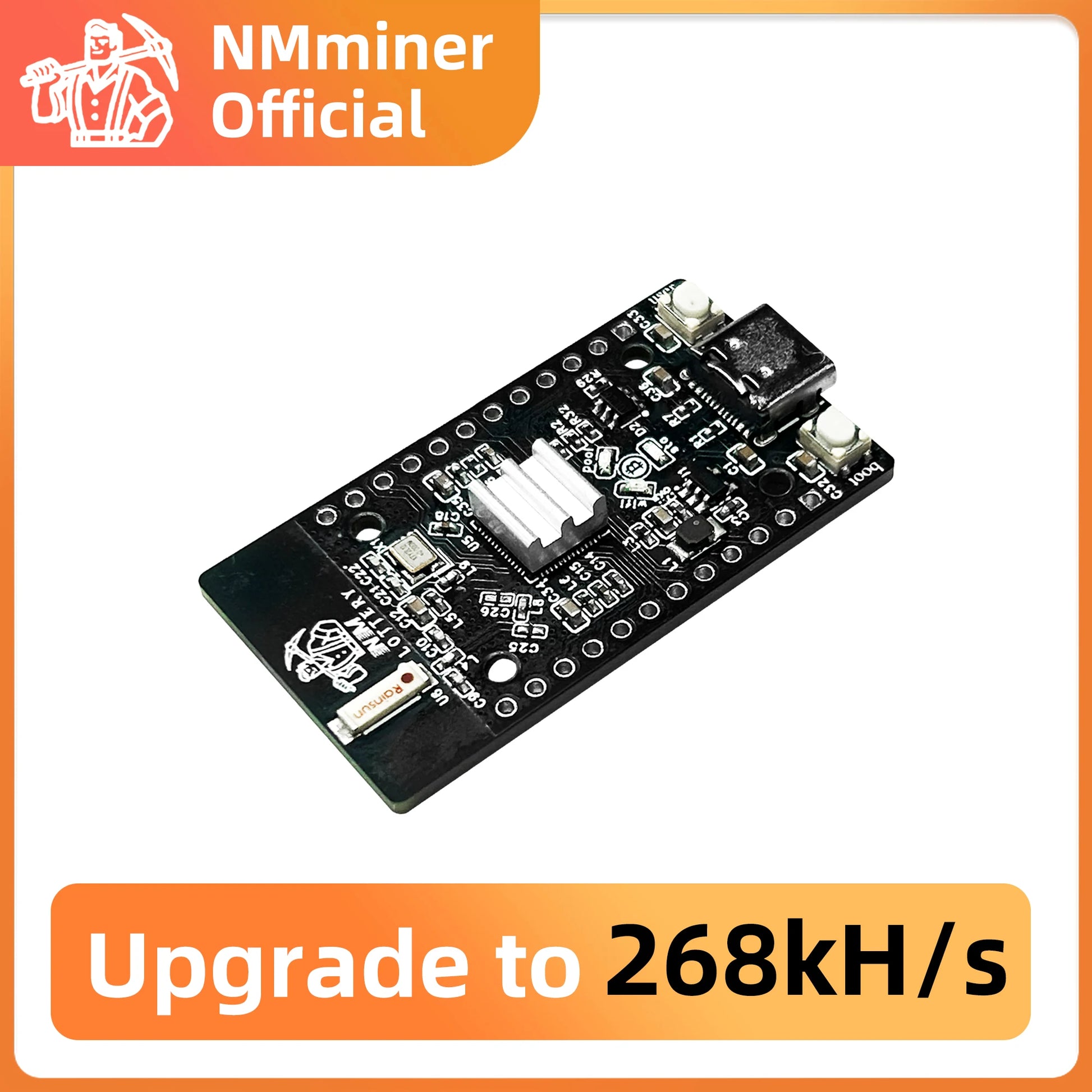

The first NMMiner Official Lottery Board with ESP32-S3. NMMiner License inside.

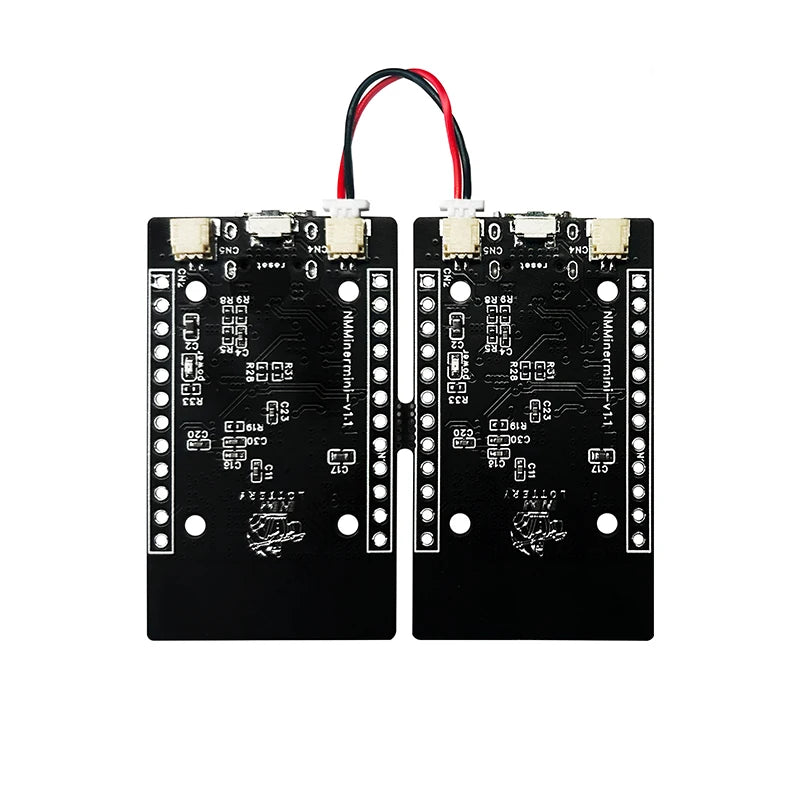

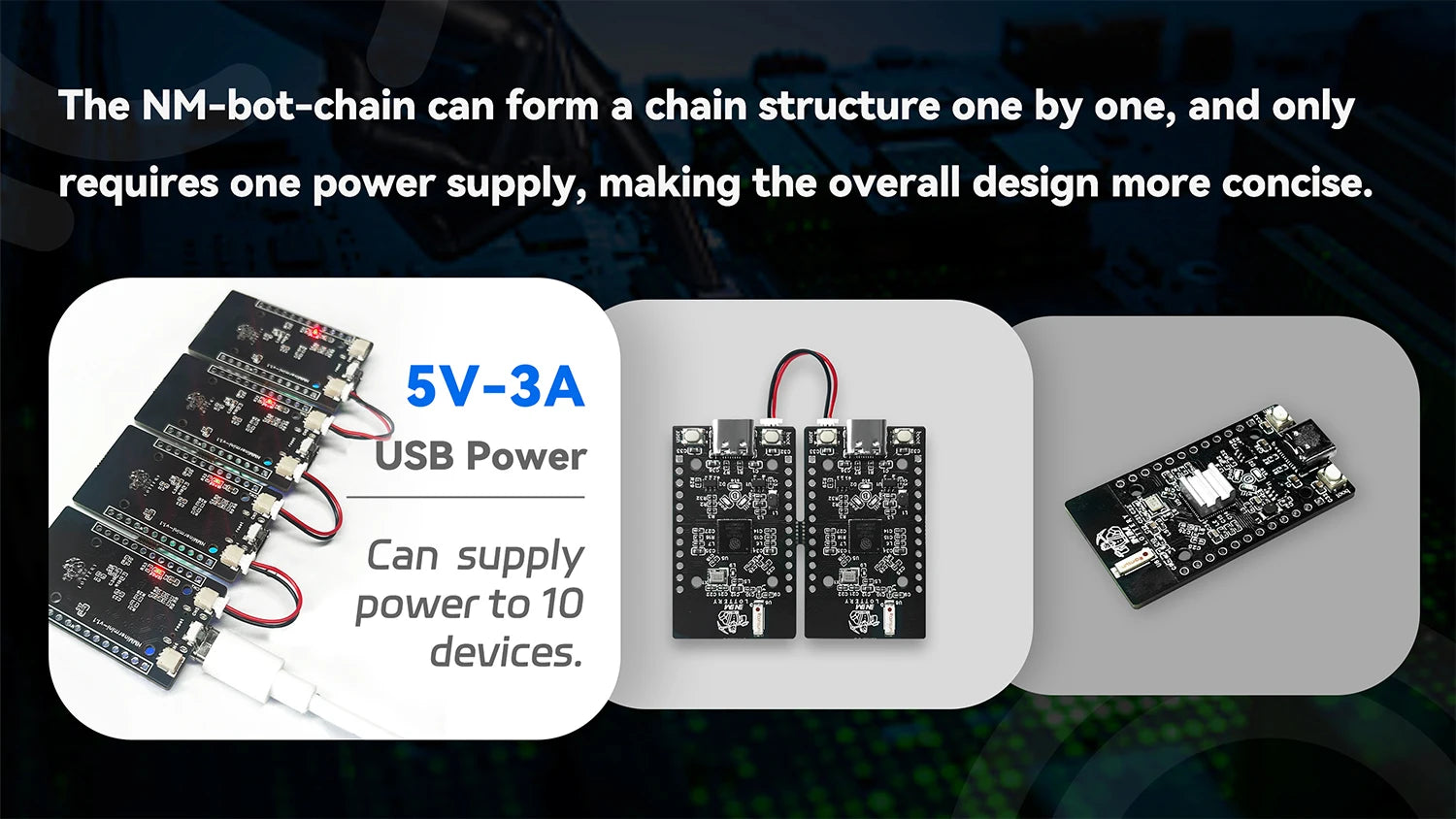

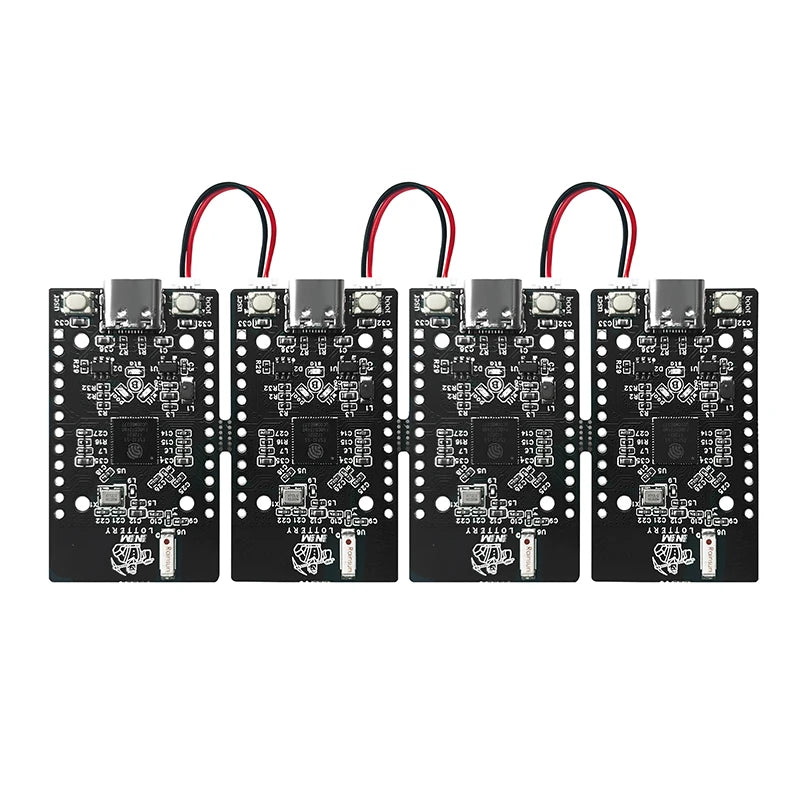

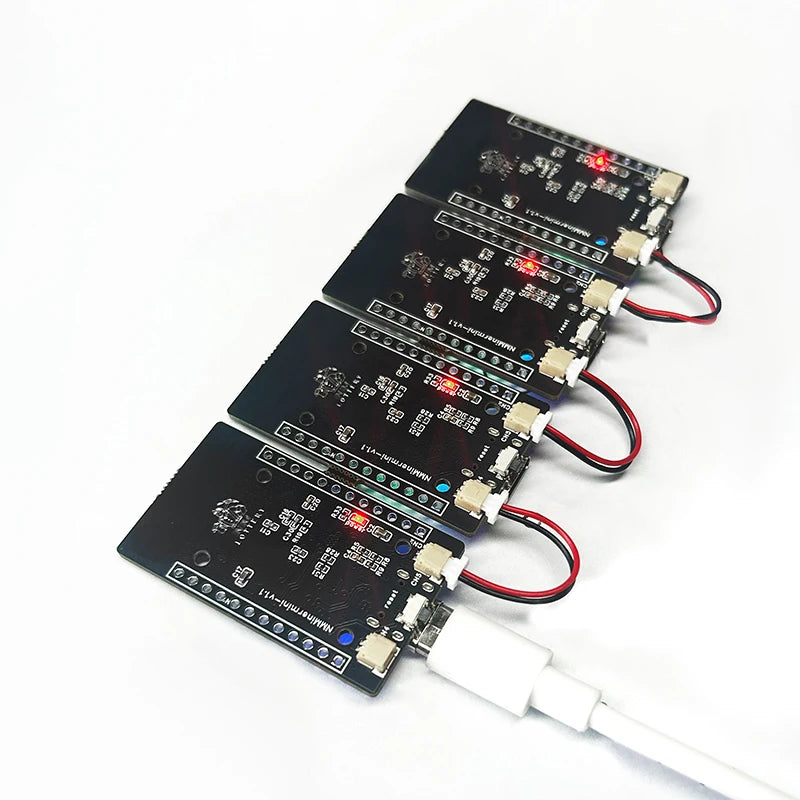

The nm-bot-chain can form a lottery chain one by one, and only requires one power supply.
Deeply optimazion for ESP32-S3: Achieves high performance of 256kH/s with a single chip in solo miner mode, while maintaining low power consumption.

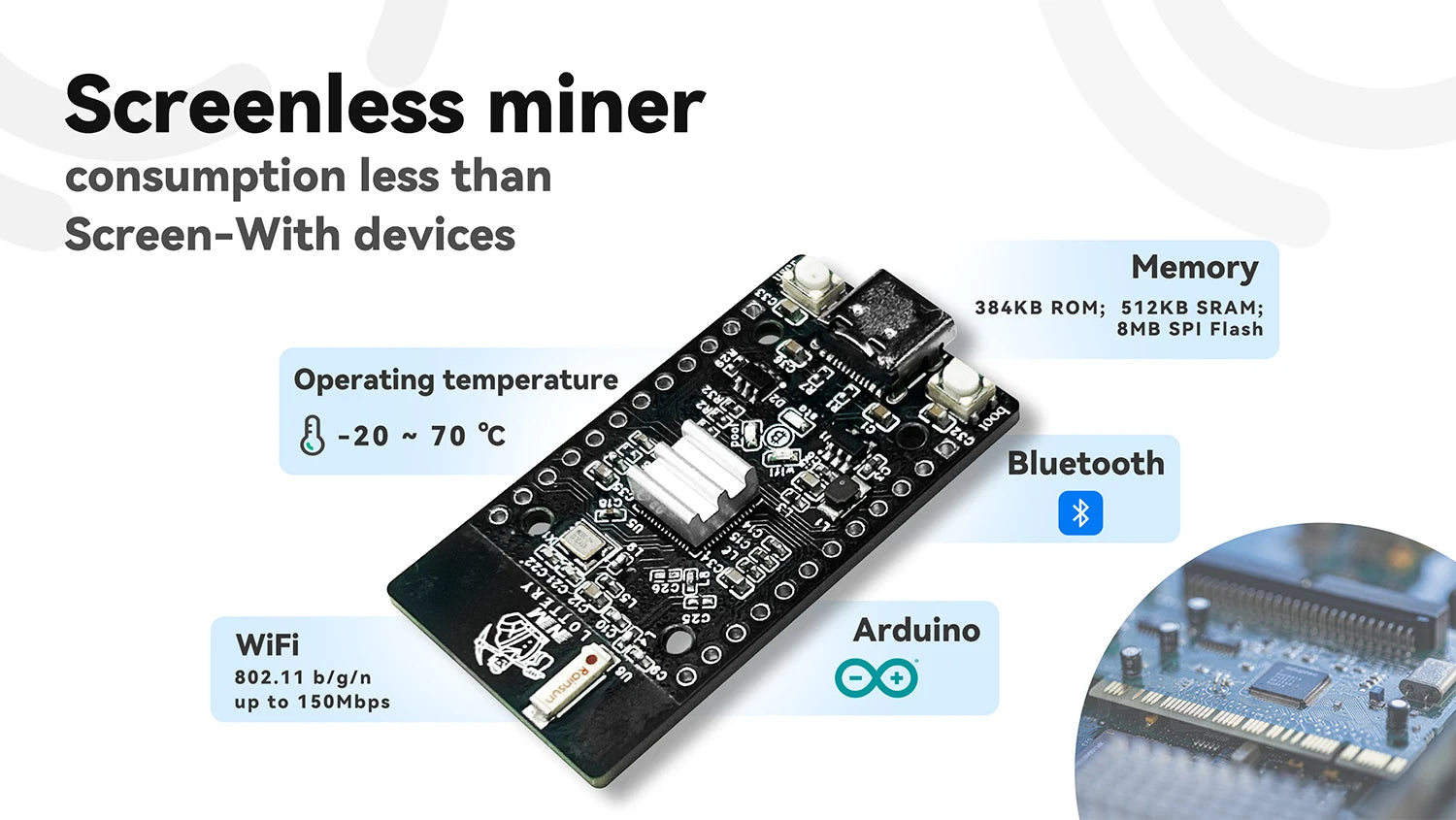

The NM-bot-chain is screenless lottery, so it will consumption less than the Screen-With devices, such as Heltec Vision Master T190, LILIGO .

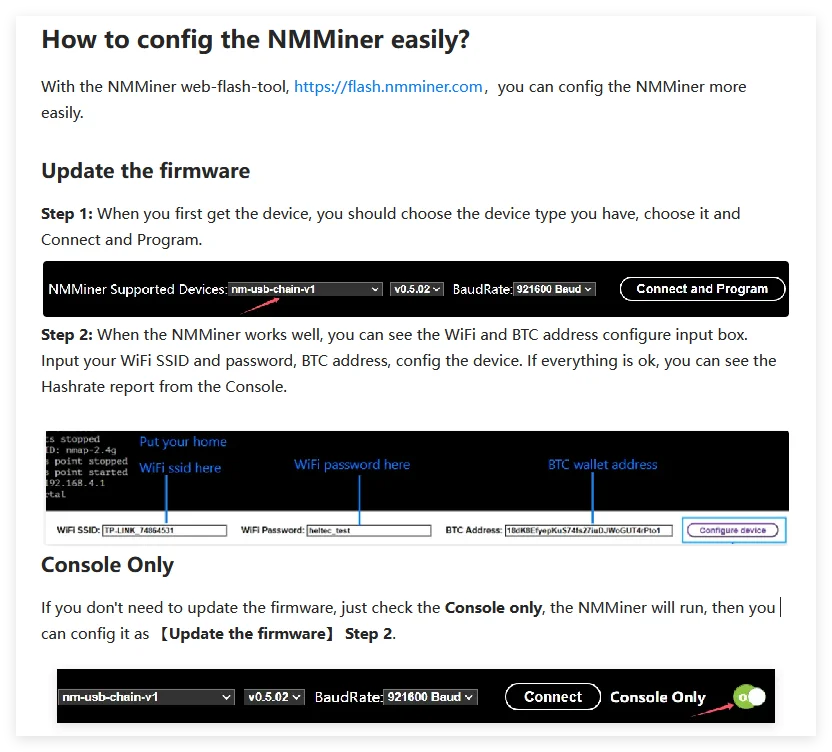

The NM-bot-chain has no screen, but you can config it with your phone or the NMMiner Official Web Flash Tool.

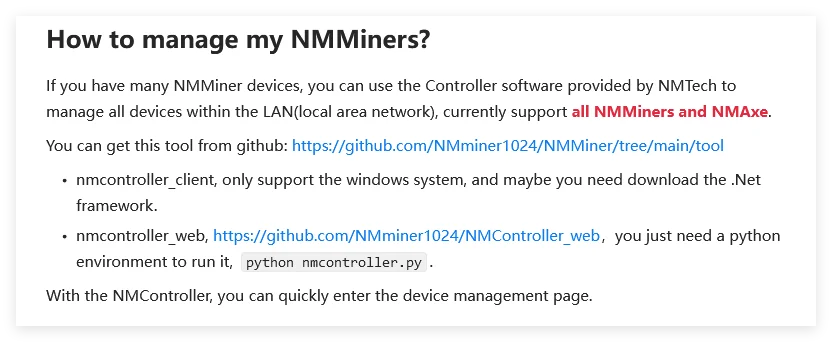

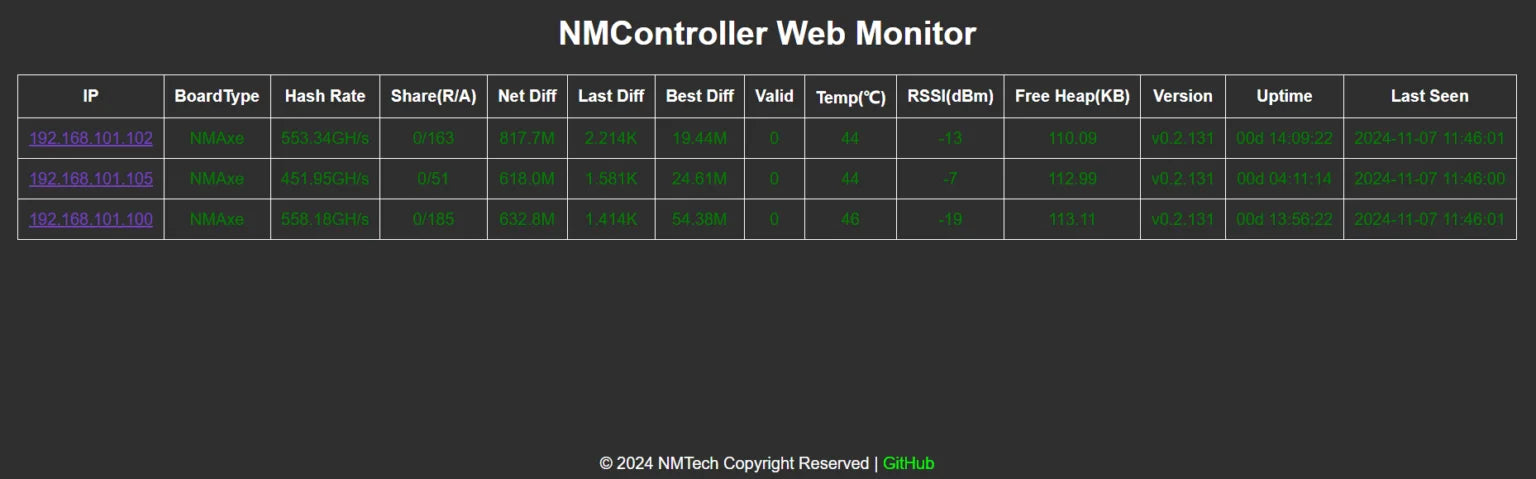

Monitor its working status at any time through the NMController.


Product Highlights
NMMiner newest Version 1.1x, deeply optimized algorithm firmware enhances the hashrate to 256KH/s, increasing the probability of winning the Nerdminer v2 lottery by 300%+.
The display will turn off after 1 minute without operation, and you can wake up the screen by pressing any key to avoid light pollution.
We offer long-term support for our services.
By double-clicking the USER key, allows you to switch to a desktop clock mode with the BTC Lottery runs in the background.

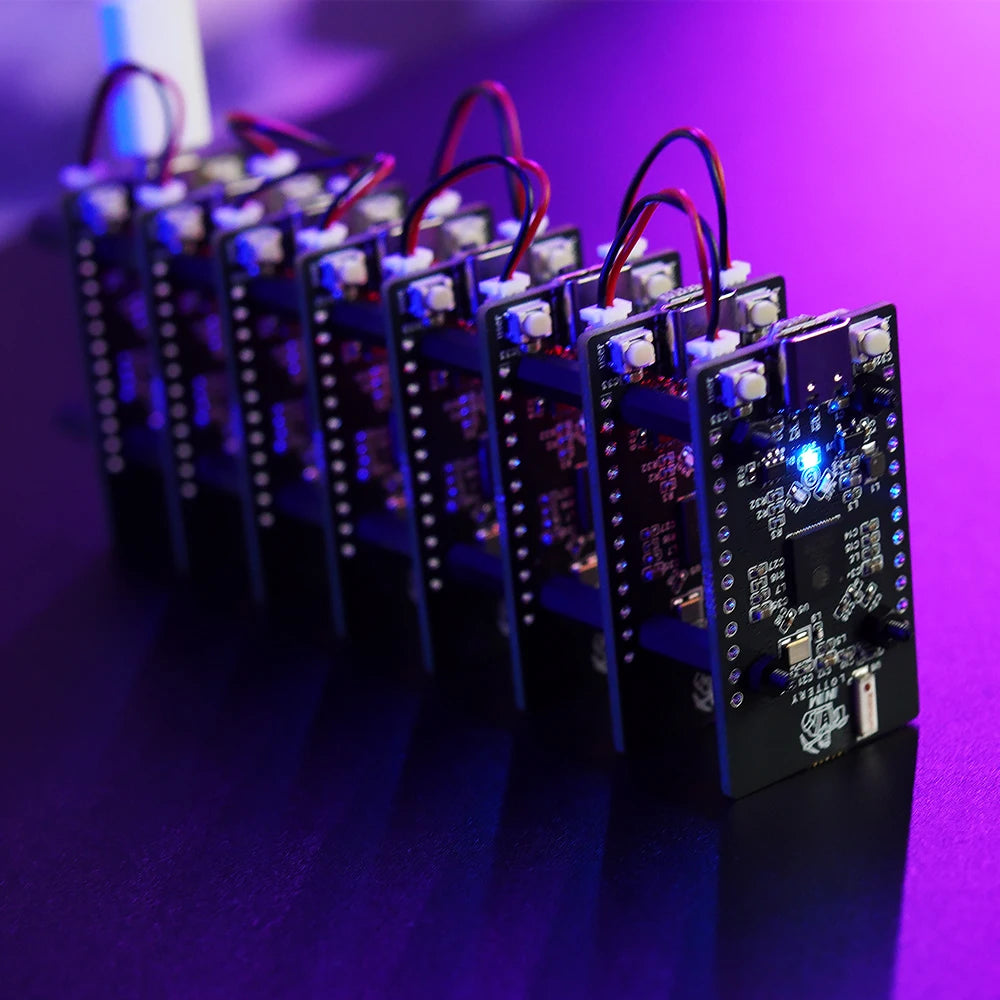

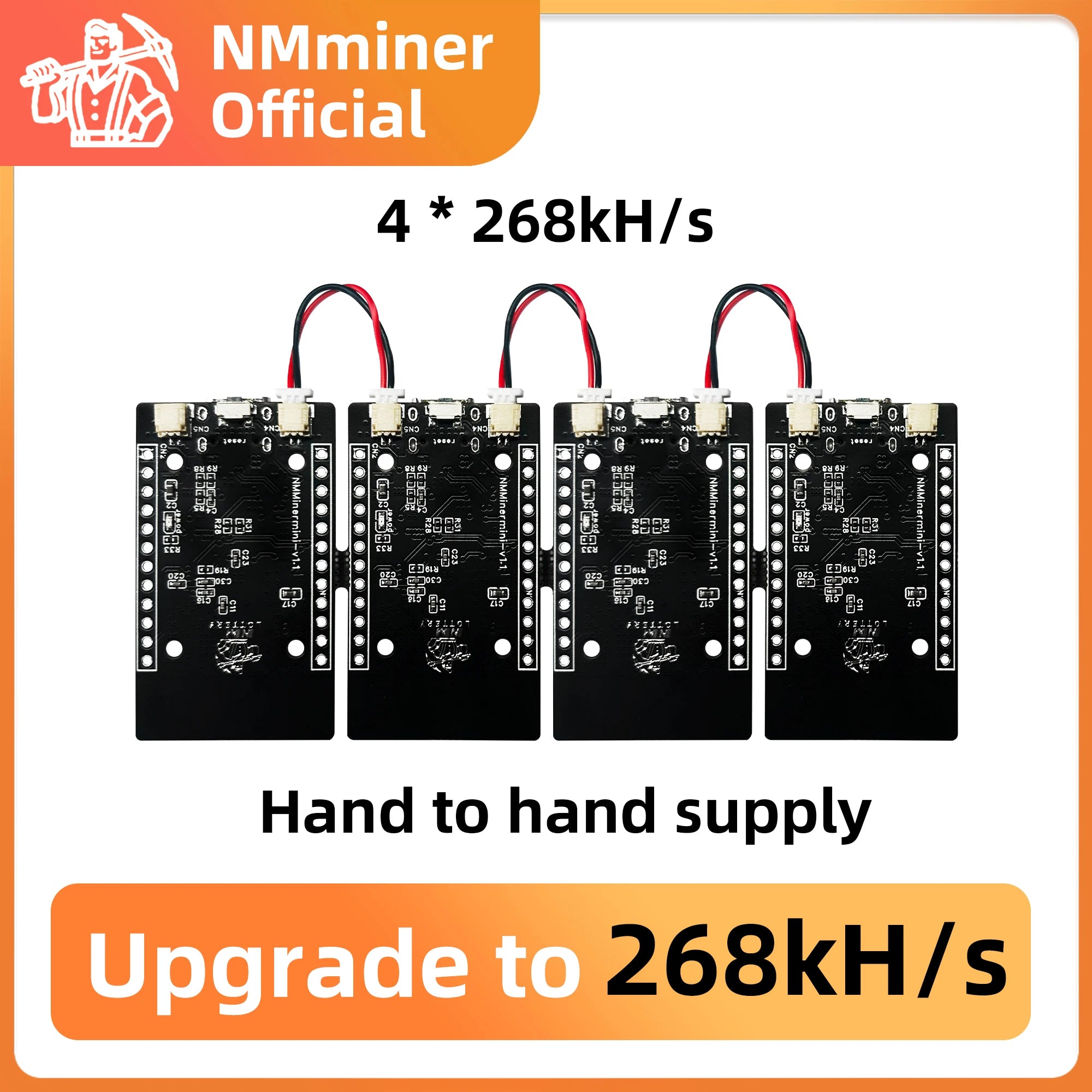

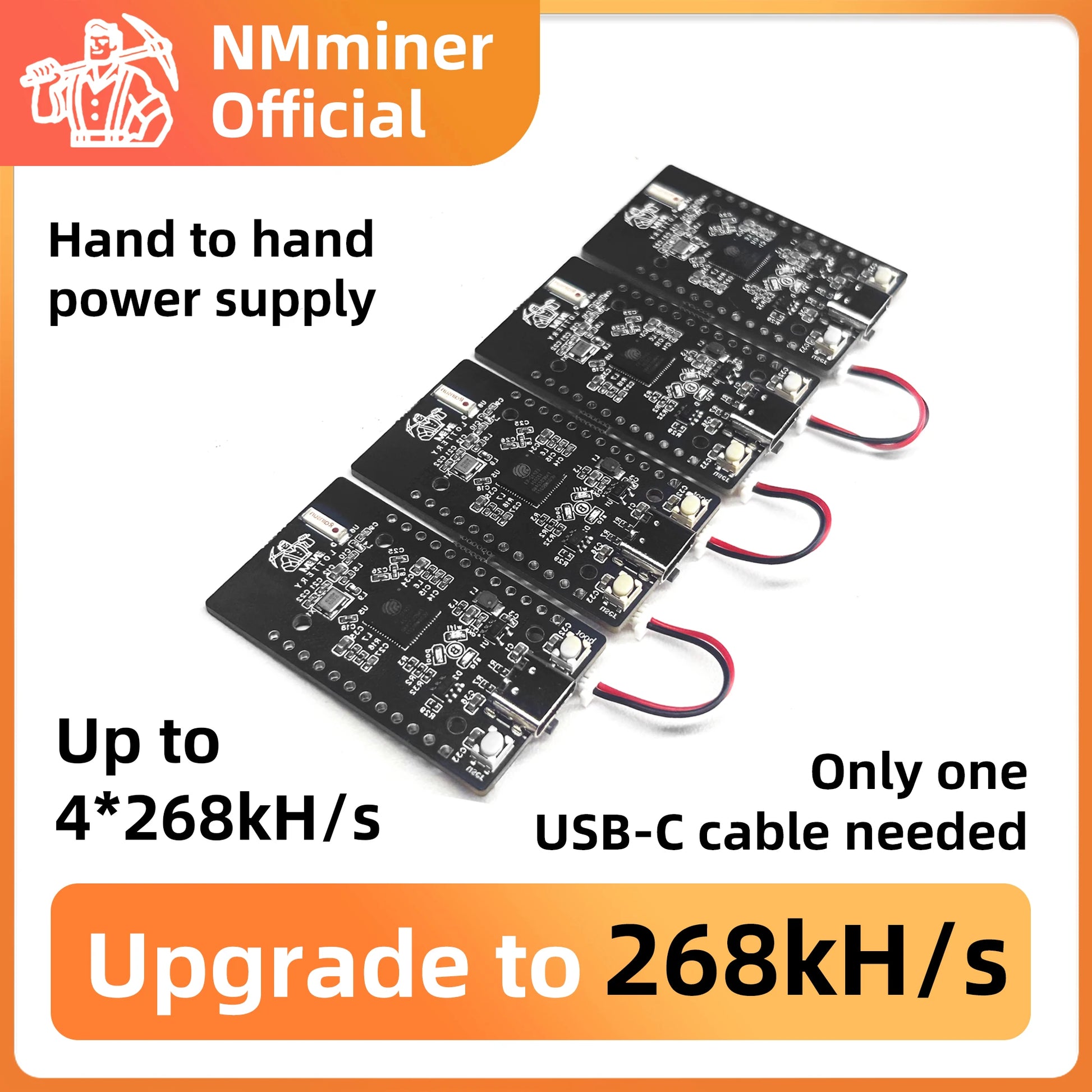

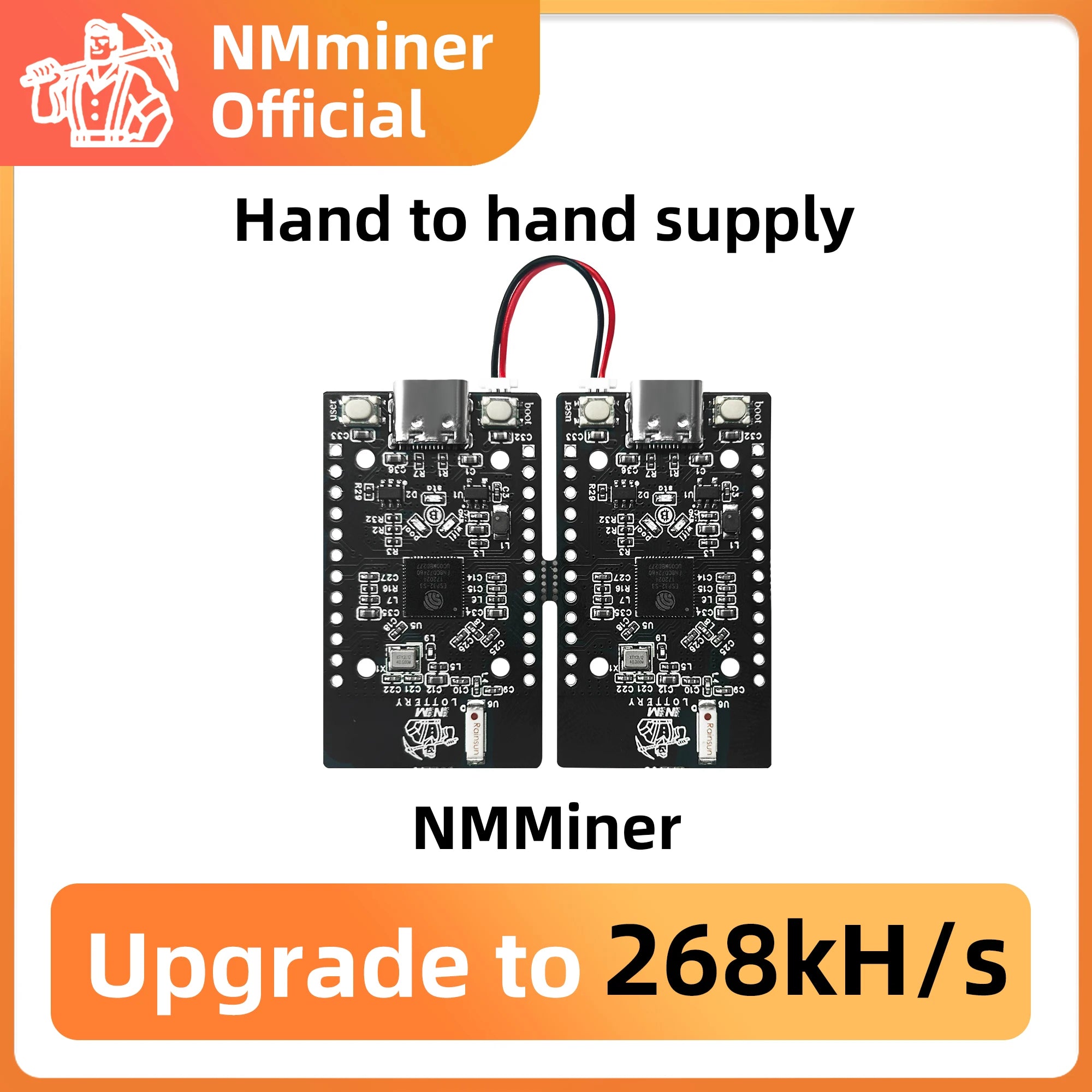

Only one USB Power is enough for the all NM-bot-chain devices, because of the one by one lottery chain structure.
Can manage multiple devices with the NMController.

Main Features
Specially ESP32-S3R8 MCU, support Wi-Fi and BLE.
Optimized Software that achieves a higher Harshrate of 256KH/s, only 4pcs can reach 1MH/s.
Hashrate increases by 300% more than other boards from rivals, which means 300% more chances of winning.
Standalone: can work as a BTC lottery miner directly over WiFi.
No External computer is needed.
Embedded: low cost, low maintenance, high availability, high reliability, low power.
Versatile: solo/pool mining.
ESP32-S3R8 MCU wifi microcontroller on board.

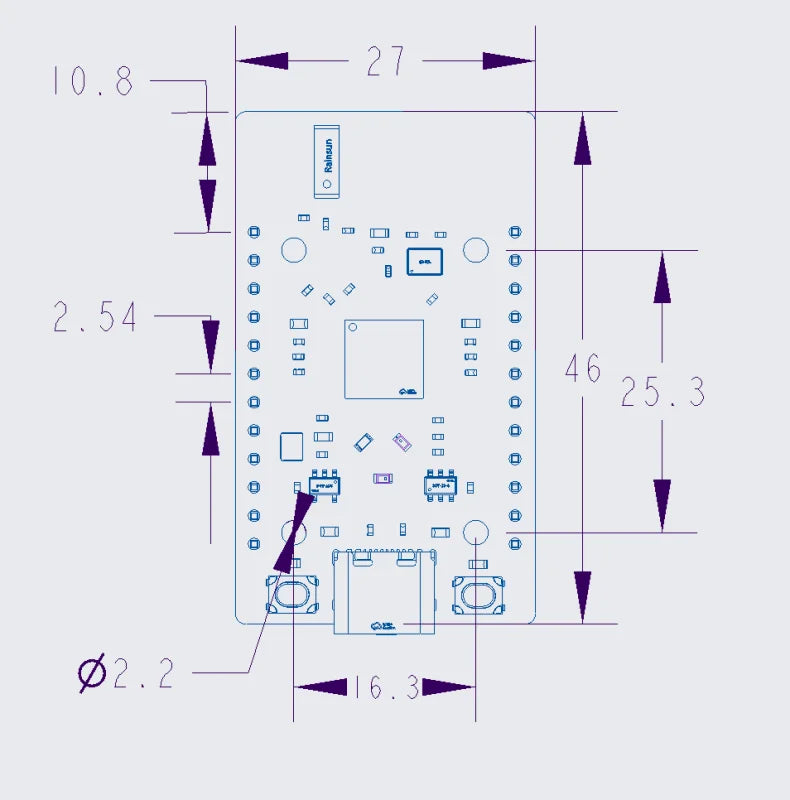

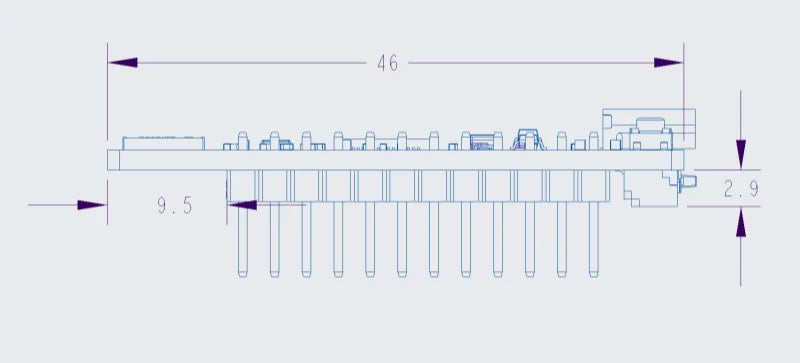

Product dimensions

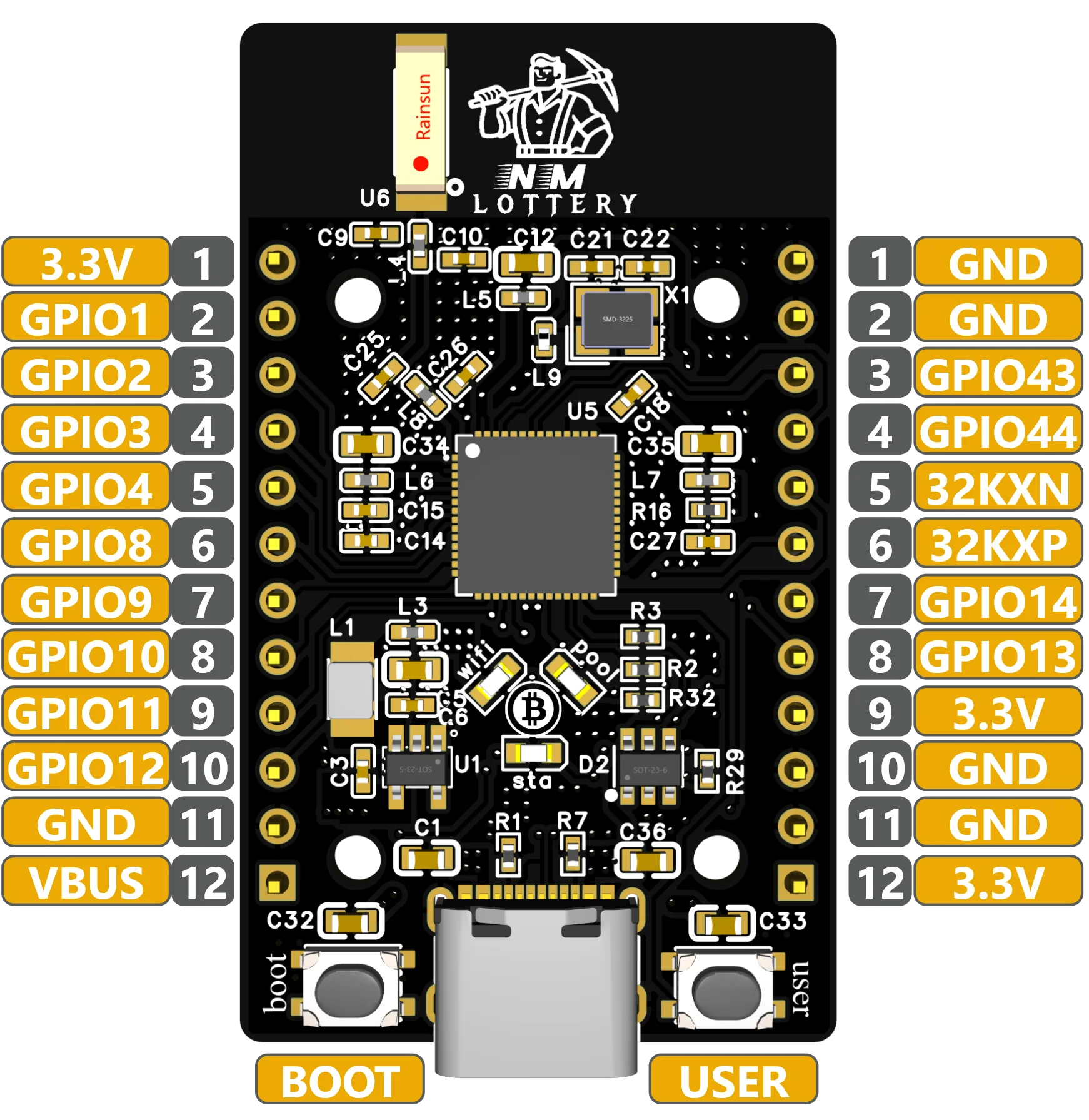

Product pinmap

Specifications
Parameters |
Description |
Master Chip |
ESP32-S3R8, Xtensa32 dual core processor, 240MHz |
Wi-Fi |
802.11 b/g/n, up to 150Mbps |
Bluetooth |
Bluetooth LE: Bluetooth 5, Bluetooth mesh |
Hardware Resource |
2*ADC, 8M*PSRAM, 3*UART; 2*I2C; 2*SPI. Etc |
Memory |
384KB ROM; |
Interface |
Type-C USB; |
Power Interface |
Type-C USB/ SH 1.0-connector * 2 |
Operating Temperature |
-20 ~ 70 ℃ |
Dimensions |
46*27*4.85mm |
Parking List
The default packing list without selecting any accessories is as follows:
Item |
Quantity |
NM-bot-chain |
x1 |
SH1.0-2P power cable |
x1 |
2.54 *12 Header Pin |
x2 |
Q & A
