SPECIFICATIONS

Brand Name: NoEnName_Null,LKPOWER

Certification: CE

Condition: New

Dimensions: 437*211*374(mm)

ESD: Supported

Feature: PORTABLE

Hign-concerned Chemical: None

Key Selling Points: PORTABLE

MIG(No-Gas): Supported

MMA(Stick): Supported

Machinery Test Report: Provided

Max. Load Power Capacity: 4.5KVA

Motor Type: DC MOTOR

Origin: Mainland China

Place of Origin: Jiangsu, China

Pulse Frequency: 0~200Hz

Pulse Welding: Supported

Rated Duty Cycle @40°C: 100%

Rated Input Voltage: 100-240V

Rated Output Current: MMA 20-160A

Rated Output Voltage: 53 V

TIG(HF+LIFT): Supported

Use: Mobile Welding

VRD: Supported

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight (KG): 16 KG

Welding Current/Voltage Range: TIG 30-180A/ MIG 30-180A

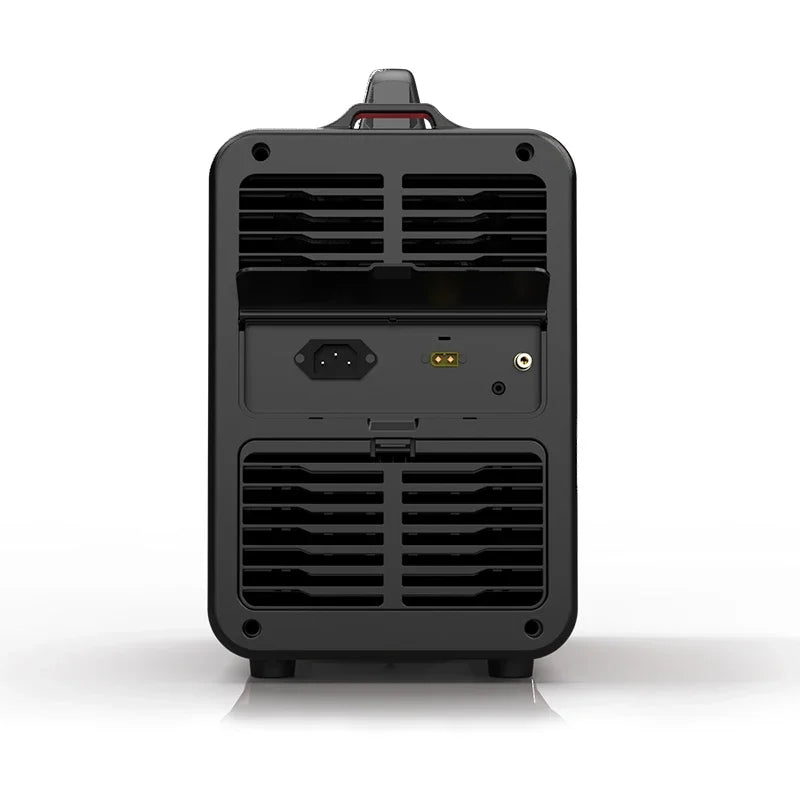

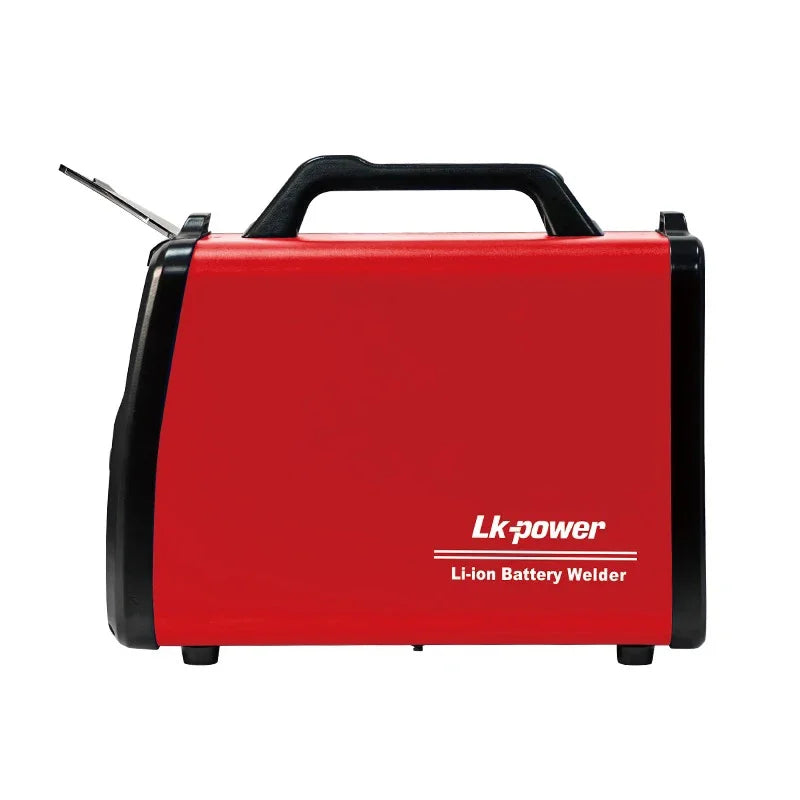

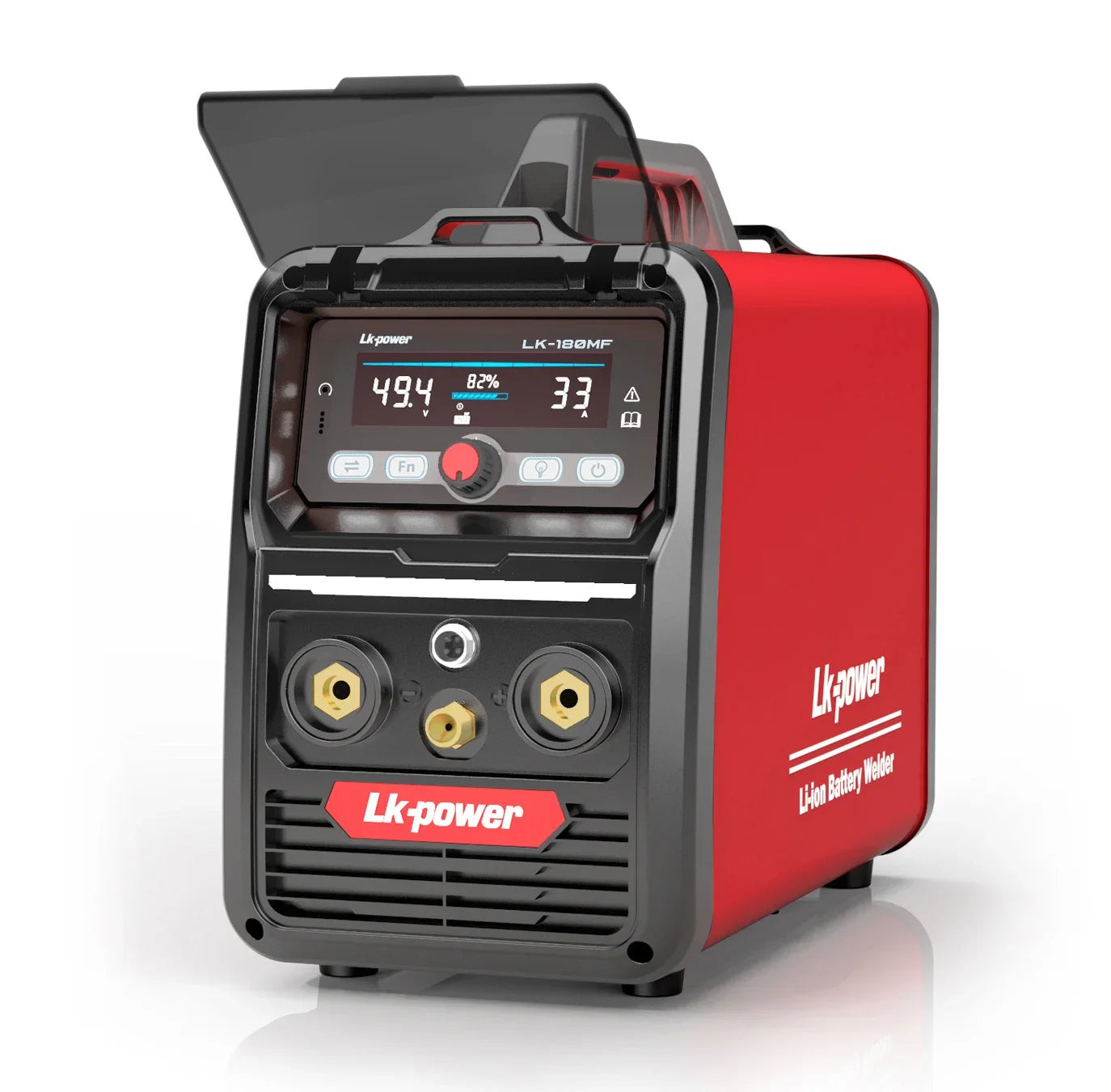

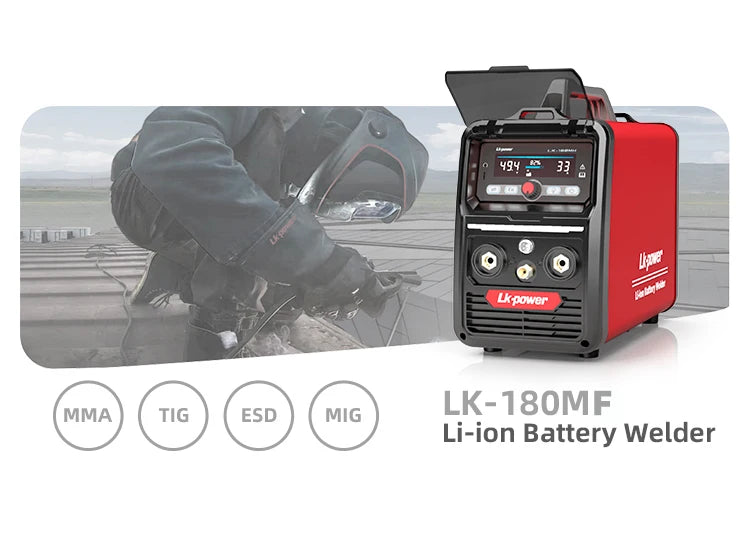

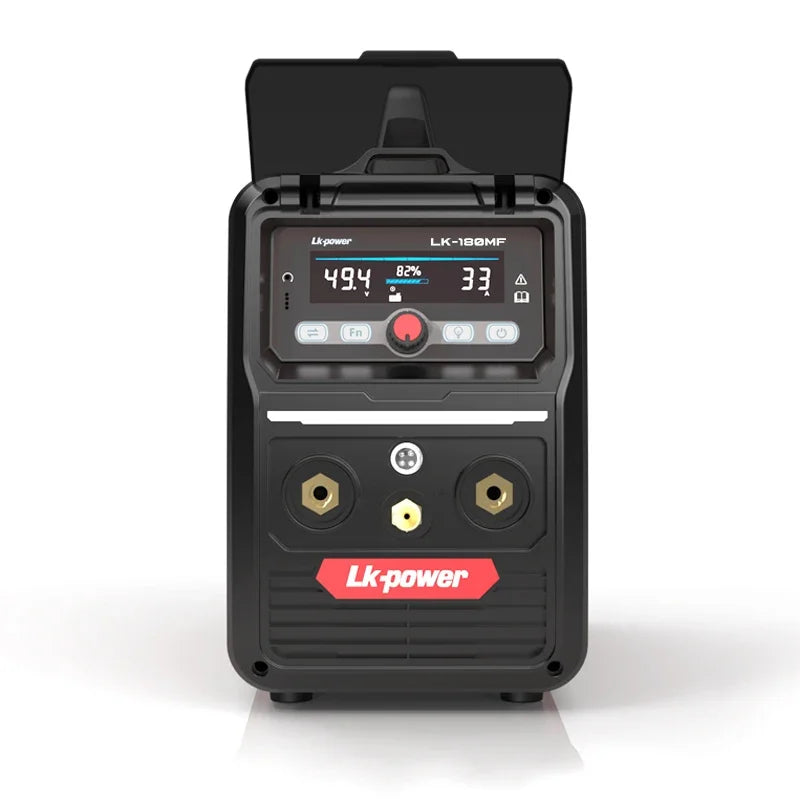

LK-180MF Battery-Powered Welder                                                                                Cordless  Portable  Rechargeable
Basic Specifications
Net Weight	16KG	Battery Capacity	623.7Wh
Product Dimension	437*211*374 mm	Battery Life Cycle	2000 times Max
Welding Processes	MMA,TIG,ESD, MIG	Protection Grade	IP23

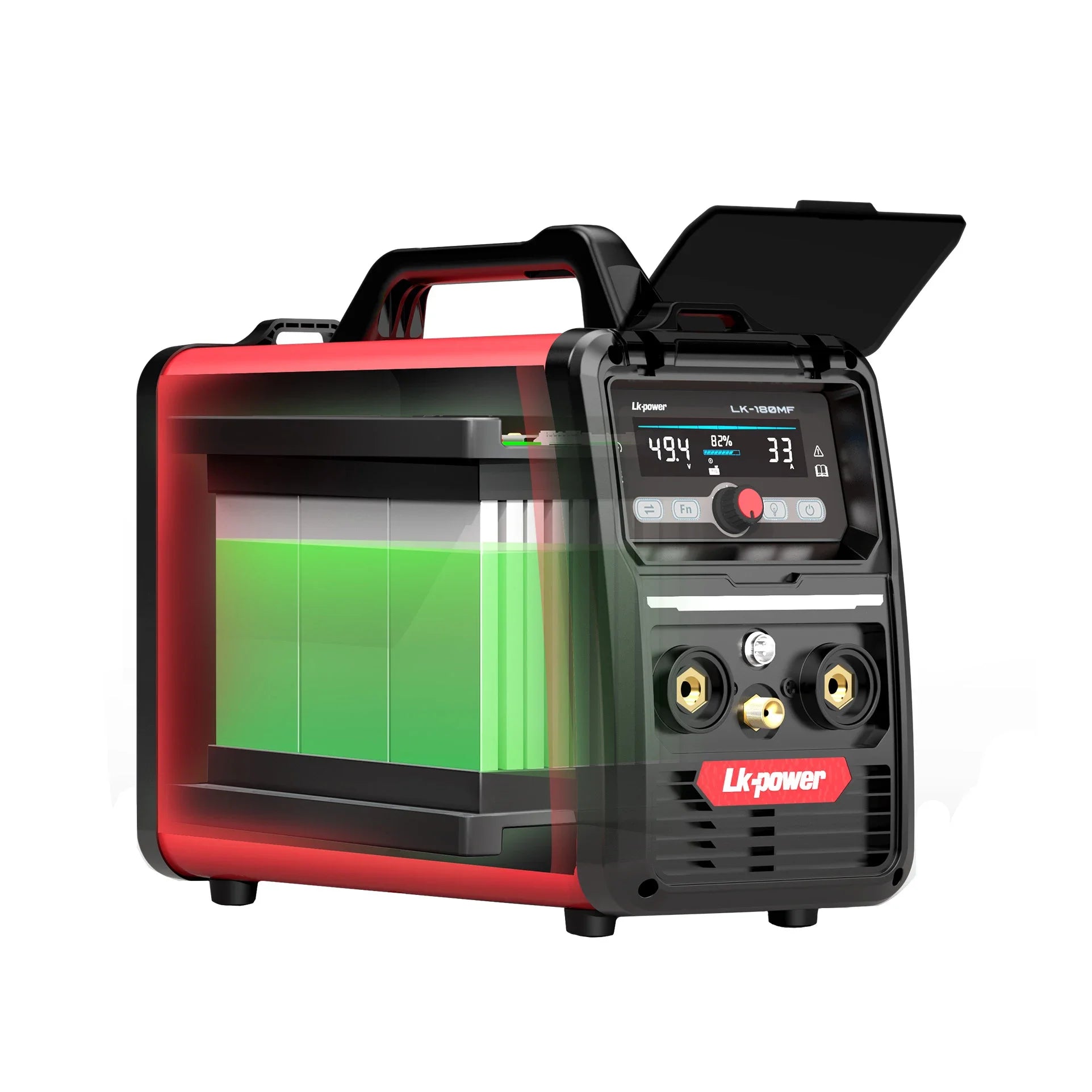

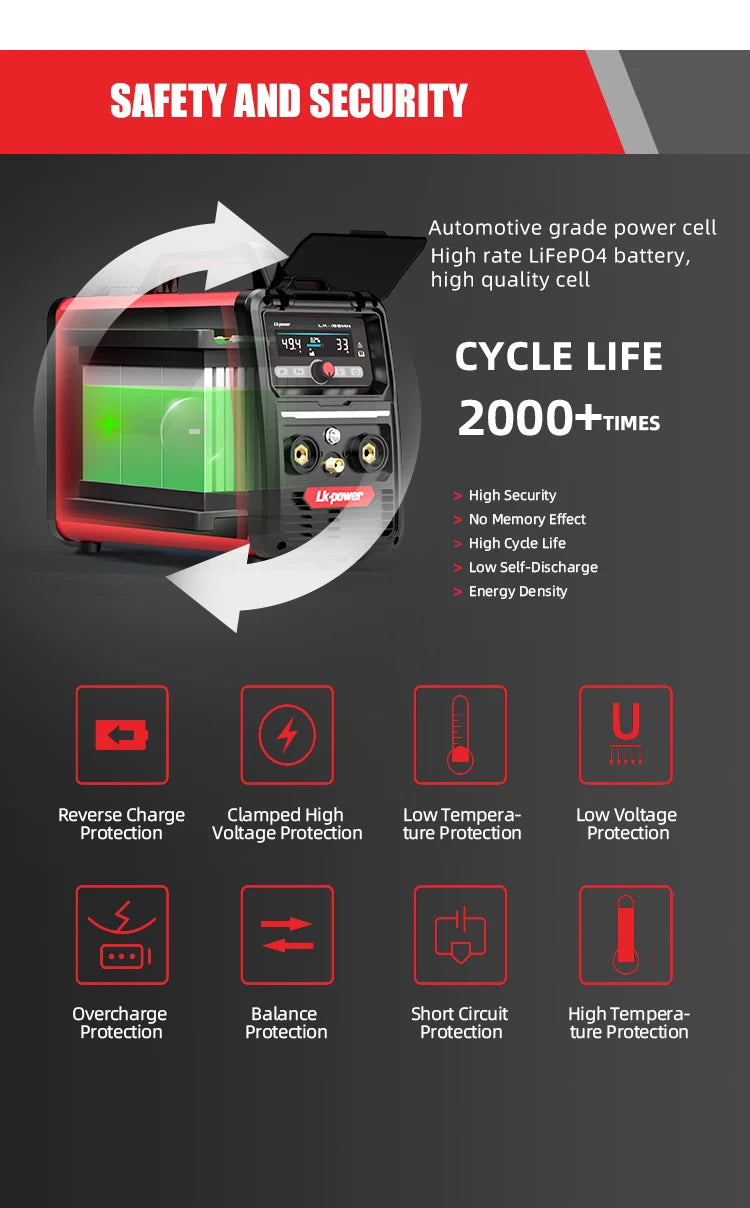

Battery Chemistry	LiFePO4	Charging ℃ Range	0°C~50°C
Rated Voltage / Ampere-Hour	49.5V / 12.6AH	Discharging ℃ Range	-10°C~60°C
MMA Parameter
Weld Current	20A~160A	No-load Voltage	40V~53V
Duty Cycle (40℃）	100% @120A	89% @140A	78% @160A
Reduced No-Load Voltage	18V	Support	VRD, Spot Welding, Anti-Stick

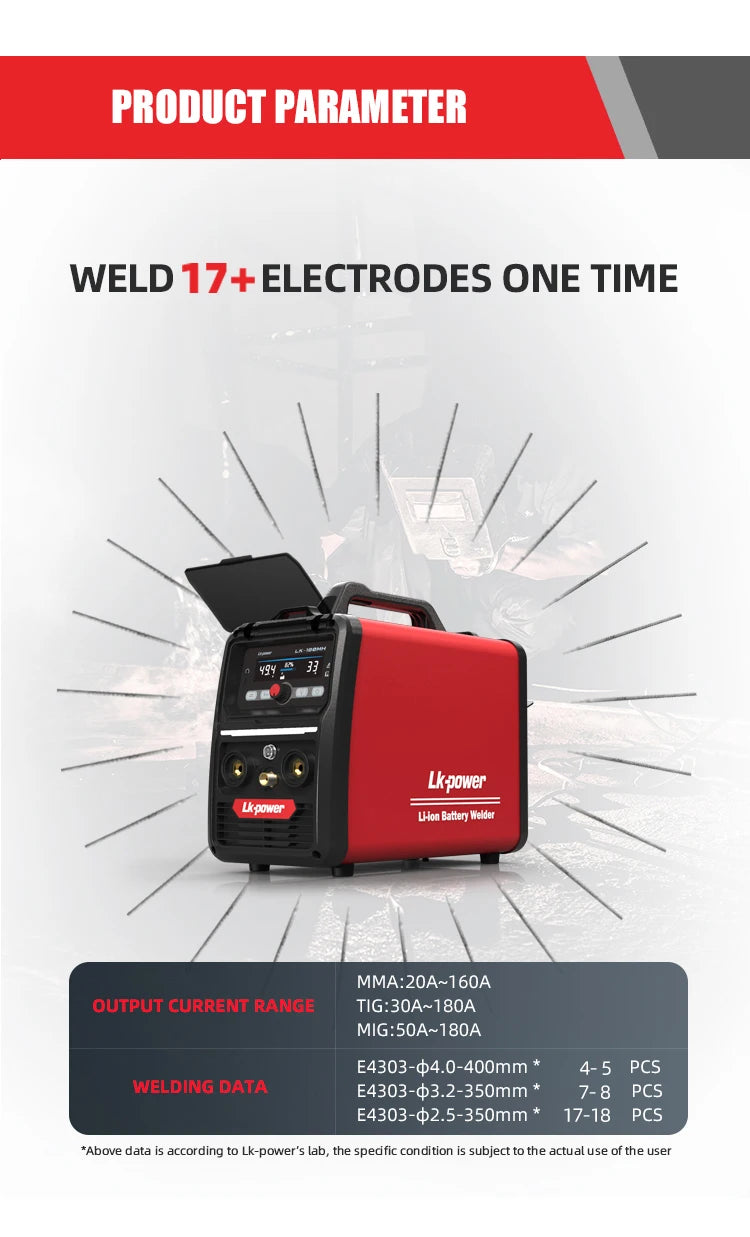

Welding Capacity			E4303-φ4.0-400mm * 4- 5 PCS
				E4303-φ3.2-350mm * 7-8PCS
				E4303-φ2.5-350mm * 17-18 PCS
Soft Start Adjustment			50%~100%   *Set Current
Hot Start Adjustment			100%~150% *Set Current(Max:180A)
Arc Force Adjustment			100%~150% *Set Current(Max:180A)
TIG Parameter
Weld Current	30A~180A	Welding Wire	φ1.0mm~φ3.0 mm
Arcing Way	LIFT (2T/4T) & HF(2T/4T)	Welding Mode	TIG-DC, TIG-Pulse
ESD Parameter
Weld Current	30A~180 A	Welding Wire	φ1.0mm~φ3.0 mm
Welding Mode	Single Spot & Continuous Spot	Welding Frequency	0 Hz~20 Hz
MIG Parameter
Weld Current	50A~180A	Welding Wire	φ0.8mm~φ1.0 mm
Wire Feeding Speed	3~10 m/min	Wire Feeder	Handheld
Welding Wire			Flux-Cored Wire

It can perform exceptionally well in outdoor areas, remote locations, and places without access to AC main power, we highly recommend the LK-180MH. This machine is incredibly versatile and can be used in a wide range of industries, including infrastructure, automotive, transportation, manufacturing, fabrication, utilities, maintenance, repair services, agriculture, farming, mining, disaster relief, DIY, Home Use, and more.
